POWER STEERING PUMP  6B – 9

DAEWOO V–121 BL4

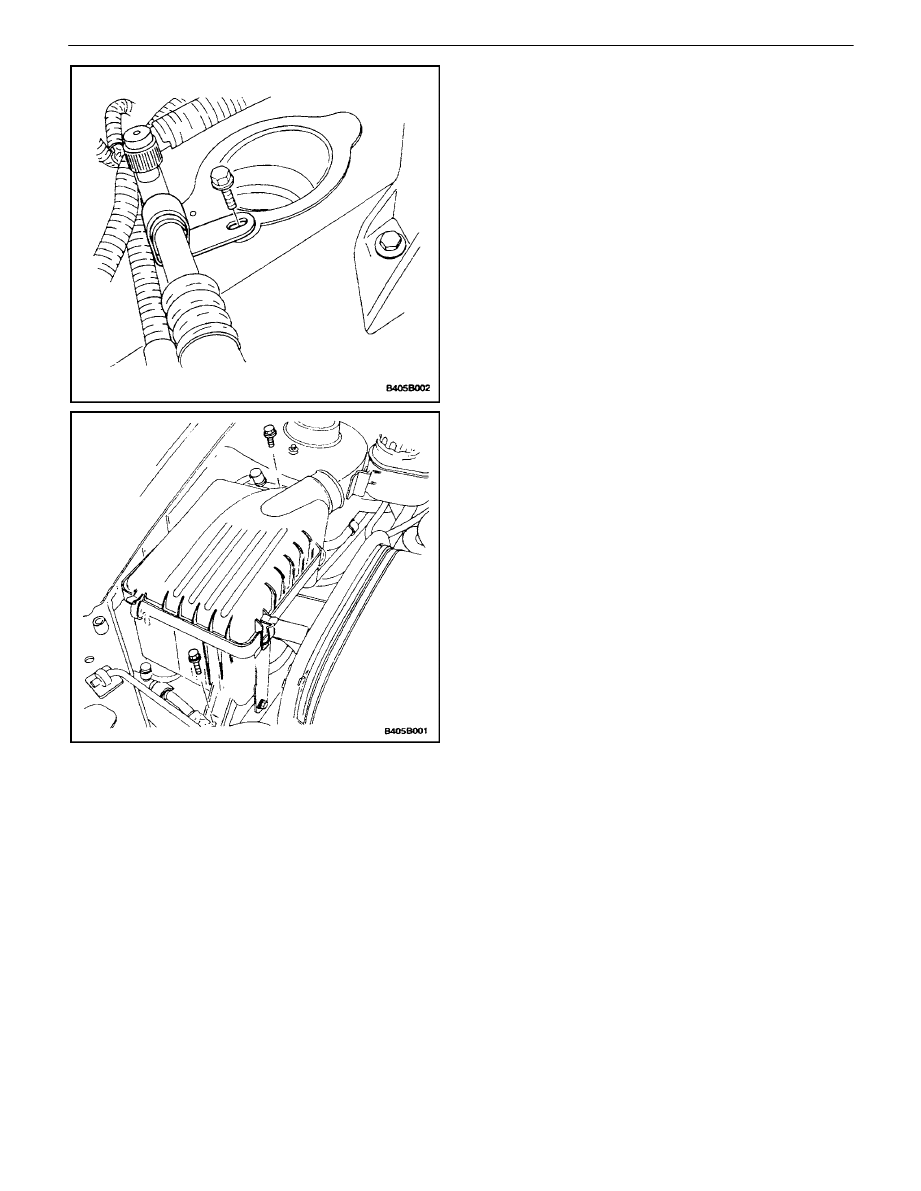

15.  Install the bolt tho the A/C refrigerant line clamp.

Tighten

Tighten the A/C refrigerant line clamp bolt to 4 N

S

m

(35 lb–ft).

16.  Install the air filter enclosure.

Tighten

Tighten the air filter enclosure bolts to 4 N

S

m (35 lb–

in).

17.  Refill the engine coolant and tighten the coolant

reservoir cap.

18.  Refill the power steering fluid. Refer toSection 6A,

Power Steering System.

19.  Bleed the power steering system. Refer toSection

6A, Power Steering System.

6B – 10

I

POWER STEERING PUMP

DAEWOO V–121 BL4

UNIT REPAIR

PUMP

Tools Required

J 25034–B Power Steering Pump Pulley Remover

Disassembly Procedure

Important : The power steering pump in this vehicle is not
serviceable. Replace, do not repair, a faulty power steer-
ing pump. Refer to”Power Steering Pump Diagnosis”in
this section.

1.  For vehicles equipped with the EVO only, remove

the power steering pump from the vehicle. Refer
to”Pump Assembly”in this section.

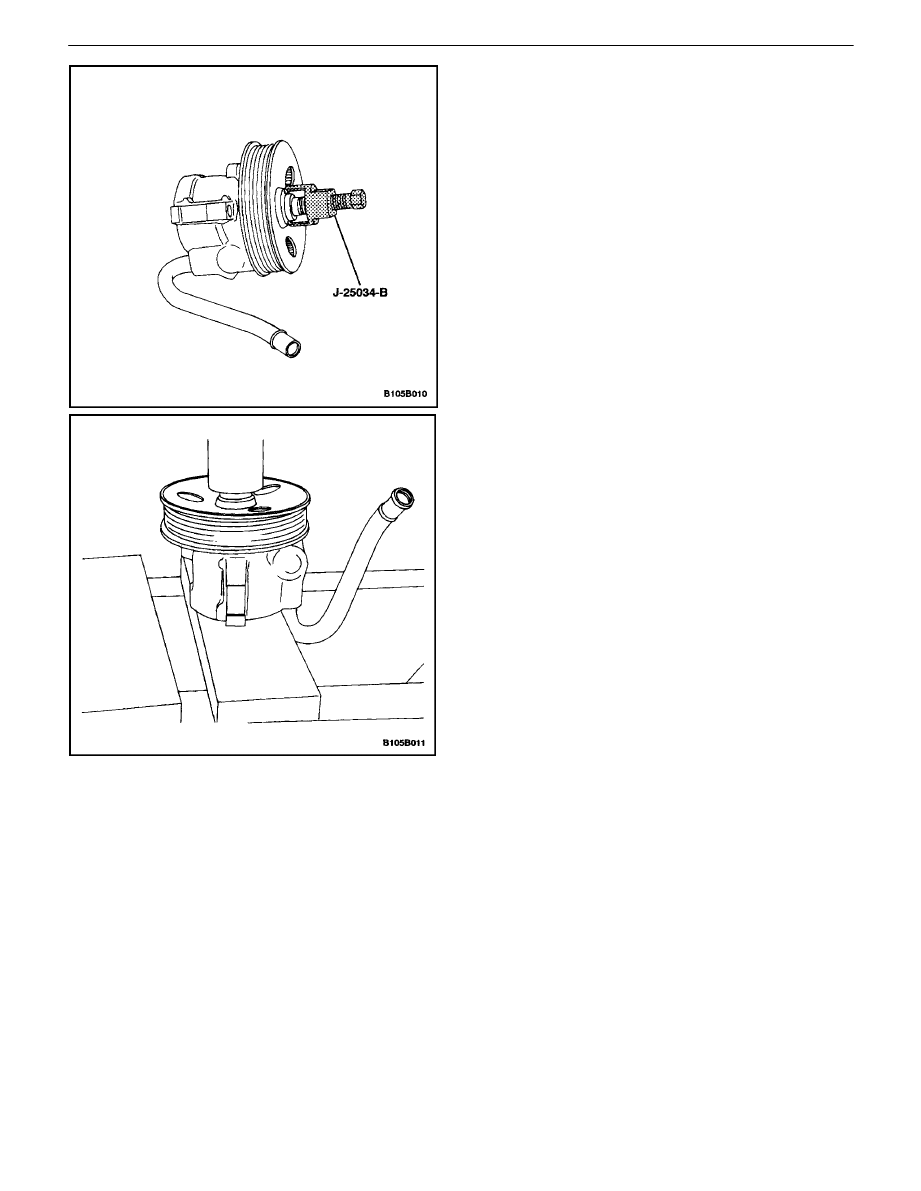

2.  Using the power steering pump pulley remover J

25034–B, press the power steering pump from the
pulley.

Assembly Procedure

1.  Press the power steering pump pulley onto the

power steering pump using a hydraulic press.

2.  Install the power steering pump onto the vehicle.

Refer to”Pump Assembly”in this section.

POWER STEERING PUMP  6B – 11

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

POWER STEERING PUMP

The power steering pump is a multivaned hydraulic pump.

The serpentine accessory drive belt on the engine drives
the power steering pump.

The power steering pump provides the hydraulic pressure
to the power steering gear.

The power steering gear uses the hydraulic pressure to
assist in steering the vehicle.

The power steering system uses a remote reservoir in or-
der to make available more space in the engine compart-
ment.

SECTION : 6A

POWER STEERING SYSTEM

TABLE OF CONTENTS

SPECIFICATIONS

6A–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

6A–1

.

SPECIAL TOOLS

6A–1

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS TABLE

6A–1

. . . . . . . . . . . . . . . . . . .

DIAGNOSIS

6A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

POWER STEERING SYSTEM PRESSURE TEST 6A

–2

POWER STEERING SYSTEM LEAK TEST

6A–2

. . .

MAINTENANCE AND REPAIR

6A–3

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

6A–3

. . . . . . . . . . . . . . . . . . . . .

BLEEDING THE POWER STEERING SYSTEM

6A–

3

CHECKING AND ADDING FLUID

6A–3

. . . . . . . . . . .

FLUID RESERVOIR

6A–4

. . . . . . . . . . . . . . . . . . . . . . .

HOSES AND PIPES

6A–6

. . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

6A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

POWER STEERING SYSTEM

6A–13

. . . . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Air Cleaner Housing Bolts

12

–

106

Power Steering Line Fittings–Cylinder End

27

20

–

Power Steering Line Fittings–Valve End

18

13

–

Power Steering Pump Pressure Line Union Nut

27

20

–

Steering Gear Inlet and Outlet Pipe Fittings

27

20

–

SPECIAL TOOLS

SPECIAL TOOLS TABLE

KM–354–B

Pressure Test

Gauge Kit
