7.  Remove the thermostat housing. Refer toSection

1D, Engine Cooling.

8.  Position a drain pan to catch the fluid that will drain

from the power steering pump hoses.

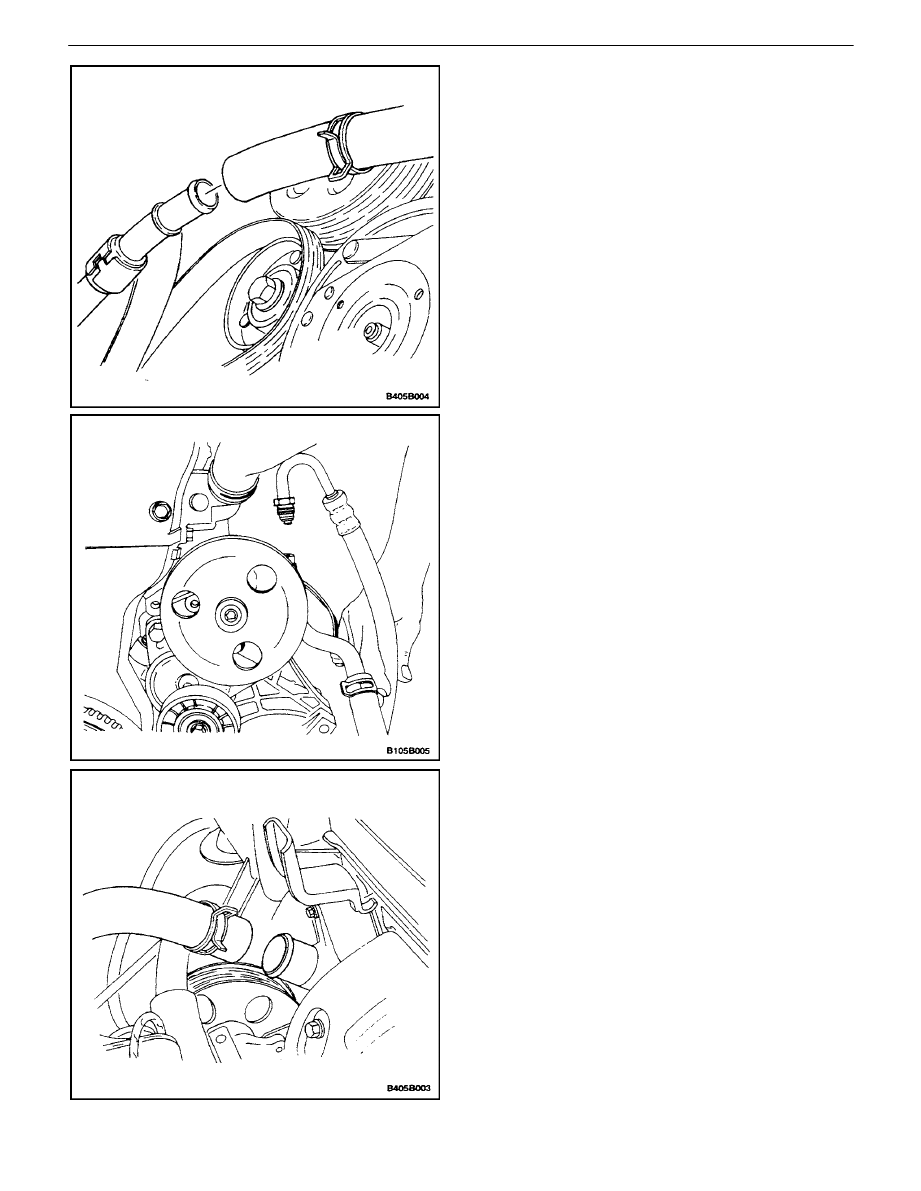

9.  Disconnect the high–pressure hose from the power

steering pump.

10.  Remove the serpentine accessory drive belt. Refer

to”Serpentine Accessory Drive Belt” in this section.

11.  Raise and suitably support the vehicle.
12.  Remove the engine under cover. Refer toSection

9N, Frame and Underbody.

13.  Remove the rubber supply hose from the metal

supply pipe.

14.  Remove the lower bolt from the pump bracket.

6B – 6

I

POWER STEERING PUMP

DAEWOO V–121 BL4

15.  Lower the vehicle.

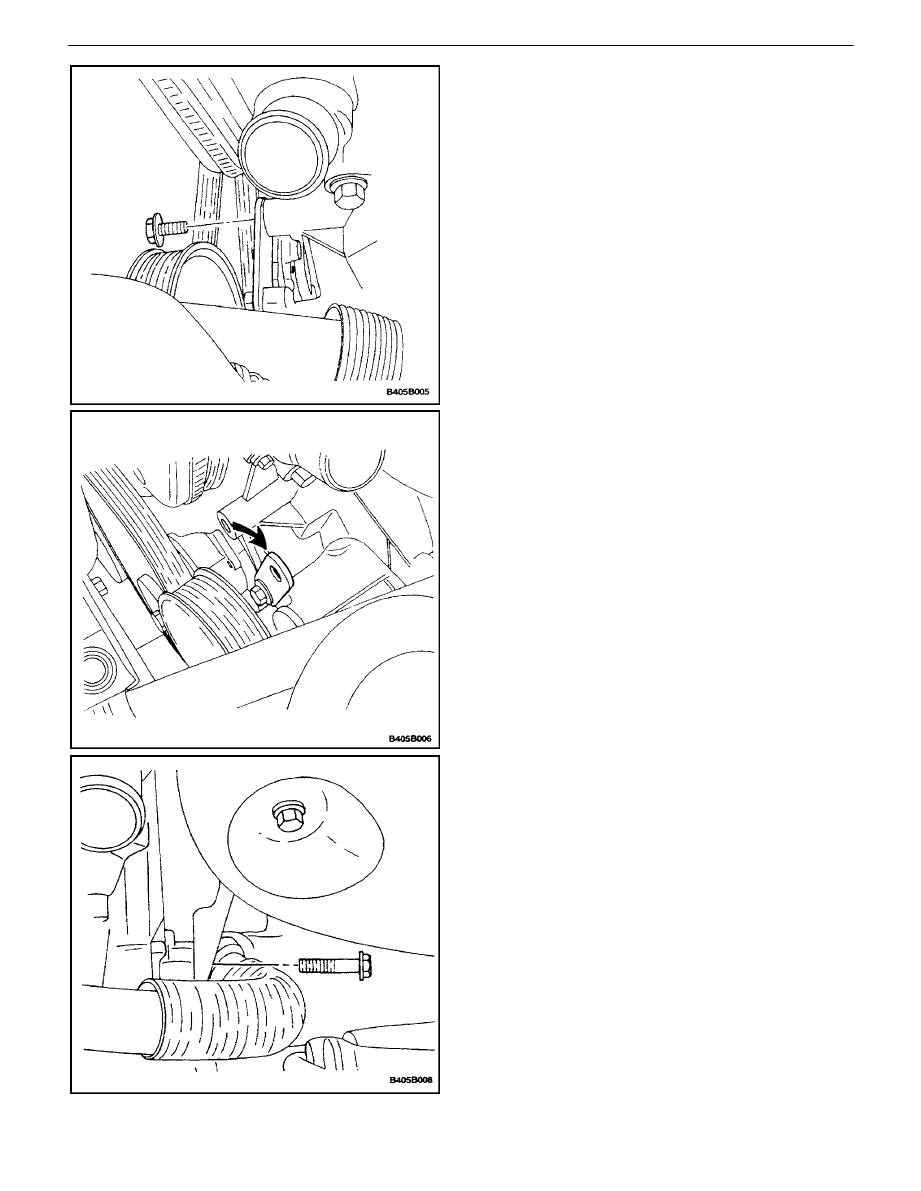

16.  Remove the bolt from the rear hole of the upper

bracket link.

17.  Loosen, but do not remove, the bolt at the front of

the upper bracket link.

18.  Swing the upper bracket link to a vertical position to

remove the pump easier.

19.  Remove the upper bolt from the pump bracket.
20.  Remove the pump.

POWER STEERING PUMP  6B – 7

DAEWOO V–121 BL4

Installation Procedure

1.  Lower the pump into the vehicle, to a point just be-

low its final mounting position.

2.  Install the thermostat housing. Refer toSection 1D,

Engine Cooling.

3.  Install the pump to the pump bracket.
4.  Install the upper bolt to the pump bracket.

Tighten

Tighten the power steering pump upper bolt to 20 N

S

m

(15 lb–ft).

5.  Swing the upper bracket link to its original position.
6.  Install the bolt to the rear hole of the upper bracket

link.

Tighten

Tighten the rear power steering upper bracket link bolt
to 25 N

S

m (18 lb–ft).

Tighten

Tighten the front power steering upper bracket link
bolt (not removed) to 25 N

S

m (18 lb–ft).

7.  Raise and suitably support the vehicle.

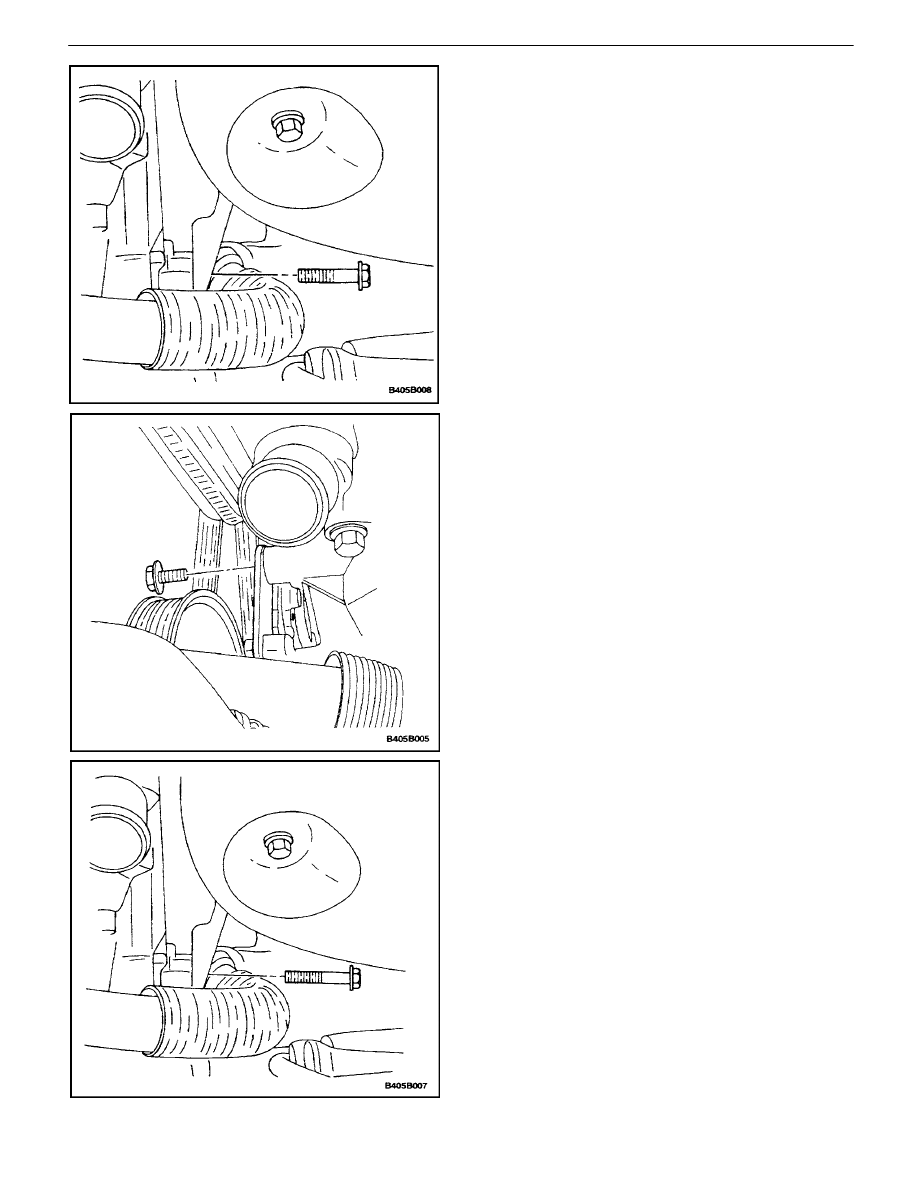

8.  Install the lower bolt to the pump bracket.

Tighten

Tighten the power steering pump lower bolts to 20
N

S

m (15 lb–ft).

6B – 8

I

POWER STEERING PUMP

DAEWOO V–121 BL4

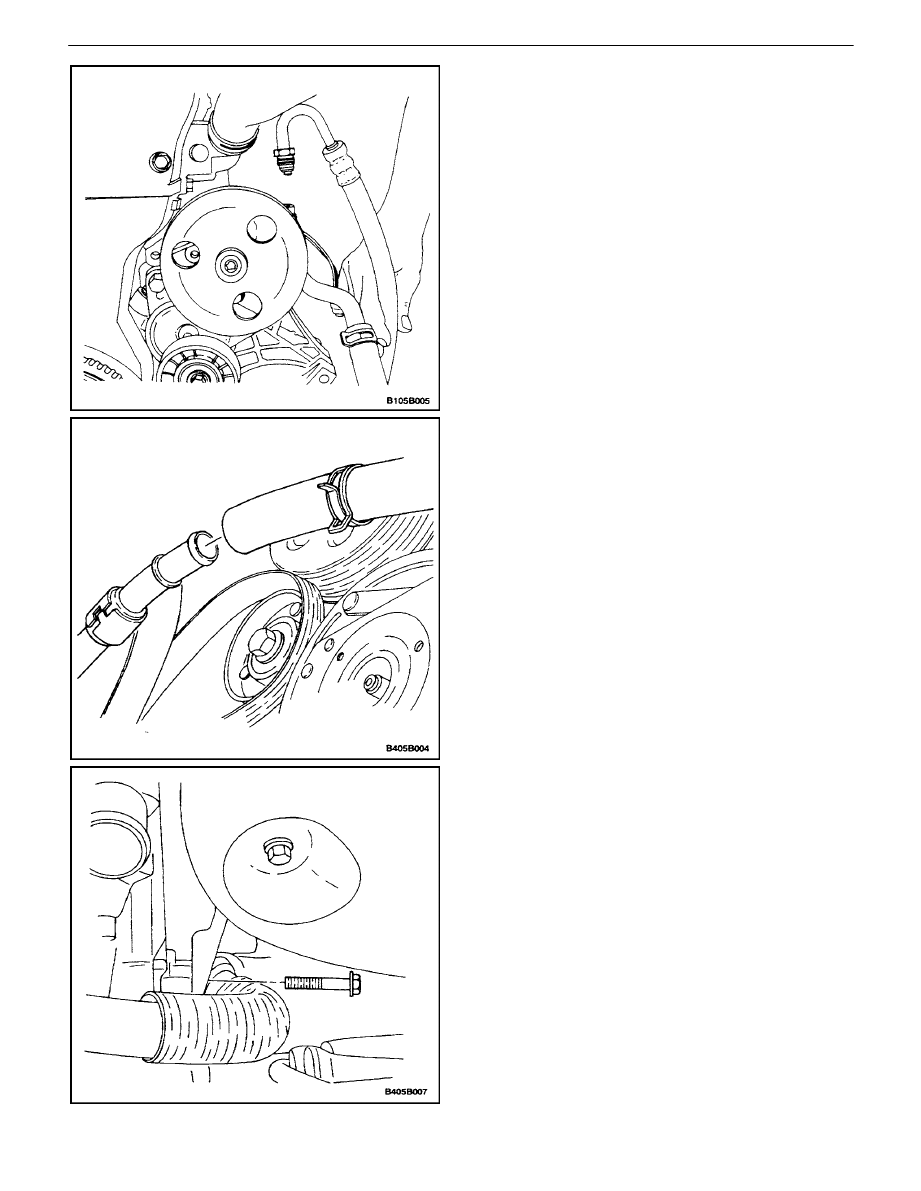

9.  Install the rubber supply hose to the metal supply

pipe.

10.  Install the engine under cover. Refer toSection 9N,

Frame and Underbody.

11.  Lower the vehicle.
12.  Install the serpentine accessory drive belt. Refer

to”Serpentine Accessory Drive Belt”

13.  Connect the high–pressure hose to the power

steering pump.

Tighten

Tighten the high–pressure hose fitting to 28 N

S

m (21

lb–ft).

14.  Install the coolant hose to the thermostat housing.
