9H – 12

I

SEATS

DAEWOO V–121 BL4

2.  Install the outer hinge bolts.

Tighten

Tighten the outer seat hinge bolts to 35 N

S

m (26 lbft).

3.  Install the seatback lock strikers. Refer to”60/40

Split Rear Seatback Lock Striker”  in this section.

4.  Install the rear seatbacks and the cushion. Refer to

”60/40 Split Rear Seatback” and”Rear Seat Cush-
ion” in this section.

60/40 SPLIT REAR SEATBACK LOCK
STRIKER

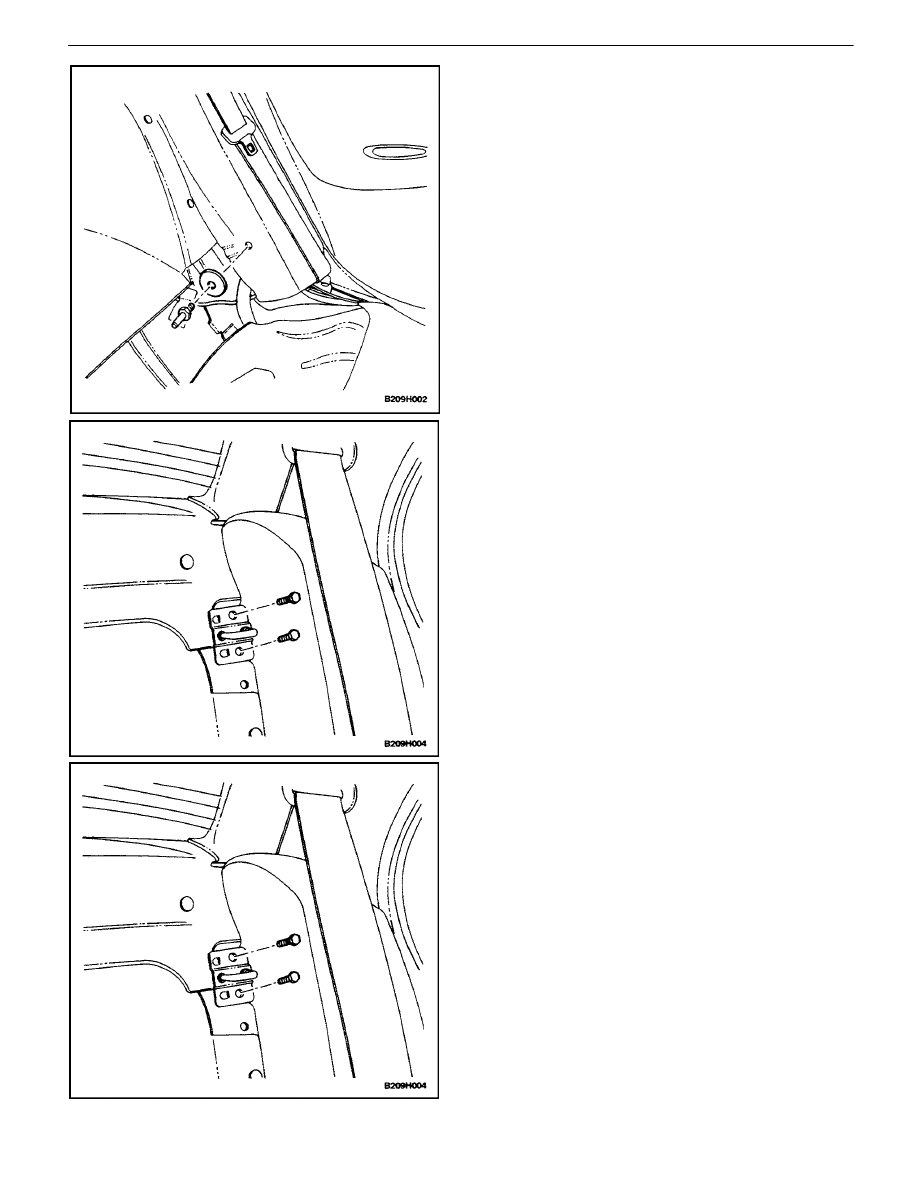

Removal Procedure

1.  Lower the rear seatbacks.
2.  Remove bolts and the seatback lock strikers.

Installation Procedure

1.  Install the seatback lock strikers with the bolts.

Tighten

Tighten the rear seatback lock striker bolts to 10 N

S

m

(89 lb–in).

2.  Raise and secure the rear seatbacks in the upright

position.

SEATS  9H – 13

DAEWOO V–121 BL4

SEAT COVERS

(Front Bucket Seat Cover Shown,
Other Seat Covers Similar)

Removal Procedure

1.  Remove the seatback and/or the cushion. Refer to

”Front Seatback,””Front Seat Cushion,””60/40 Split
Rear Seatback,” and/or”Rear Seat Cushion” in this
section.

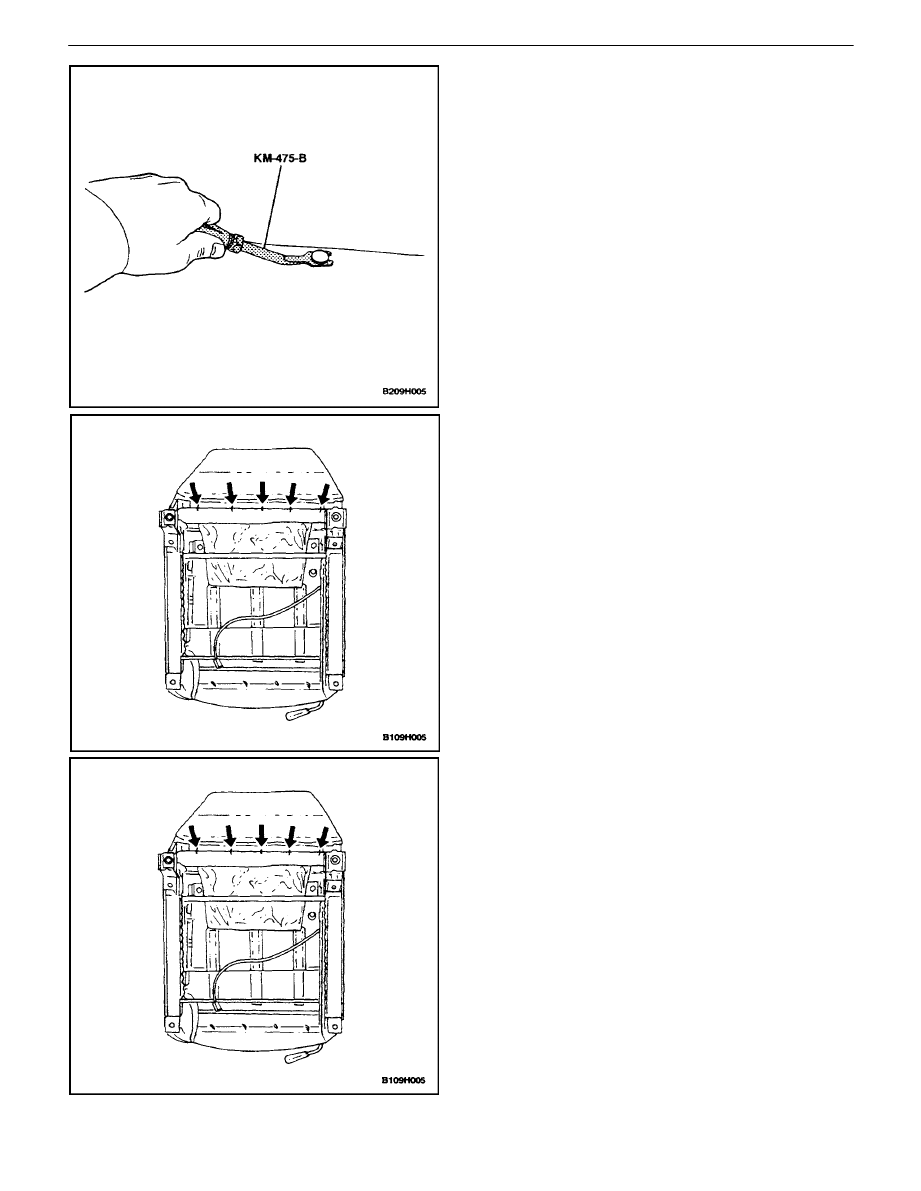

2.  Remove the hog rings from the seatback and/or the

cushion.

3.  Remove the seat cover from the seatback and/or

the cushion.

Installation Procedure

1.  Install the seat cover onto the seatback and/or the

cushion with new hog rings.

2.  Install the seatback and/or the seat cushion. Refer

to ”Front Seatback,””Front Seat Cushion,””60/40
Split Rear Seatback,” and/or”Rear Seat Cushion”
in this section.

9H – 14

I

SEATS

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

SEATS

Important :  Do not attempt to change the designed seat
position by altering the designed seat adjuster–to–floor
pan anchor provisions or the seat adjuster–to–seat frame
anchor provisions. Changing seat position could affect the
performance of the seat system.

This vehicle is equipped with bucket front seats with sepa-
rate, adjustable head restraints and a three–passenger
folding rear seat. Seat cushions and seatbacks have

formed foam pads, which fit the contours of the split seat-
back frame assembly and also the designed contour of the
seat cushion frame. The front bucket seats have a recline
adjustment. The driver

’

s side seat has a dual height ad-

justment.

60/40 SPLIT REAR SEATBACK

The 60/40 split folding rear seatback is available notch-
back and standard on the hatchback and wagon. Pressing
the button located on the top of the rear seatback will un-
lock the seatback and allow one or sides to be lowered.


SECTION : 8B

SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

CAUTION : Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING

SPECIFICATIONS

8B–3

. . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS TABLE

8B–3

. . . . . . . . . . . . . . . . . . .

SCHEMATIC AND ROUTING DIAGRAMS

8B–4

. . . . .

SUPPLEMENTAL INFLATABLE RESTRAINT

SYSTEM

8B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONNECTOR END VIEWS

8B–5

. . . . . . . . . . . . . . . . .

COMPONENT LOCATOR

8B–6

. . . . . . . . . . . . . . . . . . . .

SIR COMPONENT AND

WIRING LOCATION VIEW

8B–6

. . . . . . . . . . . . . . . .

DIAGNOSIS

8B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODES (DTC)

8B–7

. . . . .

SCAN TOOL DIAGNOSTICS

8B–7

. . . . . . . . . . . . . . .

USE OF SPECIAL TOOLS

8B–7

. . . . . . . . . . . . . . . . . .

SIR DIAGNOSTIC SYSTEM CHECK

8B–7

. . . . . . . . .

SENSING AND DIAGNOSTIC MODULE

(SDM) INTEGRITY CHECK

8B–9

. . . . . . . . . . . . . . .

AIRBAG WARNING LAMP STAYS ON

WITH IGNITION SWITCH ON

8B–11

. . . . . . . . . . . .

DTC 15 PASSENGER DEPLOYMENT

LOOP RESISTANCE HIGH

8B–13

. . . . . . . . . . . . . .

DTC 16 PASSENGER DEPLOYMENT

LOOP RESISTANCE LOW

8B–16

. . . . . . . . . . . . . . .

DTC 17 PASSENGER DEPLOYMENT

LOOP OPEN

8B–19

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC 18 PASSENGER DEPLOYMENT

LOOP SHORT TO GROUND

8B–22

. . . . . . . . . . . . .

DTC 19 PASSENGER DEPLOYMENT

LOOP SHORT TO VOLTAGE

8B–25

. . . . . . . . . . . .

DTC 21 DRIVER DEPLOYMENT

LOOP RESISTANCE HIGH

8B–28

. . . . . . . . . . . . . .

DTC 22 DRIVER DEPLOYMENT

LOOP RESISTANCE LOW

8B–31

. . . . . . . . . . . . . . .

DTC 24 DRIVER DEPLOYMENT

LOOP SHORT TO GROUND

8B–34

. . . . . . . . . . . . .

DTC 25 DRIVER DEPLOYMENT

LOOP SHORT TO VOLTAGE

8B–37

. . . . . . . . . . . .

DTC 26 DRIVER DEPLOYMENT

LOOP OPEN

8B–40

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC 51 DEPLOYMENT COMMANDED

8B–43

. . . . .

DTC 53 DEPLOYMENT COMMANDED

WITH LOOP FAULTS PRESENT

8B–45

. . . . . . . . .

DTC 61 AIRBAG WARNING

LAMP CIRCUIT OPEN

8B–47

. . . . . . . . . . . . . . . . . .

DTC 71 INTERNAL SENSING AND

DIAGNOSTIC MODULE (SDM) FAILURE

8B–50

. .

DIAGNOSTIC ILLUSTRATION 1

8B–52

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 2

8B–52

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 3

8B–52

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 4

8B–53

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 5

8B–53

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 6

8B–53

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 7

8B–54

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 8

8B–54

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 9

8B–54

. . . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 10

8B–55

. . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 11

8B–55

. . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 12

8B–55

. . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 13

8B–56

. . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 14

8B–56

. . . . . . . . . .

DIAGNOSTIC ILLUSTRATION 15

8B–56

. . . . . . . . . .

MAINTENANCE AND REPAIR

8B–57

. . . . . . . . . . . . . .

ON–VEHICLE SERVICE

8B–57

. . . . . . . . . . . . . . . . . . . .

SERVICE PRECAUTIONS

8B–57

. . . . . . . . . . . . . . . . .

DISABLING THE SIR SYSTEM

8B–57

. . . . . . . . . . . .

ENABLING THE SIR SYSTEM

8B–57

. . . . . . . . . . . . .

HANDLING, INSTALLATION,

AND DIAGNOSIS

8B–58

. . . . . . . . . . . . . . . . . . . . . . .

REPAIRS AND INSPECTIONS REQUIRED

AFTER AN ACCIDENT

8B–58

. . . . . . . . . . . . . . . . . .

ACCIDENT WITH DEPLOYMENT –

COMPONENT REPLACEMENT AND
INSPECTIONS

8B–58

. . . . . . . . . . . . . . . . . . . . . . . . .
