Daewoo Nubira. Manual - part 211

9H – 4

I

SEATS

DAEWOO V–121 BL4

Installation Procedure

1.  Install the guide sleeves into the seatback and

press them down in order to engage the guide
sleeve retaining latches.

2.  Install the head restraint into the guide sleeves.

FRONT SEATBACK

Removal Procedure

1.  Remove the front bucket seat from the vehicle. Re-

fer to”Front Bucket Seats”  in this section.

2.  Remove the hog rings at the base of the seatback.

3.  Reposition the seatback cover.
4.  Remove the bolts and the seatback.

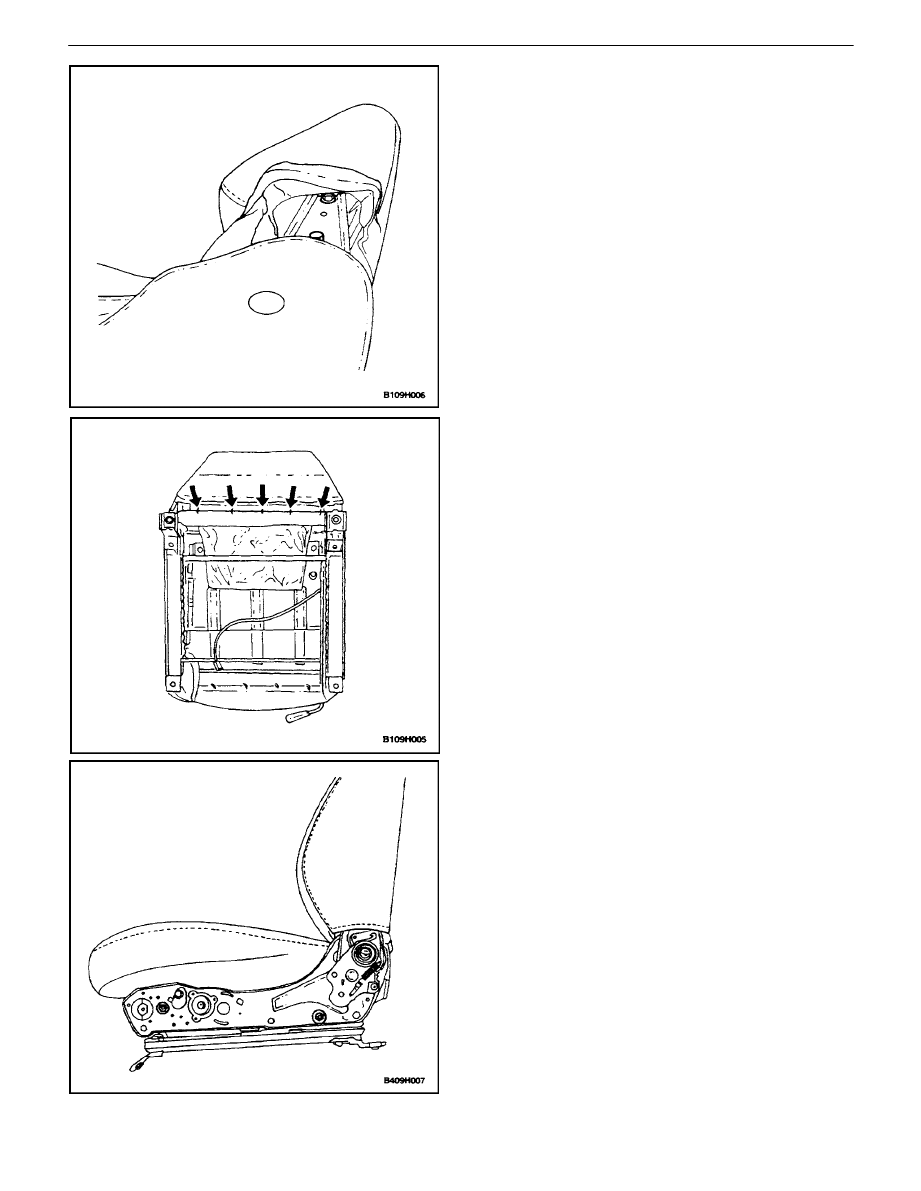

SEATS  9H – 5

DAEWOO V–121 BL4

Installation Procedure

1.  Install the seatback onto the seat cushion.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the front seatback bolts.

Tighten

Tighten the front seatback bolts to 45 N

S

m (33 lb–ft).

3.  Install the seat cover to its original position.
4.  Install new hog rings onto the base of the seat cov-

er.

5.  Install the front bucket seat in the vehicle. Refer

to”Front Bucket Seats” in this section.

FRONT SEAT CUSHION

Removal Procedure

1.  Remove the front seat from the vehicle. Refer

to”Front Bucket Seats” in this section.

2.  Remove the seat trim. Refer to”Front Seat Trim”
3.  Remove the side seat cushion bolts.

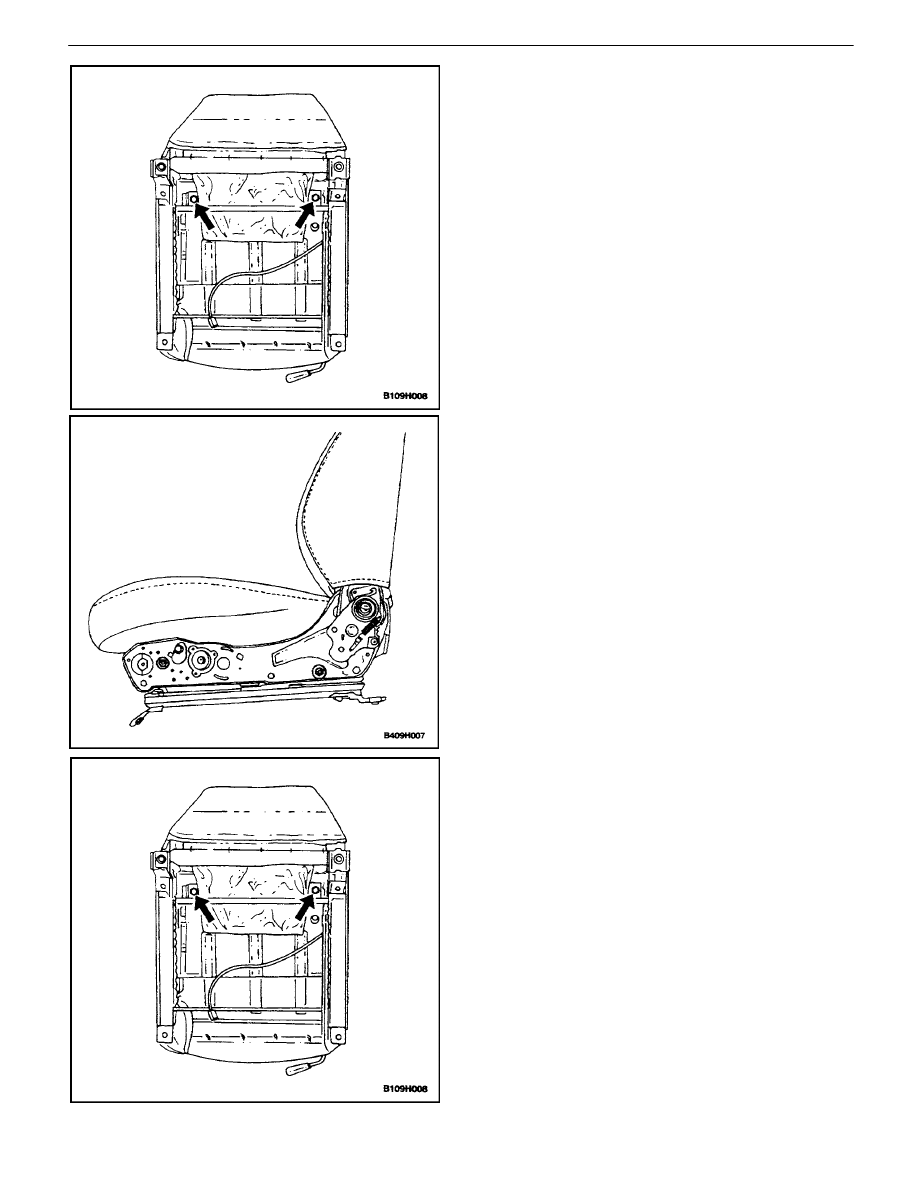

9H – 6

I

SEATS

DAEWOO V–121 BL4

4.  Remove the seat cushion bolts underneath the

cushion.

5.  Remove the cushion from the seat track.

Installation Procedure

1.  Install the cushion onto the seat track.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the seat track to the seat cushion with the

bolts on the side of the cushion.

Tighten

Tighten the side seat cushion bolts to 24 N

S

m (18 lbft).

3.  Install the seat cushion bolts underneath the cush-

ion.

Tighten

Tighten the lower seat cushion bolts to 24 N

S

m (18

lbft).

4.  Install the seat trim. Refer to”Front Seat Trim” in

this section.

5.  Install the front seat in the vehicle. Refer to”Front

Bucket Seats” in this section.

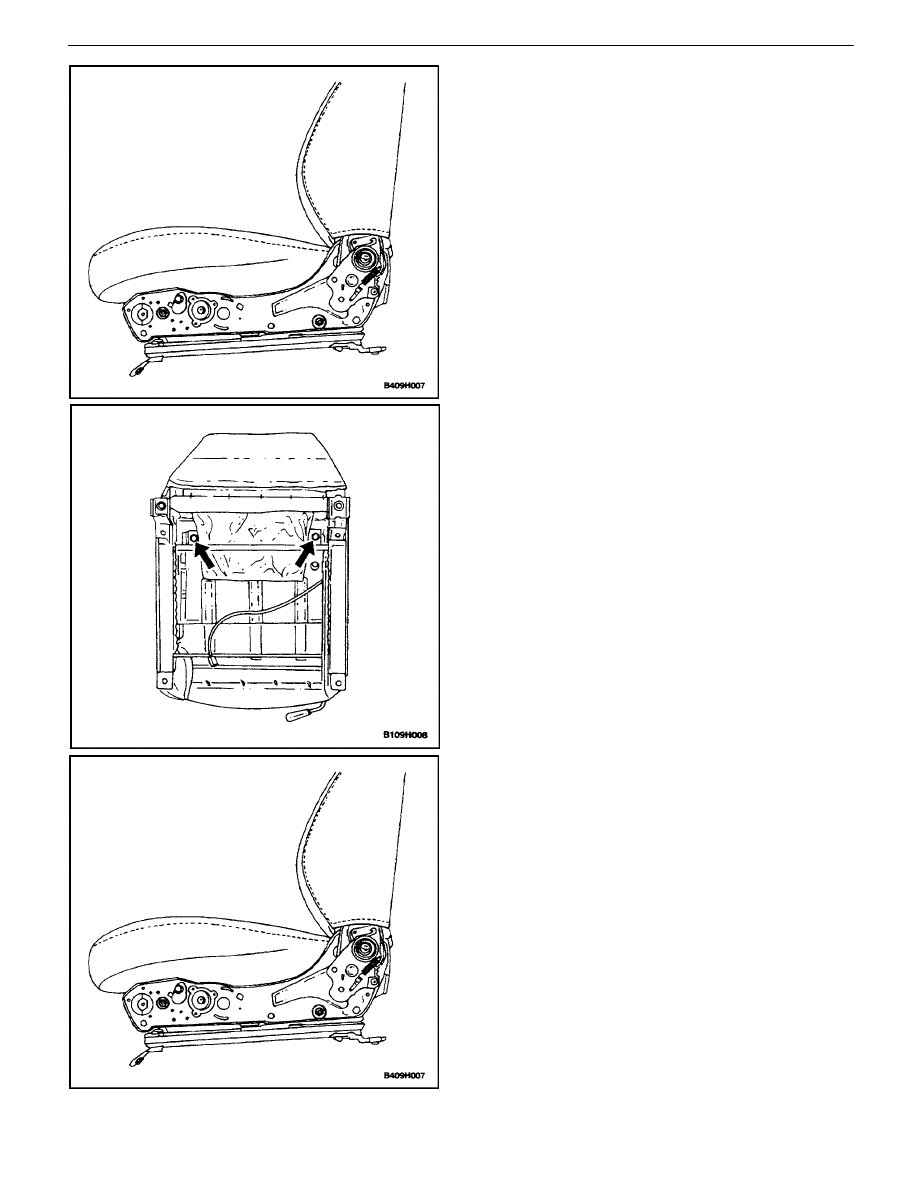

SEATS  9H – 7

DAEWOO V–121 BL4

FRONT SEAT ADJUSTERS

Removal Procedure

1.  Remove the seatback. Refer to”Front Seatback”  in

this section.

2.  Remove the seat trim. Refer to”Front Seat Trim”  in

this section.

3.  Remove the side seat cushion bolts.

4.  Remove the seat cushion bolts underneath the

cushion.

5.  Remove the seat track from the seat cushion.

Installation Procedure

1.  Install the cushion onto the seat track.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the seat track to the seat cushion with the

side seat cushion bolts.

Tighten

Tighten the side seat cushion bolts to 24 N

S

m (18 lbft).
