9E – 42

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

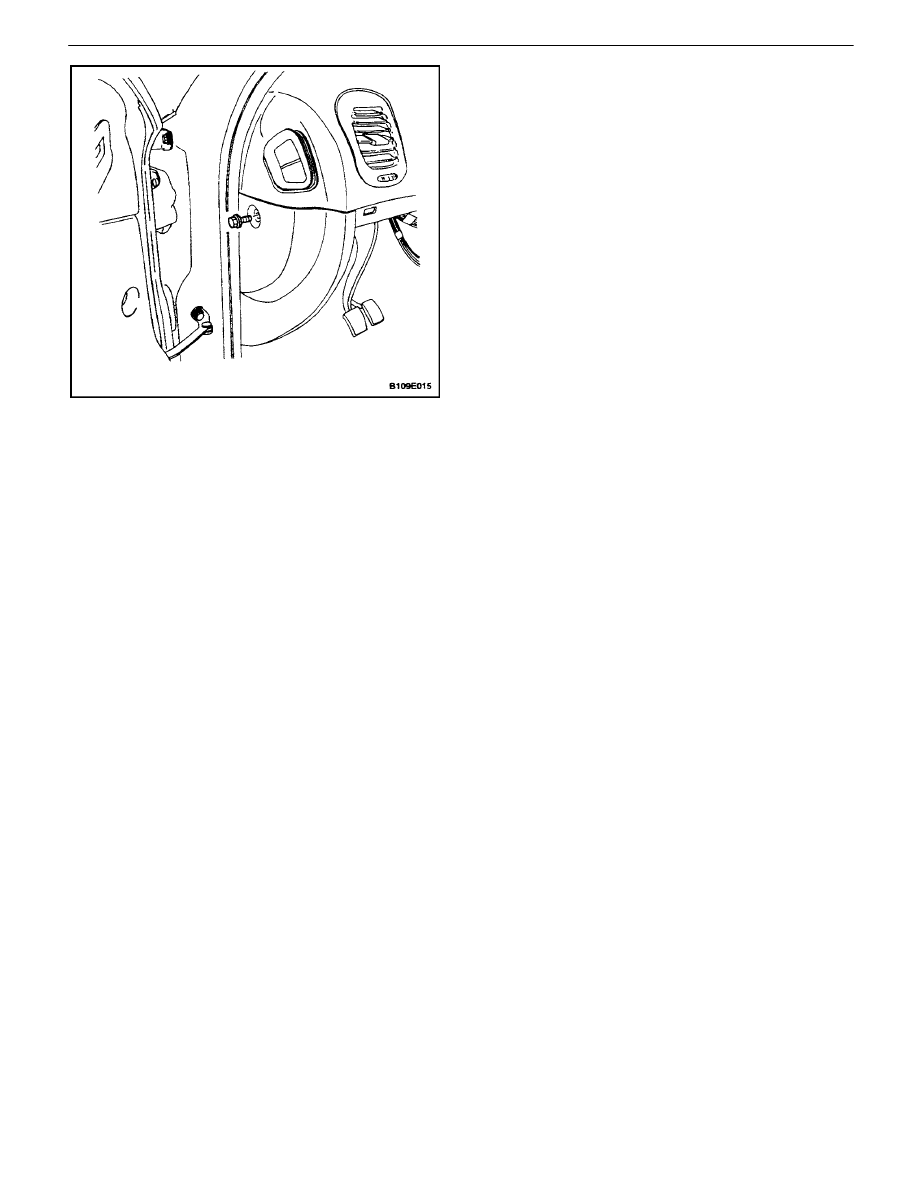

11. Install the driver and passenger knee bolsters. Re-

fer toSection 9G, Interior Trim.

12. Install the A–pillar trim panels. Refer toSection 9G,

Interior Trim.

13. Remove the instrument cluster. Refer to ”Instru-

ment Cluster” in this section.

14. Remove the HVAC controls. Refer toSection 7A,

Heating and Ventilation System.

15. Install the audio system. Refer toSection 9F, Audio

Systems.

16. Install the floor console. Refer toSection 9G, Interi-

or Trim.

17. Connect the negative battery cable.

INSTRUMENT/DRIVER INFORMATION 9E – 43

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

CIGAR LIGHTER

The cigar lighter is located the floor console. To use the
lighter, push it in completely. When the lighter is hot, it will
release itself from contact with the heating element. The
lighter and the heating element can be damaged if the
lighter is not allowed to fully release itself from the heating
element.

ASHTRAY

The ashtray is located below the audio system. To access
the ashtray, pull it out of the ashtray housing. The ashtray
lamp will go on when the parking lamps or the headlamps
are on.

INSTRUMENT PANEL VENTS

The center and the side vents in the instrument panel can
be adjusted up and down and from side to side. The side
vents can also be aimed toward the side windows in order
to defog them.

GLOVE BOX

The glove box can be opened by pulling up on the latch
handle. The glove box must be removed in order to gain
access to the passenger–side airbag module (if
equipped).

DIGITAL CLOCK

The digital clock is located cluster housing. The clock is
capable of a 12–hour or a 24–hour display.

INSTRUMENT CLUSTER

The instrument cluster is located above the steering col-
umn and in the instrument cluster trim panel. The instru-
ment cluster contains the instruments that provide the
driver with vehicle performance information. The instru-
ment cluster contains a speedometer, a tachometer, an
odometer, a trip odometer, a temperature gauge, a fuel
gauge and several indicator lamps. For replacement of the
indicator lamp bulbs contained in the instrument cluster,
refer to”Instrument Cluster Indicator Lamps Specifica-
tions” in this section.

SPEEDOMETER

The speedometer measures the speed of the vehicle. It
consists of an instrument cluster gauge connected to the
vehicle speed sensor on the transaxle output shaft.

TRIP ODOMETER

The trip odometer measures the distance the vehicle has
traveled since it was last reset. It consists of an instrument
cluster gauge connected to the sending unit on the trans-

axle output shaft. The trip odometer can be reset to zero
at any time so that the driver can record the distance trav-
eled from any starting point.

FUEL GAUGE

The fuel gauge consists of an instrument cluster gauge
connected to a sending unit in the fuel tank.

The fuel gauge indicates the quantity of fuel in the tank
only when the ignition switch is turned to ON or ACC.
When the ignition is turned to LOCK or START, the pointer
may come to rest at any position.

TEMPERATURE GAUGE

The temperature gauge consists of an instrument cluster
gauge connected to a temperature sensor that is in con-
tact with the circulating engine coolant.

The temperature gauge indicates the temperature of the
coolant. Prolonged driving or idling in very hot weather
may cause the pointer to move beyond the center of the
gauge. The engine is overheating if the pointer moves into
the red zone at the upper limit of the gauge.

INSTRUMENT CLUSTER INDICATOR
LAMPS

The instrument cluster contains indicator lamps that indi-
cate the functioning of certain systems or the exis–tence
of potential problems with the operation of the vehicle. The
indicator lamps are replaceable. For replacement of the in-
dicator lamps contained in the instrument cluster, refer
to”Instrument Cluster Indicator Lamps Specifications” in
this section.

TACHOMETER

The tachometer measures the engine

’

s speed in terms of

thousands of revolutions per minute. It consists of an in-
strument cluster gauge connected to a sending unit in the
powertrain control module (PCM)/engine control module
(ECM).

Notice : Do not operate the engine in the red zone; other-
wise, engine damage may occur.

CHIME MODULE

The chime module will sound in order to bring attention to
one or more of the following conditions:

The lights are on and the ignition switch is not in
ACC, ON, or START.

The ignition key is in the ignition switch when the
driver

’

s door is open.

The seat belt is unbuckled when the ignition switch
is in ON or START.

The

driver

’

s side door is open when the ignition is in

ACC, ON, or START.

Voltage is supplied at all times through the fuse block to
power the chime module.

SECTION : 9E

INSTRUMENTATION/DRIVER INFORMATION

CAUTION : Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

9E–2

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

9E–2

INSTRUMENT CLUSTER INDICATOR LAMPS

SPECIFICATIONS

9E–2

. . . . . . . . . . . . . . . . . . . . . . .

SCHEMATIC AND ROUTING DIAGRAMS

9E–4

. . . . .

INSTRUMENT PANEL WIRING HARNESS (1 OF 3) 9

E–4

INSTRUMENT PANEL WIRING HARNESS (2 OF 3) 9

E–5

INSTRUMENT PANEL WIRING HARNESS (3 OF 3) 9

E–6

CIGAR LIGHTER

9E–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

ASHTRAY LAMP

9E–7

. . . . . . . . . . . . . . . . . . . . . . . . . .

DIGITAL CLOCK

9E–8

. . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT PANEL ILLUMINATION

9E–9

. . . . . . .

CHIME MODULE

9E–10

. . . . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSIS

9E–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIGAR LIGHTER

9E–11

. . . . . . . . . . . . . . . . . . . . . . . . .

ASHTRAY LAMP

9E–11

. . . . . . . . . . . . . . . . . . . . . . . . .

DIGITAL CLOCK

9E–12

. . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT PANEL ILLUMINATION

9E–13

. . . . . .

SPEEDOMETER (CABLELESS)

9E–14

. . . . . . . . . . .

TACHOMETER

9E–14

. . . . . . . . . . . . . . . . . . . . . . . . . .

FUEL GAUGE

9E–16

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TEMPERATURE GAUGE

9E–17

. . . . . . . . . . . . . . . . . .

INSTRUMENT CLUSTER INDICATOR LAMPS 9E–18

CHIME MODULE

9E–20

. . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE AND REPAIR

9E–23

. . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9E–23

. . . . . . . . . . . . . . . . . . . .

CIGAR LIGHTER

9E–23

. . . . . . . . . . . . . . . . . . . . . . . . .

ASHTRAY

9E–25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CUP HOLDER

9E–26

. . . . . . . . . . . . . . . . . . . . . . . . . . .

GLOVE BOX

9E–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIGITAL CLOCK

9E–28

. . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT CLUSTER

9E–29

. . . . . . . . . . . . . . . . .

SPEEDOMETER/ODOMETER/TRIP ODOMETER 9E

–29

TACHOMETER

9E–32

. . . . . . . . . . . . . . . . . . . . . . . . . .

FUEL GAUGE

9E–33

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TEMPERATURE GAUGE

9E–34

. . . . . . . . . . . . . . . . . .

INSTRUMENT CLUSTER INDICATOR LAMPS 9E–36

CHIME MODULE

9E–36

. . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT PANEL

9E–37

. . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIGAR LIGHTER

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . .

ASHTRAY

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT PANEL VENTS

9E–43

. . . . . . . . . . . . .

GLOVE BOX

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DIGITAL CLOCK

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT CLUSTER

9E–43

. . . . . . . . . . . . . . . . .

SPEEDOMETER

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . .

TRIP ODOMETER

9E–43

. . . . . . . . . . . . . . . . . . . . . . . .

FUEL GAUGE

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TEMPERATURE GAUGE

9E–43

. . . . . . . . . . . . . . . . . .

INSTRUMENT CLUSTER INDICATOR LAMPS 9E–43

TACHOMETER

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . . .

CHIME MODULE

9E–43

. . . . . . . . . . . . . . . . . . . . . . . . .

9E – 2

INSTRUMENTATION/DRIVER INFORMATION

DAEWOO V–121 BL4

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

Lb–Ft

Lb–In

Ashtray Housing Screw

2.5

–

Chime Module Screws

–

Cup Holder Screws

2.5

–

Digital Clock Screws

Fuel Gauge Screws

2.5

–

Glove Box Screws

5.5

–

Instrument Cluster Screws

–

Instrument Panel–to–Body
Bolts

–

Instrument Panel–to–Bulk-
head Nuts

–

Instrument Panel–to–Floor
Bolts

–

Instrument Panel–to–Heat-
er Air Distribution Case
Screw

–

Instrument Panel–to–Pedal
Assembly Bolts

–

Speedometer/Odometer
Screws

2.5

–

Steering Column Bolts

–

Steering Column Nuts

–

Tachometer Screws

2.5

–

Temperature Gauge
Screws

2.5

–

Ticket Holder Screws

INSTRUMENT CLUSTER INDICATOR LAMPS

SPECIFICATIONS

Indicator Lamp

Color

Bulb

ABS Warning

Amber

14V1.4W

Airbag Warning

Red

14V1.4W

Automatic Transmission Shift Posi-
tion Indicator
Park
Reverse
Neutral
Drive
3
2
1

Green

Red

Green
Green
Green
Green
Green

14V1.4W
14V1.4W
14V1.4W
14V1.4W
14V1.4W
14V1.4W
14V1.4W

Battery Charge Indicator

Red

14V1.4W

Door Opening Warning

Red

14V1.4W
