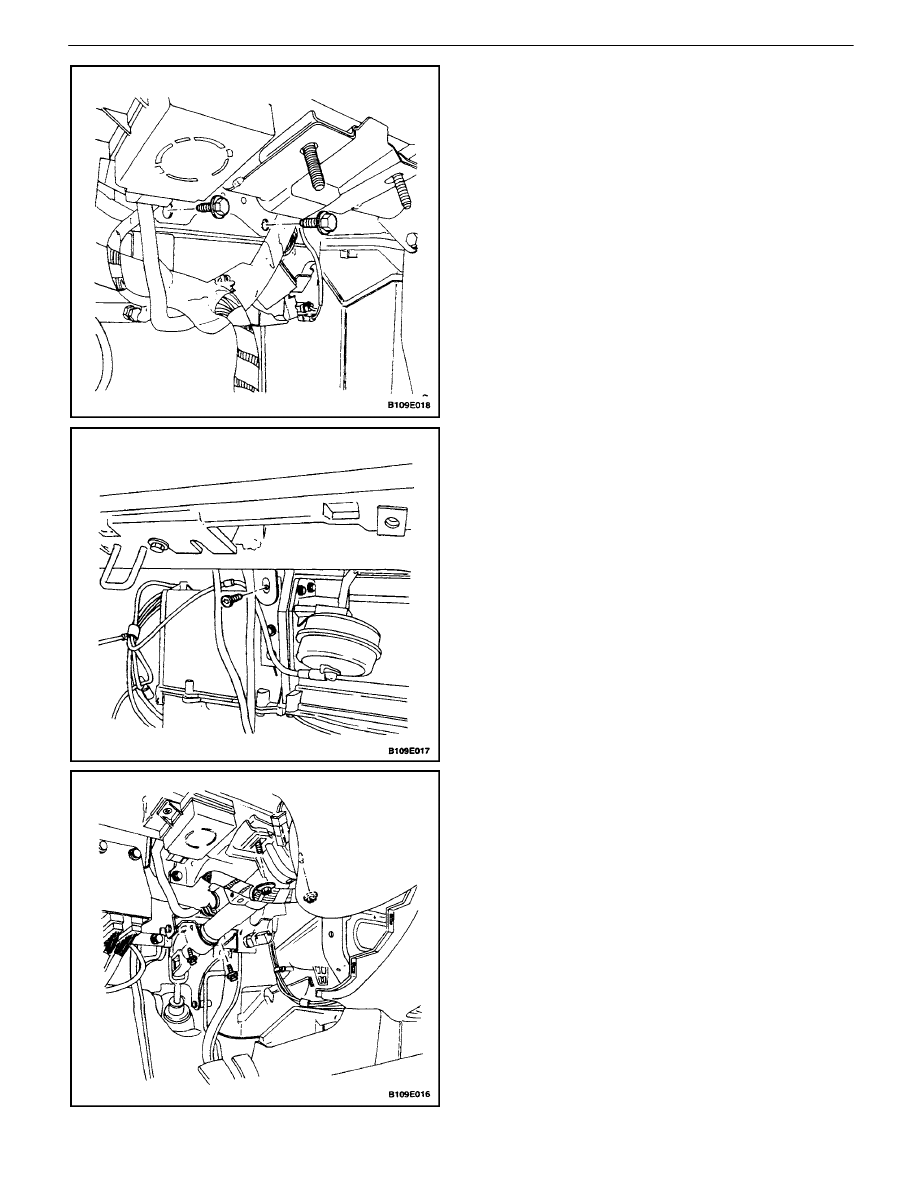

12.  Remove the bolts that secure the instrument panel

to the pedal assembly.

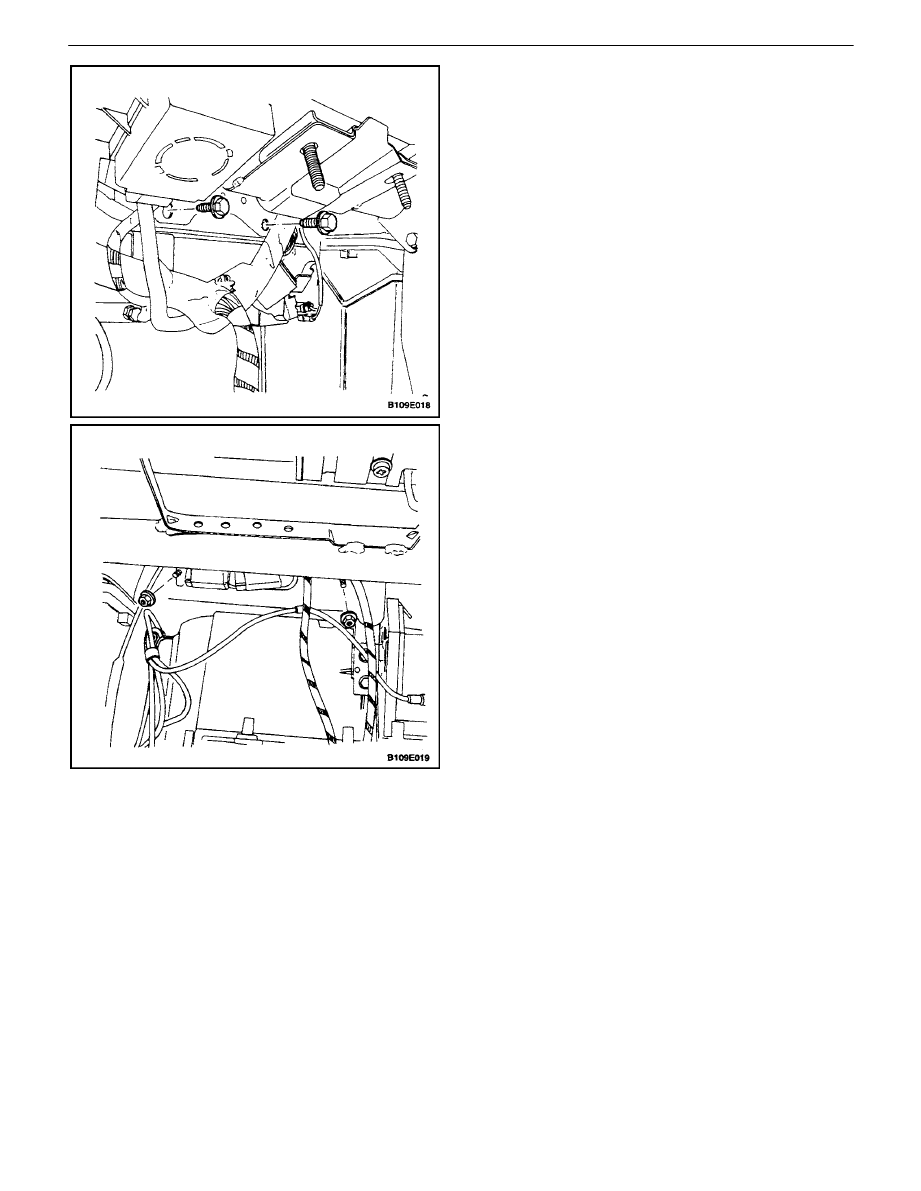

13.  Remove the nuts that secure the back of the instru-

ment panel to the bulkhead.

INSTRUMENT/DRIVER INFORMATION  9E – 39

DAEWOO V–121 BL4

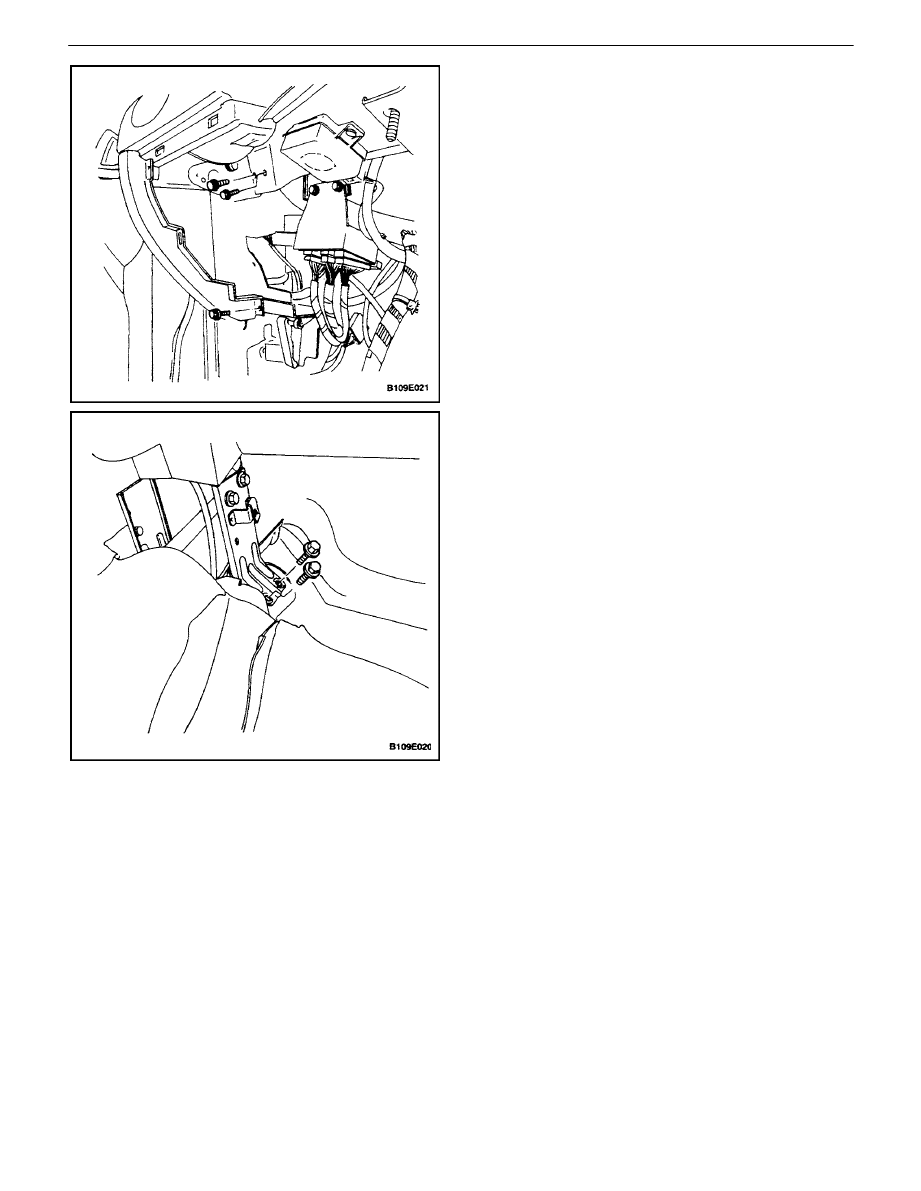

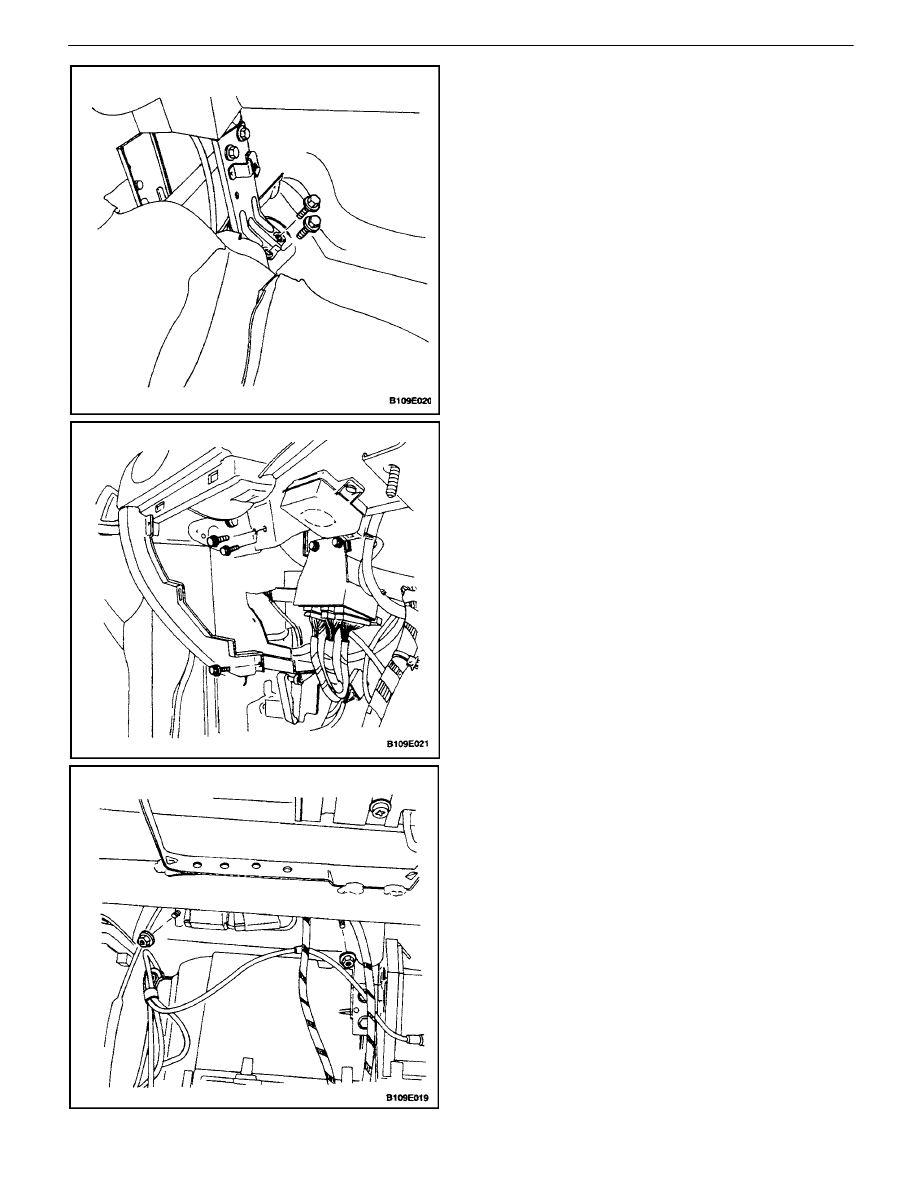

14.  Remove the bolts that secure the bottom of the in-

strument panel to the floor.

15.  Remove the bolts that secure the sides of the in-

strument panel to the body.

16.  Disconnect the instrument panel electrical connec-

tors.

17.  Remove the Instrument panel.

Installation Procedure

1.  Position the instrument panel in the vehicle.
2.  Connect the instrument panel electrical connectors.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.  Install the nuts securing the back of the instrument

panel to the bulkhead.

Tighten

Tighten the instrument panel–to–bulkhead nuts to 10
N

S

m (89 lb–in).

9E – 40

I

INSTRUMENT/DRIVER INFORMATION

DAEWOO V–121 BL4

4.  Install the bolts securing the sides of the instrument

panel to the body.

Tighten

Tighten the instrument panel–to–body bolts to 22
N

S

m (16 lb–ft).

5.  Install the bolts securing the bottom of the instru-

ment panel to the floor.

Tighten

Tighten the instrument panel–to–floor bolts to 22 N

S

m

(16 lb–ft).

INSTRUMENT/DRIVER INFORMATION  9E – 41

DAEWOO V–121 BL4

6.  Install the bolts securing the instrument panel to the

pedal assembly.

Tighten

Tighten the instrument panel–to–pedal assembly
bolts to 22 N

S

m (16 lb–ft).

7.  Install the screw securing the instrument panel to

the heater air distribution case.

Tighten

Tighten the instrument panel–to–heater air distribu-
tion case screw to 2 N

S

m (18 lb–in).

8.  Raise the steering column.
9.  Connect the steering column electrical connectors.
10.  Install the nuts and the bolts securing the steering

column.

Tighten

Tighten the steering column nuts to 22 N

S

m (16 lb–ft).

Tighten the steering column bolts to 22 N

S

m (16 lb–ft).
