Daewoo Nubira. Manual - part 104

GENERAL INFORMATION  0B – 21

DAEWOO V–121 BL4

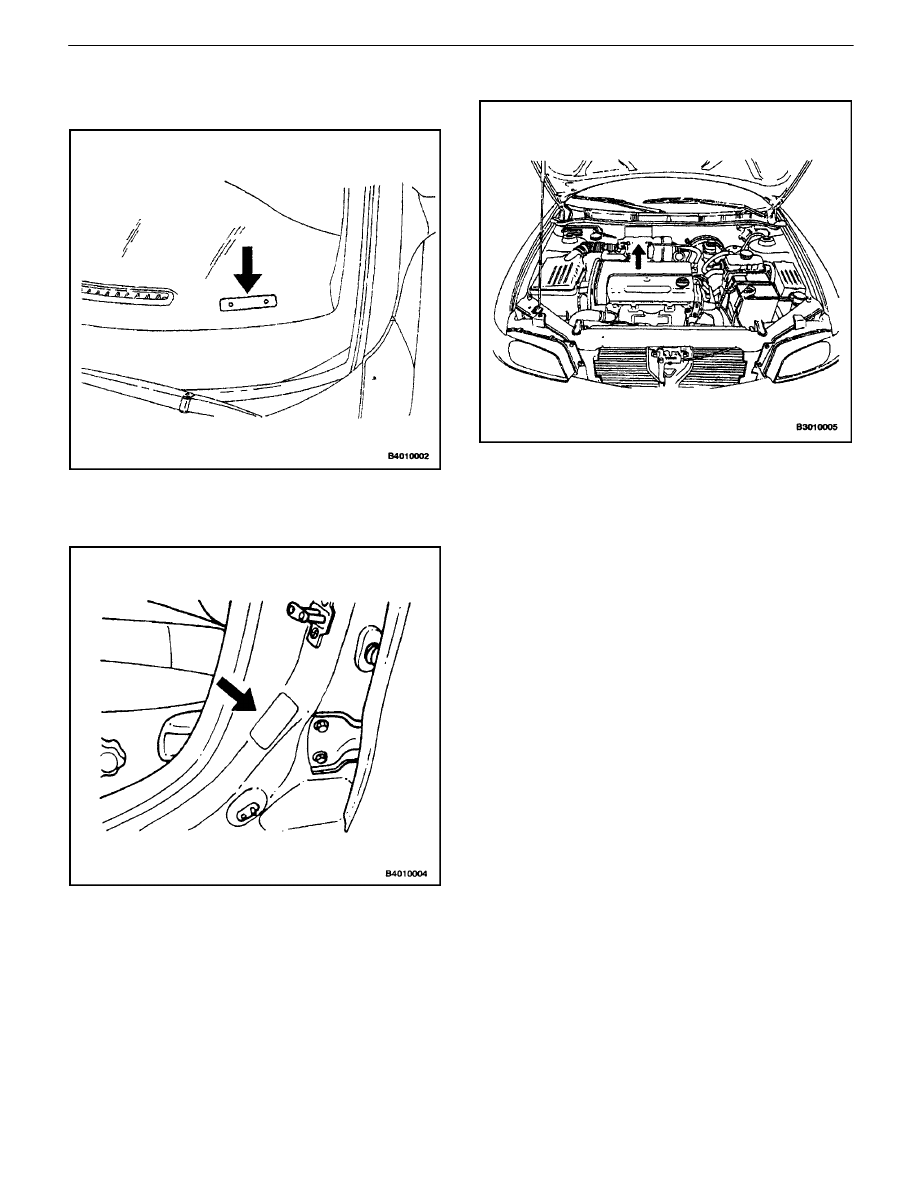

VIN Plate Location

The vehicle identification number (VIN) plate is attached
to the top of the driver’s side of the instrument panel.

Certification Label

The Certification Label is attached to the driver’s side B–
pillar near door strike.

Engraved VIN Location

The vehicle identification number (VIN) is engraved in the
top of the bulkhead, next to the ABS module.

0B – 22

I

GENERAL INFORMATION

DAEWOO V–121 BL4

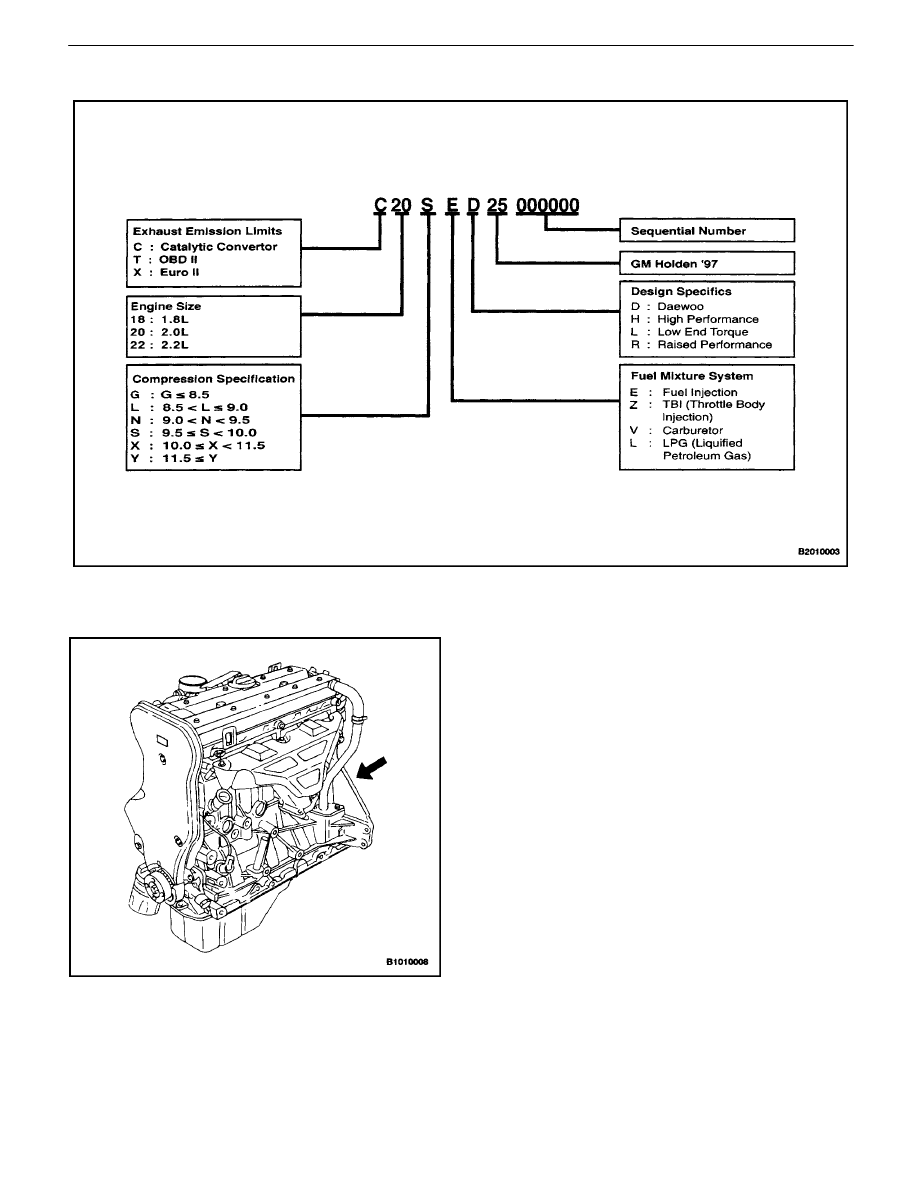

Engine Number – Family II (2.0L DOHC Engine)

Engine Number Plate Location – Family II
(2.0L DOHC Engine)

The engine number is stamped on the cylinder block under
the No. 4 exhaust manifold of the engine.

GENERAL INFORMATION  0B – 23

DAEWOO V–121 BL4

Manual Transaxle Identification Number
Plate

1. Identification

Code

2. Sequential

Number

Identification

Code

Engine

Gear Ratio

FE

2.0L DOHC

3.545 C/R

Manual Transaxle Identification Number
Plate Location

The manual transaxle identification number is attached to
the top of the transaxle case near the engine.

Automatic Transaxle Identification Number
Plate

1.  Assembly Plant (Windsor, Canada)
2. Model

Year

(1996)

3. Broadcast

Code

4.  Model Name (4T40E)
5. Update

Level

6. Sequential

Number

7. Manufacturer
8. Part

Number

Identification Code

Engine

7ZZR

2.0L DOHC

0B – 24

I

GENERAL INFORMATION

DAEWOO V–121 BL4

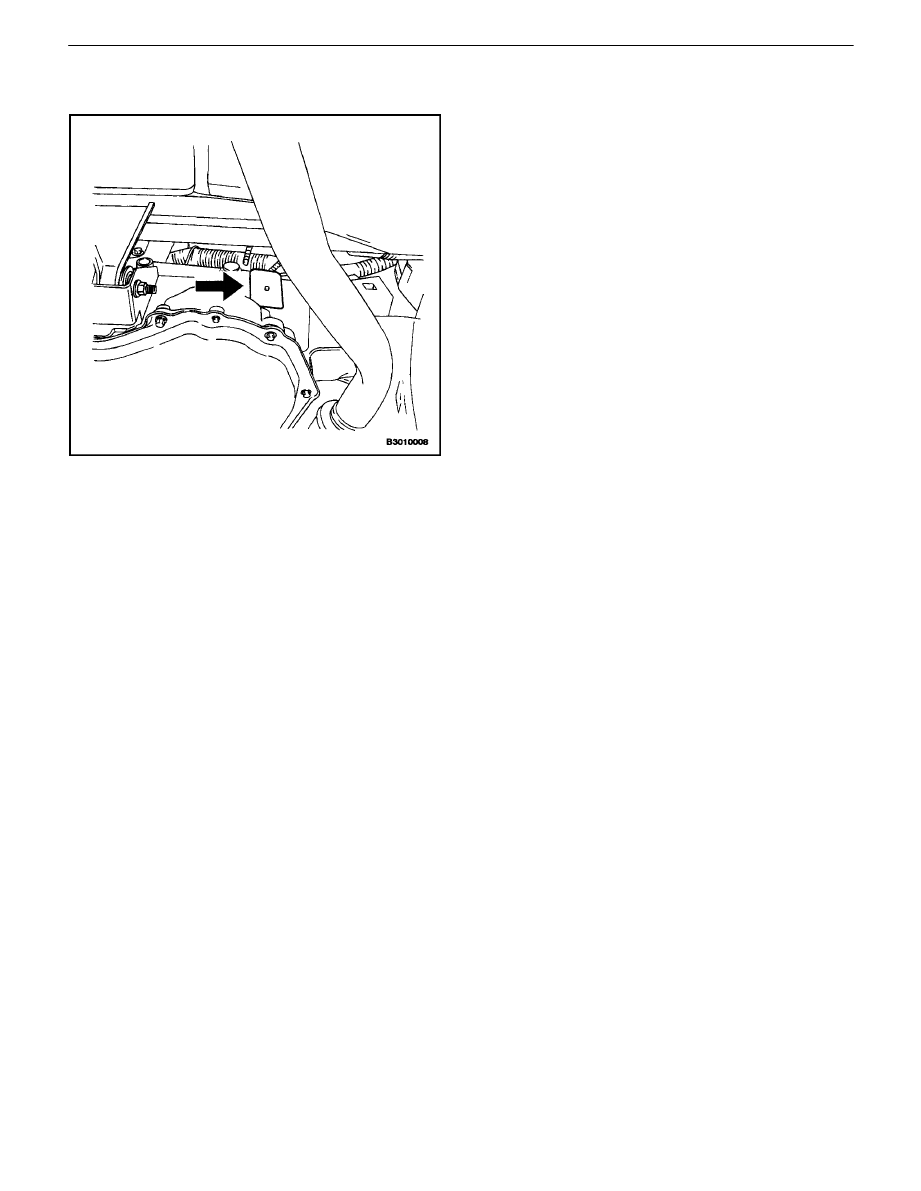

Automatic Transaxle Identification Number
Plate Location

The automatic transaxle identification number plate is at-
tached on the rear side of the transaxle near the bulkhead.

VEHICLE LIFTING PROCEDURES

Notice : To raise the vehicle, place the lifting equipment
only at the points indicated. Failure to use these precise
positions may result in permanent body deformation.
Many dealer service facilities and service stations are
equipped with automotive hoists that bear upon some
parts of the frame to lift the vehicle. If any other hoist meth-
od is used, use special care to avoid damaging the fuel
tank, the filler neck, the exhaust system, or the underbody.
