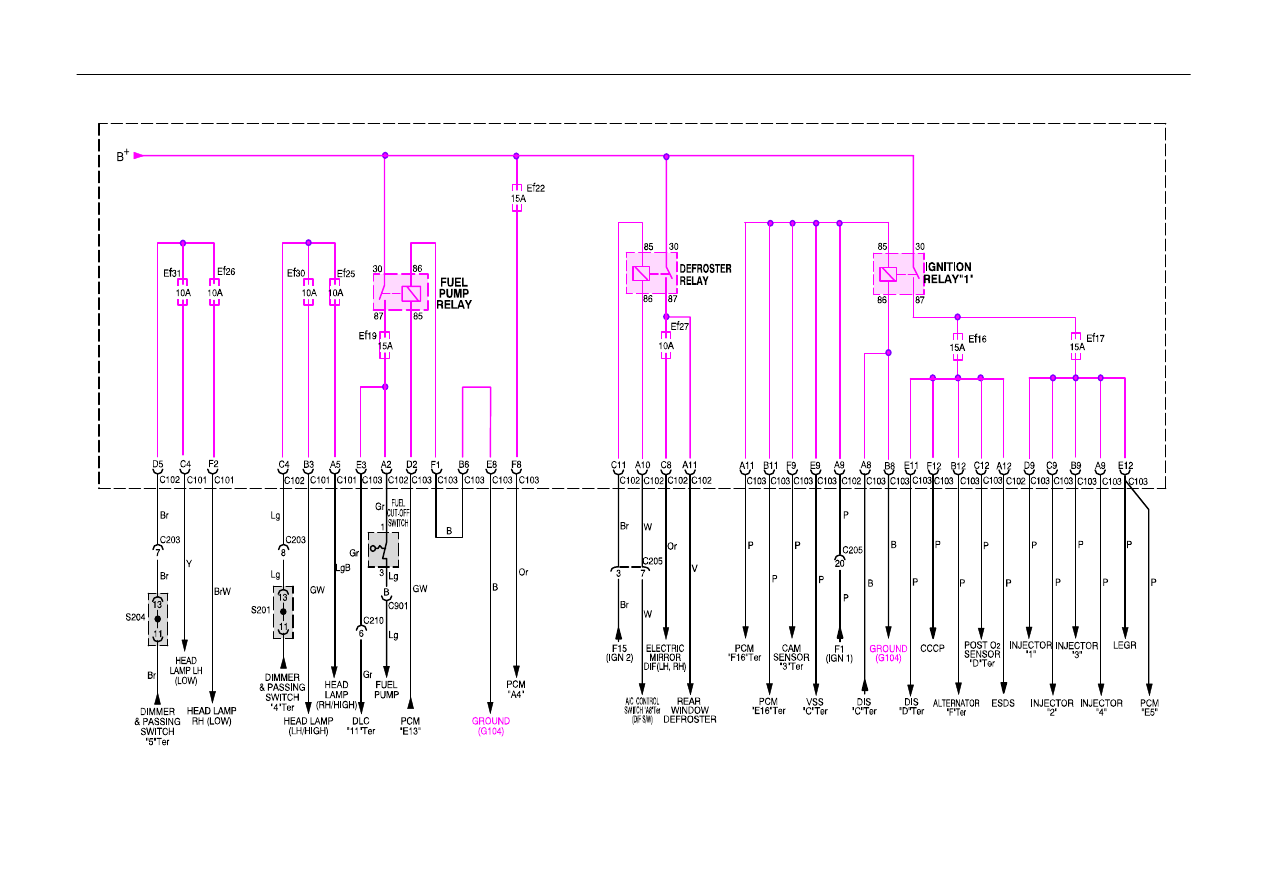

WIRING DIAGRAM FOR POWER SUPPLIES

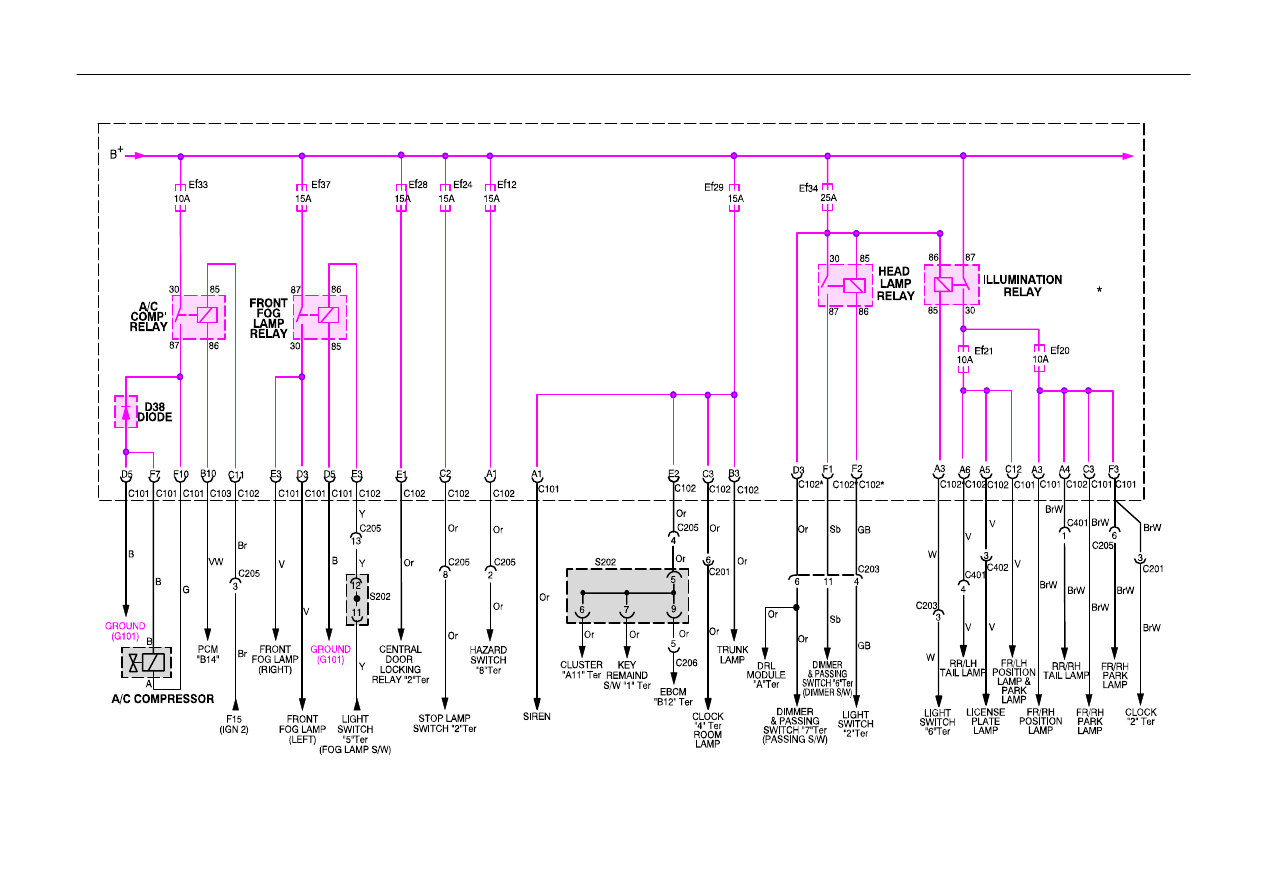

WIRING DIAGRAM FOR POWER SUPPLIES

W

3–7



SECTION 5

ELECTRICAL WIRING DIAGRAMS

5–2

W

ELECTRICAL WIRING DIAGRAMS

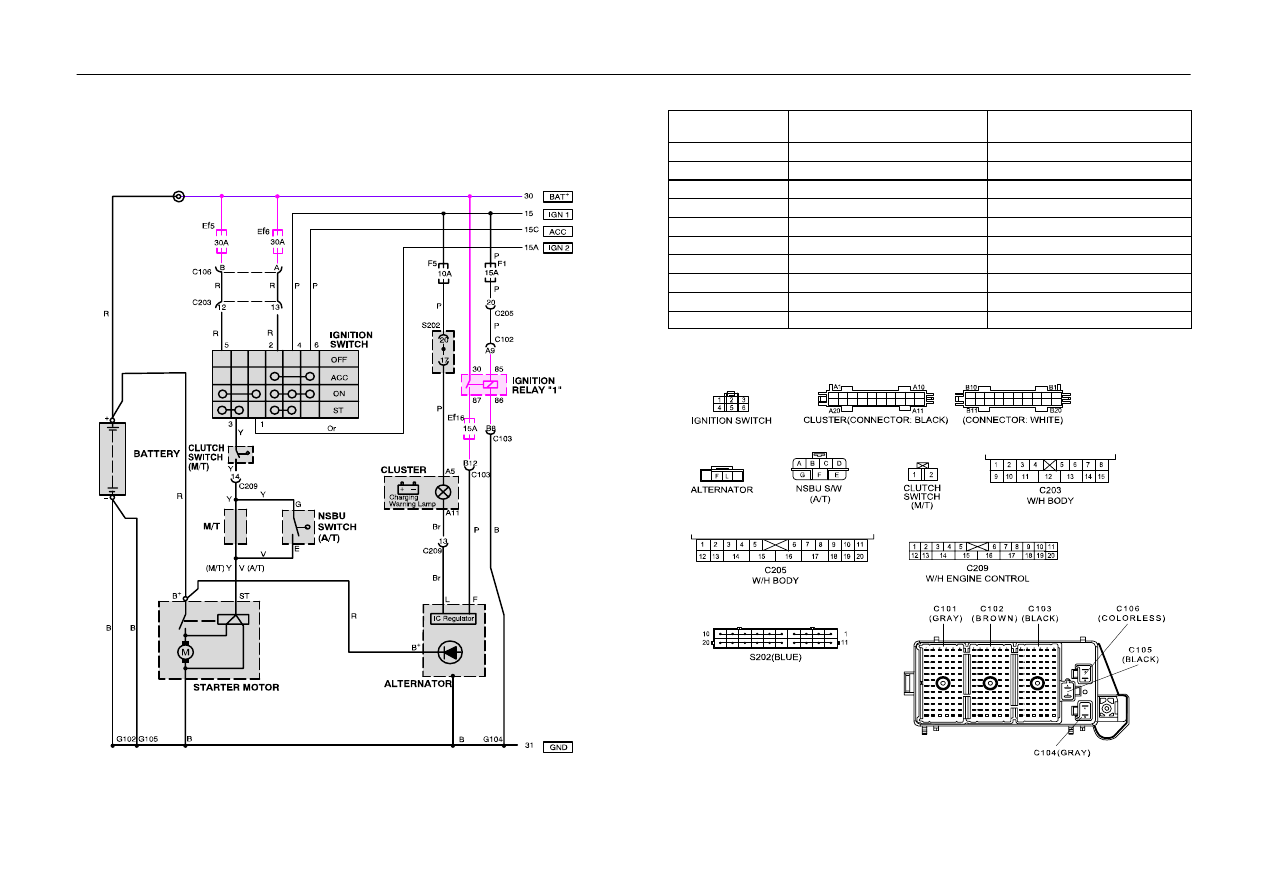

1. STARTING & CHARGING SYSTEM

1) BATTERY, IGNITION SWITCH, STARTER MOTOR, ALTERNATOR & SWITCH ( CLUTCH(M/T),

NSBU(A/T) )

a. CONNECTOR INFORMATION

CONNECTOR(NO)

(PIN NO. COLOR)

CONNECTING, WIRING HARNESS

CONNECTOR POSITION

C102(68 Pin, Brown)

Engine Room Fuse Box

Ĉ

 Body

Engine Room Fuse Box

C103(68Pin, Black)

Engine Room Fuse Box

Ĉ

 Engine Control

Engine Room Fuse Box

C106(2 Pin, Colorless)

Engine Room Fuse Box

Ĉ

 Body

Engine Room Fuse Box

C203(15 Pin, White)

I.P

Ĉ

 Body

Left Driver Leg Room Connector Holder

C205(20 Pin, Colorless)

I.P

Ĉ

 Body

Right Driver Leg Room Connector Holder

C209(20 Pin, Colorless)

I/P

Ĉ

 Engine Control

Upper Co–driver Right Kick Panel

S202(Blue)

IP

Upper Driver Leg Room

G102

Battery & ABS

Between Battery and Fuse Box

G104

Engine Control

Cylinder Head Next to #4 Intake Manifold

G105

Battery

Next to Starter Motor
