9B – 6

I

LIGHTING SYSTEMS

DAEWOO V–121 BL4

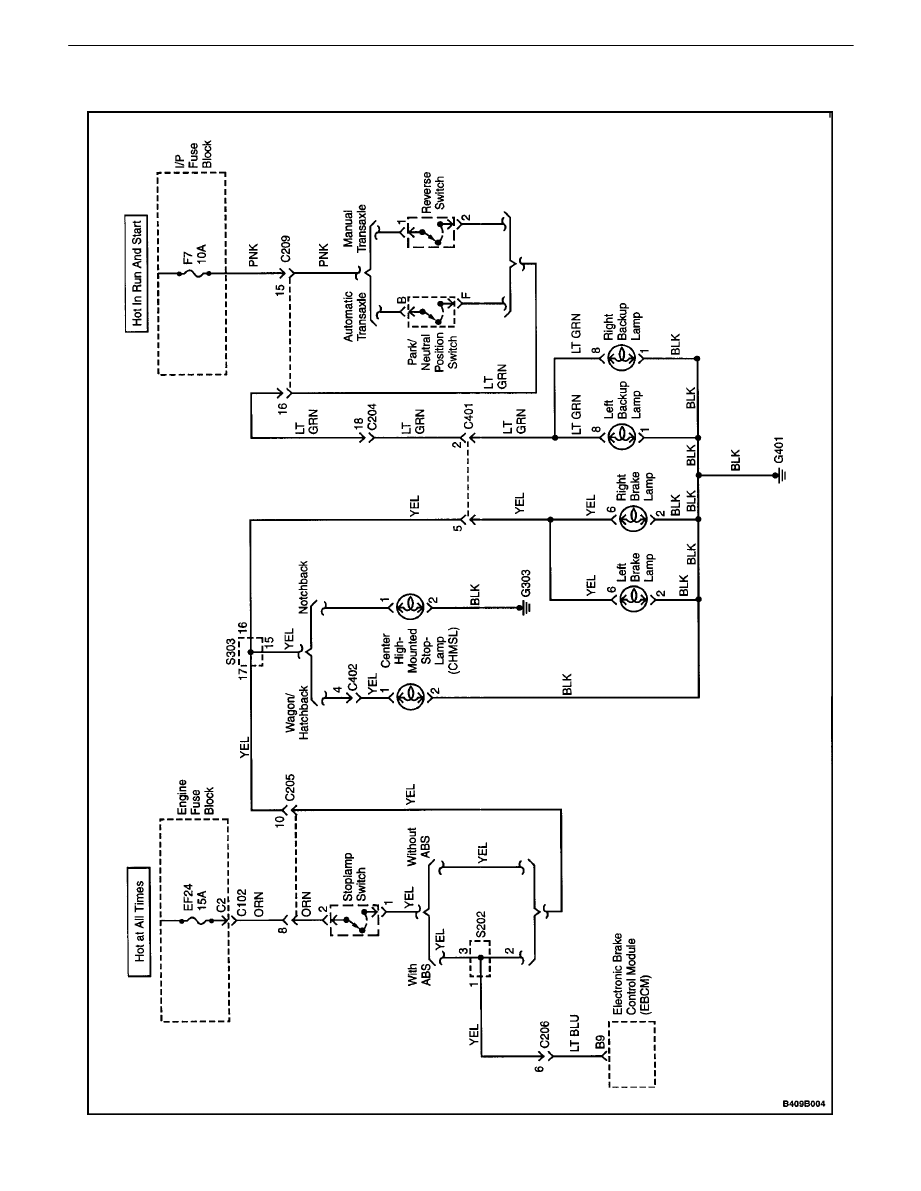

BRAKE AND BACKUP LAMPS CIRCUIT

LIGHTING SYSTEMS  9B – 7

DAEWOO V–121 BL4

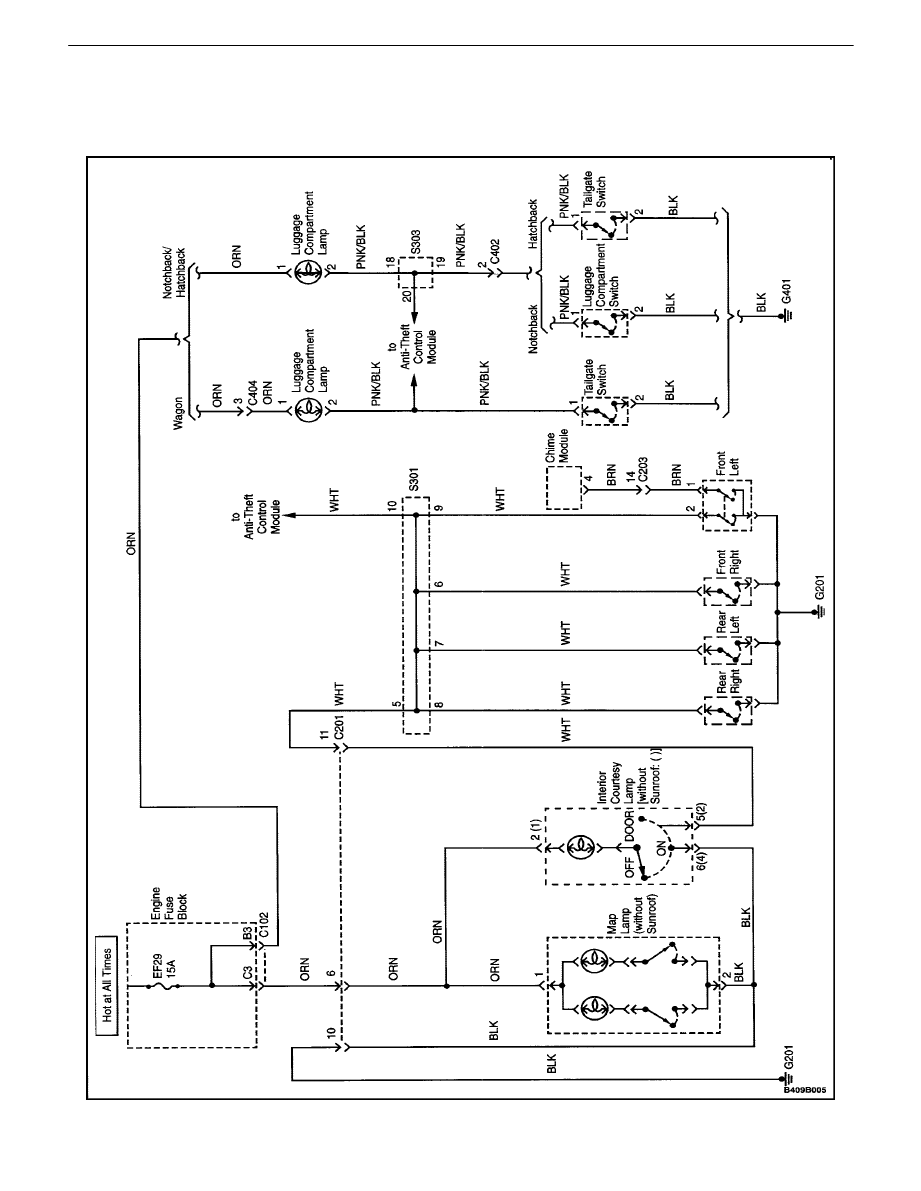

INTERIOR COURTESY LAMP AND LUGGAGE

COMPARTMENT LAMP CIRCUIT

9B – 8

I

LIGHTING SYSTEMS

DAEWOO V–121 BL4

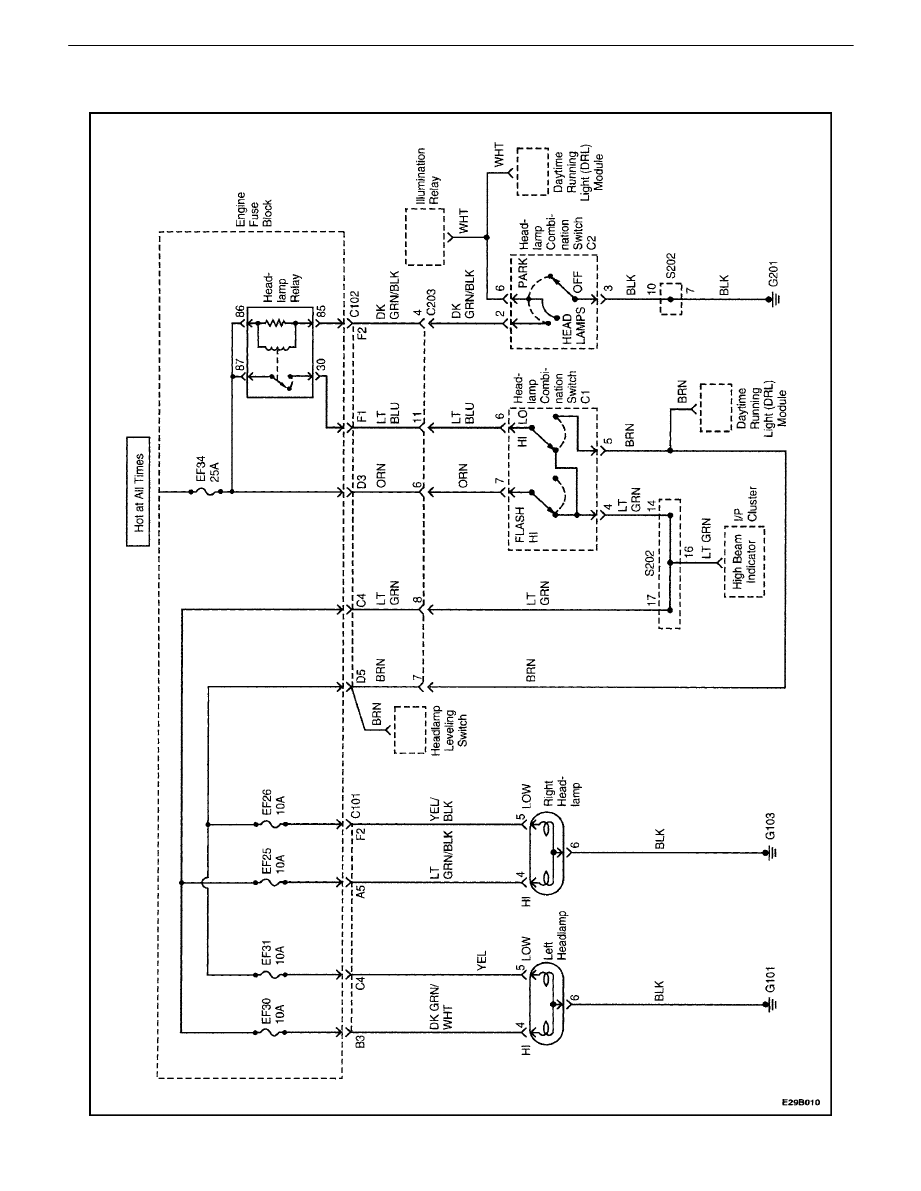

HEADLAMPS CIRCUIT

LIGHTING SYSTEMS  9B – 9

DAEWOO V–121 BL4

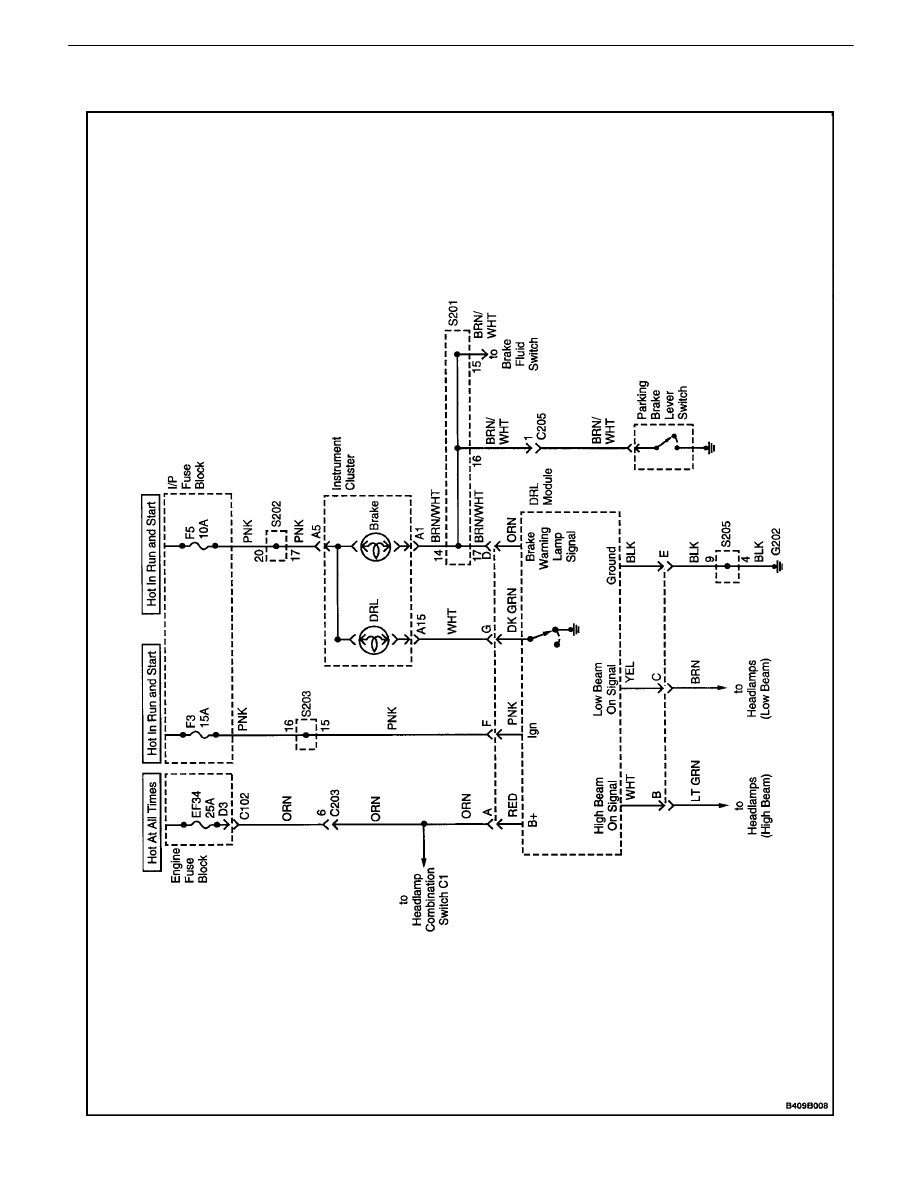

DAYTIME RUNNING LAMPS CIRCUIT
