LIGHTING SYSTEMS

DAEWOO V–121 BL4

SPECIFICATIONS

BULB USAGE CHART

Bulb

Replacement Bulb Number

Backup Lamp

27W

Center High–Mounted Stoplamp

21W

Fog Lamp

55W

Glove Box Lamp

10W

Headlamp

Double 60/55W

Interior Courtesy Lamp

10W

License Plate Lamp

5W

Luggage Compartment Lamp

10W

Park and Front Turn Signal Lamp

Double 27/8W

Rear Turn Signal Lamp

Single 27/8W

Side Marker Lamp

8W

Taillamp and Stoplamp

Double 27/8W

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

CHMSL
Mounting Nuts

4

–

35

CHMSL
Mounting
Screws

4

–

35

Daytime Run-
ning Lamp
Module Screws

4

–

35

Door Jamb
Switch Screw

4

–

35

Fog Lamp Nuts

4

–

35

Headlamp As-
sembly Bolts

4

–

35

Headlamp As-
sembly Nut

4

–

35

License Plate
Lamp Screws

4

–

35

Map Lamp
Screws

1

–

9

Rear Combina-
tion Lamp As-
sembly Screws

4

–

35

LIGHTING SYSTEMS  9B – 3

DAEWOO V–121 BL4

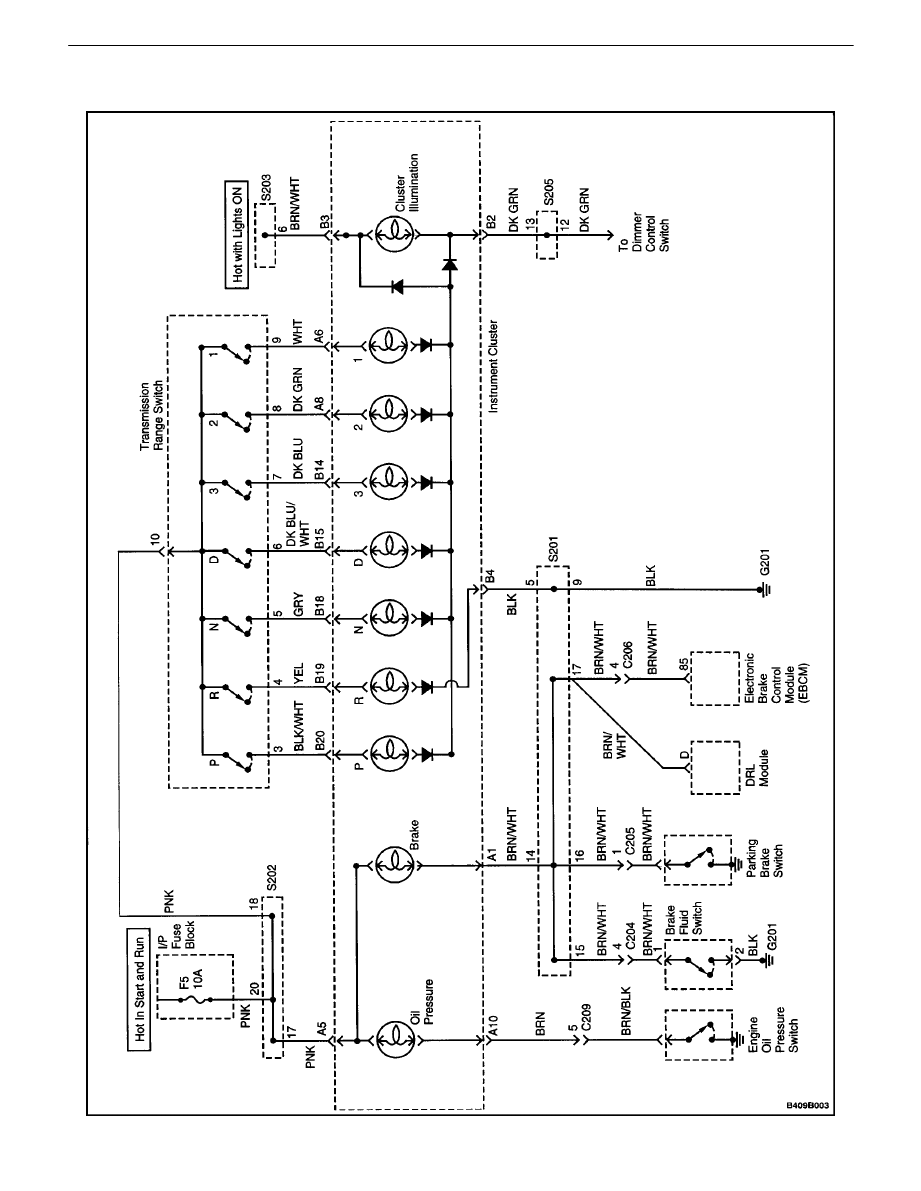

SCHEMATIC AND ROUTING DIAGRAMS

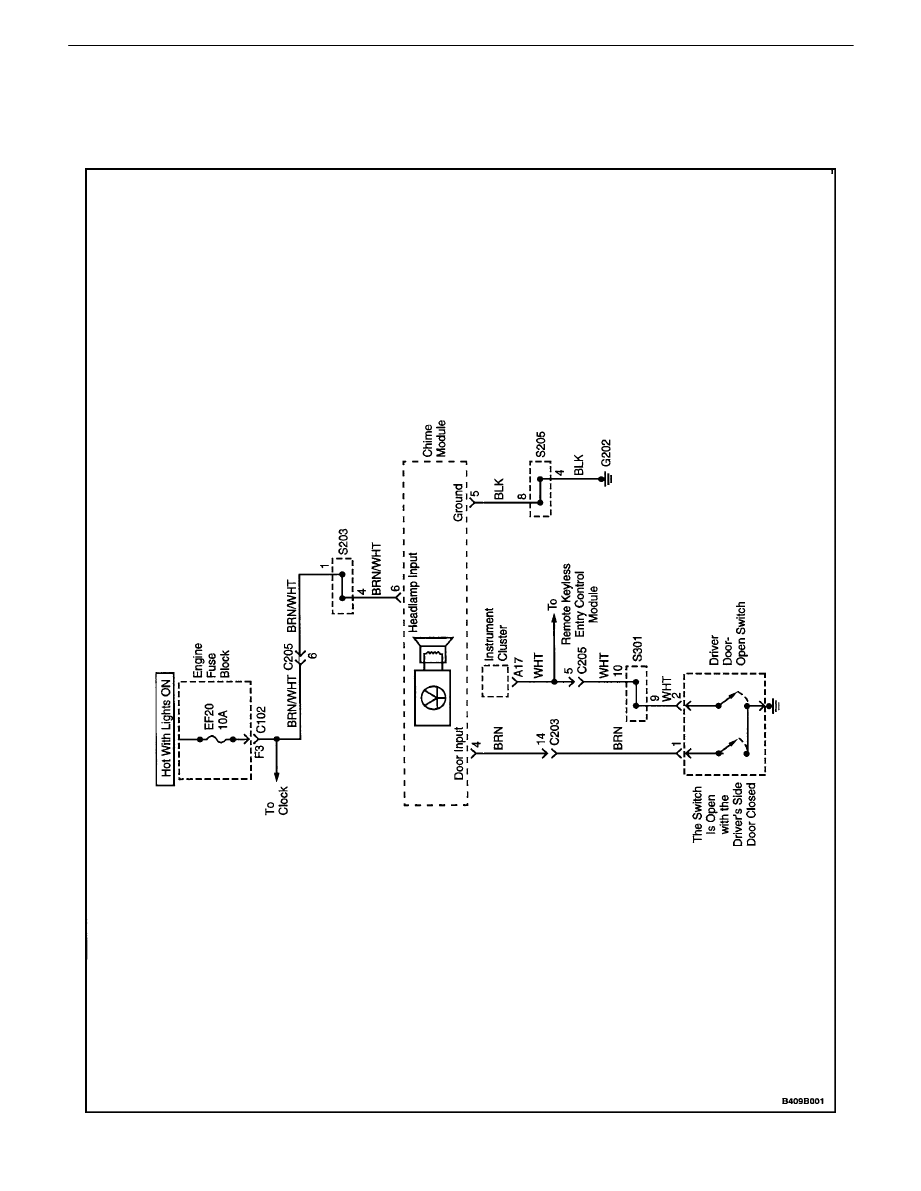

HEADLAMPS–ON REMINDER CHIME CIRCUIT

9B – 4

I

LIGHTING SYSTEMS

DAEWOO V–121 BL4

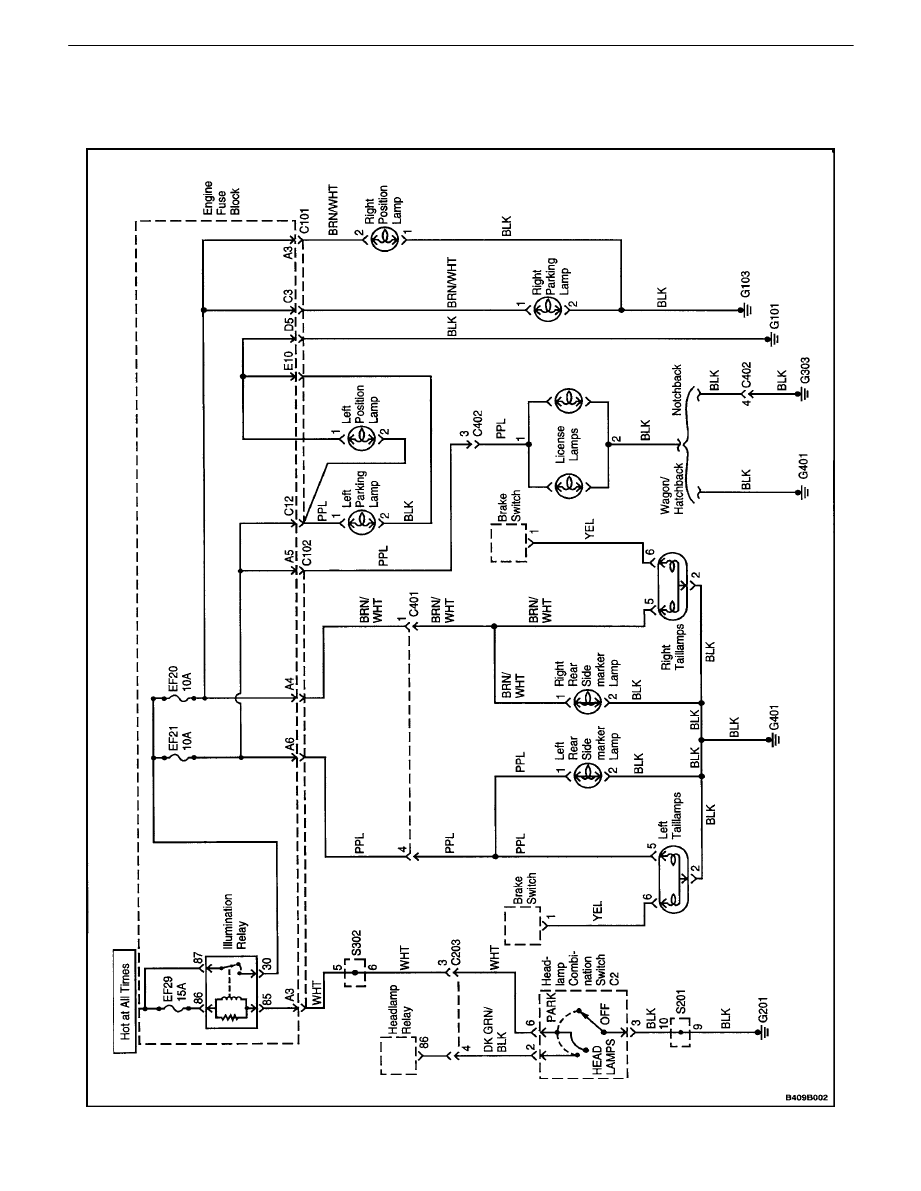

PARKING, TAIL, POSITION AND LICENSE LAMPS

CIRCUIT

LIGHTING SYSTEMS  9B – 5

DAEWOO V–121 BL4

TURN AND HAZARD LAMPS CIRCUIT
