5C0 – 24

I

CLUTCH

DAEWOO V–121 BL4

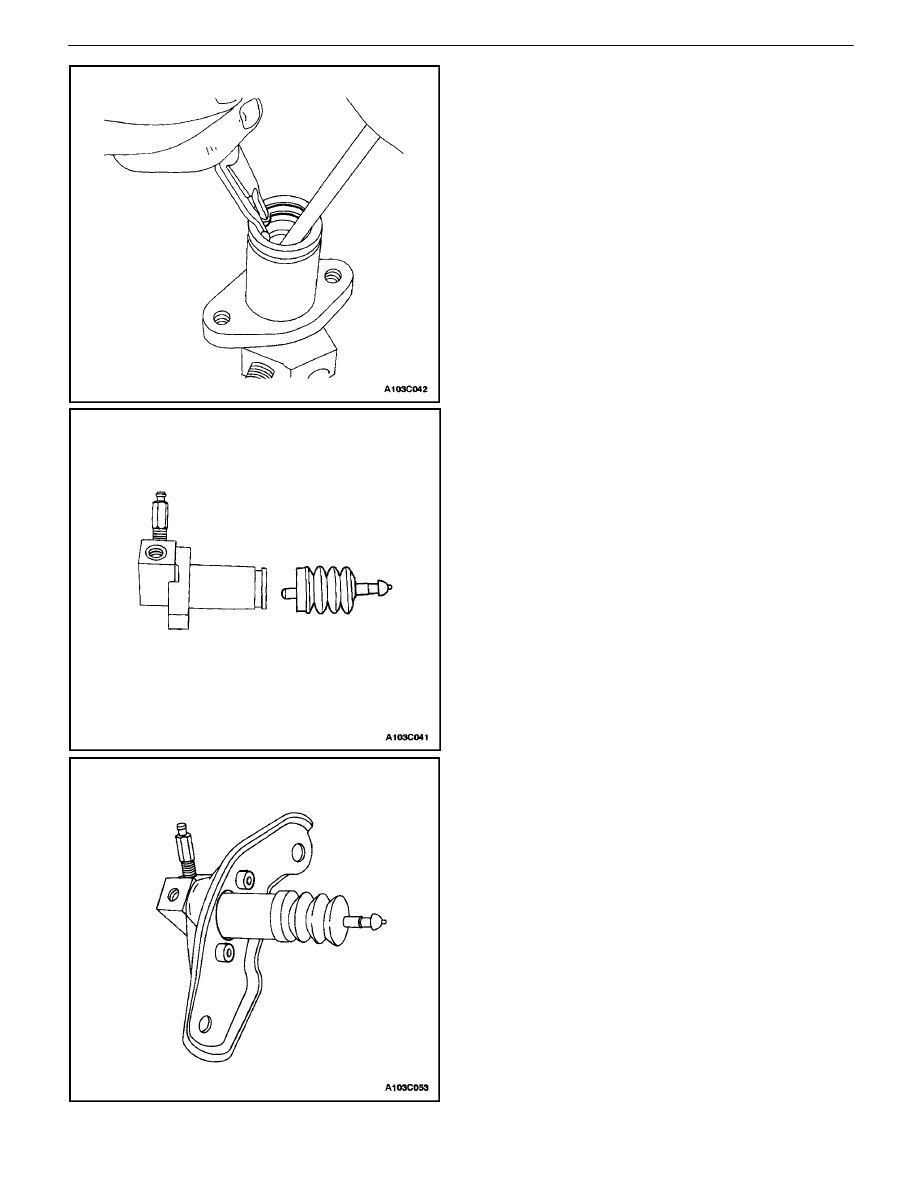

Assembly Procedure

1.  Apply clean clutch fluid to the piston and the cup.
2.  Install the spring to the piston, and insert the as-

sembly into the cylinder body.

3.  Compress the piston with a driver, then install the

snap ring with snap ring pliers.

4.  Install the pushrod and the boot.

5.  Install the brackets and the bolts.
6.  Install the clutch release cylinder assembly. Refer

to”Clutch Master Cylinder Assembl”  in this section.

CLUTCH  5C0 – 25

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

DRIVING MEMBERS

The driving members consist of two flat surfaces ma-
chined to a smooth finish. One of these is the rear face of
the engine flywheel, and the other is the pressure plate.
The pressure plate is fitted into a steel cover, which is
bolted to the flywheel.

DRIVEN MEMBERS

The driven member is the clutch disc with a splined hub

which is free to slide lengthwise along the splines of the in-
put shaft, but which drives the input shaft through these
same splines.

The driving and driven members are held in contact by
spring pressure. This pressure is exerted by a diaphragm
spring in the pressure plate assembly.

OPERATING MEMBERS

The clutch release system consists of the clutch pedal, the
clutch shaft, the fork, and the release bearing. When pres-
sure is applied to the clutch pedal, the fork pivots on its
shaft and the inner end pushes against the release bear-
ing. The bearing then pushes against the release levers in
the pressure plate assembly, thereby releasing the clutch.


SECTION : 9F

AUDIO SYSTEMS

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

9F–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

9F–1

.

SCHEMATIC AND ROUTING DIAGRAMS

9F–2

. . . . .

AUDIO SYSTEM CIRCUIT

9F–2

. . . . . . . . . . . . . . . . . .

DIAGNOSIS

9F–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STEREO CASSETTE AM/FM RADIO

9F–3

. . . . . . . .

SPEAKERS

9F–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ANTENNA

9F–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE AND REPAIR

9F–8

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9F–8

. . . . . . . . . . . . . . . . . . . . .

STEREO CASSETTE AM/FM RADIO

9F–8

. . . . . . . .

FRONT DOOR SPEAKERS

9F–9

. . . . . . . . . . . . . . . . .

TWEETER SPEAKERS

9F–10

. . . . . . . . . . . . . . . . . . .

REAR SPEAKERS (NOTCHBACK)

9F–10

. . . . . . . . .

REAR SPEAKERS (HATCHBACK)

9F–11

. . . . . . . . . .

MAST ANTENNA

9F–12

. . . . . . . . . . . . . . . . . . . . . . . . .

ROOF ANTENNA

9F–13

. . . . . . . . . . . . . . . . . . . . . . . .

POWER ANTENNA MAST(NOTCHBACK)

9F–13

. . .

POWER ANTENNA MOTOR (NOTCHBACK)

9F–14

COMPACT DISC CHANGER

9F–15

. . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9F–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AUDIO SYSTEMS

9F–17

. . . . . . . . . . . . . . . . . . . . . . . .

AUDIO SECURITY SYSTEM

9F–17

. . . . . . . . . . . . . . .

FRONT AND REAR SPEAKERS

9F–17

. . . . . . . . . . .

TWEETER SPEAKERS

9F–17

. . . . . . . . . . . . . . . . . . .

MAST ANTENNA

9F–17

. . . . . . . . . . . . . . . . . . . . . . . . .

POWER ANTENNA

9F–17

. . . . . . . . . . . . . . . . . . . . . . .

ROOF ANTENNA

9F–17

. . . . . . . . . . . . . . . . . . . . . . . .

TAPE PLAYER AND CASSETTE CARE

9F–17

. . . . .

COMPACT DISC CARE

9F–17

. . . . . . . . . . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Antenna Cap Nut

7

–

62

Antenna Motor Nuts

7

–

62

Audio System Bolts

4

–

35

CD Changer Nuts

7

–

62

Mast Antenna Base Nut

4

–

35

Front Door Speaker Screws

4

–

35

Rear Speaker Screws

4

–

35

Roof Antenna Nut

10

–

89

9F – 2

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

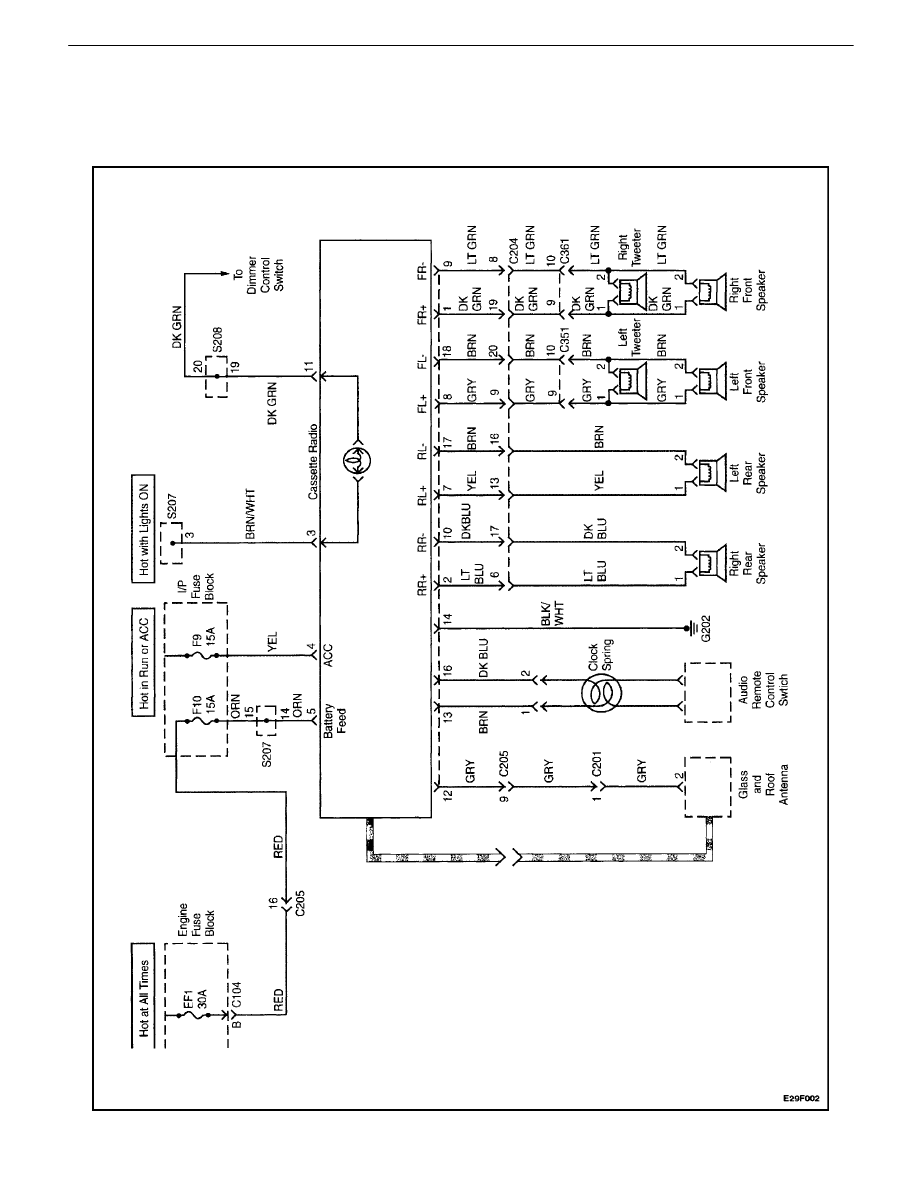

SCHEMATIC AND ROUTING DIAGRAMS

AUDIO SYSTEM CIRCUIT
