4F – 4

I

ANTILOCK BRAKE SYSTEM

DAEWOO V–121 BL4

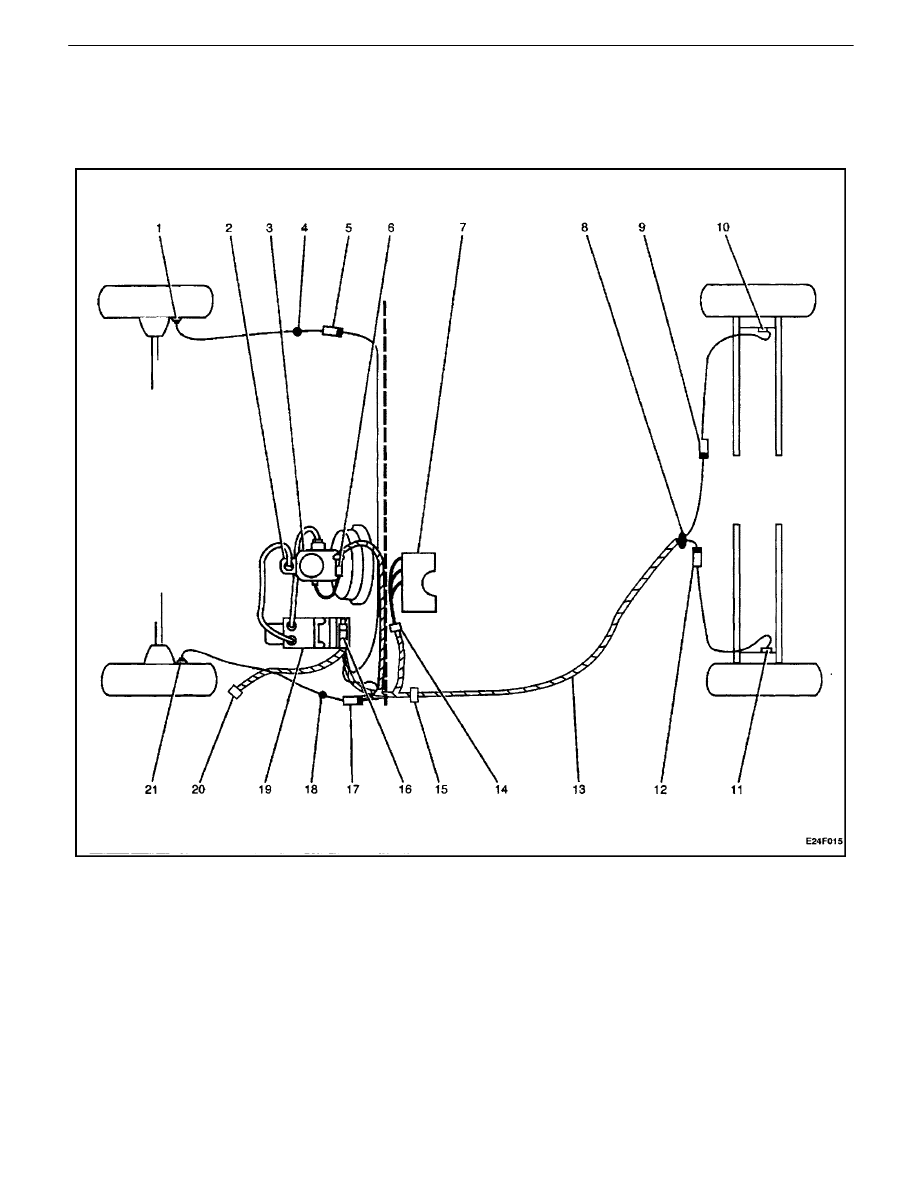

COMPONENT LOCATOR

ABS COMPONENT LOCATOR

1.  Right Front Wheel Speed Sensor
2.  Right Front Wheel Speed Sensor Harness
3.  Brake Master Cylinder
4.  Brake Fluid Level Switch
5. Instrument

Cluster

6.  Rear Wheel Speed Sensor Harness
7.  Right Rear Wheel Speed Sensor Connector
8.  Right Rear Wheel Speed Sensor
9.  Left Rear Wheel Speed Sensor
10. Connector C902
11.  Body Wiring Harness
12.  I/P Fuse Block
13. ABS Relay
14. EBCM

15.  EBCM Connector J1
16.  EBCM Connector J2
17. Connector C207
18.  Lamp Driver Module
19. Connector C206
20.  Right–Side Hydraulic Modulator Bleeder Valve
21.  Right–Side Isolation Solenoid
22. Proportioning Valves
23.  Hydraulic Modulator/Motor Pack Assembly
24.  Motor Pack Electrical Connector
25.  Left–Side Isolation Solenoid
26.  Left–Side Hydraulic Modulator Bleeder Valve
27.  Left Front Wheel Speed Sensor Harness
28.  Left Front Wheel Speed Sensor

ANTILOCK BRAKE SYSTEM  4F – 5

DAEWOO V–121 BL4

SCHEMATIC AND ROUTING DIAGRAMS

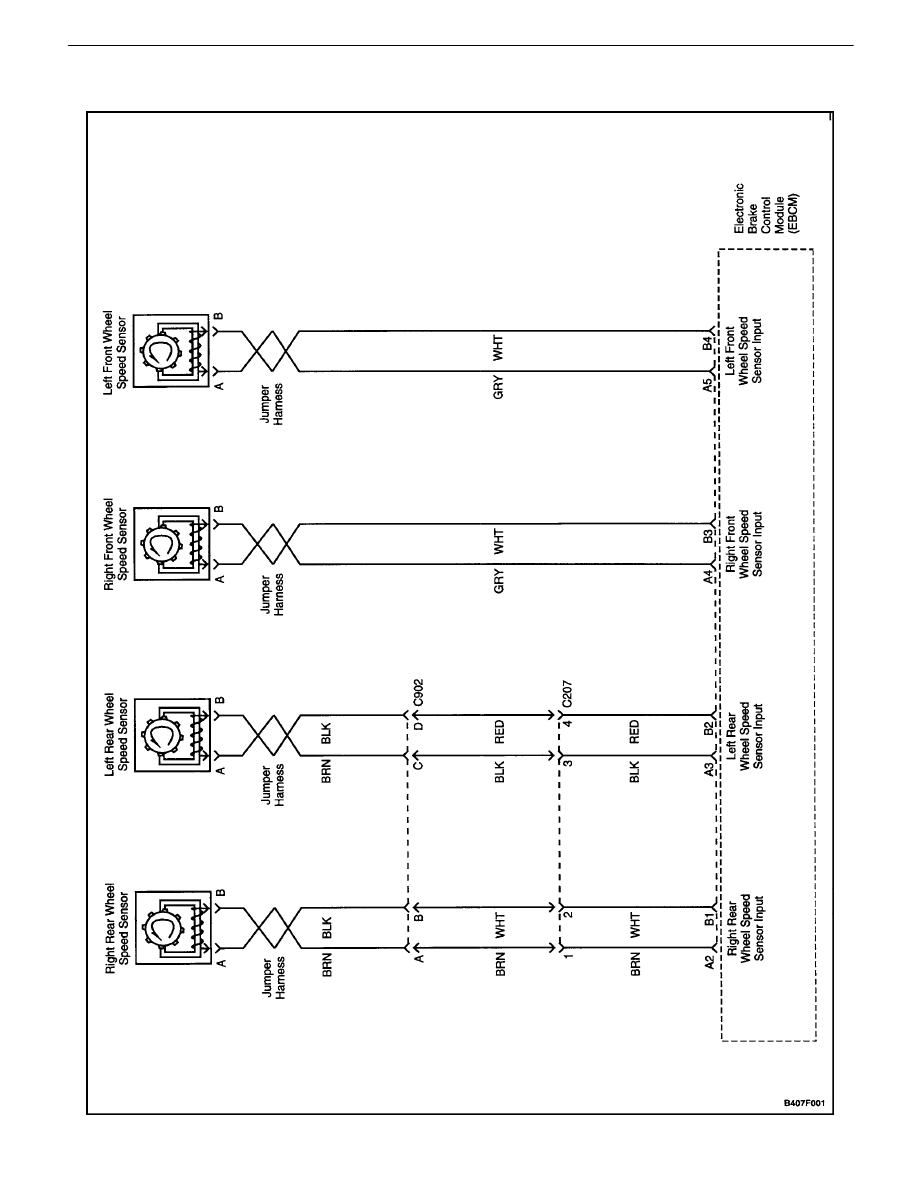

ABS CIRCUIT (1 OF 4)

4F – 6

I

ANTILOCK BRAKE SYSTEM

DAEWOO V–121 BL4

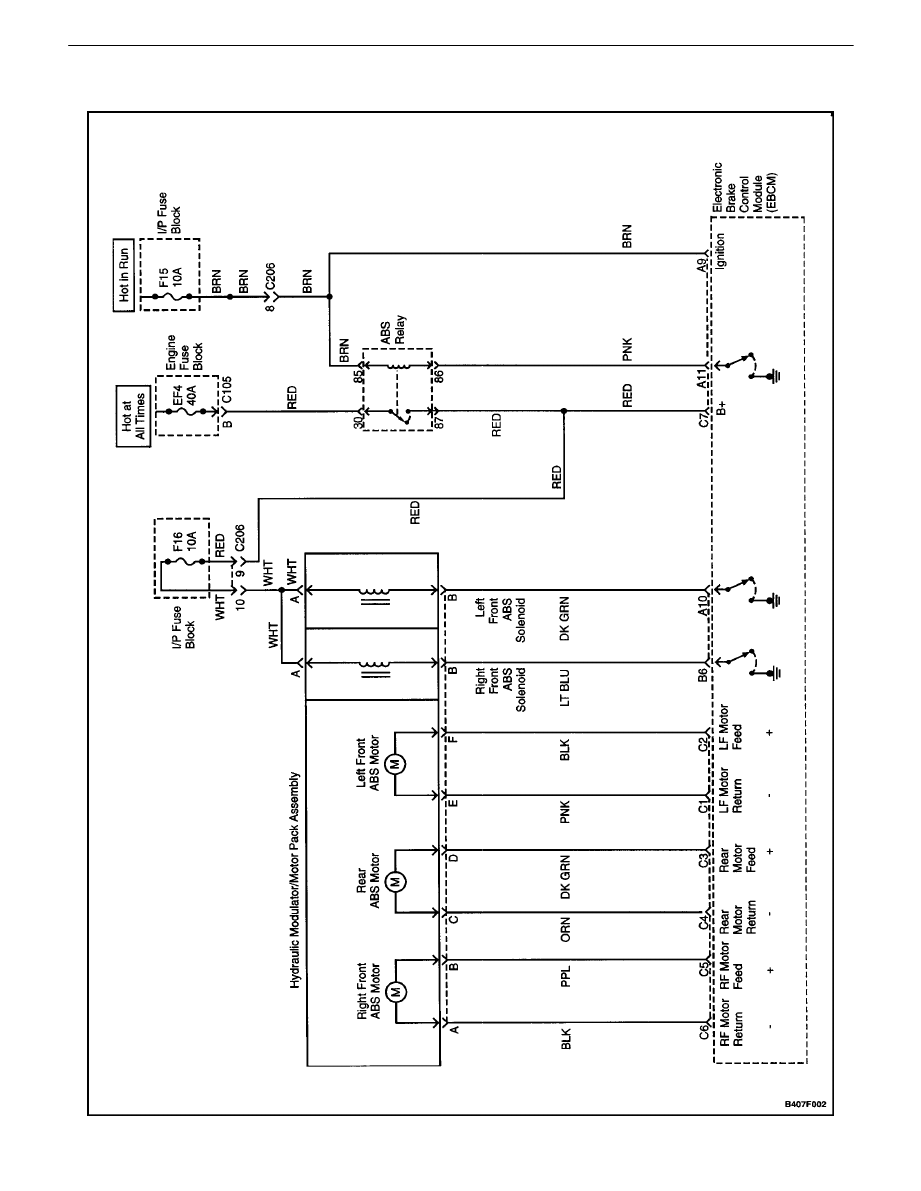

ABS CIRCUIT (2 OF 4)

ANTILOCK BRAKE SYSTEM  4F – 7

DAEWOO V–121 BL4

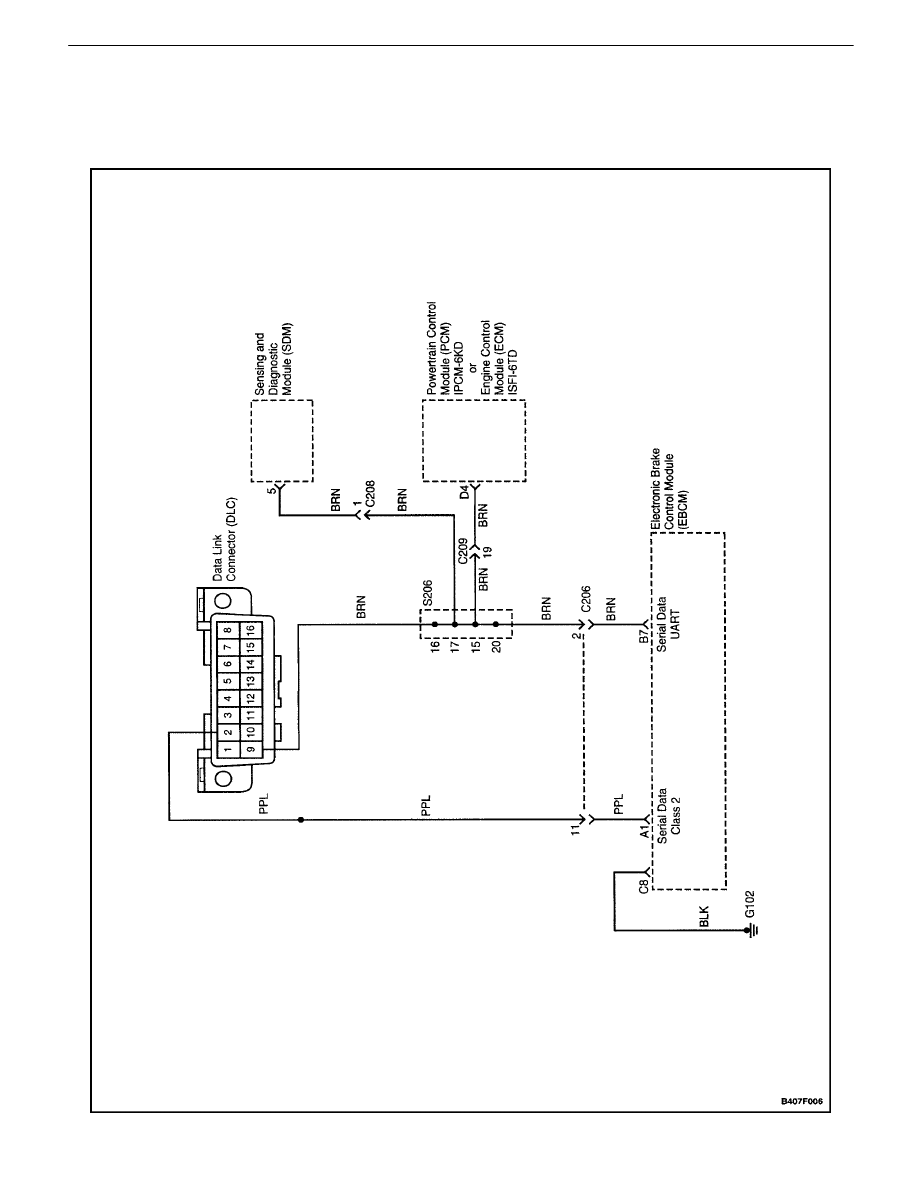

ABS CIRCUIT (3 OF 4)
