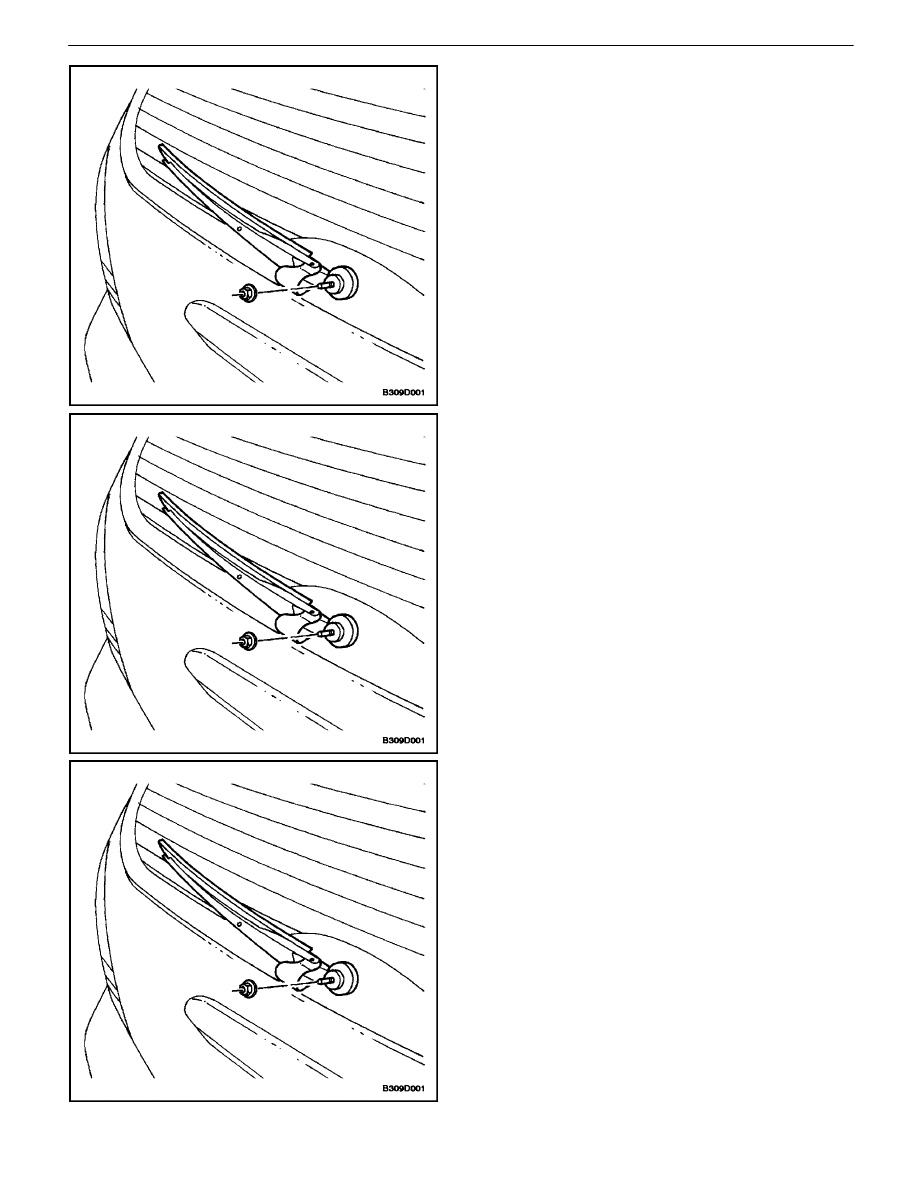

REAR WINDOW WIPER ARM

(Wagon Shown, Hatchback Similar)

Removal Procedure

1.  Open the wiper arm access cap.
2.  Remove the nut and the rear wiper arm.

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the rear wiper arm with the nut.

Tighten

Tighten the wiper arm nut to 11 N

S

m (97 lb–in).

2.  Close the wiper arm access cap.

REAR WINDOW WIPER MOTOR
(HATCHBACK)

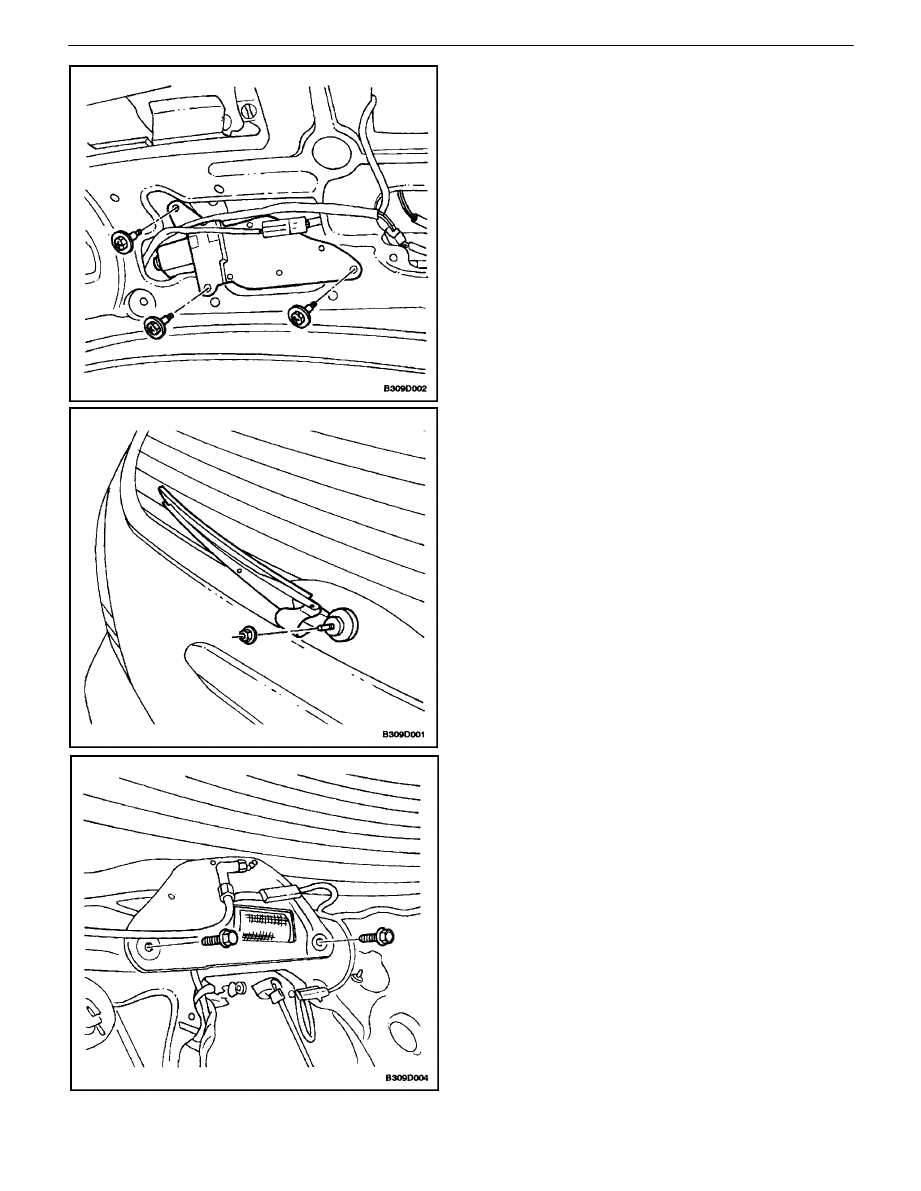

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the rear window wiper arm. Refer to ”Rear

Window Wiper Arm” in this section.

3.  Remove the hatchback door lower garnish molding.

Refer to Section 9G, Interior Trim.

4.  Remove the bolts and the rear wiper motor.
5.  Disconnect the electrical connector.

WIPERS/WASHER SYSTEMS  9D – 21

DAEWOO V–121 BL4

Installation Procedure

1.  Connect the electrical connector.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the rear wiper motor with the bolts.

Tighten

Tighten the wiper motor bolts to 8 N

S

m (71 lb–in).

3.  Install the hatchback door lower garnish molding.

Refer toSection 9G, Interior Trim.

4.  Install the rear window wiper arm. Refer to ”Rear

Window Wiper Arm” in this section.

5.  Close the wiper arm access cap.

REAR WINDOW WIPER MOTOR
(WAGON)

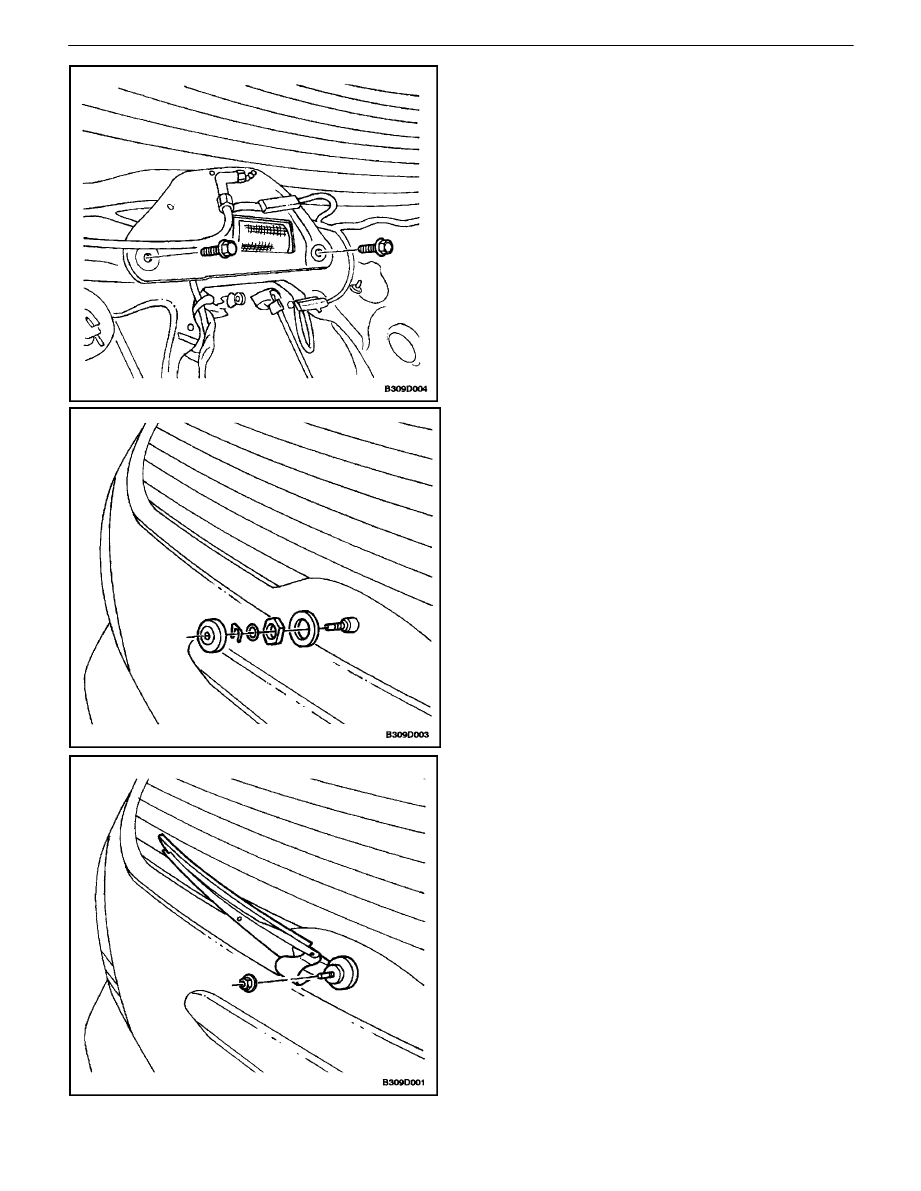

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the rear window wiper arm. Refer to ”Rear

Window Wiper Arm”  in this section.

3.  Remove the wiper motor exterior retaining clip and

nut from the tailgate.

4.  Remove the tailgate lower garnish molding.
5.  Disconnect the electrical connector and the washer

hose.

6.  Remove the bolts and the rear wiper motor.

9D – 22

I

WIPERS/WASHER SYSTEMS

DAEWOO V–121 BL4

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the rear wiper motor with the bolts.

Tighten

Tighten the wiper motor bolts to 8 N

S

m (71 lb–in).

2.  Connect the electrical connector and the washer

hose.

3.  Install the tailgate lower garnish molding.
4.  Install the wiper motor nut and exterior retaining clip

to the tailgate.

5.  Install the rear window wiper arm. Refer to ”Rear

Window Wiper Arm”  in this section.

6.  Connect the negative battery cable.

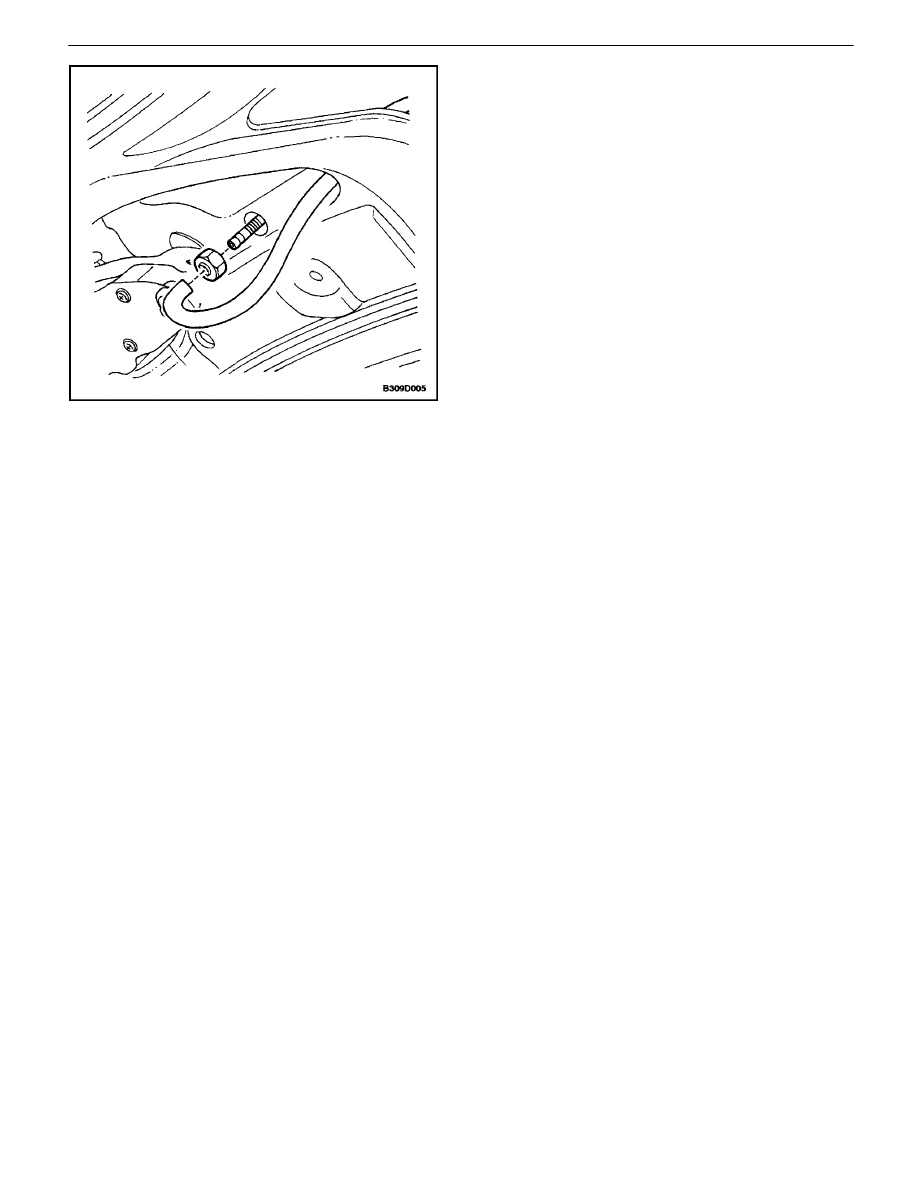

REAR WINDOW WASHER NOZZLE
(HATCHBACK)

Removal Procedure

1.  Remove the hatchback door upper garnish molding.

Refer to Section 9G, Interior Trim.

2.  Remove the washer hose from the nozzle.
3.  Remove the nut and the washer nozzle.

WIPERS/WASHER SYSTEMS  9D – 23

DAEWOO V–121 BL4

Installation Procedure

1.  Install the washer nozzle with the nut.
2.  Install the washer hose to the nozzle.
3.  Install the hatchback door upper garnish molding.

Refer toSection 9G, Interior Trim.
