9D – 12

I

WIPERS/WASHER SYSTEMS

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

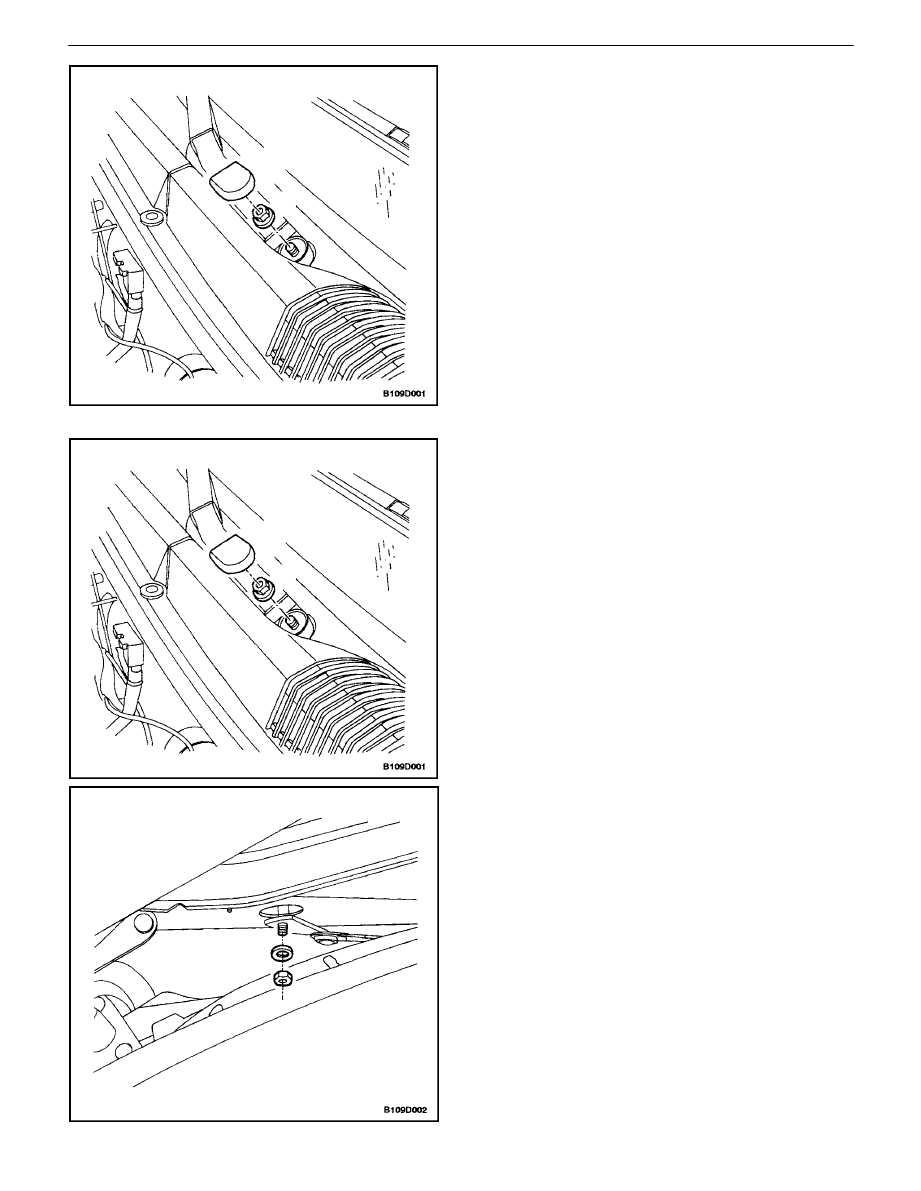

WINDSHIELD WIPER ARM

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1.  Open the hood.
2.  Remove the cap to reveal the wiper arm nut, if nec-

essary.

3.  Remove the nut from the wiper arm.
4.  Pull the wiper arm off.

Installation Procedure

1.  Install the wiper arm.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Secure the wiper arm with the nut.

Tighten

Tighten the wiper arm nut to 11 N

S

m (97 lb–in).

3.  Install the wiper arm nut cap, if necessary.
4.  Close the hood.

WINDSHIELD WIPER MOTOR

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the left–side portion of the cowl vent grille.

Refer to Section 9R, Body Front End.

3.  Remove the nut and the washer that secure the

wiper arm linkage to the motor drive shaft.

WIPERS/WASHER SYSTEMS  9D – 13

DAEWOO V–121 BL4

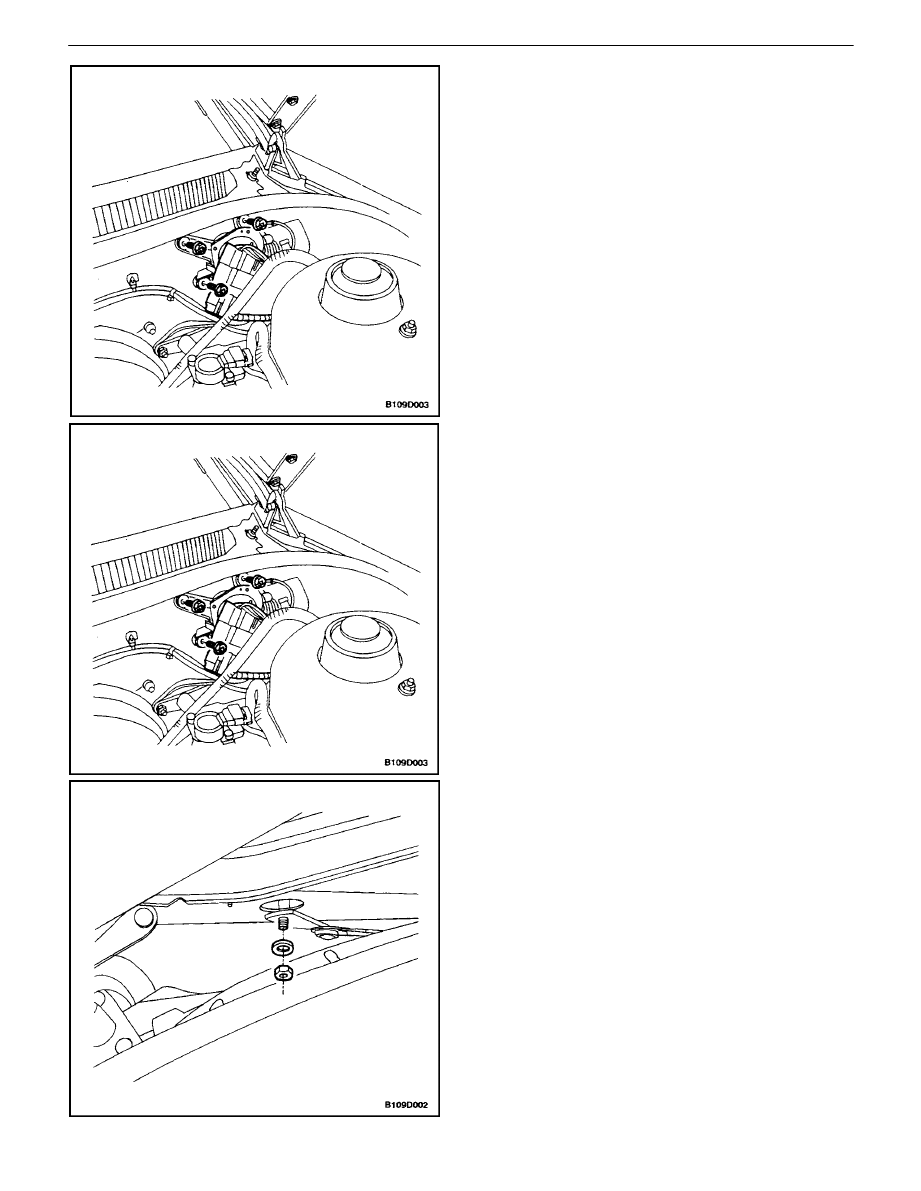

4.  Pry the wiper arm linkage off the motor drive shaft.
5.  Remove the nuts and reposition the engine coolant

reservoir.

6.  Disconnect the electrical connector.
7.  Remove the bolts and the wiper motor.

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the wiper motor with the bolts.

Tighten

Tighten the wiper motor bolts to 8 N

S

m (71 lb–in).

2.  Connect the electrical connector.

3.  Press the wiper arm linkage onto the motor drive

shaft.

4.  Install the wiper arm linkage to the motor drive shaft

with the washer and the nut.

Tighten

Tighten the wiper arm linkage nut to 5 N

S

m (44 lb–in).

5.  Install the left side portion of the cowl vent grille.

Refer toSection 9R, Body Front End.

6.  Connect the negative battery cable.

9D – 14

I

WIPERS/WASHER SYSTEMS

DAEWOO V–121 BL4

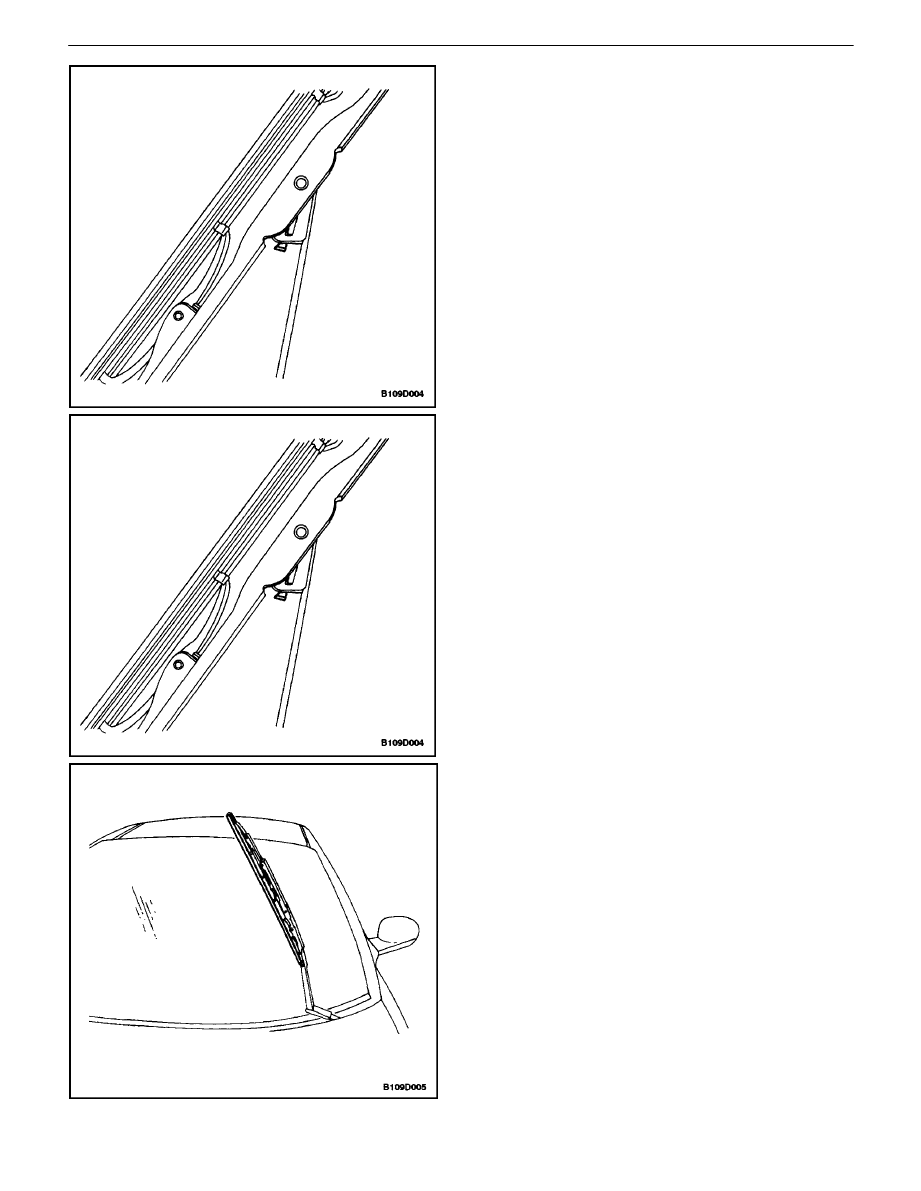

WINDSHIELD WIPER BLADE

(Typical)

Removal Procedure

1.  Rotate the wiper blade on the arm.
2.  While pressing the retainer clip, slide the wiper

blade down the wiper arm and remove the blade.

Installation Procedure

1.  Install the wiper blade by sliding it onto the arm until

the retainer clip engages.

WINDSHIELD WIPER BLADE INSERT

(Front Shown, Rear Similar)

Removal Procedure

1.  Slide the insert out of the wiper blade.

WIPERS/WASHER SYSTEMS  9D – 15

DAEWOO V–121 BL4

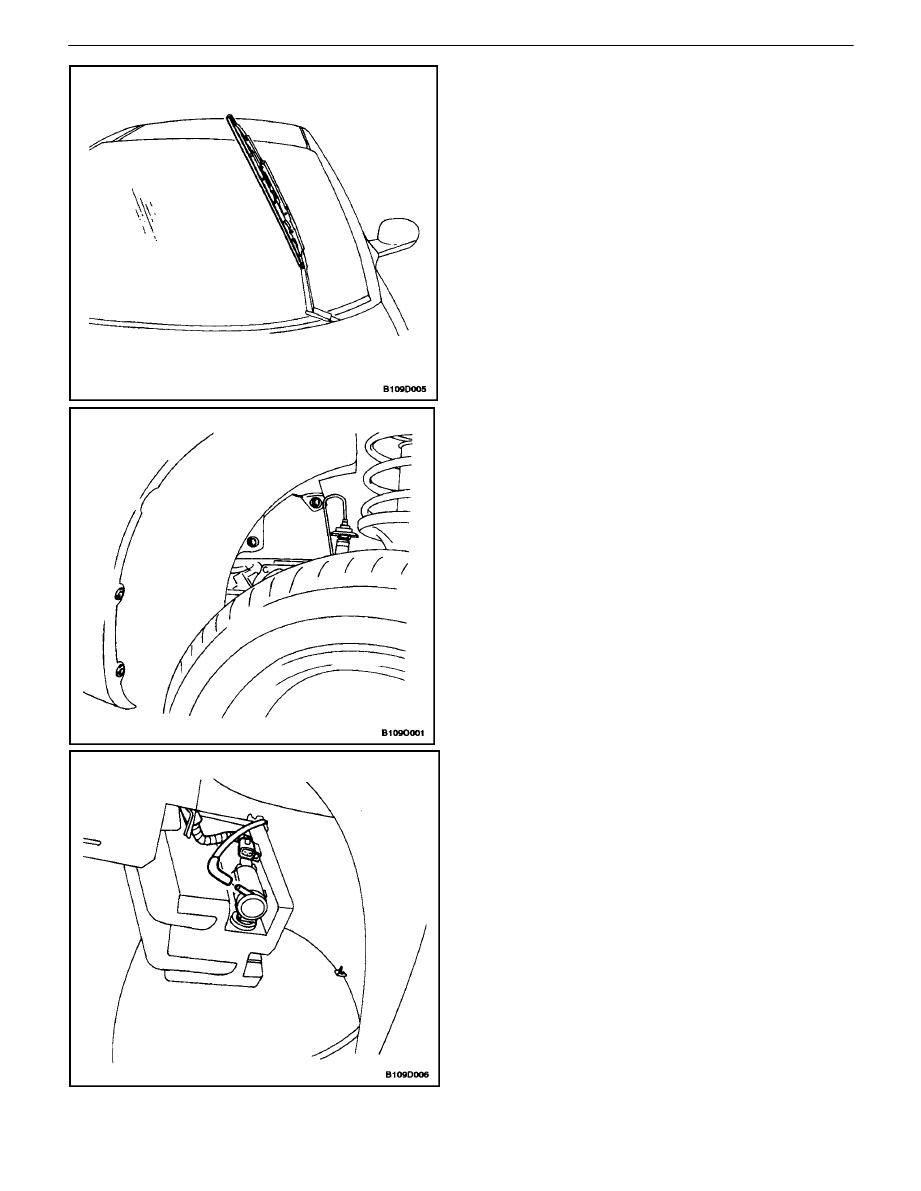

Installation Procedure

1.  Slide the insert into the wiper blade.

WINDSHIELD WASHER RESERVOIR

(Typical)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the front left wheel. Refer to Section 2E,

Tires and Wheels.

3.  Remove the bolts and the screws and the front

wheel well splash shield.

4.  Disconnect the washer hose from the washer

pump.

5.  Disconnect the reservoir pump electrical connector.
