9Q – 12

I

ROOF

DAEWOO V–121 BL4

11.  Install the left and the right A–pillar trim panels.
12.  Install the clock. Refer to Section 9E, Instrumenta-

tion/ Driver Information.

13.  Install the cargo area lamp (wagon only). Refer to

Section 9B, Lighting Systems

14.  Install the interior courtesy lamp or the interior cour-

tesy lamp/power sunroof switch, if equipped. Refer
to Section 9B, Lighting Systemsor”Interior Courtesy
Lamp/Power Sunroof ControlSwitch”in this section.

15.  Install the sun visor and the sun visor supports. Re-

fer to”Sun Visors”  in this section.

16.  Install the ticket holder. Refer to Section 9E, Instru-

mentation/ Driver Information.

17.  Install the passenger assist handles. Refer to”Pas-

senger Assist Handles”  in this section.

18.  Install the headliner/sunroof molding, if equipped.
19.  Connect the negative battery cable.

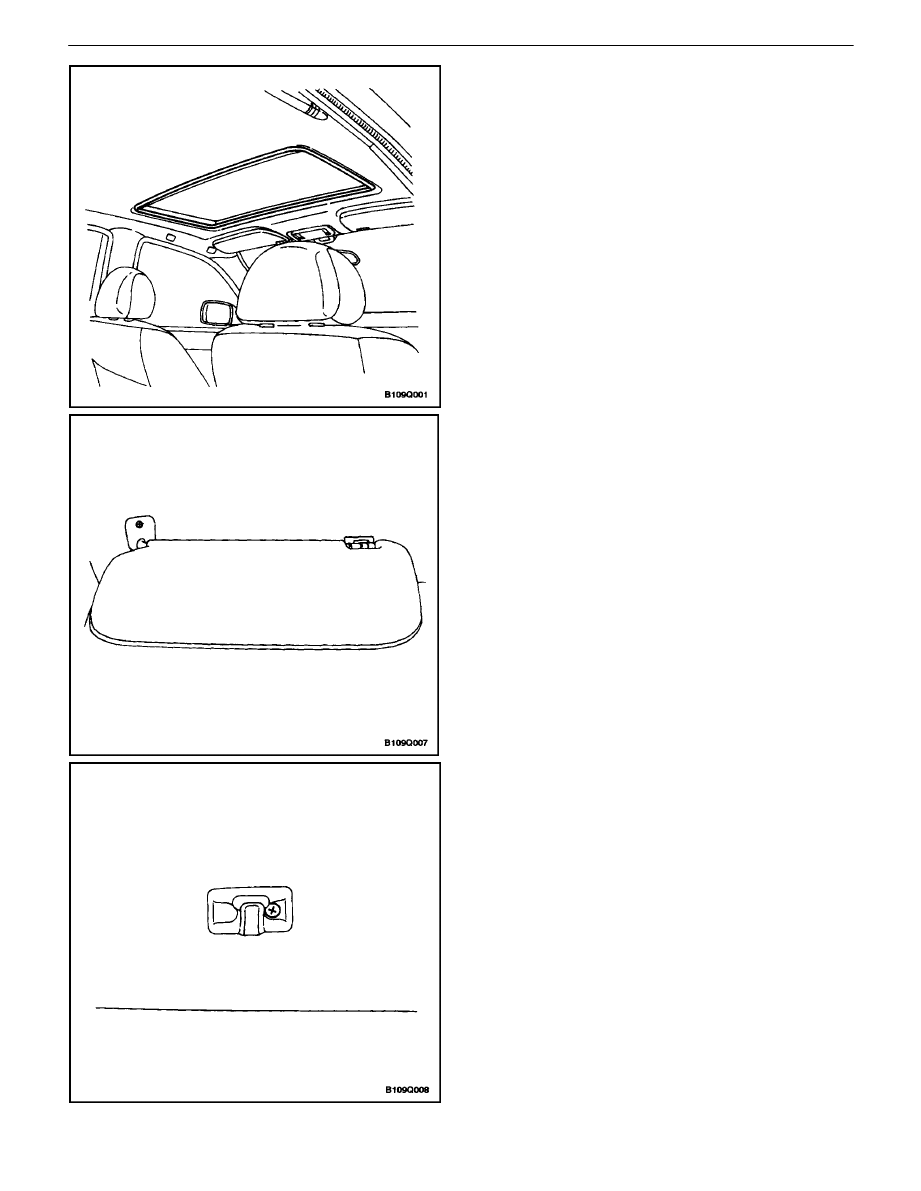

SUN VISORS

Removal Procedure

1.  Remove the screw and the sun visor from the

headliner.

2.  Remove the screw and the sun visor support from

the headliner.

ROOF  9Q – 13

DAEWOO V–121 BL4

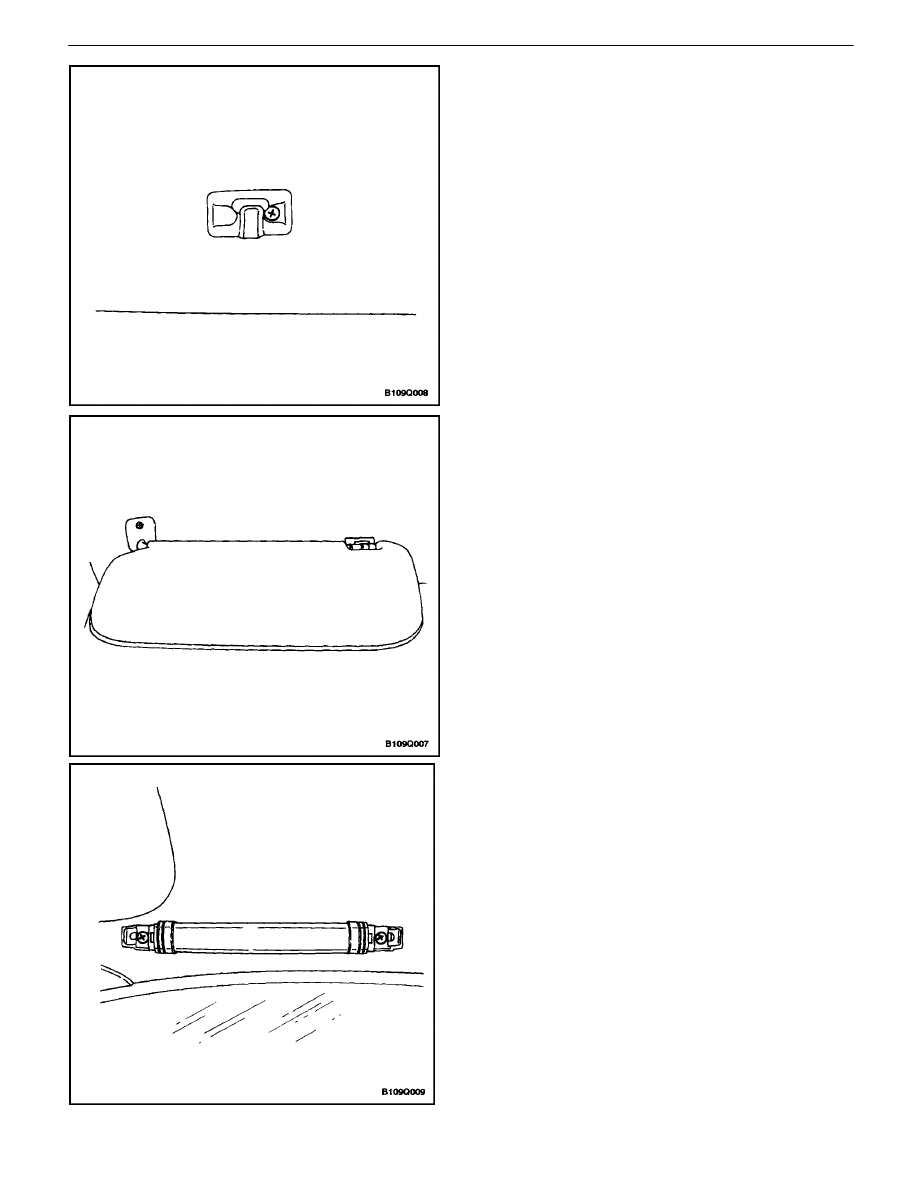

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the sun visor support to the headliner with

the screw.

Tighten

Tighten the sun visor support screw to 2 N

S

m (18 lbin).

2.  Install the sun visor to the headliner with the screw.

Tighten

Tighten the sun visor screw to 2 N

S

m (18 lb–in).

PASSENGER ASSIST HANDLES

Removal Procedure

1.  Remove the plastic caps to reveal the assist handle

screws.

2.  Remove the screws and the assist handle from the

headliner.

9Q – 14

I

ROOF

DAEWOO V–121 BL4

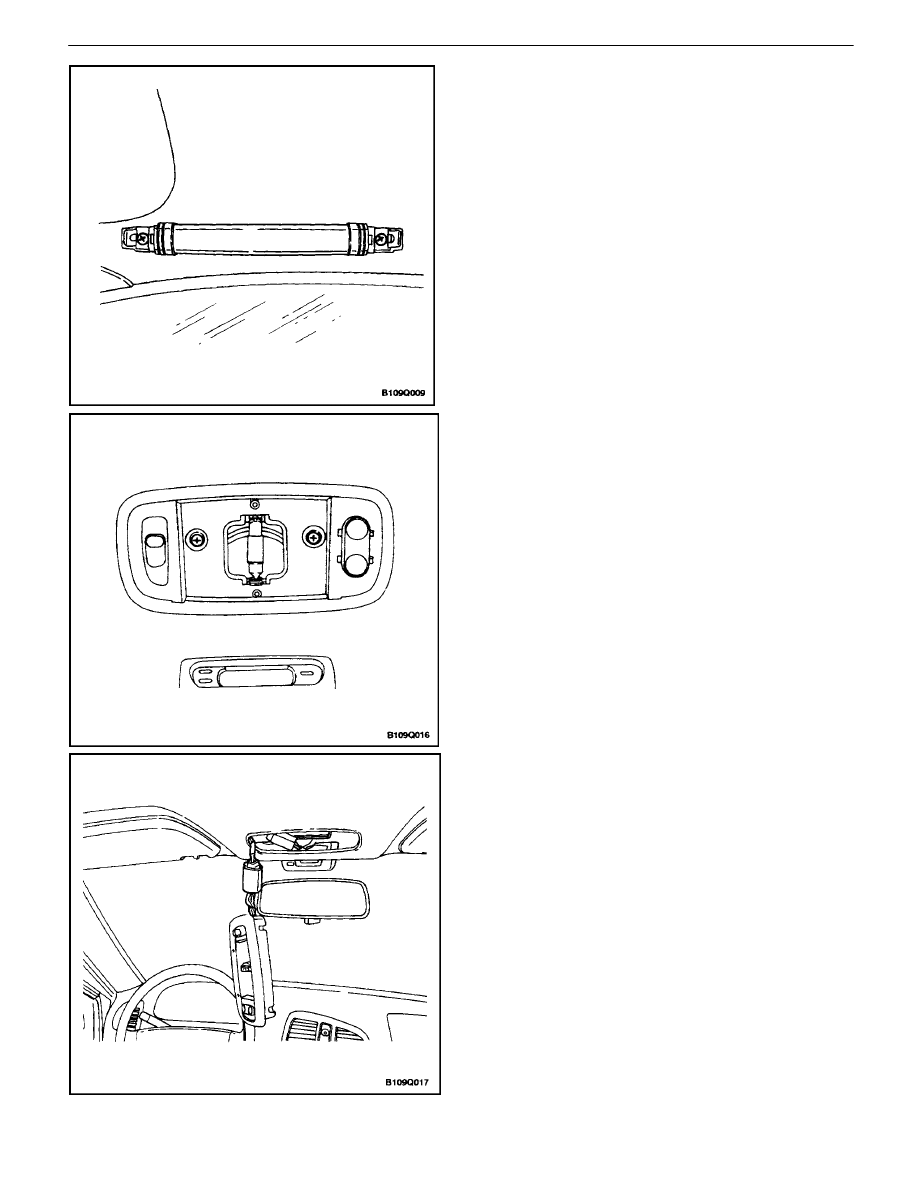

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the assist handle to the headliner with the

screws.

Tighten

Tighten the passenger assist handle screws to 3.5
N

S

m (31 lb–in).

2.  Install the plastic caps over the assist handle

screws.

INTERIOR COURTESY LAMP/POWER
SUNROOF CONTROL SWITCH

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Pry off the lamp lens.
3.  Remove the screws and the lamp/power sunroof

control switch.

4.  Disconnect the electrical connector.

ROOF  9Q – 15

DAEWOO V–121 BL4

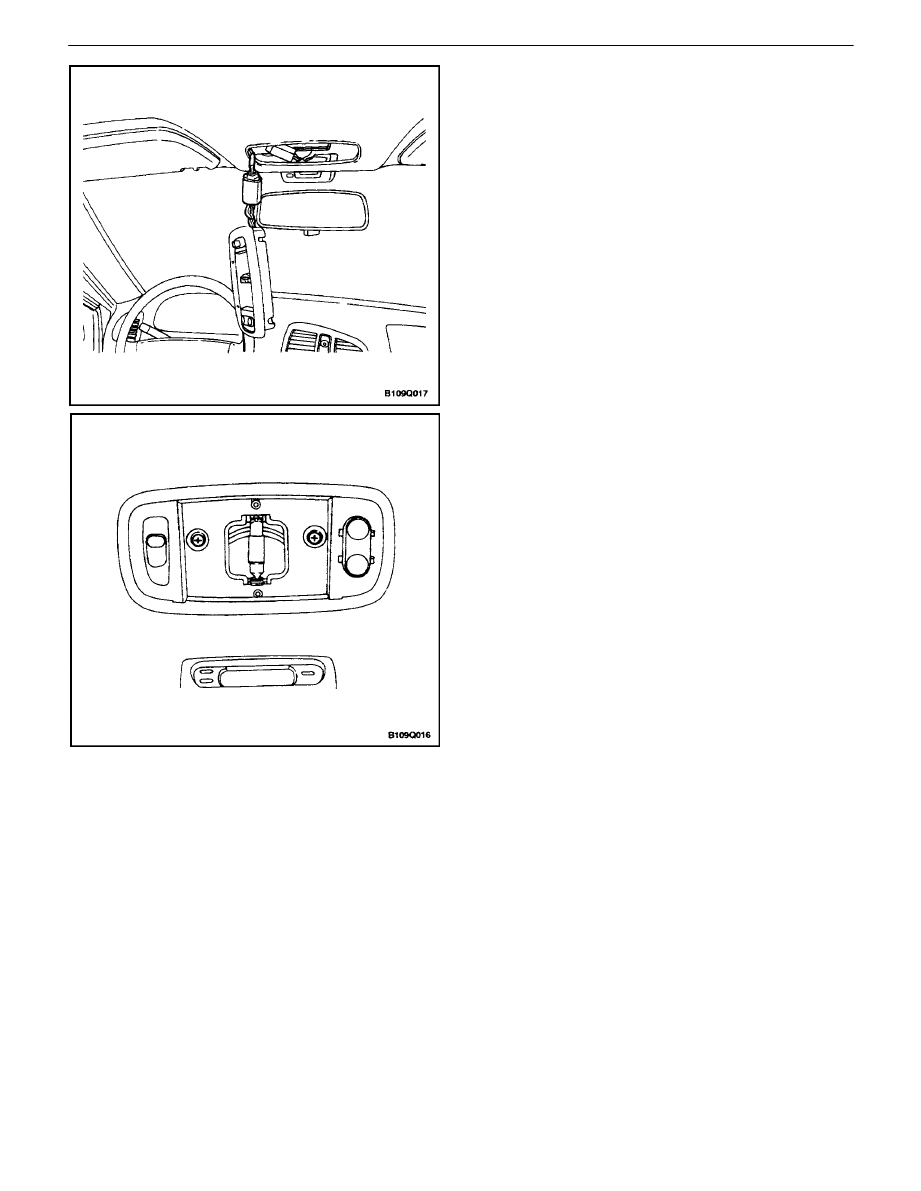

Installation Procedure

1.  Connect the electrical connector.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the lamp/power sunroof control switch with

the screws.

Tighten

Tighten the lamp/power sunroof control switch
screws to 4 N

S

m (35 lb–in).

3.  Install the lamp lens.
4.  Connect the negative battery cable.
