DOORS  9P – 31

DAEWOO V–121 BL4

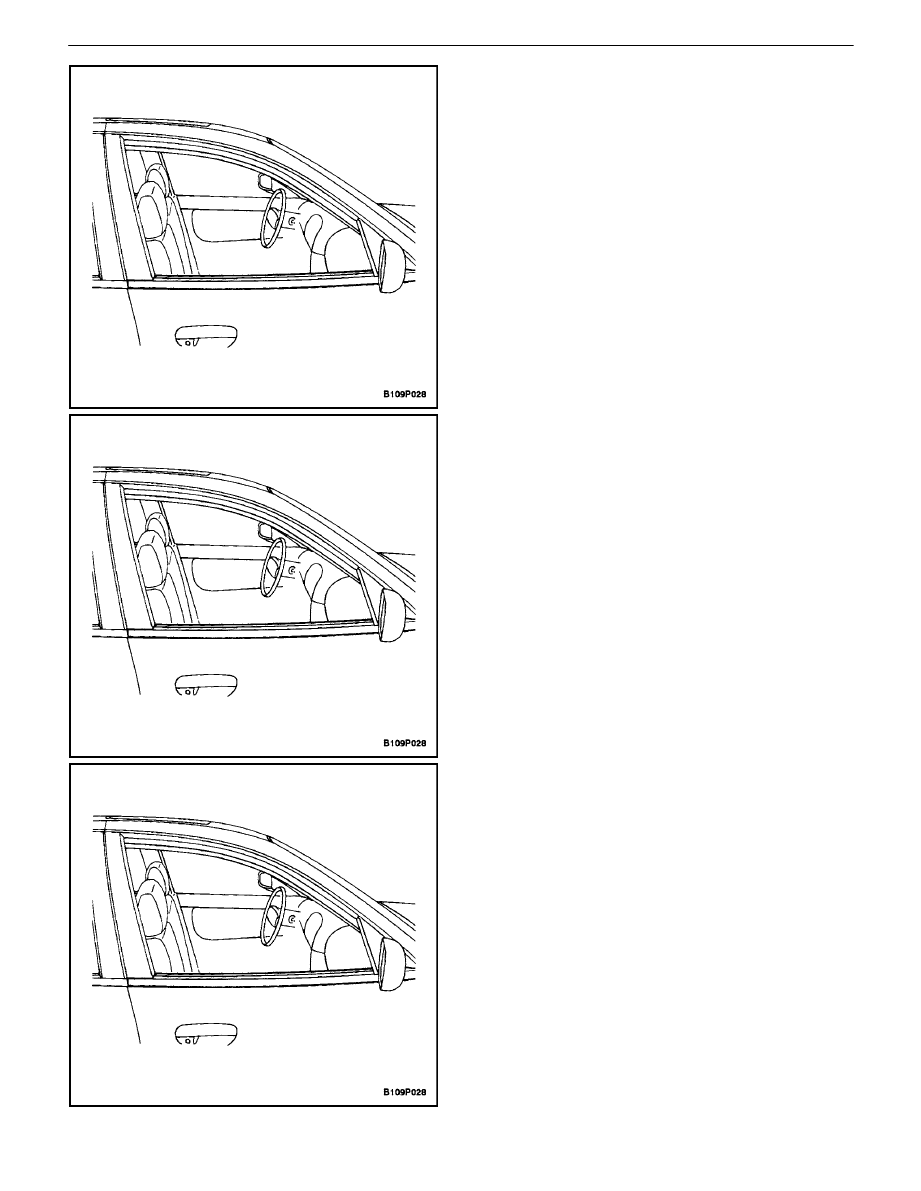

OUTSIDE CHANNEL MOLDING

Removal Procedure

1.  Lower the window completely.
2.  Lift the outside channel molding off the door.

Installation Procedure

1.  Press the outside channel molding onto the door.
2.  Raise the window.

DOOR WEATHERSTRIP

Removal Procedure

1.  Lower the window completely.
2.  Remove the door weatherstrip.

9P – 32

I

DOORS

DAEWOO V–121 BL4

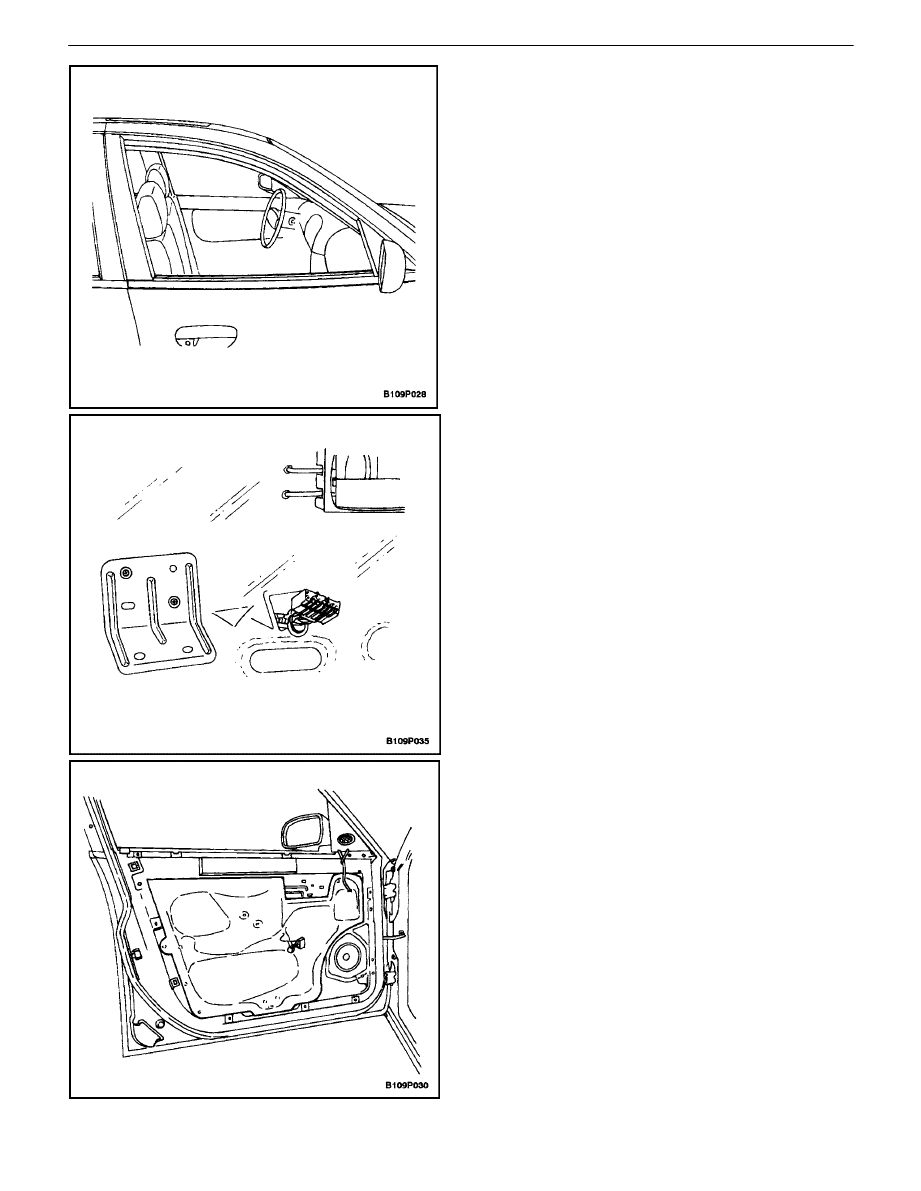

Installation Procedure

1.  Install the door weatherstrip.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  Install the door hold open link to the body with the

bolt.

Tighten

Tighten the door hold open link–to–body bolt to 27
N

S

m (20 lb–ft).

DOOR SEAL TRIM

Removal Procedure

1.  Remove the door trim panel. Refer to Section 9G,

Interior Trim.

2.  Remove the screws and the door pull bracket.

3.  Remove the inside door handle. Refer to”Inside

Door Handle” in this section.

4.  Remove the door seal trim.

DOORS  9P – 33

DAEWOO V–121 BL4

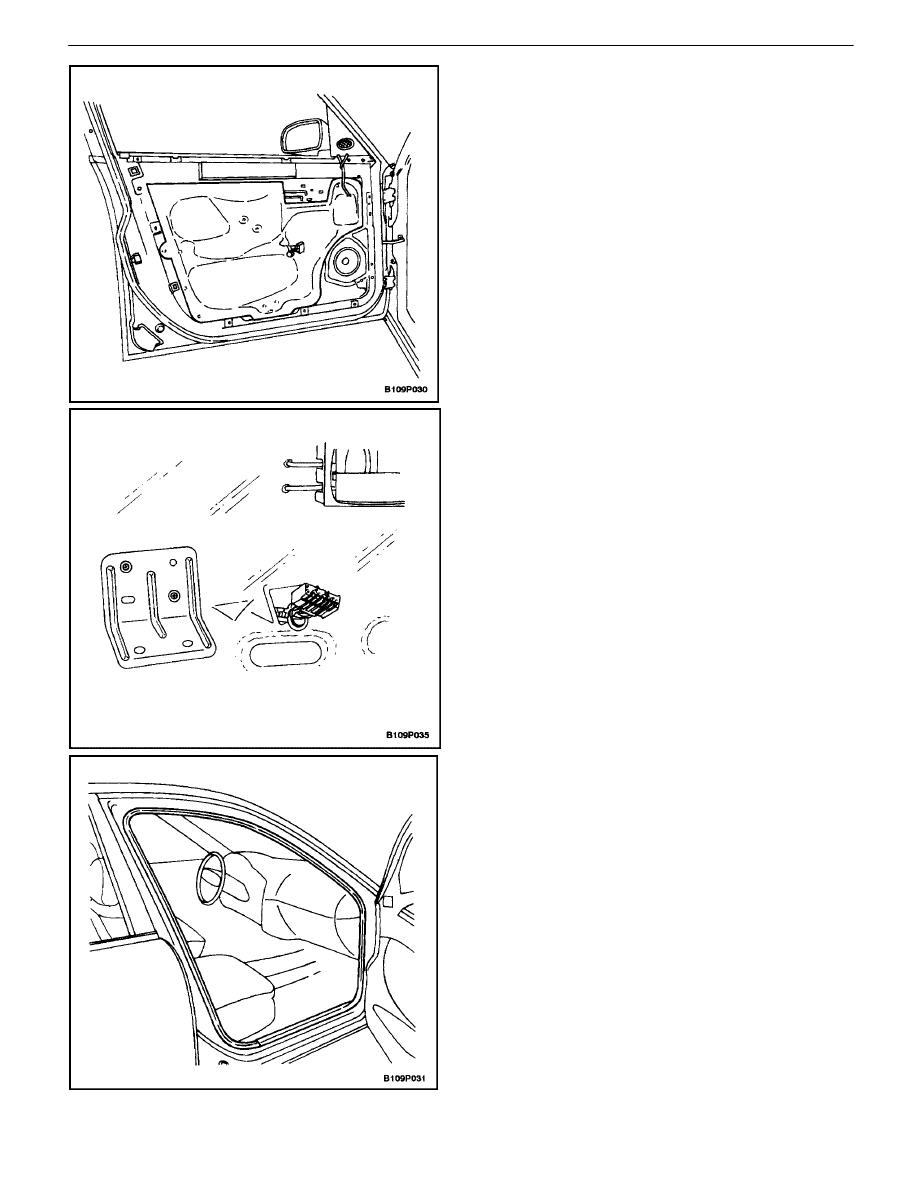

Installation Procedure

1.  Install the door seal trim.

2.  Install the inside door handle. Refer to”Inside Door

Handle”  in this section.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.  Install the door pull bracket with the screws.

Tighten

Tighten the door pull bracket screws to 3.5 N

S

m (31

lb–in).

4.  Install the door trim panel. Refer to Section 9G, In-

terior Trim.

FRONT DOOR OPENING
WEATHERSTRIP

Removal Procedure

1.  Remove the kick panel, the front rocker panel, and

the lower B–pillar trim panel. Refer to Section 9G,
Interior Trim.

2.  Remove the door opening weatherstrip.

9P – 34

I

DOORS

DAEWOO V–121 BL4

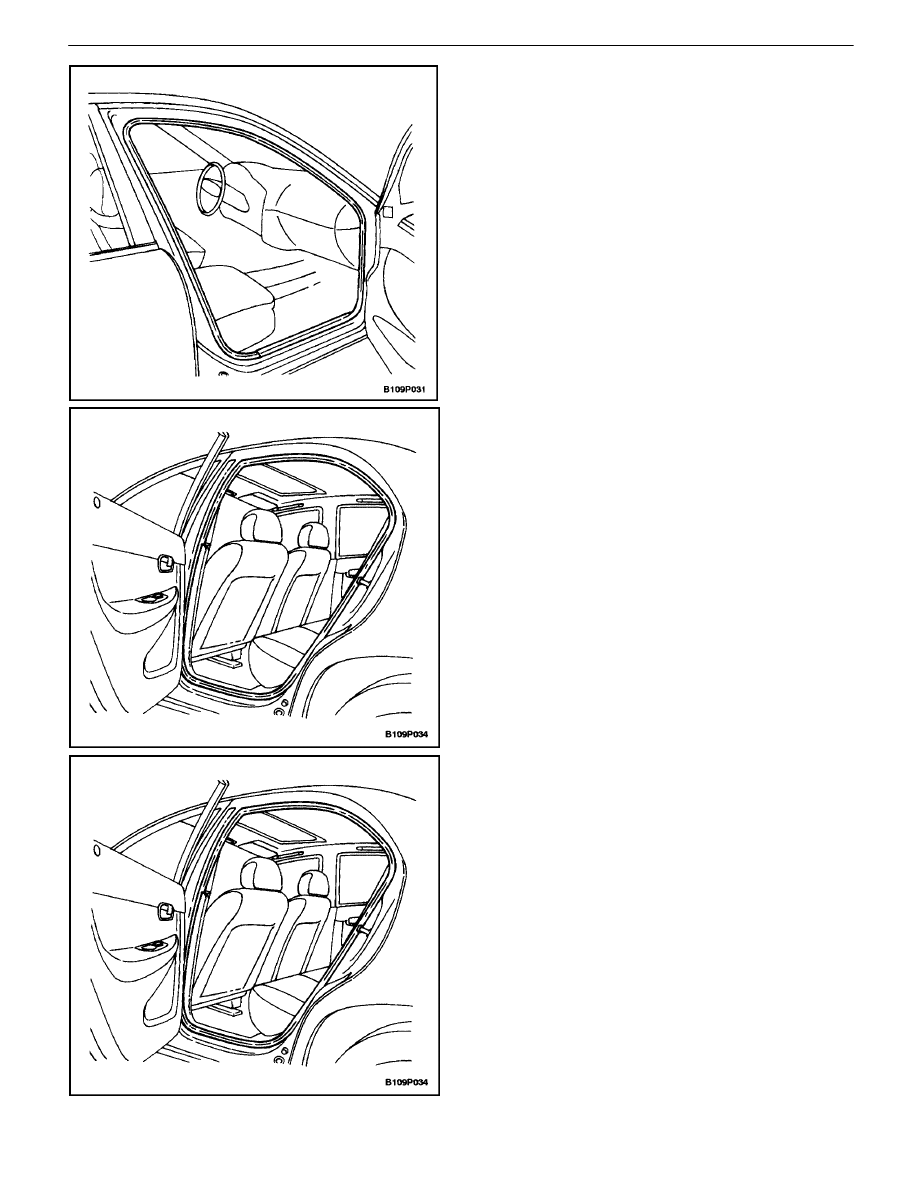

Installation Procedure

1.  Install the door opening weatherstrip.
2.  Install the kick panel, the front rocker panel, and the

lower B–pillar trim panel. Refer to Section 9G, Inte-
rior Trim.

REAR DOOR OPENING
WEATHERSTRIP

Removal Procedure

1.  Remove the rear rocker panel and the lower B–pil-

lar trim panel. Refer to Section 9G, Interior Trim.

2.  Remove the door opening weatherstrip.

Installation Procedure

1.  Install the door opening weatherstrip.
2.  Instal the rear rocker panel and the lower B–pillar

trim panel. Refer to Section 9G, Interior Trim.
