REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM

DAEWOO V–121 BL4

SCHEMATIC AND ROUTING DIAGRAMS

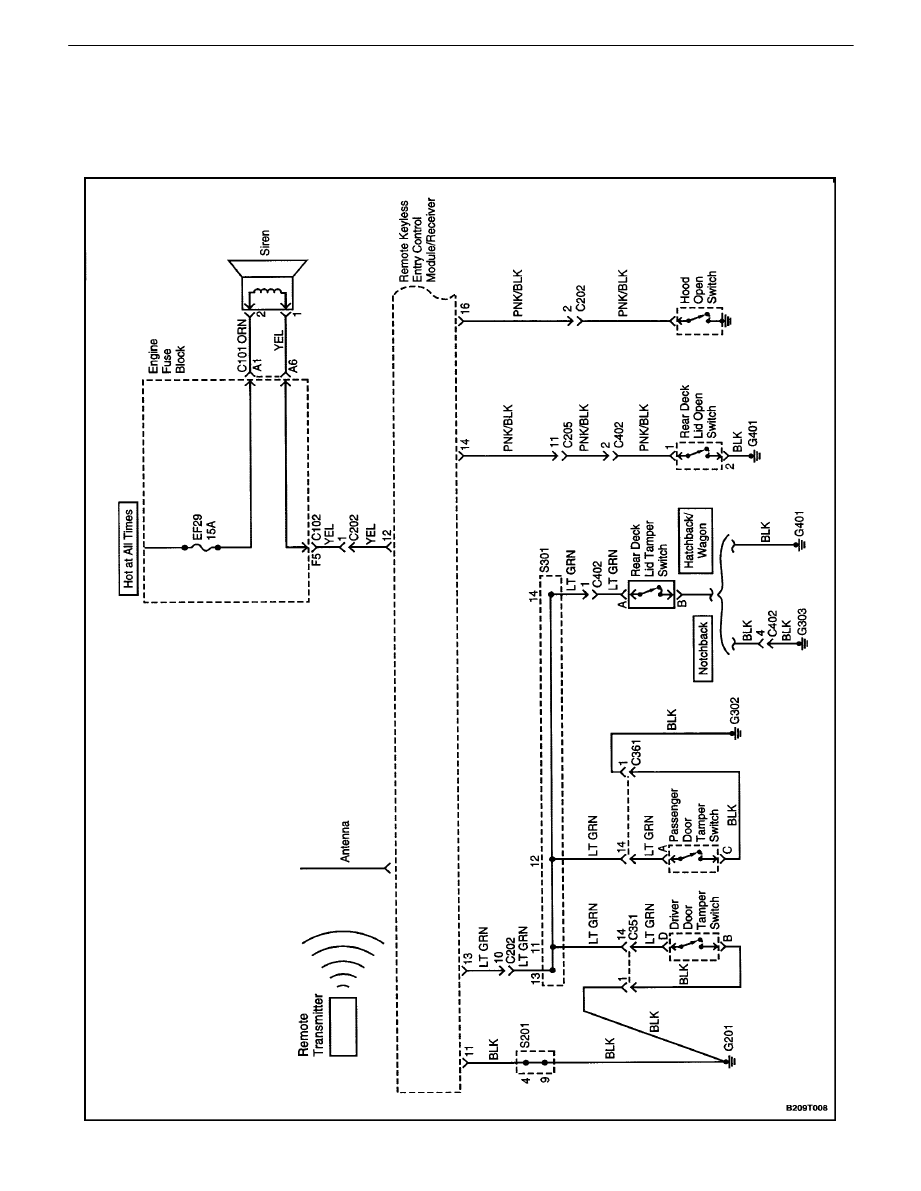

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM (1

OF 2)

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM  9T – 3

DAEWOO V–121 BL4

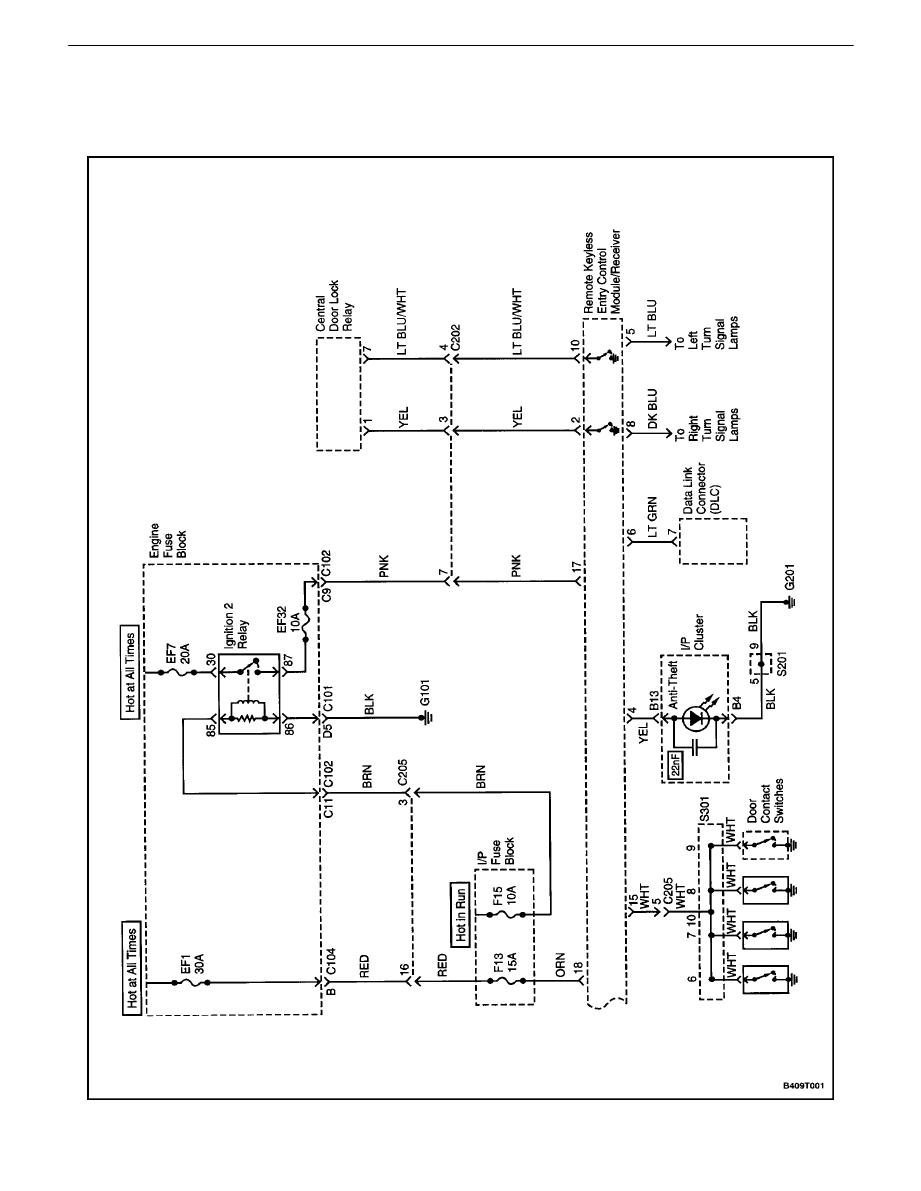

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM (2

OF 2)

9T – 4

I

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM

DAEWOO V–121 BL4

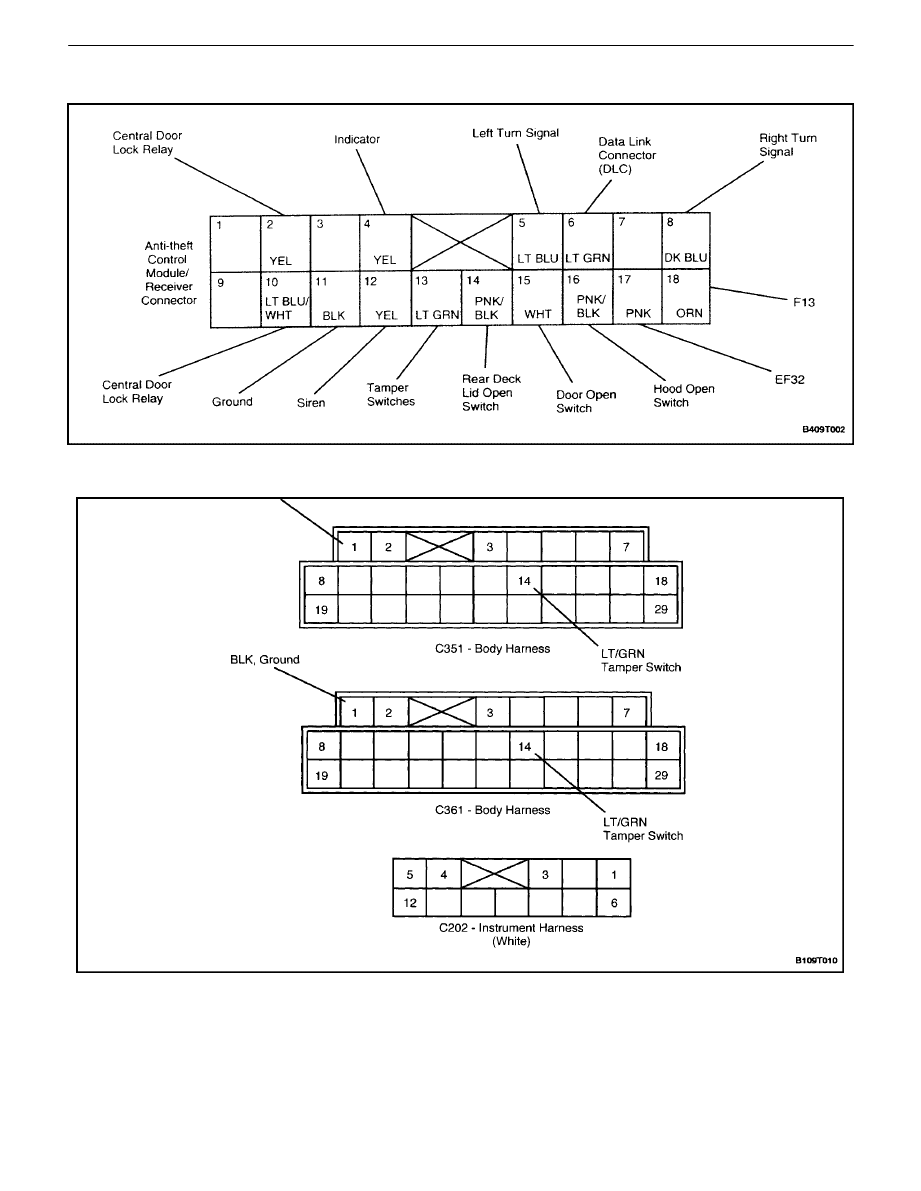

CONTROL MODULE/RECEIVER CONNECTOR

WIRING HARNESS CONNECTORS

REMOTE KEYLESS ENTRY AND ANTI–THEFT SYSTEM  9T – 5

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

CONTROL MODULE/RECEIVER

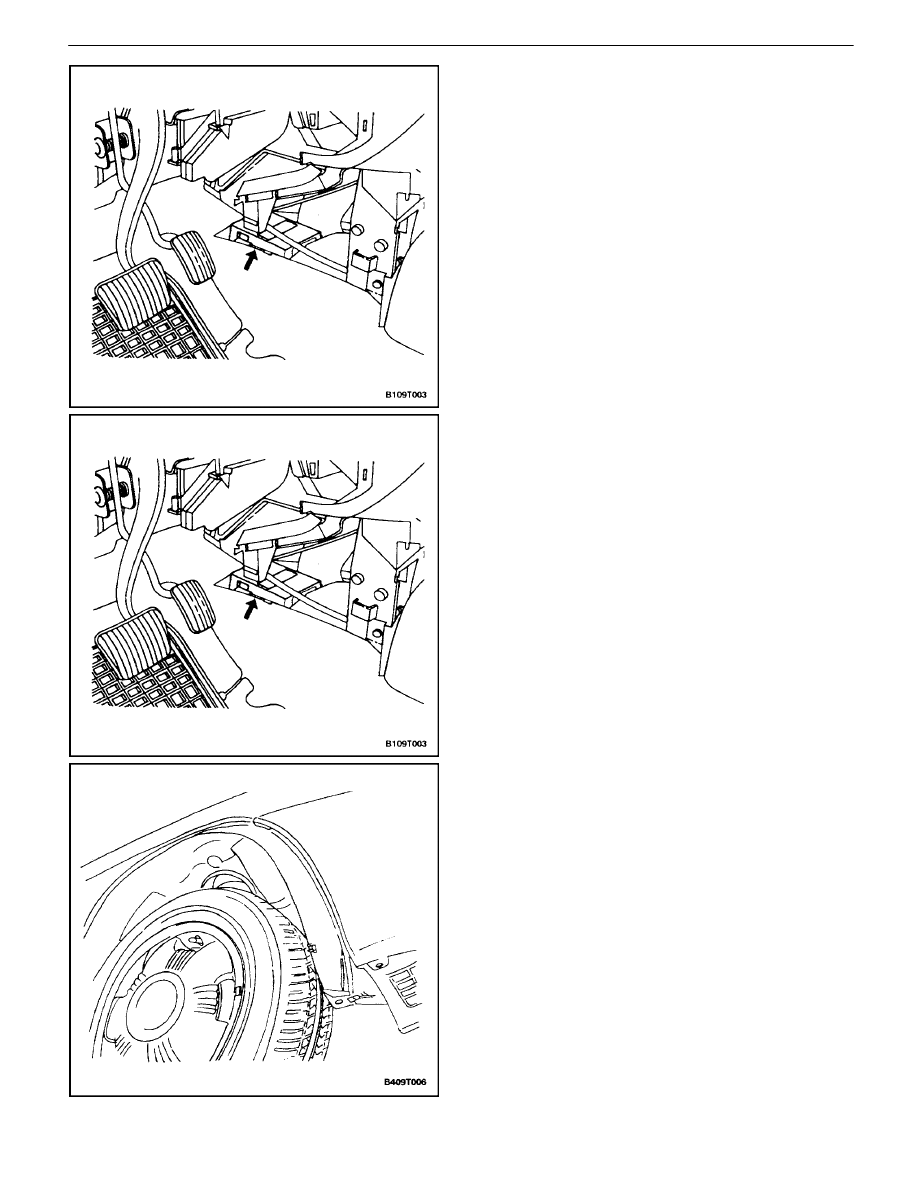

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove floor console left side forward trim panel.

Refer to Section 9G, Interior Trim.

3.  Disconnect the control module/receiver electrical

connector.

4.  Slide the control module/receiver toward the rear of

the vehicle and remove it.

Installation Procedure

1.  Install the control module/receiver by sliding it onto

its bracket.

2.  Connect the control module/receiver electrical con-

nector.

3.  Install the floor console left side forward trim panel.

Refer to Section 9G, Interior Trim.

4.  Connect the negative battery cable.

SIREN

Removal Procedure

1.  Remove several screws to boosen the forward half

of the right front wheel well splash shield.
