5-1

Disassembly and assembly

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

5. DISASSEMBLY AND ASSEMBLY

5.1 DISASSEMBLY AND ASSEMBLY, PUMP HOUSING

}

When disassembling the pump

housing, fuel will escape. Collect

this fuel, bearing in mind the risk of

fire.

}

Dirt in the system can lead to

significant damage to fuel system

components.

Disassembling the pump housing
1.

Remove the pump housing. See "Removal

and installation".

Note:

If after removal the pump units are not

replaced in the same position, they must be

re-calibrated.

2.

Remove the pump units. See "Removal and

installation".

3.

Remove the tappet rollers.

4.

Remove the fuel lift pump. See "Removal

and installation".

5.

Remove the cover and check the O-ring. If

necessary, replace the O-ring.

6.

Remove the pulse disc from the pump

camshaft.

7.

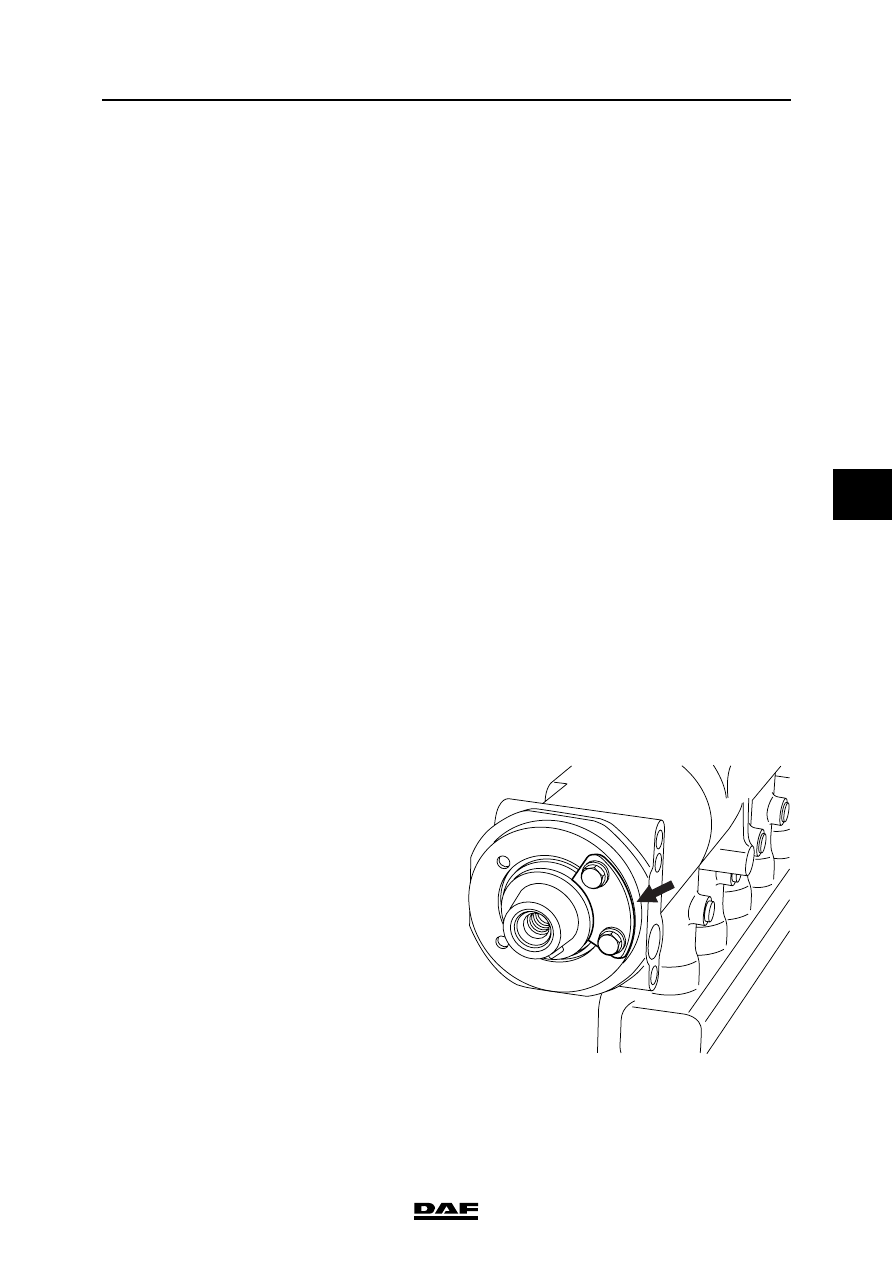

Remove the locking plate from the pump

camshaft.

Note:

When removing the sealing plates, an

amount of lubricating oil will escape. Collect

this lubricating oil.

8.

Remove the sealing plates and the gaskets.

9.

Remove the pump camshaft by manoeuvring

it vertically out of the pump housing.

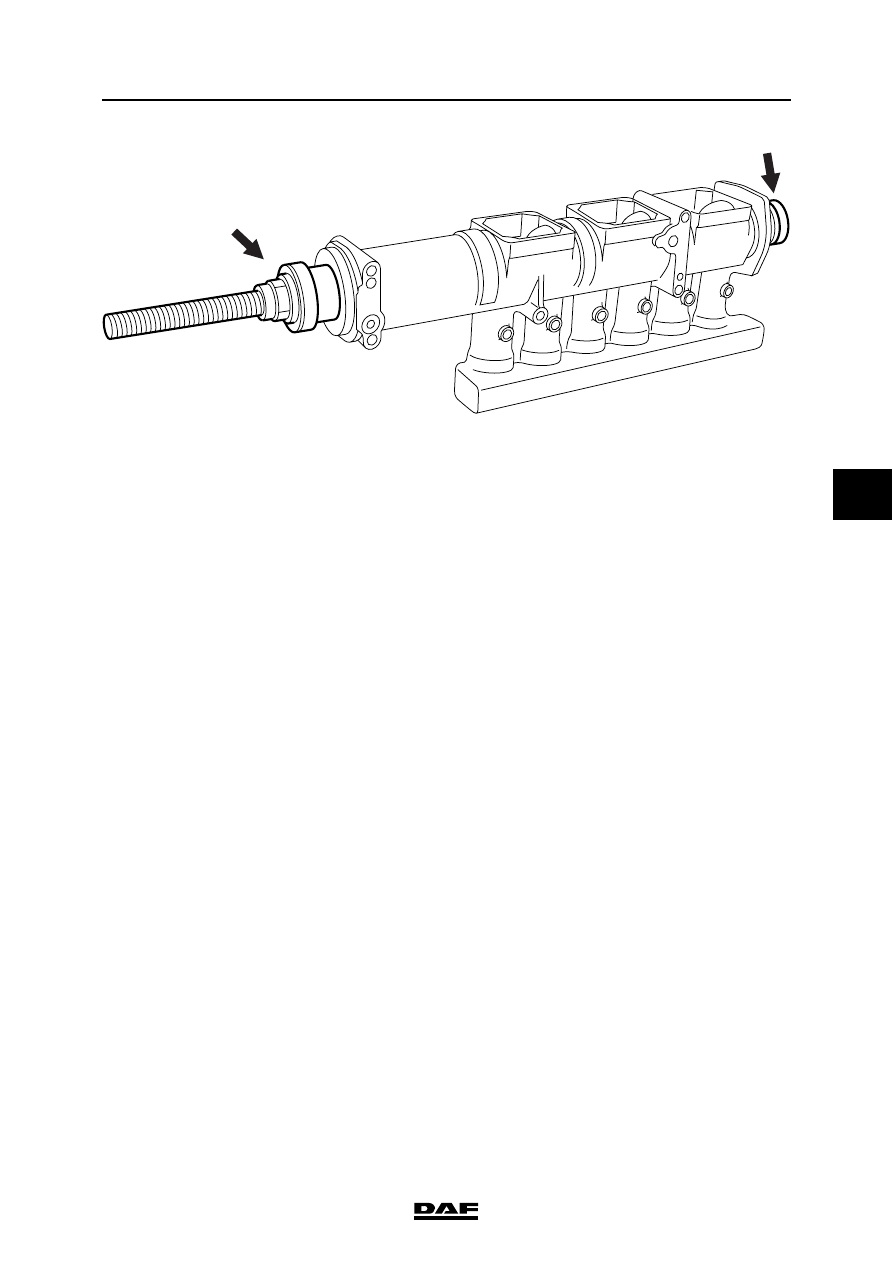

10. Remove the slide bearings using the special

tools (DAF no. 1329444) and

(DAF no. 0535626).

i400380

PE ENGINE FUEL SYSTEM

5-2

©

 200324

Disassembly and assembly

5

CF65/75/85 series

4

Assembling the pump housing

}

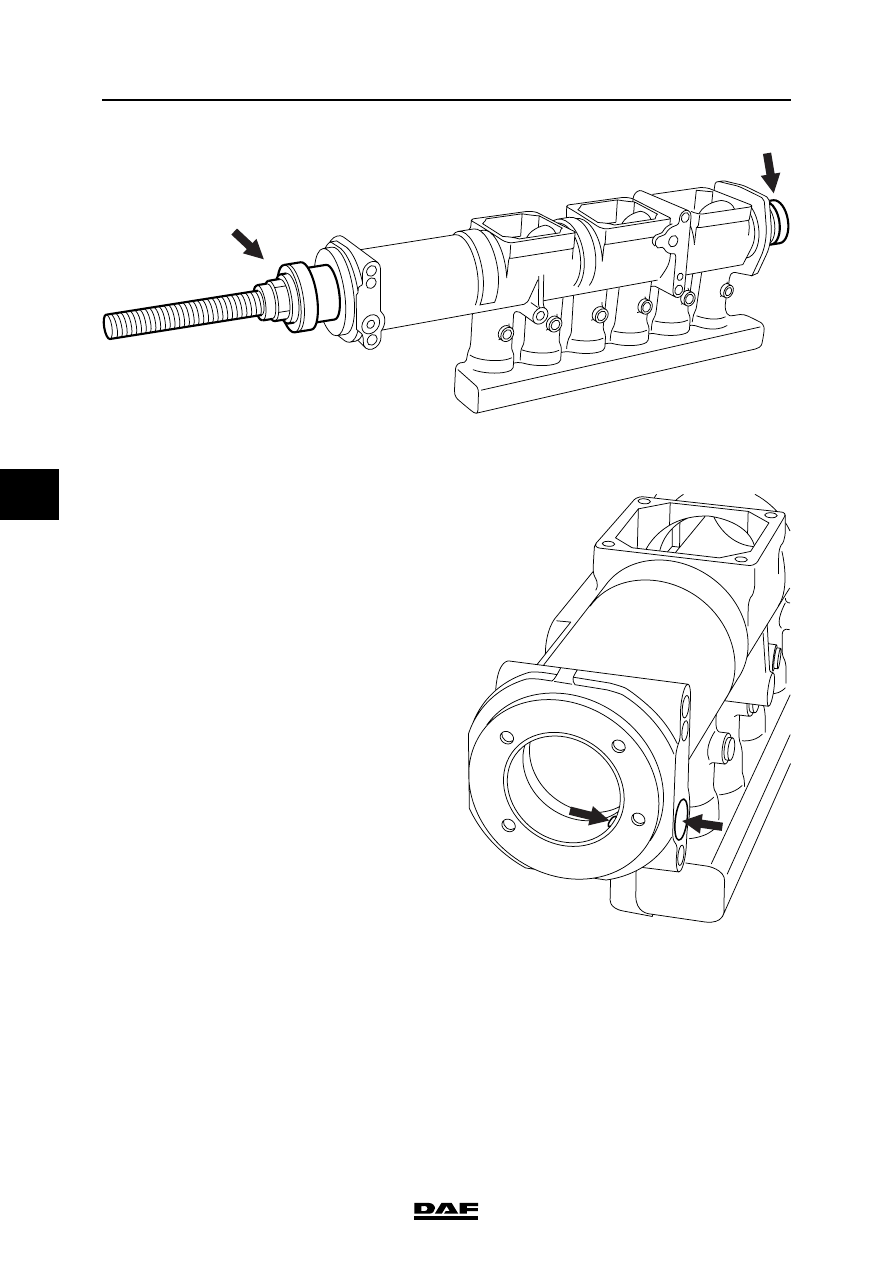

When fitting the front bearing shell it

is important that the oil bore in the

bearing housing aligns with the hole

in the slide bearing.

i400378

i400382

©

 200324

5-3

Disassembly and assembly

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

1.

Use the special tools (DAF no. 1329444)

and (DAF no. 0535626) to fit the bearing

shells.

Note:

Before fitting the pump camshaft, oil the

bearing journals lightly with lubricating oil.

When fitting the bearing shells, take care not

to damage them.

2.

Fit the pump camshaft by lowering it

vertically into the pump housing.

3.

Clean the gaskets if necessary. Fit the

gaskets and sealing plates and tighten the

bolts to the specified torque. See "Technical

data".

Note:

When fitting the locking plate, make sure it

does not stick in the pump camshaft groove.

4.

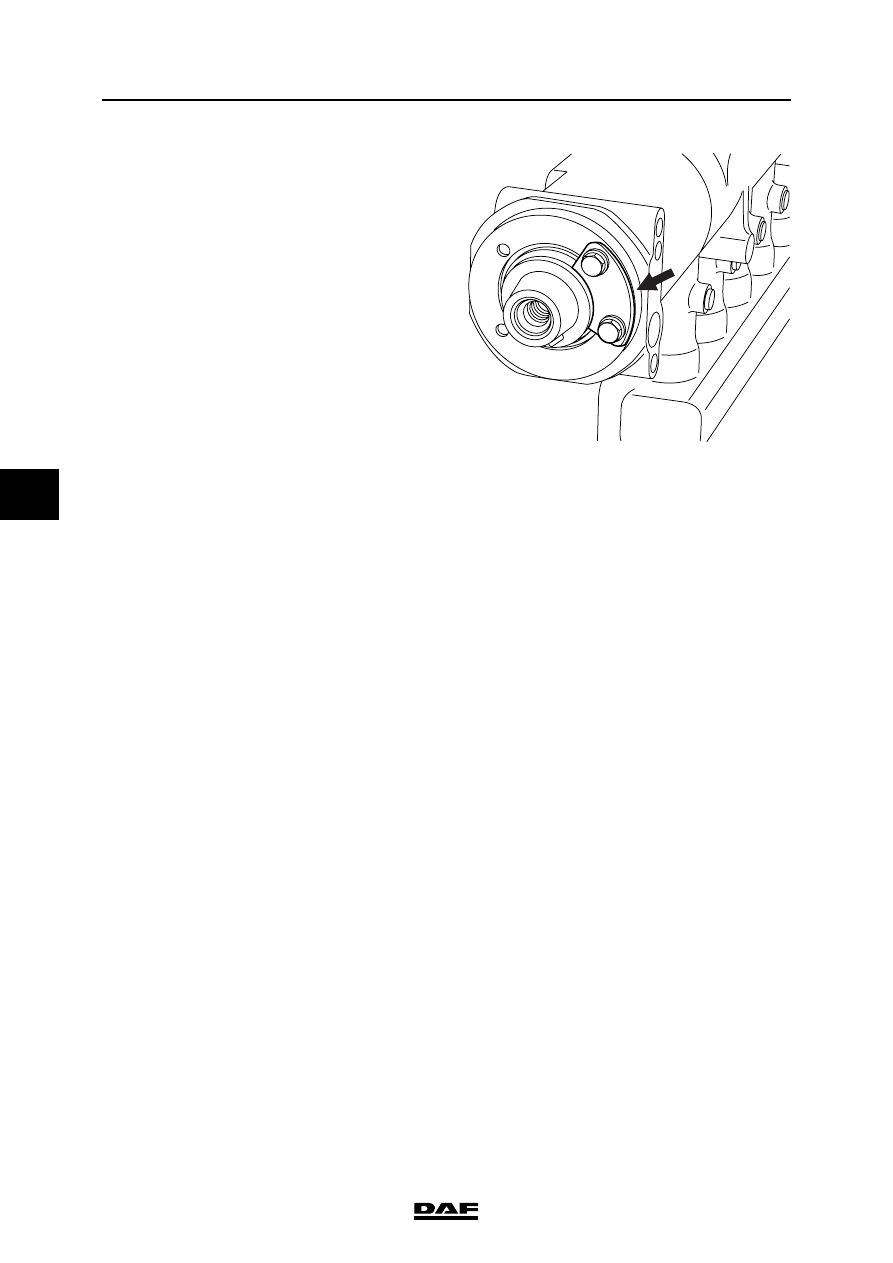

Fit the locking plate of the pump camshaft

and the bolts, tightening them to the

specified torque. See "Technical data".

5.

Fit the pulse disc and tighten the bolts to the

specified torque. See "Technical data".

6.

If necessary, clean the groove in which the

O-ring is fitted and apply a thin layer of

lubricating oil.

7.

Fit the O-ring.

i400378

PE ENGINE FUEL SYSTEM

5-4

©

 200324

Disassembly and assembly

5

CF65/75/85 series

4

8.

Fit the cover and tighten the bolts to the

specified torque. See "Technical data".

9.

Fit the fuel lift pump. See "Removal and

installation".

10. Apply a thin layer of lubricating oil to the

tappet rollers.

11. Fit the tappet rollers.

12. Fit the pump units. See "Removal and

installation".
