DAF CF65, CF75, CF85 Series . Manual - part 448





©

 200324

4-5

Removal and installation

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

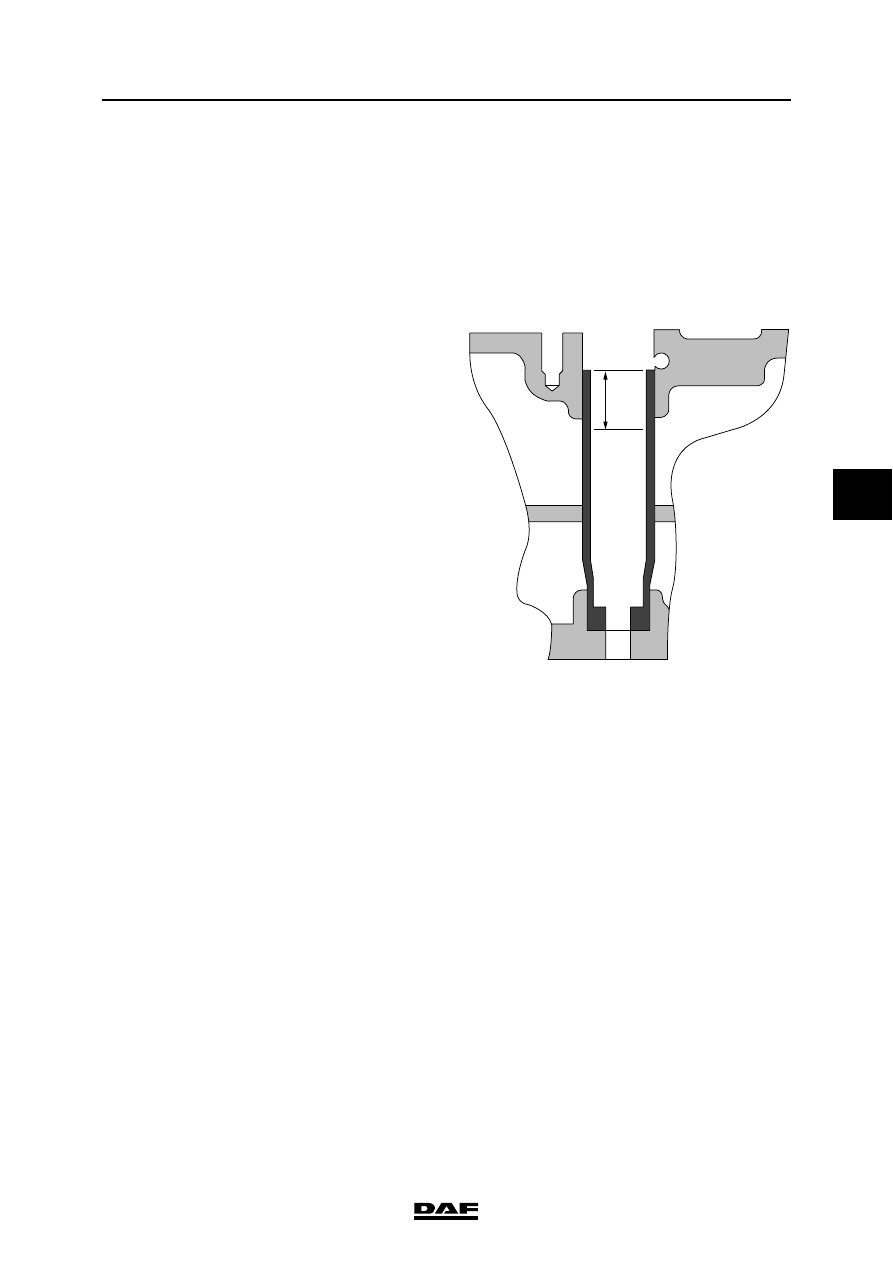

4.3 REMOVAL AND INSTALLATION, INJECTOR SLEEVE

Removing the injector sleeve
1.

Partially drain the coolant.

2.

Remove the injector.

Insert a ball of crumpled paper into the

injector sleeve to prevent metal particles

from entering the engine.

3.

Tap a thread (M22 x 1.5) over a length (A) of

approx. 20 mm in the injector sleeve that is to

be removed.

Turn the special tool (DAF no. 1310425) into

the injector sleeve and, using the special tool

(DAF no. 0694928), remove the injector

sleeve.

Installing the injector sleeve
1.

Clean the injector sleeve opening

thoroughly.

Note:

Fit the dry injector sleeve in the cylinder

head.

Use the special tool (DAF no. 1329305) to

tap the injector sleeve into the cylinder head.

2.

Fit the injector.

3.

Top up the cooling system.

4.

Start the engine and check the engine for

leaks.

A

I 400195

PE ENGINE FUEL SYSTEM

4-6

©

 200324

Removal and installation

5

CF65/75/85 series

4

4.4 REMOVAL AND INSTALLATION, PUMP UNIT

}

When removing the pump unit, fuel

will escape. Collect this fuel, bearing

in mind the risk of fire.

}

Dirt in the fuel system can lead to

significant damage to pump units

and housing.

Removing the pump unit
1.

Disconnect the earth lead from the battery

terminal.

2.

Remove the electrical connections from the

pump unit.

3.

Remove the fuel pipes from the pump

housing.

4.

Remove the pressure relief valve from the

pump housing.

5.

Let the fuel leak from the pump housing.

6.

Remove the injector pipes in sets and plug

the pump units and injectors so that no dirt

can enter.

7.

If it is necessary to replace the pump unit(s),

the pump unit must be marked so that it can

be replaced in the same position in the pump

housing.

Note:

The pump unit may be under spring tension,

depending on the position of the camshaft in

the pump housing.

8.

Remove the attachment bolts from the pump

unit.

©

 200324

4-7

Removal and installation

PE ENGINE FUEL SYSTEM

CF65/75/85 series

4

5

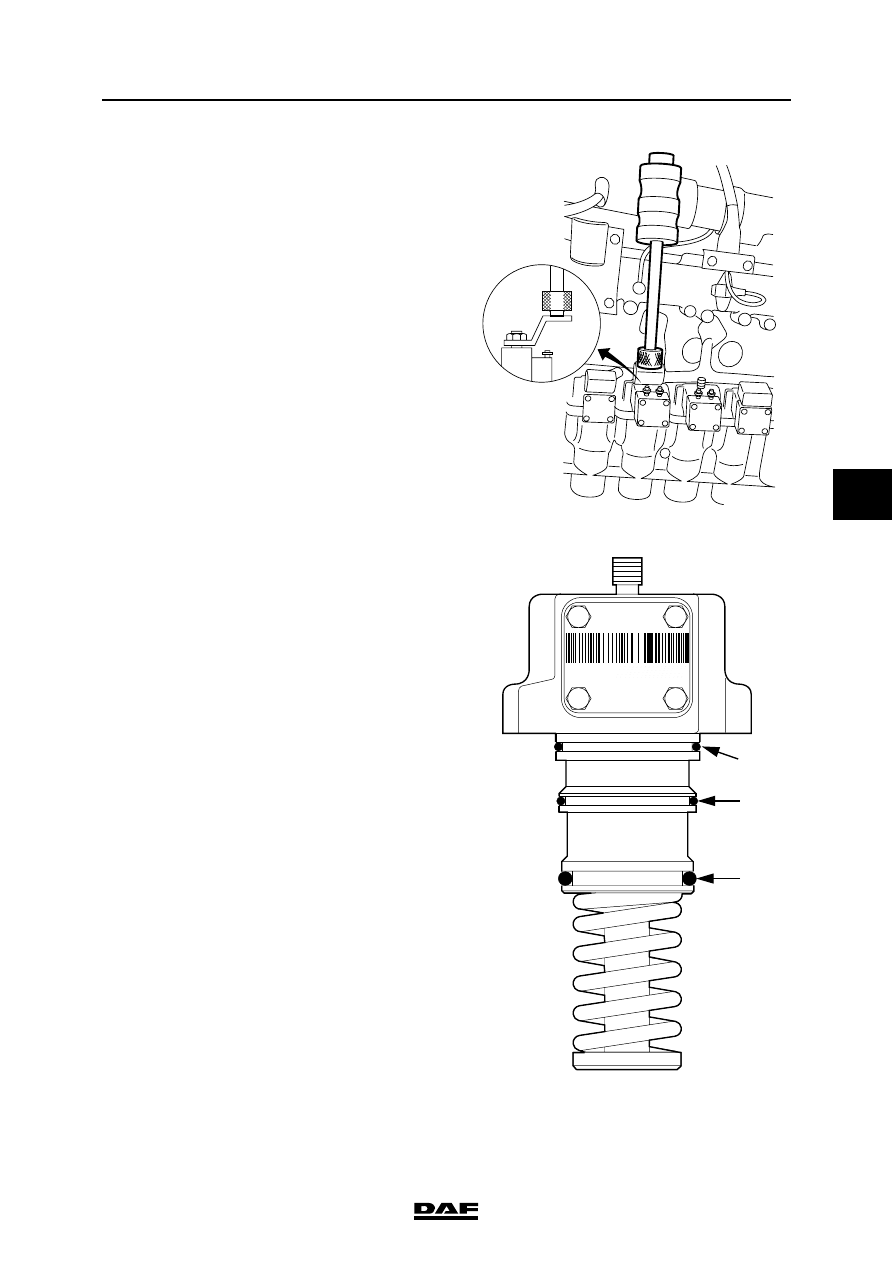

9.

Remove the pump unit. If necessary use the

special tools (DAF no. 0694928) and

(DAF no. 1329448).

Installing the pump unit

Note:

Damage to the sealing ring could result in the

lubricating oil being diluted.

1.

Fit new sealing rings to the pump unit.

Sealing ring 1 has the largest diameter and

sealing ring 3 the smallest.

2.

Apply a thin layer of lubricating oil to the bores

in the pump housing for the sealing rings.

3.

Crank the engine until the camshaft in the

pump housing is in such a position that the

pump unit can be fitted in the pump housing

practically tension free.

4.

Apply a thin layer of lubricant to the new

sealing rings and fit the pump unit, without

damaging the sealing rings, in the pump

housing.

5.

Fit the pump unit attachment bolts and

tighten them evenly until the pump unit abuts

the pump housing.

6.

Tighten the attachment bolts to the specified

torque. See "Technical data".

7.

Fit the pressure relief valve onto the pump

housing.

8.

Fit the fuel pipes to the pump housing.

9.

Fit the injector pipes.

i 400396

6002272-AD028

i 400221

1

2

3

PE ENGINE FUEL SYSTEM

4-8

©

 200324

Removal and installation

5

CF65/75/85 series

4

10. Fit the electrical connections to the pump

unit.

11. Bleed the fuel system. See "Inspection and

adjustment".

4.5 REMOVAL AND INSTALLATION, FUEL LIFT PUMP

}

When removing the fuel lift pump,

fuel will escape. Collect this fuel,

bearing in mind the risk of fire.

}

Dirt in the fuel system can lead to

significant damage to pump units

and housing.

Removing the fuel lift pump
1.

Disconnect the earth lead from the battery

terminal.

2.

Remove the fuel pipes from the fuel lift pump.

3.

Remove the attachment bolts from the fuel

lift pump.

4.

Remove the fuel lift pump.

Installing the fuel lift pump
1.

Check the sealing ring of the fuel lift pump for

damage. If required, replace the sealing ring.

2.

Apply lubricating oil sparingly to the fuel lift

pump sealing ring.

3.

Fit the fuel lift pump.

4.

Screw in the attachment bolts evenly and

tighten them to the specified torque. See

"Technical data".

5.

Connect the fuel pipes.

6.

Bleed the fuel system. See "Inspection and

adjustment".
