DAF CF65, CF75, CF85 Series . Manual - part 117

©

 200346

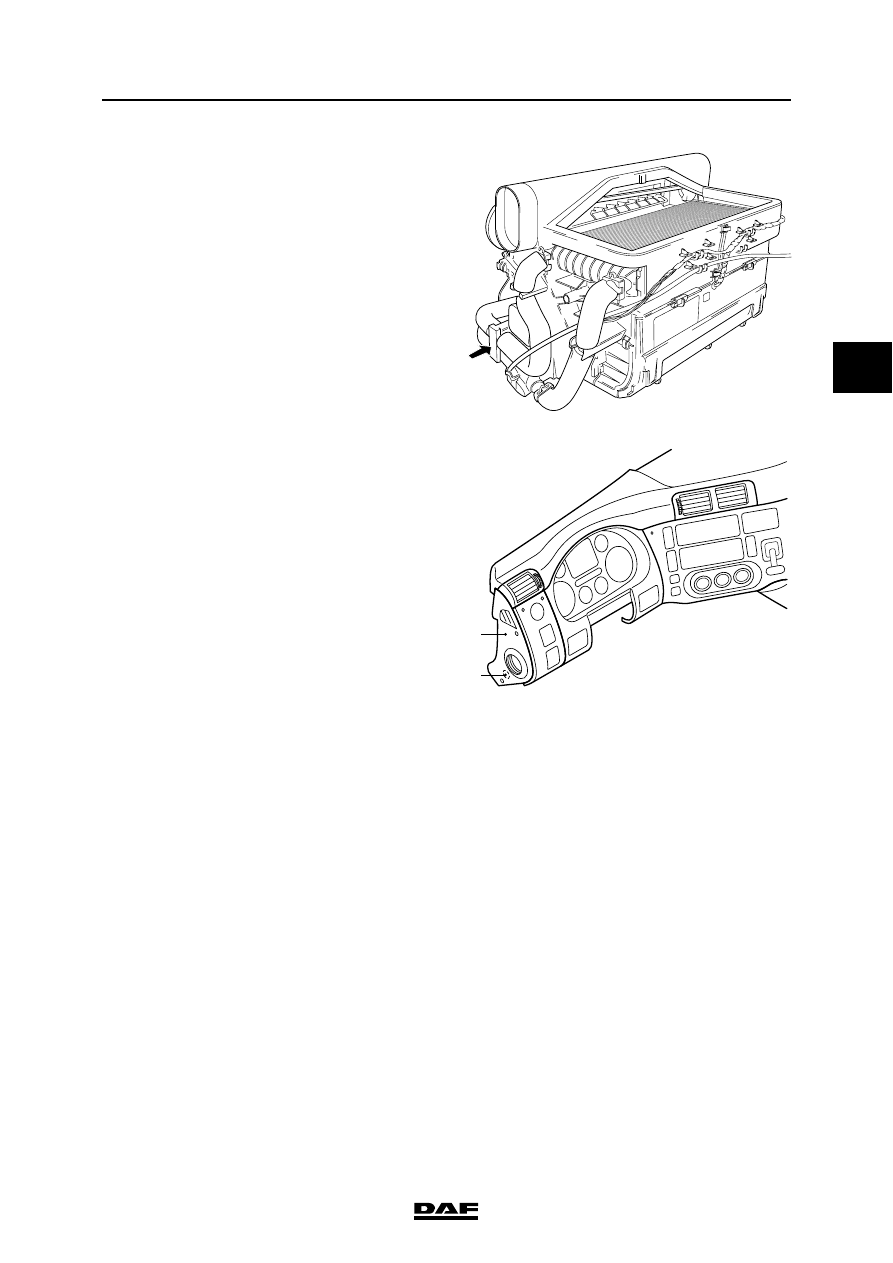

4-11

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

5.

Clamp the pipes in place.

6.

Reconnect the air duct to the heating unit.

7.

Attach the air duct at the bottom with the
attachment bolts and fix the panel clamp (2)
to the outer end.

8.

Fit the dashboard panel (1).

9.

Fasten the support behind the radio panel
with pop rivets.

10. Fit the radio panel.

11. Fit the dashboard panel at the top.

K1 01 140

1

2

K1 01 086

CAB HEATING

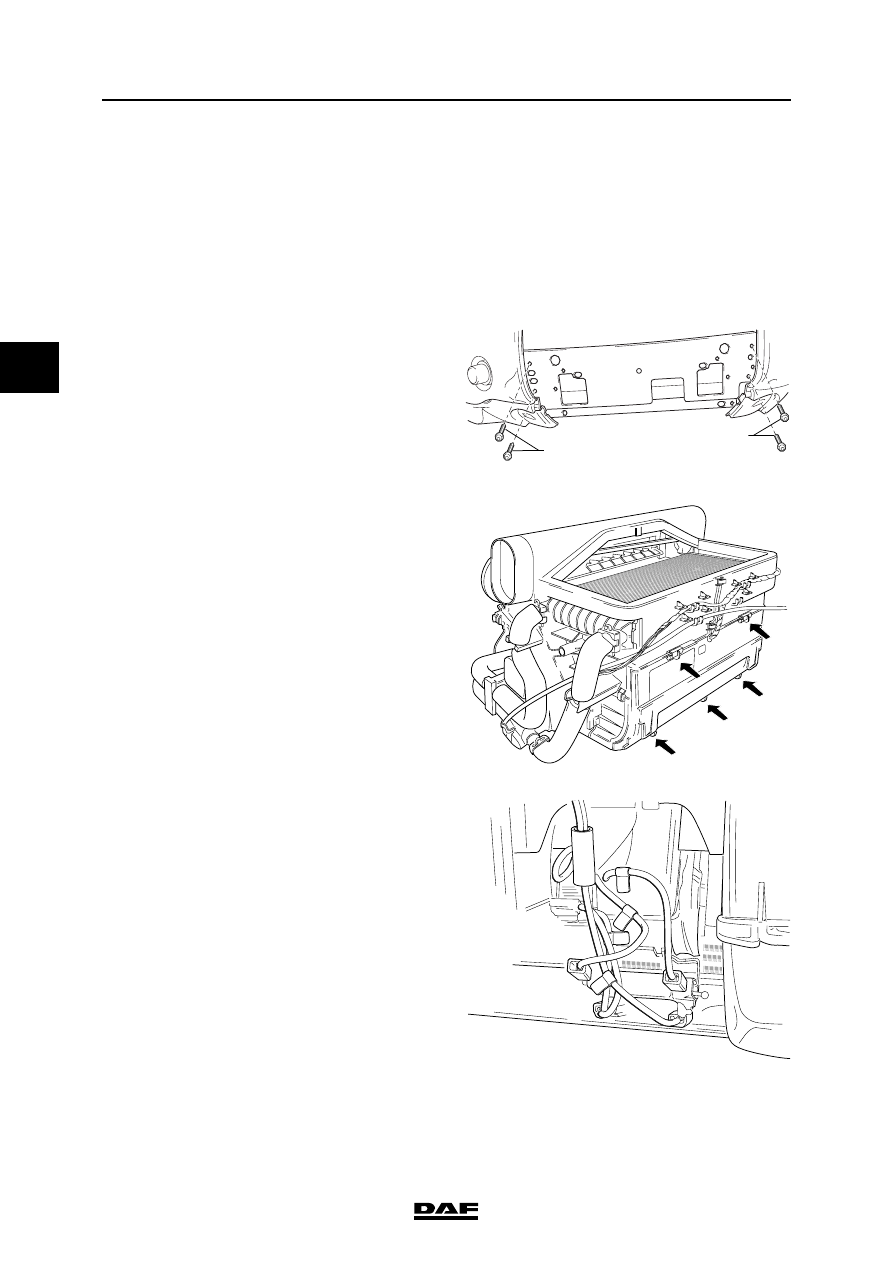

4-12

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

4.5 REMOVAL AND INSTALLATION, ELECTRIC MOTOR FOR HEATING UNIT

Removing electric motor for heating unit
1.

Remove the panel underneath the ashtray,
the ashtray and the ashtray holder.

2.

Remove the central console control panel.

3.

Remove the connector of the heating unit.

4.

Remove the attachment bolts (1) from the
steel connecting piece of both dashboard
frames.

5.

Slide the sliding sections to the right and
remove the lid.

6.

Mark the connectors before removing them
from the series resistor, if there are not
already any wire markings.

1

1

K1 01 099

K1 01 130

4

1

2

3

K1 01 142

©

 200346

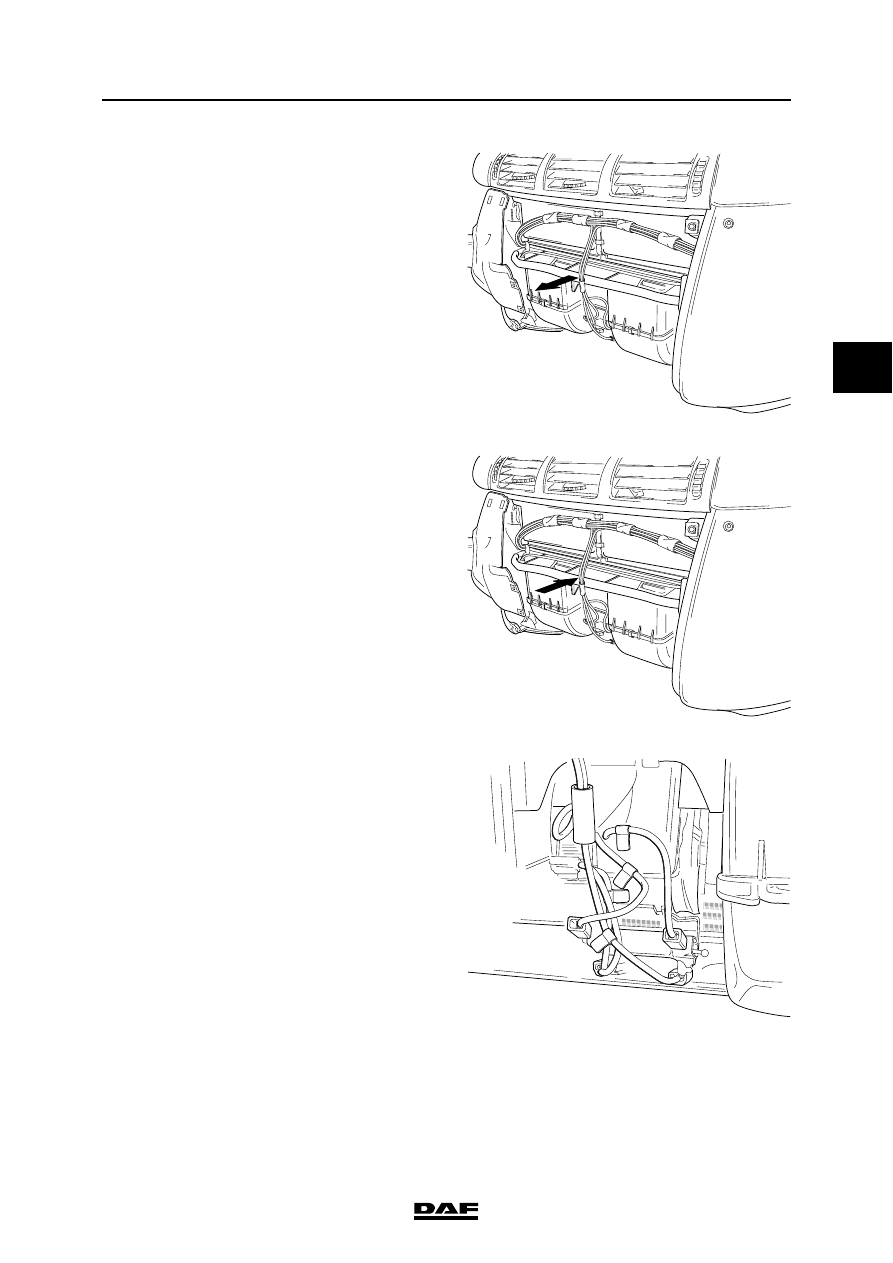

4-13

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

7.

Remove the heater motor completely with
housing and series resistor from the heating
unit.

8.

Remove both covers of the heater housing.

9.

Remove the attachment screws from the
bracket over the heater motor and remove
the motor from the housing.

Installing electric motor for heating unit
1.

Install the heater motor.

2.

Fix the bracket around the heater motor in
place with the attachment screws.

3.

Fit both covers on the heater motor housing.

4.

Push the heater motor together with the
series resistor and housing into the heating
unit.

5.

Reconnect the series resistor as shown.
Note the markings or the wire numbers.

K1 01 098

K1 01 137

4

1

2

3

K1 01 142

CAB HEATING

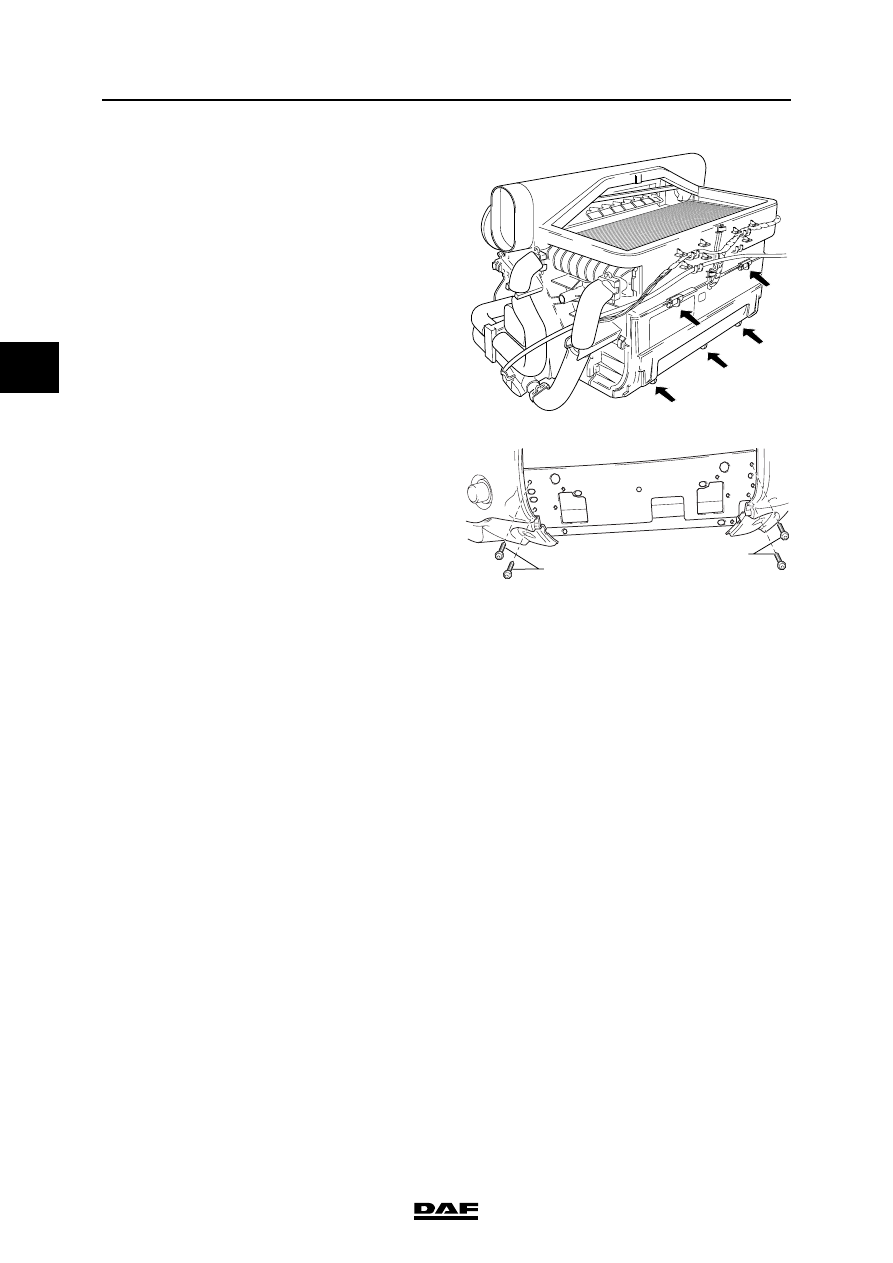

4-14

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

6.

First hook the heater motor cover behind the
sliding bits at the top and then push the
bottom into place. Slide the sliding sections
to the left.

7.

Fit the steel joining piece of both dashboard
frames and fasten it with the attachment
bolts (1).

8.

Attach the heating unit connector.

9.

Fit the control panel on the central console.

10. Fit the panel underneath the ashtray, the

ashtray and the ashtray holder.

K1 01 130

1

1

K1 01 099
