DAF CF65, CF75, CF85 Series . Manual - part 116

©

 200346

4-7

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

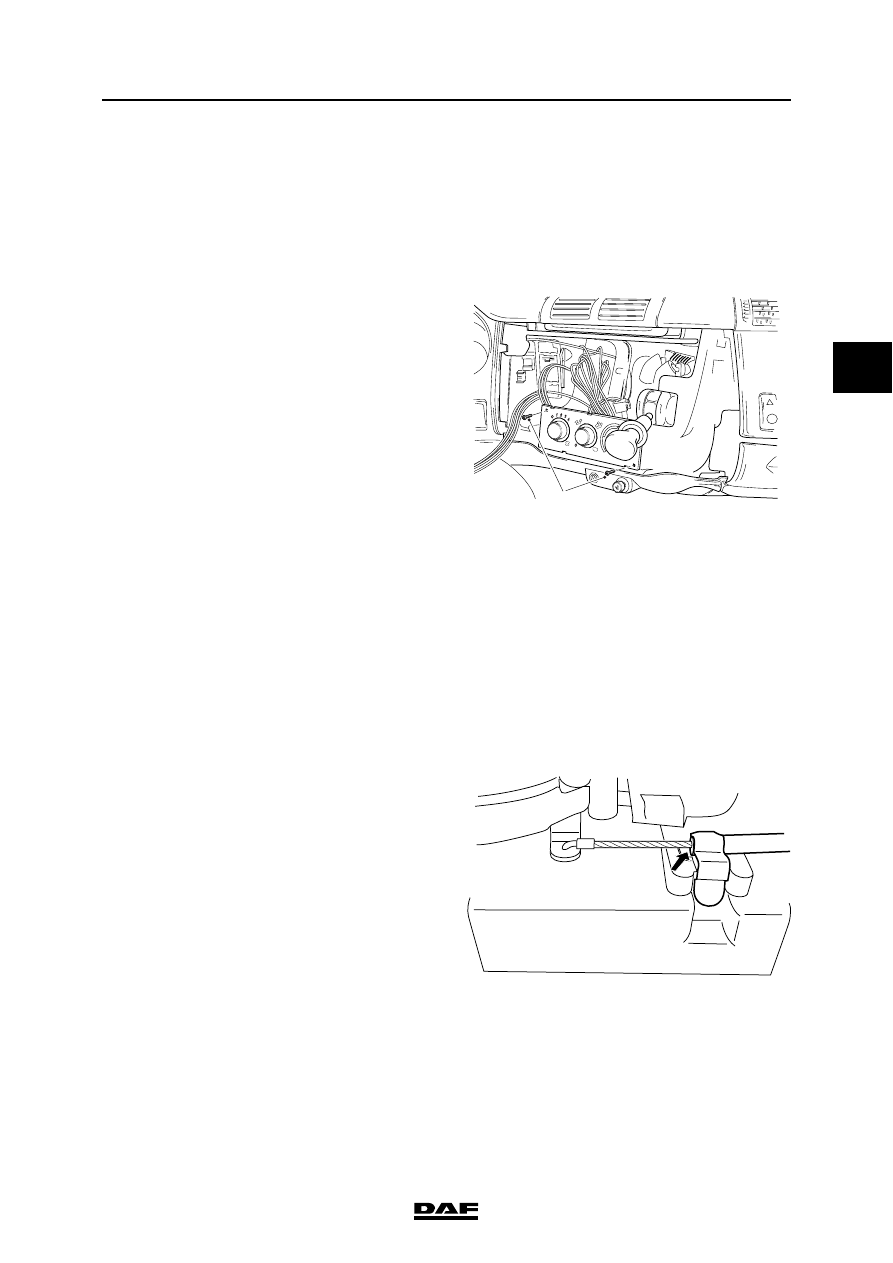

4.3 REMOVAL AND INSTALLATION, HEATER CONTROL PANEL

Removing control panel
1.

Turn all control knobs fully counterclockwise
(0 and cold respectively).

2.

Remove the radio panel.

3.

Remove the attachment bolts (1) from the
control panel.

Note:
If the heater unit is removed: Remove the
attachment bolts from the control panel and
put the panel to one side. Do not disconnect
the control cables.

4.

Remove the control panel from the frame
and turn the panel until the control cables
can be reached.

5.

Remove the clips from the control cables.

6.

Remove the control cables.

7.

Disconnect all electrical connections.

8.

Remove the control panel.

Installing control panel
1.

Turn all control knobs fully counterclockwise
(0 and cold respectively).

Note:
For the colours of the control cables for the
heater refer to "Technical data".

2.

Attach one side of the control cable of the
foot valve to the innermost lever of the heater
manifold, push the outer cable against the
white stop and fix the clip.

K1 00 944

1

K1 01 149

CAB HEATING

4-8

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

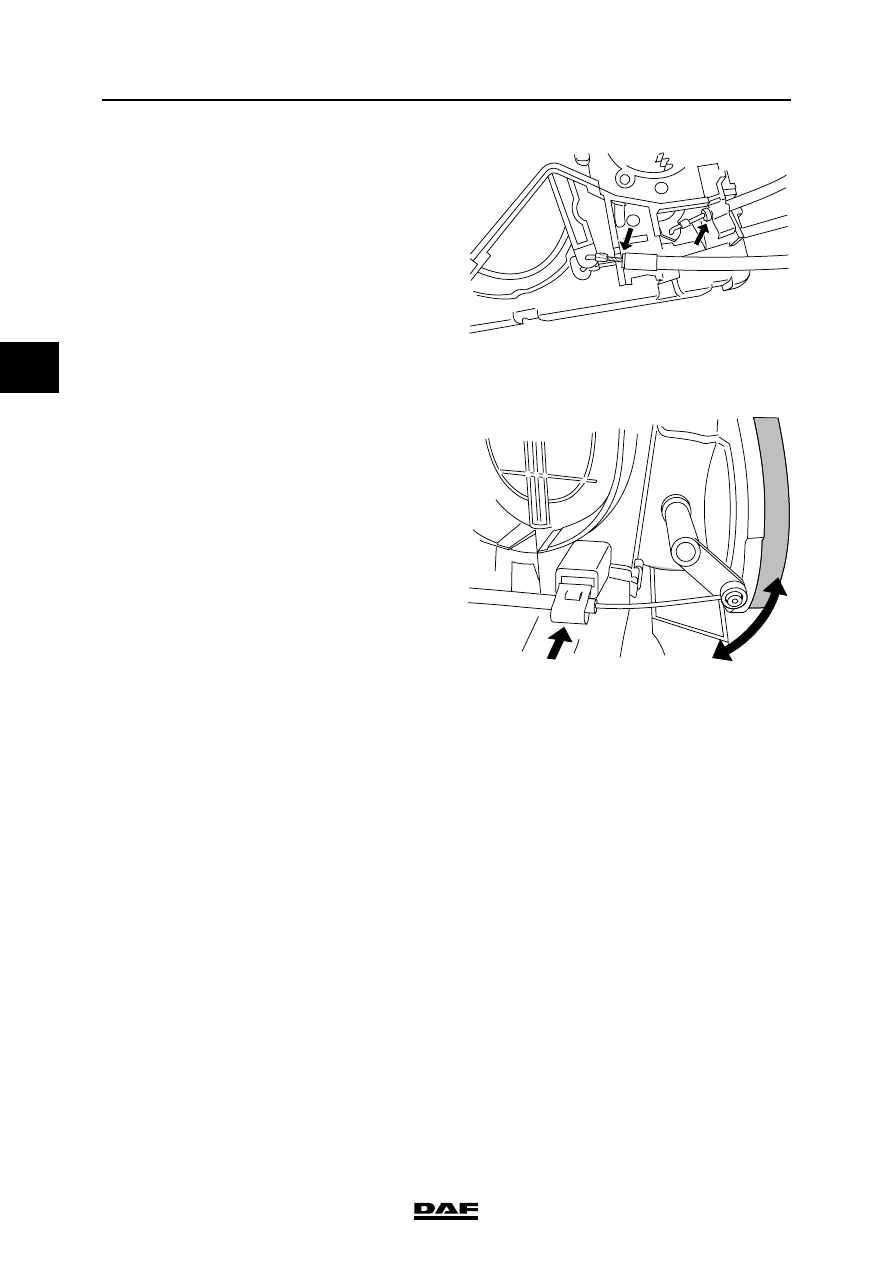

3.

Attach one side of the control cable of the
defroster valve to the outermost lever of the
heater manifold, push the outer cable
against the stop and fix the clip.

4.

Attach one side of the Bowden cable of the
water tap to the temperature control lever,
push the outer cable against the stop and fix
the clip.

5.

Close the valve or tap completely.

6.

Put the clip on the outer cable, positioning
the outer cable so that the valve or tap is just
pushed closed.

7.

Check the settings by setting the control
knobs to various positions. In the zero
position the relevant valve or tap must be
closed and the knob must be easily
adjustable over its entire range.

8.

Reconnect all electrical connections.

9.

Fit the control panel and the radio panel.

K1 01 148

K1 01 150

©

 200346

4-9

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

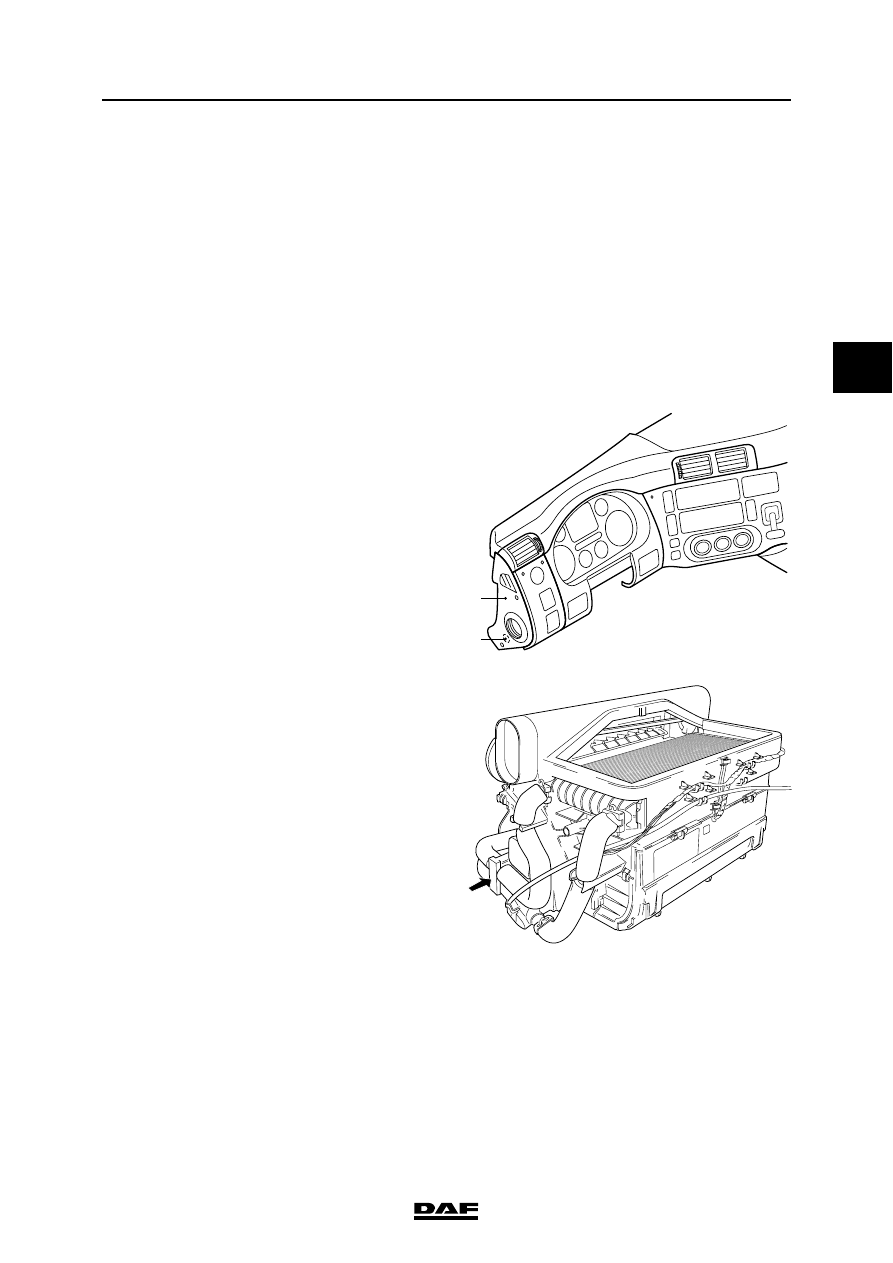

4.4 REMOVAL AND INSTALLATION, HEATER RADIATOR

Removing heater radiator
1.

Remove the dashboard panel at the top.

2.

Remove the radio panel.

3.

Remove from the underside the panels to the
left and right of the steering column.

4.

Remove the attachment bolts from the air
duct.

5.

Remove the air duct from the underside.

6.

Remove the panel clamp (2) that is behind
the dashboard panel (1).

7.

Partially drain the coolant.

8.

Remove the clips from the hoses.

9.

Remove the clip from the aluminium pipes.

Note:
Pull the aluminium pipes first straight back
before making a turning movement.

1

2

K1 01 086

K1 01 140

CAB HEATING

4-10

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

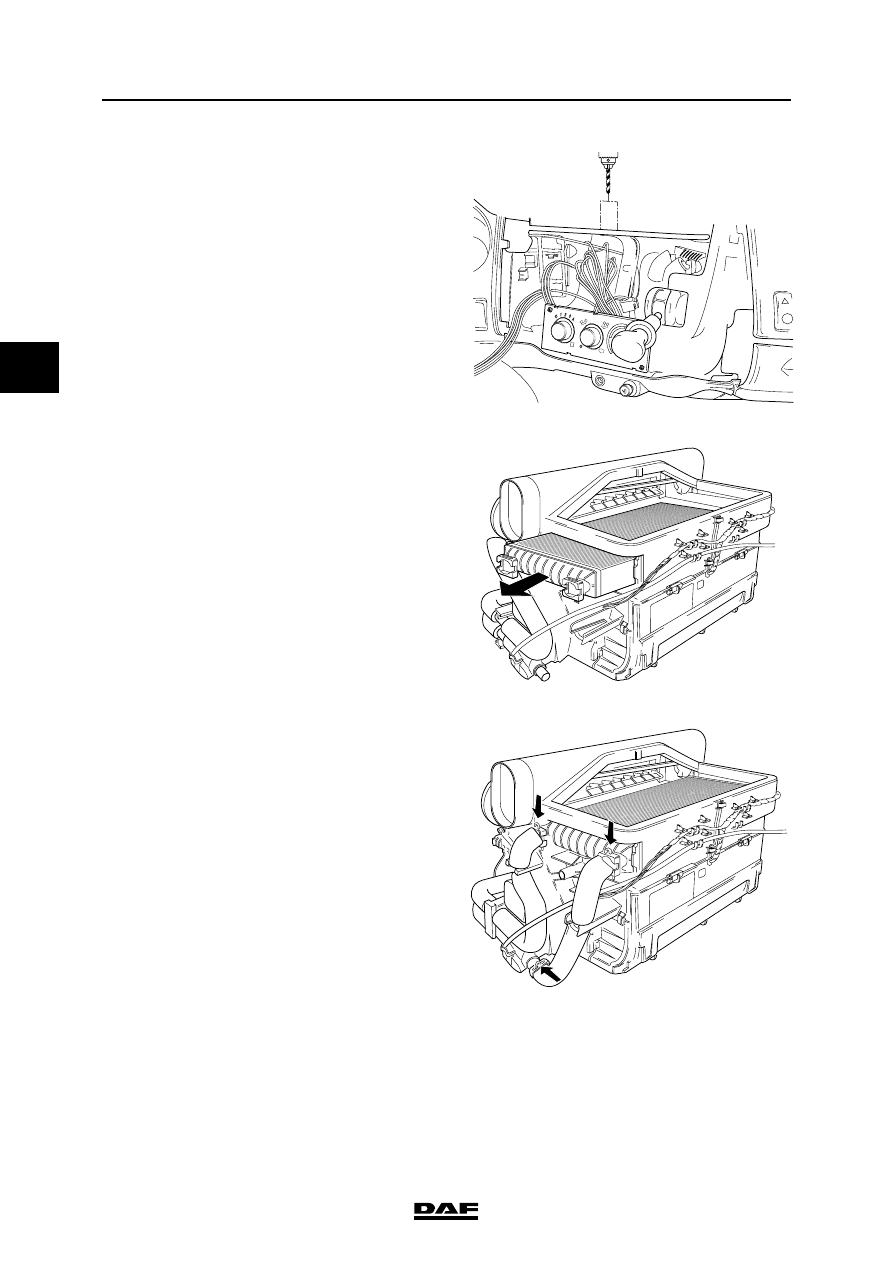

10. Put the aluminium pipes to one side.

11. Drill out the pop rivets from the support and

push the support backwards.

12. Remove the heater radiator from the heating

unit.

Installing heating radiator
1.

Install the heater radiator in the heating unit.

2.

Fit the support behind the radio panel and fix
it with pop rivets.

3.

Put new O-rings on the aluminium pipes.

4.

Install the aluminium pipes and secure them
using the clips.

K1 01 143

K1 01 139

K1 01 138
