DAF CF65, CF75, CF85 Series . Manual - part 93

©

 200346

2-1

Cab suspension

TECHNICAL DATA

ΧΦ65/75/85 series

1

0

2. CAB SUSPENSION

2.1 GENERAL

The F230 cab is mounted to the chassis at four
points with adjustable coil spring/air suspension
elements. These have integral shock absorbers.

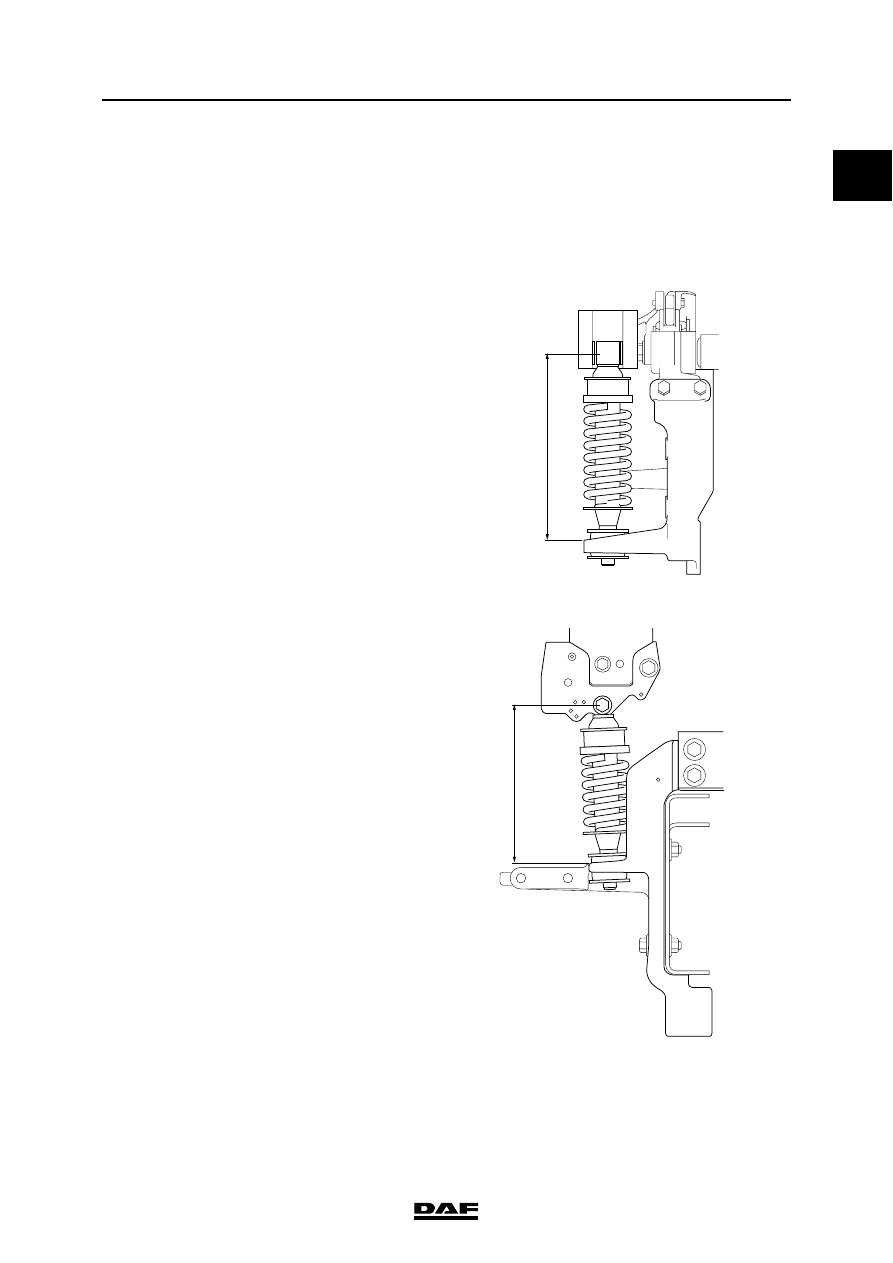

Adjusting the coil spring elements:

The sizes given above are from the top centre to
the support of the spring element (top).
The spring elements can be adjusted in 4 steps of
3 mm.

Spring distance of the coil spring elements:

K1 01 013

A

Front

(size A) 318

≥ 5 mm

K1 01 014

B

Rear

(size B) 272

≥ 5 mm

front

approx. 80 mm (+40/-40)

rear

approx. 60 mm (+30/-30)

TECHNICAL DATA

2-2

©

 200346

Cab suspension

0

ΧΦ65/75/85 series

1

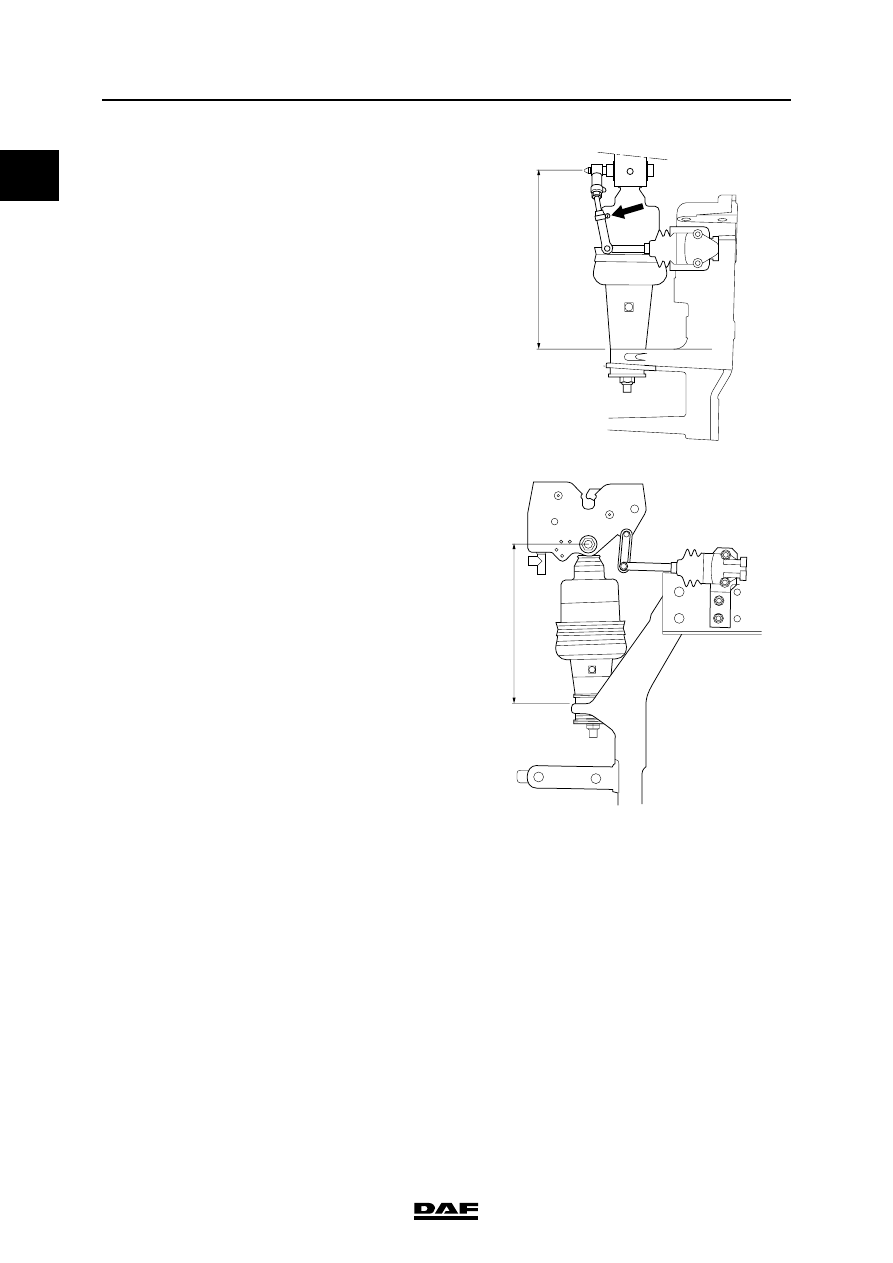

Adjusting the air suspension elements:

The sizes given above are from the top centre to
the support of the spring element (top).

Spring distance of the air suspension
elements:

The cab height can be adjusted at the front.

A

K1 01 413

Front

(size A) 318

≥ 5 mm

B

K1 01 000

Rear

(size B) 272

≥ 5 mm

front

approx. 80 mm (+40/-40)

rear

approx. 60 mm (+30/-30)

©

 200346

2-3

Cab suspension

TECHNICAL DATA

ΧΦ65/75/85 series

1

0

2.2 TIGHTENING TORQUES

The tightening torques specified in this section
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.

When attachment bolts and nuts are replaced, it
is important that - unless stated otherwise - these
bolts and nuts are of exactly the same length and
property class as those removed.

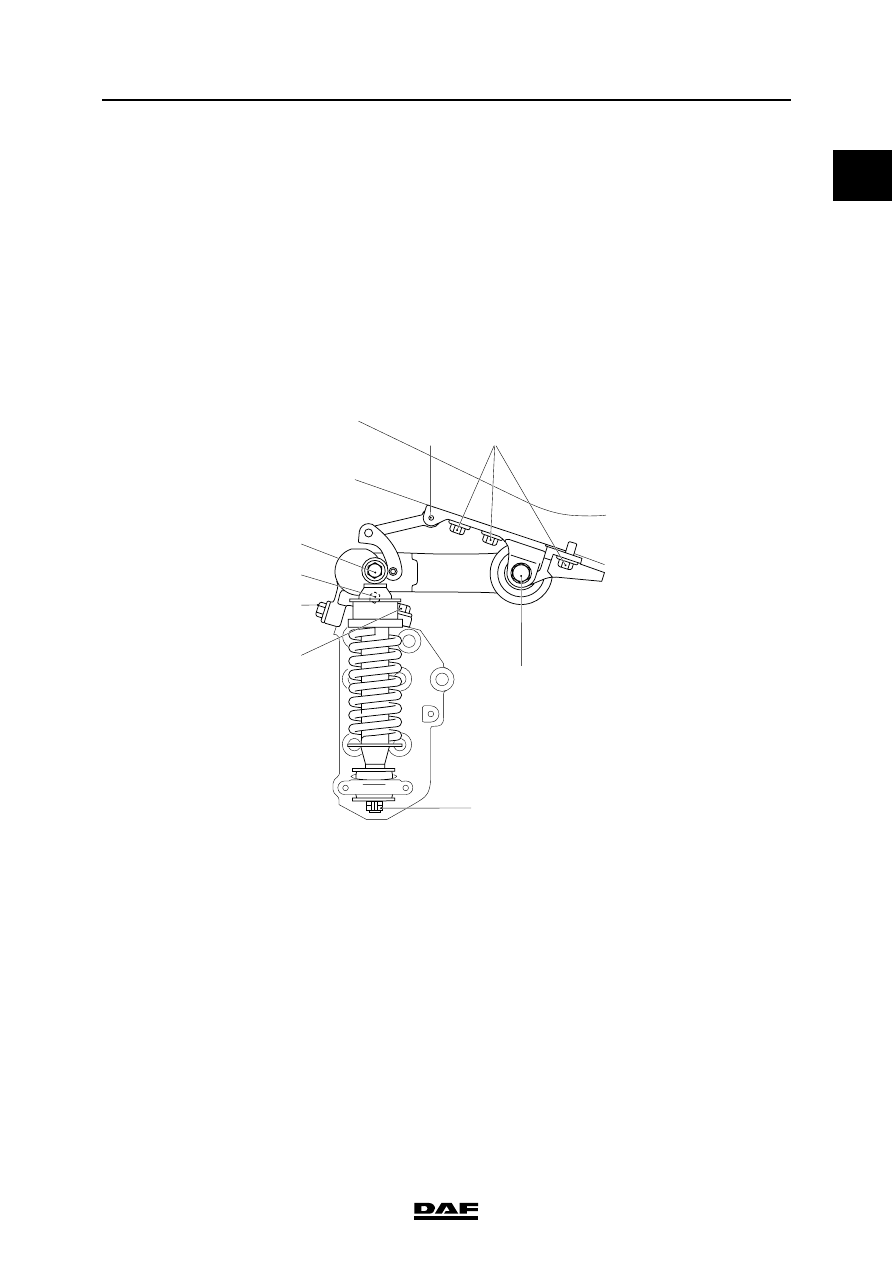

Cab suspension front

(1) Use Loctite 243 to secure
(2) Use Loctite 243 to secure and tighten with cab in

fully

tilted position.

G

E

F

H

A

B

C

D

K1 01 077

A

M8 attachment bolt for tilt assist mechanism/
cab support

24 Nm

(1)

B

M14 cab support bolt

170 Nm

C

M18 locating bolt for cab stabiliser vibration
damper

235 Nm

(2)

D

M14 nut for underside of spring (coil spring
and air suspension)

50 Nm

E

M14 rearmost bolt for cab stabiliser bearing
support (left/right)

170 Nm

F

M14 foremost bolt for cab stabiliser bearing
support (left and right)

170 Nm

G

M8 prestressed bolt for cab stabiliser bearing
support

35 Nm

H

M14 attachment bolt for top of spring
(coil spring and air suspension)

170 Nm

TECHNICAL DATA

2-4

©

 200346

Cab suspension

0

ΧΦ65/75/85 series

1

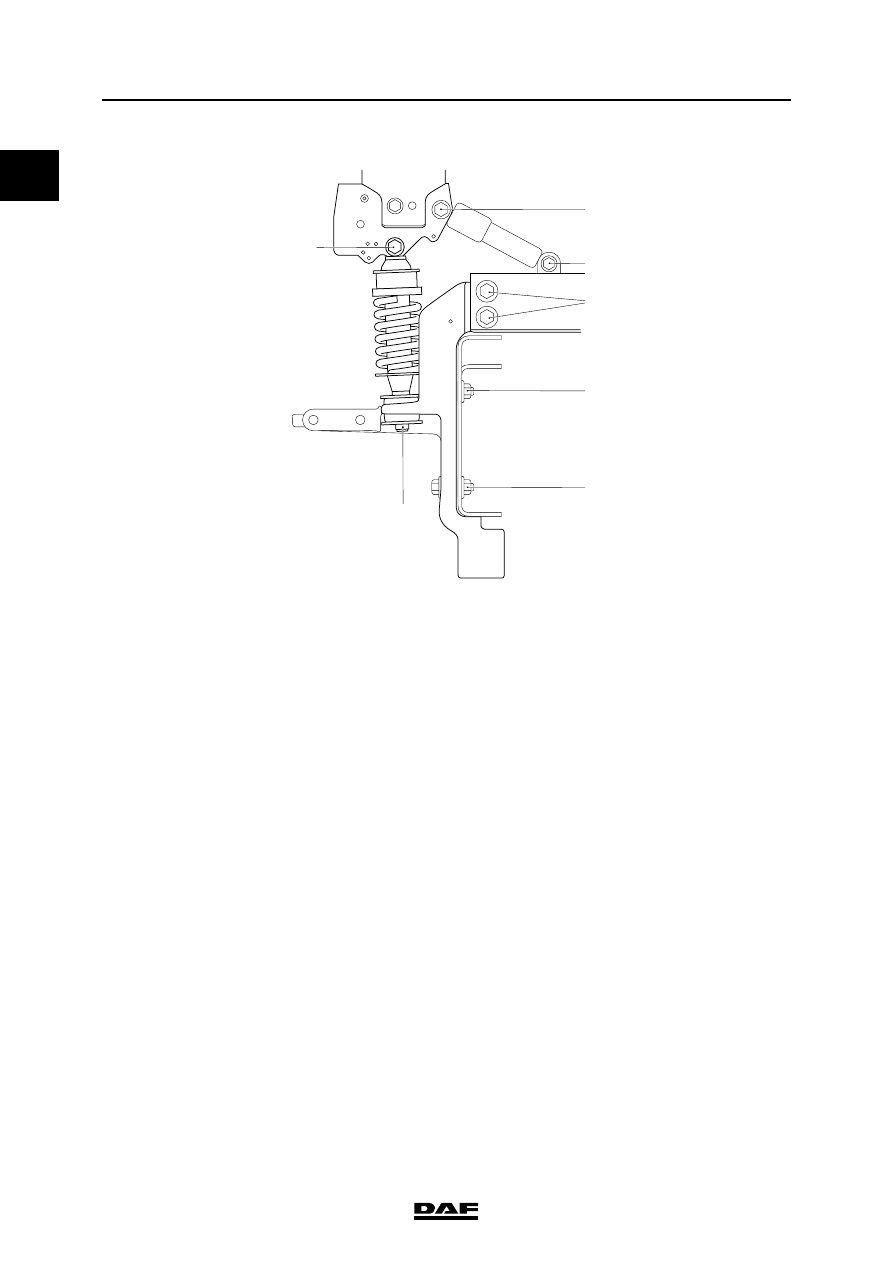

Rear cab suspension

K1 01 078

A

G

B

C

E

F

D

A

M14 attachment bolt for top of spring
(coil spring and air suspension)

170 Nm

B

M14 attachment bolt for horizontal damper

170 Nm

C

M14 attachment bolt for horizontal damper

170 Nm

D

M16 attachment bolts for chassis support

300 - 450 Nm

E

M12 attachment bolt for chassis

110 Nm

F

M14 attachment bolt for chassis

170 Nm

G

M14 attachment bolt for day cab spring
element

170 Nm

M14 attachment nut for sleeper cab
spring element

50 Nm
