5-3

Removal and installation

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

5.2 REMOVAL AND INSTALLATION, FUEL SUPPLY PIPE

When removing a fuel pipe, fuel will

escape. Collect the fuel and avoid

the risk of fire.

Dirt in the fuel system can lead to

significant damage to parts of the

system. All open connections must

therefore be sealed.

Removing the fuel supply pipe
1.

Disconnect the injector pipes.

2.

If necessary, remove the fuel rail.

3.

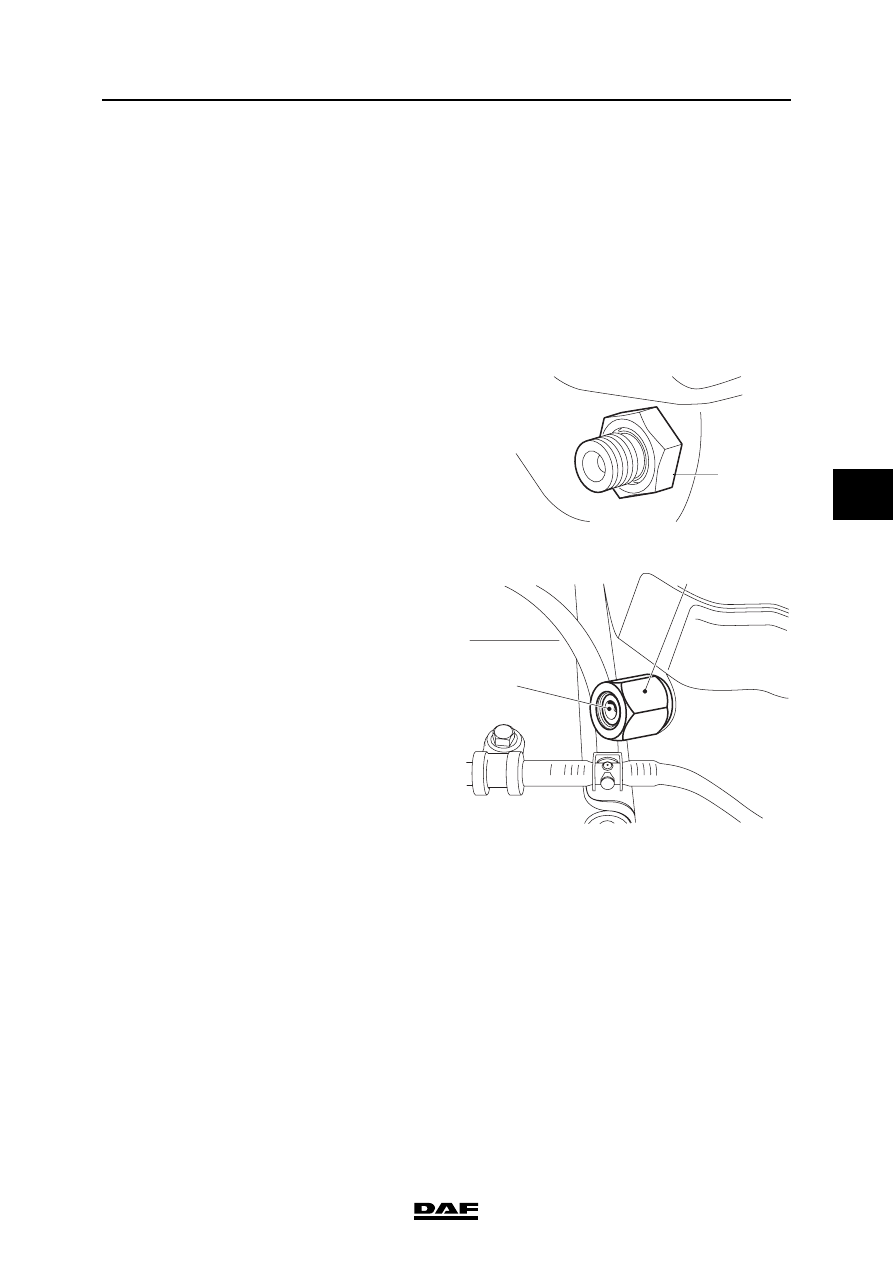

Remove the nut (1) from the fuel supply pipe.

4.

Mark the positions of the fuel supply pipe (1)

and pull it out of the cylinder head with

special tool (DAF no. 1329473) (2).

Note:

If the injector is not replaced, the fuel supply

pipe may be re-used provided it is fitted with

the original injector.

Installing the fuel supply pipe
The following guidelines must be adhered to:

-

If the injector is defective, both the injector

and the fuel supply pipe must be replaced.

-

If the fuel supply pipe is defective and in

addition the sealing surface with the injector

is damaged, both the injector and the fuel

supply pipe must be replaced.

-

If the fuel supply pipe is defective and the

sealing surface with the injector is not

damaged, the fuel supply pipe must be

replaced but the injector can be reused.

}

}

1

i400486

i400823

2

1

CE ENGINE FUEL SYSTEM

5-4

©

 200416

Removal and installation

5

ΛΦ45/55 series

4

1.

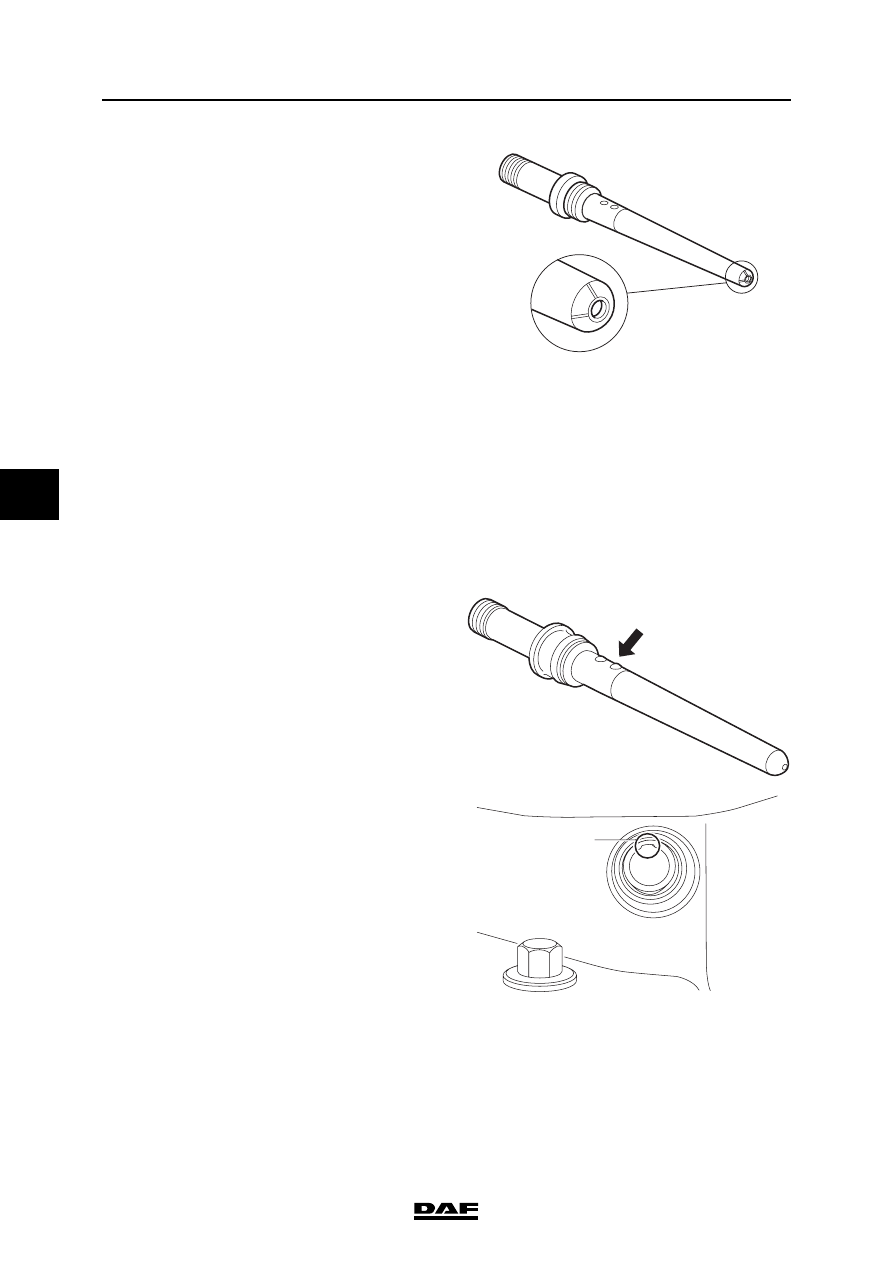

Check the fuel supply pipe for damage and

signs of leakage.

Leakage in the fuel supply pipe can be

recognised by erosion tracks (lines) on the

nose of the supply pipe. If necessary or if in

doubt, replace the fuel supply pipe.

Note:

If any indications of leakage are visible,

remove the injector and check the injector

fuel connection for signs of leakage.

2.

Fit a new O-ring on the fuel supply pipe.

3.

Apply a thin layer of clean engine oil to the O-

ring of the fuel supply pipe, the screw thread

of the nut and the contact surface of the nut

with the fuel supply pipe.

4.

Check the bore of the fuel supply pipe for

foreign matter and damage. Also check

whether the supply bore in the injector is

correctly positioned for the bore, because it

is possible to mount the injector turned

through 180

, so that the fuel supply port is

on the other side.

Note:

The fuel supply pipe has one or two positioning

balls. The fuel supply pipe can only be installed

with the ball(s) on top, as the bore in the cylinder

head has a groove (1) at the top. Press the fuel

supply pipe as far as possible into the bore, with

the ball pointing upwards. Ensure that the O-ring

is not damaged in this process.

i400776

i400790

1

i400807

©

 200416

5-5

Removal and installation

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

5.

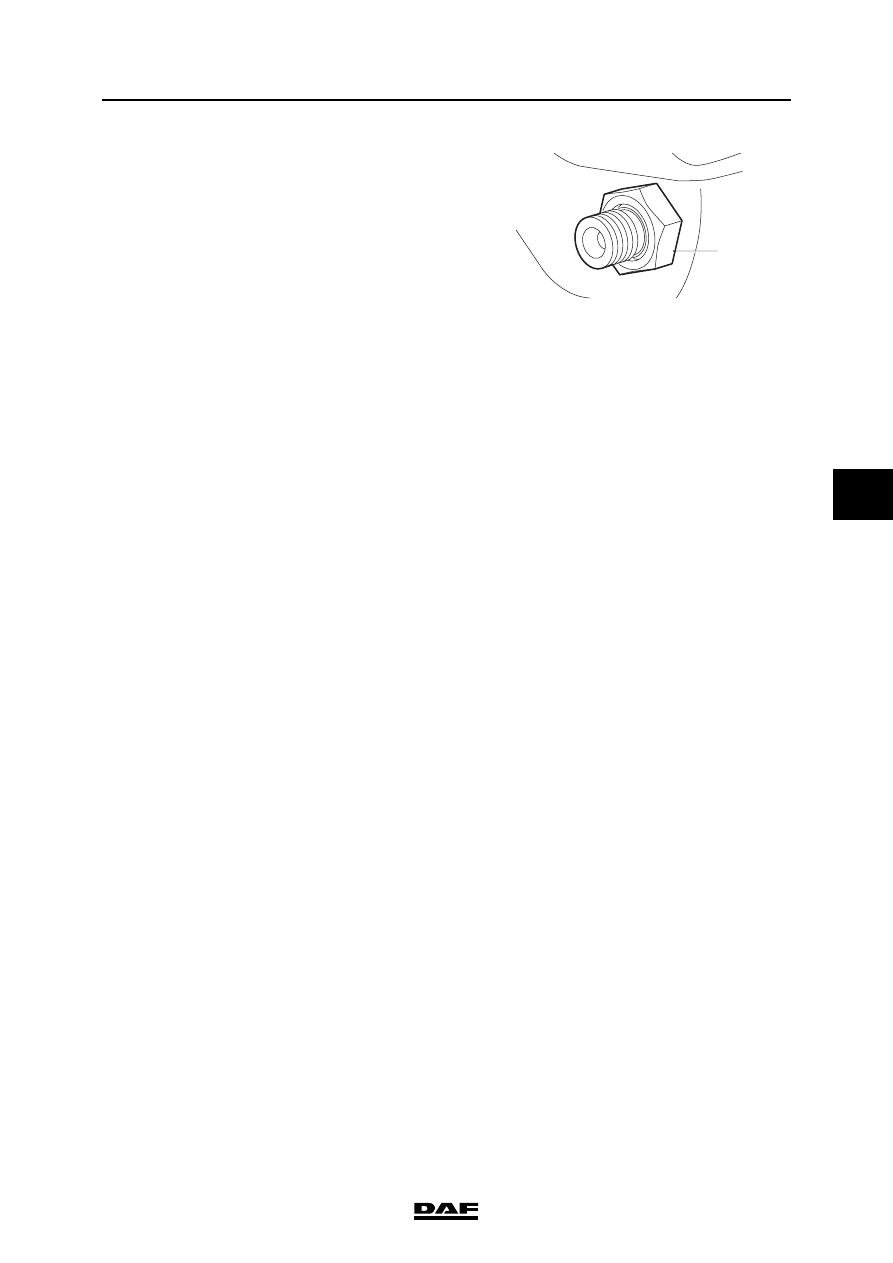

Install the nut (1) and tighten it to the

specified torque. See "Technical data".

6.

If the fuel rail was removed, re-fit it.

7.

Fit the injector pipes.

8.

Start the engine to bleed the high-pressure

section of the fuel system and inspect the

fuel system for leaks.

1

i400486

CE ENGINE FUEL SYSTEM

5-6

©

 200416

Removal and installation

5

ΛΦ45/55 series

4

5.3 REMOVAL AND INSTALLATION, INJECTOR

When removing an injector, fuel will

escape. Collect the fuel and avoid

the risk of fire.

Dirt in the fuel system can lead to

significant damage to parts of the

system. All open connections must

therefore be sealed.

Removing the injector
1.

Remove the fuel return overflow valve to let

the return bore in the cylinder head empty to

the fullest possible extent. Collect the

escaping fuel.

2.

Remove the injector pipe.

3.

Remove the fuel supply pipe.

Note:

-

If an injector is removed without the fuel

supply pipe having first been removed,

serious damage can ensue.

-

If the injectors are removed, they must

be removed together with the fuel

supply pipes.

4.

Remove the valve cover.

5.

Remove the exhaust valve rockers.

6.

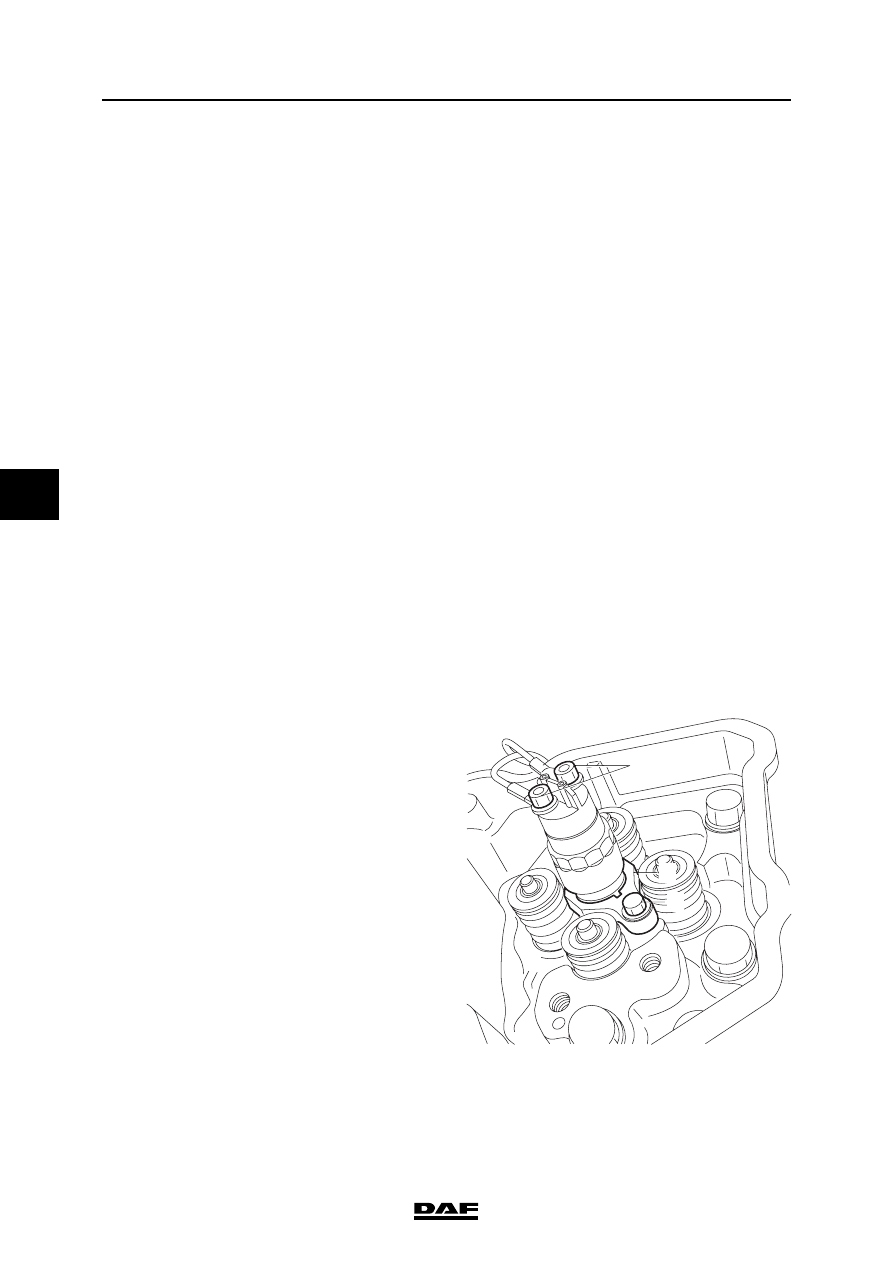

Remove the injector wiring (1).

7.

Remove the two attachment bolts (2) from

the injector clamping bracket (3).

}

}

i400483

1

3

2
