DAF 95XF. Manual - part 610

8

HYDRAULIC LIFTING GEAR

General

2-6

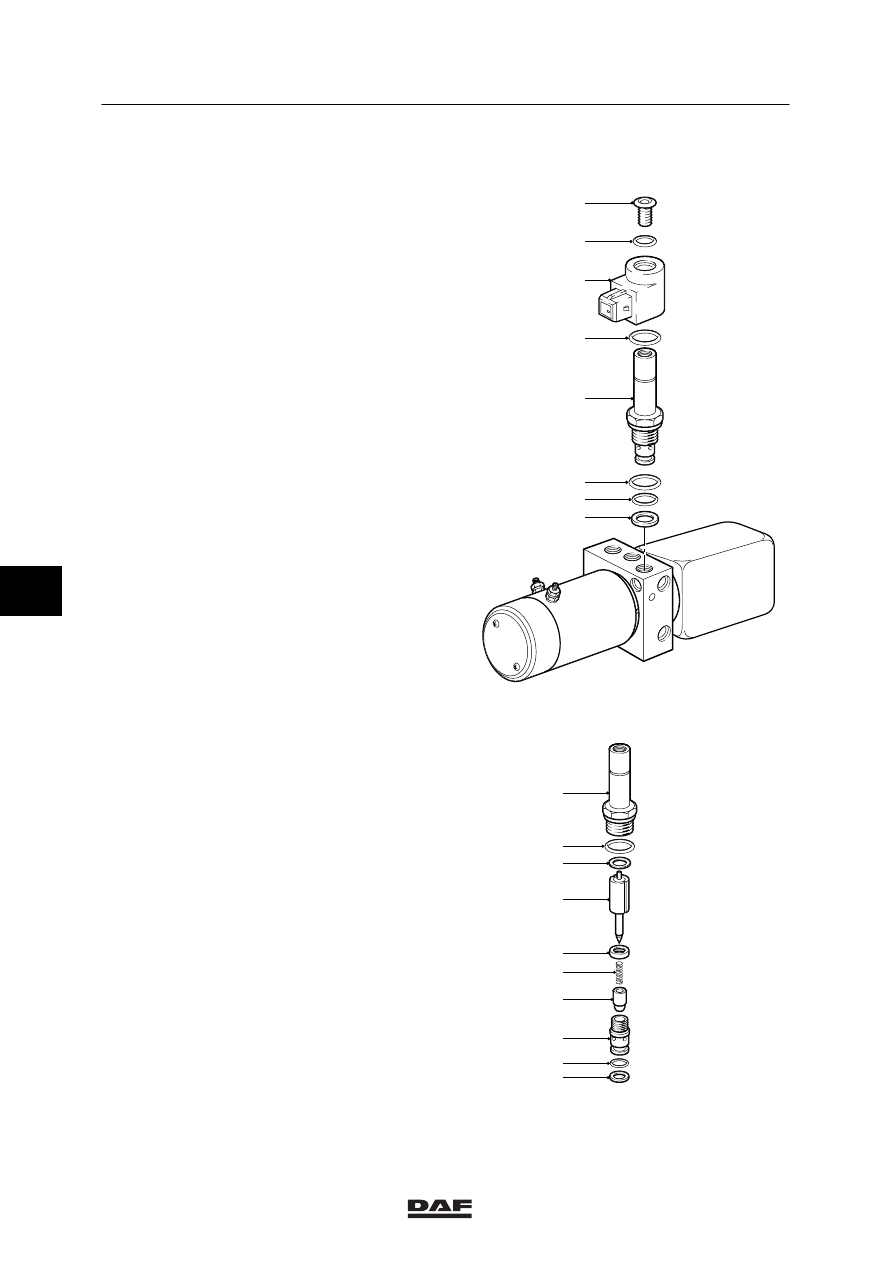

2.4 OVERVIEW DRAWING, 2/2 MAGNETIC VALVE

1.

Hexagonal socket screw

2.

O ring

3.

Coil

4.

O ring

5.

Valve body (2/2 valve)

6.

O ring

7.

O ring

8.

Plastic ring

1.

Valve body (2/2 valve)

2.

O ring

3.

Adjusting ring(s)

4.

Magnet core

5.

Bush

6.

Spring

7.

Valve

8.

Holder

9.

O ring

10. Plastic ring

1

2

3

4

5

6
7
8

A8 00 251

10

9

8

7

5

4

3

2

1

6

A8 00 254

ǹ 0001

6

8

General

HYDRAULIC LIFTING GEAR

2-7

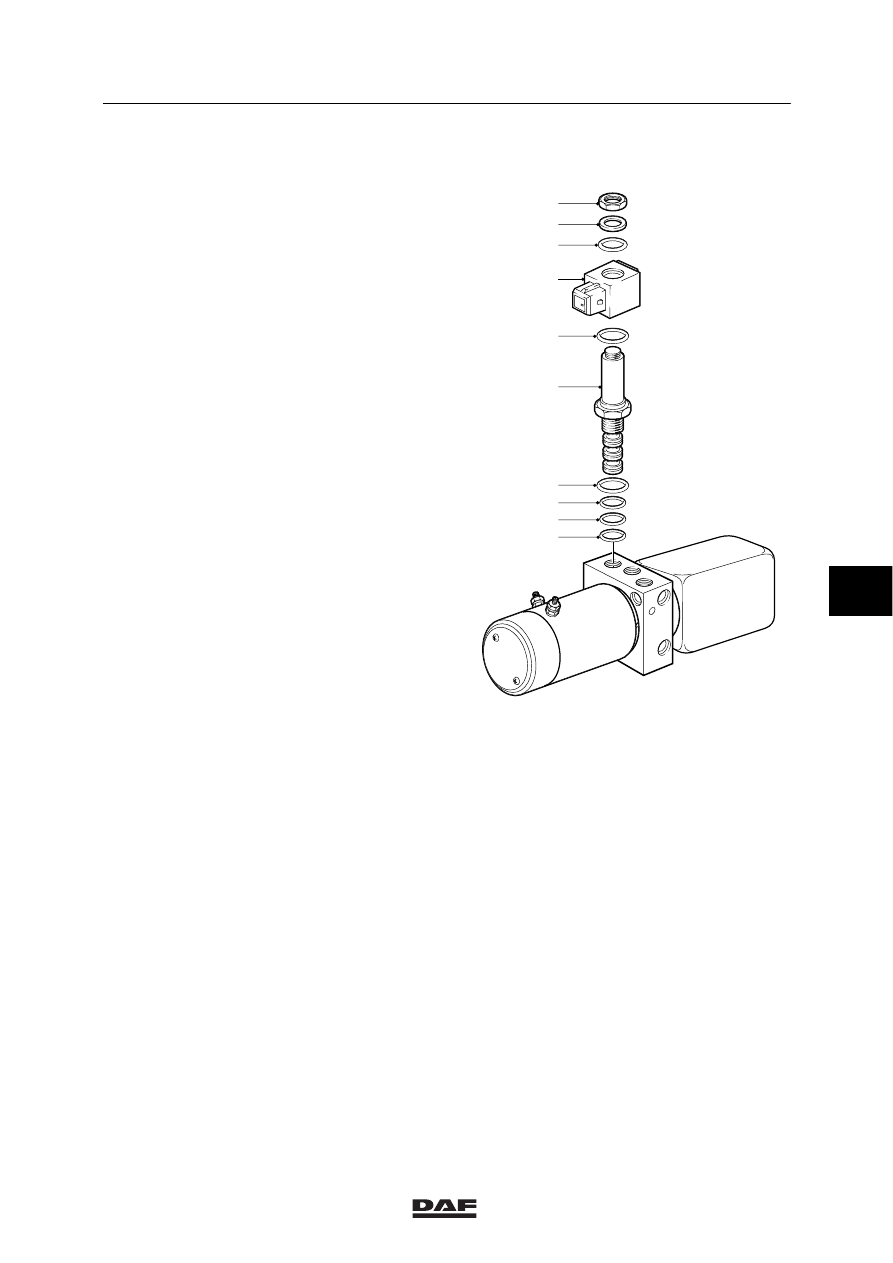

2.5 OVERVIEW DRAWING, 4/2 MAGNETIC VALVE

1.

Nut

2.

Spacer

3.

O ring

4.

Coil

5.

O ring

6.

4/2 valve

7.

O ring

8.

O ring

9.

O ring

10. O ring

1
2
3

5

6

7
8
9

10

4

A8 00 252

ǹ 0001

6

8

HYDRAULIC LIFTING GEAR

General

2-8

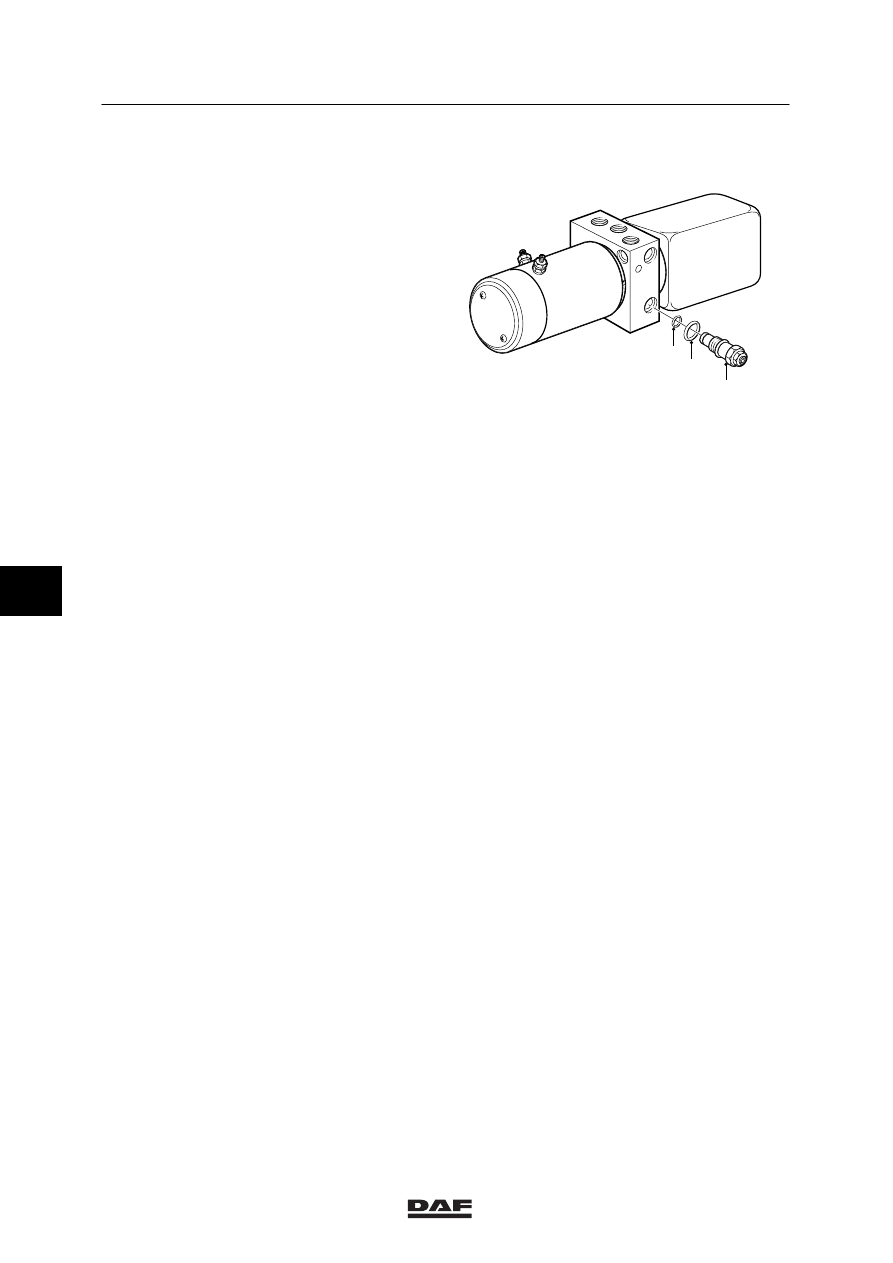

2.6 OVERVIEW DRAWING, PRESSURE RELIEF VALVE

1.

O ring

2.

O ring

3.

Pressure-relief valve

1

2

3

A8 00 276

ǹ 0001

6

8

General

HYDRAULIC LIFTING GEAR

2-9

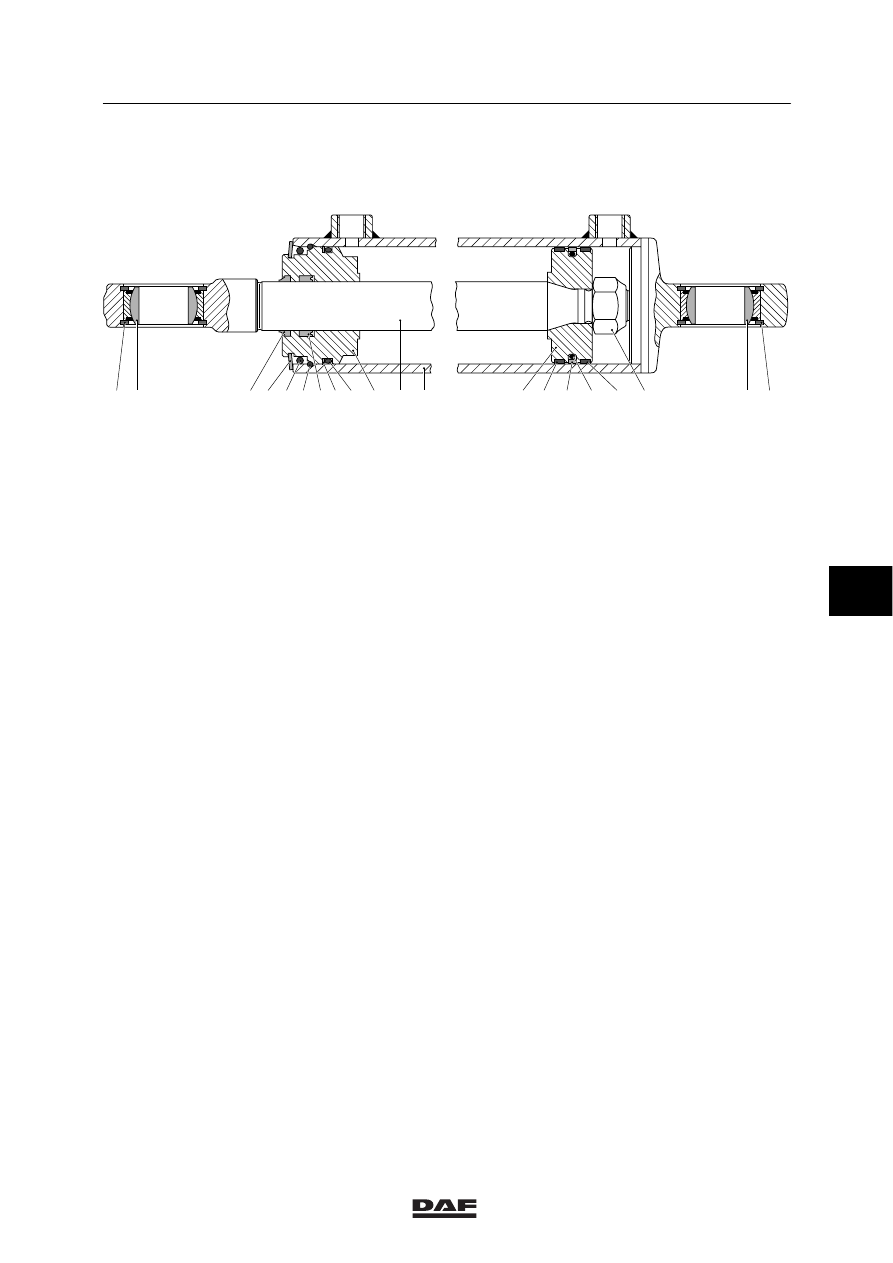

2.7 OVERVIEW DRAWING, CYLINDER

1 2

1

2

11 12

13 14 15 16 17 18

3 4 5 6

8 9

A

B

10

7

A8 00 248

1.

Circlip

2.

Bearing

3.

Dirt scraper

4.

Circlip

5.

O ring

6.

Spring clip

7.

Sealing ring

8.

Plastic ring

9.

O ring

10. Piston-rod guide
11. Piston rod
12. Cylinder
13. Piston
14. Plastic ring
15. Sealing ring
16 O ring
17. Plastic ring
18. Nut
A

Line connection

B

Line connection

ǹ 0001
