Citroën C-Elysée (2022 year). Manual in english

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Presentation

These illustrations and descriptions are intended

as a guide. The presence and location of some

components varies according to the version, trim

level and country of sale.

Instruments and controls

Bonnet release

Dashboard fuses

Horn

Instrument panel

Audio and telematics systems

Warning lamp display for seat belts and front

passenger airbag

Courtesy lamps

Rear view mirror

Emergency warning lamps

Locking/unlocking from the inside

Adjusting the date/time

Heating, ventilation

Manual air conditioning (without display

screen)

Electronic air conditioning (with display

screen)

Front demisting/defrosting

Rear screen demisting/defrosting

Heated windscreen

10.

Manual gearbox

Automatic gearbox (EAT6)

Gear shift indicator

11.

USB socket

12 V accessory socket / Cigar lighter

12.

Parking brake

13.

Electric windows deactivation

Steering-mounted controls

External lighting/direction indicators control

stalk

Voice recognition activation button

Speed Limiter/Cruise Control

Audio system setting controls

Wiper/screenwash/trip computer control stalk

Side control bar

Manual headlamp beam height adjustment

DSC/ASR systems

Stop & Start

Boot lid opening

Alarm

Door mirrors adjustment

Labels

"Lighting and visibility - Exterior lighting

control stalk" and "In the event of a

breakdown - Changing a bulb" sections:

"Safety - Child seats - Deactivating the front

passenger airbag" section

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Eco-driving

Eco-driving refers to a range of everyday

practices that allow the motorist to optimise

the vehicle's energy consumption (fuel and/or

electricity) and CO

emissions.

Optimise your use of the gearbox

With a manual gearbox, move off gently and

change up promptly. While accelerating, change

up early.

With an automatic gearbox, favour automatic

mode. Do not depress the accelerator pedal

heavily or suddenly.

The gear shift indicator prompts you to engage

the most suitable gear. Whenever this indication

is displayed on the instrument panel, follow it

straight away.

With an automatic gearbox, this indicator

appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use

engine braking rather than the brake pedal and

press the accelerator gradually. These practices

help to save on energy consumption, reduce

emissions and decrease general traffic

noise.

When the traffic is flowing smoothly, select the

cruise control.

Control the use of electrical equipment

Before moving off, if the passenger compartment

is too warm, ventilate it by opening the windows

and air vents before using the air conditioning.

At speeds above 31 mph (50 km/h), close the

windows and leave the air vents open.

Consider using equipment that can help keep

the temperature in the passenger compartment

down (e.g. sunroof blind, window blinds).

Unless automatically regulated, switch off the air

conditioning as soon as the desired temperature

has been reached.

Switch off the demisting and defrosting functions,

if they are not managed automatically.

Switch off the heated seat as soon as possible.

Adapt your use of the headlamps and/or

foglamps to the level of visibility, in accordance

with current legislation in the country in which

you are driving.

Avoid running the engine before moving off,

particularly in winter (other than in severe wintry

conditions: temperature below -23°C). The

vehicle will warm up much faster while driving.

As a passenger, avoid connecting your

multimedia devices (e.g. film, music, video

game) to help reduce the consumption of energy.

Disconnect all portable devices before leaving

the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle. Place the

heaviest items in the boot as close as possible to

the rear seats.

Limit the loads carried in the vehicle and

minimise wind resistance (e.g. roof bars, roof

rack, bicycle carrier, trailer). Preferably, use a

roof box.

Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit

summer tyres.

Comply with the servicing instructions

Check tyre pressures regularly, with the tyres

cold, referring to the label in the door aperture on

the driver's side.

Carry out this check in particular:

– before a long journey.

– at each change of season.

– after a long period out of use.

Do not forget the spare wheel and, where

applicable, the tyres on your trailer or caravan.

Have your vehicle serviced regularly (e.g. engine

oil, oil filter, air filter, passenger compartment

filter, etc.). Observe the schedule of operations in

the manufacturer's service schedule.

With a BlueHDi Diesel engine, if the SCR system

has a fault, your vehicle will emit pollution. Visit

a CITROËN dealer or a qualified workshop

as soon as possible to restore your vehicle's

nitrogen oxide emissions to legal levels.

When filling the fuel tank, do not continue after

the third cut-out of the nozzle, to avoid overflow.

You will only see the fuel consumption of your

new vehicle settle down to a consistent average

after the first 1,900 miles (3,000 kilometres).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

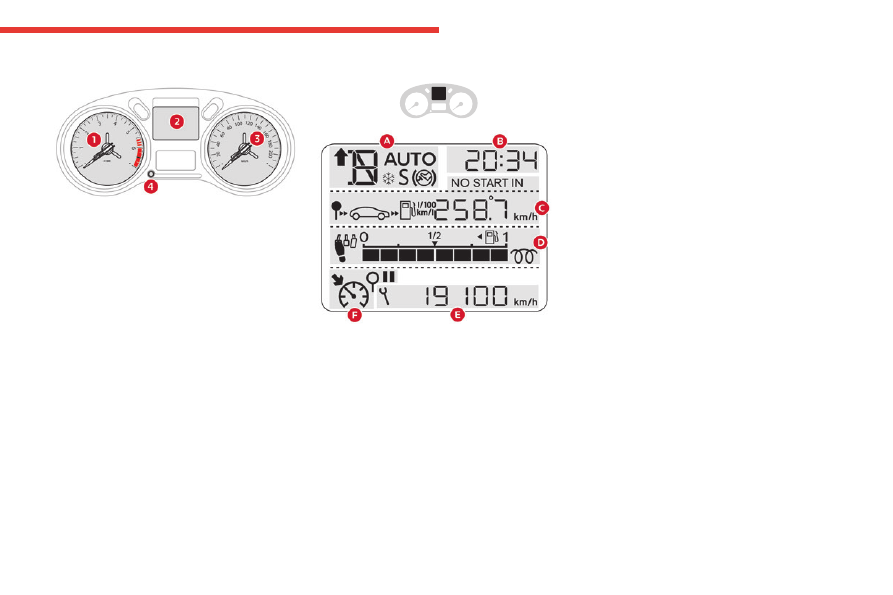

Instrument panel

Rev counter (x 1,000 rpm)

Display screen

Speedometer (km/h)

Control button

– Momentary information reminder:

• on servicing

• remaining driving range with the

emissions fluid (AdBlue

)

– Resetting the selected function to zero (trip

distance recorder or service indicator).

– Setting the time.

Display screen

Automatic gearbox information

Gear shift indicator

Time

Range related to the fuel or the AdBlue

and

the SCR system (km)

Trip distance recorder

Fuel gauge / Diesel preheater

Service indicator (km)

then,

Odometer

These two functions are displayed

successively when switching on the ignition.

Cruise control or speed limiter instructions

Warning and indicator

lamps

Displayed as symbols, the warning and indicator

lamps inform the driver of the occurrence of a

malfunction (warning lamps) or of the operating

status of a system (operation or deactivation

indicator lamps). Certain lamps light up in two

ways (fixed or flashing) and/or in several colours.

Associated warnings

The illumination of a lamp may be accompanied

by an audible signal and/or a message displayed

in a screen.

Relating the type of alert to the operating status

of the vehicle allows you to determine whether

the situation is normal or whether a fault has

occurred: refer to the description of each lamp

for further information.

When the ignition is switched on

Certain red or orange warning lamps come on

for a few seconds when the ignition is switched

on. These warning lamps should go off as soon

as the engine is started.

For more information on a system or a function,

refer to the corresponding section.

Persistent warning lamp

If a red or orange warning lamp comes on, there

may be fault which needs further investigation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

If a lamp remains lit

The references

(1)

(2)

and

(3)

in the warning

and indicator lamp description indicate whether

you should contact a qualified professional in

addition to the immediate recommended actions.

(1)

You must stop the vehicle

Stop as soon as it is safe to do so and switch off

the ignition.

(2)

: Contact a CITROËN dealer or a qualified

workshop.

(3)

: Visit a CITROËN dealer or a qualified

workshop.

List of warning and

indicator lamps

Red warning/indicator lamps
STOP

Fixed, associated with another warning

lamp.

A serious fault with the engine, braking system,

power steering or automatic gearbox or a major

electrical fault has been detected.

Carry out (1) and then (2).

Parking brake

Fixed.

The parking brake is applied or not

properly released.

Braking

Fixed.

The brake fluid level in the braking

circuit has dropped significantly.

Carry out (1), then top up with fluid that complies

with the manufacturer's recommendations. If the

problem persists, carry out (2).

Fixed.

The electronic brake force

distribution (EBFD) system is faulty.

Carry out (1) and then (2).

Seat belts not fastened/unfastened

Fixed or flashing, accompanied by an

increasing audible signal.

The driver has not fastened or has unfastened

their seat belt. The front passenger has

unfastened their seat belt.

12 V battery charge

Fixed.

The battery charging circuit is faulty

(e.g. dirty terminals, loose or severed alternator

belt).

Clean and tighten the terminals. If the warning

lamp does not go off when the engine is started,

carry out (2).

Engine oil pressure

Fixed.

There is a fault with the engine lubrication

system.

Carry out (1) and then (2).

Maximum coolant temperature

Fixed.

The temperature of the cooling system is

too high.

Carry out (1), then wait until the engine has

cooled down before topping up the level, if

necessary. If the problem persists, carry out (2).

Door or boot open

Fixed.

An audible signal supplements the alert if

the speed is higher than 6 mph (10 km/h).

A door, the boot, the tailgate or the opening rear

screen is still open (depending on version).

Close whichever access is open.

Engine self-diagnostics system

Fixed.

A major engine fault has been

detected.

Carry out (1) and then (2).

Orange warning/indicator lamps
Engine self-diagnostics system

Fixed.

A minor engine fault has been

detected.

Carry out (3).

Low fuel level

Fixed, with the reserve level shown in red.

When it first comes on, you have

approximately 5 litres of fuel

remaining in the

tank (reserve).

Until the fuel level is topped up, this alert will

be repeated every time the ignition is switched

on, with increasing frequency as the fuel level

decreases and approaches zero.

Refuel without delay to avoid running out of fuel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Never drive until completely empty

, as

this could damage the emissions control and

injection systems.

Engine self-diagnostic system

Flashing.

The engine management system has a

fault.

There is a risk that the catalytic converter will be

destroyed.

You

must

carry out (2).

Fixed.

The emissions control system has a fault.

The warning lamp should go off when the engine

is started.

Carry out (3) without delay.

Engine preheating (Diesel)

Temporarily on

(up to approximately 30 seconds in

severe weather conditions).

When switching on the ignition, if the weather

conditions and the engine temperature make it

necessary.

Wait until the warning lamp goes off before

starting.

When the warning lamp goes off, starting will

occur immediately if you press and hold:

– the clutch pedal with a manual gearbox.

– the brake pedal with an automatic gearbox.

If the engine does not start, make the engine

starting request again, while keeping your foot

on the pedal.

Under-inflation

Fixed, accompanied by an audible signal

and a message.

The pressure in one or more tyres is too low.

Check the pressure of the tyres as soon as

possible.

Reinitialise the detection system after adjusting

the pressure.

Under-inflation warning lamp

flashing then fixed and Service

warning lamp fixed.

The tyre pressure monitoring system is faulty.

Under-inflation detection is no longer monitored.

Check the tyre pressures as soon as possible

and carry out (3).

Anti-lock braking system (ABS)

Fixed.

The anti-lock braking system has a fault.

The vehicle retains conventional braking.

Drive carefully at moderate speed, then carry

out (3).

Airbags

Fixed.

One of the airbags or seat belt

pyrotechnic pretensioners is faulty.

Carry out (3).

Front passenger airbag (ON)

Fixed.

The front passenger airbag is activated.

The control is set to the "

" position.

In this case, do not install a "rearward facing"

child seat on the front passenger seat - risk

of serious injury!

Front passenger airbag (OFF)

Fixed.

The front passenger airbag is deactivated.

The control is set to the “

OFF

” position.

A "rearward facing" child seat can be installed,

unless there is a fault with the airbags (Airbags

warning lamp on).

Dynamic stability control (DSC)/Anti-slip

regulation (ASR)

Flashing.

DSC/ASR system regulation is activated

in the event of a loss of grip or trajectory.

Fixed.

The DSC/ASR system has a fault.

The indicator lamp in the corresponding button

is off.

Carry out (3).

Fixed.

The system is deactivated.

The DSC/ASR system is reactivated

automatically when the vehicle is started, and at

speeds above approximately 31 mph (50 km/h).

At speeds below 31 mph (50 km/h), it can be

reactivated manually.

Hill start assist

Fixed.

The system has a fault.

Carry out (3).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Power steering

Fixed.

The power steering has a fault.

Drive carefully at moderate speed, then carry

out (3).

AdBlue

(BlueHDi)

On for around 30 seconds when starting

the vehicle, accompanied by a message

indicating the driving range.

The driving range is between 1,500 and 500

miles (2,400 and 800 km).

Top up the AdBlue

Fixed, on switching on the ignition,

accompanied by an audible signal and a

message indicating the driving range.

The driving range is between 500 and 62 miles

(800 and 100 km).

Promptly

top up the AdBlue

, or carry out (3).

Flashing, accompanied by an audible

signal and a message indicating the

driving range.

The driving range is less than 62 miles (100 km).

You

must

top up the AdBlue

avoid engine

starting being prevented

, or carry out (3).

Flashing, accompanied by an audible

signal and a message indicating that

starting is prevented.

The AdBlue

tank is empty: the legally required

engine immobiliser system prevents the engine

from starting.

To restart the engine, top up the AdBlue

or carry

out (2).

It is

essential

to add at least 10 litres of AdBlue

to the tank.

SCR emissions control system (BlueHDi)

Fixed when the ignition is

switched on, accompanied

by an audible signal and a message.

A malfunction of the SCR emissions control

system has been detected.

This alert disappears once the exhaust

emissions return to normal levels.

Flashing AdBlue

warning

lamp on switching on the

ignition, with the Service and Engine self-

diagnostics warning lamps on fixed,

accompanied by an audible signal and a

message indicating the driving range.

Depending on the message displayed, it is

possible to drive for up to 685 miles (1,100 km)

before the engine immobiliser is triggered.

Carry out (3) without delay, to

avoid starting

being prevented

Flashing AdBlue

warning

lamp on switching on the

ignition, with the Service and Engine self-

diagnostics warning lamps on fixed,

accompanied by an audible signal and a

message indicating that starting is prevented.

The engine immobiliser prevents the engine from

restarting (the permitted driving limit has been

exceeded after confirmation of a malfunction of

the emissions control system).

To start the engine, carry out (2).

Service

Temporarily on.

One or more minor faults, for which there

is/are no specific warning lamp(s), have been

detected.

Identify the cause of the fault using the message

displayed on the instrument panel.

You may be able to deal with some faults

yourself, such as changing the battery in the

remote control.

For other faults, such as with the tyre under-

inflation detection system, carry out (3).

Fixed.

One or more major faults, for which there

is/are no specific warning lamp(s), have been

detected.

Identify the cause of the fault using the message

displayed on the instrument panel, then carry

out (3).

Rear foglamp

Fixed.

The lamp is on.

Green warning/indicator lamps
Stop & Start

Fixed.

When the vehicle stops, the Stop & Start

system puts the engine into STOP mode.

Flashing temporarily.

STOP mode is momentarily unavailable

or START mode is automatically triggered.

For more information, refer to the

Driving

section.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Front foglamps

Fixed.

The front foglamps are on.

Direction indicators

Flashing with audible signal.

The direction indicators are on.

Dipped beam headlamps

Fixed.

The lamps are on.

Blue warning/indicator lamps
Main beam headlamps

Fixed.

The lamps are on.

Black/white warning lamps
Foot on the clutch

Fixed.

Stop & Start: the change to START mode

is rejected because the clutch pedal is not fully

depressed.

Fully depress the clutch pedal.

Foot on the brake

Fixed.

Insufficient or no pressure on the brake

pedal.

With an automatic gearbox, with the engine

running, before releasing the parking brake, to

move out of position

Indicators

Service indicator

The servicing information is expressed in terms

of distance (miles or kilometres) and time

(months or days).

The alert is given at whichever of these two

terms is reached first.

The servicing information is displayed in the

instrument panel. Depending on the version of

the vehicle:

– The distance recorder display line indicates

the distance remaining before the next service

is due, or the distance travelled since it was due

preceded by the "-" sign.

– An alert message indicates the distance

remaining, as well as the period before the next

service is due or how long it is overdue.

The value indicated is calculated

according to the distance covered and

the time elapsed since the last service.

The alert may also be triggered close to a

due date.

Service spanner

On temporarily when the ignition is

switched on.

Between 620 and 1,860 miles (1,000 and 3,000

km) remain before the next service is due.

Fixed, when the ignition is switched on.

The next service is due in less than 620

miles (1,000 km).

Have your vehicle serviced very soon.

Service spanner flashing

Flashing then fixed, when the

ignition is switched on.

(With BlueHDi Diesel engines, associated with

the Service warning lamp.)

The servicing interval has been exceeded.

Have your vehicle serviced as soon as possible.

Resetting the service indicator

After each service, the service indicator must be

reset to zero.

The procedure for resetting to zero is as follows:

► Switch off the ignition.

► Press and hold the trip distance recorder

reset button.

► Switch the ignition on; the distance recorder

display starts a countdown.

► When the display indicates "=0", release the

button; the spanner disappears.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Following this operation, if you wish to

disconnect the battery, lock the vehicle

and wait at least five minutes for the zero

reset to be taken into account.

Reminder of the servicing information

You can access the servicing information at any

time.

► Press the trip distance recorder reset button.

The servicing information is displayed for a few

seconds, then disappears.

AdBlue

range indicators (BlueHDi)

The Diesel BlueHDi engines are equipped with

a system that associates the SCR (Selective

Catalytic Reduction) emissions control system

and the Diesel particle filter (DPF) for the

treatment of exhaust gases. They cannot

function without AdBlue

fluid.

When the level of AdBlue

falls below the

reserve level (between 1,500 and 0 miles (2,400

and 0 km)), a warning lamp lights up when

the ignition is switched on and an estimate

of the distance that can be travelled before

engine starting is prevented is displayed in the

instrument panel.

The engine starting prevention system

required by regulations is activated

automatically once the AdBlue

tank is empty.

It is then no longer possible to start the

engine until the minimum level of AdBlue

has

been topped up.

Actions required related to a lack of

AdBlue

The following warning lamps light up when the

quantity of AdBlue

is below the reserve level:

driving range of 1,500 miles (2,400 km).

Together with the warning lamps, messages

regularly remind you of the need to top up to

avoid engine starting being prevented. Refer to

the

Warning and indicator lamps

section for

details of the messages displayed.

For more information on

AdBlue

(BlueHDi)

and in particular on topping

up, refer to the corresponding section.

With BlueHDi engines

Warning/

indicator

lamps on

Action

Remaining

range

Top up.

Between

1,500 miles

and 500

miles (2,400

km and 800

km)

Top up as

soon as

possible.

Between

500 miles

and 62

miles (800

km and

100 km)

Warning/

indicator

lamps on

Action

Remaining

range

A top-up is

vital

, there is

a risk that the

engine will

be prevented

from starting.

Between 62

miles and 0

miles (100

km and 0

km)

To be able

to restart the

engine, add at

least 10 litres

of AdBlue

the tank.

0 miles (km)

Taking into account of top-up

Top-up detection may not be

instantaneous after addition. It may take a few

minutes of driving before the top-up detection

is effective.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Malfunction of the SCR emissions control

system

Malfunction detection

If a malfunction is detected,

these warning lamps come

on, accompanied by an

audible signal and the

display of an "

Emissions

control fault

" or "

NO START

" message.

The alert is triggered while driving when the

fault is detected for the first time, and thereafter

when switching on the ignition for subsequent

journeys, for as long as the cause of the fault

persists.

If the fault is temporary, the alert

disappears during the next journey, after

self-diagnostic checks of the SCR emissions

control system.

Malfunction confirmed during the

permitted driving phase (between 685

miles and 0 miles (1,100 km and 0 km))

If the fault indication is still displayed

permanently after 31 miles (50 km) of driving, the

fault in the SCR system is confirmed.

The AdBlue warning lamp flashes and

a message is displayed ("

Emissions

control fault: starting prevented in X miles

(kms)

" or "

NO START IN X miles (kms)

"),

indicating the driving range in miles or

kilometres.

While driving, the message is displayed every 30

seconds. The alert is repeated when switching

on the ignition.

You can continue driving for up to 685 miles

(1,100 km) before the

engine starting

prevention

system is triggered.

Have it checked by a CITROËN dealer or

a qualified workshop.

Starting prevented

Every time the ignition is switched on, the

message "

Emissions control fault: Starting

prevented

" or "

NO START IN

" is displayed.

To restart the engine

Contact a CITROËN dealer or a qualified

workshop.

Distance recorders

Total distance recorder

System which measures the total distance

travelled by the vehicle during its life.

The total and trip distances are displayed for

thirty seconds when the ignition is switched off,

when the driver's door is opened and when the

vehicle is locked or unlocked.

Trip distance recorder

System which measures a distance travelled

during a day or another period since it was reset

by the driver.

► With the ignition on, press the button until

zeros appear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Setting the date and time

With instrument panel

Use the left-hand button on the instrument panel

to carry out the operations in the following order:

► Press the button for more than two seconds:

the minutes flash.

► Press the button to increase the minutes.

► Press the button for more than two seconds:

the hours flash.

► Press the button to increase the hours.

► Press the button for more than two seconds:

24H or 12H is displayed,

► Press the button to select 24H or 12H.

► Press the button for more than two seconds

to complete the adjustments.

After approximately 30 seconds with no action,

the display returns to normal.

Audio system/Bluetooth

Use the audio system buttons to carry out the

operations in the following order:

► Press the "

MENU

" button.

► Using the arrows, select the

Personalisation - Configuration

" menu then

confirm by pressing the dial.

► Using the arrows, select the "

Screen

configuration

" menu then confirm.

► Using the arrows, select the "

Set date and

time

" menu then confirm.

► Select the setting then confirm.

► Modify the setting then confirm again to save

the change.

► Adjust the settings one by one, confirming

each time.

► Select the "

" tab on the screen then

confirm to exit the "

Set date and time

" menu.

For more information on setting the date

and time with the

CITROËN Connect

Radio

CITROËN Connect Nav

, refer to

the corresponding sections.

Trip computer

Displays information related to the current trip

(range, fuel consumption, average speed, etc.).

Instrument panel screen

Monochrome screen C

Data displays

► Press the button at the end of the

wiper stalk

to display successively the different trip computer

data. The trip computer data is as follows:

• Range.

• Current fuel consumption.

• Distance travelled.

• Average fuel consumption.

• Average speed.

► The next press then returns you to the normal

display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Reset

► Hold the control down for more than two

seconds to reset the distance travelled, the

average fuel consumption and the average

speed.

Touch screen

The information is accessible via

the

Driving/Vehicle

Display of information on the touch screen

Permanent display:

With CITROËN Connect Radio

► Select the "

Applications

" menu, then "

Trip

computer

With CITROËN Connect Nav

► Select the "

Applications

" menu, then the

Vehicle apps

" tab, then "

Trip computer

The trip computer information is displayed in

tabs.

► Press one of the buttons to display the

desired tab.

Temporary display in a specific window:

► Press the end of the wiper control stalk to

access the information and display the different

tabs.

The current information tab with:

– The range.

– The current fuel consumption.

– The Stop & Start time counter.

The trip "

" tab with:

– The average speed for the first trip.

– The average fuel consumption.

– The distance travelled.

The trip "

" tab with:

– The average speed for the second trip.

– The average fuel consumption.

– The distance travelled.

Trip reset

► When the desired trip is displayed, press the

reset button or on the end of the wiper control

stalk.

Trips "

" and "

" are independent and are used

identically.

For example, trip "

" can be used for daily

figures and trip "

" for monthly figures.

Definitions

Range

(km)

The number of kilometres which can

be covered with the fuel remaining in the tank.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dashboard instruments

Related to the average fuel consumption over

the last few kilometres travelled.

This value may vary following a change

in the driving style or the relief, resulting

in a significant change in the current fuel

consumption.

When the range falls below 20 miles (30 km),

dashes are displayed. After filling with at least

5 litres of fuel, the range is recalculated and is

displayed if it exceeds 60 miles (100 km).

If dashes are displayed continuously

while driving instead of the digits, contact

a CITROËN dealer or a qualified workshop.

Current fuel consumption

(l/100 km or km/l)

Calculated over the last few seconds.

This function is only displayed from 18

mph (30 km/h).

Average fuel consumption

(l/100 km or km/l)

Calculated since the last time the trip was

reset.

Average speed

(km/h)

Calculated since the last time the trip was

reset.

Distance travelled

(km)

Calculated since the last time the trip was

reset.

Stop & Start time counter

(minutes/seconds or hours/minutes)

If your vehicle is fitted with Stop & Start, a time

counter calculates the time spent in STOP mode

during a journey.

It resets to zero every time the ignition is

switched on.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Access

Remote control / Key

Remote control function

The remote control can be used to perform

the following remote functions (depending on

version):

– Unlocking/Locking the vehicle.

– Unlocking and partial opening of the boot.

– Activating/Deactivating the alarm.

– Locating the vehicle.

– Activating the vehicle’s electronic immobiliser.

The remote control includes a conventional key

that allows the central unlocking/locking of the

vehicle using the door lock, as well as starting

and switching off the engine.

Back-up procedures allow the vehicle to be

locked/unlocked in the event of a failure of the

remote control, the central locking, the battery,

etc. For more information on the

Back-up

procedures

, refer to the corresponding section.

Built-in key

Using the remote control built-in key, you can

perform the following operations (depending on

version):

– Unlocking/Locking the vehicle.

– Activation/Deactivation of the manual child

lock.

– Activation/Deactivation of the front passenger

airbag.

– Back-up Unlocking/Locking of the doors.

– Switching on the ignition and starting/switching

off the engine.

Unfolding / Folding the key

► Press this button to unfold or fold the key.

The remote control may be damaged if

you do not press the button.

Once the built-in key is ejected, always

keep it with you to be able to carry out

the corresponding back-up procedures.

Unlocking the vehicle

Complete unlocking is activated by default.

With the audio system, the setting for

complete or selective boot unlocking is

made in the

Personalisation-Configuration

menu.

With the touch screen, selective

unlocking can be configured from

the

Driving/Vehicle

menu.

Complete unlocking

► Press the unlocking button.

Selective unlocking

Driver's door

► Press the unlocking button.

► Press it

again

to unlock the other doors and

the boot.

Complete or selective unlocking, and alarm

deactivation (depending on version), is confirmed

by the flashing of the direction indicators.

Unlocking and partial opening of the

boot

► Press this button for more than one

second to unlock the boot. The boot

opens slightly.

This action unlocks the vehicle first.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Citroën C-Elysée (2022 year). Manual in english - page 1
