Overview

Presentation

These illustrations and descriptions are provided

for information. The presence and location of

some elements vary depending on the version

or trim level.

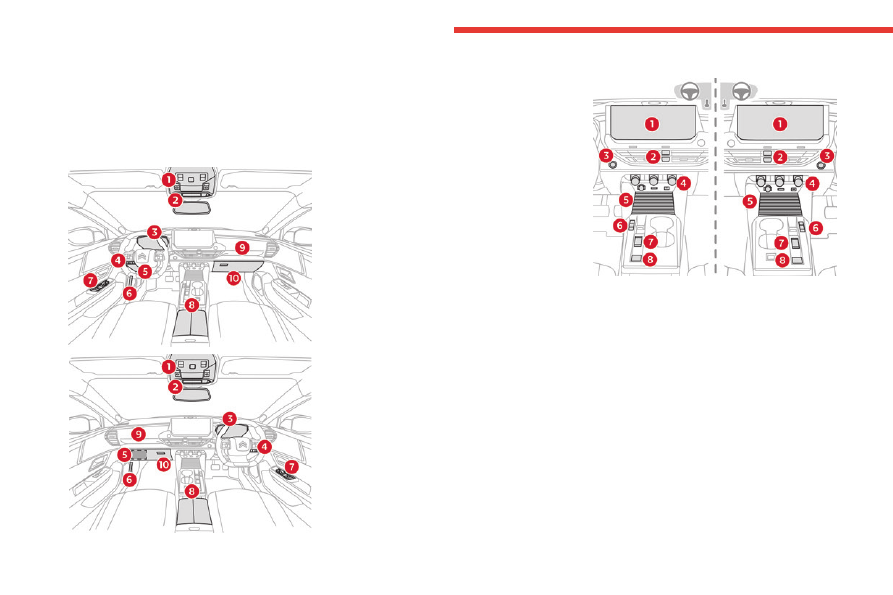

Instruments and controls

Emergency call/Assistance call

Sunroof

Alarm

Courtesy lamp/Front reading lamps

Warning lamp display for seat belts and front

passenger airbag

Interior mirror/Driving in

Electric

mode

indicator LED

Digital instrument panel

Side control bar

Fusebox

Bonnet release

Electric windows

Door mirrors

E-HUD

Front armrest

Front passenger airbag

10.

Glove box

Deactivation of the front passenger airbag

Centre console

Touch screen

Hazard warning lamps

Central locking

Switching the engine on/off

Automatic air conditioning

12 V socket/USB socket

Storage compartment/Wireless smartphone

charger

Gearbox control

Driving mode selector

Parking brake

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

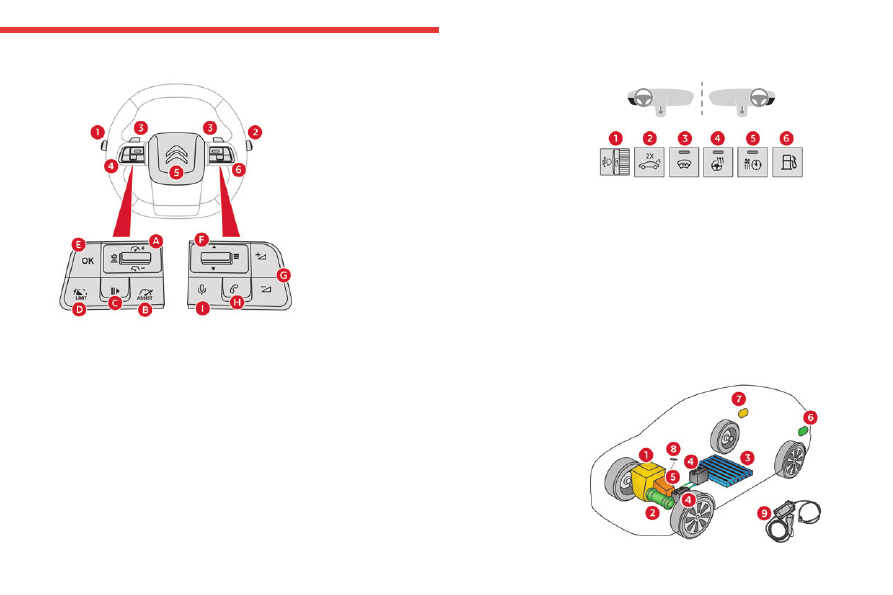

Steering-mounted controls

External lighting controls/Direction indicators/

Select the instrument panel display mode

Wiper controls/Screenwash/Trip computer

Automatic gearbox control paddles

Controls for Cruise control/Speed limiter/

Adaptive cruise control/Highway Driver Assist

or Highway Driver Assist 2.0

Up/Down: increase/decrease the speed

setting

Press: display and adjustment of the distance

setting to the vehicle in front (Adaptive cruise

control)

Select/Deselect the cruise control function

Select/Deselect the Adaptive cruise control/

Highway Driver Assist

Start/Pause of the Speed limiter or Cruise

control with the speed setting saved

Confirmation of vehicle restart after automatic

stop (Adaptive cruise control with Stop & Go

function)

Select/Deselect the speed limiter function

Activation of the Speed limiter or Cruise

control with the speed setting saved

Use the speed suggested by the Road signs

recognition system

Horn/Driver front airbag

Audio system setting controls

Press: display favourite radio stations/media

Up/Down: previous/next radio/media/

smartphone selection

Press: validation of a selection

Decrease/Increase volume

Pick up/Hang up

Access to the

Phone

application's call log

Short press: system voice commands

Long press: smartphone voice commands

Side control bar

Headlamp beam height adjustment

Motorised tailgate

Heated windscreen

Heated steering wheel

Temperature conditioning (Rechargeable

hybrid)

Opening the fuel filler flap (Rechargeable

hybrid)

Rechargeable hybrid

system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overview

Petrol engine

Electric motor

Traction battery

12 V accessories batteries

8-speed electric automatic gearbox (e-EAT8)

Charging flap

Fuel filler flap

Driving mode selector

Domestic charging cable

The

rechargeable hybrid

technology combines

two sources of energy: that of the petrol engine

and that of the electric motor, which drive the

front wheels (traction).

The engine and the motor can operate

alternately or simultaneously, according to the

driving mode selected and the driving conditions.

The electric power alone provides the mobility

of the vehicle in

Electric

mode, and in

Hybrid

mode in case of moderate demand. It assists the

petrol engine during starting and acceleration

phases.

The electric power is supplied by a rechargeable

traction battery.

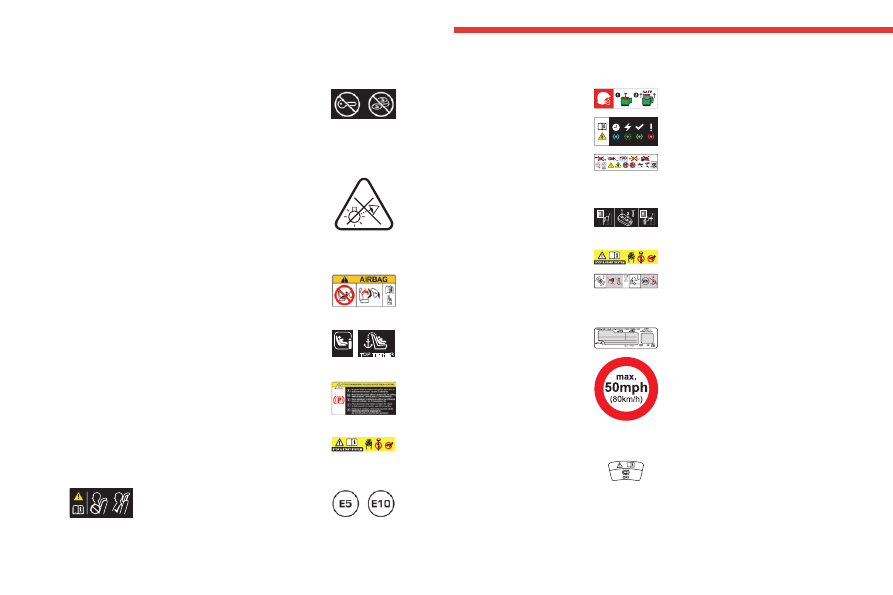

Labels

“Ease of use and comfort - Rear bench seat -

Rear head restraints” section:

“Ease of use and comfort - Front fittings -

Wireless smartphone charger” section:

“Lighting and visibility - Exterior lighting

control stalk” and “In the event of a

breakdown - Changing a bulb” sections:

“Safety - Child seats - Deactivating the front

passenger airbag” section

“Safety - ISOFIX mountings” section:

i-Size

TOP TETHER

“Driving - Electric parking brake” section

“Driving - Stop & Start - Bonnet” section:

“Practical information - Compatibility of

fuels” section:

“Practical information - Rechargeable hybrid

system” section:

“Practical information - Charging the traction

battery (Rechargeable hybrid)” section:

“Practical information - Bonnet” section:

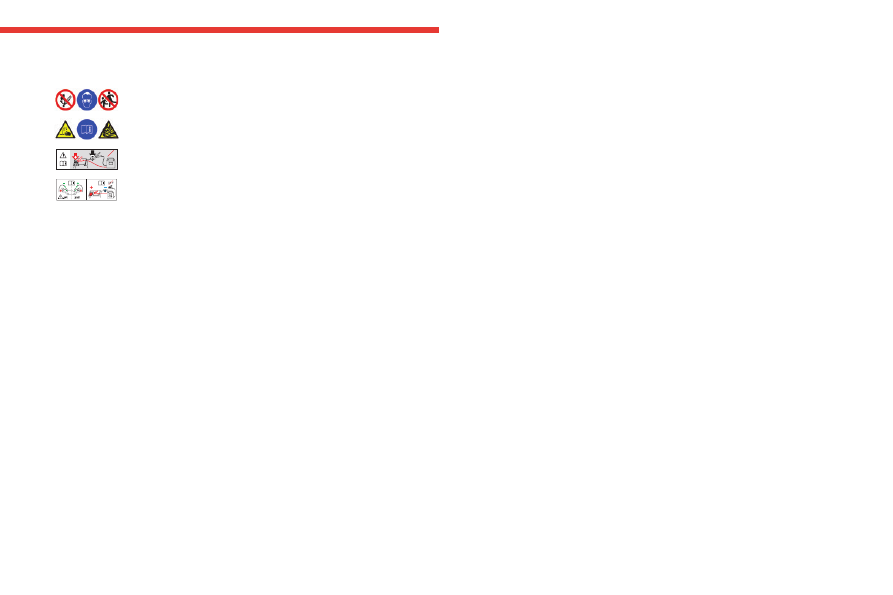

“In the event of a breakdown - Temporary

puncture repair kit” section:

“In the event of a breakdown - Spare wheel”

section:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Eco-driving

Eco-driving refers to a range of everyday

practices that allow the motorist to optimise

the vehicle's energy consumption (fuel and/or

electricity) and CO

emissions.

Optimise your use of the gearbox

With an automatic gearbox, favour automatic

mode. Do not depress the accelerator pedal

heavily or suddenly.

The gear shift indicator prompts you to engage

the most suitable gear. Whenever this indication

is displayed on the instrument panel, follow it

straight away.

With an automatic gearbox, this indicator

appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use

engine braking rather than the brake pedal and

press the accelerator gradually. These practices

help to save on energy consumption, reduce

emissions and decrease general traffic

noise.

When the traffic is flowing smoothly, select the

cruise control.

Control the use of electrical equipment

Before moving off, if the passenger compartment

is too warm, ventilate it by opening the windows

and air vents before using the air conditioning.

At speeds above 31 mph (50 km/h), close the

windows and leave the air vents open.

Consider using equipment that can help keep

the temperature in the passenger compartment

down (e.g. sunroof blind, window blinds).

Unless automatically regulated, switch off the air

conditioning as soon as the desired temperature

has been reached.

Switch off the demisting and defrosting functions,

if they are not managed automatically.

Switch off the heated seat as soon as possible.

Adapt the use of headlamps and/or foglamps

depending on visibility conditions.

Avoid running the engine before moving off,

particularly in winter (other than in severe wintry

conditions: temperature below -23°C). The

vehicle will warm up much faster while driving.

As a passenger, avoid connecting your

multimedia devices (e.g. film, music, video

game) to help reduce the consumption of energy.

Disconnect all portable devices before leaving

the vehicle.

Limit the causes of excess consumption

Spread loads throughout the vehicle. Place the

heaviest items in the boot as close as possible to

the rear seats.

Limit the loads carried in the vehicle and

minimise wind resistance (e.g. roof bars, roof

rack, bicycle carrier, trailer). Preferably, use a

roof box.

Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit

summer tyres.

Comply with the servicing instructions

Check tyre pressures regularly, with the tyres

cold, referring to the label in the door aperture on

the driver's side.

Carry out this check in particular:

– before a long journey.

– at each change of season.

– after a long period out of use.

Do not forget the spare wheel and, where

applicable, the tyres on your trailer or caravan.

Have your vehicle serviced regularly (e.g. engine

oil, oil filter, air filter, passenger compartment

filter, etc.). Observe the schedule of operations in

the manufacturer's service schedule.

When filling the fuel tank, do not continue after

the third cut-out of the nozzle, to avoid overflow.

You will only see the fuel consumption of your

new vehicle settle down to a consistent average

after the first 1,900 miles (3,000 kilometres).

Optimising the driving range

(rechargeable hybrid vehicles)

Connect the vehicle as soon as possible.

Favour the

ECO

zone of the power indicator by

driving smoothly and at a steady speed.

Anticipate slowing down as much as possible

and, if possible, favour decelerations with

regenerative braking mode activated (power

indicator in the

CHARGE

zone).

With the vehicle connected, carry out

temperature pre-conditioning before setting off.

To optimise consumption during a journey:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

Information to the driver

Instrument panel

The instrument panel contains all the information

required by the driver on the status of the

vehicle's various systems.

This information appears in the form of indicator

lamps, indicators and messages.

The instrument panel is in the form of a fully

digital panel.

E-HUD

Depending on version, driver information also

appears in the extended head-up display.

For more information on

E-HUD

, refer to the

corresponding section.

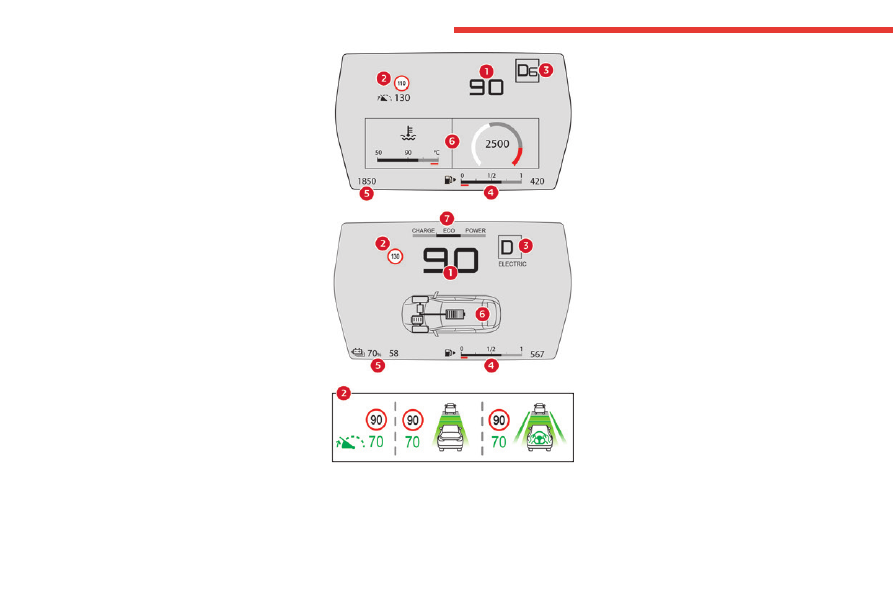

Digital instrument panel

The digital instrument panel can be personalised

using a page system.

Depending on the page displayed, certain

information is hidden or presented differently.

Speedometer (mph or km/h)

Driving aid in reduced display (if the function

is activated)

Display of speed limit signs

Status of the gearbox

Active driving mode

READY

indicator lamp (Rechargeable hybrid)

Fuel gauge and remaining range (miles or

km)

Total distance recorder (miles or km) (Petrol)

Traction battery charge level and remaining

range (miles or km) (Rechargeable hybrid)

Personalisable area:

– Energy flows (Rechargeable hybrid).

– Thermal Comfort Consumption

(Rechargeable hybrid).

– Current media.

– Driving aids.

– Navigation (depending on equipment).

– Rev counter.

– Engine temperature.

– Trip computer.

Power indicator (Rechargeable hybrid)

Information displayed on

the instrument panel

The information displayed on the instrument

panel (e.g. warning lamps, indicators) may have

a fixed or variable location depending on the

page or the driving aid activated.

For the functions that have indicator lamps for

both operation and deactivation, there is only

one dedicated location.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

Display language and units

These depend on the touch screen

settings.

When travelling abroad, the speed must be

shown in the official units of the country you

are driving in (mph, miles or km/h, km).

Choice of the displayed page

By default, pages are memorised in the

instrument panel.

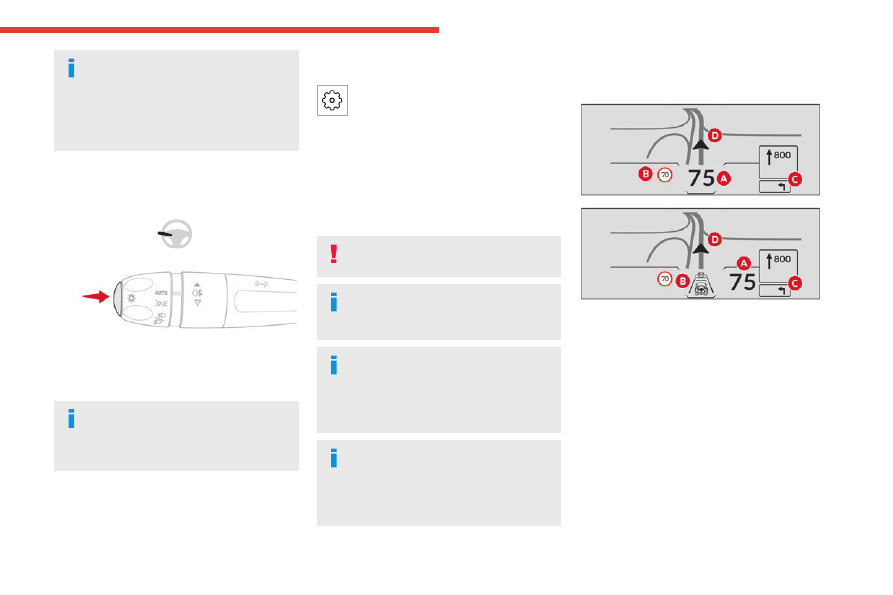

► Press the button located at the end of the

lighting control stalk to scroll through the different

pages.

The new page is applied immediately.

When a message is displayed in a

temporary window, pressing this button

will cause this window to disappear

immediately.

Settings for displayed pages

The available settings operations are: addition,

deletion and layout of pages.

It is possible to memorise up to 5 pages.

The colour can also be configured according to

the selected driving mode.

The settings are made in the

Settings>Customisation

touch screen

application.

E-HUD

This extended head-up display system projects

information onto the windscreen in the driver's

field of vision, so that they do not need to take

their eyes off the road.

No object must be placed in the cavity

- risk of damaging the system!

For optimal use, remember to adjust the

driver's seat and the height of the

head-up display.

In certain extreme weather conditions

(e.g. rain and/or snow, bright sunshine),

and when wearing polarised sunglasses, the

extended head-up display may not be

readable or may be temporarily disrupted.

E-HUD is associated with a specific

windscreen approved by CITROËN.

If the windscreen is replaced outside

the CITROËN dealer network, follow the

Manufacturer’s recommendations.

Information displayed

during operation

Once the system is activated, the information

gathered on the extended head-up display is, for

example:

Speed of the vehicle

Road signs recognition and Driving aid in

reduced display (if the function is activated)

Navigation instructions and guidance map

Personalisable area:

– Navigation (depending on equipment).

– Driving aids.

– Empty.

Temporary display of media lists, alerts

and feedback following a modification or

adjustment (volume, station search, etc.)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

Settings

Brightness adjustment is available after

activation of the function.

The system status and settings are memorised

when the ignition is switched off.

Activation/Deactivation

It can be activated/deactivated in the

Settings > Brightness

touch screen

application.

► With the ignition on, press the “

Head-Up

Display

” button to change the function status

(confirmed by the slider moving to the right/left:

function activated/deactivated).

Brightness adjustment

Brightness adjustment is configured in the

Settings > Brightness

touch screen

application.

► With the ignition on, press or move the slider

to the desired setting.

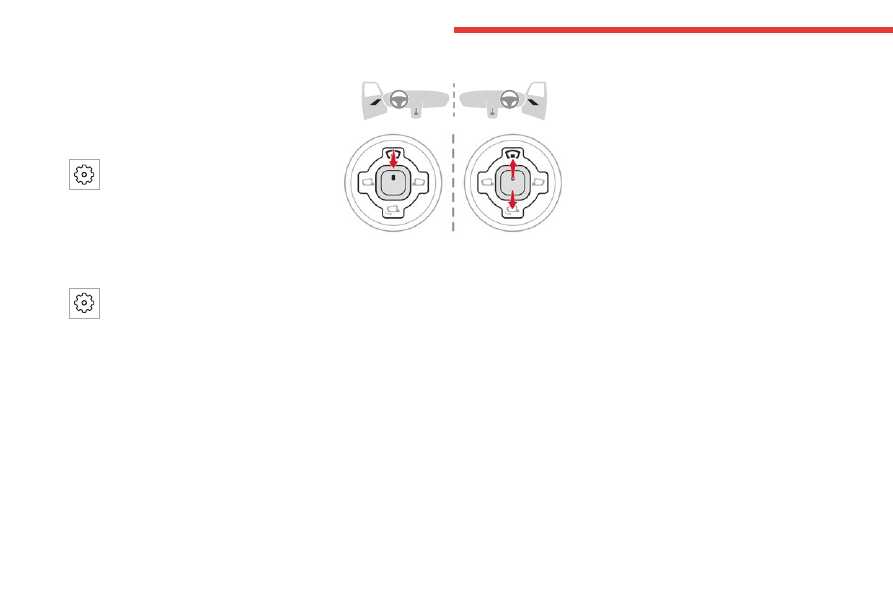

Adjusting the height

► With the ignition on and the control in the

central high position, move the control up/down

to adjust the desired height of the display.

Warning and indicator

lamps

Displayed as symbols, the warning and indicator

lamps inform the driver of the occurrence of a

malfunction (warning lamps) or of the operating

status of a system (operation or deactivation

indicator lamps). Certain lamps light up in two

ways (fixed or flashing) and/or in several colours.

Associated warnings

The illumination of a lamp may be accompanied

by an audible signal and/or a message displayed

in a screen.

Relating the type of alert to the operating status

of the vehicle allows you to determine whether

the situation is normal or whether a fault has

occurred: refer to the description of each lamp

for further information.

When the ignition is switched on

Certain red or orange warning lamps come on

for a few seconds when the ignition is switched

on. These warning lamps should go off as soon

as the engine is started.

For more information on a system or a function,

refer to the corresponding section.

Persistent warning lamp

If a red or orange warning lamp comes on, there

may be fault which needs further investigation.

If a lamp remains lit

The references

(1)

(2)

and

(3)

in the warning

and indicator lamp description indicate whether

you should contact a qualified professional in

addition to the immediate recommended actions.

(1)

You must stop the vehicle

Stop as soon as it is safe to do so and switch off

the ignition.

(2)

: Contact a CITROËN dealer or a qualified

workshop.

(3)

: Visit a CITROËN dealer or a qualified

workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

List of warning and

indicator lamps

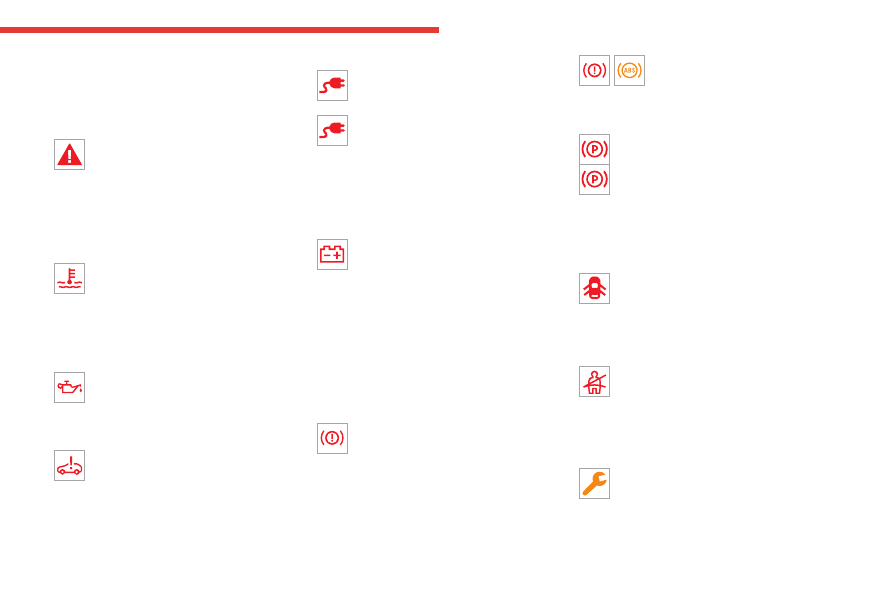

Red warning/indicator lamps
STOP

Fixed, associated with another warning

lamp, accompanied by the display of a

message and an audible signal.

A serious fault with the engine, braking system,

power steering or automatic gearbox or a major

electrical fault has been detected.

Carry out (1) and then (2).

Maximum engine coolant temperature

Fixed.

The temperature of the cooling system is

too high.

Carry out (1), then wait until the engine has

cooled down before topping up the level, if

necessary. If the problem persists, carry out (2).

Engine oil pressure

Fixed.

There is a fault with the engine lubrication

system.

Carry out (1) and then (2).

System malfunction (Rechargeable hybrid)

Fixed.

The rechargeable hybrid system is faulty.

Carry out (1) and then (2).

Cable connected (Rechargeable hybrid)

Fixed when the ignition is switched on.

The charging cable is connected to the

vehicle's connector.

Fixed when the ignition is switched on,

accompanied by a message.

It is not possible to start the vehicle while the

charging cable is connected to the vehicle’s

connector.

Disconnect the charging cable and close the

flap.

12V battery charge

Fixed.

The battery charging circuit is faulty

(e.g. dirty terminals, loose or severed alternator

belt).

Carry out (1).

If the electric parking brake stops working,

immobilise the vehicle:

► Fit the chock against one of the wheels.

Clean and tighten the terminals. If the warning

lamp does not go off when the engine is started,

carry out (2).

Braking

Fixed.

The brake fluid level in the braking circuit

has dropped significantly.

Carry out (1), then top up with fluid that complies

with the manufacturer's recommendations. If the

problem persists, carry out (2).

Fixed.

The electronic brake force

distribution (EBFD) system is faulty.

Carry out (1) and then (2).

Electric parking brake

Fixed.

The electric parking brake is applied.

Flashing.

Application/release is faulty.

Carry out (1): park on flat ground (on a level

surface).

Select mode

on the automatic gearbox.

Switch off the ignition and carry out (2).

Door(s) open

Fixed, associated with a message

identifying the access.

An audible signal supplements the alert if the

speed is higher than 6 mph (10 km/h).

A door or the boot is not properly closed.

Seat belts not fastened/unfastened

Fixed or flashing, accompanied by an

increasing audible signal.

A seat belt has not been fastened or has been

unfastened.

Orange warning/indicator lamps
Service

Temporarily on, accompanied by the

display of a message.

One or more minor faults, for which there is/are

no specific warning lamp(s), have been detected.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

Identify the cause of the fault using the message

displayed on the instrument panel.

You may be able to deal with some faults

yourself, such as changing the battery in the

remote control.

For other faults, such as with the tyre under-

inflation detection system, carry out (3).

Fixed, accompanied by the display of a

message.

One or more major faults, for which there is/are

no specific warning lamp(s), have been detected.

Identify the cause of the fault using the message

displayed on the instrument panel, then carry

out (3).

Fixed, accompanied by the message

Parking brake fault

Automatic release of the electric parking brake is

unavailable.

Carry out (2).

Malfunction (with electric parking brake)

Fixed, accompanied by the

message "Parking brake fault".

The vehicle cannot be immobilised with the

engine running.

If manual application and release commands are

not working, the electric parking brake control

lever is faulty.

The automatic functions must be used at all

times and are automatically re-enabled in the

event of a control lever fault.

Carry out (2).

Fixed, accompanied by the

message "Parking brake

fault".

The parking brake is faulty: manual and

automatic functions may not be working.

When stationary, to immobilise the vehicle:

► Pull and hold the control lever for

approximately 7 to 15 seconds, until the indicator

lamp lights up on the instrument panel.

If this procedure does not work, secure the

vehicle:

► Park on a level surface.

► With an automatic gearbox, select

, then

place the supplied chocks against one of the

wheels.

Then carry out (2).

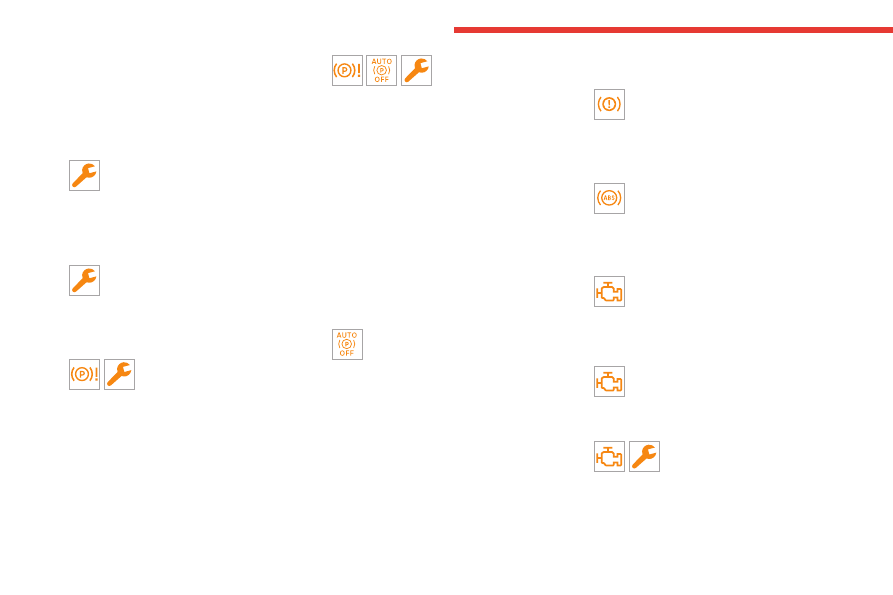

Automatic functions deactivated (electric

parking brake)

Fixed.

The "automatic application" (on switching

off the engine) and "automatic release" (on

acceleration) functions are deactivated.

If automatic application/release is no longer

possible:

► Start the engine.

► Use the control to apply the parking brake.

► Take your foot fully off the brake pedal.

► Hold the control pressed in the release

direction for between 10 and 15 seconds.

► Release the control.

► Depress and hold the brake pedal.

► Pull the control in the application direction for

2 seconds.

► Release the control and the brake pedal.

Braking

Fixed.

A minor fault with the braking system has

been detected.

Drive carefully.

Carry out (3).

Anti-lock braking system (ABS)

Fixed.

The anti-lock braking system has a fault.

The vehicle retains conventional braking.

Drive carefully at moderate speed, then carry

out (3).

Engine self-diagnostic system

Flashing.

The engine management system has a

fault.

There is a risk that the catalytic converter will be

destroyed.

You

must

carry out (2).

Fixed.

The emissions control system has a fault.

The warning lamp should go off when the engine

is started.

Carry out (3) without delay.

Fixed.

A minor engine fault has been

detected.

Carry out (3).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

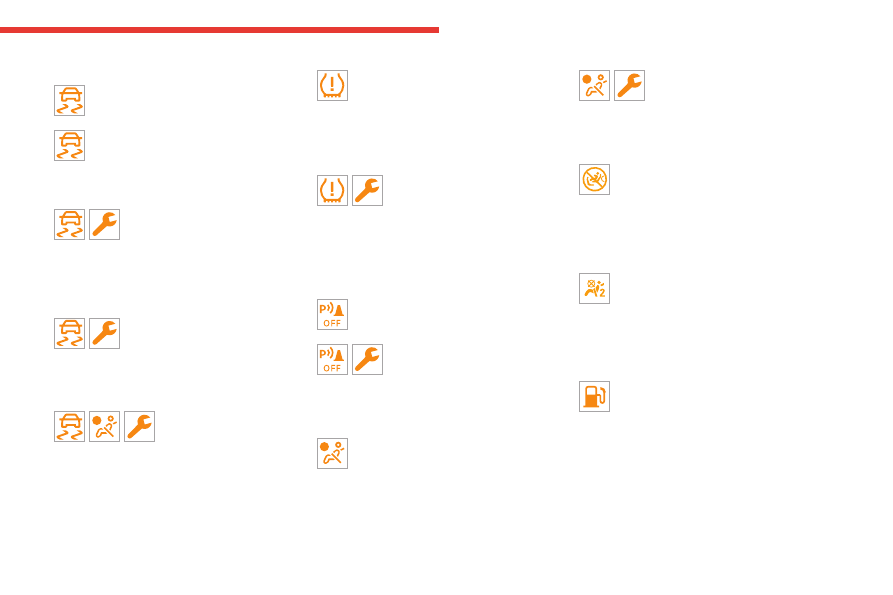

Dynamic stability control (DSC)/Anti-slip

regulation (ASR)

Flashing.

DSC/ASR regulation is activated in the

event of a loss of grip or trajectory.

Fixed.

The DSC/ASR system has a fault.

Carry out (3).

Emergency brake malfunction (with

electric parking brake)

Fixed, accompanied by the

message "Parking brake fault".

Emergency braking does not deliver optimal

performance.

If automatic release is not available, use manual

release or carry out (3).

Hill start assist

Fixed, accompanied by the

message "

Anti roll-back system

fault

The system has a fault.

Carry out (3).

Post Collision Safety Brake

Fixed, associated with the

Service warning lamp,

accompanied by the display of a message and

an audible signal.

The system has a fault.

Carry out (3) quickly.

Under-inflation

Fixed.

The pressure in one or more tyres is too

low.

Check the pressure of the tyres as soon as

possible.

Reinitialise the detection system after adjusting

the pressure.

Under-inflation warning lamp

flashing then fixed and Service

warning lamp fixed.

The tyre pressure monitoring system is faulty.

Under-inflation detection is no longer monitored.

Check the tyre pressures as soon as possible

and carry out (3).

Parking sensors

Fixed, accompanied by an onscreen

message and an audible signal.

The system is deactivated.

Fixed, associated with the Service

warning lamp, accompanied by the

display of a message and an audible signal.

The system has a fault.

Carry out (3).

Active bonnet

Fixed, accompanied by the display of a

message.

The active bonnet has been triggered.

Do not touch the bonnet.

Call a roadside assistance provider or carry

out (3) while driving no faster than 19 mph (30

km/h).

Airbags

Fixed, accompanied by the display

of a message.

One of the airbags or seat belt pyrotechnic

pretensioners is faulty.

Carry out (3).

Front passenger airbag (ON)

Fixed.

The front passenger airbag is activated.

The control is set to the “

” position.

In this case, do NOT install a "rearward

facing" child seat on the front passenger seat

- risk of serious injury!

Front passenger airbag (OFF)

Fixed.

The front passenger airbag is deactivated.

The control is set to the "

OFF

" position.

A "rearward facing" child seat can be installed,

unless there is a fault with the airbags (Airbags

warning lamp on).

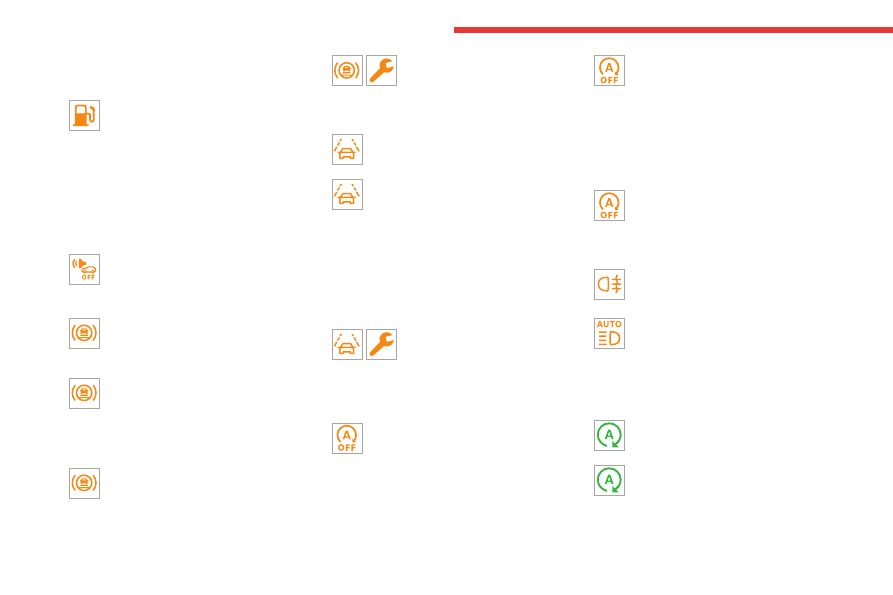

Low fuel level

Fixed, with the reserve level shown in red,

accompanied by an audible signal and

the display of a message.

When it first comes on, you have

approximately

6 litres of fuel

remaining in the tank (reserve).

Until the fuel level is topped up, this alert will

be repeated every time the ignition is switched

on, with increasing frequency as the fuel level

decreases and approaches zero.

Refuel without delay to avoid running out of fuel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

Never drive until completely empty

, as

this could damage the emissions control and

injection systems.

Flashing, accompanied by an audible

signal and the display of a message.

The fuel level is very low, the tank (reserve) is

almost empty.

Refuel without delay to avoid running out of

fuel.

Never drive until completely empty

, as

this could damage the emissions control and

injection systems.

Pedestrian horn (Rechargeable hybrid)

Fixed.

Horn fault detected.

Carry out (3).

Collision Risk Alert/Active Safety Brake

Fixed, accompanied by the display of a

message.

The system has been deactivated via the touch

screen.

Flashing.

The system activates and brakes the

vehicle momentarily to reduce the speed of

collision with the vehicle in front.

For more information, refer to the Driving

section.

Fixed, accompanied by a message and

an audible signal.

The system has a fault.

Carry out (3).

Fixed.

The system has a fault.

If these warning lamps come on after the engine

is switched off and then restarted, carry out (3).

Active lane departure warning system

Fixed.

The system has been automatically

deactivated or placed on standby.

Flashing.

You are about to cross a broken

lane marking without operating the direction

indicators.

The system is activated, then corrects the

trajectory if it detects a risk of unintentionally

crossing a line or hard shoulder (depending on

version).

For more information, refer to the Driving

section.

Fixed, accompanied by the display

of a message and an audible

signal.

The system has a fault.

Carry out (3).

Stop & Start

Fixed, accompanied by the display of a

message.

The Stop & Start system has been deactivated

manually.

The engine will not switch off at the next traffic

stop.

Use the touch screen configuration menu to

reactivate the function.

Fixed.

The Stop & Start system has been

deactivated automatically.

The engine will not switch off at the next traffic

stop, if the exterior temperature is:

– below 0°C.

– above +35°C.

For more information, refer to the Driving

section.

Flashing then fixed, accompanied by a

message.

The system has a fault.

Carry out (3).

Rear foglamps

Fixed.

The lamps are on.

Automatic headlamp dipping

Fixed, accompanied by an audible signal

and a message.

A function or camera malfunction is detected.

Carry out (2).

Green warning/indicator lamps
Stop & Start

Fixed.

When the vehicle stops, the Stop & Start

puts the engine into STOP mode.

Flashing temporarily.

STOP mode is momentarily unavailable

or START mode is automatically triggered.

For more information, refer to the Driving

section.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments

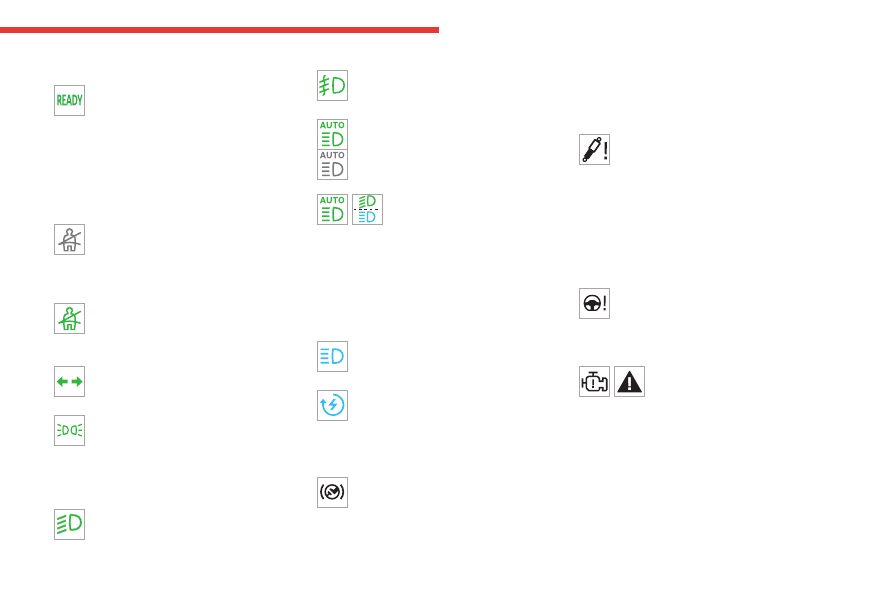

Vehicle ready to drive (Rechargeable

hybrid)

Fixed, accompanied by an audible signal

when it comes on.

The vehicle is ready to drive.

The indicator lamp goes out upon reaching a

speed of approximately 3 mph (5 km/h) and

lights up again when the vehicle stops moving.

The lamp will go out when you turn off the

engine and exit the vehicle.

Seat unoccupied/Seat belt not fastened

Fixed.

(grey)

With the ignition on, one of the front or rear

passenger seats is considered to be unoccupied.

Seat occupied/Seat belt fastened

Fixed.

With the ignition on, the driver or a

passenger has fastened their seat belt.

Direction indicators

Flashing with audible signal.

The direction indicators are on.

Daytime running lamps/Sidelamps

Fixed.

With adequate ambient light, the daytime

running lamps are on.

With inadequate ambient light, the sidelamps

are on.

Dipped beam headlamps

Fixed.

The lamps are on.

Front foglamps

Fixed.

The lamps are on.

Automatic headlamp dipping

Fixed.

The function is activated.

Fixed.

(grey)

The function is activated, but not available.

Fixed.

The function has been activated

via the touch screen.

The lighting control stalk ring is in the “

AUTO

”

position.

For more information, refer to the Lighting and

visibility section.

Blue warning/indicator lamps
Main beam headlamps

Fixed.

The lamps are on.

e-SAVE function (Rechargeable hybrid)

Fixed, accompanied by the reserved

electric range.

The function is activated.

Black/white warning lamps
Foot on the brake

Fixed.

Insufficient or no pressure on the brake

pedal.

With the engine running, before releasing the

parking brake, to move out of mode

on an

automatic gearbox.

Citroën Advanced Comfort active

suspension

Fixed.

A malfunction of the suspension system

is detected.

Reinitialise the system:

► Switch the ignition off and wait for at least 30

seconds.

► Switch the ignition on again and wait for at

least 5 seconds before starting the engine.

If the problem persists, carry out (3).

Power steering

Fixed.

The power steering has a fault.

Drive carefully at moderate speed, then carry

out (3).

Engine self-diagnostic system

Fixed.

A major engine fault has been

detected.

Carry out (1) and then (2).

Indicators

Service indicator

The servicing information is expressed in terms

of distance (miles or kilometres) and time

(months or days).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Citroën C5 X (2022 year). Manual in english - page 1
