226

Technical data

Engines and towed loads - Diesel EURO 4/5

*  Increased payload.





Engines

HDi 150 BVM6

HDi 150 EAT6/EAT8

BlueHDi 150 BVM6

BlueHDi 150 EAT6/

EAT8

Gearboxes

Manual 6-speed

Automatic 6/8-speed

Manual 6-speed

Automatic 6/8-speed

Code

DW10F

DW10FD

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

110

110

Fuel

Diesel

Diesel

Length

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

XS, M, XL

(L1/L2/L3)

M*, XL*

(L2/L3)*

Braked trailer

(within the GTW

limit) (kg)

on a 10% or 12%

gradient

6-7-8-9 seats

1,100

800

1,100

800

Unbraked trailer

(kg)

750

750

750

750

Maximum

authorised nose

weight (kg)

44

32

44

32

227

Technical data

9

Engines and towed loads - Diesel EURO 6.2





Engines

BlueHDi 100 S&S BVM6

BlueHDi 120 S&S BVM6

BlueHDi 120 S&S EAT8

Gearboxes

Manual 6-speed

Manual 6-speed

Automatic 8-speed

Code

DV5RUCd - ML6 - STT

DV5RUC - ML6 - STT

DW10FEU - AMN8 - STT

Cubic capacity (cc)

1,499

1,499

1,997

Max. power: EC standard (kW)

75

88

88

Fuel

Diesel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the

GTW limit) (kg)

on a 10% or 12% gradient

6-7-8-9 seats

1,800

2,000

1,800

2,000

2,300

2,500

Unbraked trailer (kg)

750

750

750

750

750

750

Maximum authorised nose

weight (kg)

72

80

72

80

92

100

Engines

BlueHDi 150 S&S BVM6

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 6-speed

Automatic 8-speed

Code

DW10FD - ML6 - STT

DW10FDCU - AMN8 - STT

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

110

130

*  Increased payload.

228

Technical data

Engines

BlueHDi 150 S&S BVM6

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 6-speed

Automatic 8-speed

Code

DW10FD - ML6 - STT

DW10FDCU - AMN8 - STT

Fuel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the

GTW limit) (kg)

on a 10% or 12% gradient

6-7-8-9 seats

2,300

2,500

2,300

2,500

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose

weight (kg)

92

100

92

100

229

Technical data

9

Engines and towed loads - Diesel EURO 6.3





Engines

BlueHDi 100 S&S BVM6

BlueHDi 120 S&S BVM6

BlueHDi 140 S&S BVM6

Gearboxes

Manual 6-speed

Manual 6-speed

Manual 6-speed

Code

DV5RUCd - ML6 - STT

DV5RUC - ML6 - STT

DW10FDDU - ML6 - STT

Cubic capacity (cc)

1,499

1,499

1,997

Max. power: EC standard (kW)

75

88

103

Fuel

Diesel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the

GTW limit) (kg)

on a 10% or 12% gradient

6-7-8-9 seats

1,400

1,400

1,900

1,900

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose

weight (kg)

84

84

84

84

Engines

BlueHDi 140 S&S EAT8

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 8-speed

Automatic 8-speed

Code

DW10FDDU - AMN8 - STT

DW10FDCU - AMN8 - STT

Cubic capacity (cc)

1,997

1,997

Max. power: EC standard (kW)

103

130

*  Increased payload.

230

Technical data

Engines

BlueHDi 140 S&S EAT8

BlueHDi 180 S&S EAT8

Gearboxes

Automatic 8-speed

Automatic 8-speed

Code

DW10FDDU - AMN8 - STT

DW10FDCU - AMN8 - STT

Fuel

Diesel

Diesel

Length

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

XS/M/XL

(L1/L2/L3)

M*/XL*

(L2/L3)*

Braked trailer (within the

GTW limit) (kg)

on a 10% or 12% gradient

6-7-8-9 seats

1,900

1,900

1,900

1,900

Unbraked trailer (kg)

750

750

750

750

Maximum authorised nose

weight (kg)

84

84

84

84

231

Technical data

9

Motor and towed loads - Electric

Electric motor

Electric motor

Technology

Synchronous with permanent magnets

Max. power : EC standard (kW)/(hp)

100/136

Traction battery

Technology

Lithium-Ion

Battery pack

S: 18 modules (L1/L2/L3)

XL: 27 modules (L2/L3)*

Installed capacity (kWh)

50 or 75

Domestic charging

Mode 2

Alternating current (AC) voltage

Rating (A)

230

8 or 16

Accelerated charging

Mode 3

Alternating current (AC) voltage

Rating (A)

230 (single-phase or three-phase)

16 or 32

Superfast charging

Mode 4

Direct current (DC) voltage

400

* Battery pack not available for right-hand drive Combi, Business, Feel, Shine, Business Lounge vehicles.

232

Technical data

Towed loads





Model codes:

ZZKXZ

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

1,000

Unbraked trailer (kg)

750

Maximum authorised nose weight (kg)

60





Model codes:

V1ESZ/V1EZZ/VZESZ/VZEZZ

Code:

MEL ZAE BATT S/

MEL ZAE BATT XL

Length

XS, M, XL

(L1/L2/L3)

Braked trailer (within the GTW limit) (kg)

on a 10% or 12% gradient

5-6-7-8-9 seats

1,000

Unbraked trailer (kg)

750

Maximum authorised nose weight (kg)

60

233

Technical data

9

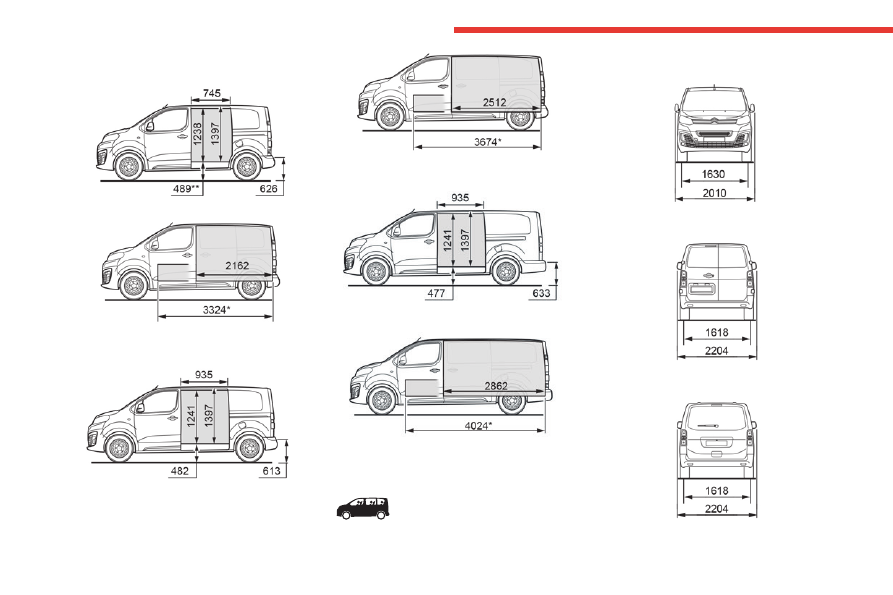

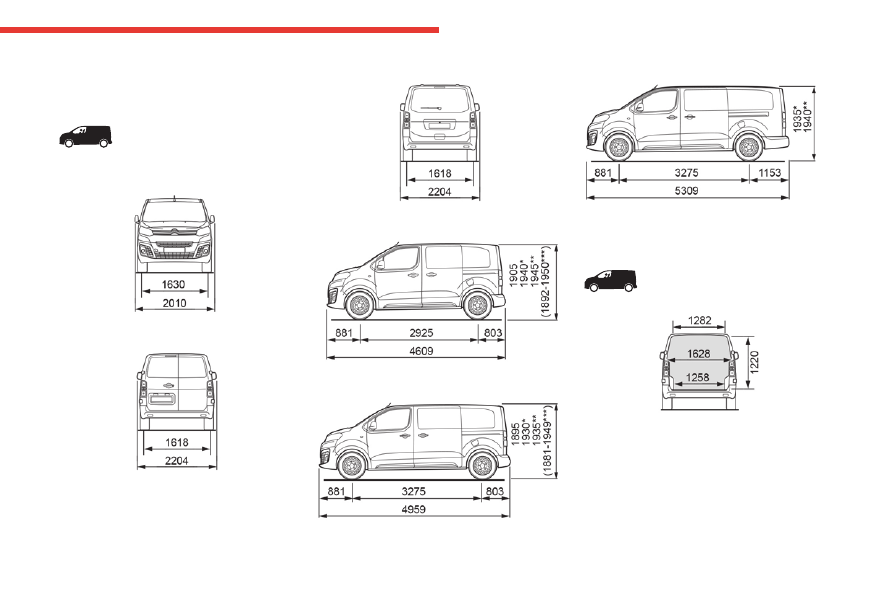

Dimensions (mm)

These dimensions have been measured on an

unladen vehicle.





Mirrors folded





Side-hinged doors





Tailgate





XS





M





XL





* Increased payload.

** Increased payload with high body.

*** Depending on country of sale.









234

Technical data

XS









M









XL









* With Moduwork, flap removed.

** Vehicle empty and not loaded.





Mirrors folded





Side-hinged doors





Tailgate





235

Technical data

9

XS





M





XL





* Increased payload.

** Increased payload with high body.

*** Depending on country of sale.

Platform cab

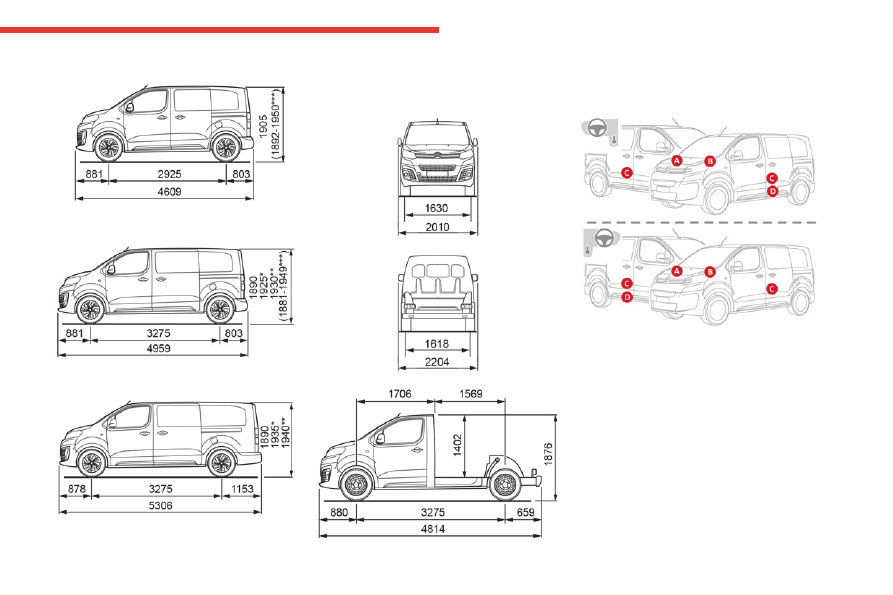

Identification markings

Various visible

markings for vehicle identification

and vehicle search.





A. Vehicle Identification Number (VIN), under

the bonnet.

Stamped on the chassis.

B. Vehicle Identification Number (VIN), on the

dashboard.

Printed on an adhesive label visible through the

windscreen.

C. Manufacturer's label.

Affixed to the centre pillar.

Bears the following information:

–  Manufacturer’s name.

–  European whole vehicle type approval

number.

–  Vehicle Identification number (VIN).

236

Technical data

–  Gross vehicle weight (GVW).

–  Gross train weight (GTW).

–  Maximum weight on the front axle.

–  Maximum weight on the rear axle.

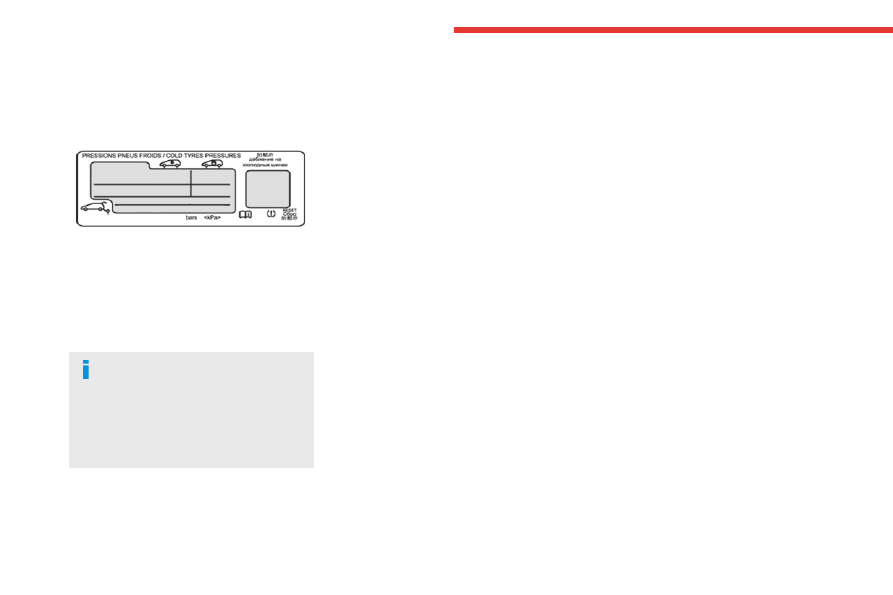

D. Tyres/paint code label.





Affixed to the driver's door.

Bears the following information about the tyres:

–  Tyre pressures, unladen and laden.

–  Tyre specification, made up of the dimensions

and type as well as the load and speed indices.

–  Spare tyre inflation pressure.

Also indicates the paint colour code.

The vehicle may be originally equipped

with tyres with higher load and speed

indices than those indicated on the label,

without affecting tyre pressure (on cold tyres).

In the event of a change in the type of tyres,

contact a CITROËN dealer for the tyre fits

approved for the vehicle.

237

Bluetooth® audio system

10

Bluetooth

®

 audio system





The different functions and settings

described vary according to the version

and configuration of your vehicle.

As a safety measure and because it

requires sustained attention by the driver,

the pairing of a Bluetooth

®

 mobile telephone

with the Bluetooth

®

 hands-free system of your

audio system must be done with the

vehicle

stationary

 and the ignition on.

Your audio system is coded in such a

way that it will only operate in your

vehicle.

All work on the system must be carried out

exclusively by a dealer or qualified workshop,

to avoid any risk of electrocution, fire or

mechanical faults.

To avoid discharging the battery, the

audio system may switch off after a few

minutes if the engine is not running.

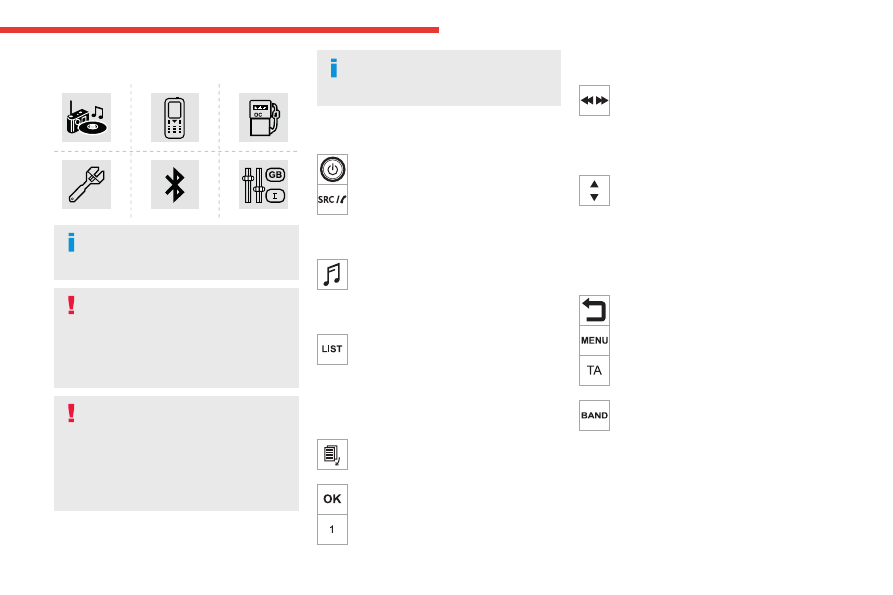

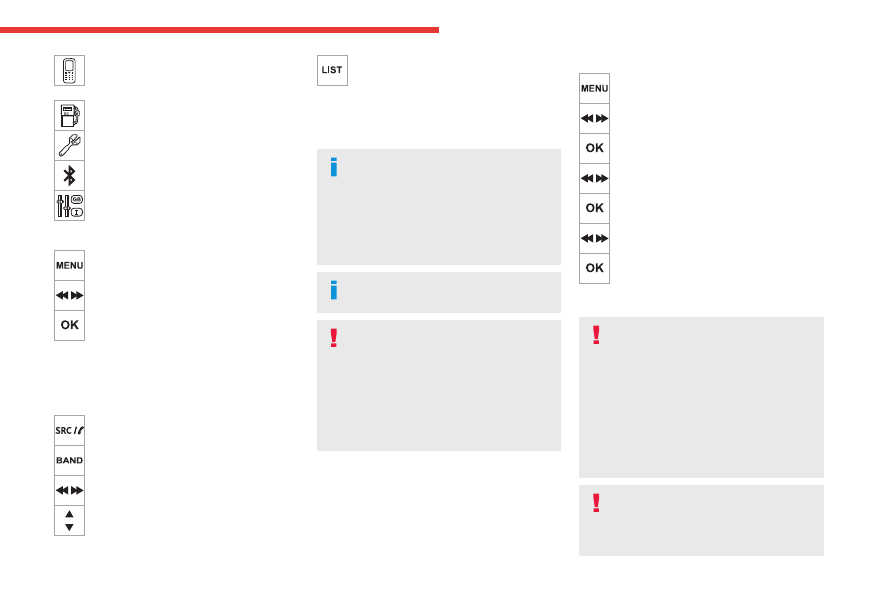

First steps

Press: On/Off.

Rotate: adjust volume.

Short press: change audio source (radio;

USB; AUX (if equipment connected); CD;

streaming).

Long press: display the

Telephone

 menu (if a

telephone is connected).

Adjust audio settings:

Front/rear fader; left/right balance; bass/

treble; loudness; audio ambience.

Activate/Deactivate automatic volume

adjustment (based on the vehicle’s speed).

Radio :

Short press: display the list of radio

stations.

Long press: update the list.

Media :

Short press: display the list of folders.

Long press: display the available sorting options.

Select the screen display mode, between:

Date; Audio functions; Trip computer;

Telephone.

Confirm or display contextual menu.



Buttons 1 to 6.

Short press: select the preset radio station.

Long press: preset a radio station.

Radio:

Automatic step by step search up/down

for radio stations.

Media:

Select previous/next CD, USB, streaming track.

Scroll in a list.

Radio:

Manual step by step search up/down for

radio stations.

Select previous/next MP3 folder.

Media:

Select previous/next folder/genre/artist/playlist

on the USB device.

Scroll in a list.

Cancel the current operation.

Go up one level (menu or folder).

Access the main menu.

Activate/Deactivate TA function (traffic

announcements).

Long press: select type of announcement.

Selection of FM/DAB/AM wavebands.

238

Bluetooth® audio system

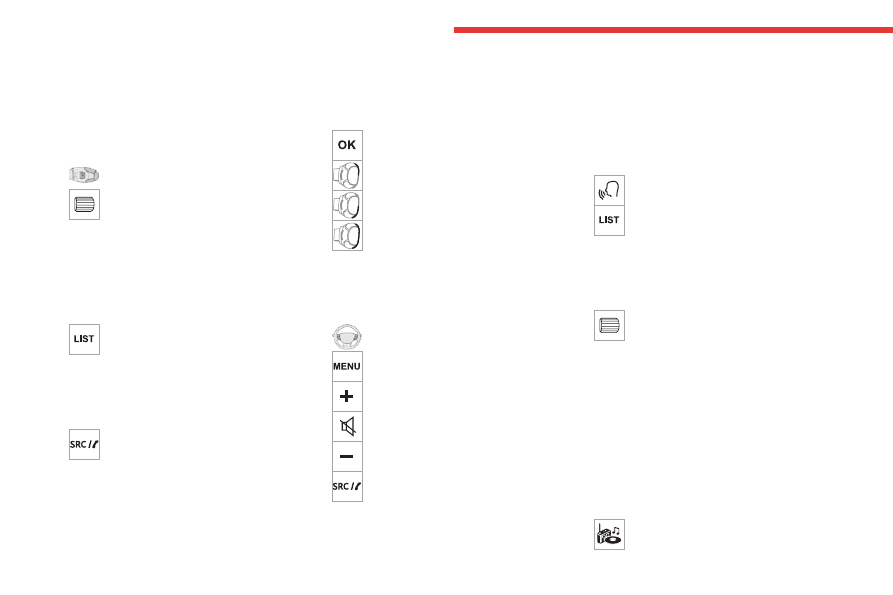

Steering-mounted

controls

Steering mounted controls -

Type 1





Radio:

Select the previous / next preset radio

station.

Select the previous / next item in a menu or a

list.

Media:

Select the previous / next track.

Select the previous / next item in a menu or a

list.

Radio:

Short press: display the list of radio

stations.

Long press: update the list.

Media:

Short press: display the list of folders.

Long press: display the available sorting options.

Other than telephone call:

Short press: changing audio source

(radio; USB; AUX (if equipment connected); CD;

streaming), confirmation if the

"Telephone"



menu is open.

Long press: open the "

Telephone

" menu.

In the event of a telephone call:

Short press: accept the call.

Long press: reject the call.

During a telephone call:

Short press: open the contextual telephone

menu.

Long press: end the call.

Confirm a selection.



Increase volume.

Decrease volume.

Mute / Restore sound by simultaneously

pressing the increase and decrease

volume buttons.

Steering mounted controls -

Type 2





Access to the main menu.

Increase volume.

Mute / Restore the sound.

Decrease volume.

Other than telephone call:

Short press: changing audio source

(radio; USB; AUX (if equipment connected); CD;

streaming), confirmation if the

"Telephone"



menu is open.

Long press: open the "

Telephone

" menu.

In the event of a telephone call:

Short press: accept the call.

Long press: reject the call.

During a telephone call:

Short press: open the contextual telephone

menu.

Long press: end the call.

Start voice recognition on your

smartphone via the system.

Radio:

Short press: display the list of radio

stations.

Long press: update the list.

Media:

Short press: display the list of folders.

Long press: display the available sorting options.

Radio:

Select the previous / next preset radio

station.

Select the previous / next item in a menu or a

list.

Media:

Select the previous / next track.

Select the previous / next item in a menu or a

list.

Press the thumbwheel: confirm.

Menus

Depending on version.

"

Multimedia

": Media settings, Radio

settings.

239

Bluetooth® audio system

10

"

Telephone

": Call, Directory

management, Telephone management,

Hang up.

"

Trip computer

".

"

Maintenance

": Diagnosis, Warning log,

etc.

"

Connections

": Manage connections,

search for devices.

"

Personalisation-configuration

": Define

the vehicle parameters, Choice of

language, Display configuration, Choice of units,

Date and time adjustment.

Press the "

MENU

" button.

Move from one menu to another.

Enter a menu.

Radio

Selecting a station

Press the

SOURCE

 button repeatedly

and select the radio.

Press this button to select a waveband

(FM / AM / DAB).

Press one of the buttons for an automatic

search for radio stations.

Press one of the buttons to carry out a

manual search up / down for radio

frequencies.

Press this button to display the list of

stations received locally.

To update this list, press for more than two

seconds. The sound is cut while updating.

RDS

The external environment (hills,

buildings, tunnels, car parks,

underground, etc.) may block reception,

including in RDS tracking mode. This is a

normal effect of the way in which radio waves

are transmitted and does not indicate any

failure of the audio system.

If RDS is not available, the RDS symbol

appears struck out on the display.

RDS, if activated, allows you to continue

listening to the same station by

automatically retuning to alternative

frequencies. However, in certain conditions,

RDS station tracking may not be possible

nationwide, as radio stations do not always

cover the entire country. This can explain the

loss of reception of a station during a journey.

Short procedure

In "

Radio

" mode, press the

OK

button to activate

or deactivate RDS directly.

Long procedure

Press the

MENU

 button.

Select "

Audio functions

".

Press

OK

.

Select the "

FM waveband preferences

"

function.

Press

OK

.

Select "

Frequency tracking (RDS)

".

Press

OK

, RDS is displayed on the

screen.

Play TA messages

The TA (Traffic Announcement) function

gives priority to TA alert messages. To

operate, this function needs good reception of

a radio station that carries this type of

message. When a traffic report is transmitted,

the current audio source (Radio, CD, etc.) is

interrupted automatically to play the TA

message. Normal play of the media

previously playing is resumed at the end of

the message.

Take care when increasing the volume

while listening to TA messages. The

volume may prove too high on return to the

original audio source.

240

Bluetooth® audio system

Press the

TA

 button to activate or

deactivate traffic messages.

Receiving INFO messages

The INFO function gives priority to TA

alert messages. To be active, this

function needs good reception of a radio

station that transmits this type of message.

When a message is transmitted, the current

audio source (Radio, CD, USB, etc.) is

interrupted automatically to receive the INFO

message. Normal play of the media

previously playing is resumed at the end of

the message.

Make a long press on this button to

display the list of categories.

Select or deselect categories.

Activate or deactivate the reception of the

corresponding messages.

Display TEXT INFOS

Radio text is information transmitted by

the radio station related to the station's

current programme or song.

When the radio station is displayed in the

screen, press

OK

 to display the

contextual menu.

Select "

RadioText (TXT) display

" and

confirm

OK

 to save.

DAB (Digital Audio

Broadcasting) radio

Terrestrial Digital Radio

Depending on version

If the current DAB radio station is not

available on FM, "DAB FM" is struck out.





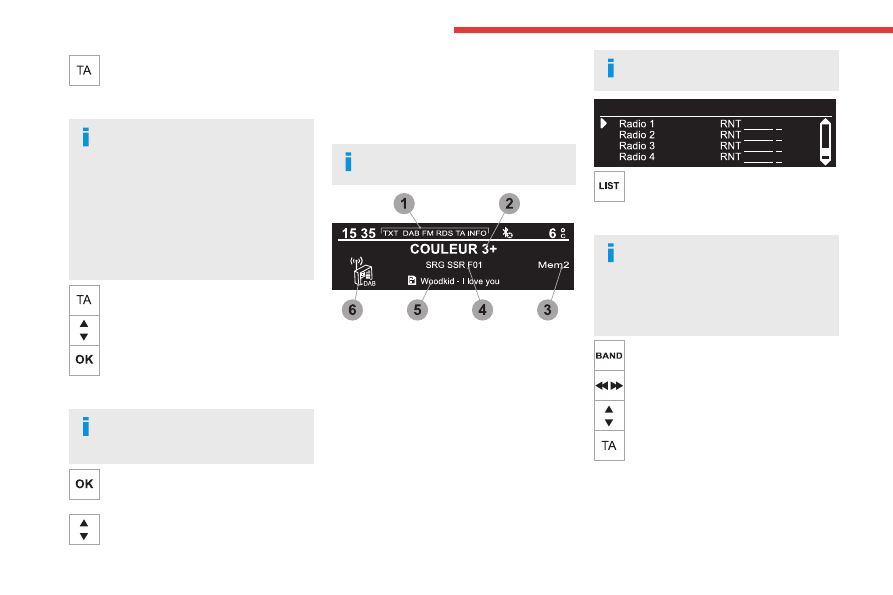

1

Options display: if active but not available, the

display will be struck out.

2

Display showing the name of the current

station.

3

Preset stations, buttons 1 to 6.

Short press: select the preset radio station.

Long press: memorise a radio station.

4

Display showing the name of the “multiplex”

service being used.

5

RadioText (TXT) display for the current radio

station.

6

Represents the signal strength for the band

being listened to.

When changing region, updating the list

of preset radio stations is recommended.





Full list of radio stations and "multiplexes".

Terrestrial digital radio

Digital radio provides a superior audio

quality and also additional categories of

traffic announcements (TA INFO).

The different "multiplex / ensemble” services

offer a choice of radio stations in alphabetical

order.

Change of band (FM1, FM2, DAB, etc.)

Change of station within the same

"multiplex / ensemble".

Starting of a search for the previous / next

"multiplex / ensemble".

Long press: selection of the categories of

news desired among Transport, News,

Entertainment and Special Flash (available

depending on the station).

241

Bluetooth® audio system

10

When the radio station is displayed in the

screen , press "

OK

" to display the

contextual menu.

(Frequency search (RDS), DAB / FM auto

tracking, RadioText (TXT) display, Information

on the station, etc.)

DAB / FM station tracking

"DAB" does not have 100% coverage of

the country.

When the digital signal is weak, "DAB / FM

auto tracking" allows you to continue

listening to the same station, by automatically

switching to the corresponding analogue FM

station (if it exists).

When the "DAB / FM auto tracking" is active,

the DAB station will be selected automatically.

Press the

MENU

 button.

Select "

Multimedia

" and confirm.



Select "

DAB / FM auto tracking

" and

confirm.

If "DAB / FM auto tracking" tracking is

enabled, there is a lag of a few seconds

when the system switches to the analogue

FM station sometimes with a change in

volume.

If the "DAB" station you are listening to is

not available on FM ("

DAB/FM

" option

struck out), or if "DAB / FM auto tracking" is

not on, the sound will be cut when the digital

signal is too weak.

Media

USB socket

Insert the USB memory stick into the USB

socket or connect the USB device to the

USB socket using a suitable cable (not supplied).

The system changes automatically to "USB"

source.

To protect the system, do not use a USB

hub.

Any additional devices connected to the

system must comply with the standard

applicable to the product and/or the standard

IEC 60950-1.

The system builds playlists (in temporary

memory); this operation can take from a

few seconds to several minutes at the first

connection.

Reduce the number of non-music files and the

number of folders to reduce the waiting time.

Playlists are updated every time a new USB

memory stick is connected.

When the USB socket is used, the

portable device charges automatically.

Play mode

The play modes available are:

–

Normal

: the tracks are played in order,

depending on the classification of the selected

files.

–

Random

: the tracks in an album or folder are

played in a random order.

–

Random on all media

: all of the tracks saved

in the media are played in random order.

–

Repeat

: the tracks played are only those from

the current album or folder.

Press this button to display the contextual

menu for the Media function.

Press this button to select the chosen

play mode.

Press this button to confirm.



The choice made is displayed at the top of the

screen.

Choosing a track to play

Press one of these buttons to go to the

previous / next track.

Press one of these buttons to go to the

previous / next folder.

File classification

Make a long press on this button to

display the different classifications.
