Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Touch screen tablet

General operation

Principles

Press the virtual buttons in the touch screen
tablet.
Each menu is displayed over one or two pages
(primary page and secondary page).

As a safety measure, the driver
should only carry out operations
that require close attention, with the
vehicle stationary.
Some functions are not accessible
when driving.

This system gives access to:
- menus for adjusting settings for vehicle

functions and systems,

- audio and display settings menus,
- audio system and telephone controls and

the display of associated information.

- the display of alert messages,
- the display of the ambient temperature (a blue

snowflake appears if there is a risk of ice),

- the display of the trip computer.

And, depending on equipment, it also allows:
- the display of visual parking sensors

information,

- access to the controls for the navigation

system and Internet services, and the
display of associated information.

Recommendations

It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...). A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean the touch
screen tablet.

Use this button to go to the
secondary page.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

Use this button to return to the
primary page.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

Use this button to quit.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Menus

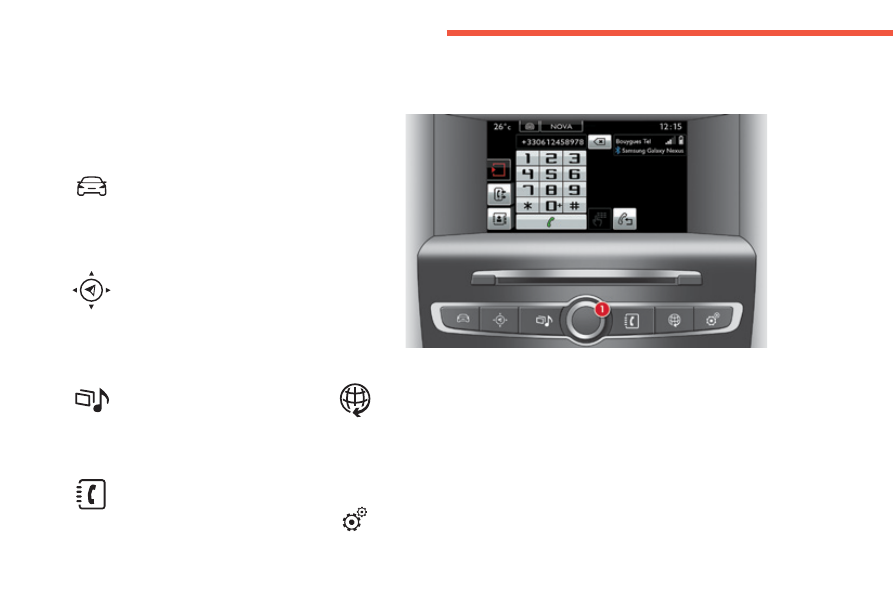

Press one of the buttons on the control panel
for direct access to a particular menu.

Driving

Gives access to the trip computer and,
depending on version, allows settings
to be adjusted for certain functions.
Refer to the corresponding section.

Navigation

Depending on trim level or country of
sale, navigation can be not available,
an option or standard equipment.
Refer to the "Audio and telematics"
section.

Radio Media

Refer to the "Audio and telematics"
section.

Telephone

Refer to the "Audio and telematics"
section.

Connected services

The connected services are accessible
using the Bluetooth

, Wi-Fi, CarPlay

or MirrorLink

connections.

Refer to the "Audio and telematics"
section.

Settings

Allows configuration of the display
and the system.

Volume / mute.

Refer to the "Audio and telematics" section.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

"Driving" menu

Button

Corresponding function

Comments

Speed settings

Memorisation of speeds for use with the speed limiter or cruise control.

Vehicle settings

Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
- "Driving assistance"

- "Automatic parking brake" (Automatic electric parking brake; refer to the "Driving"

section),

- "Automatic rear wiper in reverse" (Activation of rear wiper coupled to reverse gear; refer

to the "Lighting and visibility" section).

- "Lighting"

- "Guide-me-home lighting" (Automatic guide me home lighting; refer to the "Lighting and

visibility"section),

- "Welcome lighting" (Exterior welcome lighting; refer to the "Lighting and

visibility"section),

- "Adaptive lighting" (Main / additional directional lighting; refer to the "Lighting and

visibility" section).

- "Vehicle access"

- "Driver plip action" (Selective unlocking of the driver's door; refer to the "Access"

section).

- "Unlocking boot" (Selective unlocking of the boot; refer to the "Access" section).

Select or deselect the tabs at the bottom of the screen to display the functions required.

Diagnostic

List of current alerts.

The systems with settings that can be adjusted are detailed in the table below.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

"Settings" menu

The functions available through this menu are detailed in the table below.

Button

Corresponding function

Comments

Audio settings

Adjustment of volume, balance...

Color schemes

Choice of colour scheme.

Turn off screen

Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen restores the display.

System Settings

Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).

Time/Date

Setting the date and time.

Languages

Choice of language used: French, English, Italian, Spanish, German, Dutch, Portuguese,
Polish, Turkish, Russian, Serb, Croat, Hungarian.

Screen settings

Adjustment of the display settings (scrolling of text, animations...).

Calculator

Display the calculator.

Calendar

Display the calendar.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Setting the date and time

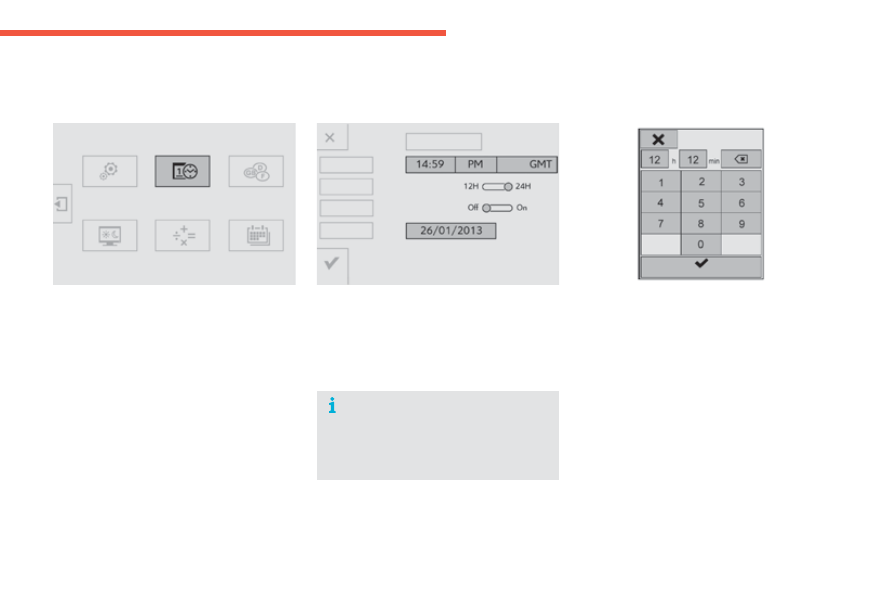

F Select the "Settings

" menu.

In the secondary page, press on "Time/

Date

F Select "Adjust time" or "Adjust date

Modify the settings using the number

keypad, then confirm.

F Press "Confirm

" to save and quit.

When setting the time, you can select
"Satellite synchronisation", so that
the minutes are adjusted automatically
by satellite reception.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Trip computer

Monochrome screen A

The trip computer provides the following
information:
- range,

- current fuel consumption,

- Stop & Start time counter,

distance travelled,

- average fuel consumption,

- average speed.

Information displays

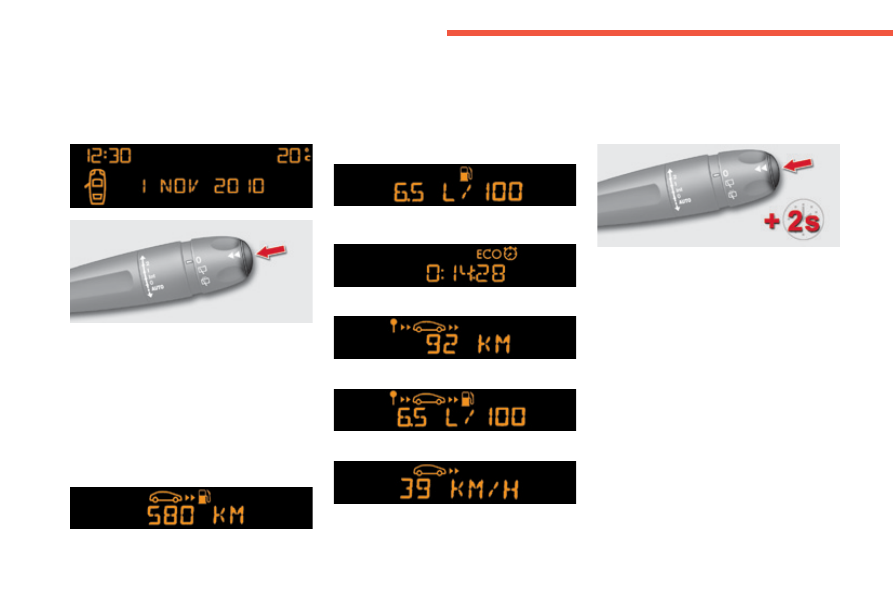

F Press the button, located at the end of the

wiper stalk

, to display the various items of

trip computer information in succession.

System that gives you information on the current journey (range, fuel consumption…).

Trip reset

Press the control for more than

two seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.

The next press then returns you to the

normal display.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

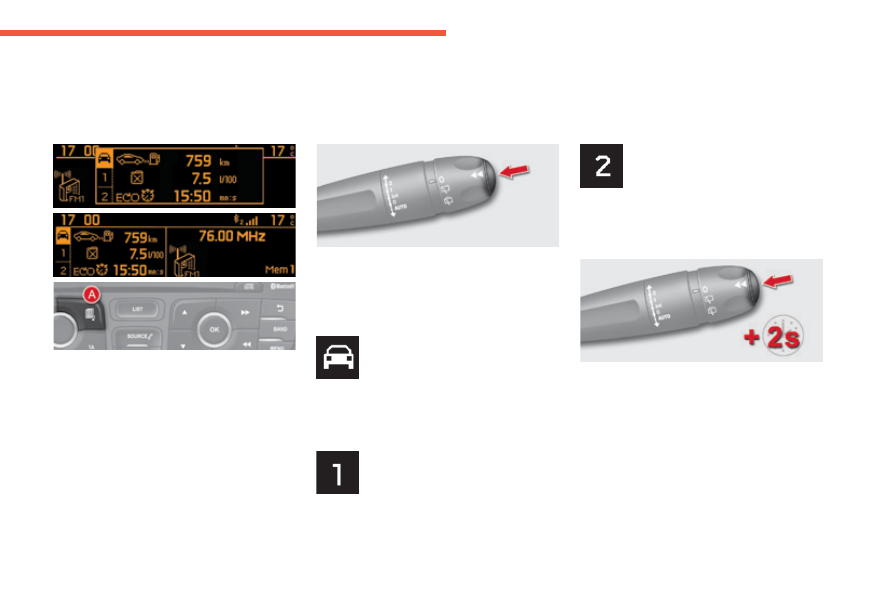

Monochrome screen C

Information displays

You can choose between two types of display
by pressing button A:
- the trip computer information appears

temporarily above the audio information,
displayed permanently in full screen,

or
- the trip computer and audio information

both appear permanently in a shared
screen.

- the current information tab with:

●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter,

the trip "1"

tab with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the first trip.

the trip "2"

tab with:

●  the distance travelled,
●  the average fuel consumption,
●  the average speed,
  for the second trip.

F Press the button, located at the end of

the wiper stalk, to display the various trip
computer tabs in succession.

Trip zero reset

When the trip required is displayed, press the

button on the end of the wiper stalk for more
than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Touch screen tablet

Temporary display in a new window:
F

Press the end of the wiper control stalk for

access to the information and display the
different tabs.

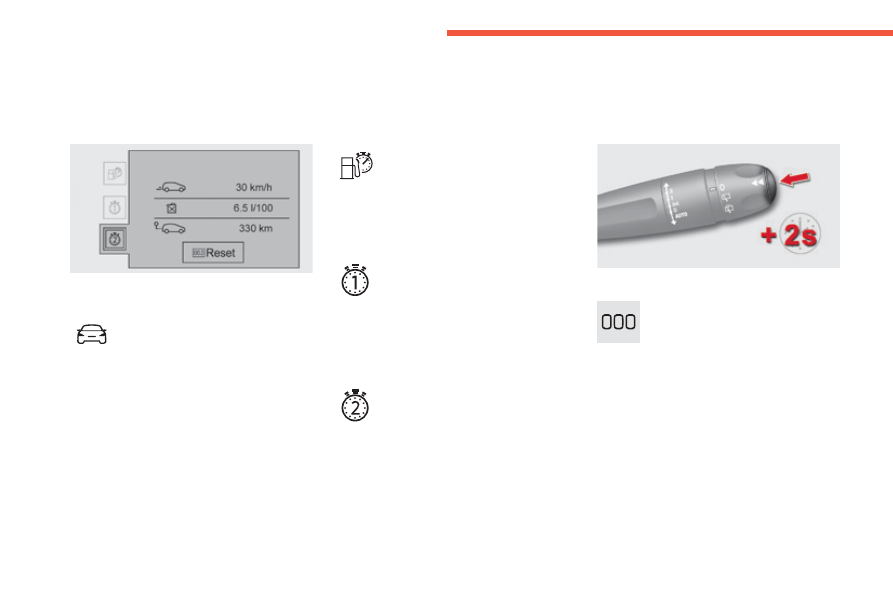

Display of information

Permanent display:

The current instantaneous fuel
consumption tab with:
-  the range,
-  the current fuel consumption,
-  the Stop & Start time counter.

The trip "1"

tab with:

-  the distance travelled.
-  the average fuel consumption,
-  the average speed,

for the first trip.

The trip "2"

tab with:

-  the distance travelled.
-  the average fuel consumption,
-  the average speed,

for the second trip.

Trip reset

The trip computer information is displayed in
the primary page of the menu.
F Press one of the buttons to display the

desired tab.

F Select the "Driving

" menu.

F When the desired trip is

displayed, press the reset button
or press and hold the end of the
wiper control stalk.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

A few definitions…

Range

(miles or km)

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Current fuel consumption

(mpg or l/100 km or km/l)

Average fuel
consumption

(mpg or l/100 km or km/l)

Average speed

(mph or km/h)

Distance travelled

(miles or km)

Stop & Start time counter

(minutes / seconds or hours /
minutes)

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.

The fuel consumption of your vehicle
will be higher than the official figures
obtained by CITROËN during the first
1 800 miles (3 000 km) of the vehicle's
life.

This function is only displayed from
20 mph (30 km/h).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

The distance which can still be travelled with
the fuel remaining in the tank (at the average
fuel consumption seen over the last few miles
(kilometres) travelled).

Calculated over the last few seconds.

Calculated since the last trip computer reset.

If your vehicle is fitted with Stop & Start,
a time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.

Calculated since the last trip computer reset.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Remote control key

System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle, as
well as providing protection against theft.

Unlocking the vehicle

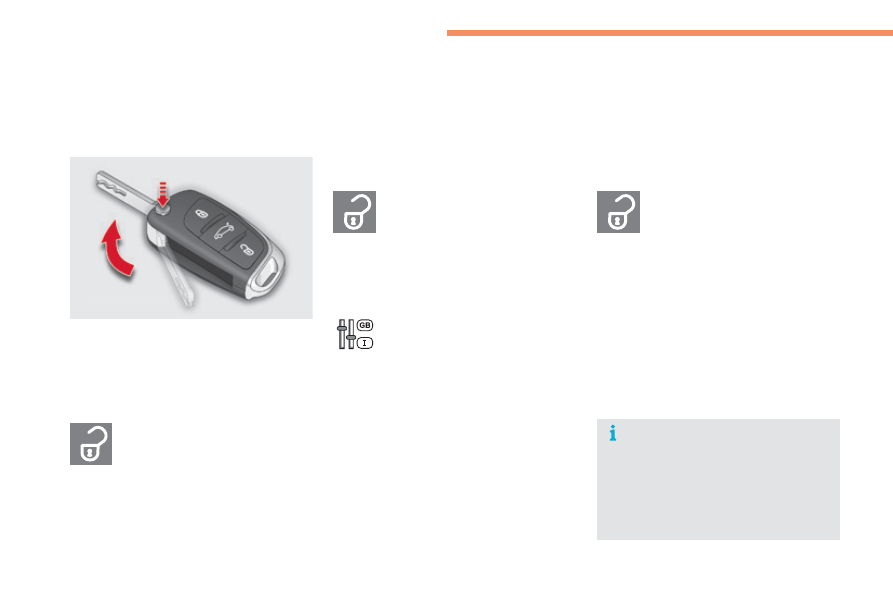

Unfolding the key

Press this button to unfold the key.

Press the open padlock to unlock

the vehicle completely.

Press the open padlock once to

unlock the driver's door only.

Selective unlocking using the
remote control

F Maintain the press on the open

padlock until the desired position
is obtained. The windows stop as
soon as you release the button.

Opening the windows using the
remote control

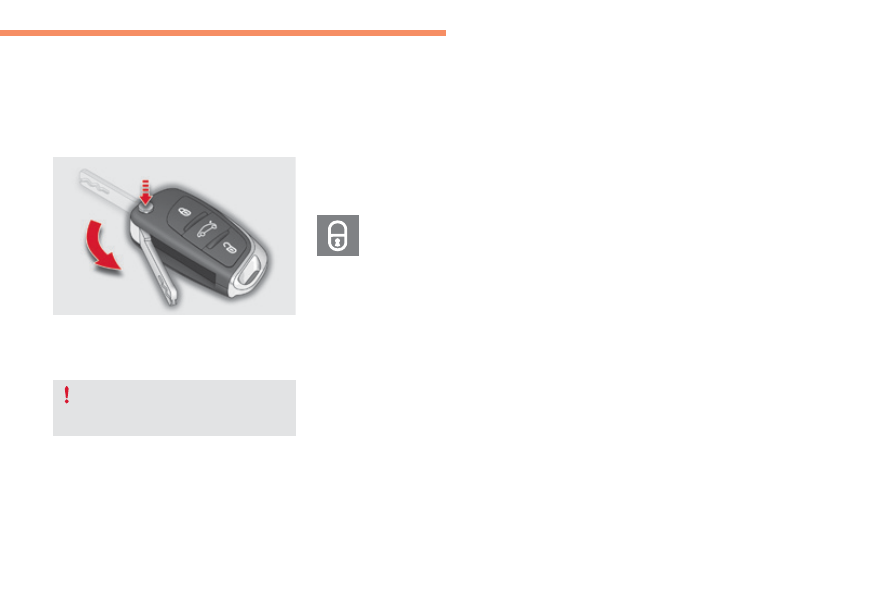

Unlocking using the key

Turn the key forwards in the driver's door

lock to unlock the vehicle completely.

Complete unlocking using the
remote control

Press the open padlock again to unlock the

other doors and the boot.

The direction indicators flash for a
few seconds.
The spotlamps in the door mirrors
come on.
Depending on version, the door mirrors
unfold, the welcome lighting comes on,
the alarm is deactivated.

The complete or selective door
unlocking parameter is set via the
vehicle configuration menu.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Selective unlocking of the boot

F Press the central button on the

remote control to unlock the
boot. The doors remain locked.

If selective unlocking of the boot is deactivated,
pressing this button also unlocks the doors.

Don't forget to lock the boot again by
pressing the closed padlock button.

The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
Selective unlocking of the boot is
activated by default.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Locking the vehicle

Press the closed padlock to lock

the vehicle.

Normal locking using the remote
control

Normal locking using the key

Turn the key towards the rear in the driver's

door lock to lock the vehicle.

The direction indicators flash for a
few seconds.
Depending on version, the door mirrors fold,
the alarm is activated.

Closing the windows using the
remote control

F Press and hold the closed

padlock button until the desired
position is obtained. The
windows stop when you release
the button.

When closing the windows using the
remote control you must ensure that
nothing prevents them from closing
correctly.
If you want to leave the windows
partly open, you must deactivate the
volumetric alarm monitoring.

If one of the doors or the boot is still
open, the central locking does not take
place.
However, the alarm (if present) will
be completely activated after about
45 seconds.
If the vehicle is unlocked inadvertently
and with no action on the doors or
boot, the vehicle will lock itself again
automatically after about 30 seconds.
If the alarm had previously been
activated, it will not be reactivated
automatically.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Locating your vehicle

Folding the key

Press this button before folding the key.

Press the closed padlock on the

remote control.

This will switch on the courtesy lamps and
the direction indicators will flash for around
ten seconds.

If you do not press the button, there is a
risk of damaging the remote control.

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Back-up control

Locking the driver's door

Insert the key in the door lock, then turn it

to the rear.

You can also apply the procedure described for
the passenger doors.

Unlocking the driver's door

Insert the key in the door lock, then turn it

to the front.

Unlocking the passenger doors

Pull the interior door opening control.

Locking the passenger doors

Open the doors.

On the rear doors, check that the child lock

is not on.

For more information on the child lock, refer to
the corresponding section.
F

Remove the black cap, located on the edge

of the door, using the key.

Insert the key in the socket without forcing

it, then without turning it, move the latch
sideways towards the inside of the door.

Remove the key and refit the cap.

Close the doors and check that the vehicle

has locked correctly from the outside.

System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

Fault with the remote
control

Reinitialisation

Switch off the ignition and remove the

ignition key.

Press the closed padlock immediately for a

few seconds.

Turn the key to position 2 (Ignition on).

Switch off the ignition and remove the key

from the ignition switch.

The remote control is fully operational again.

Battery ref.: CR2032 / 3 volts.

Changing the battery

If the battery is flat, you are
informed by illumination of this
warning lamp, an audible signal and
a message in the screen.

Remove the flat battery from its location.

F Fit the new battery into its location

observing the original direction of fitment.

Clip the cover onto the casing.

If the problem persists, contact a
CITROËN dealer as soon as possible.

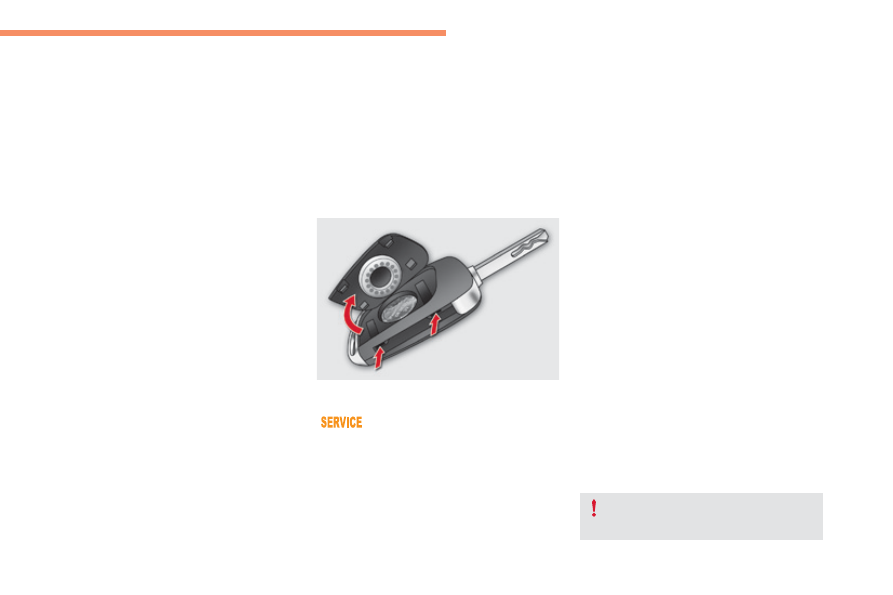

Unclip the cover using a small screwdriver

at the two cutouts.

Lift off the cover.

In the event of a malfunction with the remote
control, you can no longer unlock, lock or
locate your vehicle.
F

First of all, use the key in the lock to unlock

or lock your vehicle.

Then, reinitialise the remote control.

Access

C4-2_en_Chap02_ouvertures_ed02-2015

"Keyless Entry and Starting"

System which permits the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.

Unlocking the vehicle

The vehicle or just the driver's door is unlocked,
depending on the setting.

Selective unlocking

To unlock only the drivers door, with the

electronic key on your person, pass your
hand behind the driver's door handle.

To unlock the complete vehicle, pass your

hand behind one of the door handle of the
front passenger door with the electronic
key close to the passenger door, or
press the tailgate opening control with
the electronic key close to the rear of the
vehicle.

Activation or deactivation of the selective
unlocking is done in the "Driving" menu, then
"Vehicle settings

By default, complete unlocking is activated.

The direction indicators flash for a
few seconds.
Depending on version, the door mirrors
unfold, the welcome lighting comes on,
the alarm is deactivated.

The electronic key can also be used as
a remote control.
For more information, refer to the "Key /
remote control" section.

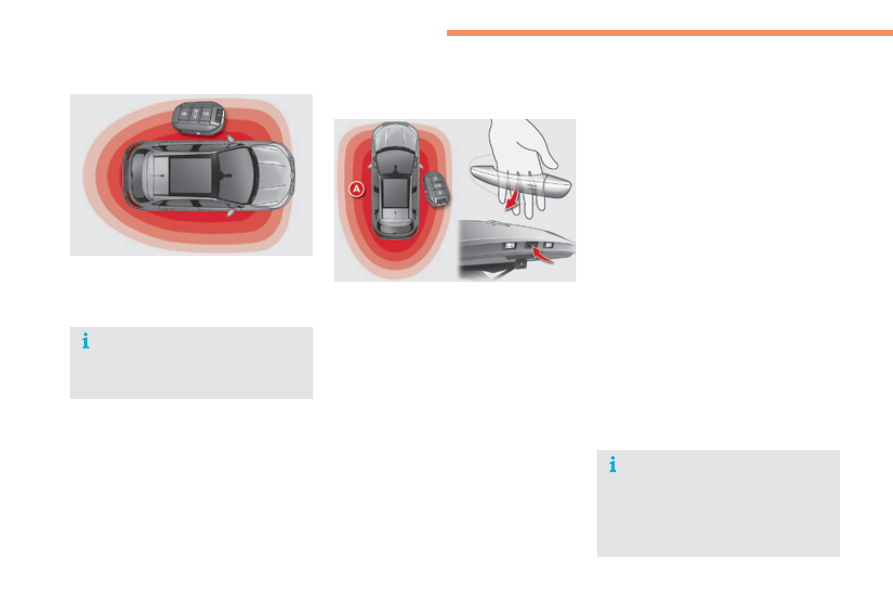

Complete unlocking

With the electronic key on your person and

in the recognition zone A, pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control.

Content .. 2 3 4 5 ..
