Citroen C4 (2016 year). Instruction

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

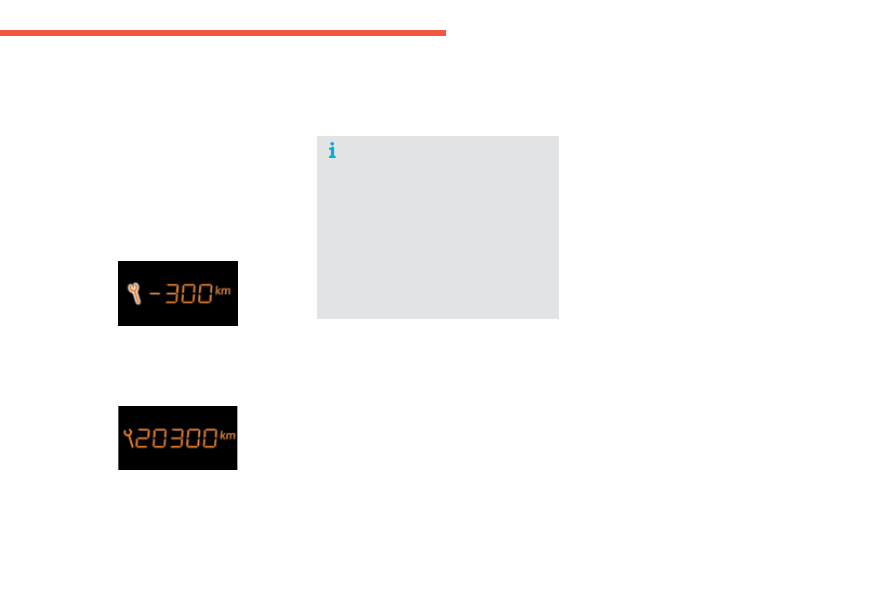

Service overdue

For a few seconds after the ignition is switched on,
the spanner flashes to indicate that the service
must be carried out as soon as possible.
Example:

the service is overdue by 180 miles

(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation. The spanner remains on.

For BlueHDi Diesel versions, this alert is also
accompanied by the fixed illumination of the
Service warning lamp when the ignition is
switched on.

The spanner comes on if you have
exceeded the specified time interval
since the last service, as indicated in
the manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also come on before the
normal service point, according to the
level of deterioration of the engine oil,
which depends on the driving conditions
in which the vehicle is used.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

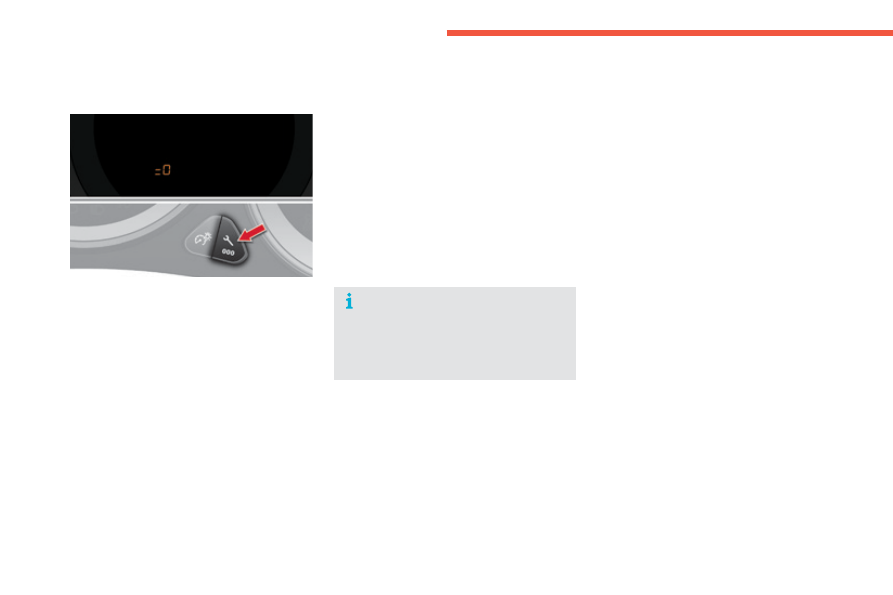

Service indicator zero reset

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

switch off the ignition,

F press and hold the ".../000" trip distance

recorder zero reset button,

switch on the ignition; the distance recorder

display begins a countdown,

F when the screen indicates "=/0" and the

spanner disappears, release the button.

Following this operation, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the
zero reset to be registered.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Range indicators

Once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue

level, the shortest range figure is

the one displayed.

In the event of the risk of non-starting related to a lack of AdBlue

Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.

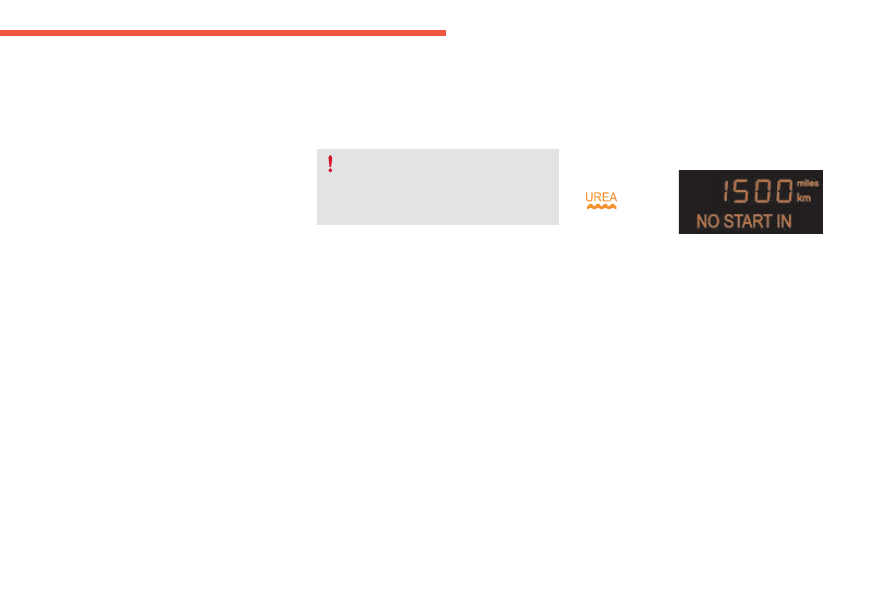

Remaining range between 350 and 1500 miles (600 and 2 400 km)

When switching on the ignition, the UREA
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented - (For example "NO
START IN 900 miles" means that "Starting will
be prevented in 900 miles).
When driving, this display appears every
150 miles (300 km) until the additive tank has
been topped-up.
Go to a dealer CITROËN or a qualified
workshop to have the AdBlue

tank topped-up.

You can also top-up the tank yourself.
For more information on topping-up the
AdBlue

additive, refer to the corresponding

section.

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Breakdown related to a lack of AdBlue

additive

tank is empty: the system required

by regulations prevents engine starting.

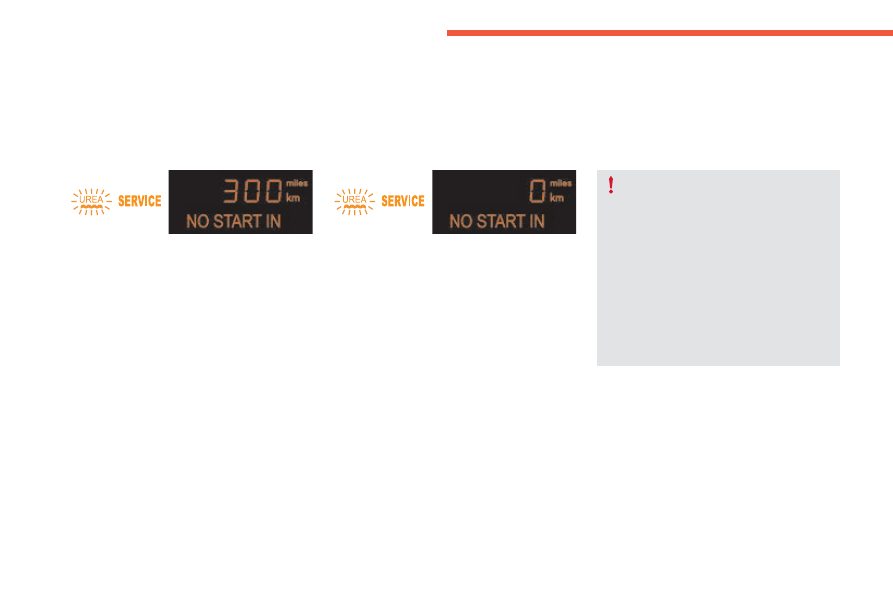

Remaining range between 0 and 350 miles (0 and 600 km)

When switching on the ignition, the SERVICE
warning lamp comes on and the UREA
warning lamp flashes, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented - (For example "NO
START IN 180 miles" means "Starting will be
prevented in 180 miles).
When driving, this display appears every
30 seconds until the additive tank has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue

tank topped-up.

You can also top-up the tank yourself.
Otherwise you will not be able to restart your
engine.
For more information on topping-up the
AdBlue

additive, refer to the corresponding

section.

To be able to start the engine,
we recommend that you call on
a CITROËN dealer or a qualified
workshop for the top-up required. If
you carry out the top-up yourself, it is
essential to add at least 3.8 litres of
AdBlue

to the additive tank.

For more information on topping-up
the AdBlue

additive, refer to the

corresponding section.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

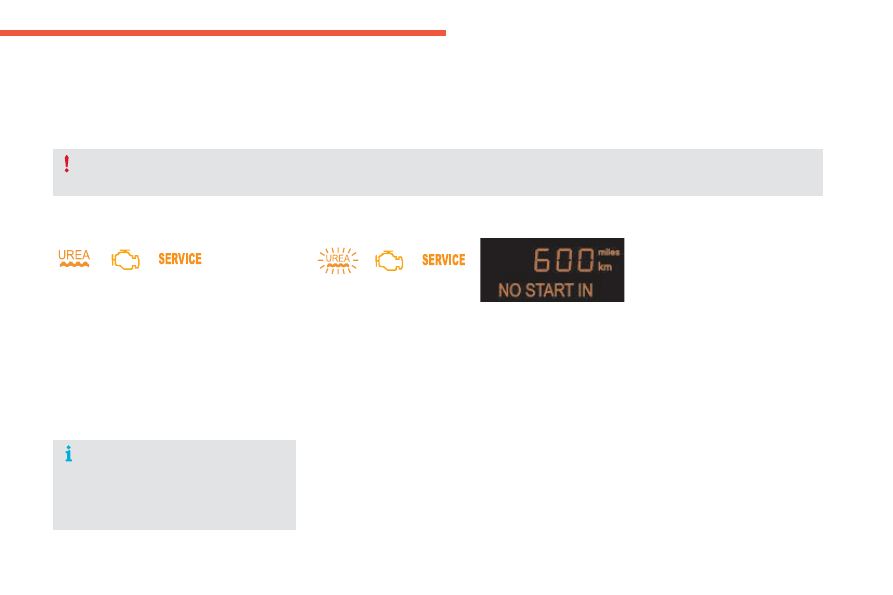

In the event of a fault with the the SCR emissions control system

In the event of the detection of a fault

The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.

During an authorised driving phase
(between 650 miles and 0 miles) (1 100 km and 0 km)

If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine diagnostic warning lamps
come on and the UREA warning lamp flashes,
accompanied by an audible signal and the
temporary display in the instrument panel of
"NO START IN" and a distance, indicating the
remaining range express in miles or kilometres
before engine starting is prevented - (e.g.: "NO
START IN 350 miles" means "Starting will be
prevented in 350 miles").

A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.

If it is a temporary fault, the alert
disappears during the next journey,
after a self diagnosis test of the SCR
emissions control system.

While driving, this display appears every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Otherwise, you will not be able to restart your
engine.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

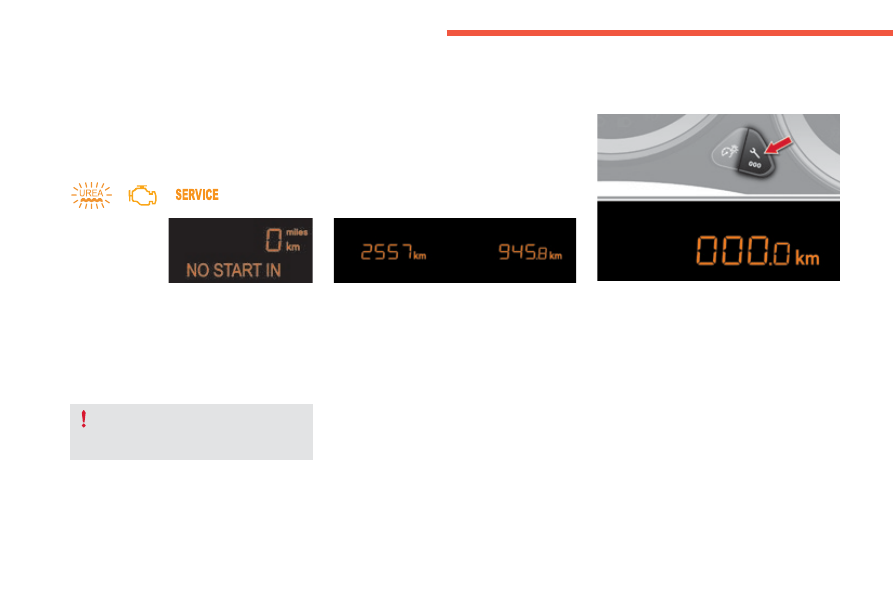

Starting prevented

Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by the temporary display
of "NO START IN" and 0 miles or kilometres -
("NO START IN 0 miles" means "Starting
prevented").

To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.

You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.

Distance recorders

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

Trip distance recorder

Total distance recorder

Measures the total distance travelled by the
vehicle since its first registration.

Measures the distance travelled since it was
last reset to zero by the driver.
F

With the ignition on, press and hold this

button until zeros appear.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

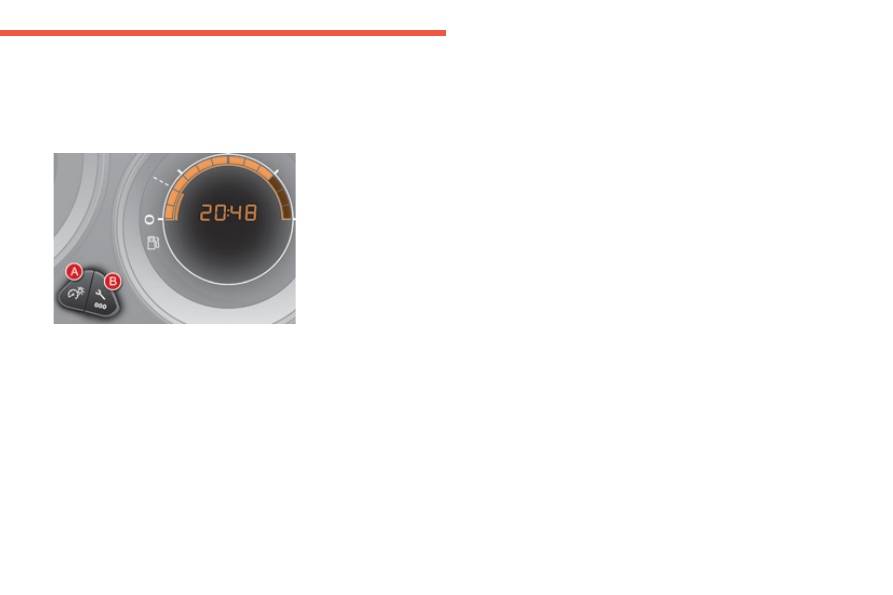

Setting the time and the time
format in the instrument
panel with the clock

On the type 1 instrument panel (without audio
system), to adjust the time, use buttons A and
B

then carry out the operations in the following

order:
F press buttons A and B

simultaneously:

the minutes flash,

F press

to increase the minutes or B to

reduce the minutes,

F press buttons A and B

simultaneously:

the hours flash,

F press

A to increase the hours or B to

reduce the hours,

After approximately 30 seconds without any
action, the screen returns to the normal display.

On the type 1 instrument panel (without audio
system), to change the display units, use
buttons A and B then carry out the operations
in the following order:
F press buttons A and B

simultaneously for

three seconds: km/h or mph flashes,

F press button A or B

to change the units,

F press buttons A and B

simultaneously to

exit from setting units.

After approximately 30 seconds without any
action, the screen returns to the normal display.

Setting units in the instrument
panel with the clock

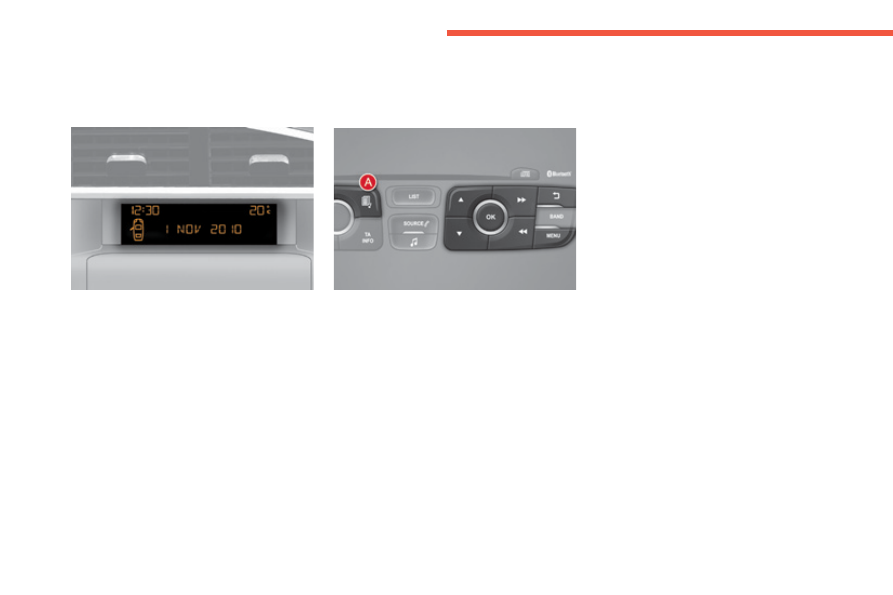

Setting the time and units
in the multifunction screen

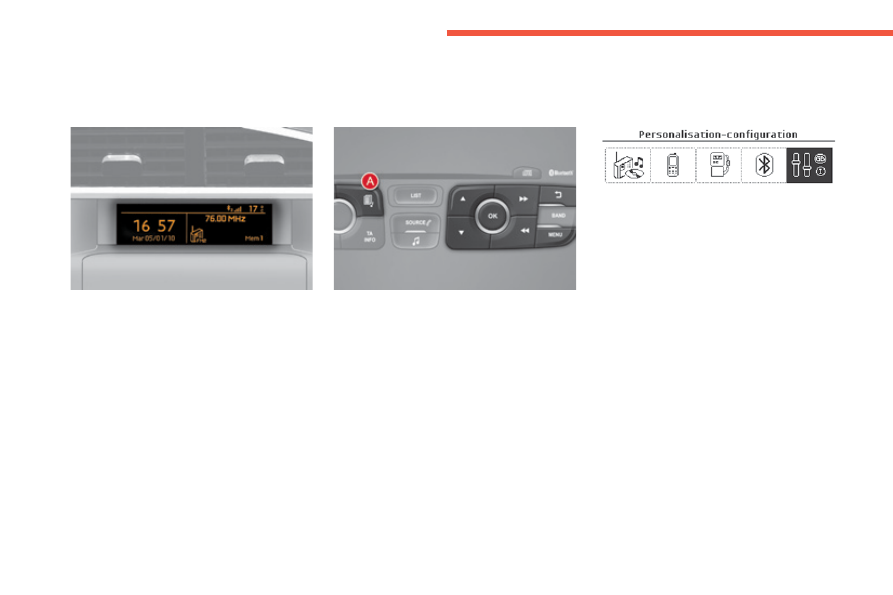

The other instrument panels are associated
with an audio system and a multifunction
screen. Refer to the corresponding screens.

F press buttons A and B

simultaneously:

24 H or 12 H is displayed and flashes,

F press button A or B

to change the format,

F press buttons A and B

simultaneously to

exit from time setting.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

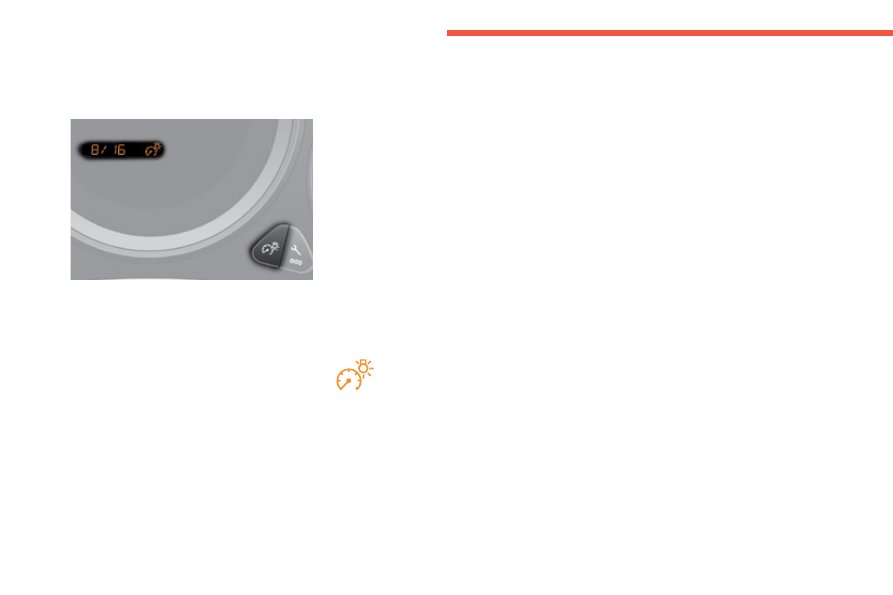

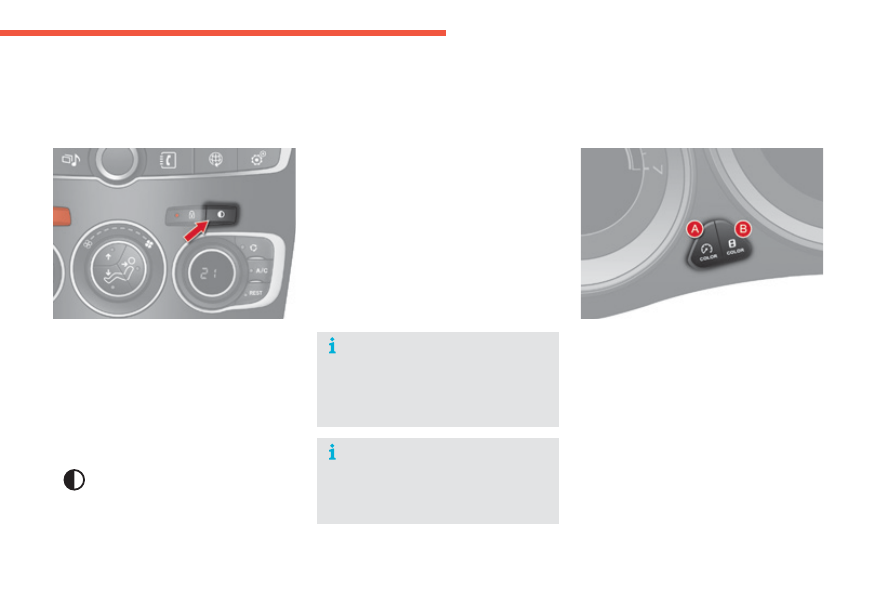

Permits manual adjustment of the brightness of
the instruments and controls to suit the ambient
light level. Only operates when the vehicle
lighting is on in night mode.

Lighting dimmer

Activation

Press this button to change the brightness

of the instruments and controls.

When the lighting reaches the minimum

setting, release this button, then press
again to increase it.

or
F

When the lighting reaches the maximum

setting, release this button, then press
again to reduce it.

When the lighting reaches the level of

brightness required, release this button.

Deactivation

When the vehicle lighting is off, or in day mode
(daytime running lamps on), pressing the button
does not have any effect.

This indicator and the lighting
value appear in the middle of the
instrument panel during adjustment
to show the setting from the 16 levels
available.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

In the instrument panel, you can change the
colour of its dials independently from that of the
display screens.
There are five colour variants, from white to
blue.
F

Press the appropriate button as many

times as needed to obtain the desired
colour.
A.

For the dials.

For the display screens.

Customising the instrument
panel colours

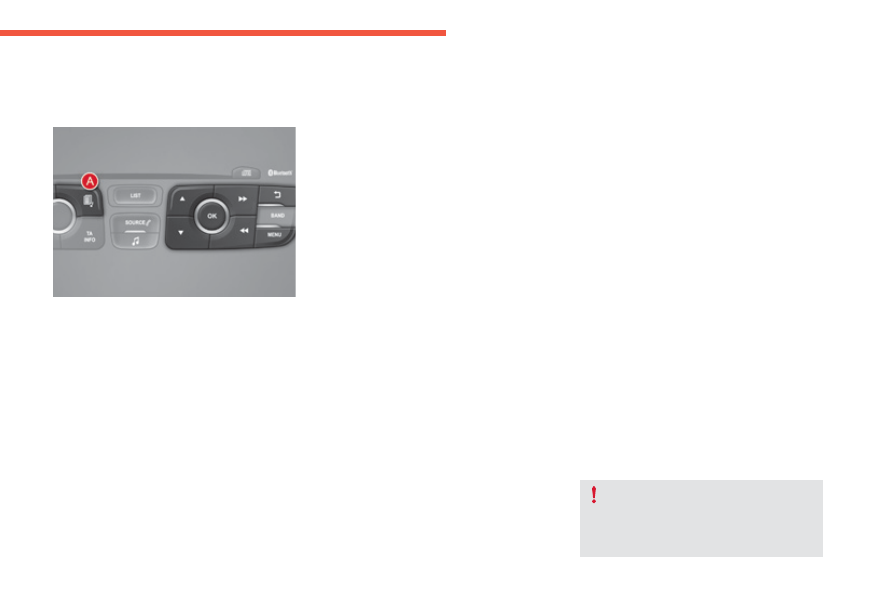

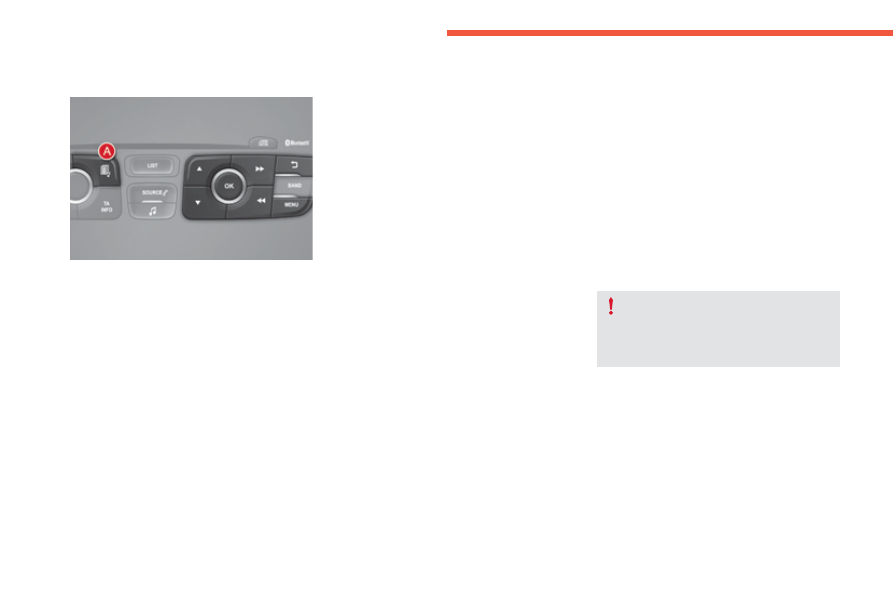

When driving at night, it allows certain
instrument panel displays to be switched off so
as to reduce visual fatigue for the the driver.
The essential driving information, such as
the vehicle speed, warning lamps, automatic
gearbox gear selected, cruise control or speed
limiter information, remains on in the instrument
panel.

Black panel (comfortable
night driving display)

With the vehicle lighting on,

press this button again to
activate the function.

Press this button again to

deactivate the function.

Touch screen tablet

You can returns to the current display at
any time by pressing the black screen
or one of the menu buttons.

In automatic illumination of headlamps
mode, the "Black panel" function is
automatically deactivated once the
ambient light level attains an adequate
level.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Monochrome screen A

This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is

a risk of ice),

current audio source,

- trip computer (refer to the corresponding

section),

- alert messages,
- settings menus for the screen and the

vehicle equipment.

From the control panel of your audio system,
you can press:
F the

"MENU" button for access to the main

menu,

F the "5" or "6

" buttons to scroll through the

items on the screen,

F the "7" or "8

" buttons to change a setting

value,

F button

to change the permanent

application (trip computer, audio source...),

F the

"OK"

button to confirm,

or
F the

"Back" button to abandon the

operation in progress.

Controls

F Press the "MENU" button for access

to the main menu, then press the "5"
or "6

" buttons to scroll through the various

menus:
- "RADIO",
- "MEDIA",
-  "TRIP COMPUTER",
-  "DATE AND TIME",
-  "LANGUAGES",
-  "VEHICLE PARAM".

F Press the "OK"

button to select the menu

required.

Main menu

Radio / Media

With the audio system switched on, once the
"RADIO" or "MEDIA" menu has been selected
you can activate or deactivate the functions
associated with use of the radio (RDS, Radio
text) or select the media play mode (normal,
random, repeat).
For more information on the "RADIO" or
"MEDIA" application, refer to the "Audio and
telematics" section.

Displays in the screen

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Once the "TRIP COMPUTER" menu has been
selected, you can start diagnostics of the status
of the equipment (active, not active, faulty).

Trip computer

Date and time

Once the "DATE AND TIME" menu has been
selected, you have access to the following
settings:
- year,
-  month,
- day,
- hours,
-  minutes,
-  12 or 24 hour mode.
F

Once you have selected a setting, press

the "7" or "8

" buttons to change its value.

F Press the "5" or "6" buttons to switch

respectively to the previous or next setting.

F Press the "OK" button to record the

change and return to the normal display or
press the "Back"

button to cancel.

Languages

Once the "LANGUAGES" menu has been
selected, you can choose the language used by
the display, from a pre-defined list.

Vehicle parameters

Once the "VEHICLE PARAM" menu has been
selected, you can activate or deactivate the
following equipment:
- "PARK BRAKE" (Automatic electric parking

brake; refer to the "Driving" section).

- "BEND LIGHTING" (Directional lighting;

refer to the "Lighting and visibility" section),

- "AUTO HEADLAMPS" (Automatic

illumination of headlamps; refer to the
"Lighting and visibility" section),

- "REAR WIPE ACT" (Rear wiper coupled

with reverse gear; refer to the "Lighting and
visibility" section),

- "GUIDE LAMPS" (Guide-me-home lighting;

refer to the "Lighting and visibility" section),

- "ELECTRIC BOOT" (Selective unlocking of

the boot; refer to the "Access" section),

- "CABIN SELECT" (Selective unlocking;

refer to the "Access").

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Monochrome screen C

This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there is

a risk of ice),

- parking sensor information,
-

current audio source,

- telephone or Bluetooth system information,
- trip computer (refer to the corresponding

section),

- alert messages,
- settings menus for the screen and the

vehicle equipment.

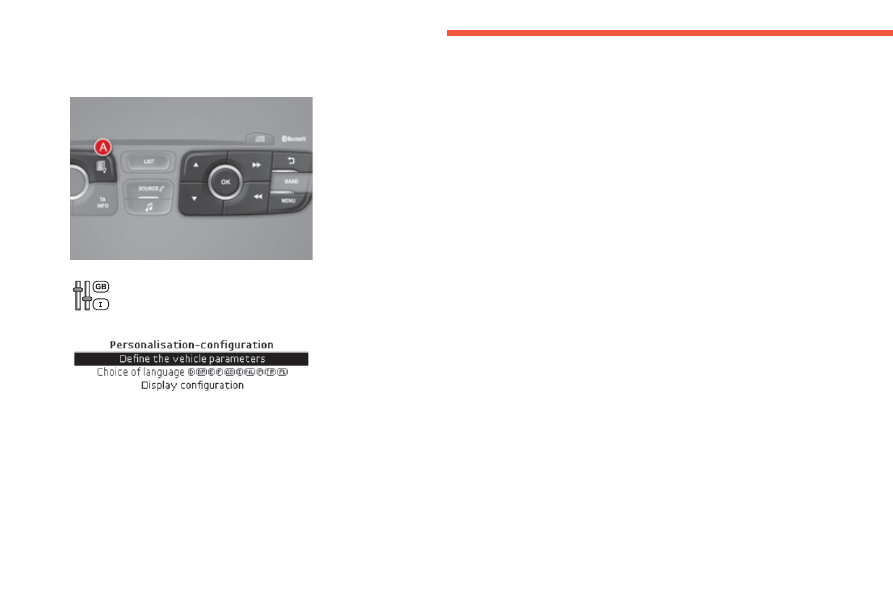

From the control panel of your audio system,
you can press:
F button

A to chooses between the display

of audio information in full screen or the
shared display of audio and trip computer
information,

F the

"MENU" button for access to the main

menu,

F the "5" or "6

" buttons to scroll through the

items on the screen,

F the "7" or "8

" buttons to change a setting

value,

F the

"OK"

button to confirm,

or
F the

"Back" button to abandon the

operation in progress.

Controls

F Press the "MENU" button for access to the

main menu

-  "Multimedia",
- "Telephone",
-  "Trip computer",
-  "Bluetooth connection",
-  "Personalisation-configuration".

F Press the "7" or "8" button to select the

menu required, then confirm by pressing
the "OK"

button.

Main menu

Displays in the screen

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

"Telephone" menu

With the audio system switched on, this menu
allows you to make a call or view the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and telematics"
section.

This menu allows you to view information on
the status of the vehicle.

Warning log

This summarises the status and warning
messages for systems (active, not active or
faulty), displaying them in succession in the
multifunction screen.
F Press the "MENU" button for access to the

main menu.

F Press the arrows, then the "OK" button to

select the "Trip computer"

menu.

F In the "Trip computer"

menu, select the

"Warning log" line and confirm.

"Trip computer" menu

"Multimedia" menu

With the audio system switched on, this
menu allows you to activate or deactivate the
functions associated with use of the radio
(RDS, DAB / FM auto tracking, RadioText
(TXT) display) or to choose the media play
mode (Normal, Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and telematics"
section.

"Bluetooth
connection" menu

With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be connected or disconnected and the
connection mode to be defined (hands-free,
playing audio files).
For more information on the "Bluetooth
connection" application, refer to the "Audio and
telematics" section.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

"Personalisation-
configuration" menu

This menu gives access to the following
functions:
-  "Define the vehicle parameters",
-  "Choice of language",
-  "Display configuration".

Define the vehicle parameters

- "Vehicle lighting" (refer to the "Lighting and

visibility" section):
● "Directional headlamps" (Main /

additional directional lighting),

- "Interior lighting" (refer to the "Lighting and

visibility" section):
● "Follow-me-home headlamps"

(Automatic operation of headlamps after
switching off the ignition),

● "Welcome lighting" (Exterior and interior

welcome lighting).

This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
- "Access to the vehicle" (refer to the

"Access" section):
● "Plip action" (Selective unlocking of the

driver's door),

● "Unlocking boot only" (Selective

unlocking of the boot).

- "Driving assistance":

● "Parking brake automatic" (Automatic

electric parking brake; refer to the
"Driving" section),

● "Rear wipe in reverse gear" (Rear wiper

coupled to reverse gear; refer to the
"Lighting and visibility" section),

● "Speeds memorised" (Memorising

speeds; refer to the "Driving" section).

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Choice of language

F Press the "7" or "8" buttons to set the

value required (15, 30 or 60 seconds), then
press the "OK"

button to confirm.

F Press the "5" or "6" buttons, then the

"OK" button to select the "OK"

box and

confirm or press the "Back" button to
cancel.

F Press the "5" or "6" buttons to select

the "Interior lighting" line, then the
"OK"

button; then follow the same

procedure to select the "Follow-me-home
headlamps" line.

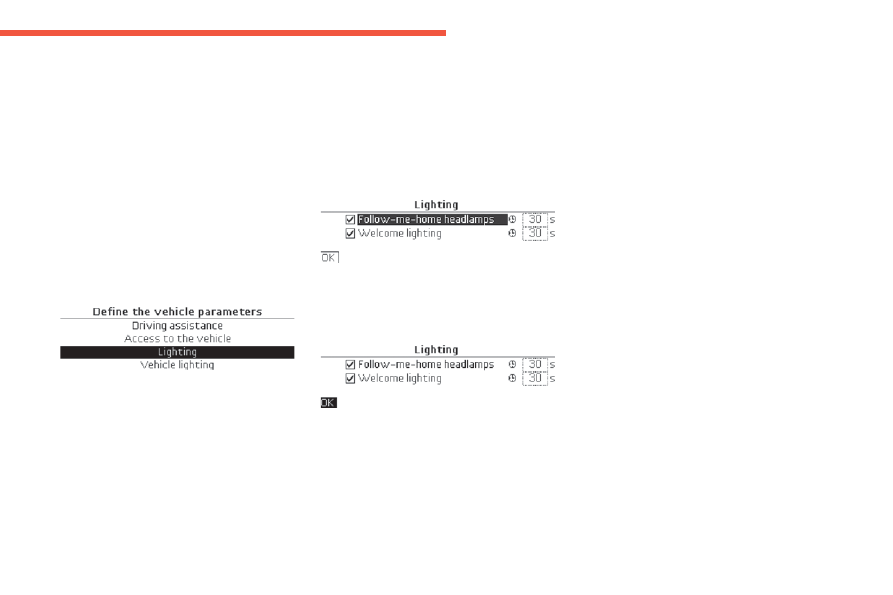

For example: setting of the duration of the
"follow-me-home" lighting
F Press the "7" or "8" buttons, to select the

"Define the vehicle parameters" menu,
then the "OK

" button.

Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Display configuration

This menu gives access to the following
settings:
-

"Choice of units",

-  "Date and time adjustment",
-  "Display parameters",
-  "Brightness".

As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.

Adjusting the date and time
F Press the "7" or "8" button to display

the "Display configuration" menu, then
press "OK"

F Press the "5" or "6" button to select the

"Date and time adjustment" button, then
press "OK"

F Press the "7" or "8" button to select the

setting to modify. Confirm by pressing
"OK"

, then modify the setting and confirm

again to save the modification.

Adjust the settings one by one, confirming

with the "OK"

button.

F Press the "5" or "6" button, then the "OK"

button to select the "OK"

box and confirm

or the "Back"

button to cancel.

Citroen C4 (2016 year). Instruction - part 3
