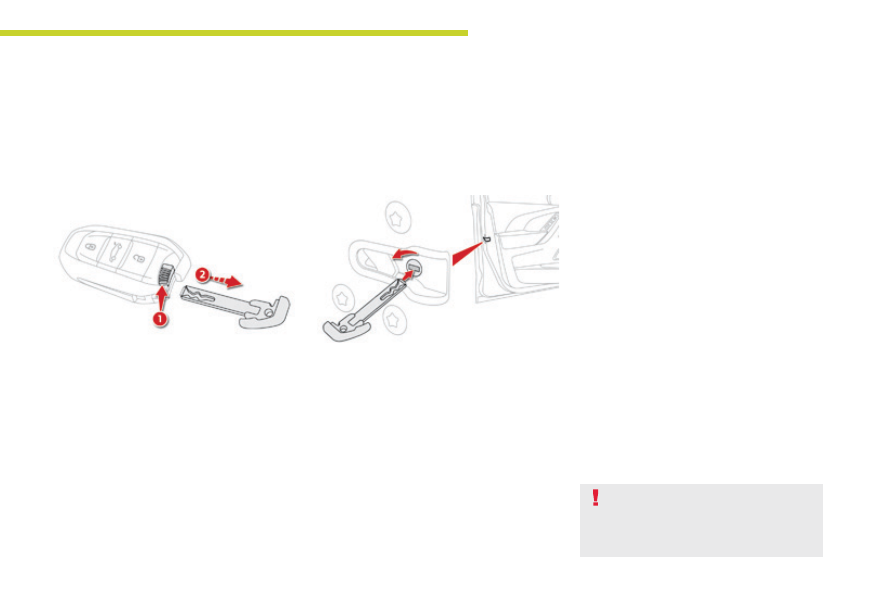

Back-up control

Insert the key into the lock barrel to lock /

unlock the door.

You can also apply this procedure for the
passenger doors.

Open the doors.

For the rear doors, check that the child lock

is not on.

Insert the key in the latch located on the

edge of the door and turn it an eighth of a
turn to the right for the right hand door, and
to the left for the left hand door.

Locking is effective when the slot is
horizontal.

Close the doors and check that the vehicle

has locked correctly from the outside.

Unlocking the passenger
doors

Pull the interior door opening control.

For more information on the Child lock, refer
to the corresponding section.

To manually lock and unlock the doors in the event of a central locking or battery failure.

To ensure complete locking of the
vehicle, only disconnecting the battery
inhibits opening of the tailgate from the
outside.

Driver's door (locking /
unlocking)

Locking the passenger doors

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Boot

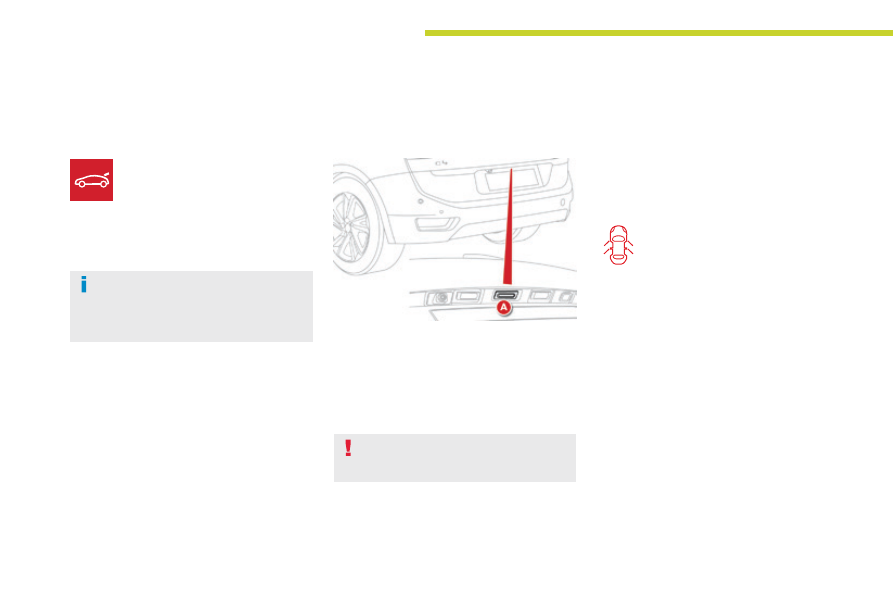

Opening the tailgate

With the electronic key / remote
control

With the vehicle unlocked or with the

electronic key of the Keyless Entry and
Starting system in the zone covered, press
the tailgate control A.

Raise the tailgate.

Make a long press on this button

to release the tailgate. If the
vehicle was locked, this action
first unlocks the vehicle.

Raise the tailgate.

When selective unlocking is activated,
the electronic key must be close to the
rear of the vehicle.

Closing the tailgate

Lower the tailgate using the interior grips.

Release the grips and press down on the

outside of the tailgate to close it.

If the tailgate is not properly closed:

The tailgate is not designed to take a
bicycle carrier.

engine running

, this warning

lamp and a message appear
in the instrument panel
(monochrome digital) for a
few seconds,

vehicle moving

(speed

above 6 mph (10 km/h)), this
warning lamp and a message
appear in the instrument panel
(monochrome digital and 12 inch
colour) for a few seconds,
accompanied by an audible
signal.

With the tailgate opening control

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

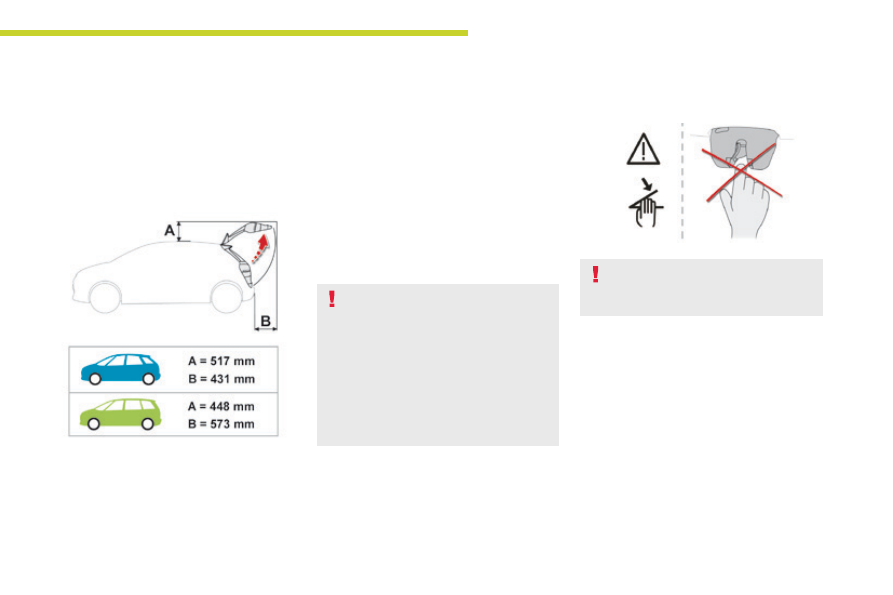

Motorised tailgate

General points

Never place a finger in the locking
mechanism of the motorised tailgate -
Risk of serious injury!

Anti-pinch

The motorised tailgate includes a system
for detecting obstacles, which automatically
interrupts and reverses the movement by a few
degrees, to allow the obstacle to be cleared.
Note that this anti-pinch system does not
operate at the end of the closing movement
(around 1 cm before complete closure).

The motorised operation of the tailgate can
be activated or deactivated by selecting
"Motorised tailgate" in the Driving

menu of

the touch screen.

Bicycle carrier / Towbar

The tailgate is not designed to be fitted with a
bicycle carrier.
If a bicycle carrier is fitted to a towbar with a
wiring harness connected to a towbar socket,
the motorised operation of the tailgate is
automatically deactivated.
If using a towbar or bicycle carrier not approved
by CITROËN, it is essential to deactivate the
motorised operation of the tailgate.

Tailgate operation commands must be made
with the vehicle stationary.
Ensure that there is enough free space to allow
the motorised tailgate to open.

To avoid the risk of injury through
pinching or trapping, before and during
operation of the tailgate:
-

ensure that there is no person close
to the rear of the vehicle,

watch the behaviour of rear
passengers, particularly children.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

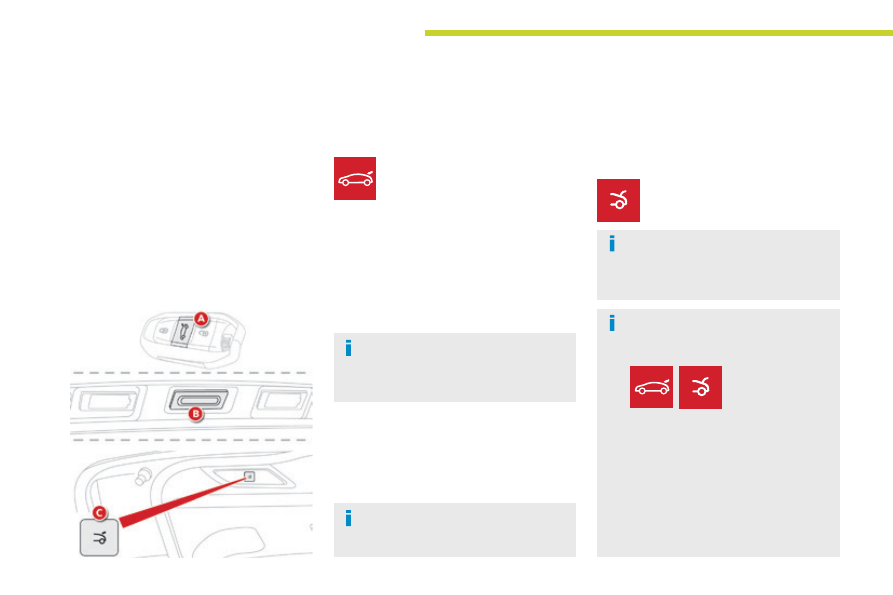

Opening the tailgate with the
electronic key / remote control (A)

Opening the tailgate with the
"Keyless Entry and Starting"
system "B"

Opening the tailgate

Make a long press on the remote

control button.

F Press button B

on the tailgate, with the

electronic key in the zone covered.

When selective locking is activated, the
electronic key must be near the rear of
the vehicle.

By default, the tailgate opens
completely or alternatively to the
memorised position.

After complete unlocking of the vehicle,

press control B

on the tailgate.

The instruction is confirmed by an audible
signal.

Motorised closing

There are two possibilities:
F

Press and release the exterior control B.

The motorised tailgate has an anti-
pinch system that interrupts closing if it
encounters an obstacle.

Press and then release button C.

There are several ways of operating the
motorised tailgate:
- using the Keyless Entry and Starting

electronic key (A),

- using the exterior control on the

tailgate (B),

- using the interior control on the tailgate (C),
- by a movement of your foot, if your vehicle

has the hands-free tailgate access
function.

Motorised opening

For more information on Hands-free tailgate
access

, refer to the corresponding section.

Operation

Operation of the tailgate can be
interrupted at any time:

- by pressing

one of these
two buttons,

or
- by pressing the exterior control B.
After interruption of an operation,
another press on one of the controls
resumes the movement, with the
exception of a press on the remote
control button, which only allows
opening.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Memorising an
opening position

Where height is restricted (garage with a low
ceiling, ...) it is possible to limit and memorise
the opening angle of the motorised tailgate.
This memorisation is done as follows:
- open the tailgate to the desired position,
-

press button C

or the exterior control B for

more than 3 seconds.

Memorisation of the maximum opening position
of the tailgate is confirmed by an audible signal.
To cancel the memorised position:
- stop the tailgate in an intermediate

position,

press button C

or the exterior control B for

more than 3 seconds.

Cancellation of the memorised position is
confirmed by an audible signal.

Manual operation

The motorised tailgate can be opened and
closed manually, even if motorised operation is
activated.
However, any manual intervention must be
done with the tailgate stopped.

Repeated opening and closing of the
tailgate can cause overheating of its
electric motor, after which opening and
closing will not be possible.
Allow 10 minutes for the motor to cool
down before operating the tailgate
again.
If you are not able to wait, operate it
manually.

Detection of obstacles

Should an obstacle (person or object) be
encountered, the anti-pinch system interrupts
the closing movement and raises the tailgate a
few centimetres to clear the obstacle.

When opening and closing a motorised tailgate
manually, there is no assistance from gas-filled
struts. Resistance to opening and closing is
therefore entirely normal.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Reinitialising the motorised
tailgate

This operation is necessary where there is
no movement - after detection of an obstacle,
connecting or recharging the battery, ...
F

Open the tailgate manually, if necessary.

Manually close the tailgate fully.

If the problem persists, contact a CITROËN
dealer or a qualified workshop.

Precautions in use

In wintry conditions

In the event of an accumulation of snow
on the tailgate, clear the snow before
commanding a motorised opening of
the tailgate.
The formation of ice can block the
tailgate and prevent its opening: wait
until the ice melts with the heating of
the passenger compartment.

When washing the vehicle

When washing the vehicle in an
automatic car wash, don't forget to
lock your vehicle to avoid the risk of
unexpected opening.

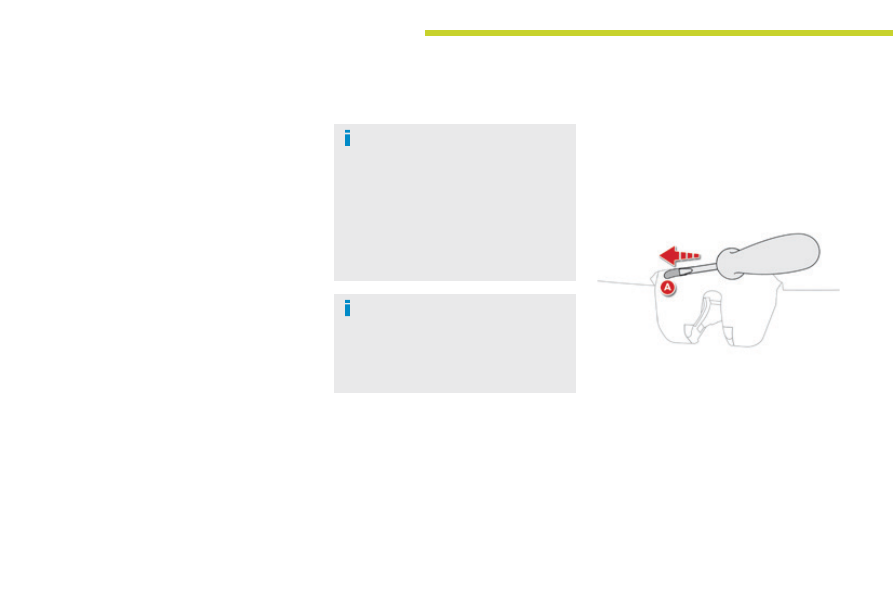

Back-up release

Fold back the rear seats to gain access to

the lock from inside the boot.

Insert a small screwdriver into hole A of the

lock to unlock the tailgate.

Move the latch to the left.

Locking after closing

If the fault persists after closing again, the boot
will remain locked.

To manually unlock the boot in the event of a
battery or central locking failure.

Unlocking

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

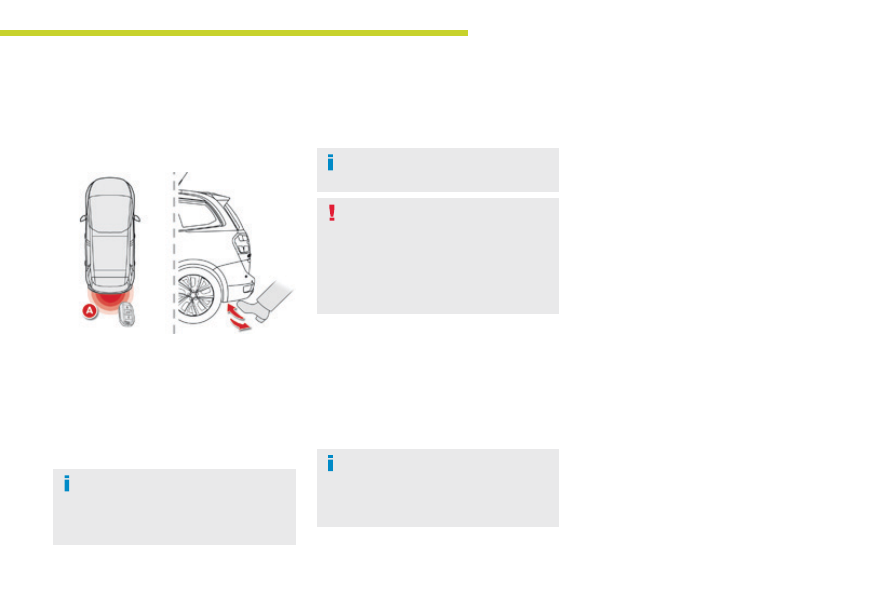

Hands-free tailgate access

The tailgate my be equipped with a hands-free function, to allow you to open or close the tailgate
when your hands are full.
For more information on the Motorised tailgate, refer to the corresponding section.

With your hands full and the remote control

on your person in the recognition zone A,
pass your foot rapidly below the rear
bumper.

The instruction is confirmed by flashing of the
direction indicators and an audible signal.
The tailgate opens to the memorised position.

Passing your foot below the bumper again while
the tailgate is opening stops the movement.
Passing your foot below the bumper for a third
time reverses the direction of movement.

"Hands-free" closing

With your hands full and the remote control

on your person in the recognition zone A,
pass your foot rapidly below the rear
bumper.

The instruction is confirmed by flashing of the
direction indicators and an audible signal.

Deactivation

Hands-free tailgate access is activated by
default.
This function can be activated or deactivated
by selecting "Hands-Free Tailgate Access" in
the Driving

menu of the touch screen.

Ensure that you are steady on your feet
before passing a foot rapidly below the
rear bumper.
Take care not to touch the exhaust
system, which may be hot - Risk of
burns!

If the vehicle is locked, it is unlocked
before opening the tailgate.

Automatic locking

To have the vehicle lock itself after closing the
tailgate by passing a foot below the bumper,
activate "Hands-free tailgate access self-
locking" in the Driving

menu of the touch

screen.

Passing your foot below the bumper again while
the tailgate is closing stops the movement.
Passing your foot below the bumper for a third
time reverses the direction of movement.

"Hands-free" opening

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Recommendations related to the "Hands-free tailgate
access" function

If several passes of your foot below the rear
bumper fail to open the tailgate, wait a few
seconds before starting again.

The function is automatically deactivated in the
event of heavy rain or accumulation of snow.

If the function fails to operate, check that
the electronic key is not exposed to strong
electromagnetic interference (a smartphone, ...).

The function may not work correctly with a
prosthetic leg.

The function may not work correctly if your
vehicle is fitted with a towbar.

In some circumstances, the tailgate may only
open or close, particularly if:
- your vehicle is fitted with a towbar,
-

you hitch or unhitch a trailer,

- you fit or remove a bicycle carrier,
- you load or unload bicycles from a bicycle

carrier,

- you place or lift something behind the

vehicle,

-  an animal approaches the rear bumper,
-  you are washing your vehicle,
-  a service is being carried out on your

vehicle,

- you are accessing the spare wheel

(depending on version).

To avoid such operating problems, keep the
electronic key away from the recognition zone
or deactivate "Hands-free tailgate access".

Ensure that no object or person might prevent
the correct opening or closing of the tailgate.
Be particularly aware of children when
operating the tailgate.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.

Alarm

System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:

- Exterior perimeter

The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...

- Interior volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.

Self-protection function

The system checks for the
disconnection of any of its components.
The alarm is triggered if the battery,
the button or the siren wiring is
disconnected or damaged.

Locking the vehicle with full
alarm system

Activation

If an opening (door, boot, bonnet...) is not
closed fully, the vehicle is not locked but the
exterior perimeter monitoring will be activated
after a delay of 45 seconds, at the same time
as the interior volumetric monitoring.

Lock the vehicle using the

remote control.

Switch off the ignition and get out of the vehicle.

or
F

Lock the vehicle using the "Keyless Entry

and Starting" system.

The monitoring system is active: the indicator
lamp in the button flashes once per second
and the direction indicators come on for about
2 seconds.
After a command to lock the vehicle using
the remote control or the Keyless Entry
and Starting system, the exterior perimeter
monitoring is activated after a delay of
5 seconds, the interior volumetric monitoring
after 45 seconds.

OFF

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Locking the vehicle with exterior perimeter
monitoring only

Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-  leaving a window partially open,
-  washing your vehicle,
-  changing a wheel,
-  towing your vehicle,
-  transport on a ferry.

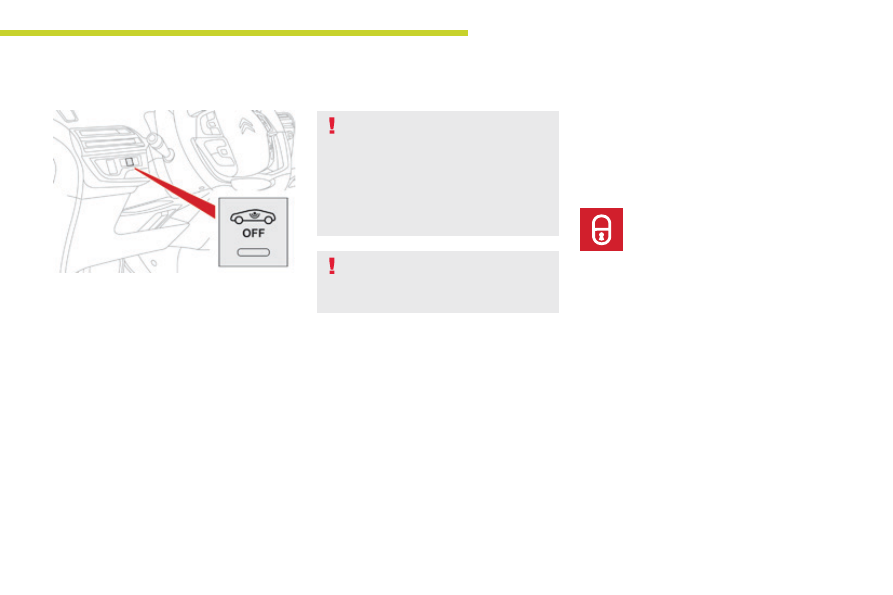

Deactivating the volumetric
monitoring

Switch off the ignition and within

ten seconds press this button
until its indicator lamp is on fixed.

Get out of the vehicle.

Immediately lock the vehicle using the

remote control or the "Keyless Entry and
Starting" system.

Only the exterior perimeter protection system is
active: the indicator lamp in the button flashes
once per second.
To be effective, this deactivation must be done
every time the ignition is switched off.

In the case of automatic locking of the
vehicle (which occurs after a period
of 30 seconds if a door or the boot is
not opened), the monitoring system is
reactivated automatically.

Deactivation

Press one of the unlocking buttons on the

remote control:

short press

long press

or
F

Unlock the vehicle using the "Keyless Entry

and Starting" system.

The monitoring system is deactivated: the
indicator lamp in the button is off and the
direction indicators flash for about 2 seconds.

Reactivating the interior
volumetric monitoring

Deactivate the exterior perimeter

monitoring by unlocking the vehicle using
the remote control or the Keyless Entry and
Starting system.

The indicator lamp in the button goes off.

Reactivate the full alarm system by locking

the vehicle using the remote control or the
"Keyless Entry and Starting" system.

The indicator lamp in the button flashes once
per second again.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Triggering of the alarm

This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the Keyless Entry and Starting
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.

Failure of the remote control

To deactivate the monitoring functions:
F

Unlock the vehicle using the key (integral

with the remote control) in the driver's door
lock.

Open the door; the alarm is triggered.

Switch on the ignition; the alarm stops. The

indicator lamp in the button goes off.

Locking the vehicle without
activating the alarm

Lock or deadlock the vehicle using the key

(integral with the remote control) in the
driver's door lock.

Operating fault

When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.

Automatic activation*

2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

To avoid triggering the alarm on entering

the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.

* Depending on the country of sale.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Electric windows

Manual operation

To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.

To open or close the window, press or pull
the switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.

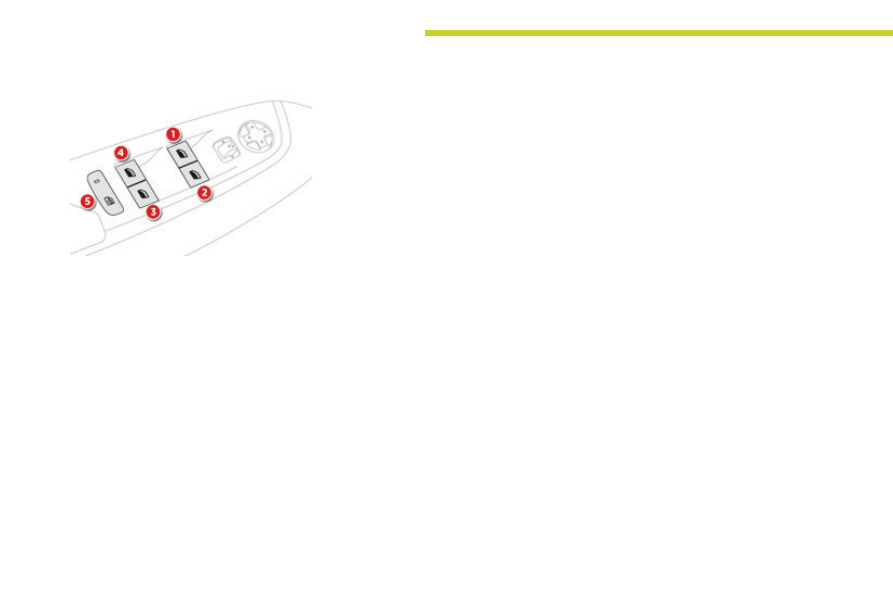

Left-hand front.

Right-hand front.

Right-hand rear.

Left-hand rear.

Deactivate the electric window switches

located at the rear seats.

Automatic operation

Safety anti-pinch

When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.

The electric window switches remain
operational for approximately 45 seconds after
switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Reinitialising the electric
windows

Deactivating the rear
controls for the rear
windows

In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that nothing is preventing
correct closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be particularly aware of children when
operating the windows.
Be aware of passengers or other
persons present when closing the
windows using the electronic key or the
"Keyless Entry and Starting" system.

Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.

For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
positions.

The indicator lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is off (deactivated).
Use of the rear electric windows from the
driver's controls remains possible.

For each window:
- lower the window completely, then raise it,

it will rise in steps of a few centimetres with
each action. Repeat the operation until the
window closes completely,

continue to pull the switch for at least
one second after reaching this position,
window closed.

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Front seats

Manual adjustments

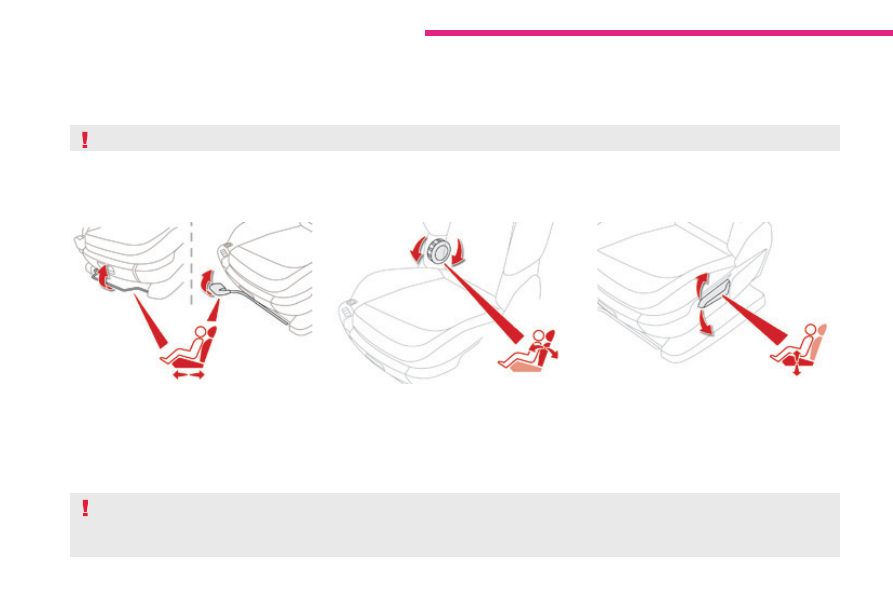

Raise the control bar and slide the seat

forwards or backwards.

When the seat is in the desired position, push
it forwards and backwards without raising the
control bar to check that it has latched.

Turn the knob to adjust the seat backrest.

As a safety measure, seat adjustments should only be done when stationary.

Pull the control upwards to raise or push

it downwards to lower, as many times as
necessary, to obtain the desired position.

Seat consisting of a seat cushion, a seat backrest and a head restraint which can all be adjusted to adapt your position for ease of driving and comfort.

Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat.
There is a risk of trapping or pinching passengers if present in the rear seats or jamming the seat if large objects are placed on the floor behind
the seat.

Forwards-backwards

Driver's seat backrest angle

Driver's seat height

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

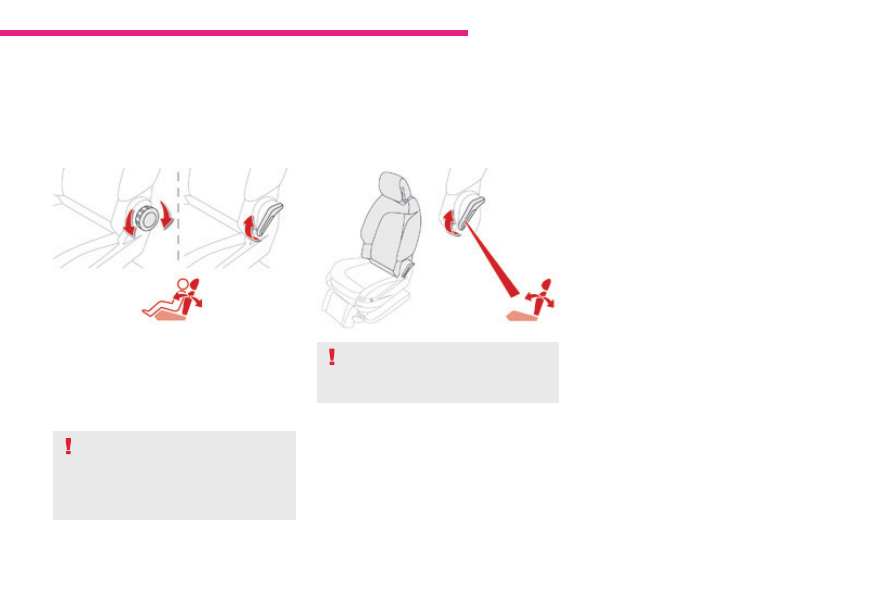

Pull the control upwards or turn the knob to

adjust the backrest.

When the backrest is at the desired angle,
release the control.

Table position for the
passenger's seat backrest

This position, associated with the position of
the rear seats, allows you to carry long objects
inside the vehicle.

When the backrest is at the desired angle,
release the control lever. To ensure that the
backrest does not suddenly fold forwards
and hurt you, restrain it with your back or
your hand while operating the control.

Check that there is no object that could
interfere with the movement of the seat,
both above and below.

Place the head restraint in the low position,

raise the armrest and fold the fixed table
onto the back of the seat.

Pull the control fully up and tip the backrest

forwards.

To return to the normal position, guide the
backrest backwards until it locks.

Passenger's seat backrest angle

Ease of use and comfort

C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

Front seats

Electric adjustments

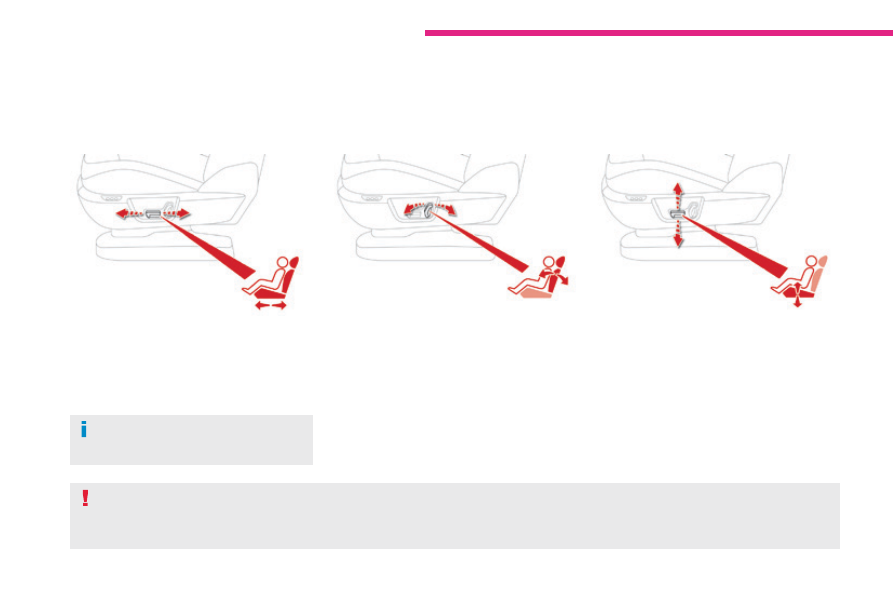

Push the control forwards or rearwards to

slide the seat.

Tilt the control forwards or rearwards to

adjust the angle of the seat backrest.

F Operate the rear part of the control

upwards or downwards to obtain the
desired height.

F Operate the front part of the control

upwards or downwards to obtain the
desired angle.

To avoid discharging the battery, carry out
these adjustments with the engine running.

Forwards-backwards (driver's seat)

Seat backrest angle

Seat cushion height and angle

Citroen C4 Picasso (2017 year). Instruction - part 5
