Lighting dimmer control

Allows the manual adjustment of the brightness of the instrument panel and touch screen to suit the
ambient light level.
Operates only when the vehicle lighting is on, with the exception of the daytime running lamps.

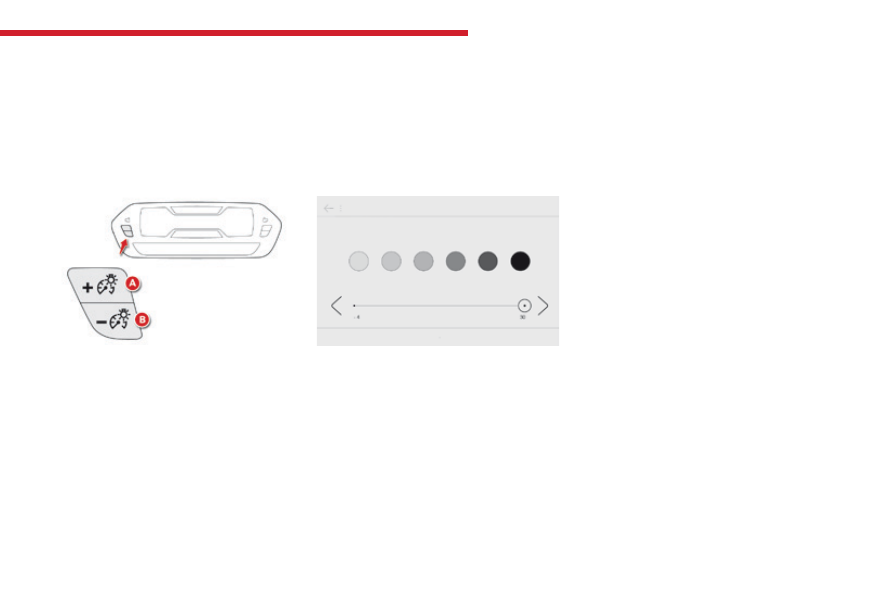

With the exterior lighting on, press button A
to increase the brightness of the instruments
and controls and the interior mood lighting or
button B

to reduce it.

As soon as the lighting reaches the required
level of brightness, release the button.

F In the Configuration

menu, select

"Brightness

Adjust the brightness using the arrows or

by moving the cursor.

Two buttons

Touch screen

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

When driving at night, this function allows
certain displays in the instrument panel to be
switched off to avoid visual fatigue for the driver.
The essential information, such as the speed of
the vehicle, the warning lamps and the cruise
control or speed limiter indications remain
displayed in the instrument panel.

With the vehicle lighting on, press this

button to activate the black panel.

Press this button again to deactivate it.

Black screen (touch screen)

Black panel (comfortable
night driving display)

F In the Configuration

menu, select "Dark".

The screen goes off.

Press the screen again (anywhere on its

surface) to switch it on again.

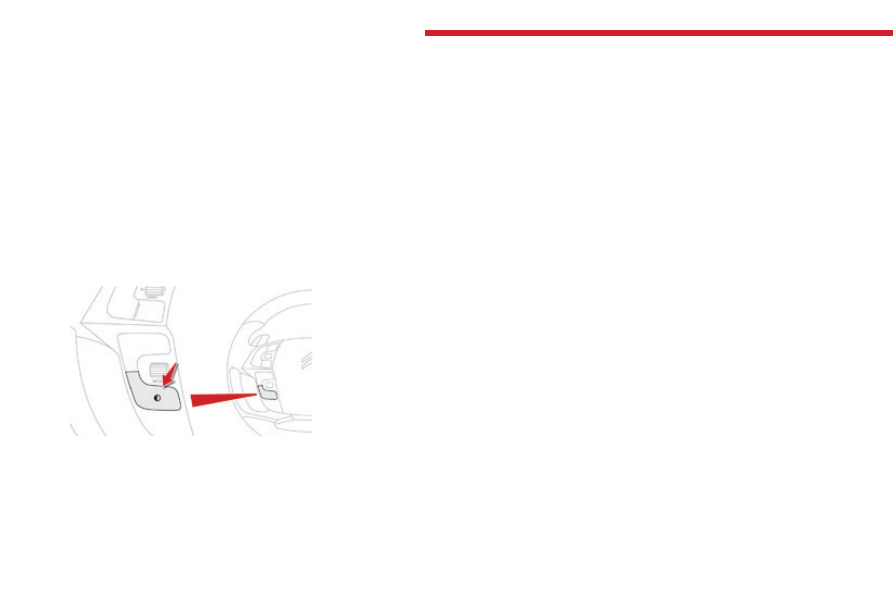

Using the steering mounted
control

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Trip computer

Monochrome digital instrument panel

System that gives you information on the journey in progress (range, fuel consumption, etc.).

Information display in the touch screen

Permanent display:
F Select "Trip computer" in the

Applications

menu.

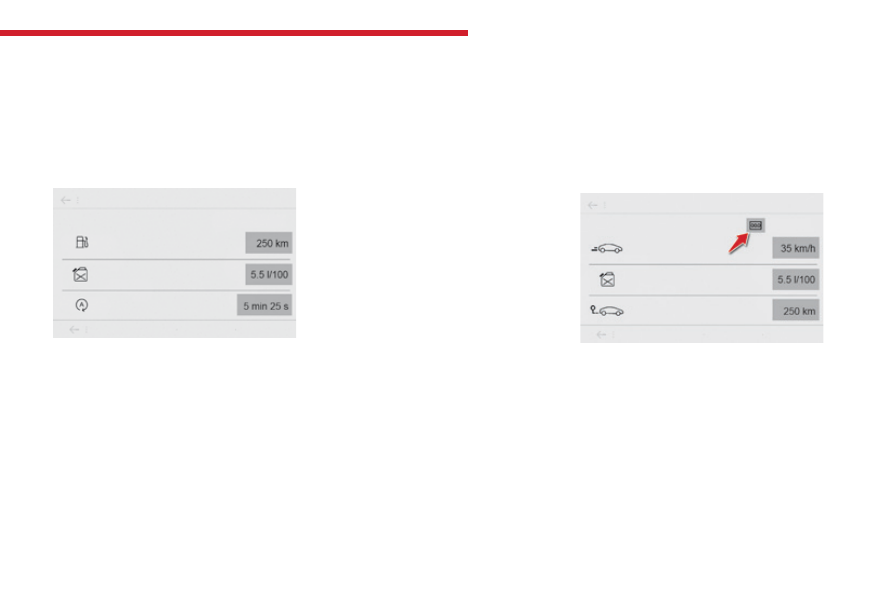

The trip computer information is displayed in
tabs.
F

Press one of the buttons to display the

desired tab.

The current fuel consumption tab with:
-  the range,
-  the current fuel consumption,
-  the Stop & Start time counter.

The trip "1"

tab with:

-  the distance travelled,
-  the average fuel consumption,
-  the average speed,

for the first trip.

The trip "2"

tab with:

-  the distance travelled,
-  the average fuel consumption,
-  the average speed,

for the second trip.

Trip reset

When the desired trip is displayed, press

the reset button or the end of the wiper
control stalk.

Trips "1"

and "2" are independent but their use

is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

The information is accessible in the Driving menu.

Temporary display in a new window:
F

Press the end of the wiper control stalk for

access to the information and display the
different tabs.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Trip computer

12 inch colour instrument panel

Information display in the instrument panel

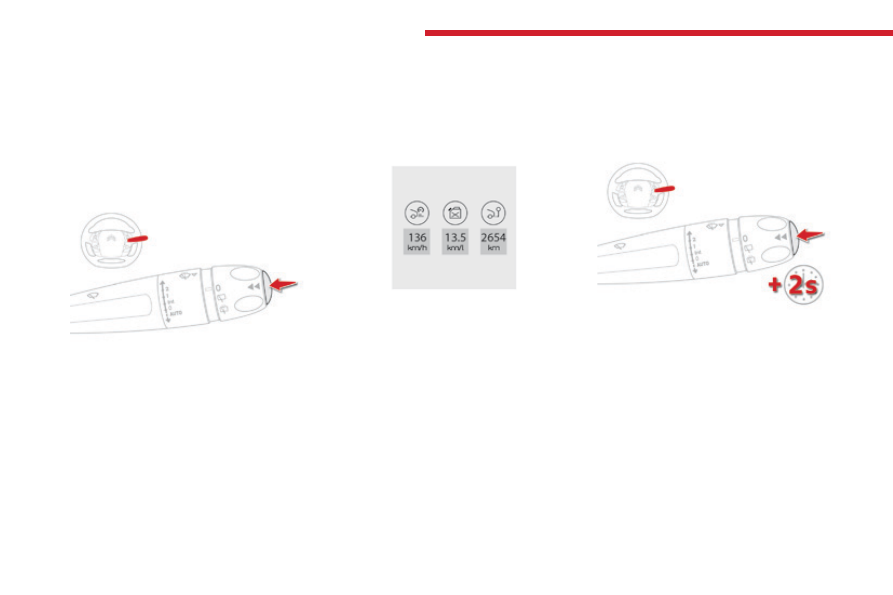

Press the button on the end of the wiper

control stalk

to display the various tabs in

succession.

- The current information tab with:

●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

- Trip

"1"

with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the first trip.

- Trip

"2"

with:

●  the average speed,
●  the average fuel consumption,
●  the distance travelled,
  for the second trip.

Trip reset

When the trip required is displayed, press

the button located on the end of the wiper
control stalk for more than two seconds.

Trips "1"

and "2" are independent but their use

is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

For all other display modes, pressing the end of
the wiper control stalk displays this information
in a new window.

The display of trip computer information is
permanent when you select the "Dials" or
"Personal" display mode.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Trip computer

Range

(miles or km)
The distance which can still be
travelled with the fuel remaining in
the tank (related to the average fuel
consumption over the last few miles
(kilometres) travelled).

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.

This function is only displayed from
20 mph (30 km/h).

Current fuel consumption

(mpg or l/100 km or km/l)
Calculated over the last few seconds.

Average fuel consumption

(mpg or l/100 km or km/l)
Calculated since the last trip reset.

Average speed

(mph or km/h)
Calculated since the last trip reset.

Distance travelled

(miles or km)
Calculated since the last trip reset.

Stop & Start time counter
(minutes / seconds or hours /
minutes)

A time counter calculates the time spent in
STOP mode during a journey.
It resets to zero every time the ignition is
switched on.

A few definitions

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Setting the date and time

With CITROËN Connect
Radio

F Select the Settings

menu.

F Select "System configuration

F Select "Date" or "Time

Choose the display formats.

Change the date and/or the time using the

numeric keypad.

Press this button to confirm.

With CITROËN Connect Nav

The date and time settings are only available
if the synchronisation with the GPS is
deactivated.

F Select the Settings

menu.

F Press the "OPTIONS

" button to go to the

secondary page.

F Select the "Date" or "Time

" tab.

Set the time or the date using the numeric

keypad.

Press this button to confirm.

Additional settings

You can choose to:
- change the date and time display format

(12hr / 24hr),

- change the time zone,
- activate or deactivate the synchronisation

with the GPS (UTC).

The system does not automatically
manage the change between winter and
summer time (depending on country).
The change between winter and
summer time is done by changing the
time zone.

F Select "Date and time

F Select "Setting the time-date

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Electronic key - remote control

System which permits remote locking or unlocking
of the vehicle as well as opening the boot and,
depending on version, operation of the alarm.
It also allows the location and starting of the
vehicle as well as providing protection against
theft.

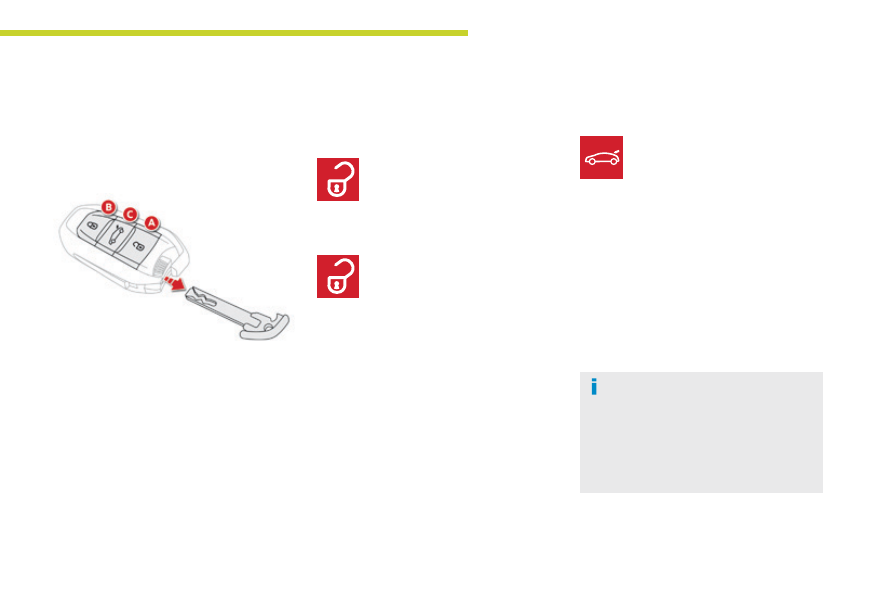

Unlocking the vehicle

Press this button.

Unlocking the vehicle and
opening the boot

The direction indicators flash for a few
seconds. The door mirror spot lamps
come on. Depending on version, the
door mirrors unfold, the welcome
lighting comes on and the alarm is
deactivated.

Make a long press on this

button to unlock the vehicle
and, depending on version,
release the tailgate or open the
motorised tailgate.

To unlock the other doors and the boot,

press this button again.

The setting of selective unlocking is done in the
Driving

menu.

Select "Unlock driver's door

Complete unlocking is activated by default.

Complete unlocking

To unlock only the driver's door,

press this button once.

Selective unlocking

Settings for the motorised tailgate can be
adjusted in the Driving menu.
Motorised operation is activated by default.

Unlocking the vehicle.

Central locking the vehicle.

Unlocking the vehicle and, depending on

version, release of the tailgate or opening
of the motorised tailgate.

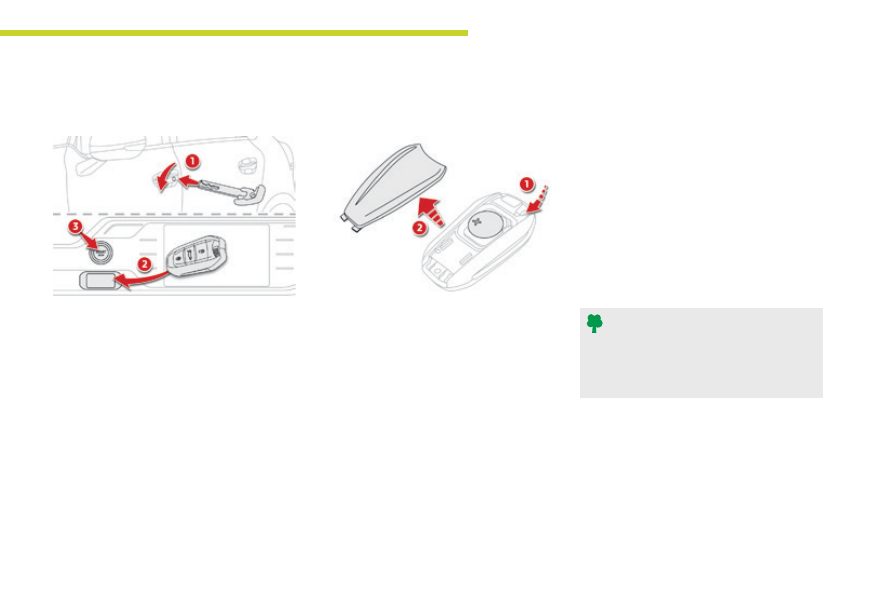

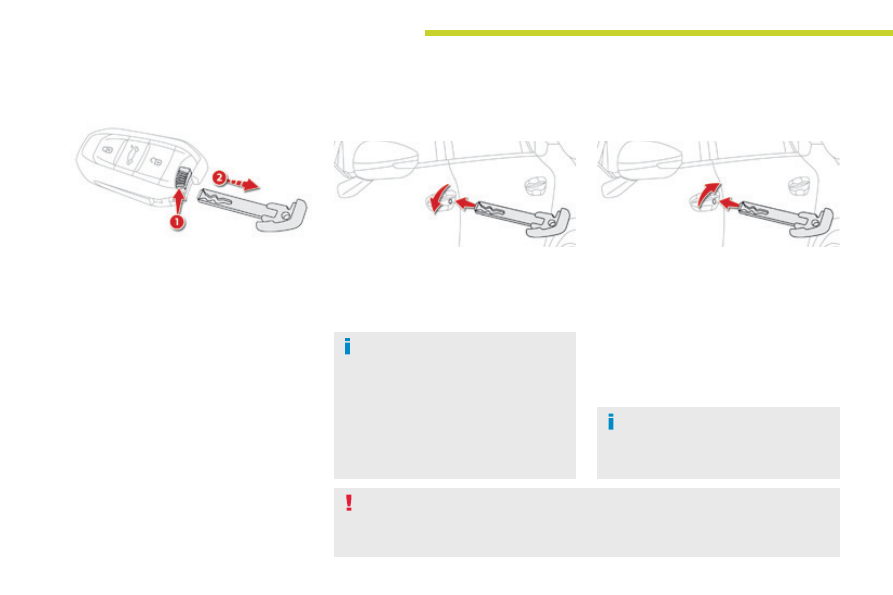

The electronic key includes an integral back-up
emergency key.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

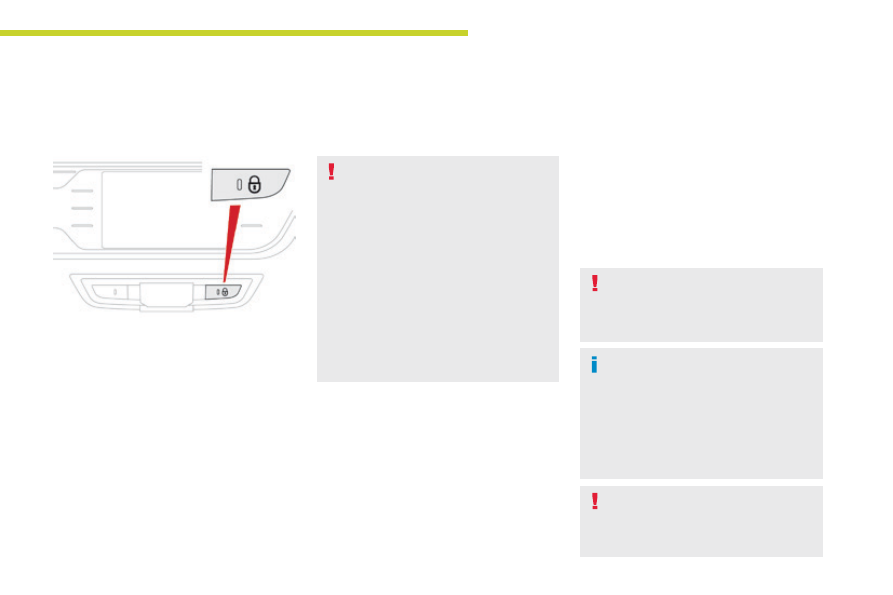

Deadlocking renders the interior door
controls inoperative.
It also deactivates the manual central
locking button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Deadlocking

With the vehicle unlocked, press

this button.

Within five seconds, press this button

again to deadlock the vehicle.

This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.

Locating your vehicle

Press this button.

This will switch on the courtesy lamps and
the direction indicators will flash for about
10 seconds.

Press this button.

Holding the button allows the
windows to be raised to the
desired position.

Normal locking

If one of the doors or the boot is not
properly closed, locking does not take
place.
Nevertheless, the alarm (if fitted) will be
fully activated after around 45 seconds.
If the vehicle is unlocked by mistake
and no action is taken on the doors or
boot, the vehicle will lock itself again
automatically after about thirty seconds.
If fitted to your vehicle, the alarm is
reactivated automatically.

The direction indicators come on for a
few seconds.
Depending on your version, the door
mirrors fold and the alarm is activated.

Locking the vehicle

Ensure that nothing could prevent the
correct closing of the windows.
Be aware of children when operating
the windows.

The automatic folding and unfolding
of the door mirrors can be deactivated
by a CITROËN dealer or a qualified
workshop.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

System that allows the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.

For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.

The electronic key can also be used as
a remote control.
For more information on the Electronic
key - remote control, refer to the
corresponding section.

Keyless Entry and Starting

Unlocking the vehicle

Complete unlocking

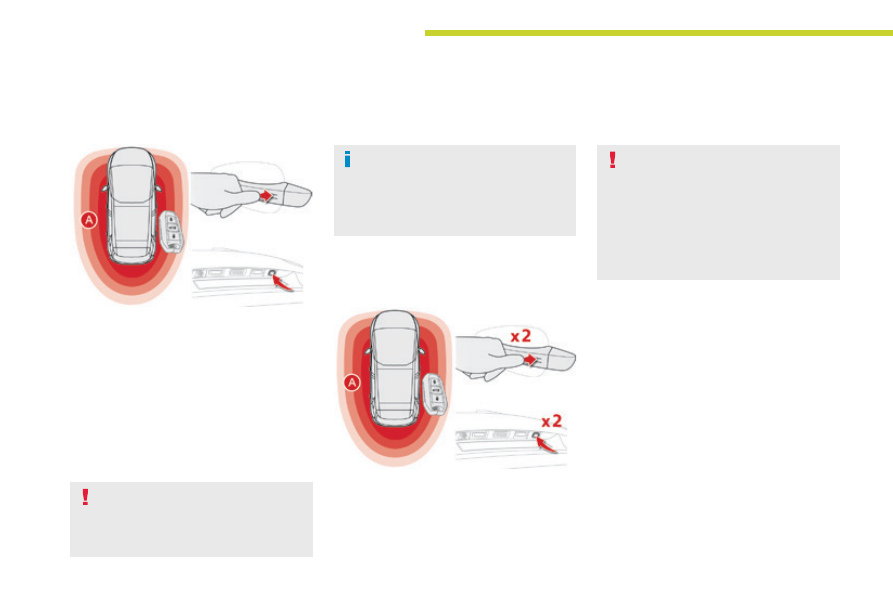

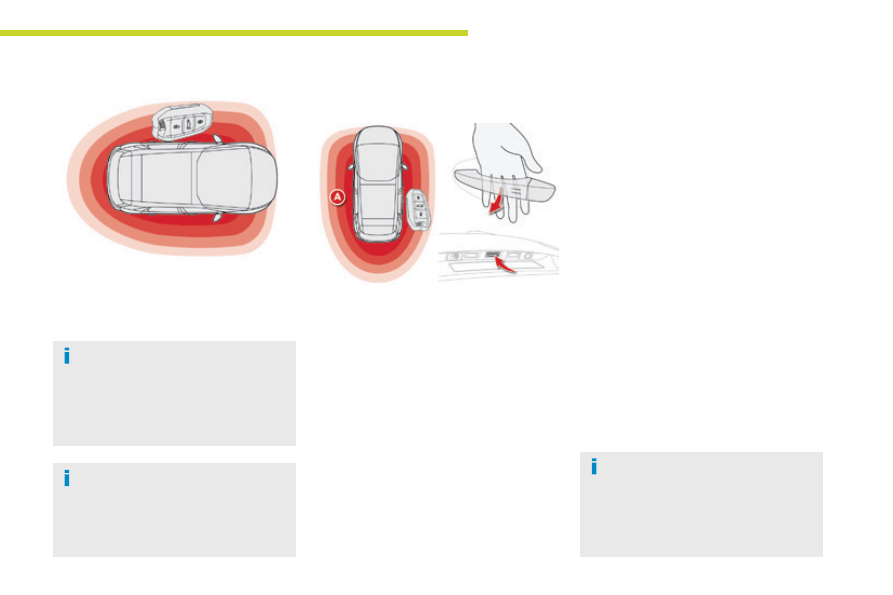

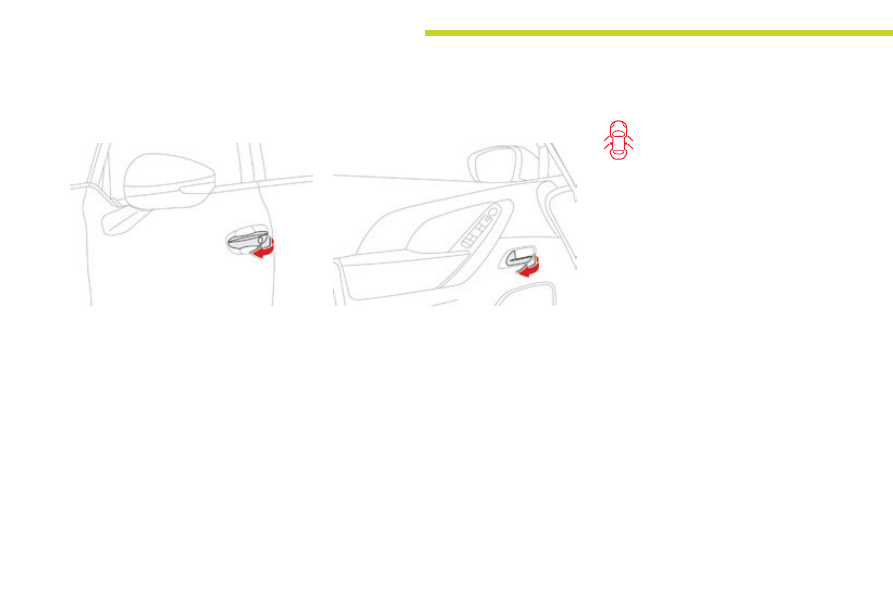

With the electronic key on your person and

in the recognition zone A, pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control (located centrally).

Selective unlocking

To unlock only the driver's door, with the

electronic key on your person, pass your
hand behind the driver's door handle.

To unlock the complete vehicle, pass your

hand behind the front passenger door
handle with the electronic key close to
the passenger door, or press the tailgate
opening control with the electronic key
close to the rear of the vehicle.

Activation or deactivation of selective unlocking
is done in the Driving menu.
Select "Unlock driver's door

By default, complete unlocking is activated.

The direction indicators flash for a
few seconds.
Depending on version, the door mirrors
unfold, the alarm is deactivated and the
welcome lighting comes on.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Ensure that nothing could prevent the
correct operation of the windows.
Be aware of children when operating
the windows.

Locking the vehicle

With the electronic key in the recognition

zone A

, press with a finger or thumb

on one of the front door handles (at the
markings) to lock the vehicle or press the
locking button on the right of the tailgate.

Maintaining pressure allows the windows to be
raised to the desired position.
It is not possible to lock the vehicle if one of the
keys is left inside the vehicle.

The direction indicators come on for a
few seconds.
Depending on your version, the door
mirrors fold and the alarm is activated.

Normal locking

Deadlocking

By the doors or tailgate:
F

With the electronic key in the recognition

zone A

, press a finger or thumb on one of

the front door handles (at the markings) or
the locking control located on the right of
the tailgate to lock the vehicle.

Within five seconds, press the door handle

or the locking control located on the right of
the tailgate again to deadlock the vehicle.

Deadlocking renders the interior door
controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

As a safety measure (children on
board), never leave the vehicle without
taking the electronic key for the Keyless
Entry and Starting system with you,
even for a short period.
Be aware of the risk of theft when the
electronic key for the Keyless Entry and
Starting system is in one of the defined
zones with the vehicle unlocked.

If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, the central
locking does not take place.
However, the alarm (if fitted) will be fully
activated after about 45 seconds.

In order to preserve the battery in the
electronic key and the vehicle's battery,
the "hands-free" functions are put into
long-term standby after 21 days without
use. To restore these functions, press
one of the remote control buttons or
start the engine with the electronic key
in the reader.
For more information on starting with
Keyless Entry and Starting, refer to
the corresponding section.

If the vehicle is unlocked by mistake
and with no action on the doors or boot,
the vehicle will lock again automatically
after about 30 seconds.
If fitted to your vehicle, the alarm will
also be reactivated automatically.

The automatic folding and unfolding
of the door mirrors can be deactivated
by a CITROËN dealer or a qualified
workshop.

Accumulations (water, dust, grime,
salt...) on the inner surface of the door
handle may affect detection.
If cleaning the inner surface of the door
handle using a cloth does not restore
detection, contact a CITROËN dealer or
a qualified workshop.
A sudden splash of water (stream of
water, high pressure jet washer, …)
may be identified by the system as the
desire to open the vehicle.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Turn the key towards the rear of the vehicle

to lock the vehicle completely.

Deadlocking

Turn the key towards the rear in the driver's

door lock to lock the vehicle completely.

Turn the key towards the rear again within

five seconds to deadlock the vehicle.

Depending on version, the direction
indicators flash for a few seconds, the
door mirrors fold.

For versions with alarm: it is not deactivated / activated when unlocking / locking the vehicle
with the integral key.
The siren will sound on opening the door with the key (integral with the remote control). It
stops when the ignition is switched on.

Emergency procedure

The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate
and in the event of a fault with the Keyless
Entry and Starting system:
- cell battery flat, vehicle battery discharged

or disconnected, ...

- vehicle located in an area with strong

electromagnetic signals.

To extract the emergency mechanical key

from the electronic key, press button 1 and
guide the key 2 out.

The integral key is also used to deactivate/
reactivate the passenger's airbag.
It provides a backup means of locking the
passenger doors.
It also allows locking of the vehicle without
activation of the alarm.

Emergency unlocking/locking using the integral key

Turn the key towards the front of the

vehicle to unlock the vehicle.

Depending on version, the direction
indicators flash for a few seconds, the
door mirrors unfold and the welcome
lighting comes on.
For versions with alarm: the siren will
sound on opening the door with the key
(in the remote control). It stops when
the ignition is switched on.

Unlocking

Normal locking

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Remote control problem -
reinitialisation

Changing the battery

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate
your vehicle.
F

Place the mechanical key (integral with

the remote control) in the lock to unlock
your vehicle.

Place the electronic key in the reader.

Switch on the ignition by pressing START/

STOP.

The electronic key is fully operational again.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.

Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.

Battery ref.: CR2032 / 3 volts.
Battery replacement is signalled by the display
of a message.
F

Unclip the cover using a small screwdriver

at the cut-out.

Lift off the cover.

Remove the flat battery from its location.

F Fit the new battery into its location

observing the original direction of fitment.

Clip the cover onto the casing.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Lost electronic key

Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.

Electronic key

The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the electronic key with you when you leave the vehicle, even for a short time.

Electrical interference

The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...

Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the wheel to lock the steering column.

When purchasing a second-hand vehicle

Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked
and started.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Manual central locking

Central locking

F Press this button to operate the central

locking of the vehicle (doors and boot) from
inside the vehicle.

Pressing the button again unlocks the

vehicle completely.

Automatic central locking
of doors (anti-intrusion
security)

The doors and boot lock automatically when
driving, as soon as the speed exceeds 6 mph
(10 km/h).
To activate or deactivate this function (activated
by default):
F

with the ignition on, press this button until a

message appears in the instrument panel.

When locking / deadlocking from the
outside
If the vehicle is locked or deadlocked
from the outside, the button is not
active.
F

After normal locking, pull one of

the interior door handles to unlock
the vehicle.

After deadlocking, you have to use

the remote control, the Keyless Entry
and Starting system or the integral
key to unlock the vehicle.

If one of the doors or the boot is
open, automatic central locking does
not complete: the sound of the locks
rebounding can be heard.

Transporting long or voluminous
objects
If you want to drive with the boot open
but the vehicle's side doors locked,
press the central locking control button
to lock the doors.

Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency.

Access

C4-Picasso-II_en_Chap02_ouvertures_ed02-2016

Doors

Opening

After unlocking the vehicle using the

remote control or the Keyless Entry and
Starting system, pull the door handle.

Pull the front or rear door lever to open the

door.

If a door is not properly closed:
-

with the engine running, this
warning lamp and a message
appear in the instrument panel
(monochrome digital) for a
few seconds,

with the vehicle moving
(speed above 6 mph (10 km/h)),
this warning lamp and a
message, accompanied by an
audible signal, appear in the
instrument panel (monochrome
digital and 12 inch colour) for a
few seconds.

Closing

From outside

From inside

Citroen C4 Picasso (2017 year). Instruction - part 4
