In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

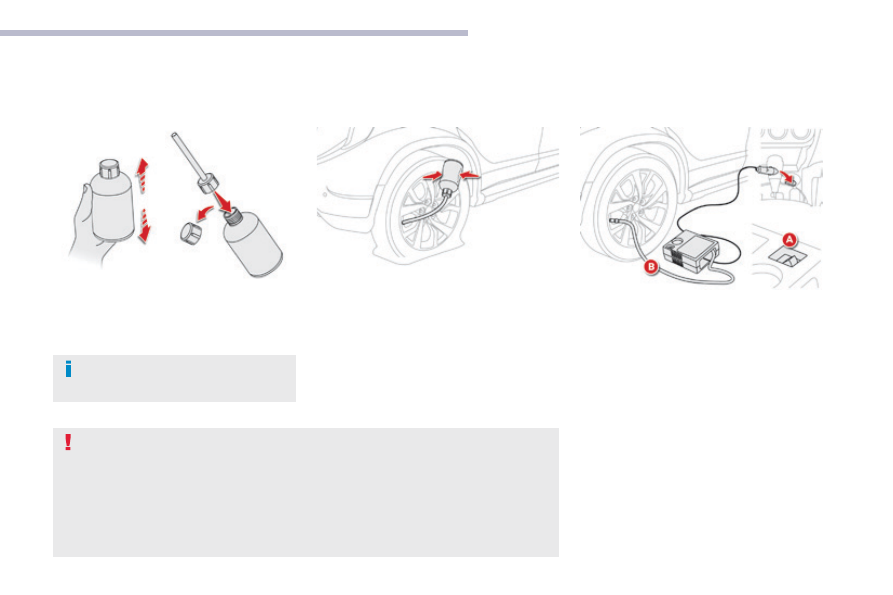

Connect the injection end-piece to the

valve of the tyre to be repaired.

Press several times on the sealant

cartridge (top down) with your hand, to
inject all of the product into the tyre.

Remove the injection end-piece.

Refit the valve core and tighten it using the

tool provided.

Take care, this product is harmful if swallowed and causes irritation to the eyes.
Keep it out of reach of children.
The use-by date of the sealant is marked on the cartridge.
After use, do not discard the empty cartridge but take it to a CITROËN dealer or an
authorised waste disposal site.
Do not forget to obtain a replacement cartridge; they are available from a CITROËN dealer
or a qualified workshop.

Check that the compressor switch A is at

the "OFF

" position.

Uncoil the compressor pipe B fully.

F Connect this pipe to the valve of the

repaired wheel.

Connect the compressor's electric plug to

the vehicle's 12 V socket (ignition switch in
position "ACC" or ACC mode).

Start the compressor by turning the

switch A to the "ON" position to inflate the
tyre to the pressure indicated on the tyre
pressure label.

For more information about Identification
markings

, refer to the corresponding

section.

Avoid removing any foreign bodies
which have penetrated into the tyre.

Shake the sealant cartridge, remove the

cap and screw on the injection end-piece.

192

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

If the specified pressure has not been

reached after about 10 minutes, this means
that the tyre is not repairable; contact a
CITROËN dealer or a qualified workshop
for roadside assistance.

Remove the compressor and stow the kit.

Do not operate the compressor for more
than 10 minutes continuously.
If the compressor seems extremely
hot, switch it off and disconnect it
immediately. Leave it to cool for at
least 30 minutes.

As soon as possible after a repair using
the kit, go to a CITROËN dealer or a
qualified workshop.
Make sure that you tell the technician
that you have used the kit. After
checking, the technician will advise you
whether the tyre can be repaired or if it
must be replaced.

If the vehicle is fitted with under-
inflation detection, the under-inflation
warning lamp remains on until the
system has been reinitialised.
For more information on Under-
inflation detection, refer to the
corresponding section.

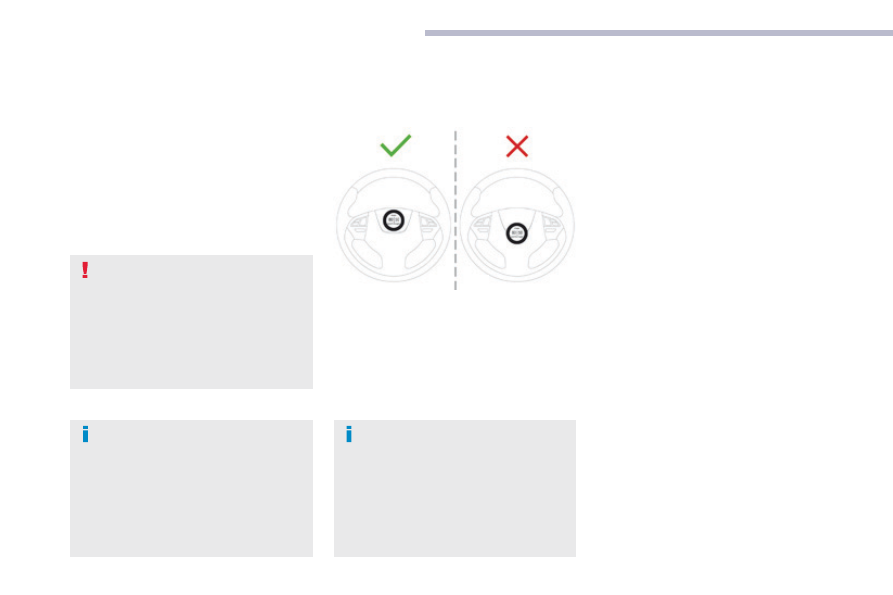

Affix the speed restriction sticker to the

centre of the steering wheel.

Drive off straight away at reduced speed

(50 mph (80 km/h) max) to spread the
sealant product within the tyre.

After about 6 miles (10 km) or 5 minutes,

stop and check the repair and the tyre
pressure using the compressor. If the
pressure has dropped slightly, inflate the
tyre again to the specified figure. Carry out
the same check after another 6 miles
(10 km) or 5 minutes: if the pressure
has not held at the specified figure, this
indicates that the puncture repair has not
sealed; contact a CITROËN dealer or a
qualified workshop for roadside assistance.

If the pressure is correct, carefully tighten the
tyre valve cap. You can drive at reduced speed
(50 mph (80 km/h) max) to go to a CITROËN
dealer or a qualified workshop.

193

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Changing a wheel

The tools are stowed in the boot under the
floor.
To gain access to them:
F

Open the boot.

Lift and remove the boot floor.

Access to the vehicle's tools

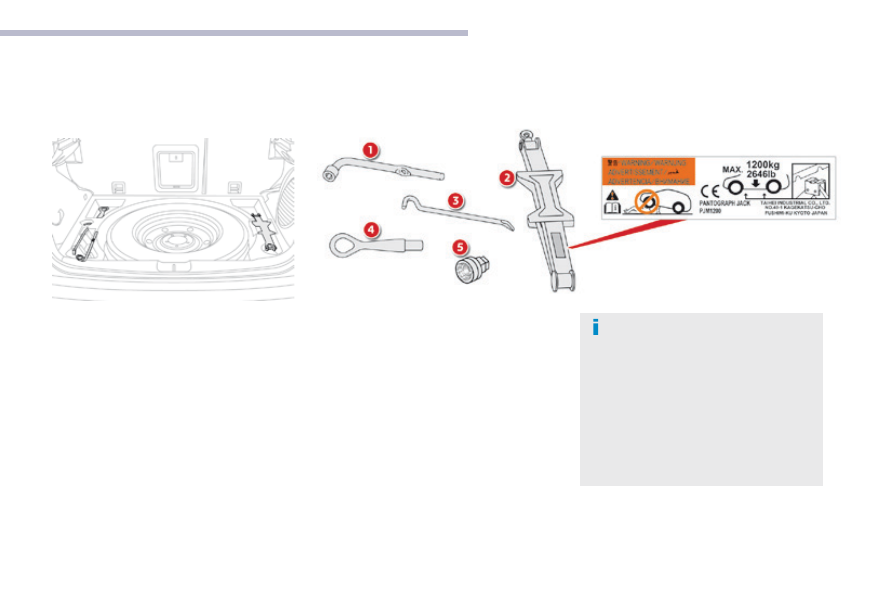

List of tools

These tools are specific to your vehicle. Do not

use them for anything else.
1.

Wheelbrace.

Used to remove the wheel trim and the

wheel fixing bolts.

Jack.

Used to raise the vehicle.

Handle.

Used to operate the jack.

Removable towing eye.

For more information on Towing the
vehicle

, refer to the corresponding section.

Socket for security wheel bolts (available

as an accessory).

Used to adapt the wheelbrace to the

special "security" wheel bolts.

Procedure for replacing a faulty wheel with the spare wheel using the tools supplied with the vehicle.

Wheel with trim

When removing the wheel

, remove the

trim first using the handle 3, pulling at
the cut-out.
When refitting the wheel

, refit the trim

starting by placing its cut-out opposite
the valve and press on its outer edge
with the palm of your hand.

194

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

The spare wheel is installed in the boot under
the floor.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel, or for some
countries it is the "space saver" type.
For more information on the vehicle's tools
permitting access to the spare wheel, refer to
the corresponding section.

Access to the spare wheel

Taking out the standard wheel

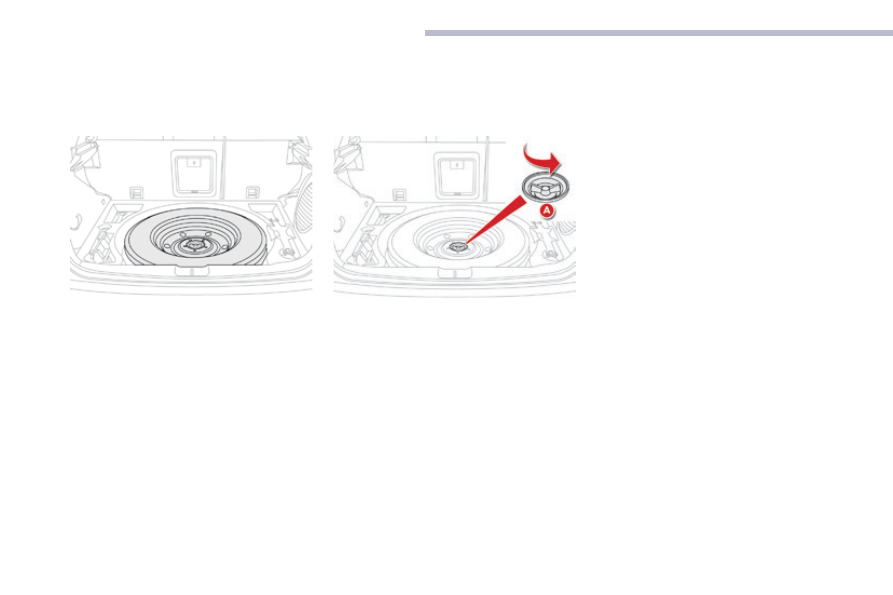

F Unscrew the central bolt A

Raise the spare wheel towards you from

the rear.

Take the wheel out of the boot.

Putting the standard wheel back
in place

Put the wheel back in its housing.

F Put the central bolt A in place in the centre

of the wheel.

Tighten fully to retain the wheel correctly.

195

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Removing a wheel

Parking the vehicle

Immobilise the vehicle where it does
not block traffic; if possible, the ground
must be level, stable and not slippery.
Apply the parking brake, switch off the
ignition and engage first gear to block
the wheels.
Never go underneath a vehicle raised
using a jack; use an axle stand.

List of operations

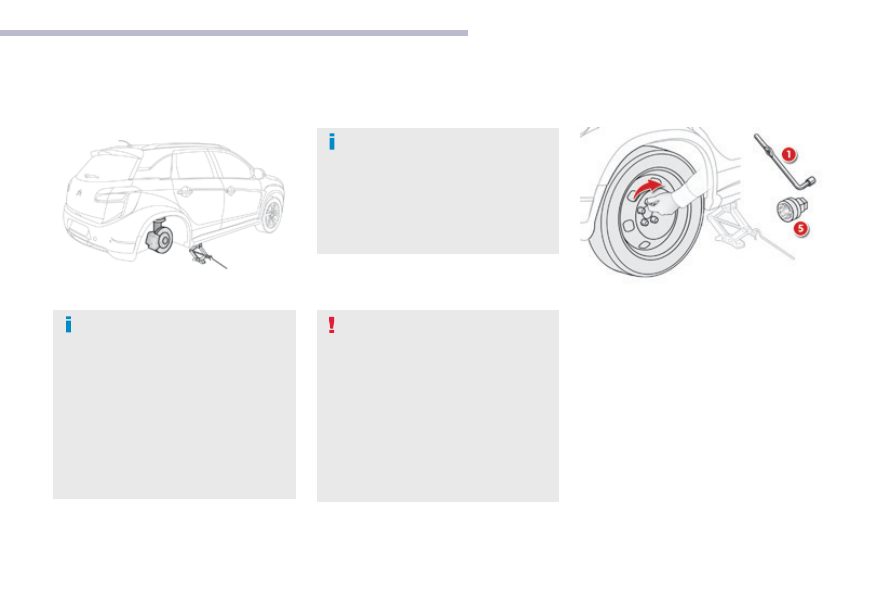

F If your vehicle has security bolts (available

as an accessory), fit the security bolt
socket 5 to the wheelbrace 1 to slacken the
security bolt.

Slacken the other bolts using the

wheelbrace 1

only.

Never use:
- the jack for anything other than

lifting the vehicle,

- a jack other than the one provided

by the manufacturer.

The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.

The jack meets the European standard
as defined in Directive 2006/42/CE on
machinery.
The declaration of conformity can be
found at the end of this document.
The name and complete address of
the manufacturer or, as appropriate,
their representative, together with the
designation of the jack are given in this
certificate of conformity.

196

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

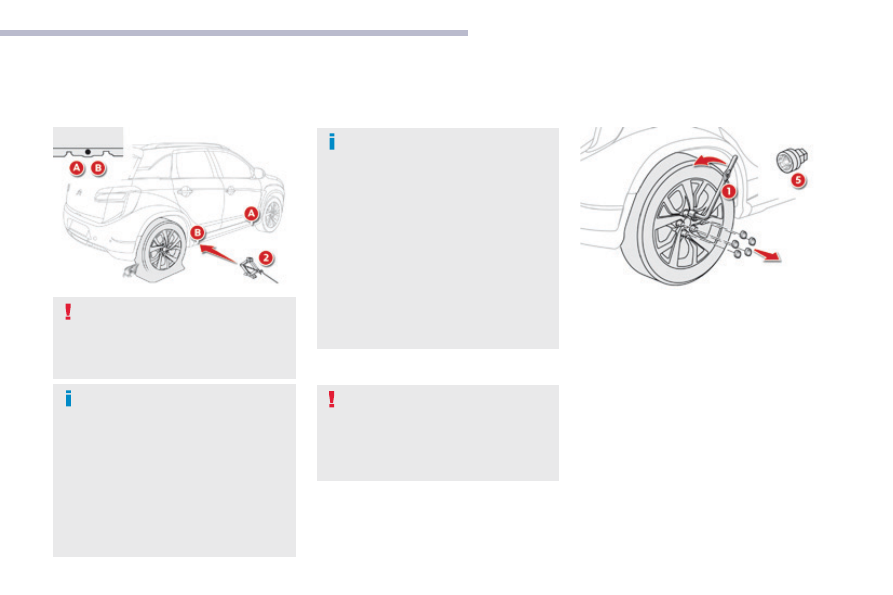

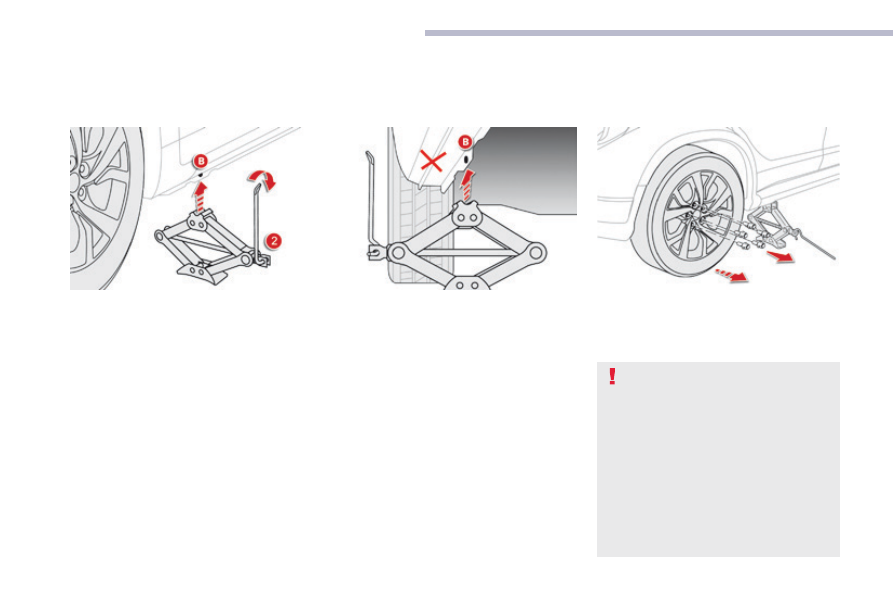

Place the foot of the jack 2 on the ground

and ensue that it is directly below the
front A or rear B

jacking point provided on

the underbody, whichever is closest to the
wheel to be changed.

Extend the jack 2 until it comes into contact

with the jacking point A or B used; the
contact area A or B

on the vehicle must be

correctly inserted into the central part of
the head of the jack.

F Raise the vehicle until there is sufficient

space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.

Ensure that the jack is stable.
If the ground is slippery or loose, the
jack may slip or drop - Risk of injury!
Ensure that the jack is positioned only
at the jacking point A or B under the
vehicle, ensuring that the contact area
on the vehicle is correctly centred on
the head of the jack. Otherwise there
is a risk of damage to the vehicle and/
or of the jack dropping or slipping - Risk
of injury!

Remove the bolts and store them in a clean

place.

Remove the wheel.

197

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Fitting the wheel

After changing a wheel

When using the "space-saving" spare
wheel, do not exceed 50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted on the vehicle as soon as
possible.

List of operations

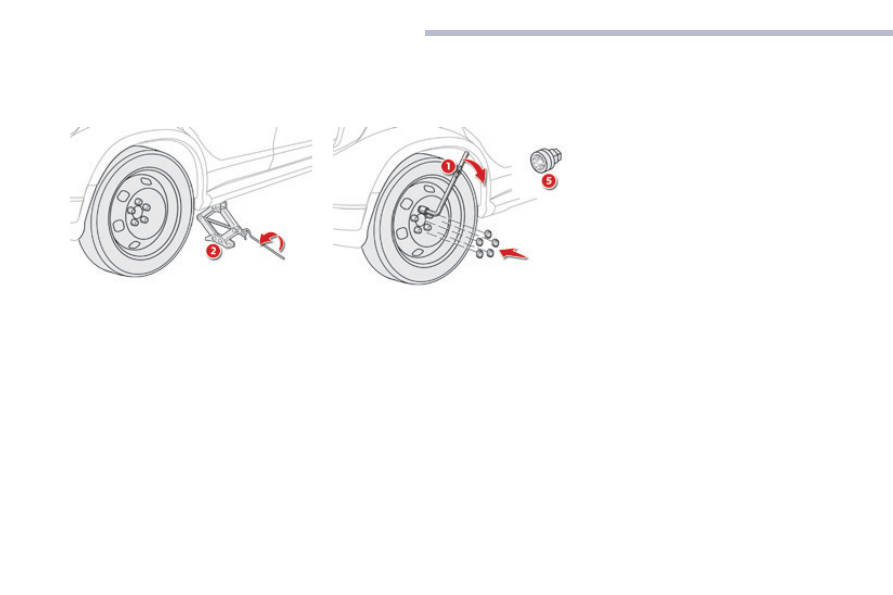

Put the wheel in place on the hub.

Tighten the bolts fully by hand.

Pre-tighten the anti-theft bolt using the

wheelbrace 1

fitted with the anti-theft

socket 5 (if your vehicle has one).

Pre-tighten the other bolts using only the

wheelbrace 1

Fitting snow tyres

If you fit your vehicle with snow tyres
fitted on steel rims, it is essential to use
special bolts available from CITROËN
dealers or a qualified workshop.

If the replacement of a tyre is
necessary on 4-wheel drive versions,
it is recommended that all four tyres be
replaced at the same time, ensuring
that the same make, model and size is
used on all wheels.
This is because using tyres of different
sizes, structure or rate of wear could
damage transmission components.

198

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Lower the vehicle fully.

Fold the jack 2 and remove it.

Lock the anti-theft bolt using the

wheelbrace 1

fitted with the anti-theft

socket 5 (if your vehicle has one).

Lock the other bolts using only the

wheelbrace 1

Stow the tools (for more information, refer

to the corresponding section).

199

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Changing a bulb

For bulbs that have alignment lugs
(H1, H7...) ensure that they are
fitted correctly for the best lighting
performance.

The headlamps have polycarbonate
lenses with a protective coating:
F do not clean them using a dry

or abrasive cloth, nor with a
detergent or solvent product,

use a sponge and soapy water,

when using a high pressure washer

on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.

Do not touch the bulb directly with

your fingers, use lint-free cloths.

Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
It is imperative to use only
anti-ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

Risk of electrocution

Replacement of the xenon bulbs
(D1S-35W) must be carried out by
a CITROËN dealer or a qualified
workshop.

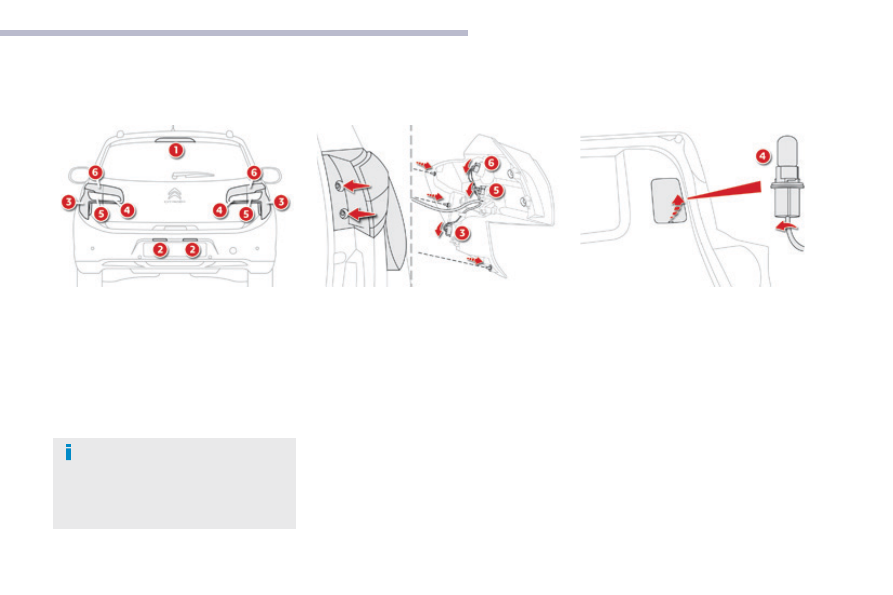

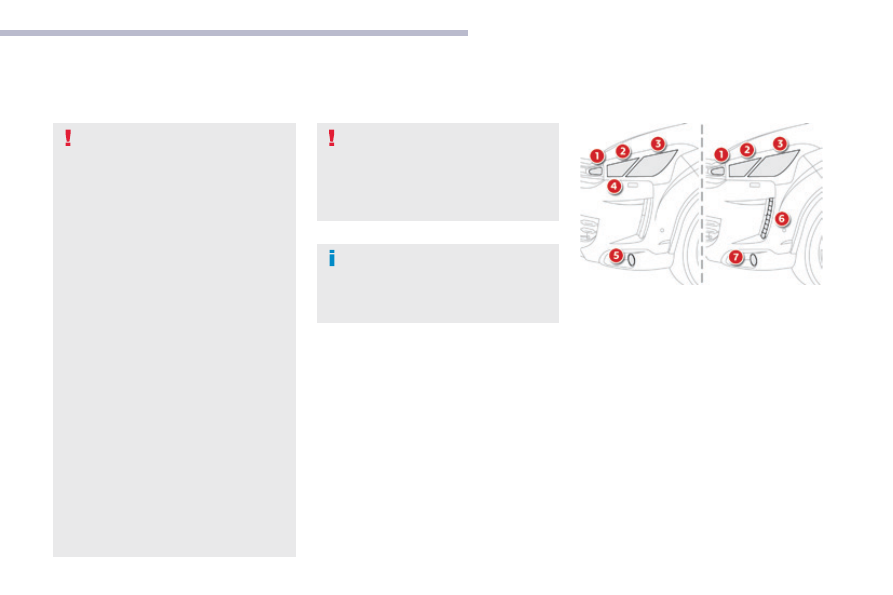

Front lamps

1.  Direction indicators (WY21W-21W).
2.  Main beam headlamps (H1-55W).
3.  Dipped beam headlamps (H11-55W)
or

Xenon bulb (D1S-35W).

4.  Sidelamps (W5W-5W).
5.  Daytime running lamps (P13W-13W).
6.  Daytime running lamps / sidelamps

(light emitting diodes-LEDs).

7. Front foglamps (H11-55W).

200

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

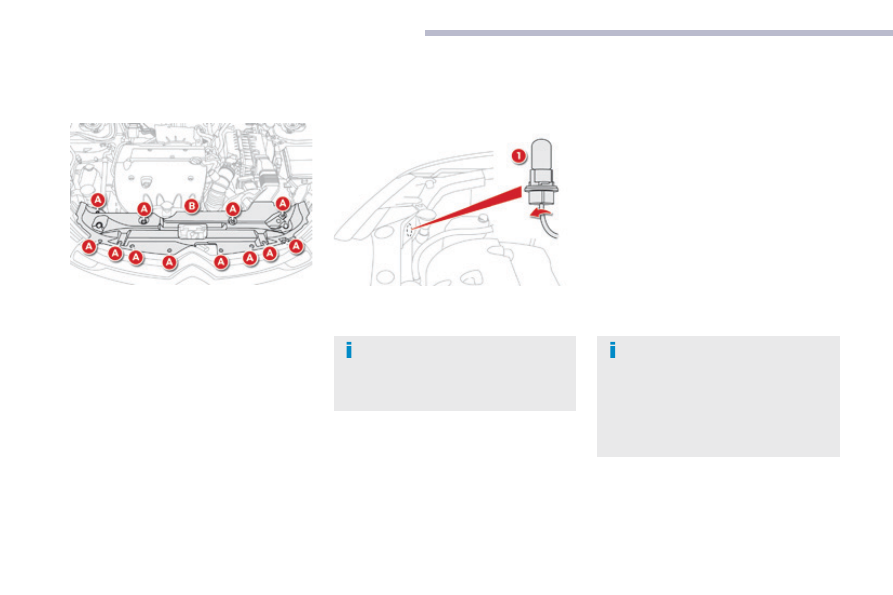

Carry out the following operations for access
the bulb protective covers:
F

Remove the retaining pins A.

Remove the protective cover B.

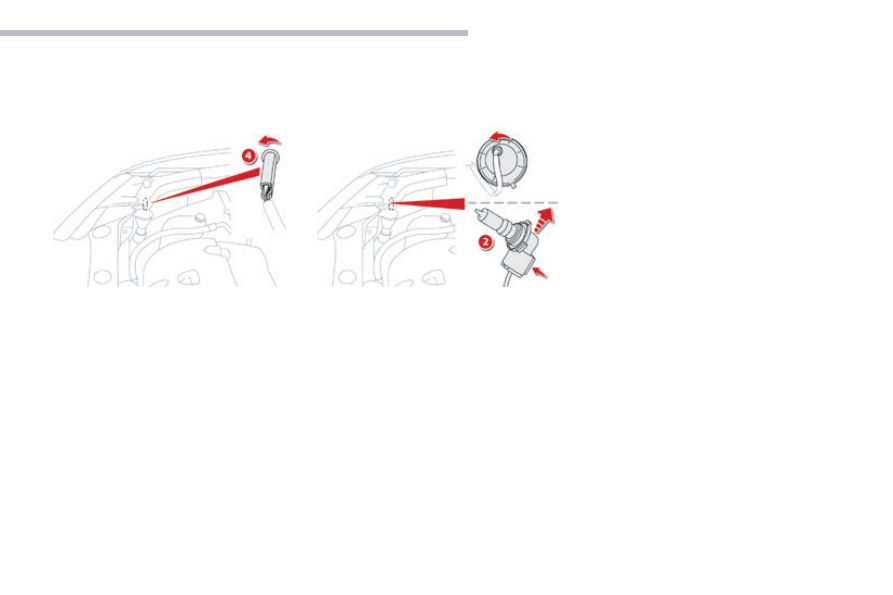

Access to bulbs

Changing direction indicator
bulbs (1)

Turn the bulb holder a quarter of a turn to

the left and pull it out.

Pull out the bulb and change it.

Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.

To reassemble, carry out these
operations in reverse order.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.

201

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Changing sidelamp
bulbs (4)

Remove the protective plastic cover.

Turn the bulb holder to the left and pull it

out.

Remove the bulb and its base by pressing

on the lug at the bottom.

Change the bulb.

For reassembly, carry out these operations in
reverse order.

Changing main beam headlamp
bulbs (2)

Turn the bulb holder a quarter turn to the

left and pull it out.

Pull out the bulb and replace it.

To reassemble, carry out these operations in
reverse order.

Changing the daytime running
lamps / sidelamps (light-emitting
diodes - LEDs) (6)

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

Changing dipped headlamp
bulbs (3)

For the replacement of these bulbs, contact a
CITROËN dealer or a qualified workshop.

To replace these bulbs contact a CITROËN
dealer or a qualified workshop.

Changing front foglamp bulbs (7) /
daytime running lamp bulbs (5)

202

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

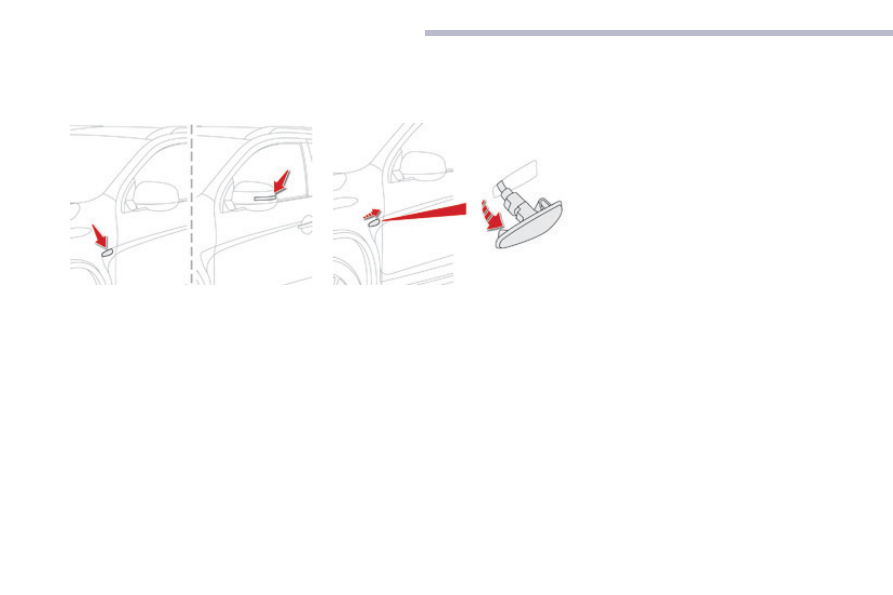

Push the repeater towards the rear to disengage it.

Disconnect the repeater connector.

Change the repeater unit.

To reassemble, carry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain replacement repeaters.

Changing direction indicator side repeaters

Door mirror spotlamps

You should contact a CITROËN dealer or a qualified workshop for the replacement of the light-
emitting diode - LED.

203

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

1.  Third brake lamp (LEDs).
2.  Number plate lamps (W5W-5W).
3.  Rear foglamp (W21W-21W)

4.  Reversing lamp (W16W-16W).
5.  Direction indicators (WY21W-21W).
6.  Sidelamps / brake lamps (W21-5W).

Rear lamps

Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
colour.

These bulbs are changed from outside the
boot.
F

Open the boot.

Remove the two fixing screws.

Unclip the lamp unit carefully extract it

pulling it towards the rear.

Turn the bulb holder a quarter of a turn to

the left and pull it out.

Pull the bulb out and change it.

To reassemble, carry out these operations in
reverse order.
Take care to align the pins on the lamp unit with
the locations on the bodywork.

Changing sidelamp / brake
lamp (6), direction indicator (5),
and foglamp (3) bulbs

Open the boot.

Insert a screwdriver into the aperture of the

cover and lever it open.

Turn the bulb holder a quarter of a turn to

the left.

Pull the bulb out and change it.

To reassemble, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

Changing reversing lamp bulbs (4)

204

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

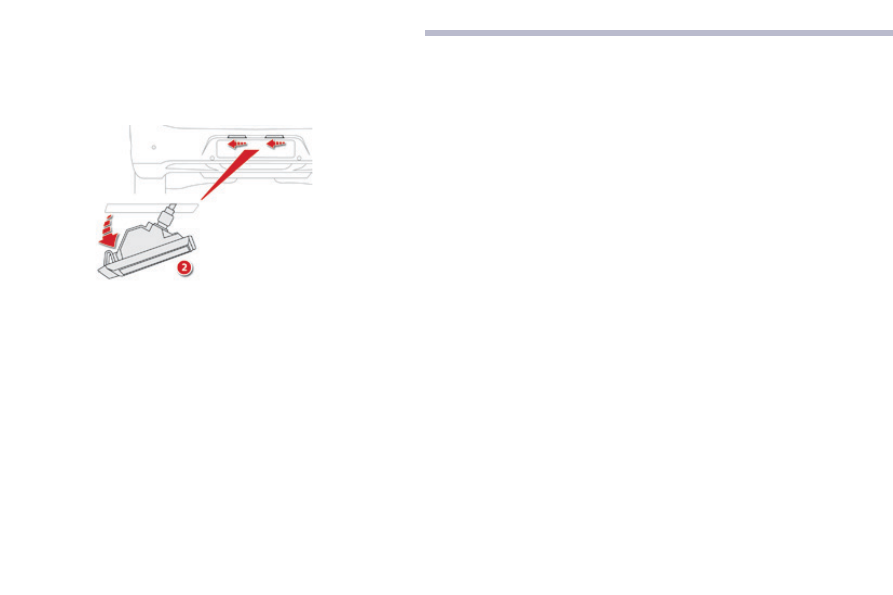

Changing number plate lamp
bulbs (2)

Push the lens to the left and then down.

Turn the bulb holder a quarter turn to the

left and pull it out.

Remove the bulb and change it.

To refit, carry out these operations in reverse
order and press on the lens to clip it in place.

Third brake lamp (light emitting
diodes - LEDs) (1)

Contact a CITROËN dealer or qualified
workshop for the replacement of this type of
lamp.

205

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Changing a fuse

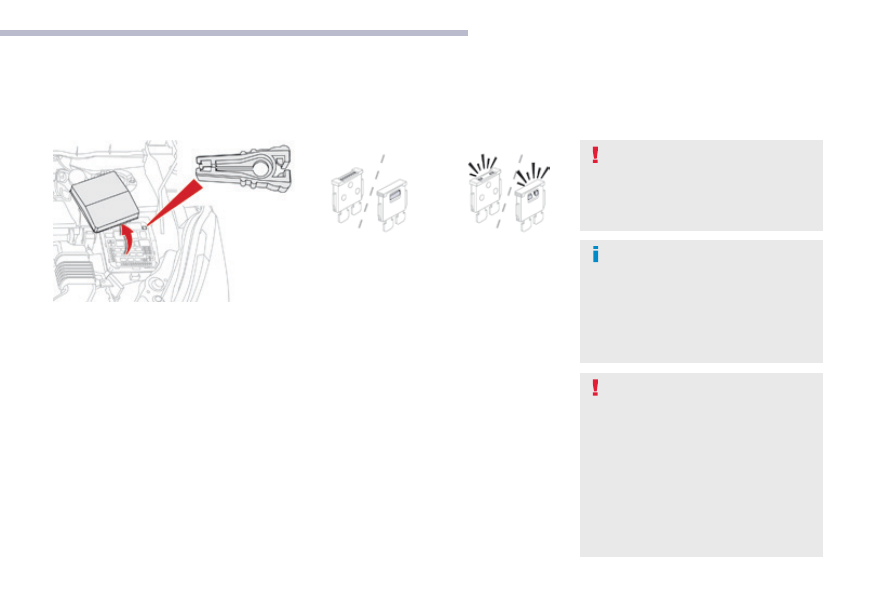

The extraction tweezer and spare fuses are
located in the engine compartment fusebox.
To gain access to them:
F

Open the bonnet.

For more information on the Bonnet, refer
to the corresponding section.

Unclip and remove the cover.

Remove the tweezer.

F Carefully close the cover to ensure correct

sealing of the fusebox.

Access to the tools

Before changing a fuse, the cause of the failure
must be identified and rectified.
F

Check that the switch is in the "LOCK"

position or that the vehicle mode is "OFF".

Identify the faulty fuse by checking the

condition of its filament.

Use the special tweezer to extract the fuse

from its location.

F Always replace the faulty fuse with a fuse

of the same rating.

Check that the number etched on the box,

the rating etched on the top and the tables
below all agree.

Changing a fuse

Good

Failed

CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
consumption of all of the additional
equipment connected exceeds 10
milliamperes.

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.

The replacement of a fuse not
mentioned in the following tables may
cause a serious fault on your vehicle.
Contact a CITROËN dealer or a
qualified workshop.

206

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

Dashboard fuses

The fusebox is located in the lower dashboard
(left-hand side).

Access to the fuses

Unclip the cover and remove it completely

by pulling it towards you.

Fuse N°

Rating

Functions

30 A

Cabin fan.

15 A

Brake lamps, third brake lamp.

10 A

Rear foglamps.

30 A

Windscreen wiper, screenwash.

20 A

Central locking, electric door mirrors.

15 A

Audio equipment, telematics, USB unit, hands-free system.

7.5 A

Remote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.

15 A

Instrument panel and interior lighting.

15 A

Hazard warning lamps.

15 A

Rear wiper.

7.5 A

Instrument panel, multifunction screen, parking sensors,
heated seats, heated rear screen, electric blind, automatic
headlamp adjustment.

15 A

Cigarette lighter, accessory socket.

20 A

Electric blind.

10 A

Door mirrors, audio equipment.

Citroen C4 Aircross (2017 year). Instruction - part 13
