Citroen C4 Aircross (2017 year). Instruction

175

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

For more information on snow chains,
contact a CITROËN dealer or a
qualified workshop.

Snow chains

In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.

Advice on installation

If you have to fit the chains during a

journey, stop the vehicle on a flat surface
on the side of the road.

Apply the parking brake and position any

wheel chocks to prevent movement of
your vehicle.

Fit the chains following the instructions

provided by the manufacturer.

Move off gently and drive for a few

moments, without exceeding 30 mph
(50 km/h).

Stop your vehicle and check that the snow

chains are correctly tightened.

The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.

Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.

Use only chains designed for fitment to the type
of road wheels on your vehicle:

Original equipment

tyre size

Maximum link size

215/70 R16

12 mm

225/55 R18

It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.

176

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Removing a front or rear
wiper blade

Raise the corresponding wiper arm.

Remove the wiper blade, sliding it towards

the outside.

Changing

a wiper blade

Fitting a front or rear wiper
blade

At the front, check the size of the wiper

blade as the shorter blade is fitted on the
right-hand side of the vehicle.

Put the corresponding new wiper blade in

place and fix it.

Fold down the wiper arm carefully.

Automatic power cut-off

to accessories

After the engine has stopped, when the
ignition switch is in the "ACC" position
(or the vehicle in "ACC" mode) you
can still use functions such as the audio
equipment, windscreen wipers, dipped beam
headlamps, courtesy lamps, etc. for about
thirty minutes.

Cutting off

Once the thirty minutes have expired, the
power supply to the accessories will be
automatically cut off.

Restoring power

The power supply will be restored the next time
the ignition is switched on.

177

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Towing a trailer, a caravan, etc.

We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it is imperative that
it is fitted following the manufacturer's
instructions.

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

Driving with a trailer subjects the towing vehicle
to more significant stress and its driver must be
particularly careful.
For more advice on driving when towing, refer
to the corresponding section.
For more information on Petrol weights or
Diesel weights

and in particular the towed

loads which apply to your vehicle, refer to the
corresponding section.
Take care to comply with the gross train
weights indicated on the registration certificate
or in the technical data for your vehicle.

178

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Advice on driving when towing

Distribution of loads

Distribute the load in the trailer so that the

heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.

Air density decreases with altitude,
thus reducing engine performance. Above
1 000 metres, the maximum towing load must
be reduced by 10 % of the GTW and so on for
every 1 000 metres of altitude.
For more information on Petrol weights or
Diesel weights

and in particular the towed

loads which apply to your vehicle, refer to the
corresponding section.

Side wind

Take into account the increased sensitivity

to side wind.

Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

To lower the engine speed, reduce your

speed.

The maximum towed load on a long slope
depends on the gradient and the exterior
temperature.
In all cases, pay attention to the coolant
temperature.

If this message is displayed, stop your

vehicle as soon as it is safe to do so.

Braking

Towing a trailer increases the braking distance.
To limit heat build-up in the brakes, use of the
engine brake is recommended.

Tyres

Check the tyre pressures of the towing

vehicle and of the trailer, observing the
recommended pressures.

Lighting

Check the lighting and signalling on the

trailer and the adjustment of the vehicle's
headlamps.

For more information on Headlamp
adjustment

, refer to the corresponding

section.

If the message flashes slowly, wait for the
engine to cool before topping up the level, if
necessary.
If the message flashes rapidly, contact a
CITROËN dealer or a qualified workshop
without delay.

The rear parking sensors will be
deactivated automatically when a
genuine CITROËN towbar is used.

179

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Fitting roof bars

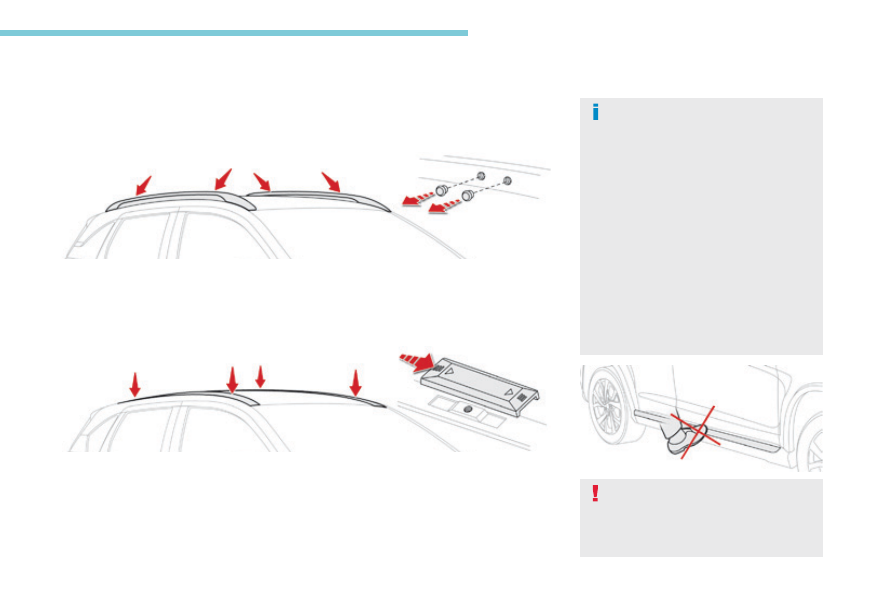

The transverse roof bars are fitted to the longitudinal bars at the 8 fixing points masked by covers.
Using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.

The transverse bars are fitted directly to the roof of the vehicle, at the 4 anchorage points masked
by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers.
After removing the roof bars, the protective covers should be refitted:
F

insert the fixing tongues into the apertures then slide the covers towards the rear of the vehicle.

The body sill finishers should not be
used as a step when fitting roof bars.

Use accessories recommended by
CITROËN and follow the accessory
manufacturer's fitting instructions.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars and the fixings on the roof.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.

For reasons of safety and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.

Vehicles fitted with longitudinal bars

Vehicles not fitted with longitudinal bars

180

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

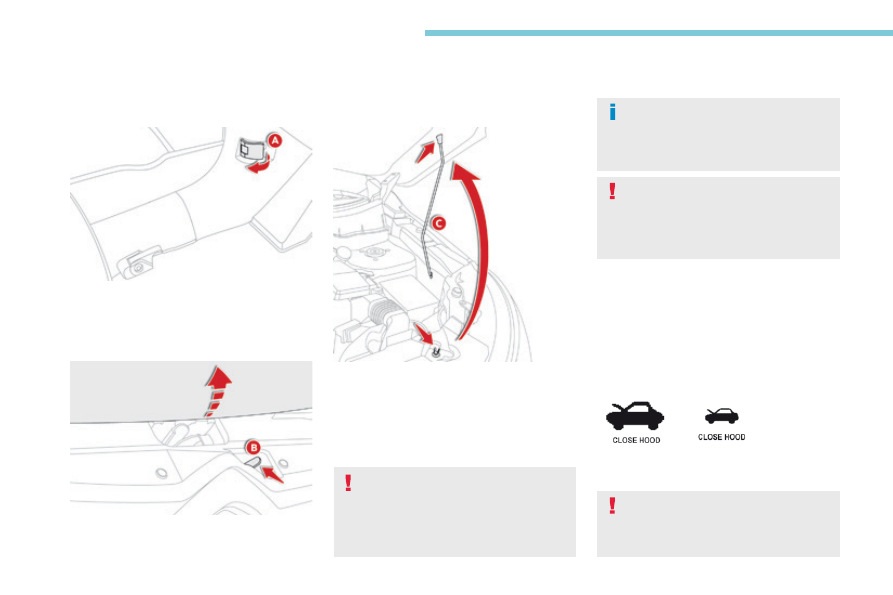

Bonnet

Open the left-hand front door.

F Pull the interior bonnet release lever A,

located at the bottom of the door aperture.

Do not open the bonnet in high winds.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).

F Unclip the stay C

from its housing on the

back of the bonnet.

Fix the stay in the notch to hold the bonnet

open.

Closing

Take the stay out of the support notch.

Clip the stay in its housing on the back of

the bonnet.

Lower the bonnet and release it at the end

of its travel.

Pull on the bonnet to check that it is

secured correctly.

The location of the interior bonnet
release lever prevents opening of the
bonnet while the front left door is closed.

Opening

Push the exterior safety catch B to the left

and raise the bonnet.

This message appears in the instrument panel
screen if the bonnet is not fully closed.

The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.

Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.

181

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Access for checking the levels of the various
fluids and the replacement of certain
components.

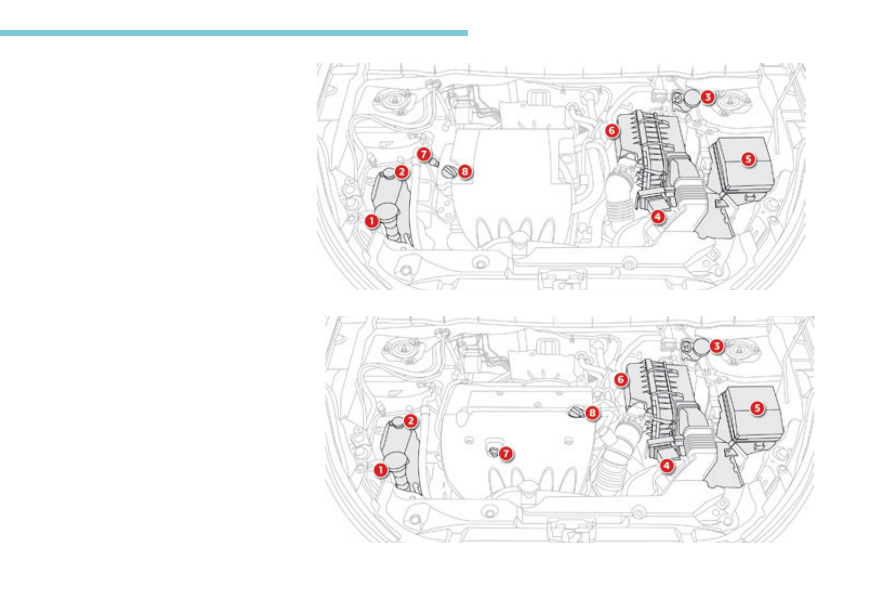

Petrol engines

Screenwash and headlamp wash fluid

reservoir.

Coolant header tank.

Brake fluid reservoir.

Battery.

Fusebox.

Air filter.

Engine oil dipstick.

Engine oil filler cap.

1.6 litre 115

2.0 litre 150

182

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.

Diesel engines

Screenwash and headlamp wash fluid

reservoir.

Coolant reservoir.

Brake fluid reservoir.

Battery.

Fusebox.

Air filter.

Engine oil dipstick.

Engine oil filler cap.

Priming pump*.

1.6 HDi 115 S&S

1.8 HDi 140

* According to engine.

183

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Checking levels

Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).

Oil level

The check of the level is done with
the dipstick, located under the
bonnet. Refer to the description of
your engine compartment for the
position of the dipstick.

Engine oil change

Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.

Oil specification

The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.

Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

Dipstick

There are two marks on the dipstick:

= maximum

If the level is above this
mark, contact a CITROËN
dealer or a qualified
workshop.
B

= minimum

Top up the level through the
oil filler orifice, using the
correct grade of oil for your
engine. The level must never
be below this mark.

This check will only be correct if the vehicle is
on level ground and the engine has been off for
more than 30 minutes.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 km).
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.

184

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Coolant level

The coolant level should be between
the two marks.

When the engine is warm, the temperature of
the coolant is regulated by the fan.
As the cooling system is pressurised when the
engine is warm, wait at least one hour after
switching off the engine before carrying out
any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.

Fluid specification

The coolant must conform to the
manufacturer's recommendations.

The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.

Brake fluid level

Changing the fluid

Refer to the manufacturer's service schedule
for details of the interval for this operation.

Fluid specification

The brake fluid must conform to the
manufacturer's recommendations.

The cooling fan may start after switching
off the engine: take care with articles and
clothing that might become caught by the
fan blades.

To ensure that this measurement is reliable, the
vehicle must be parked on level ground with the
engine cold.

185

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.

Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.

Used products

Topping up

The reservoir must be topped up without delay
by a CITROËN dealer or a qualified workshop.

Additive level (1.6 HDi
115 Diesel versions with
particle filter)

The additive reservoir low level is indicated by
the display of this message.

Fluid specification

For optimum cleaning, this fluid must not be
topped up with or replaced with plain water.

Screenwash and headlamp
wash fluid

To check or top up the fluid, stop the
vehicle, apply the parking brake and
switch off the engine.

Open the bonnet and secure it with the

stay.

F Open the filler cap for the screenwash

reservoir.

Check the level using the gauge, then top

up if necessary.

Refit the cap on the reservoir and close

the bonnet.

In wintry conditions, the use of fluid with
an ethyl alcohol or methanol base is
recommended.

186

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Checking components

12 V battery

Electrolyte level

For access to the 12 V Battery, refer
to the corresponding section.

Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.

Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.

Oil filter

If necessary, top up using distilled water,
removing the battery cap from each cell.
Check the electrolyte level at least once a
month.
When carrying out work on the 12 V Battery,
refer to the corresponding section for
details of the precautions to be taken before
disconnecting the battery and following its
reconnection.

Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualified workshop.

The electrolyte level must be between the
"LOWER LEVEL" and "UPPER LEVEL" marks.

Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary

A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.

187

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Manual gearbox

For servicing of the gearbox, refer to
the manufacturer's service schedule
for details of the interval for checking
this component.

"CVT" gearbox

For servicing of the "CVT" gearbox,
refer to the manufacturer's service
schedule for details of the interval for
checking this component.

Particle filter (Diesel)

The start of saturation of the particle filter is
indicated by the temporary illumination of this
warning lamp, accompanied by a message in
the instrument panel screen.

As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 25 mph (40 km/h) for
about 20 minutes (with the 1.6 litre HDi
engine, the minimum speed is 37 mph
(60 km/h)).
If the warning lamp stays on, this
indicates a low additive level.
For more information on Checking
levels

and the Diesel additive level in

particular, refer to the corresponding
section.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

188

Practical information

C4-Aircross_en_Chap07_info-pratiques_ed01-2016

Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.

Brake pads

For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.

Brake disc wear

Parking brake

If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.

Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.

Checking this system must be done by a
CITROËN dealer or a qualified workshop.

Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.

189

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

This kit is installed in the boot under the floor.

Complete system consisting of a compressor and a sealant cartridge which permits the temporary
repair

of a tyre so that you can drive to the nearest garage.

It is designed to repair most punctures which could affect the tyre, located on the tyre tread or
shoulder.

Temporary puncture repair kit

Access to the kit

For access to it:
F

Open the boot.

Lift and remove the floor.

Take out the kit.

The vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.

Composition of the kit

12 V compressor with integral pressure

gauge, to measure and adjust the tyre
pressure.

As the compressor is not sealed, keep it
away from sand, dust and water.

The puncture repair kit cannot be used
in the following circumstances:
- the use-by date for the sealant

cartridge has been exceeded (see
the label on the cartridge),

- more than one tyre is punctured

whereas you have just one sealant
cartridge supplied with the kit,

- the hole in the tyre exceeds 4 mm

in diameter,

- the puncture is on the sidewall of

the tyre,

- you have continued to drive with a

flat tyre,

- the bead of the tyre is detached

from the wheel rim,

- the wheel rim is damaged.

190

In the event of a breakdown

C4-Aircross_en_Chap08_En-cas-de-panne_ed01-2016

After repairing the tyre, the speed
restriction sticker should be affixed
to the centre of the vehicle's steering
wheel to remind you that this wheel
must only be used temporarily.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.

Repair procedure

F Stop the vehicle in as safe a location as

possible and on a level and stable surface.

Ensure that the tyre valve is not at the
bottom of the wheel, in contact with the
ground.

Apply the parking brake.

Place the gear lever in position R for

vehicles with a manual gearbox, or in
position P

for vehicles with a CVT gearbox.

Switch off the ignition.

Sealant cartridge for the temporary repair

of a tyre.

Replacement valve core.

Valve core removal/fitting tool.

Injection end-piece.

Speed restriction sticker.

Remove the valve cap for the tyre to be

repaired and keep it in a clean place.

At temperatures below 0°C, the
sealant product may thicken. Warm
the cartridge inside the vehicle before
using it.

Turn the valve core tool around, insert it

in the valve and unscrew and remove the
valve core.

Keep the valve core in a clean place.

Insert the tyre valve core removal tool into

the valve and press on the tool to exhaust
all of the air from the tyre.

Citroen C4 Aircross (2017 year). Instruction - part 12
