TECHNICAL DATA

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

HDi 70

PEF

HDi 90

PEF 99g

HDi 90

PEF

HDi 90

PEF

Gearbox

Manual

Model codes:
SC...

8HZC

8HR0

9HXC

9HP4

9HP0

9HP0/S

Unladen weight

1 065

1 070

1 080

1 085

Kerb weight

1 140

1 145

1 155

1 160

Gross vehicle weight (GVW)

1 564

1 581

1 607

1 583

1 608

1 625

Gross train weight (GTW)

on a 12 % gradient

2 464

2 281

2 507

2 083

2 508

2 525

Braked trailer (within GTW limit)

on 12 % gradient

900

700

900

500

900

Braked trailer * (with load transfer with the
GTW limit)

1 150

950

1 150

500

1 150

Unbraked trailer

570

500

570

Recommended nose weight

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

1 2

TECHNICAL DATA

* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an

equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

HDi 110 PEF

Gearboxes

Manual

Model codes:
SC...

9HR8

Unladen weight

1 090

Kerb weight

1 165

Gross vehicle weight (GVW)

1 632

Gross train weight (GTW)

on a 12 % slope

2 532

Braked trailer (within the GTW limit)

on a 12 % slope

900

Braked trailer * (with transfer of load
within the GTW limit)

1 150

Unbraked trailer

570

Recommended nose weight

1 2

TECHNICAL DATA

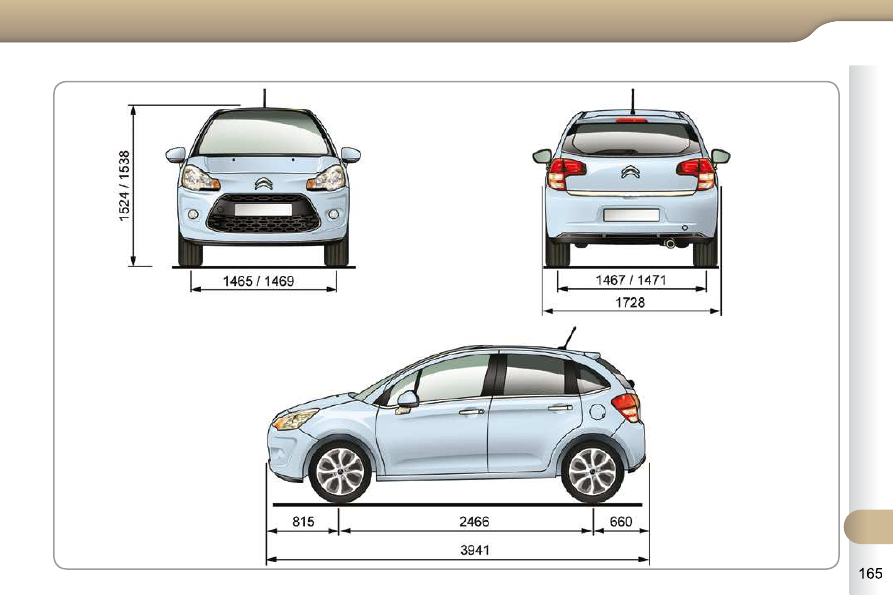

DIMENSIONS (IN MM)

1 2

TECHNICAL DATA

The tyre pressures must be
checked when the tyres are cold,
at least once a month.

Low tyre pressures increase fuel
consumption.

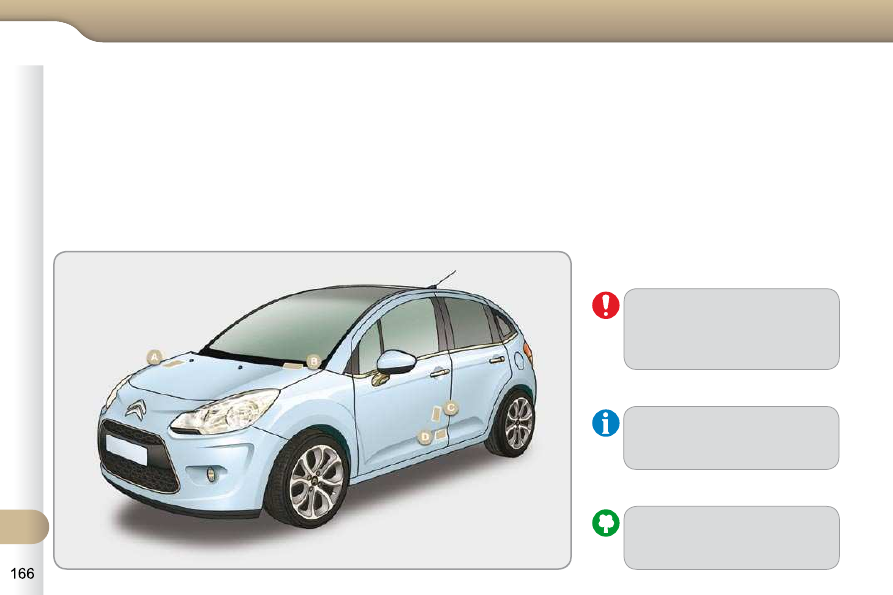

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation of your vehicle.

A. Vehicle identiﬁ cation number (VIN)

under the bonnet.

This number is engraved on the body-
work near the damper mounting.

B. Vehicle identiﬁ cation number on

the dashboard.

This number is indicated on a self-ad-
hesive label which is visible through the
windscreen.

C. Manufacturer's label.
The VIN is indicated on a self-destroy-

ing label afﬁ xed to the left hand centre

pillar.

D. Tyre/paint label.
This label is afﬁ xed to the left hand cen-

tre pillar.
It bears the following information:
-

the tyre pressures, for unladen and
laden conditions,

the wheel rim and tyre sizes,

the brands of tyre recommended by
the manufacturer,

- the spare tyre inﬂ ation pressure,
-

the paint colour code.

Wheels which are ﬁ tted with

205/45 R17 tyres cannot be ﬁ t-

ted with snow chains. For more
information, contact a CITROËN

dealer or a qualiﬁ ed workshop.

SAFETY

BRAKING ASSISTANCE
SYSTEMS

Group of supplementary systems which

help you to obtain optimum braking in

complete safety in emergency situa-

tions:
- anti-lock braking system (ABS),

- electronic brake force distribution

(EBFD),

- emergency braking assistance (EBA).

Anti-lock braking system
and electronic brake force
distribution

Linked systems which improve the sta-

bility and manoeuvrability of your vehi-

cle when braking, in particular on poor

or slippery surfaces.

Activation
The anti-lock braking system comes

into operation automatically when there

is a risk of wheel lock.
Normal operation of the ABS may make

itself felt by slight vibration of the brake
pedal.

When braking in an emergency,

press very ﬁ rmly without releasing

the pressure.

Operating fault

In either case, contact a CITROËN

dealer or a qualiﬁ ed workshop.

If this warning lamp comes on,

accompanied by an audible

signal and a message in the

multifunction screen, it indicates a mal-

function of the anti-lock braking system

which could result in loss of control of

the vehicle when braking.

If this warning lamp comes

on, together with the STOP

and ABS

warning lamps, ac-

companied by an audible signal and a

message in the multifunction screen, it

indicates a malfunction of the electron-

ic brake force distribution which could

result in loss of control of the vehicle

when braking.
You must stop as soon as it is safe
to do so.

When replacing wheels (tyres

and rims), ensure that they con-

form to the manufacturer's rec-

ommendations.

Emergency braking assistance

System which, in an emergency, en-

ables you to obtain the optimum braking

pressure more quickly, thus reducing

the stopping distance.

Activation

It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the

resistance of the pedal and an increase

in braking efﬁ ciency.

When braking in an emergency,

press ﬁ rmly without releasing

the pressure.

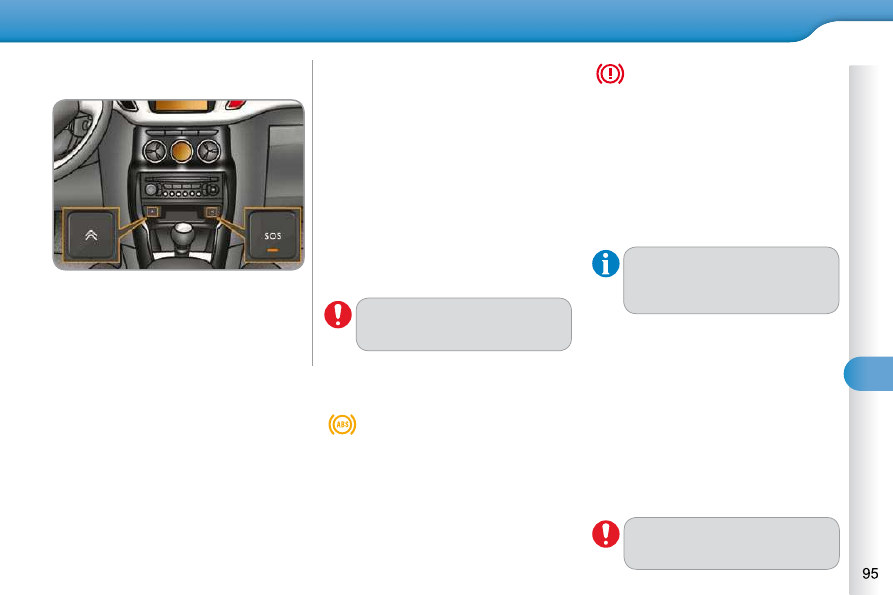

EMERGENCY OR ASSISTANCE
CALL

This system allows you to make an

emergency or assistance call to the

emergency services or to the dedicated

CITROËN service.

For more information on the use of this

function, refer to the "Audio and tele-

matics" section.

168

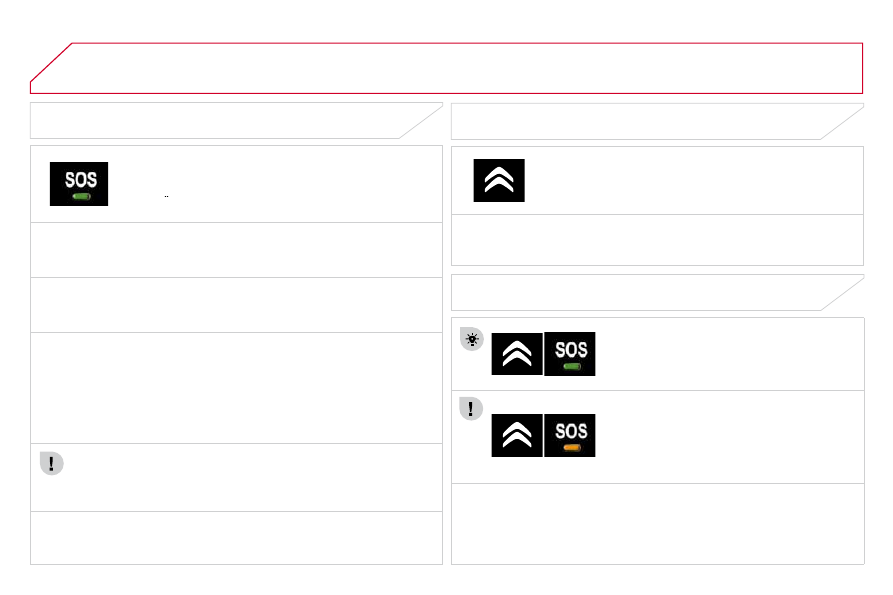

EMERGENCY OR ASSISTANCE CALL

EMERGENCY CALL

In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a

voice message conﬁ rm that the call has been made to the

CITROËN Emergency team * .

voice message conﬁ rm that the call has been made to the

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.

ASSISTANCE CALL

If you purchased your vehicle outside the CITROËN dealer network,

we invite you to have a dealer check the conﬁ guration of these services

and, if desired, modiﬁ ed to suit your wishes. In a multi-lingual country,

conﬁ guration is possible in the ofﬁ cial national language of your choice.

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating
correctly.

Pressing this button again immediately cancels the request.
The cancellation is conﬁ rmed by a voice message.

  Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message conﬁ rms that the call has been made * .

OPERATION OF THE SYSTEM

The green indicator lamp remains on (without ﬂ ashing) when

communication is established. It goes off at the end of communication.

This call is dealt with by the CITROËN Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,

the call is dealt with directly by the emergency services (112) without

the vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.

If the orange indicator lamp ﬂ ashes: there is

a system fault.
If the orange indicator lamp is on continuously:

the backup battery must be replaced.
In either case, contact a CITROËN dealer or

a qualiﬁ ed workshop.

* These services are subject to conditions and availability.
Consult a CITROËN dealer.

169

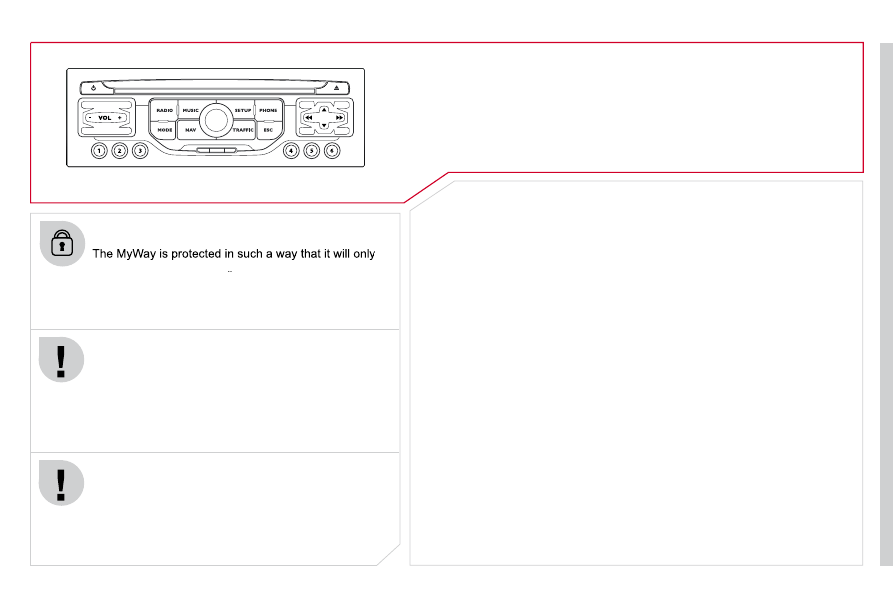

operate in your vehicle. If it is to be installed in another

vehicle, contact a CITROËN dealer for conﬁ guration of

operate in your vehicle. If it is to be installed in another

the system.

Certain functions described in this handbook will

become available during the year.

MYWAY

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the MyWay switches off

following the activation of the Energy Economy mode.

MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD

01 First steps

CONTENTS

  02  Steering mounted controls
  03  General operation
  04  Navigation - Guidance
  05  Traffic information
  06  Radio
  07  Music media players
  08  Bluetooth telephone
  09  Configuration
  10  Trip computer

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

11 Screen menu map
Frequently asked questions

p.
p.

170
171
172
175
183
185
186
189
191
192
193
197

170

1. Engine not running:

- Short press: on/off.

- Long press: CD pause, mute for the radio.

Engine running:

- Short press: CD pause, mute for the radio.

- Long press: reinitialisation of the system.

2. Volume adjustment (each source is

independent, including also navigation

messages and alerts).

3. Access to the "Radio" Menu. Display the list of

stations.

4. Access to the "Music" Menu. Display the

tracks.

5. Access to the "SETUP" menu.

Long press: access to the GPS coverage and

the demonstration mode.

6. Access to the "Phone" Menu. Display the call list.

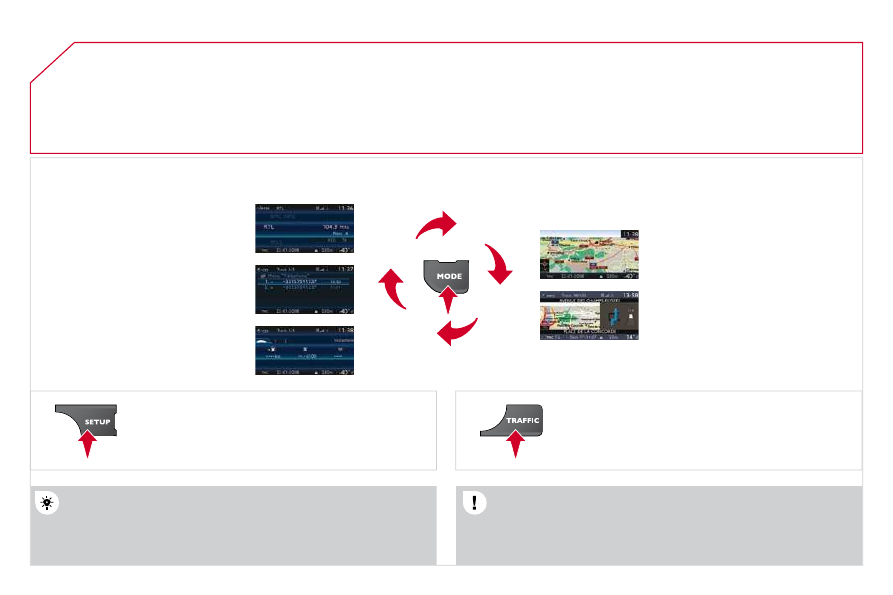

7. Access to the "MODE" menu.

Selection of the successive display of:

Radio, Map, NAV (if navigation is in progress),

Telephone (if a conversation is in progress), Trip

computer.

Long press: display of a black screen (DARK).

8. Access to the "Navigation" Menu. Display the

last destinations.

9. Access to the "Trafﬁ c" Menu. Display the current

trafﬁ c alerts.

10. ESC: abandon the operation in progress.

11. CD eject.

12. Selection of the previous/next radio station from

the list.

Selection of the previous/next MP3 folder.

Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.

Selection of the previous/next CD or MP3 track.

Selection of the previous/next line of a list.

14. Buttons 1 to 6:

Selection of the stored radio station.

Long press: store the current radio station.

15. SD card reader (navigation SD card only).

16. Dial for selection of the screen display and

according to the context of the menu.

Short press: contextual menu or conﬁ rmation.

Long press press: contextual menu speciﬁ c to

the list displayed.

FIRST STEPS

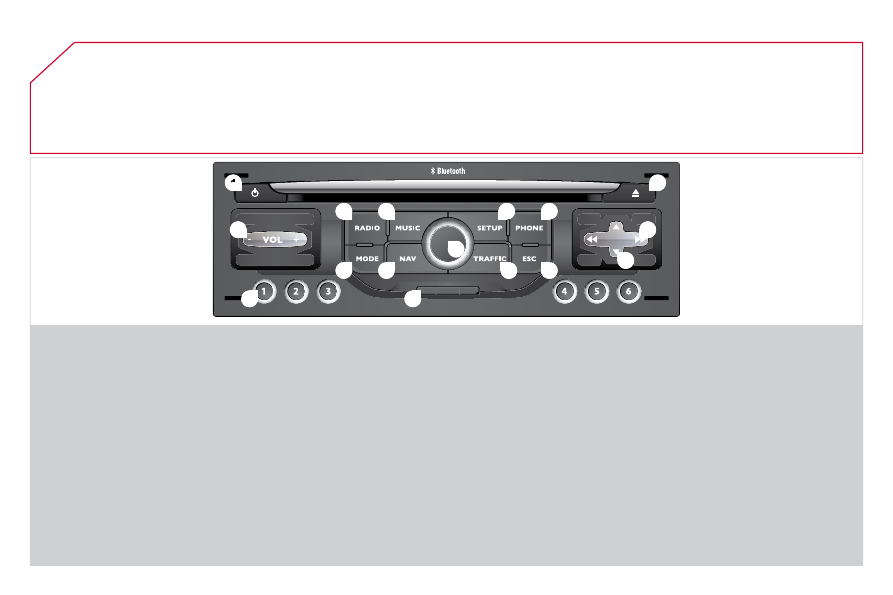

MyWay CONTROL PANEL

3 - 4. Long press: access to the audio settings:

front/rear fader and left/right balance, bass/

treble, equaliser, loudness, automatic volume

adjustment, initialise the settings.

171

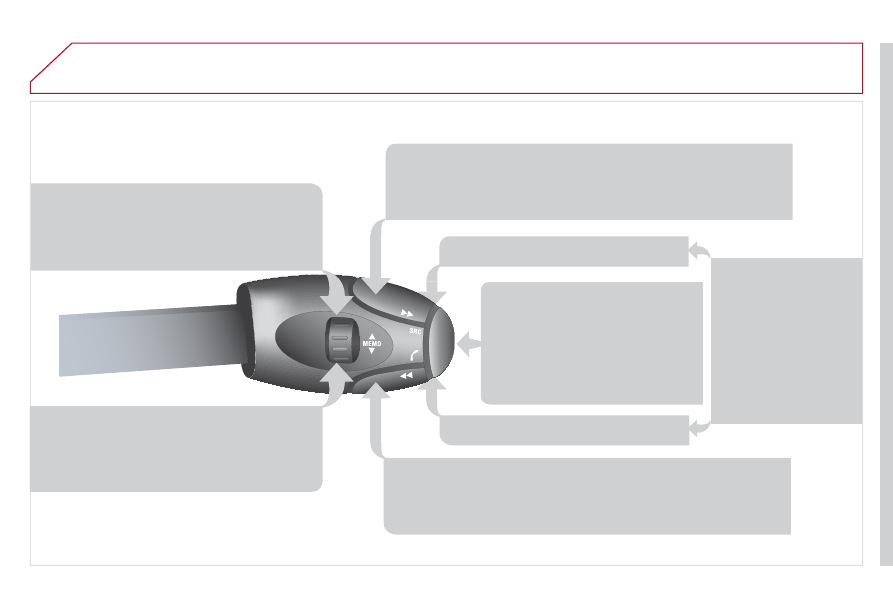

02 STEERING MOUNTED CONTROLS

RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.

Selection of the next entry in the address book.

RADIO: change to the next radio station on the list.

Long press: automatic search for a higher frequency.

CD: selection of the next track.

CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.

Long press: automatic search for a lower frequency.

CD: selection of the previous track.

CD: continuous press: fast reverse.

- Change the sound source.
-

Make a call from the address
book.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the address book.

Volume increase.

Volume decrease.

Mute: function activated

by pressing the volume

increase and decrease
buttons simultaneously.
Restore the sound by

pressing one of the

two volume buttons.

172

03 GENERAL OPERATION

For a detailed global view of the menus available, refer to

the "Screen menu map" section.

Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

RADIO/MUSIC MEDIA PLAYERS

TELEPHONE
(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION
(If guidance is in progress)

SETUP:
system language * , date and time * , display,

vehicle settings * , unit and system settings,

"Demo mode".

TRAFFIC:
TMC information and messages.

* Available according to model.

TRIP COMPUTER

173

03 GENERAL OPERATION

A press on the OK dial gives access to

short-cut menus according to the display

on the screen.

DISPLAY ACCORDING TO THE CONTEXT

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

TRIP COMPUTER:

Abort guidance

Repeat advice

Block road

Route info

Show destination

Trip info

Route type

Avoid

Satellites

Zoom/Scroll

Voice advice

Route options

Alert log

Status of functions

TELEPHONE:

End call

Hold call

Dial

DTMF-Tones

Private mode

Micro off

174

03 GENERAL OPERATION

DISPLAY ACCORDING TO THE CONTEXT

FULL SCREEN MAP:

Abort guidance/Resume guidance

Set destination

POIs nearby

Position info

Map settings

Zoom/Scroll

RADIO:

In FM mode

Trafﬁ c info (TA)

RDS

Radiotext

Regional prog.

In AM mode

Refresh AM list

MUSIC MEDIA PLAYERS:

Trafﬁ c info (TA)

Play options

Normal order

Random track

Repeat folder

Select music

Scan

175

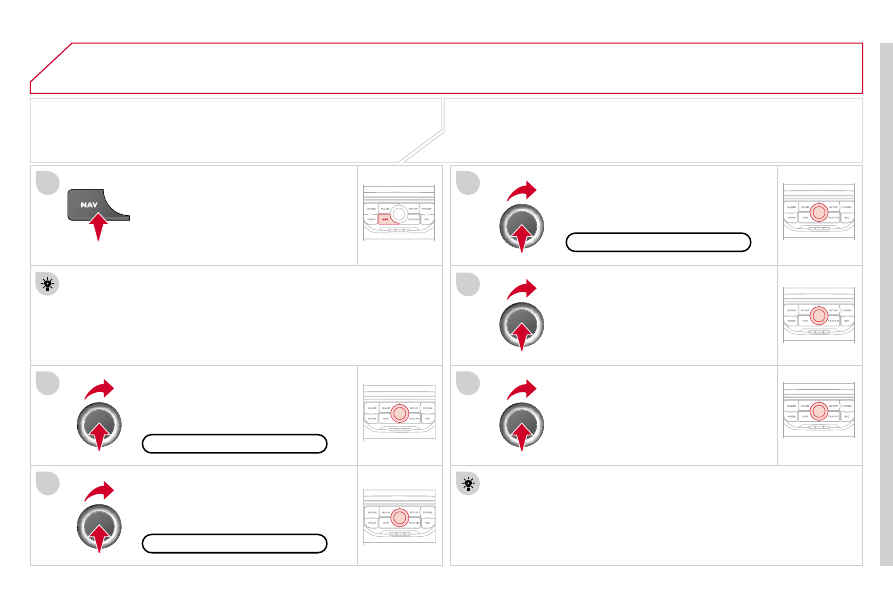

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Destination input"

function and press the dial to

conﬁ rm.

Press the NAV button.

Select the letters of the town one

by one conﬁ rming each time by

pressing the dial.

Once the country has been selected,
turn the dial and select the town

function. Press the dial to conﬁ rm.

Insert the SD card in the front panel reader and leave it there to use the

Navigation functions.

The navigation SD card data must not be modiﬁ ed.
Map data updates are available from CITROËN dealers.

A pre-set list (by entering the ﬁ rst few letters) of the towns in the

country selected can be accessed via the LIST button on the virtual
keypad.

Select the "Address input" function

and press the dial to conﬁ rm.

The list of the last 20 destinations appears under the Navigation

Menu function.

Navigation Menu

Destination input

Address input

176

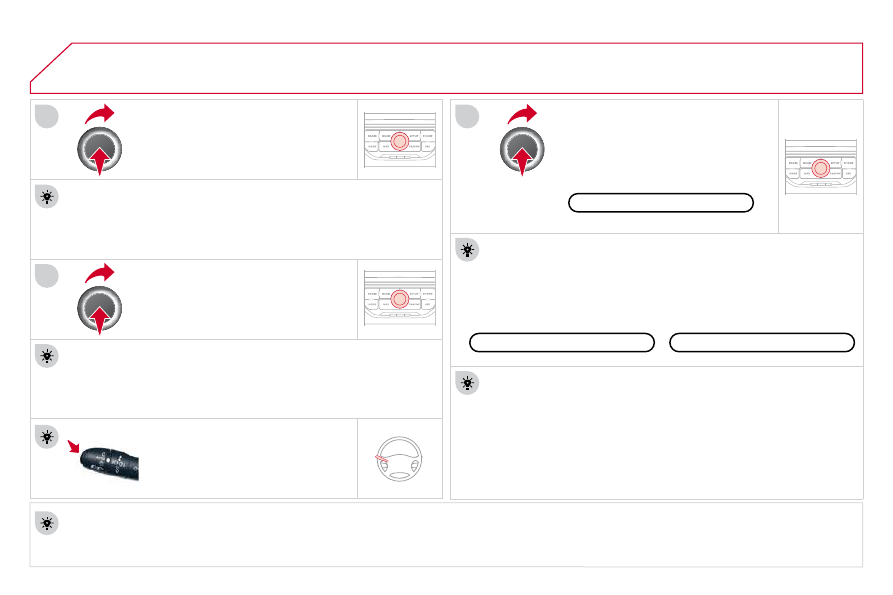

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:

Delete entry

Delete list

Repeat steps 5 to 7 for the "Street"

and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

MyWay allows up to 500 contact ﬁ les to be recorded.

To speed up the process, the post code can be entered directly

after selecting the "Postal code" function.

Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end

of the lighting stalk repeats the last

guidance instruction.

Map settings
You can zoom in/zoom out on the map using the dial.
It is possible to move the map or select its orientation via the short-

cut menu of the FULL SCREEN MAP.

Press MODE until the map is displayed full screen. Press the dial

then select "Map settings". Select "2.5D Map" or "2D Map" and in

the latter case, select "North Up" or "Heading Up".

Select the route type:
"Fast route", "Short route" or "Optimized route" and press the dial

to conﬁ rm.
It is also possible to select a destination via "Choose from address
book" or "Choose from last destinations".

Choose from last destinations

Choose from address book

Start route guidance

NAVIGATION - GUIDANCE

177

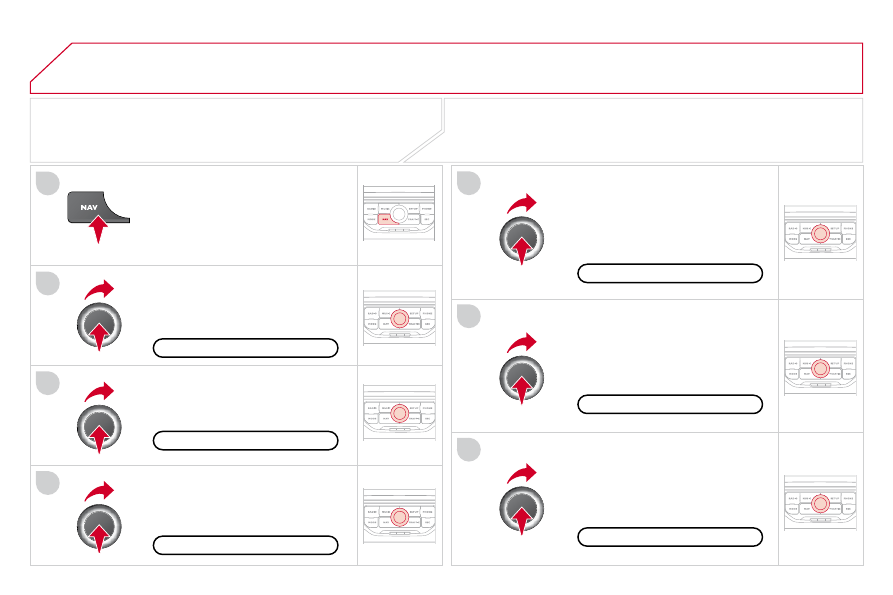

NAVIGATION - GUIDANCE

SETTING AND NAVIGATING TO
MY "HOME ADDRESS"

Press the NAV button twice to display

the Navigation Menu.

To be set as the "Home address", an address must ﬁ rst be

entered in the address book, for example from "Destination

input"/"Address input" then "Save to address book".

Select "Address book" and conﬁ rm.

Then select "Search entry (complete

address book)" and conﬁ rm.

Select "Destination input" and conﬁ rm.

Then select "Choose from address

book" and conﬁ rm.

Select "Set as home address" and

conﬁ rm to save.

Select your home address and conﬁ rm.

Then select "Edit entry" and conﬁ rm.

To start navigation towards "Home address", press NAV twice

to display the Navigation Menu, select "Destination input" and

conﬁ rm.

Then select "Navigate HOME" and conﬁ rm to start guidance.

Navigation Menu

Destination input

Address book

Edit entry

Set as "Home address"

178

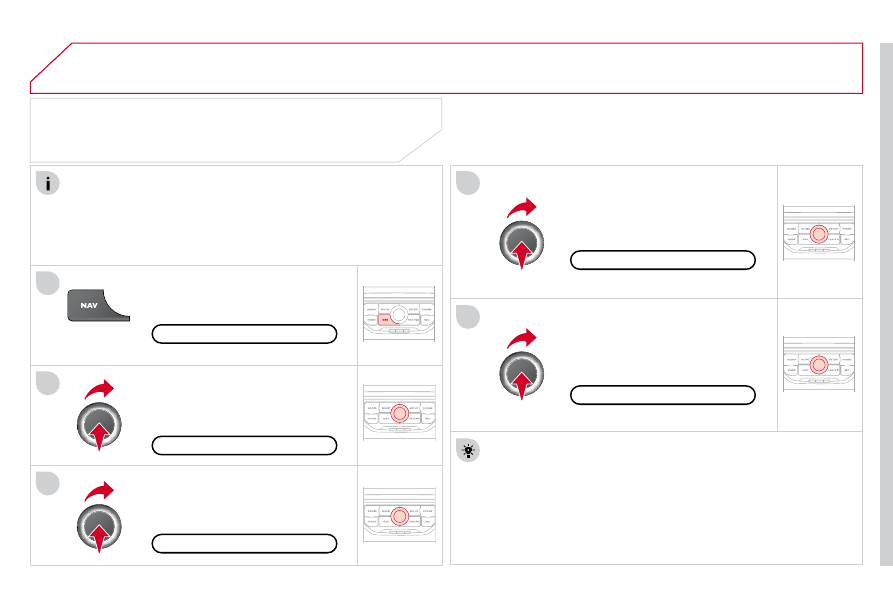

NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics"
function.
This function gives access to the

"Trafﬁ c independent" or "Semi-

dynamic" options.

Select the "Avoidance criteria"
function. This function provides

access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select

the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Route type" function

and press the dial to conﬁ rm. This

function allows you to change the

route type.

Select the "Route options" function

and press the dial to conﬁ rm.

Recalculate

Avoidance criteria

Route dynamics

Route type

Route options

Navigation Menu

The route selected by the MyWay system depends directly on the route
options.
Changing these options may change the route completely.

Content .. 10 11 12 13 ..
