PRACTICAL INFORMATION

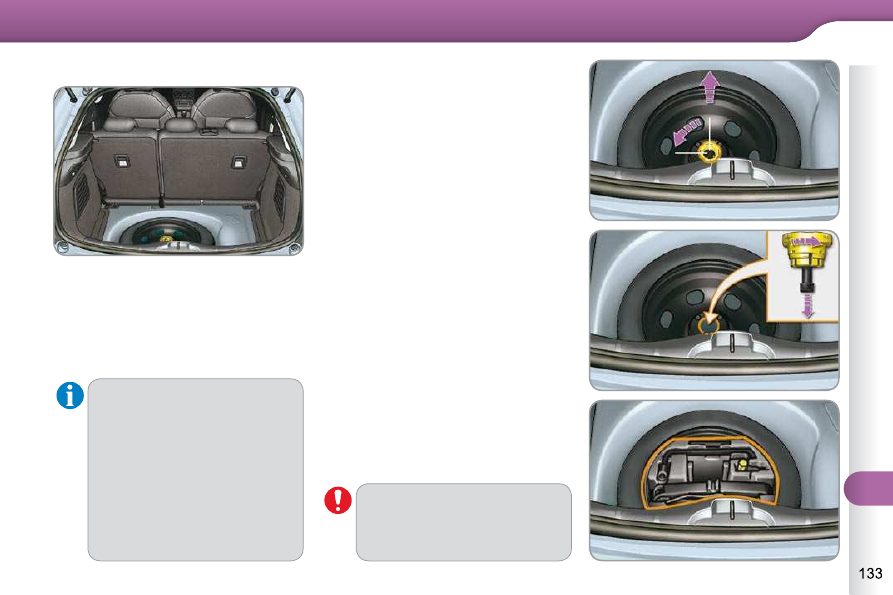

Access to the spare wheel

The spare wheel is installed in the boot

under the ﬂ oor.

According to country, the spare wheel may

be steel or of the "space-saver" type.

To gain access to it, refer to the para-

graph "Access to the tools" on the previ-

ous page.

Fitting the steel or
"space-saver" type spare
wheel
If your vehicle is ﬁ tted with al-

loy wheels, it is normal to notice,

when tightening the bolts on ﬁ t-

ting, that the washers do not

come into contact with the steel

or "space-saver" type spare

wheel. The wheel is secured by

the conical contact of each bolt.

Taking out the wheel


Unscrew the yellow central bolt.



Raise the spare wheel towards you

from the rear.



Take the wheel out of the boot.

Putting the wheel back in place


Put the wheel back in its housing.



Unscrew the yellow central bolt by a

few turns then put it in place in the

centre of the wheel.



Tighten fully until the central bolt

clicks to retain the wheel correctly.



Put the box back in place in the centre

of the wheel and clip it.



Put the polystyrene storage box

back in place.



Reﬁ t the boot ﬂ oor carpet by lightly

folding it in two (refer to the section

"Fittings - § Storage box").

On vehicles equipped with a

"space-saver" type spare wheel,

the punctured wheel cannot be

stowed in place of the "space-

saver" wheel.

PRACTICAL INFORMATION

* position R for a "SensoDrive" gearbox;

position P for an automatic gearbox.

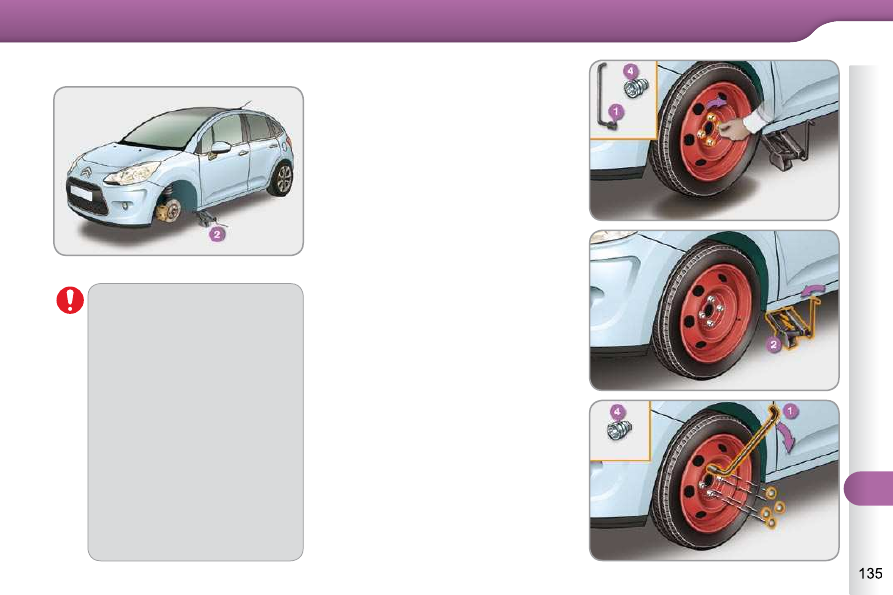

Removing the wheel

Parking the vehicle
Immobilise the vehicle where it

does not block trafﬁ c: the ground

must be level, stable and not

slippery.

Apply the parking brake, switch

off the ignition and engage ﬁ rst

gear * to lock the wheels.

If necessary, place a chock under

the wheel diagonally opposite the

wheel to be changed.

It is imperative that you ensure

that the occupants get out of the

vehicle and wait where they are

safe.

Never go underneath a vehicle

raised using a jack; use an axle

stand.

List of operations


Remove the chromed bolt cover from

each of the bolts using the tool 3 .



Fit the security bolt socket 4 on the

wheelbrace 1

to slacken the security

bolt.



Slacken the other bolts using the

wheelbrace 1

only.



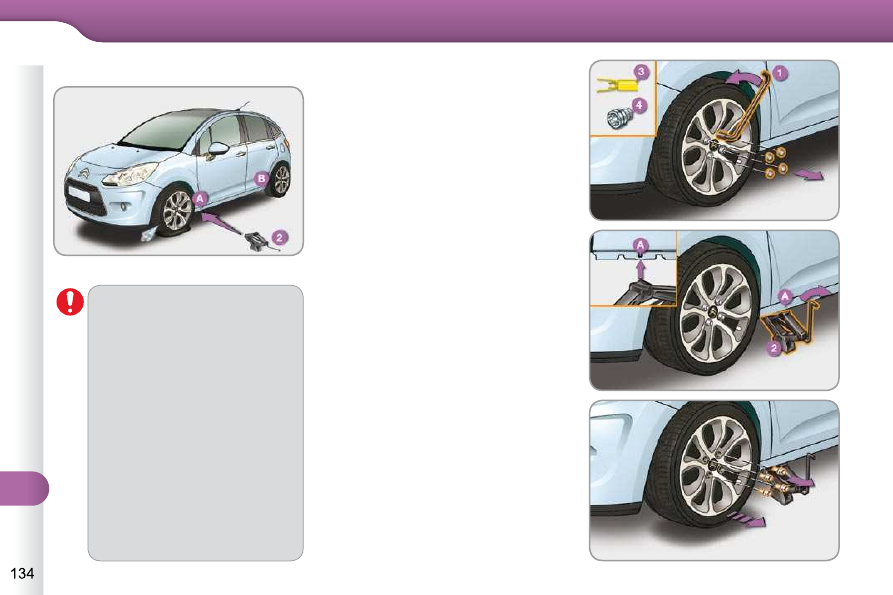

Place the jack 2 in contact with one

of the two front A or rear B locations

provided on the underbody, which-

ever is closest to the wheel to be

changed.



Extend the jack 2 until its base plate

is in contact with the ground. Ensure

that the centreline of the jack base

plate is directly below the location A

or B used.



Raise the vehicle until there is suf-

ﬁ cient space between the wheel and

the ground to admit the spare (not

punctured) wheel easily.



Remove the bolts and store them in

a clean place.



Remove the wheel.

PRACTICAL INFORMATION

After changing a wheel
To store the punctured wheel in

the boot correctly, ﬁ rst remove

the central cover.

When using the "space-saver"

type temporary use spare wheel,

do not exceed 50 mph (80 km/h).

Have the tightening of the bolts

and the pressure of the spare

wheel checked by a CITROËN

dealer or a qualiﬁ ed workshop

without delay.

Have the punctured wheel re-

paired and replace it on the vehicle

as soon as possible.

Do not drive with more than one

temporary use spare wheel ﬁ tted

to the vehicle at one time.

Fitting the wheel

List of operations


Put the wheel in place on the hub.



Screw in the bolts by hand.



Pre-tighten the security bolt using

the wheelbrace 1

ﬁ tted with the se-

curity bolt socket 4 .



Pre-tighten the other bolts using the

wheelbrace 1

only.



Lower the vehicle fully.



Fold the jack 2 and detach it.



Tighten the security bolt using the

wheelbrace 1

ﬁ tted with the security

bolt socket 4 .



Tighten the other bolts using the

wheelbrace 1

only.



Reﬁ t the chromed bolt covers on

each of the bolts.



Store the tools in the box.

PRACTICAL INFORMATION

The headlamps are ﬁ tted with

polycarbonate glass with a pro-

tective coating:
 do not clean them using a

dry or abrasive cloth, nor
with a detergent or solvent
product,



use a sponge and soapy water,



when using a high pressure

washer on persistent marks,

do not direct at the lamps or

their outlines for too long, so

as not to damage their pro-

tective coating and seals.

CHANGING A BULB



Do not touch the bulb directly

with your ﬁ ngers, use lint-

free cloths.

Changing a bulb should only be

done after the headlamp has

been switched off for a few min-

utes (risk of serious burns).

It is imperative to use only anti-

ultraviolet (UV) type bulbs in

order not to damage the head-

lamp.

Always replace a failed bulb with

a new bulb with the same type

and speciﬁ cation.

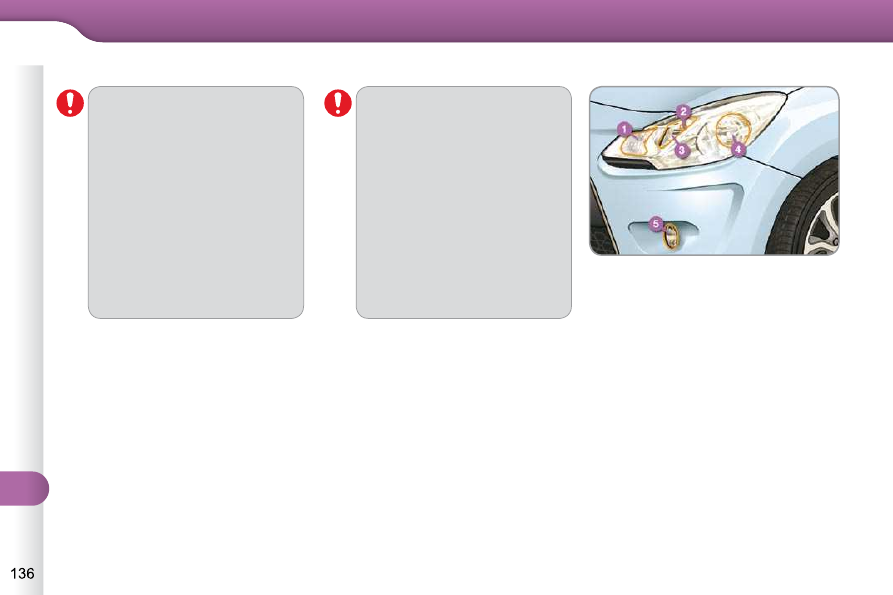

Front lamps

1. Direction indicators

(PY 21 W amber).

  2.    Sidelamps (W 5 W).
  3.    Main beam headlamps (H1-55 W).
  4.    Dipped beam headlamps

(H7-55 W).

5. Front foglamps (PSX 24 W).

PRACTICAL INFORMATION

Changing direction indicator bulbs



Turn the bulb holder a quarter of a

turn and extract it.



Pull out the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

When reﬁ tting, close the protec-

tive cover carefully to preserve

the sealing of the headlamp.

Rapid ﬂ ashing of the direction

indicator warning lamp (right

or left) indicates the failure of a

bulb on that side.

Amber coloured bulbs, such as

the direction indicators, must be

replaced with bulbs of identical

speciﬁ cations and colour.

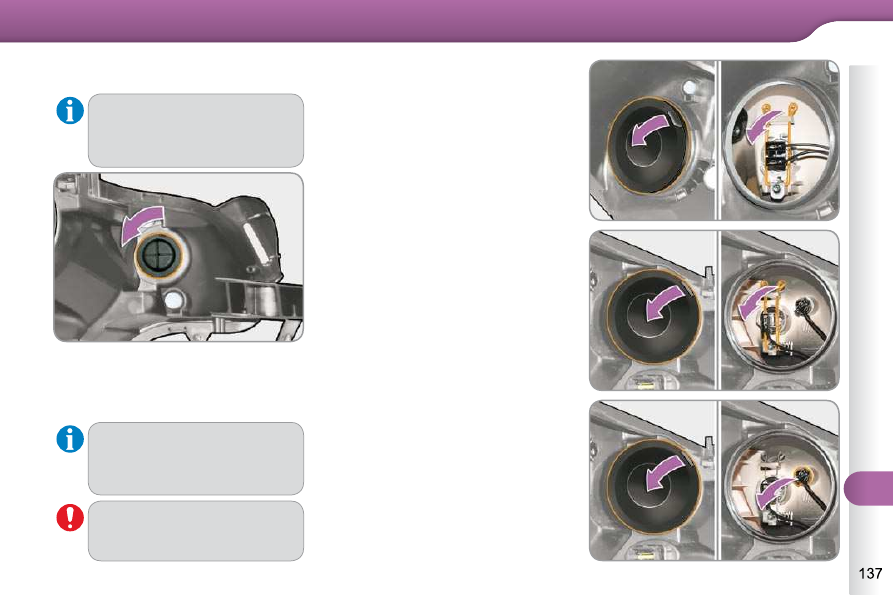

Changing dipped beam headlamp
bulbs



Remove the protective cover by

pulling on the tab.



Disconnect the bulb connector.



Spread the springs to release the

bulb.



Extract the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

Changing main beam headlamp
bulbs


Remove the protective cover by

pulling on the tab.



Disconnect the bulb connector.



Spread the springs to release the

bulb.



Remove the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

Changing sidelamp bulbs


Remove the protective cover by

pulling on the tab.



Pull the bulb holder pressing on the

tabs on both sides.



Pull the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

PRACTICAL INFORMATION

Changing front foglamp bulbs

To obtain a replacement module,

contact your CITROËN dealer or

a qualiﬁ ed workshop.

If you experience any difﬁ culty

in replacing bulbs, contact your

CITROËN dealer or a qualiﬁ ed

workshop.



Access to the front foglamp is through

the aperture below the bumper.



Disconnect the black bulb holder

connector, by pressing on the tab at

the top.



Remove the bulb-holber by press-

ing on the 2 clips (at the top and the

bottom).



Replace the module.

To reﬁ t, carry out these operations in

reverse order.

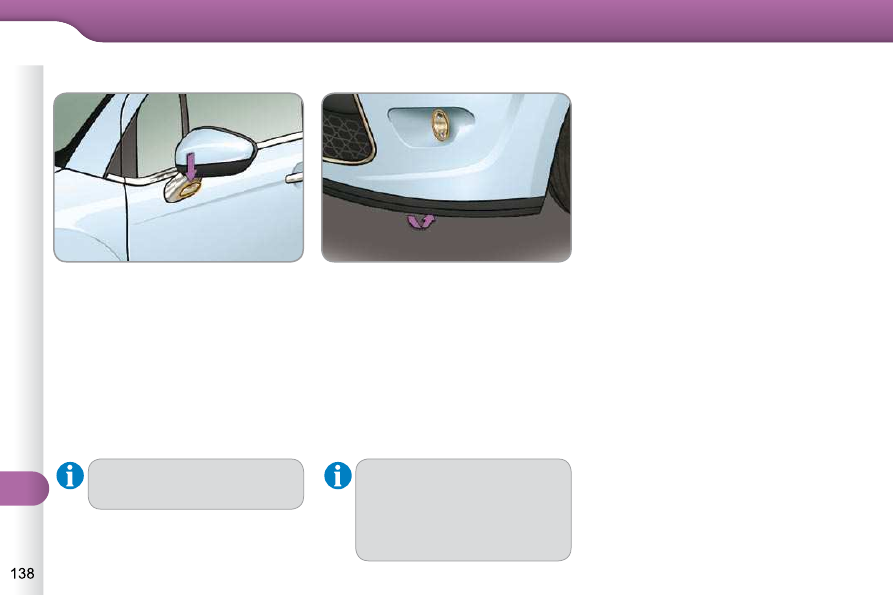

Changing integrated direction
indicator side repeaters



Insert a screwdriver towards the

centre of the repeater between the

repeater and the base of the door

mirror.



Tilt the screwdriver to extract the re-

peater and remove it.



Disconnect the repeater connector.



Replace the module.

To reﬁ t, carry out these operations in

reverse order.

Contact a CITROËN dealer or a

qualiﬁ ed workshop to obtain a re-

placement side repeater module.

PRACTICAL INFORMATION

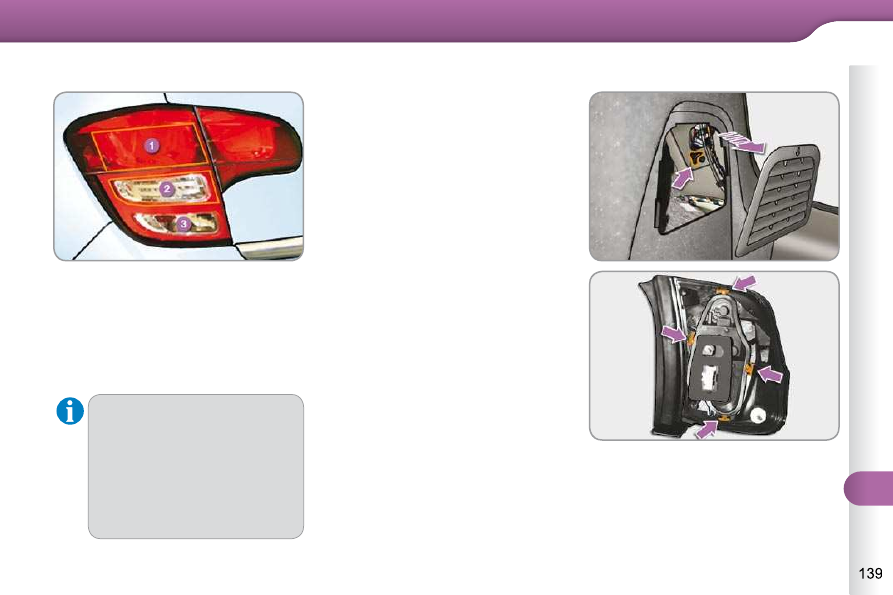

Rear lamps

1. Brake/sidelamps (P21/5W).
2. Direction indicators

(PY21W amber)

3. Foglamp, right-hand side

( PR21W red)

Reversing lamp , left-hand side
( P21W).

These four bulbs are changed from

inside the boot:


open the boot,



remove the access ﬂ ap from the

corresponding side trim panel,



unscrew the butterﬂ y nut securing

the lamp unit,



unclip the lamp unit connector,



extract the lamp unit carefully pulling

in its middle towards the outside,



spread the four tabs and remove the

bulb holder,



turn the bulb a quarter of a turn and

change it.

To reﬁ t, carry out these operations in re-

verse order.

Take care to engage the lamp unit in its

guides, while keeping it in line with the

vehicle.

Changing bulbs

Amber or red bulbs, such as

those for the direction indica-

tors and rear foglamp, must be

replaced by bulbs of the same

rating and colour.

The lamps on the tailgate are

dummy units. They are there for

aesthetic purposes only.

PRACTICAL INFORMATION

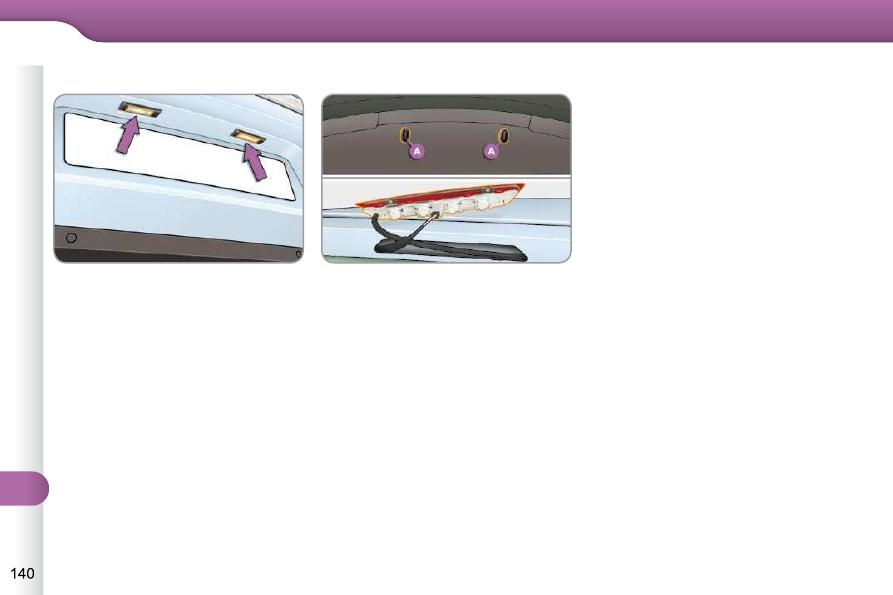

Changing the number plate lamp
bulbs (W5W)



Insert a thin screwdriver into one of

the outer holes of the lens.



Push it outwards to unclip.



Remove the lens.



Pull the bulb out and change it.



Open the boot.



Remove the plugs A on the inner

panel.



Push on the centre of the lamp

using two screwdrivers to lever it

outwards.



Disconnect the connector and if

necessary the screenwash pipe

from the lamp.



Turn the bulb holder for the faulty

bulb a quarter of a turn.



Pull out the bulb and change it.

To reﬁ t, carry out these operations in

reverse order.

Third brake lamp (4 W5W bulbs)

PRACTICAL INFORMATION

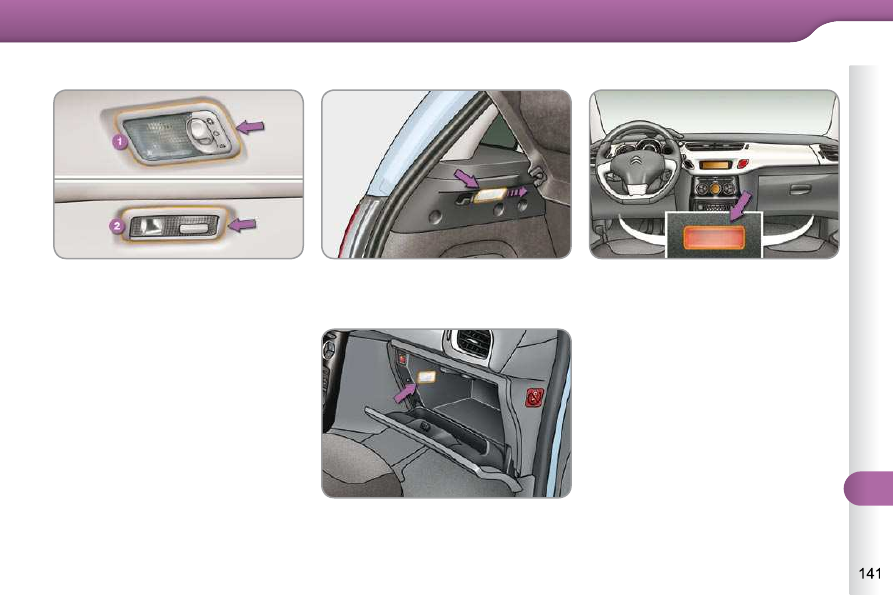

Interior lighting

Interior lamp (1/W5W)

Unclip the cover of the interior lamp with

a thin screwdriver, close to the button,

to access the faulty bulb.

Side reading lamps (2/W5W)

Unclip the cover of the reading lamp 2

with a small screwdriver at the switch

end for access to the faulty bulb.

Boot lamp (W5W)

Unclip the unit by pushing it from the

rear.

Glove box lamps (W5W)

Unclip the lamp to access the bulb.

Sill lamps (W5W)

Unclip the lamp to access the bulb.

PRACTICAL INFORMATION

CHANGING A FUSE

Procedure for replacing a faulty fuse

with a new fuse to rectify a failure of the

corresponding function.

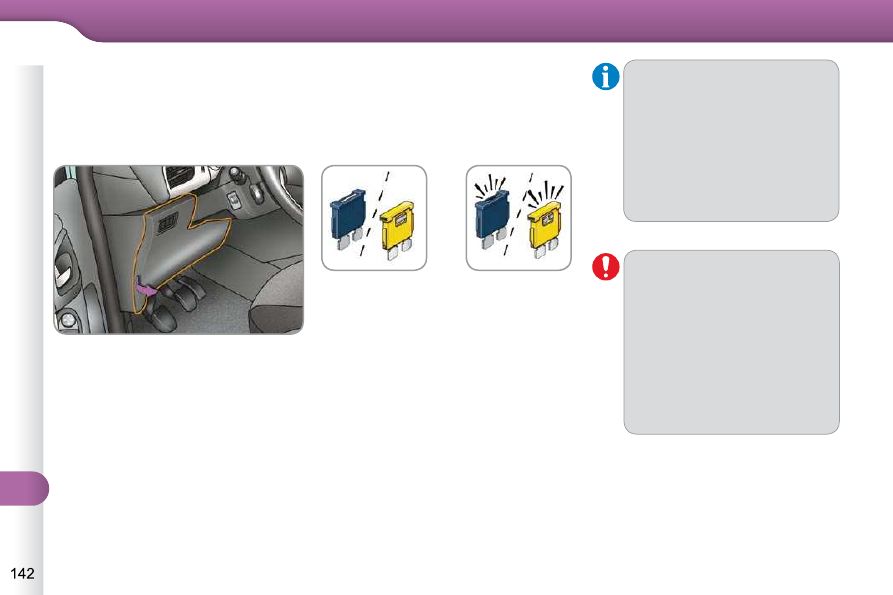

Access to the tools

The extraction tweezer and the spare

fuse storage locations are located on the

back of the dashboard fusebox cover.

For access to them:


unclip the cover by pulling on the

side,



remove the cover completely,



remove the pliers.

Changing a fuse

Before changing a fuse, the cause of the

failure must be identiﬁ ed and rectiﬁ ed.


Identify the faulty fuse by checking

the condition of its ﬁ lament.

Good

Failed



Use the special tweezer to extract

the fuse from its housing.



Always replace the faulty fuse with a

fuse of the same rating.



Check the correspondence between

the number marked on the box, the

rating marked on the fuse and the

tables below.

Installing electrical
accessories
Your vehicle's electrical system

is designed to operate with stan-

dard or optional equipment.

Before installing other electrical

equipment or accessories on

your vehicle, contact a CITROËN

dealer or a qualiﬁ ed workshop.

CITROËN will not accept re-

sponsibility for the cost incurred

in repairing your vehicle or for

rectifying malfunctions resulting

from the installation of accesso-

ries not supplied and not recom-

mended by CITROËN and not

installed in accordance with its

instructions, in particular when

the combined consumption of

all of the additional equipment

connected exceeds 10 milliam-

peres.

PRACTICAL INFORMATION

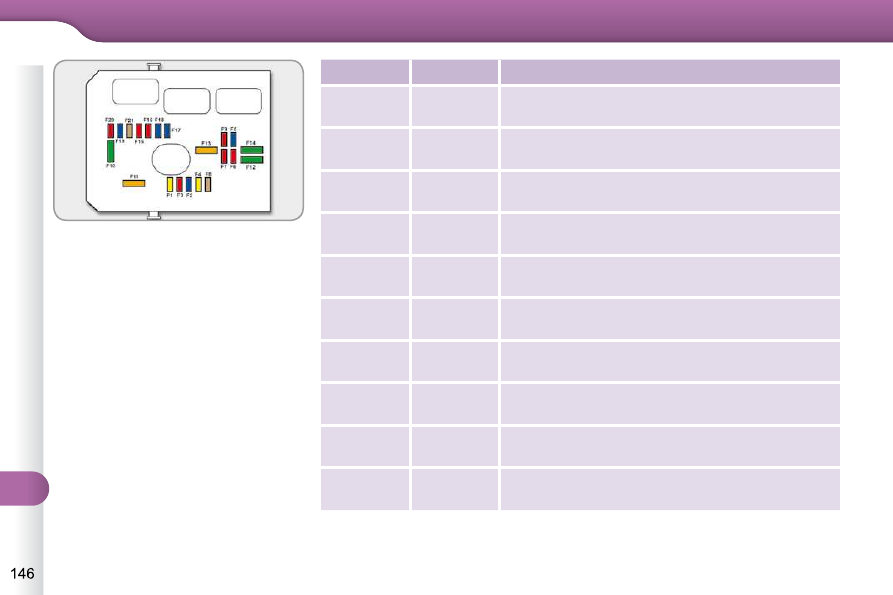

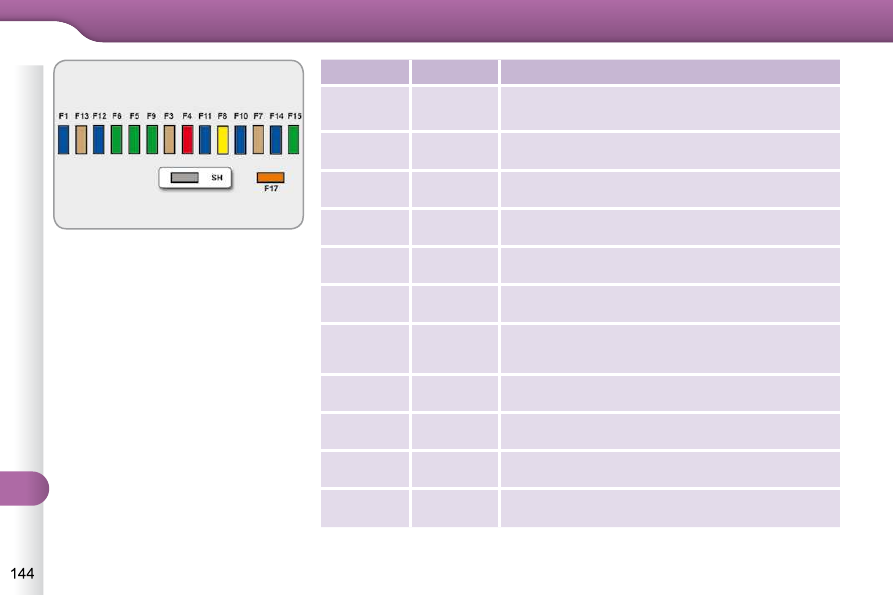

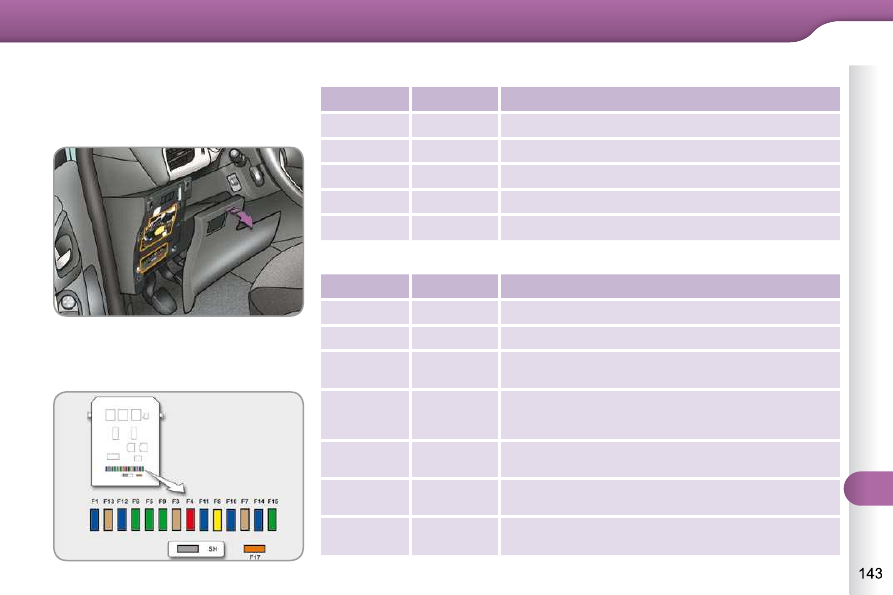

Dashboard fuse box

The fusebox is located in the lower

dashboard (left-hand side).

Access to the fuses


Refer to the paragraph "Access to

the tools".

Fuse tables

Fuse N°

Rating

Functions

FH36

5 A

Trailer relay unit.

FH37

Not used.

FH38

20 A

HiFi ampliﬁ er.

FH39

20 A

Heated seats.

FH40

30 A

Trailer relay unit.

Fuse N°

Rating

Functions

15 A

Rear wiper.

Not used.

5 A

Airbags and pretensioners control unit.

10 A

Air conditioning, clutch switch, electrochromatic

mirror, particle ﬁ lter pump (Diesel), diagnostic

socket, airﬂ ow sensor (Diesel).

30 A

Electric windows panel, passenger's electric

window control, front electric window motor.

30 A

Rear electric windows motors and driver's electric

window motor.

5 A

Courtesy lamp, glove box lighting, side reading

lamps.

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

20 A

Multifunction screen, audio system, navigation

radio, instrument panel with clock, alarm control

unit, alarm siren.

30 A

Audio system (after-market), 12 V socket, portable

navigation support supply.

F10

15 A

Steering mounted controls.

F11

15 A

Ignition, diagnostic socket, automatic gearbox

control unit.

F12

15 A

Rain/sunshine sensor, trailer relay unit, driving

school module.

F13

5 A

Main stop switch, engine relay unit.

F14

15 A

Parking sensors control unit, airbag control unit,

instrument panel, digital air conditioning, USB Box,

HiFi ampliﬁ er.

F15

30 A

Locking.

F16

Not used.

F17

40 A

Rear screen and door mirrors demisting/defrosting.

PARC shunt.

PRACTICAL INFORMATION

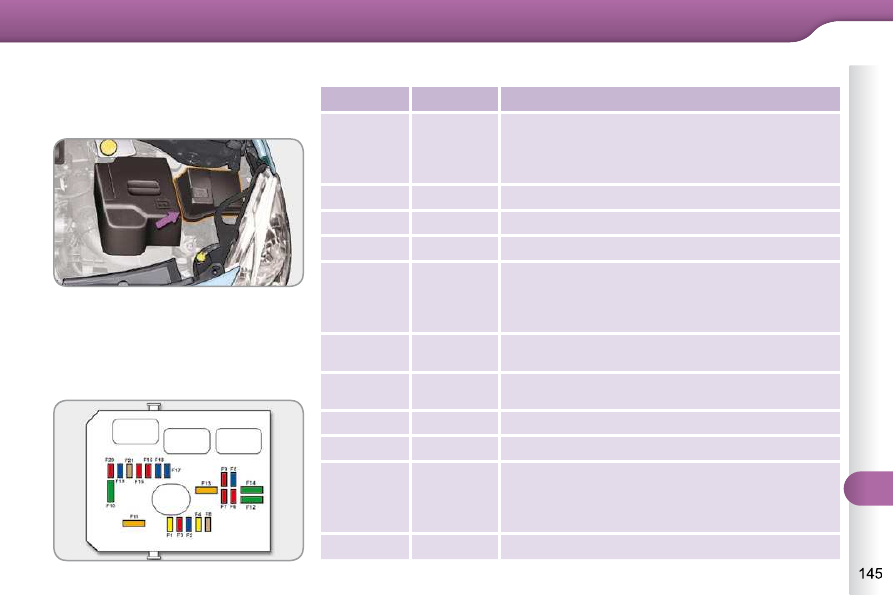

Engine compartment fuse box

The fusebox is located in the engine

compartment near the battery (left-hand

side).

Access to the fuses


Unclip the cover.



Change the fuse (see corresponding

paragraph).



When you have ﬁ nished, close the

cover carefully to ensure correct

sealing of the fusebox.

Fuse table

Fuse N°

Rating

Functions

20 A

Engine control unit supply, cooling fan unit control

relay, multifunction engine control main relay,

injection pump (Diesel).

15 A

Horn.

10 A

Front/rear wash-wipe.

20 A

Daytime running lamps.

15 A

Diesel heater (Diesel), particle ﬁ lter additive

pump (Diesel), air ﬂ ow sensor (Diesel), fuel pump

(1.1i and 1.4i), blow-by heater and electrovalves

(VTi).

10 A

ABS/ESP control unit, secondary stop switch.

10 A

Electric power steering, automatic gearbox.

25 A

Starter motor control.

10 A

Switching and protection unit (Diesel).

F10

30 A

Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and

Diesel), fuel pump (VTi), injectors and ignition coils

(petrol), electronic thermostat and canister purge

electrovalve (1.1i and 1.4i).

F11

40 A

Heater blower.

PRACTICAL INFORMATION

Fuse N°

Rating

Functions

F12

30 A

Windscreen wipers slow/fast speed.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Valvetronic supply (VTi).

F15

10 A

Right-hand main beam headlamps.

F16

10 A

Left-hand main beam headlamps.

F17

15 A

Left-hand dipped beam headlamps.

F18

15 A

Right-hand dipped beam headlamps.

F19

15 A

Oxygen sensors and electrovalves (VTi),

electrovalves (Diesel), EGR electrovalve (Diesel).

F20

10 A

Pumps, electronic thermostat (VTi) water in fuel

sensor (Diesel).

F21

5 A

Fan assembly control supply, ABS/ESP.

PRACTICAL INFORMATION

Table of maxi-fuses

Fuse N°

Rating

Functions

MF1 *

60 A

Fan assembly.

MF2 *

30 A

ABS/ESP pump.

MF3 *

30 A

ABS/ESP electrovalves.

MF4 *

60 A

Built-in Systems Interface (BSI) supply.

MF5 *

60 A

Built-in Systems Interface (BSI) supply.

MF6 *

Not used.

MF7 *

Dashboard fusebox.

MF8 *

Not used.

* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a

CITROËN dealer or a qualiﬁ ed workshop.

PRACTICAL INFORMATION

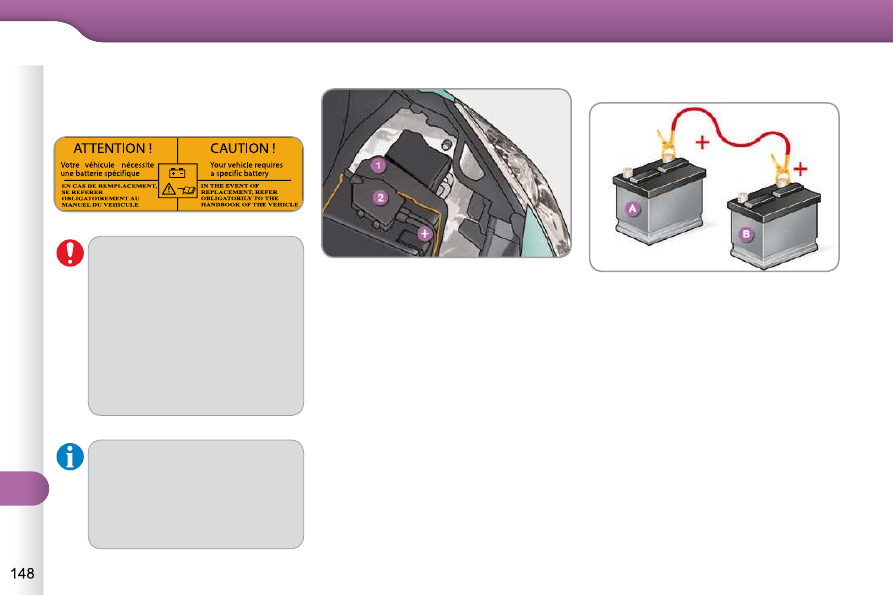

Starting using another battery



Connect the red cable to the posi-

tive terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of

the slave battery B .

BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

The battery is located under the bonnet.

To gain access to it:


open the bonnet using the interior

release lever, then the exterior safe-

ty catch,



secure the bonnet stay,



unclip the control unit housing 1 lo-

cated to the right of the battery,



unclip the fusebox 2 located on top

of the battery,



remove the cable from the (+) terminal,



remove the plastic cover.

Access to the battery

The presence of this label, in

particular with the Stop & Start

system, indicates the use of a

12 V lead-acid battery with spe-

cial technology and speciﬁ cation;

the involvement of a CITROËN

dealer or a qualiﬁ ed workshop is

essential when replacing or dis-

connecting the battery.

Failure to observe this recom-

mendation may cause prema-

ture wear of the battery.

After reﬁ tting the battery, the

Stop & Start system will only be

active after a continuous period

of immobilisation of the vehicle,

a period which depends on the

climatic conditions and the state

of charge of the battery (up to

about 8 hours).

Citroen C3 Dag (2010 year). Instruction - part 10
