Citroen Nemo Dag (2010 year). Instruction

Airbags

AIRBAGS

The airbags have been designed to
maximise the safety of the occupants in the
event of a serious collision; they work in
conjunction with the force limiting seat belts.
In the event of a serious collision, the
electronic detectors record and analyse the
front and side impacts suffered in the impact
detection zones:
- in the event of a serious impact, the

airbags inflate instantly and protect the
occupants of the vehicle. Immediately
after the impact, the airbags deflate
rapidly, so that they do not hinder the
visibility of the occupants nor their
possible exit from the vehicle.

- in the event of a minor or rear impact

and in certain roll-over conditions, the
airbags will not be deployed; the seat belt
alone is sufficient to provide maximum
protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Airbags only operate when the
ignition is switched on.

This equipment only operates once. If a
second impact occurs (during the same or
a subsequent accident), the airbag will not
operate.
The triggering of an airbag or airbags
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience some irritation.
The noise of the detonation may result in a
slight loss of hearing for a short time.

It is imperative that the passenger
airbag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 5.

Airbags

SIDE AIRBAGS

Activation

It is triggered unilaterally in the event of a
serious side impact, perpendicular to the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
outside towards the inside of the vehicle.
The side airbag inflates between the
front occupant of the vehicle and the
corresponding door trim pad.

In the event of a minor impact or bump
on the side of the vehicle or if the

vehicle rolls over, the airbag may not be
triggered.

Operating fault

If this warning light comes on on
the instrument panel, consult a
CITROËN dealer without delay
to have the system checked.
The airbags may no longer be
triggered in the event of a serious
impact.

Airbags

For the airbags to be fully effective,
observe the following safety rules:

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hamper the operation
of the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag systems is strictly
forbidden unless it is carried out by the
qualified personnel of a CITROËN dealer .
Even if all of the precautions mentioned are
observed, a risk of injury or of slight burns
to the head, chest or arms when an airbag
is triggered cannot be ruled out. In fact,
the bag inflates almost instantly (within a
few milliseconds) then deflates within the
same time, discharging the hot gas through
openings provided for this purpose.

Front airbags

Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Passengers must not place their feet on the
fascia.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

Side airbags

Only put approved covers on the seats.
These will not hinder the triggering of the
side airbags. Consult a CITROËN dealer .
Do not fix or glue anything to the seat backs.
This could cause injury to the chest or arms
when the side airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

Airbags

AIRBAGS

- in the event of a minor or rear impact

and in certain roll-over conditions, the
airbags will not be deployed; the seat belt
alone is sufficient to provide maximum
protection in these situations.

The seriousness of the collision depends on
the nature of the obstacle and the speed of
the vehicle at the moment of impact.

Airbags only operate when the
ignition is switched on.

It is imperative that the passenger
airbag is disarmed if a child seat is

installed facing rearwards. Refer to the
"Children on board" section of chapter 5.

Airbags

FRONT AIRBAGS

The front airbags are incorporated in the
centre of the steering wheel for the driver
and in the fascia for the front passenger.

Activation

They are deployed simultaneously, unless the
passenger's front airbag has been disarmed,
in the event of a serious front impact.
The front airbag inflates between the front
occupant of the vehicle and the fascia to
cushion his forward movement.

Disarming

The passenger's front airbag alone can be
disarmed. The airbag is disarmed from the
trip computer.

The airbag warning light on the
instrument panel is lit throughout
the period of disarming.

To ensure the safety of your child, it
is essential to disarm the passenger

airbag when you install a rear-facing child
seat on the front passenger seat. Otherwise,
the child would risk being killed or seriously
injured if the airbag were to inflate.

Refer to the "MENU" section of
chapter 3, then select OFF on the
"Passenger airbag" menu.

Operating fault

If the two airbag warning lights are lit
continuously, do not install a rear-

facing child seat. Consult a CITROËN
dealer .

If this warning light comes
on on the instrument panel,
accompanied by an audible signal
and a message on the display,

consult a CITROËN dealer without delay
to have the system checked. The airbags
may no longer be triggered in the event of a
serious impact.

Airbags

For the airbags to be fully effective,
observe the following safety rules:

Front airbags

Side airbags

Child safety

GENERAL POINTS RELATING TO CHILD
SEATS

Although one of CITROËN's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please follow these
precautions:
- in accordance with European regulations,

all children under the age of 12 or less
than one metre fifty tall must travel in
approved child seats suited to their
weight , on seats fitted with a seat belt or
ISOFIX mountings.

- statistically, the safest seats in your

vehicle for the transportation of
children are the rear seats,

- a child weighing less than 9 kg must

travel in the "rearwards-facing"
position in the front.

  CITROËN    recommends  that children
should travel in the  rear seats  of your
vehicle:
   -    "rearwards-facing"   up to the age of 2 ,

- "forwards-facing"from the age of 2.

INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT

"Rearwards-facing"

Do not forget to disarm the airbag
before installing the child.
When a "rearwards-facing" child
seat is installed on the front

passenger seat , it is essential that the
passenger airbag is disarmed. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
inflate .

"Forwards-facing"

When a "forwards-facing" child
seat is installed on the front
passenger seat , leave the
passenger airbag armed.

The rules for transporting children are
specific to each country. Consult the current
legislation in your country.

Please consult the list of seats
approved in your country. The Isofix

mountings, the rear seats, the passenger
airbag and the disarming of this airbag
depend on the version sold.

Child safety

To disarm or activate the passenger
airbag, refer to Chapter 3, "MENU".

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a
three point seat belt :

The child seats function is shared by
the entire CITROËN range. However,

each individual model has its own special
features.
If your vehicle is fitted with this function, the
passenger airbag must be disarmed using
the trip computer MENU button.
If your vehicle is not fitted with the
passenger airbag disarming function, the
installation of a "rear-facing" child seat on
the vehicle's front seat is strictly prohibited.
The passenger must not travel with a child
on his lap.

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion

is compulsory

for carrying

young children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),
the booster is used on

its own.

"RÖMER KIDFIX"

Can be fitted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

Child safety

To disarm or activate the passenger
airbag, refer to Chapter 3, "MENU".

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a
three point seat belt :

The child seats function is shared by
the entire CITROËN range. However,

Group 0+: from birth to 13 kg

Groups 1, 2 and 3: from 9 to 36 kg

"RÖMER

Baby-Safe Plus"

Installed in the

rearwards-facing

position.

"KIDDY Life"

The use of the

restraining cushion

is compulsory

for carrying

young children

(from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),
the booster is used on

its own.

"RÖMER KIDFIX"

Can be fitted to the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

Child safety

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (LIGHT VAN)

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the vehicle.

Weight of the child and indicative age

Seat

Under 13 kg

(groups 0 ( a ) and 0+)

Up to approx 1 year

From 9 to 18 kg

(group 1)

1 to 3 years approx

From 15 to 25 kg

(group 2)

3 to 6 years approx

From 22 to 36 kg

(group 3)

6 to 10 years approx

Front passenger
seat ( b )

  a:  Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
  b:  consult the legislation in force in your country before installing your child on this seat.
  U:  seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

Child safety

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (COMBI)

Weight of the child and indicative age

Seat

Under 13 kg

(groups 0 ( a ) and 0+)

Up to approx 1 year

From 9 to 18 kg

(group 1)

1 to 3 years approx

From 15 to 25 kg

(group 2)

3 to 6 years approx

From 22 to 36 kg

(group 3)

6 to 10 years approx

Front passenger
seat ( b )

Rear side seats

Rear centre seat

Child safety

ADVICE ON CHILD SEATS

Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
- one or more children alone and

unsupervised in a vehicle,

- a child or an animal in a vehicle which

is exposed to the sun, with the windows
closed,

- the keys within reach of children inside

the vehicle.

To prevent accidental opening of the doors,
use the "Child lock".

Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger's airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.

To protect young children from the sun, fit
side blinds on the rear windows.

Child safety

"ISOFIX" MOUNTINGS

Some also have an upper strap which is
attached to the rear ring.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between
its rods. Then fix the hook on the rear ring
and tighten the upper strap.

ISOFIX RÖMER Duo Plus

(size category B1 )

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured

on the ISOFIX upper ring, referred to as

the TOP TETHER.

Three seat body angles:

sitting, reclining, lying.

This child seat can also be used on
seats which are not fitted with ISOFIX
mountings.

In this case, it must be attached to the
vehicle seat using the three point seat belt.
Follow the instructions for fitting
the child seat given in the seat
manufacturer's installation guide.

The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.

ISOFIX CHILD SEAT RECOMMENDED
BY CITROËN AND APPROVED FOR
YOUR VEHICLE

Your vehicle has been approved in
accordance with the new ISOFIX regulation.
The mountings comprise three rings for each
rear bench side seat:
- two front rings, located between the

vehicle seat back and cushion,

- a rear ring, for securing the upper strap

referred to as the TOP TETHER.

This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in
your vehicle.
The ISOFIX child seats are fitted with
two latches which are secured easily on the
two front rings.

Child safety

"ISOFIX" MOUNTINGS

ISOFIX RÖMER Duo Plus

(size category B1 )

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured

on the ISOFIX upper ring, referred to as

the TOP TETHER.

Three seat body angles:

sitting, reclining, lying.

This child seat can also be used on
seats which are not fitted with ISOFIX
mountings.

In this case, it must be attached to the
vehicle seat using the three point seat belt.
Follow the instructions for fitting
the child seat given in the seat
manufacturer's installation guide.

The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.

ISOFIX CHILD SEAT RECOMMENDED
BY CITROËN AND APPROVED FOR
YOUR VEHICLE

Your vehicle has been approved in
accordance with the new ISOFIX regulation.
The mountings comprise three rings for each
rear bench side seat:
- two front rings, located between the

vehicle seat back and cushion,

- a rear ring, for securing the upper strap

referred to as the TOP TETHER.

Child safety

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (COMBI)

In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted
with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.

  IUF:  seat suitable for the installation of an  I sofix  U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
  IL-SU:  seat suitable for the installation an  I sofix  S emi- U niversal seat which is:
   -   "rear facing" fitted with a "Top Tether" upper strap or a stay,

- "forward facing" fitted with a stay,

For the securing of the "Top Tether" upper strap, refer to the "Isofix Mountings" section.
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.

Weight of the child/ /indicative age

Less than 10 kg

(group 0)

Up to 6 months

approx

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1 to 3 years approx

Type of ISOFIX child seat

Infant car

seat *

"rear facing"

"forward facing"

ISOFIX size category

Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seats

IL-SU

IUF

* Infant car seats and "car cots" cannot be installed on the front passenger seat.

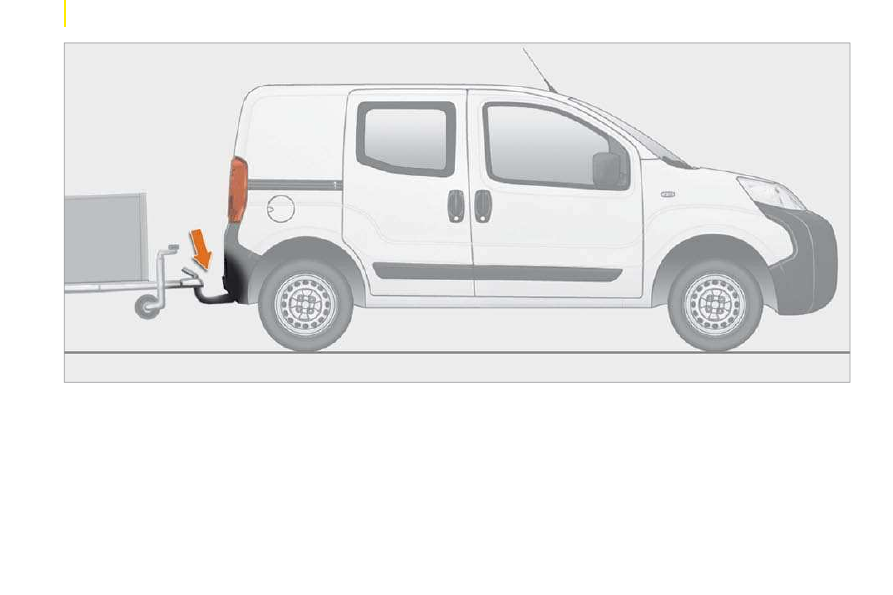

Towing a trailer

TOWING A TRAILER, CARAVAN, ETC...

Driving advice

As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed.

In all cases, pay attention to the coolant
temperature.

A towed vehicle must free wheel: gearbox in
neutral.
Cooling: towing a trailer on a slope
increases the coolant temperature.

Citroen Nemo Dag (2010 year). Instruction - part 8
