Practical information

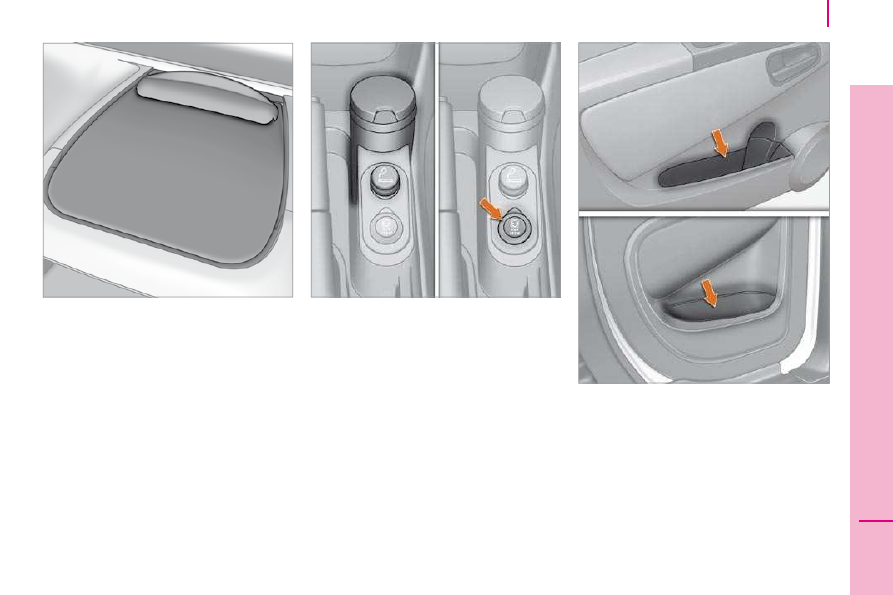

Smoker's kit

Located at the base of the centre console,
this consists of a cigar lighter and an
ashtray.

12 V socket (180 W max)

An accessory socket is provided next to the
cigar lighter.

FRONT FITTINGS

Folding writing table (Light van)

This is located in the centre of the fascia
panel. In the absence of a table, the vehicle
is fitted with a storage compartment.
The clip can be used to secure A5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.

Storage compartment in the door trays

With recess for storing a 1 litre bottle.

Practical information

Sun visor

To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.

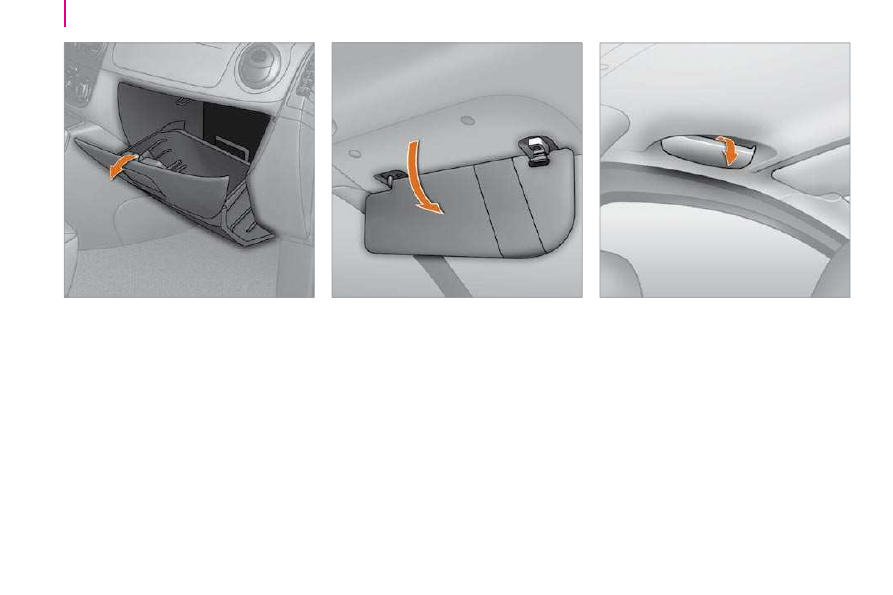

Glove box

To open it raise the handle.
It can accommodate a laptop computer.
It provides storage for the handbook pack.

Spectacles storage (Combi)

There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at the
centre.

Practical information

LOAD SPACE FITTINGS

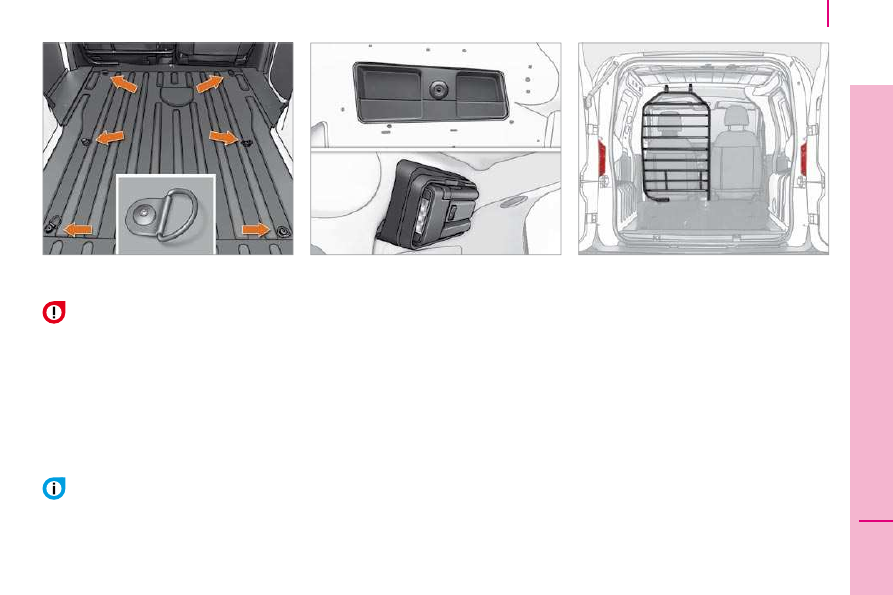

Stowing rings

There are 6 stowing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the driver's
seat as possible.

Storage tray

A storage tray is provided at the rear left of
the load space.

Torch

A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 rechargeable batteries
(NiMH type), remove the protective cover
from the torch.
To put the torch back in place, engage it in the
notches on the base and pivot it upwards.

Ladder type vertical partition

Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.

Partitions

Panel, glazed, mid-height panel with grille
and modular vertical grille type partitions are
available for your light van.

Carrying passengers in the load space
is not permitted.

It is advisable to immobilise the load
by securing it firmly using the stowing
rings on the floor.

The torch's storage batteries recharge
automatically while driving.
An additional lamp is fitted in the middle
of the torch housing (refer to the "Interior
lighting" section).

Practical information

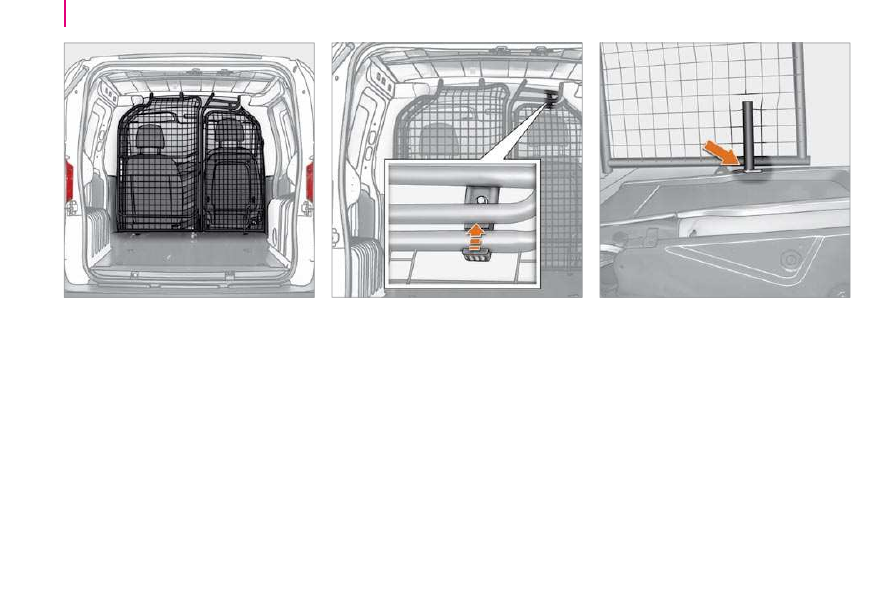

Modular vertical grille

Operations:

3. Lift the catch, located at the lower part of

the grille.

4. Pivot the grille and insert the catch in the

space provided on the passenger seat
back.

1. Place the passenger seat in the folded

position.

2. Lift the catch, located at the upper part of

the grille.

You can obtain a two-part partition grille.
Associated with the retractable seat, the
grille increases the driver's safety by
isolating him from the front load.

Practical information

REAR LAYOUT

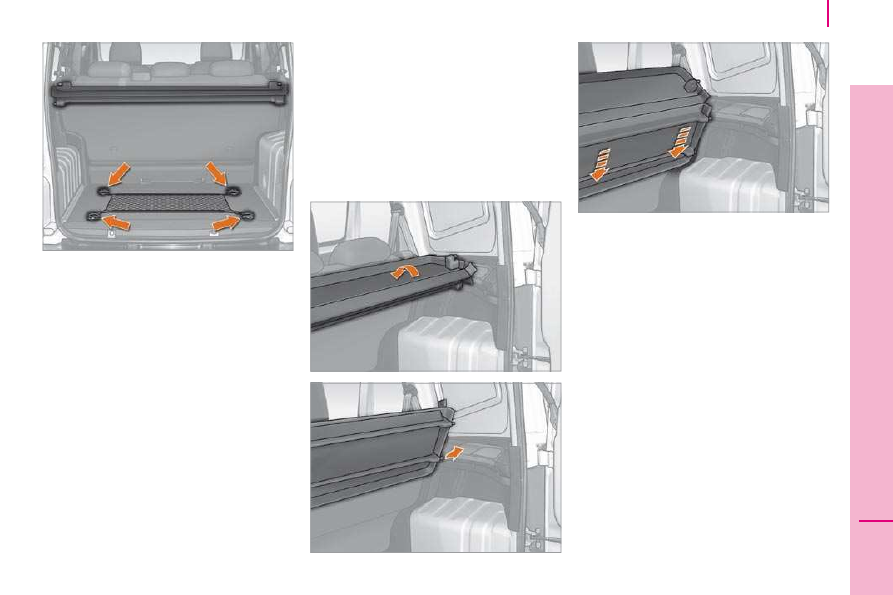

Stowing rings

There are 4 stowing rings on the rear floor to
secure your luggage.

Luggage retaining net

Hooked onto the stowing rings, this enables
you to secure your luggage.

Rear shelf

Unfold the shelf to conceal the contents of
the boot from sight from the outside.
Fold the shelf back on itself for easier
access to the contents of the boot.
Store the shelf behind the rear bench seat
when loading bulky items vertically.

Removing the shelf

Fold the shelf back on itself.
Lift the shelf to approximately 60°.
Unclip the shelf's side fixings from its
supports.
Remove the shelf.
Store the folded shelf in the location behind
the rear bench seat.
To put the shelf back in place, carry out
these operations in reverse order.

Practical information

Retaining straps

There are two retaining straps on the left-
hand side of the boot.
They secure the tool kit.

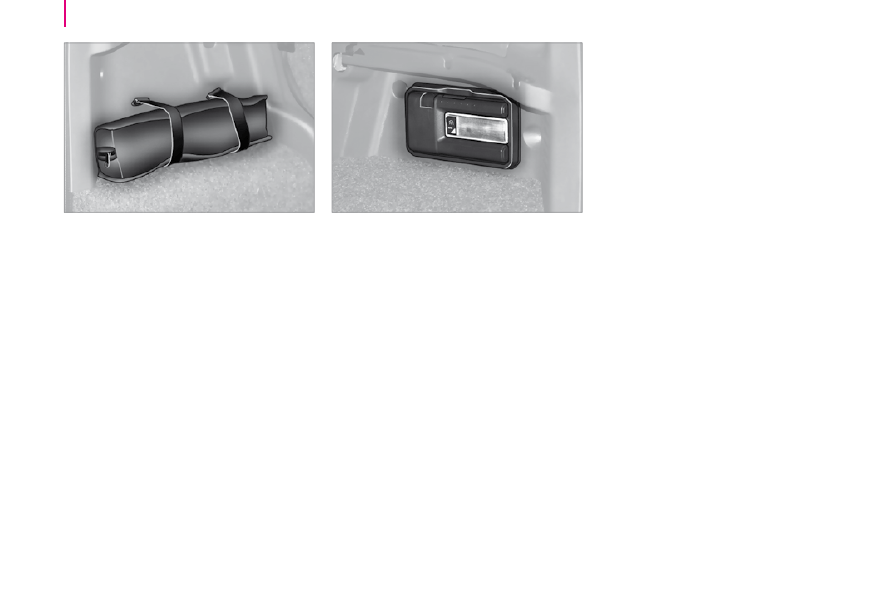

Torch

A magnetic torch is provided on the right-
hand side of the boot.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 storage batteries
(NiMH type), remove the protective cover,
located on the torch.
To put the torch back in place, engage it in
the notches on the base and pivot it upwards.
The torch's storage batteries recharge
automatically while driving.
A boot lamp is installed in the centre of
the torch base (refer to the "Interior lighting"
section).

Practical information

INTERIOR LIGHTING

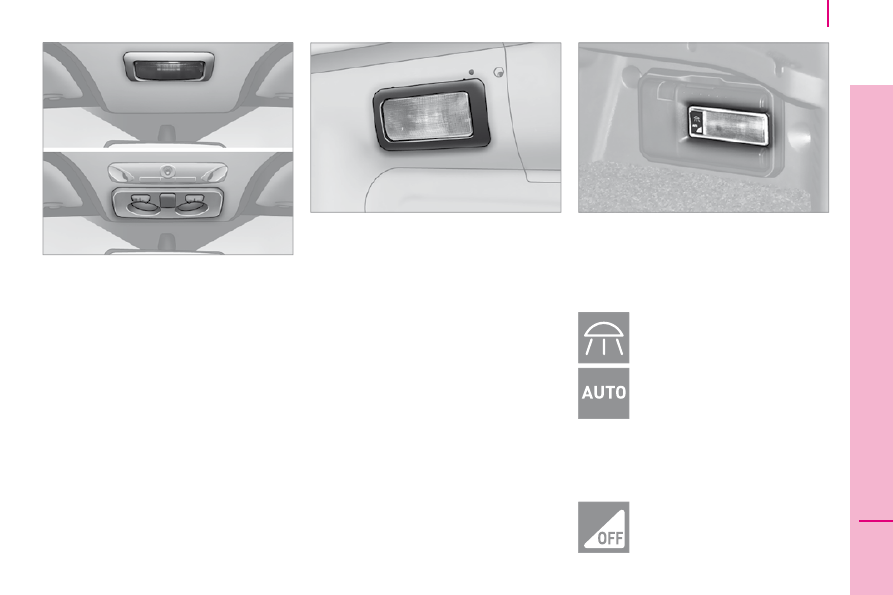

Front courtesy lamp

This is located in the centre of the roof.
It can be activated by:
- tilting the lens,

- opening or closing a door,

- locking or unlocking the vehicle.

It switches off automatically, after a few
minutes, if the doors remain open, or when
the ignition is switched on.
The courtesy lamp may be fitted with an
alarm sensor, a microphone for the hands-
free kit and reading lights.
The reading lampshave right-hand and left-
hand switches.

Rear courtesy lamp

This is located on the upper part of the rear
right side.
Press the side of the courtesy lamp lens to
switch it on or off.
It comes on automatically when a door is
opened.

Good practice

It switches off automatically:
- if the switch is not pressed down,

- in all cases within approximately

15 minutes if the doors remain open,

- when the ignition is switched on,

- when the vehicle is locked.

Boot lamp

This is located in the centre of the torch
base.
The lamp operates in accordance with
the three positions of the switch below.

Permanently on.

In this "AUTO" position, it comes
on gradually when the vehicle is
unlocked and when a rear door or
the tailgate is opened.

It switches off automatically, after a few
minutes, if a rear door or the tailgate remains
open, or when the ignition is switched on.

Permanently off.

Driving safely

PARKING BRAKE

Applying

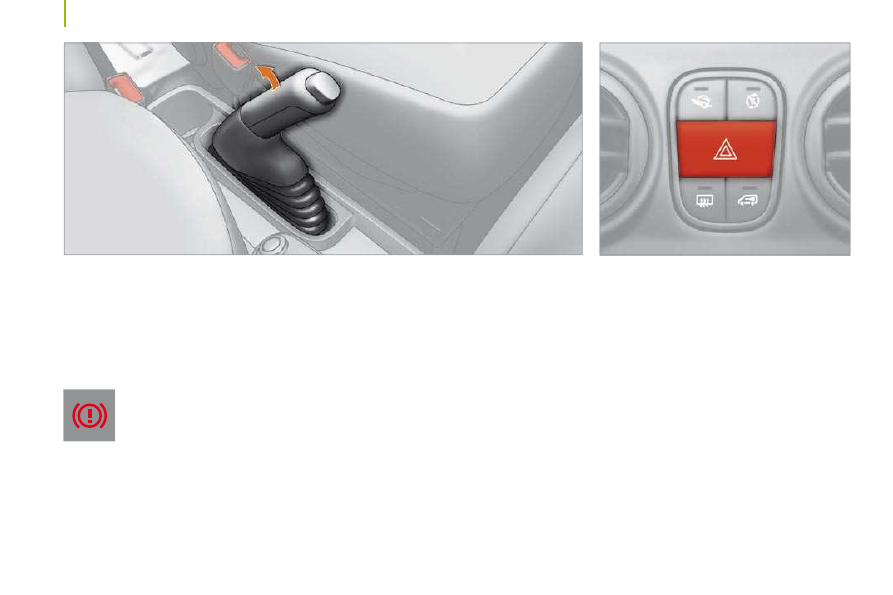

Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle.

If the parking brake is still on or
has not been released properly,
this is indicated by this warning
lamp which comes on on the
instrument panel.

When parking on a slope, direct your wheels
towards the pavement and pull the parking
brake lever up.
There is no advantage in engaging a gear
after parking the vehicle, particularly if the
vehicle is loaded.

Releasing

Pull the lever and press the button to lower
the parking brake lever.

HAZARD WARNING LIGHTS

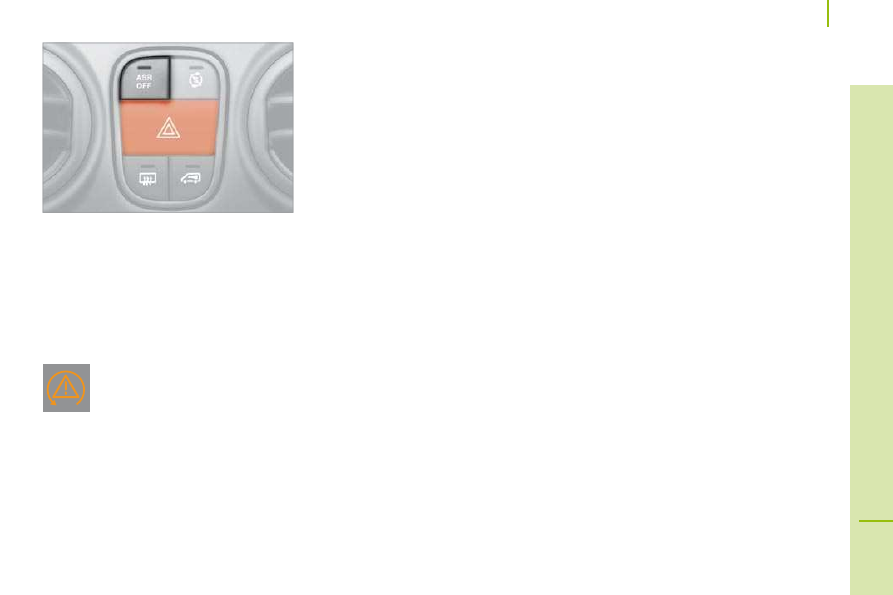

Press this button, the two direction
indicators flash.
They operate with the ignition off.
When the hazard warning lights are switched
on, the change of direction function, via the
right-hand or left-hand direction indicator, is
deactivated.

Driving safely

HORN

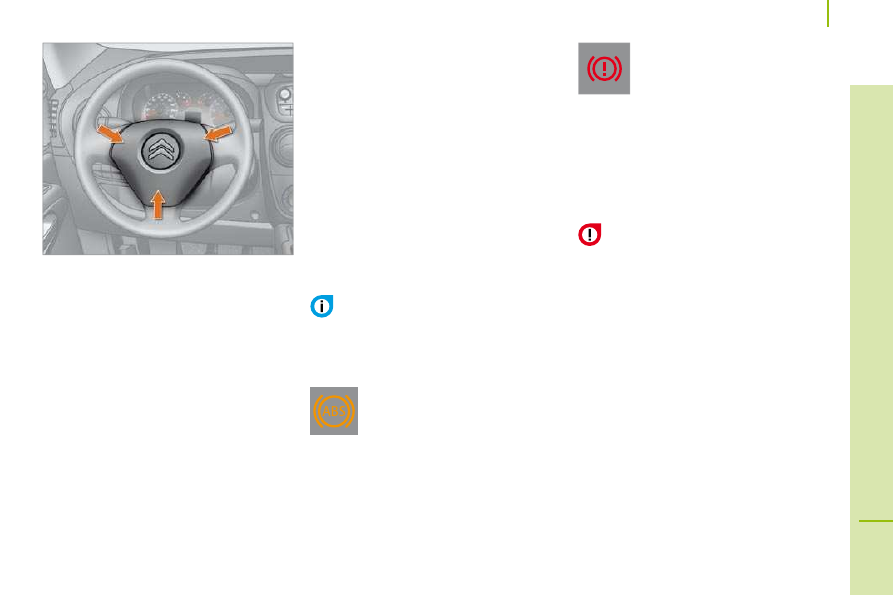

Press the centre of the steering wheel.

Anti-lock braking system and
electronic brake force distribution

Linked systems which improve the stability
and manoeuvrability of your vehicle when
braking, in particular on poor or slippery
surfaces.

BRAKING ASSISTANCE SYSTEMS

Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
- anti-lock braking system (ABS),

- electronic brake force distribution

(EBFD),

- emergency braking assistance (EBA).

Activation

The anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal accompanied by some noise.

When braking in an emergency, press
very firmly without releasing the
pressure.

Operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, it indicates a fault

with the anti-lock braking system which
could result in loss of control of the vehicle
when braking.

If this warning lamp comes on,
together with the ABS warning
lamp, accompanied by a message
in the instrument panel screen,

it indicates a fault with the electronic brake
force distribution which could result in loss
of control of the vehicle when braking.
You must stop as soon as it is safe to do so.

Good practice

The ABS system does not provide shorter
braking distances. On very slippery surfaces
(black ice, oil...) the ABS can extend braking
distances. For emergency braking, press the
brake pedal hard and do not release it, even
on a slipper surface; you will then be able to
steer the vehicle and avoid an obstacle.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

In either case, contact a CITROËN dealer.

For maximum braking efficiency, a
bedding-in period of around 300 miles

(500 kilometres) is needed. During this
period it is recommended that you avoid
harsh, repeated or prolonged braking.

Driving safely

HORN

Press the centre of the steering wheel.

Anti-lock braking system and
electronic brake force distribution

Linked systems which improve the stability
and manoeuvrability of your vehicle when
braking, in particular on poor or slippery
surfaces.

BRAKING ASSISTANCE SYSTEMS

Group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:
- anti-lock braking system (ABS),

- electronic brake force distribution

(EBFD),

- emergency braking assistance (EBA).

Activation

When braking in an emergency, press
very firmly without releasing the
pressure.

Operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, it indicates a fault

with the anti-lock braking system which
could result in loss of control of the vehicle
when braking.

If this warning lamp comes on,
together with the ABS warning
lamp, accompanied by a message
in the instrument panel screen,

it indicates a fault with the electronic brake
force distribution which could result in loss
of control of the vehicle when braking.
You must stop as soon as it is safe to do so.

Good practice

In either case, contact a CITROËN dealer.

For maximum braking efficiency, a
bedding-in period of around 300 miles

(500 kilometres) is needed. During this
period it is recommended that you avoid
harsh, repeated or prolonged braking.

Driving safely

Emergency braking assistance *

System which, in an emergency, enables
you to reach the optimum braking pressure
more quickly, thus reducing the stopping
distance. The emergency braking assistance
is an integral part of the ESP system

Activation

It is brought into play by the speed at which
the brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.
When braking in an emergency, press firmly
without releasing the pressure.

Good practice

This system cannot be deactivated by the
driver.

* Depending on country of sale.

TRAJECTORY CONTROL SYSTEMS

Electronic stability programme (ESP)

The electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory
required by the driver, within the limits of the
laws of physics.

Activation

The ESP system is activated automatically
each time the vehicle is started and cannot
be deactivated.
It comes into operation in the event of a grip
or trajectory problem.

Illumination of this warning lamp
and the warning lamp in the
"ASR OFF" button, accompanied
by a message in the instrument

panel screen, indicates a fault with the ESP
system, which is deactivated automatically.
Have it checked by a CITROËN dealer.

Anti-slip regulation (ASR) and engine
control (MSR)

Anti-slip regulation (also known as traction
control) optimises traction, avoiding wheel
spin by acting on the brakes of the driving
wheels and the engine.
Engine control is an integral part of the ASR
system and intervenes when a sudden gear
change is made or of one of the driving
wheels looses grip, by reducing engine
torque to avoid loss of stability of the vehicle.

Activation

These systems are activated automatically
every time the vehicle is started.
In the event of a problem od adhesion or
trajectory, these systems come into play.

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the ASR system, so that the
wheels can spin freely and regain grip.

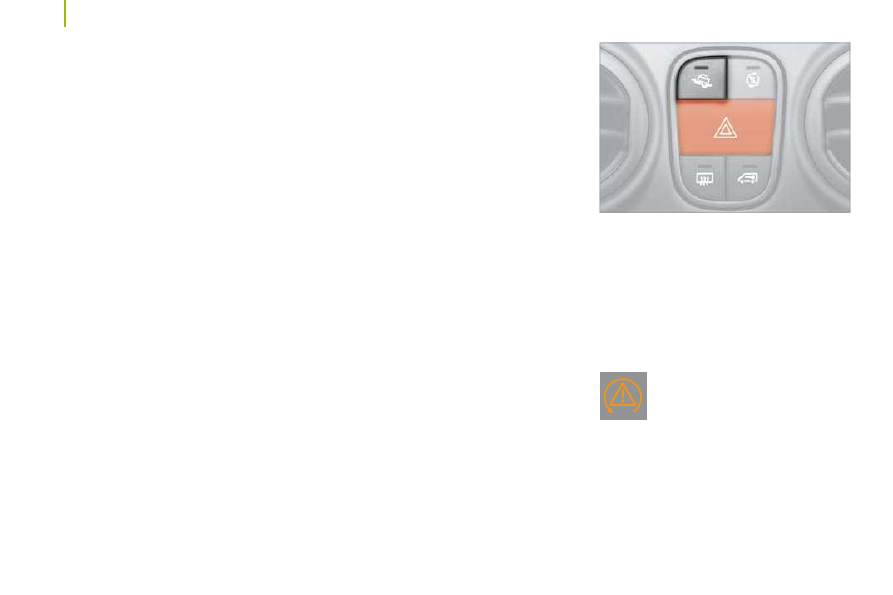

 Press the "ASR OFF" button, located in

the middle of the dashboard.

If the button's warning lamp comes
on, accompained by a message in the
instrument panel screen, this indicates that
the ASR system is deactivated.

This is indicated by flashing of this
warning lamp in the instrument
panel.

Operating fault

Driving safely

Emergency braking assistance *

Activation

Good practice

This system cannot be deactivated by the
driver.

* Depending on country of sale.

TRAJECTORY CONTROL SYSTEMS

Electronic stability programme (ESP)

The electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory
required by the driver, within the limits of the
laws of physics.

Activation

The ESP system is activated automatically
each time the vehicle is started and cannot
be deactivated.
It comes into operation in the event of a grip
or trajectory problem.

Illumination of this warning lamp
and the warning lamp in the
"ASR OFF" button, accompanied
by a message in the instrument

panel screen, indicates a fault with the ESP
system, which is deactivated automatically.
Have it checked by a CITROËN dealer.

Anti-slip regulation (ASR) and engine
control (MSR)

Activation

These systems are activated automatically
every time the vehicle is started.
In the event of a problem od adhesion or
trajectory, these systems come into play.

Deactivation

the middle of the dashboard.

If the button's warning lamp comes
on, accompained by a message in the
instrument panel screen, this indicates that
the ASR system is deactivated.

This is indicated by flashing of this
warning lamp in the instrument
panel.

Operating fault

Driving safely

Reactivation

The ASR system is reactivated automatically
every time the ignition is switched back on.
 Press the "ASR OFF" button again to

reactivate it manually.

Operating fault

If this warning lamp comes on,
accompanied by a message in
the instrument panel screen, this
indicates a fault with the ASR

system, which is deactivated automatically.
Have the systems checked by a CITROËN
dealer.

Good practice

The ASR system offers exceptional safety
in normal driving, but this should not
encourage the driver to take extra risks or
drive at high speed.
The correct functioning of this system
depends on observation of the
manufacturer's recommendations regarding
the wheels (tyres and rims), the braking
components, the electronic components and
the assembly and repair procedures used by
CITROËN dealers.
After an impact, have these systems
checked by a CITROËN dealer.

Driving safely

Intelligent Traction Control

System to improve traction on slippery
surfaces (snow, black ice, mud...)
This system checks for situations of difficult
surface adhesion that could make it difficult
to move off or make progress.
In these situations, Intelligent Traction
Control takes over from the ASR system,
by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control.

Activation

On starting the vehicle, the system is
deactivated.
Press the button, located on the dashboard,
to activate the system; the warning lamp in
the button comes on.
The system is active up to about 18 mph
(30 km/h).
Once the speed exceed 18 mph (30 km/h,
the system is deactivated automatically, but
the warning lamp in the button comes on.
The system is reactivated automatically
as soon as the speed drops below 18 mph
(30 km/h).

Deactivation

Press the button, located on the dashboard,
to deactivate the system; the warning lamp
in the button goes off and the ASR system is
active again.

Operating fault

This warning lamp comes on in
the instrument panel if there is a
fault with the system.

Seat belts

FRONT SEAT BELTS

The front seats are fitted with pre-tensioners
and force limiters.

Fastening

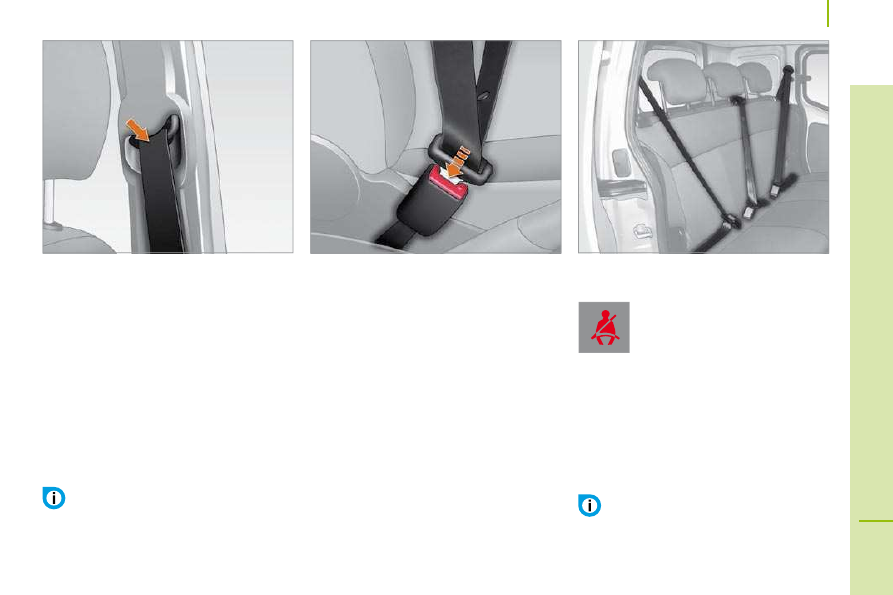

Pull the strap, then insert the tongue into the
buckle.
Check that the seat belt is fastened correctly
by pulling the strap.
The lap belt must be positioned as low as
possible on the pelvis. The chest belt must
pass over the hollow of the shoulder.

Inertia reel seat belts

These are fitted with a device which locks
automatically in the event of a collision or
emergency braking.
Safety in the event of a front impact has
been improved by the introduction of
pretensioning and force limiting seat belts.
Depending on the seriousness of the
impact, the pretensioning system instantly
tightens the seat belt against the body of the
occupant.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt against the body of the occupant in
the event of an accident.

Driver's seat belt not fastened warning
lamp

When the vehicle is started, this
warning lamp comes on if the
driver has not fastened their seat
belt.

REAR SEAT BELTS (COMBI)

The 3-seat bench is fitted with three-point
inertia reel seat belts with force limiter.
The centre seat has a seat belt guide and
inertia reel, integrated with the seat back.

When a seat belt is not in use, you can
store its buckle in the housing provided
in the bench seat cushion.

if the driver's seat belt is unfastened,
the START mode of Stop & Start will

not be invoked. The engine can only be
restarted using the ignition key.

Seat belts

Good practice

The driver must ensure that all passengers
fasten their seat belt correctly.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
The seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size. The seat belt is rolled up
automatically when not in use.
Ensure that the seat belt is rolled up
correctly after use.
After folding or moving a seat, ensure that
the seat belt is rolled up correctly in its
compartment and that the buckle is ready to
accommodate the tongue.

The force limiter reduces the pressure of the
seat belt against the body of the occupants.
The equipment fitted to these seat belts is
operational when the ignition is switched on.
The inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.

The airbag warning light comes
on if the pretensioners are
triggered. Consult a CITROËN
dealer .

Depending on the nature and seriousness
of any impact, the pretensioning device may
be triggered before and independently of
inflation of the airbags. It instantly tightens
the seat belts against the body of the
occupants.
The triggering of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

In order to be effective, a seat belt must:
- restrain one person only,

- must not be twisted, check by pulling in

front of you with an even movement,

- be tightened as close to the body as

possible.

The upper part of the seat belt should be
positioned in the hollow of the shoulder.
The lap part should be placed as low as
possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.

Recommendations for children:

- use a suitable child seat if the passenger

is less than 12 years old or shorter than
one metre fifty,

- never allow a child to travel on your lap,

even with the seat belt fastened.

For further information regarding child
seats, refer to the "Children on board"
section of chapter 5.

In accordance with current safety
regulations, your CITROËN dealer
guarantees all work or any checks, from
testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly
(even after a minor impact) by a CITROËN
dealer: they must not show any signs of
wear, cutting or fraying and they must not be
transformed or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by a CITROËN dealer.

Content .. 5 6 7 8 ..
