Citroen Nemo Dag (2010 year). Instruction

Instruments and controls

WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a self-checking test. They go off almost immediately. When
the engine is running: the warning lamp becomes a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ignore these warnings".

Warning lamp

indicates

Solution - action

Service

on temporarily.

minor faults.

Consult a CITROËN dealer.

continuously on,
accompanied by a
message in the screen.

major faults.

Make a note of the warning message and
contact a CITROËN dealer.

Parking brake
Brake fluid level

on.

that the parking brake is applied or
has not been released correctly.

Releasing the parking brake switches off the
warning lamp.

on.

that the fluid level is too
low.

Top up using a fluid recommended by a
CITROËN dealer.

continuously on, even
though the level is correct.

Stop immediately, park, switch off the
ignition and contact a CITROËN dealer.

Low engine oil level

on.

that the level of oil in the
engine is too low.

Check the engine oil level and contact a
CITROËN dealer.

continuously on, even
though the level is correct.

Stop as soon as it is safe to do so, park, switch
off the ignition and contact a CITROËN dealer.

Coolant temperature

on with the needle in
the red zone.

an abnormal increase.

Park and switch off the ignition, allow the system
to cool. Visually check the level.

on H in the red zone.

an abnormal increase in
the coolant temperature.

Refer to the "Levels" section of chapter 7.
Consult a CITROËN dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

Engine oil

on while driving, with
a message in the
screen.

that the engine oil
pressure is too low.

Park and switch off the ignition and contact a
CITROËN dealer.

flashing, with a
message in the
screen.

degraded engine oil.

Have the oil changed as soon as possible to
avoid damage to the engine.

Battery charge

on.

a fault in the charging
circuit.

Check the battery terminals… Refer to the
"Battery" section of chapter 7.

continuously on, in
spite of the checks.

a circuit fault, an ignition
or injection fault.

Contact a CITROËN dealer.

Door open detection

on.

that a door is not closed
correctly.

Check that the front, rear and side doors are
closed.

accompanied by a
message in the screen.

Seat belt not fastened

on then flashes.

that the driver has not
fastened his seat belt.

Pull the strap then insert the tongue in the
buckle.

accompanied by an
audible signal then
remains on.

that the vehicle is moving
with the driver's seat belt
unfastened.

Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.

flashing,
accompanied by an
audible signal

the front passenger has
not fastened their seat
belt.

Pull on the strap and insert the tongue in the
buckle.

Instruments and controls

Warning lamp

indicates

Solution - action

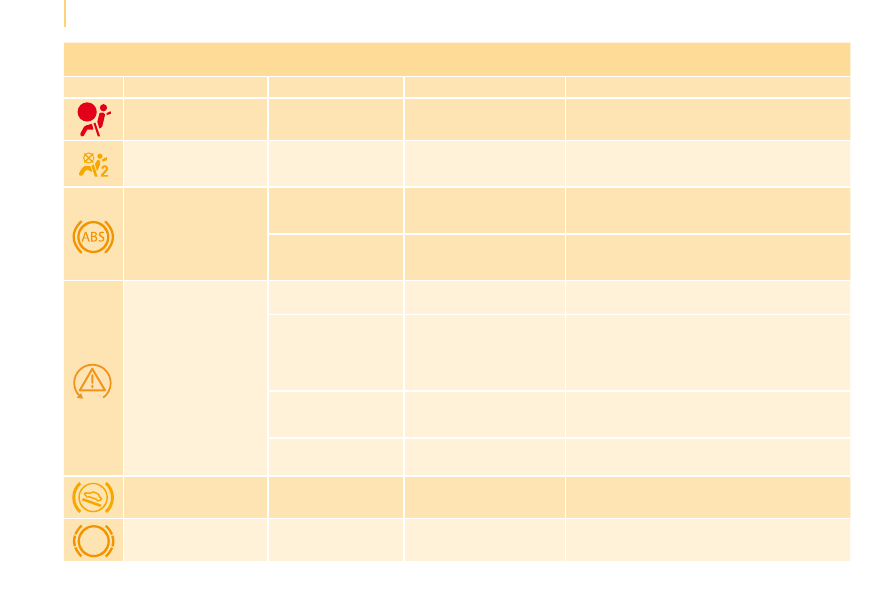

Front airbag
Side airbag

flashing or
continuously on.

the failure of an airbag.

Have the system checked by a CITROËN dealer without
delay. Refer to the "Airbags" section of chapter 5.

Deactivation of the
passenger's front airbag

on.

that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat.

Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.

ABS

continuously on.

failure of the system.

The vehicle retains conventional braking without assistance.
However, you are advised to stop and contact a CITROËN dealer.

continuously on, coupled with
the parking brake warning lamp.

a fault with the electronic
brake force distributor.

Stop as soon as it is safe to do so, park,
switch off and contact a CITROËN dealer.

Trajectory control
system

flashes for a few
seconds.

the ESP system has been
invoked.

Intervention by the system to correct the
trajectory of the vehicle.

on, coupled with the warning
lamp in the "ASR OFF" button
and accompanied by a
message in the screen.

a fault with the ESP
system.

Contact a CITROËN dealer.

on, accompanied by
a message in the
screen.

a fault with the ASR/MSR
system.

Contact a CITROËN dealer.

on.

a fault with the Intelligent
Traction Control.

Contact a CITROËN dealer.

Hill start assist

on.

a fault with the hill start
assist system.

Contact a CITROËN dealer.

Front brake pads

on.

brake pad wear.

Have the pads replaced by a CITROËN dealer.

Instruments and controls

Warning lamp

indicates

Solution - action

Electronic anti-theft

on.

the ignition key introduced
is not recognised.
Starting impossible.

Use another key and have the faulty key
checked by a CITROËN dealer. Chapter 1,
"Access".

Emissions control
system

flashing or on
continuously.

a fault with the system.

Have it checked as soon as possible by
a CITROËN dealer.

Low fuel level

on with the gauge
needle in zone E.

that the fuel reserve is
being used.

Refuel without delay. The evaluation of the fuel
reserve is sensitive to the style of driving, the
profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.

Particle emissions filter

on, accompanied by
an audible signal and
a message in the
screen.

the start of saturation of
the particle emissions
filter.

Carry out a regeneration of the filter as soon as
possible. Chapter 7, "Checks".

Presence of water in
the Diesel filter

on, accompanied by
a message in the
screen.

water in the Diesel fuel
filter.

Have the filter bled by a CITROËN dealer.
Chapter 7, "Checks".

Diesel pre-heating

on.

that the weather
conditions impose pre-
heating.

Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.

Instruments and controls

Warning lamp

indicates

Solution - action

Sidelamp

on.

a manual selection.

Turn the ring on the lighting control stalk to the
first position.

Dipped beam headlamp

on.

a manual selection.

Turn the ring on the lighting control stalk to the
first position.

Main beam headlamp

a pull on the control stalk.

Pull the lighting control stalk to return to dipped
beam.

Direction indicators

flashing with an
audible signal.

a change of direction
using the lighting control
stalk, to the left of the
steering wheel.

To the Right: press the stalk upwards.
To the Left: press the stalk downwards.

Hazard warning lamps

flashing with an
audible signal.

the hazard warning lamp
switch, located in the
middle of the dashboard,
has been pressed.

The left and right direction indicators, and the
associated warning lamps, flash simultaneously.

Front foglamps

on.

that the button on the
dashboard has been
pressed.

Manual selection.
The fog amps only operate if the sidelamps or
dipped beam headlamps are on.

Rear foglamps

on.

that the button on the
dashboard has been
pressed.

Manual selection. The foglamps only operate
if the dipped beam headlamps are on. When
visibility is normal, please switch the foglamps
off to avoid breaking the law. This lamp is
a bright dazzling red.

Instruments and controls

Warning lamp

indicates

Solution - action

Cruise control

on.

activation of the cruise
control.

Manual selection. Chapter 1, "Steering mounted
controls".

Rear parking sensors

on, accompanied by
a message in the
screen.

a fault with the system.

The audible system is not active.
Have it checked as soon as possible by
a CITROËN dealer.

Electronic gearbox

on, accompanied by
a message in the
screen.

incorrect operation by the
driver.

Start the desired operation again.

ﬂ ashing, accompanied
by an audible signal
and a message in the
screen.

a fault with the gearbox.

Have it checked as soon as possible by
a CITROËN dealer.

Instruments and controls

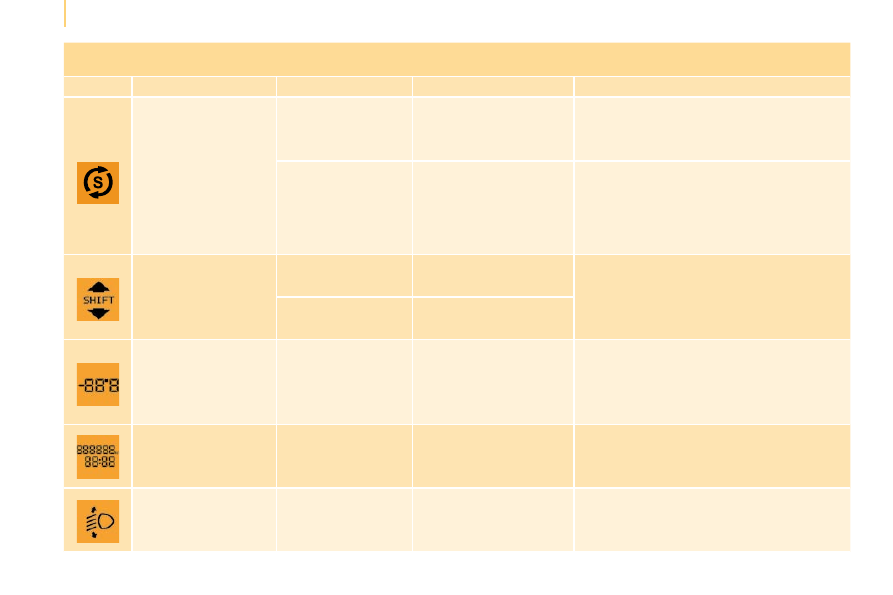

Display

displays

indicates

Solution - action

Stop & Start

on.

engine STOP mode
invoked following a stop of
the vehicle.

As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in START mode.

flashes for a few
seconds then goes
off.

temporary unavailability
of STOP mode or
START mode invoked
automatically.

particular cases with STOP mode and START
mode. Chapter 1, "Steering mounted controls".

Gear shift indicator

the arrow pointing up.

the possibility to change
up.

Chapter 1, "Gear shift indicator".

the arrow pointing
down.

the possibility to change
down.

Ambient temperature
(°C/°F)

the temperature which
flashes accompanied
by a message in the
screen.

weather conditions
which could result in the
presence of ice on the
road.

Be especially vigilant and do not brake sharply.
Chapter 5, "Driving safety".

Date (YYYY/MM/DD)
Time (HH:MM)

a setting:
of the Date.
of the Time.

a configuration via the
MENU menu.

Chapter 3, "Menu".

Headlamp beam height

a headlamp height
setting.

a position from 0 to 3
depending on the load
carried.

Adjust using the control on the dashboard.
Chapter 1, "Steering mounted controls".

Instruments and controls

Display

displays

indicates

Solution - action

Stop & Start

on.

engine STOP mode
invoked following a stop of
the vehicle.

As soon as you want to move off, the
warning lamp goes off and the engine starts
automatically in START mode.

flashes for a few
seconds then goes
off.

temporary unavailability
of STOP mode or
START mode invoked
automatically.

particular cases with STOP mode and START
mode. Chapter 1, "Steering mounted controls".

Gear shift indicator

the arrow pointing up.

the possibility to change
up.

Chapter 1, "Gear shift indicator".

the arrow pointing
down.

the possibility to change
down.

Ambient temperature
(°C/°F)

the temperature which
flashes accompanied
by a message in the
screen.

weather conditions
which could result in the
presence of ice on the
road.

Be especially vigilant and do not brake sharply.
Chapter 5, "Driving safety".

Date (YYYY/MM/DD)
Time (HH:MM)

a setting:
of the Date.
of the Time.

a configuration via the
MENU menu.

Chapter 3, "Menu".

Headlamp beam height

a headlamp height
setting.

a position from 0 to 3
depending on the load
carried.

Adjust using the control on the dashboard.
Chapter 1, "Steering mounted controls".

Instruments and controls

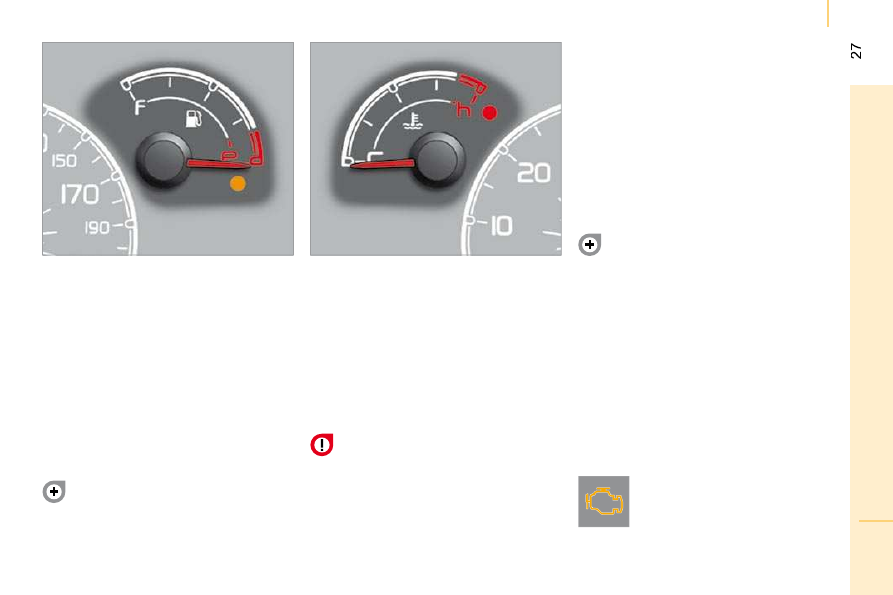

FUEL GAUGE

The fuel level is tested each time the key is
turned to the "ignition on" position.
The gauge is positioned on:
- F (full): the capacity of the fuel tank is

approximately 45 litres .

- E (empty): the reserve is now being

used, the warning lamp comes on
continuously.

The reserve when the warning first comes
on is approximately 6 litres.

COOLANT TEMPERATURE

The needle is positioned between C (cold)
and H (hot): normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.

- wait approximately 15 minutes to allow

the engine to cool down in order to check
the level and top it up if necessary. The
cooling system is pressurised. In order to
avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.

When the pressure has dropped, check the
level and remove the cap to top up.
If the needle remains in the red zone,
contact a CITROËN dealer.

EMISSION CONTROL

EOBD (European On Board Diagnosis) is a
diagnostics system which meets the exhaust
emissions standards for:
- CO (carbon monoxide),

- HC (unburnt hydrocarbons),

- NOx (nitrous oxides) or particles detected

by oxygen sensors placed upstream and
downstream of the catalytic converters.

Refer to the "Levels" section of
chapter 7.

Refer to the "Levels" section of chapter 7.

The driver is warned of any
fault with this emission control
system by flashing of this specific
warning lamp in the instrument
panel.

What you should do if the needle
enters the red zone, or if the warning
lamp comes on:

- stop immediately, switch off the ignition.

The cooling fan may continue to operate
for a certain time up to approximately
10 minutes.

Instruments and controls

SERVICE INDICATOR

ENGINE OIL WARNING LAMP

LIGHTING DIMMER

The dimmer is active when the sidelamps
are on.

Refer to the list of checks in the
servicing booklet which was given to
you on delivery of the vehicle.

After a few seconds, the screen returns to its
usual functions.

Use these controls to adjust the
brightness of the instrument panel
and the radio panel lighting.

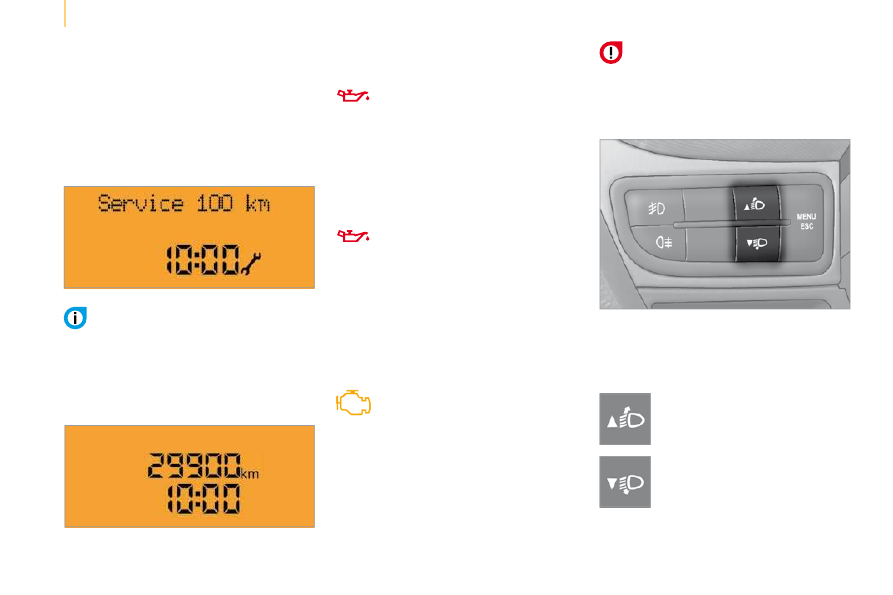

The screen in the instrument panel
informs you when the next service is due,
in accordance with the Manufacturer's
servicing schedule indicated in the servicing
booklet. This information is determined in
relation to the distance travelled since the
previous service.

Low engine oil pressure

Oil deterioration (1.3 HDi 75 hp engine only)

The warning lamp comes on
continuously, accompanied by a

message in the instrument panel screen, when
the system detects that the oil pressure is too low.

The warning lamp flashes,
accompanied by a message in the

instrument panel screen, when the system
detects deterioration of the engine oil. The
flashing of this warning lamp should not be
considered as a fault wit the vehicle, but
rather as an indication to the driver that the
normal use of the vehicle now requires that
the oil be changed.

If the oil is not changed, when a
second level of deterioration is
reached, the emissions warning

lamp comes on in the instrument panel and
the engine speed is restricted to 3 000 rpm.
If the oil is still not changed, when a third
level of deterioration is reached, the engine
speed is restricted to 1 500 rpm, so as to
avoid any damage.

To avoid damaging the engine, it is
recommended that the oil be changed

on flashing of the engine oil warning lamp.

Stop as soon as it is safe to do so: park, switch
off the ignition and contact a CITROËN dealer.

Access

Central locking

Folding/unfolding the key

Unlocking of the vehicle

Unlocking the hinged rear doors or
the tailgate

Press this button to release the
key from its housing.

To fold the key, press the button
then fold the key into the housing.

If you do not press the button, the
mechanism may be damaged.

Deadlocking

The deadlocking is deactivated:
- by carrying out the door opening

operation,

- by turning the ignition key to the

RUNNING position.

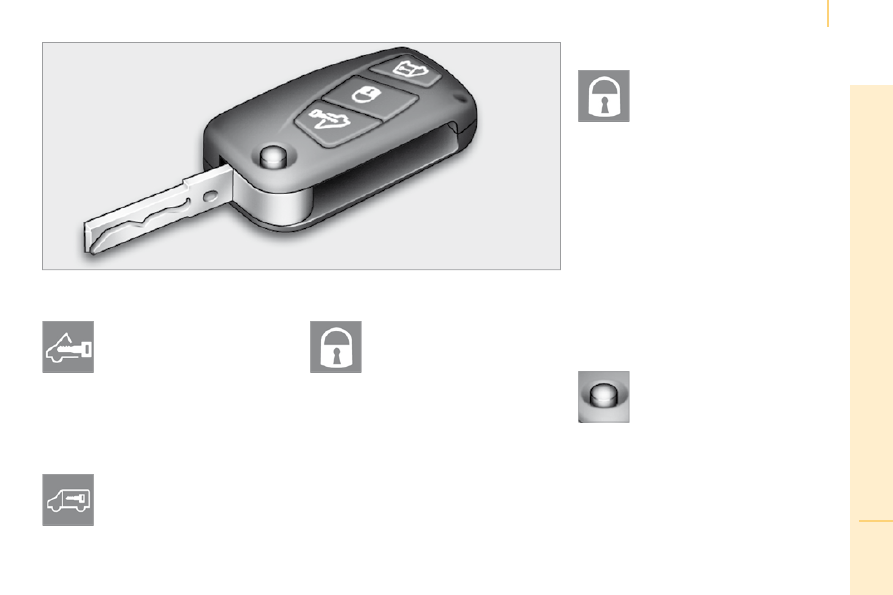

REMOTE CONTROL

Press this button to unlock the
front doors only (Light van) or all
of the doors (Combi).

Unlocking is confirmed by two flashes of the
direction indicators.

Press this button to unlock the
load space (Light van) or the
hinged rear doors or the tailgate
only (Combi).

Press this button briefly to lock all
of your vehicle's doors. Locking
is confirmed by a flash of the
direction indicators.

If one of the doors is open or is not closed
correctly, the central locking will not work. In
this case, the failed locking is indicated by
three flashes of the direction indicators.

Press this button twice to change
locking to deadlocking.
Deadlocking renders the exterior
and interior door opening handles

inoperative. Do not leave anyone inside the
vehicle when it is deadlocked. Deadlocking
is confirmed by a flash of the direction
indicators.

Access

Opening the windows with the remote
control

Closing the windows using the remote
control

When closing the windows using the
remote control you must ensure that

nothing prevents their correct closing. The
anti-pinch function does not operate when
closing the windows this way.
If you want to leave the windows partly
open, it is necessary to deactivate the
volumetric alarm monitoring.

Pressing and holding this button
for more than 3 seconds starts
opening of the windows. Release
the button once the windows are

in the desired position. The windows stop as
soon as you release the button.

This closing operation can also be carried
out by inserting and turning the key in the
front door lock barrel.

This opening operation can also be carried
out by inserting and turning the key in the
front door lock barrel.

Pressing and holding this button
for more than 3 seconds starts
closing of the windows. Release
the button once the windows are

in the desired position. The windows stop as
soon as you release the button.

Access

KEY

This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.

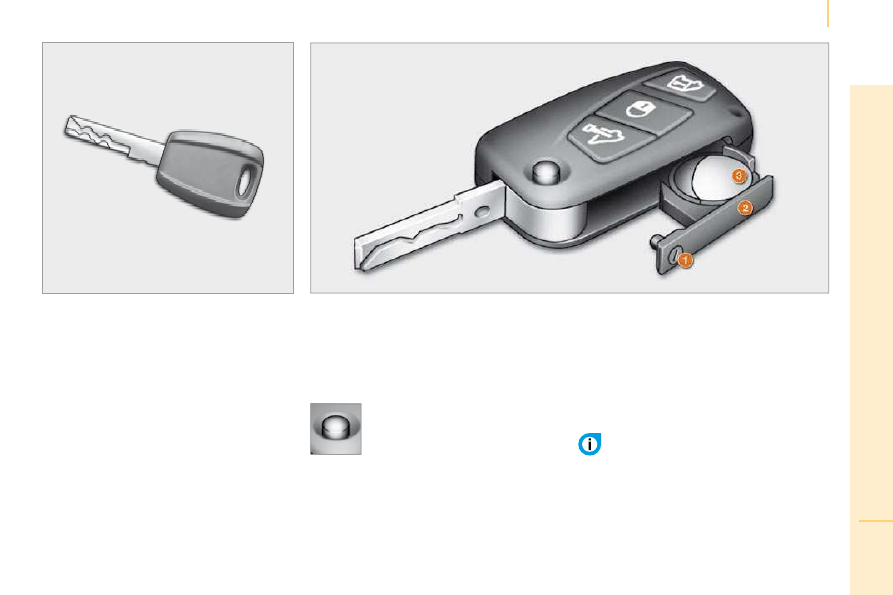

REMOTE CONTROL BATTERY

Reference: CR2032/3 volts.

- use the screwdriver as a lever to extract

the battery holder housing 2 ,

- remove the housing and change the

battery 3 observing the polarities,

- put the battery holder housing 2 back

inside the key and secure it by turning the
screw 1 .

Changing the remote
control battery

There is a risk of damage if the

replacement battery does not conform.

Only use batteries which are identical or of
an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an approved collection point.

- press the button to eject the

key,

- turn the screw 1 from the

closed padlock to the open
padlock using a screwdriver
with a thin tip,

Access

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.

If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.

Good practice

Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

When purchasing a second-hand vehicle:
- ensure that you are given the confidential

card,

- have the keys memorised by a CITROËN

dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.

CONFIDENTIAL CARD

This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

Driving with the doors locked may
make access to the passenger

compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.

Access

KEY

This locks and unlocks the doors on the
vehicle, opens and closes the fuel filler cap,
as well as starting and stopping the engine.

REMOTE CONTROL BATTERY

Reference: CR2032/3 volts.

- use the screwdriver as a lever to extract

the battery holder housing 2 ,

- remove the housing and change the

battery 3 observing the polarities,

- put the battery holder housing 2 back

inside the key and secure it by turning the
screw 1 .

Changing the remote
control battery

There is a risk of damage if the

replacement battery does not conform.

Only use batteries which are identical or of
an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an approved collection point.

- press the button to eject the

key,

- turn the screw 1 from the

closed padlock to the open
padlock using a screwdriver
with a thin tip,

Access

ELECTRONIC IMMOBILISER

This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.

If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.

Good practice

When purchasing a second-hand vehicle:
- ensure that you are given the confidential

card,

- have the keys memorised by a CITROËN

dealer to ensure that the keys in your
possession are the only ones which can
start the vehicle.

CONFIDENTIAL CARD

Driving with the doors locked may
make access to the passenger

Citroen Nemo Dag (2010 year). Instruction - part 2
