Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Analogue speedometer (mph or km/h).

Fuel gauge.

Engine coolant temperature gauge.

Cruise control or speed limiter settings.

Digital speedometer (mph or km/h).

Service indicator reset.

Recall of instantaneous information on:
- servicing,
- remaining driving range with the

emissions fluid (AdBlue

Main lighting dimmer.

Trip recorder reset.

Gear shift indicator.

Gear with an automatic or electronic
gearbox.

7. Service indicator, then total distance

recorder (miles or km), trip recorder (miles
or km), display of messages, ...

Rev counter (x 1 000 rpm or tr/min).

Dials and screens

Control buttons

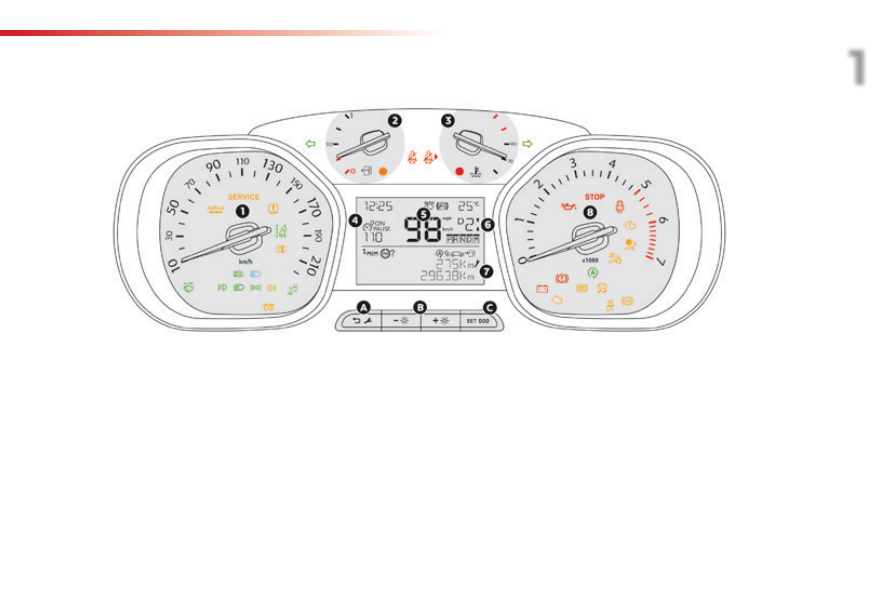

LCD text instrument panel

Instruments

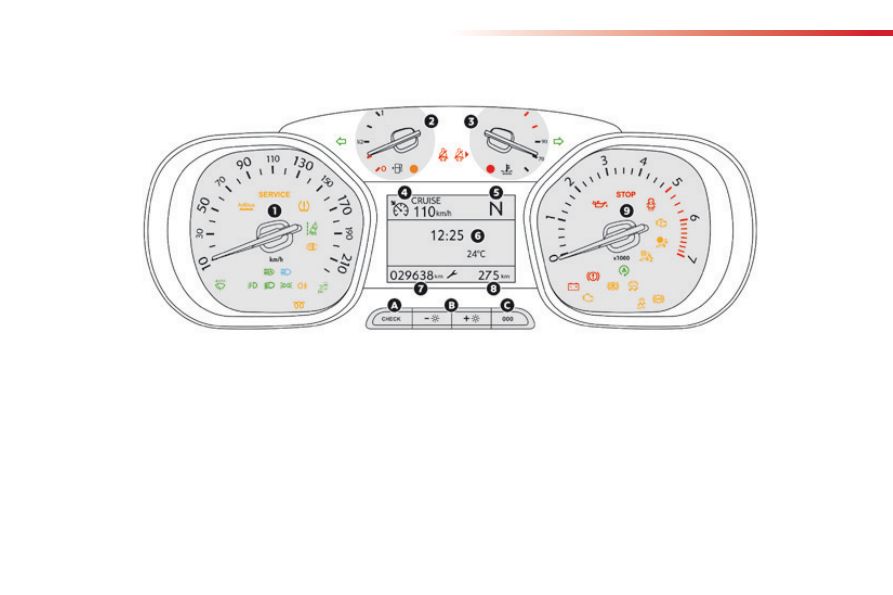

Matrix instrument panel

Analogue speedometer (mph or km/h).

Fuel gauge.

Engine coolant temperature gauge.

Cruise control or speed limiter settings.

Gear shift indicator.

Gear with an automatic or electronic
gearbox.

Service indicator reset.

Alert log display.

Recall of information on:
- servicing,
- remaining driving range with the

emissions fluid (AdBlue

Main lighting dimmer.

Trip recorder reset.

Display area: alert or state of function

messages, trip computer, digital
speedometer (mph or km/h), ...

7. Service indicator, then total distance

recorder (miles or km).

These functions are displayed in turn when
the ignition is switched on.

Trip recorder (miles or km).

Rev counter (x 1 000 rpm or tr/min).

Dials and screens

Control buttons

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

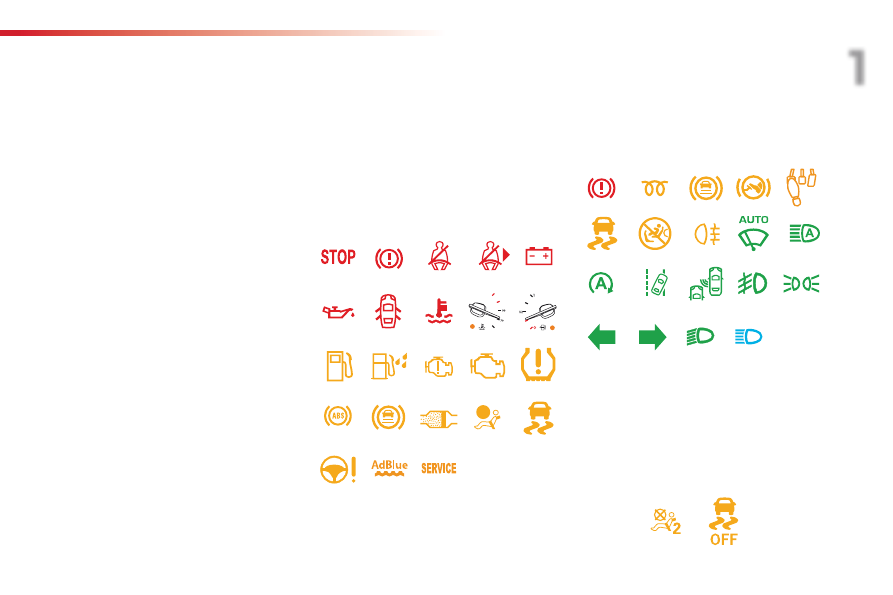

Indicator and warning
lamps

Visual indicators informing the driver that
a system is in operation or is switched off
(indicator lamp), or has a fault (warning lamp).

When the ignition is switched on

Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

Certain warning lamps may come on in one of
two modes: fixed (continuous) or flashing.
Only by relating the type of illumination to the
operation of the vehicle can it be determined
whether the situation is normal or a fault has
occurred. In the event of a fault, the illumination
of the warning lamp may be accompanied by
an audible signal and/or a message.

Warning lamps

When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact a
CITROËN dealer or a qualified workshop.

Operation indicator lamps

If one of the following indicator lamps comes on
in the instrument panel and/or instrument panel
screen, this confirms that the corresponding
system has come into operation.

Deactivation indicator lamps

If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
This is may be accompanied by an audible
signal and the display of a message.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

STOP

fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message.

Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.

Parking brake

fixed.

The parking brake is applied or not
properly released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the Parking brake, refer to
the corresponding section.

Braking

fixed.

The brake fluid level has dropped
significantly.

You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.

fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Seat belt(s)
not fastened /
unfastened

fixed
or flashing
accompanied by an
audible signal.

A seat belt has not been fastened or
has been unfastened.

Pull the strap then insert the tongue in the buckle.

* Depending on the country of sale.

Battery charge*

fixed.

The battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).

The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

Engine oil
pressure

fixed.

There is a fault with the engine
lubrication system.

You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.

Maximum
coolant
temperature

fixed with the needle
in the red zone.

The temperature of the cooling
system is too high.

Stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a CITROËN dealer or
a qualified workshop.

fixed (only with the
LCD instrument
panel).

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Door(s) open

fixed, associated with
a message identifying
the door, if the speed
is below 6 mph
(10 km/h).

A front, side or rear door (left-hand
side-hinged door or tailgate) is still
open.

Close the door in question.
If your vehicle has side-hinged rear doors and the
right-hand door is still open, it being open will not be
signalled by this warning lamp.

fixed, associated with
a message identifying
the door, together with
an audible signal if the
speed is above 6 mph
(10 km/h).

Low fuel level

fixed, with the needle
in the red zone.

When it first comes on there remains
less than 8 litres of fuel

in the tank.

You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity : approximately 69 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.

fixed (only with the
LCD instrument
panel).

Presence of
water in the
Diesel fuel

fixed (only with the
LCD instrument
panel).

The Diesel fuel filter contains water.

There is a risk of damage to the injection system.
Contact a CITROËN dealer or a qualified workshop
without delay.

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Engine
auto-diagnosis
system

fixed, associated with
the STOP warning
lamp.

A major engine fault has been
detected.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.

Diesel engine
pre-heating

fixed.

The ignition switch is at the
2

position (igntion on).

Or
The "START/STOP" button has been
pressed.

Wait until the warning lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that:
-

the clutch pedal is pressed fully down with a
manual gearbox,

- pressure is maintained on the brake pedal with an

automatic or electronic gearbox.

The period of illumination of the warning lamp is

determined by the ambient conditions (up to about

thirty seconds in extreme conditions).

If the engine does not start, switch the ignition off and

then on, wait until the warning lamp goes off again,

then start the engine.

Engine
auto-diagnosis
system

fixed.

The emission control system has a
fault.

The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.

flashing.

The engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.

fixed, associated with
the SERVICE warning
lamp.

A minor engine fault has been
detected.

Have it checked by a CITROËN dealer or a qualified
workshop.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Under-inflation

fixed, accompanied by
an audible signal and
a message.

The pressure in one or more tyres is
too low.

Check the tyre pressures as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection,
refer to the corresponding section.

flashing then fixed,
accompanied by the
Service warning lamp.

The system has a fault: the tyre
pressures are no longer monitored.

Check the tyre pressures as soon as possible.
Have the system checked by a CITROËN dealer or a
qualified workshop.

Foot on the
brake pedal

fixed.

The brake pedal must be pressed.

With an automatic or electronic gearbox, press the
brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N

If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.

Foot on the
clutch

fixed.

In the STOP mode of Stop & Start,
the change to START mode is denied
because the clutch pedal is not fully
down.

If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine START
mode.

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Anti-lock
Braking System
(ABS)

fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
delay.

Warning / indicator lamp

State

Cause

Action / Observations

Collision Risk
Alert / Active
Safety Brake

flashing.

The system is operating.

The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.

fixed, accompanied
by a message and an
audible signal

The system has a fault.

Have the system checked by a CITROËN dealer or a
qualified workshop.

fixed, accompanied by
a message.

The system has been deactivated
(via the menu).

For more information on the Collision Risk
Alert / Active Safety Brake system, refer to the
corresponding section.

Particle filter
(Diesel)

fixed, accompanied
by an audible signal
message on the risk
of blockage of the
particle filter.

This indicates that the particle filter is
starting to become saturated.

As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.

fixed, accompanied
by an audible signal
and and a message
that the particle
filter additive level is
too low.

This indicates the low level of the
additive reservoir.

Have the reservoir topped-up as soon as possible by
a CITROËN dealer or a qualified workshop.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
front airbag

fixed in the seat belt
and front passenger's
airbag warning lamps
display.

The control switch, located at the
passenger's end of the dashboard, is
set to the "OFF"

position.

The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault with
the airbags (airbag warning lamp on).

Turn the control switch to the "ON" position to activate
the passenger's front airbag; in this case, you must
not install a child seat in the rearward facing position
on this seat.

Airbags

on temporarily.

This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off.

This warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

fixed.

One of the airbag or seat belt
pretensioner systems has a fault.

Have them checked by a CITROËN dealer or a
qualified workshop.

Passenger's
airbag system

fixed.

The control switch, located at the
passenger's end of the dashboard, is
at the "ON"

position.

The passenger's front airbag is
activated.
In this case, do not install a rearward
facing child seat on the front
passenger seat.

Turn the control switch to the "OFF" position to
deactivate the passenger's front airbag.
You can install a rearward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp on).

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Power steering

fixed.

The power steering has a fault.

Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.

Dynamic
stability control
(DSC/ASR)

flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.

fixed.

The DSC/ASR system has a fault.

Have the system checked by a CITROËN dealer or a
qualified workshop.

Dynamic
stability control
(DSC/ASR)

fixed.

The button is pressed and the
indicator lamp comes on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation.

Press the button to activate the DSC/ASR. Its
indicator lamp goes off.
The DSC/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information on the Electronic stability
programme (ESC)

and in particular, DSC/ASR, refer

to the corresponding section.

Instruments

For topping-up the AdBlue

fluid or for more information on AdBlue

, refer to the corresponding section.

Warning / indicator lamp

State

Cause

Action / Observations

AdBlue

(BlueHDi Diesel)

fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).

Have the AdBlue

tank topped-up as soon as

possible: go to a CITROËN dealer or a qualified
workshop, or carry out this operation yourself.

flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range.

The remaining driving range is
between 0 and 350 miles (600 km).

You must top-up the AdBlue

tank to avoid a

breakdown

: go to a CITROËN dealer or a qualified

workshop, or carry out this operation yourself.

flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented.

The AdBlue

tank is empty: the

starting inhibition system required
by legislation prevents starting of the
engine.

To be able to start the engine, you must top-up the
AdBlue

tank: go to a CITROËN dealer or a qualified

workshop, or carry out this operation yourself.
It is essential

to add at least 3.8 litres of AdBlue

the fluid tank.

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

SCR emissions
control system
(BlueHDi Diesel)

fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

A fault with the SCR emissions
control system has been detected.

This alert disappears once the exhaust emissions
return to normal levels.

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range.

After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.

Contact a CITROËN dealer or a qualified workshop
without delay, to avoid a breakdown

flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.

To be able to start the engine, you must call on a
CITROËN dealer or a qualified workshop.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Rear foglamps

fixed.

The rear foglamps are on.

Turn the ring on the stalk rearward to switch off the
rear foglamps.

Service

on temporarily.

A minor fault has occurred for which
there is no specific warning lamp.

Identify the fault by means of the associated message,
for example:
-  low engine oil level,
-  low screenwash/headlamp wash fluid level,
-  discharged remote control battery,
-

low tyre pressures,

- saturation of the particle filter (FAP) on Diesel

vehicles.

- ...
For more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a CITROËN dealer or a
qualified workshop.

fixed.

A major fault has occurred for which
there is no specific warning lamp.

Identify the fault by reading the message and contact
a CITROËN dealer or a qualified workshop.

fixed, associated with
flashing and then fixed
display of the service
spanner.

The servicing interval has been
exceeded.

Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.

Instruments

Jumpy_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Automatic
wiping

fixed.

The wiper control has been pushed
down.

Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Automatic
headlamp
dipping

fixed.

The lighting control stalk is in
the "AUTO" position, and the function
has been activated.
The main beam headlamps come
on if the exterior lighting and driving
conditions permit.

The camera, located at the top of the windscreen,
manages the operation of main beam, depending on
the ambient lighting and driving conditions.
For more information on Automatic headlamp
dipping

, refer to the corresponding section.

Stop & Start

fixed.

When the vehicle stops (red lights,

traffic jams, ...) the Stop & Start

system has put the engine into STOP

mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically.

For more information on Stop & Start, refer to the
corresponding section.

Blind spot
monitoring
system

fixed.

The blind spot monitoring system has
been activated.

For more information on the Blind spot monitoring
system

, refer to the corresponding section.

Lane departure
warning system

fixed.

The lane departure warning system
has been activated.

The lane departure warning system is on.
For more information on the Lane departure warning
system

, refer to the corresponding section.

Instruments

For more information on the Lighting control stalk

, refer to the corresponding section.

Warning / indicator lamp

State

Cause

Action / Observations

Front foglamps

fixed.

The front foglamps are switched on
using the ring on the lighting control
stalk.

Turn the ring on the lighting control stalk rearward
once to switch off the front foglamps.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position.

Left-hand
direction
indicator

flashing with buzzer.

The lighting stalk has been pushed
down.

Right-hand
direction
indicator

flashing with buzzer.

The lighting stalk has been pushed
up.

Dipped beam
headlamps

fixed.

The lighting stalk is in the "Dipped
beam headlamps" position.

Main beam
headlamps

fixed.

The lighting stalk has been pulled
towards you.

Pull the stalk to return to dipped beam headlamps.

Citroen Jumpy (2016 year). Instruction - part 2
