TRIP COMPUTER

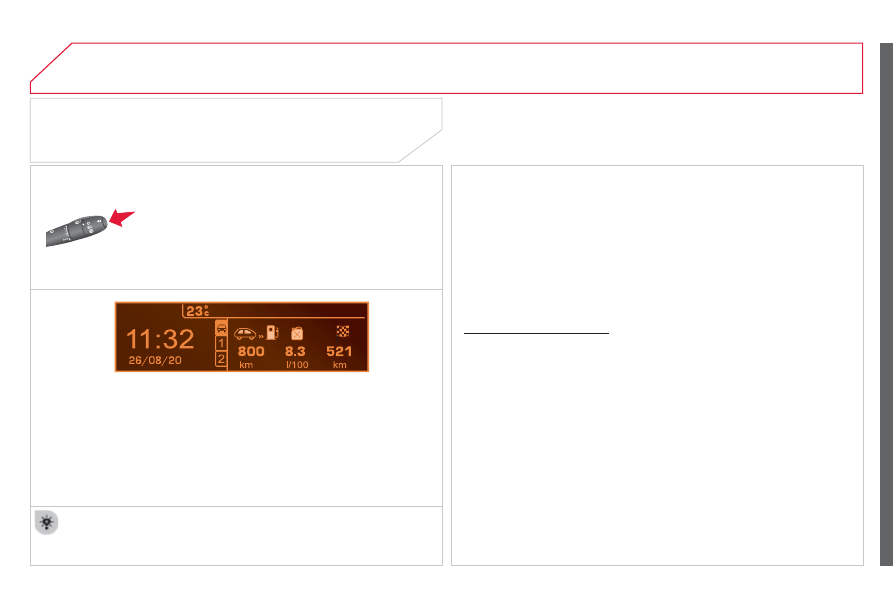

Each press of the button, located at the end of the

wiper stalk, displays the different trip computer

information in succession, depending on the screen.

the "vehicle" tab with:

● the range, the current fuel consumption and the distance remaining

to the destination,

- the "1" tab (trip 1) with:

● the average speed, the average consumption and the distance

travelled calculated over trip

"1" ,

- the "2" tab (trip 2) with the same information for a second trip.

A FEW DEFINITIONS

Range: displays the distance which can travelled with the remaining fuel

detected in the tank, basd on the average consumption over the last few

miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the

vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed.

After ﬁ lling with at least 10 litres of fuel, the range is recalculated and is

displayed when it exceeds 60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of the digits,

contact a CITROËN dealer.

If, whilst driving, dashes are displayed continuously in place of the digits,

Current fuel consumption: only calculated and displayed above

20 mph (30 km/h).

Average fuel consumption: this is the average fuel consumption since

the last trip computer zero reset.

Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference

to the ﬁ nal destination, entered by the user. If guidance is activated,

the navigation system calculates it as a current value.

Average speed: this is the average speed calculated since the last trip

computer zero reset (ignition on).

Zero reset

When the required trip is displayed, press the control for more than

two seconds.

VEHICLE DIAGNOSTICS

9.78

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

SCREEN MENU MAP

RADIO-CD

MAIN FUNCTION

* The parameters vary according to vehicle.

OPTION A

OPTION B...

MONOCHROME A

OPTION A1

OPTION A2

REG MODE

CD REPEAT

RANDOM PLAY

VEHICLE CONFIG *

REV WIPE ACT

OPTIONS

GUIDE LAMPS

DIAGNOSTICS

RDS SEARCH

CONSULT

ABANDON

9.79

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

TEMPERATURE: °CELSIUS / °FAHRENHEIT

FUEL CONSUMPTION:

KM/L - L/100 - MPG

SCREEN MENU MAP

DISPLAY ADJUST

MONTH

DATE

HOUR

MINUTES

YEAR

12 H/24 H MODE

LANGUAGE

ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL

FRANCAIS

DEUTSCH

ENGLISH

ESPANOL

9.80

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

SCREEN MENU MAP

Press the OK dial for access to short-cut menus according to the display

on the screen:

MONOCHROME C

activate / deactivate RDS

activate / deactivate REG mode

activate / deactivate radiotext

RADIO

activate / deactivate Intro

CD / MP3 CD

activate / deactivate track repeat

(the entire current CD for CD, the entire

current folder for MP3 CD)

activate / deactivate random play

(the entire current CD for CD, the entire

current folder for MP3 CD)

activate / deactivate track repeat (of the

current folder / artist / genre / playlist)

USB

activate / deactivate random play (of the

current folder / artist / genre / playlist)

9.81

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

SCREEN MENU MAP

MONOCHROME C

AUDIO FUNCTIONS

alternative frequencies (RDS)

activate / deactivate

FM BAND PREFERENCES

regional mode (REG)

activate / deactivate

radio-text information (RDTXT)

activate / deactivate

PLAY MODES

album repeat (RPT)

activate / deactivate

track random play (RDM)

activate / deactivate

TRIP COMPUTER

Distance: x miles

ENTER DISTANCE TO DESTINATION

Diagnostic s

ALERT LOG

Functions activated or deactivated

STATUS OF THE FUNCTIONS *

Pressing the MENU button displays:

* The parameters vary according to vehicle.

9.82

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

SCREEN MENU MAP

BLUETOOTH TELEPHONE

Connect/Disconnect a device

Consult the paired device

BLUETOOTH CONFIGURATION

Telephone function

Audio Streaming function

Delete a paired device

Perform a Bluetooth search

Calls list

CALL

Directory

Terminate the current call

MANAGE THE TELEPHONE CALL

Activate private mode

video brightness adjustment

DISPLAY CONFIGURATION

DEFINE THE VEHICLE PARAMETERS *

PERSONALISATION-CONFIGURATION

normal video

inverse video

brightness (- +) adjustment

date and time adjustment

day/month/year adjustment

hour/minute adjustment

choice of 12 h / 24 h mode

choice of units

l/100 km - mpg - km/l

°Celsius / °Fahrenheit

CHOICE OF LANGUAGE

* The parameters vary according to vehicle.

9.83

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

FREQUENTLY ASKED QUESTIONS

QUESTION

ANSWER

SOLUTION

There is a difference in

sound quality between the

different audio sources

(radio, CD...).

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources, which

may result in audible differences when changing source (radio, CD...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to the

sources listened to. It is advisable to set the AUDIO

functions (Bass, Treble, Front-Rear Balance, Left-

Right Balance) to the middle position, select the

musical ambience "None" and set the loudness

correction to the "Active" position in CD mode or to

the "Inactive" position in radio mode.

The CD is ejected

automatically or is not

played by the player.

The CD is inserted upside down, is unplayable, does not contain any audio

data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not

play DVDs.

- Due to their quality level, certain writeable CDs

will not be played by the audio system.

The message "USB

peripheral error" is

displayed on the screen.

The Bluetooth connection

is cut.

The battery of the peripheral may not be sufﬁ ciently charged.

Recharge the battery of the peripheral device.

The USB memory stick is not recognised.

The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound is

poor.

The CD used is scratched or of poor quality.

Insert good quality CDs and store them in suitable

conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting

an ambience.

9.84

JUMPY-ATLANTE-VP_EN_CHAP09C_RD45_ED01_2014

QUESTION

ANSWER

SOLUTION

The stored stations do

not function (no sound,

87.5 Mhz is displayed...).

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the

stations are stored.

The trafﬁ c announcement

(TA) is displayed. I do

not receive any trafﬁ c

information.

The radio station is not part of the regional trafﬁ c information network.

Tune to a radio station which broadcasts trafﬁ c

information.

The quality of reception of

the radio station listened

to gradually deteriorates

or the stored stations do

not function (no sound,

87.5 Mhz is displayed...).

The vehicle is too far from the transmitter used by the station listened to or

there is no transmitter in the geographical area through which the vehicle is

travelling.

Activate the RDS function to enable the system to

check whether there is a more powerful transmitter

in the geographical area.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

This phenomenon is normal and does not indicate

a failure of the audio equipment.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1 to

2 seconds in radio mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

Deactivate the RDS function if the phenomenon is

too frequent and always on the same route.

With the engine off, the

audio equipment switches

off after a few minutes

of use.

When the engine is switched off, the audio equipment operating time

depends on the battery charge.

The switch-off is normal: the audio equipment switches to economy mode

and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery

charge.

The message "the audio

system is overheated"

appears on the display.

In order to protect the installation if the surrounding temperature is too high,

the audio equipment switches to an automatic thermal protection mode

leading to a reduction of the volume or stopping of the playing of the CD.

Switch the audio system off for a few minutes to

allow the system to cool.

163

Exterior

VISUAL

SEARCH

JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014

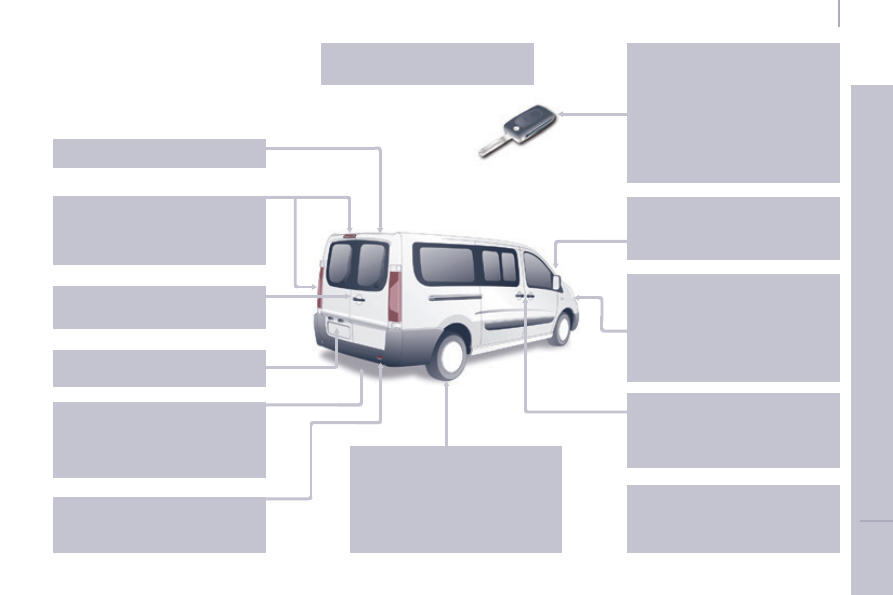

EXTERIOR

Filler cap,

fuel tank

130-131

Fuel cut-off,

Diesel priming

131-132

Wiper blade

152

Door mirrors

Side repeater

145

Front lamps, foglamps, direction

indicators 46-48

Headlamp beam

height adjustment

Changing front bulbs

143-145

Headlamp wash

49, 126

Snow shield

141

Front doors

23-24

Sliding side door

24-25

Key

Opening the bonnet

122

Electric child lock

Brakes, pads

94, 125

Emergency braking

ABS, EBFD

ASR, DSC

Tyres, pressures

36-37, 162

Snow chains

142

Rear suspension

88-90

Doors, tailgate

23-26

Emergency control

Accessories

121

Number plate lamp

147

Dimensions

156-159

Temporary puncture repair kit 135-136

Spare wheel, jack,

changing a wheel, tools

137-141

Inflation, pressures

36-37, 162

Remote control

20-21

Changing the battery,

reinitialisation 21

Key

Starting

Central locking /

unlocking

20, 23-24

Alarm

22-23

Towing, lifting

153-154

Towbar

119-120

Parking sensors

Rear lamps,

direction indicators

46-47, 146

3rd brake lamp

147

Changing rear bulbs

143, 146

164

Instruments and controls

JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014

Headlamp beam height adjustment 48

Grip control

98-99

Starter, ignition switch

Wiper controls

49-50

Automatic wiping

Windscreen / headlamp wash

Trip computer

Section 9

Cruise control

51-53

Fixed speed limiter

Speed limiter

54-56

Steering mounted controls:

eMyWay

Section 9

Audio system

Section 9

Lighting controls

46-47

Automatic illumination of headlamps 48

Foglamps

Daytime running lamps

Opening the bonnet

122

Parking brake

Electric windows,

electric mirrors

91-93

Instrument panels, screens,

speedometers 27-28

Warning lamps, indicator lamps 29-34

Indicators, gauge

35, 38-39

Setting the time

in the instrument panel

Dashboard lighting dimmer

Gear shift indicator

Mat

Steering wheel adjustment

Horn

165

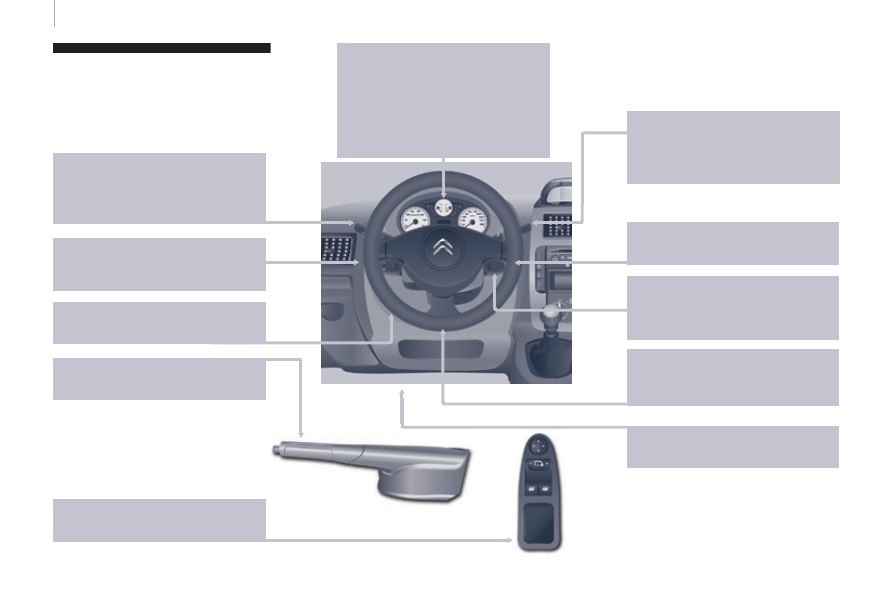

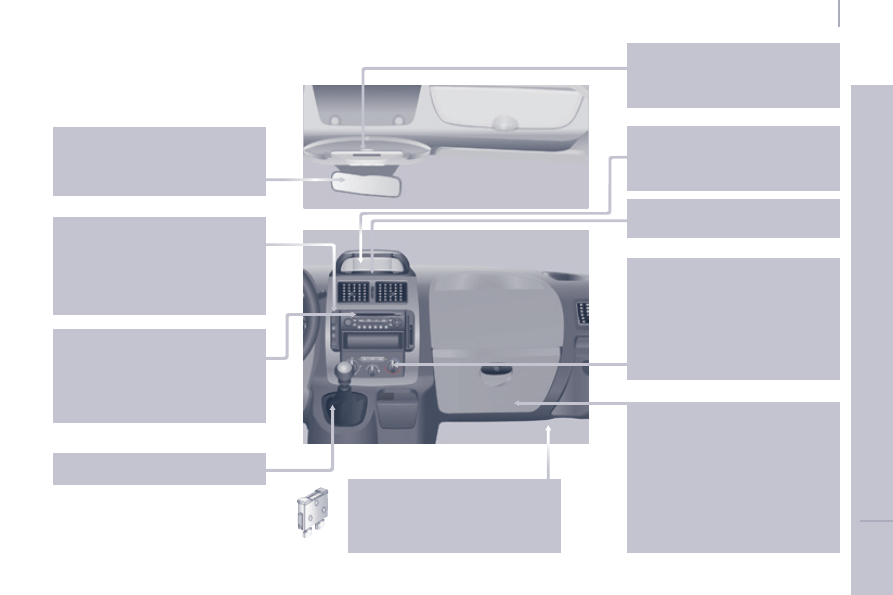

Instruments and controls

VISUAL

SEARCH

JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014

Screens, display

Section 9

Setting the time

in the screen

Section 9

Rear view mirror

Toll cards, car park tickets

Child surveillance mirror

Courtesy lamps

84, 145

Warning lamp in overhead storage unit

Heated seats

Rear ventilation

65-67

Dashboard fuses,

right-hand side

148-149

Passenger's front

airbag deactivation

106

Controls

central locking

23-24

alarm

22-23

electric child lock

parking sensors

ASR, DSC

Technology on board

Section 9

Emergency or assistance call

eMyWay

Audio system

Gearbox

40, 41-43

Hazard warning lamps

Heating, ventilation

manual ventilation

57-58, 62

air conditioning A/C

57-58

air recirculation

Air conditioning with separate

adjustments 59-62

Demisting/defrosting

63-64

Additional heating

66-67

Cab fittings

81-83

glove box,

overhead storage,

ashtray,

sun visor,

12 volt socket,

ticket holder,

storage compartment.

166

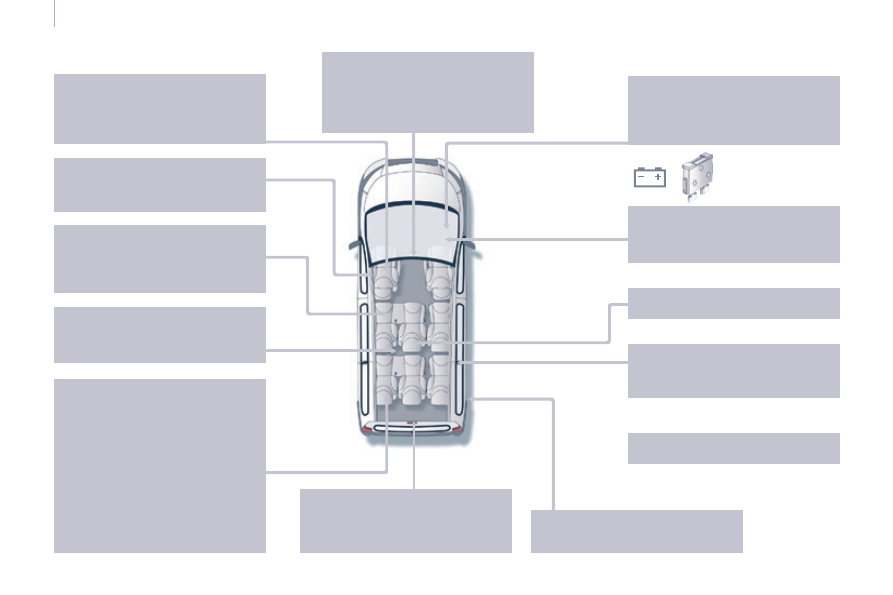

Interior

JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014

Seating area fittings

85-87

stowing rings,

load space cover,

- coat hook and net fixing,

bench net,

grab handle,

cup holder,

12 volt socket,

storage compartment.

Temporary puncture repair kit 135-136

Spare wheel, jack,

changing a wheel, tools

137-141

Rear suspension

88-90

Front, side,

curtain airbags

103-106

Passenger's front airbag

deactivation

106

Parking brake,

handbrake 94

Opening the bonnet

122

Battery, charging, starting

133

Passenger compartment fuses 148, 150

Front seats, adjustments,

head restraint

69-70

2-seat front bench

71-72

Seat belts

100-101

Rear ventilation

Child seats

107-118

ISOFIXmountings

111-114

Rear side windows

INTERIOR

Rear seats,

rear benches

73-79

Configuration of seats and benches 80

Rear courtesy lamp

Changing courtesy

lamp bulbs

145

Accessories

121

Rear view mirror

Toll cards, car park tickets

Front courtesy lamp

Changing courtesy

lamp bulbs

145

167

Technical data - Maintenance

VISUAL

SEARCH

JUMPY-ATLANTE-VP_EN_CHAP10_LOCALISATION_ED01-2014

TECHNICAL DATA - MAINTENANCE

Identification markings, serial number,

paint code, tyres

162

Snow chains

142

Engine fuses

148, 151

Windscreen / headlamp wash, levels

126

Bulbs, lighting,

changing bulbs

143-147

Checks

127-128

battery,

gearbox,

carbon ﬁ lter, passenger compartment ﬁ lter,

oil filter,

particle emission filter,

parking brake,

brake pads,

brake drums, discs.

Emissions controls (EOBD)

Water bleeding, Diesel filter

128

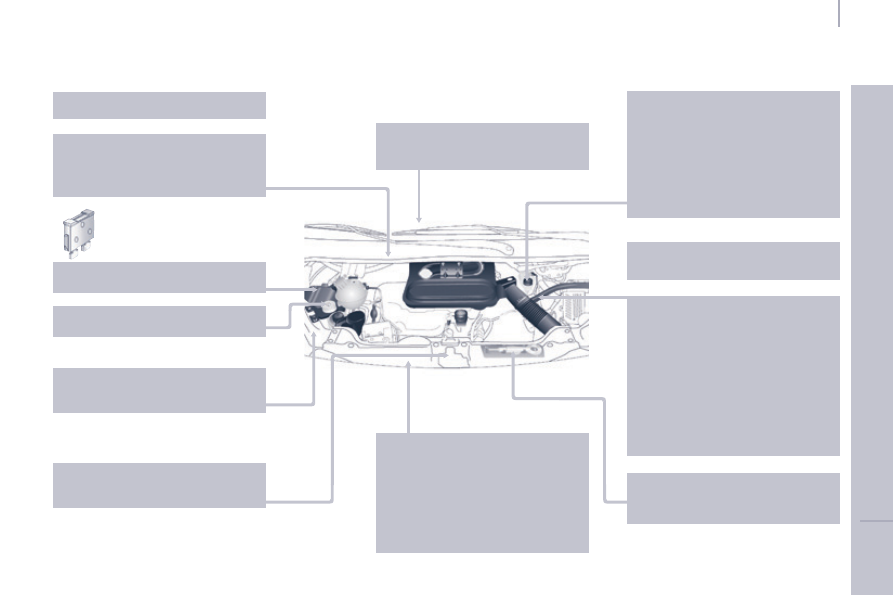

Under the bonnet

Diesel

123

petrol

124

Fuel cut-off,

Diesel priming

131-132

Dimensions

156-159

Weights

160

Opening the bonnet, stay

122

Levels

125-126

Diesel additive,

dipstick,

power steering fluid,

brake fluid,

coolant,

screen and

headlamp wash fluid.

Towing, lifting

153-154

Towed loads

160

Warning lamps

29-34

Changing a wiper blade

152

Citroen Jumpy Multispace (2014 year). Instruction - part 16
