Citroen E-Mehari (2016 year). Instruction - part 5

Practical advice

e-mehari_en_Chap05_conseils-pratiques_ed02-2016

Coming out of hibernation mode

Do not connect the vehicle before step
5 and carry out each step in order.

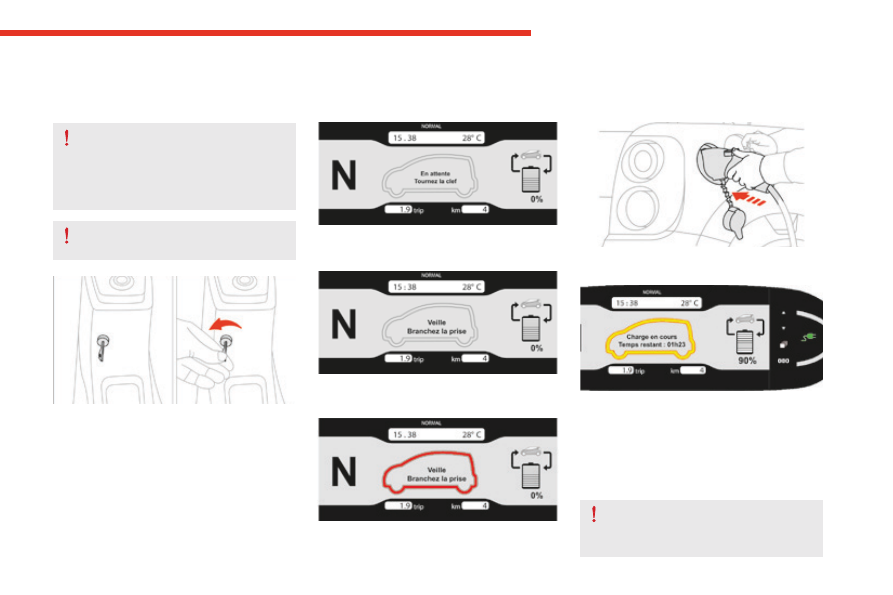

Position the hibernation key in the switch.

Turn it to the left.

Check the message displayed: the screen

asks you to turn the key.

Turn the ignition key to the first position. The

vehicle wakes up.

Switch off and remove the ignition key. The

screen display is then as shown,

Plug in the charging cable.

Check for the rapid flashing of the green LED,
confirming that the battery is charging.

Leave your vehicle on charge for the period
displayed so that it is 100% operational.

Never disconnect the charging cable
while the green LED is flashing rapidly
(a minimum of 4 hours).

You have to be in possession of the
charging cable and be able to connect
your vehicle to a power supply to
be able to wake the vehicle from
hibernation.

Wait a few seconds. The hazard warning lamps
flash several times and the boot locks and
unlocks.

Practical advice

e-mehari_en_Chap05_conseils-pratiques_ed02-2016

Audio system

The audio unit

Your E-MEHARI is pre-wired to receive an
audio unit with ISO connectors.

The speakers

Your E-MEHARI is fitted with two speakers
for playing music and communicating with
CITRÖEN ASSISTANCE.

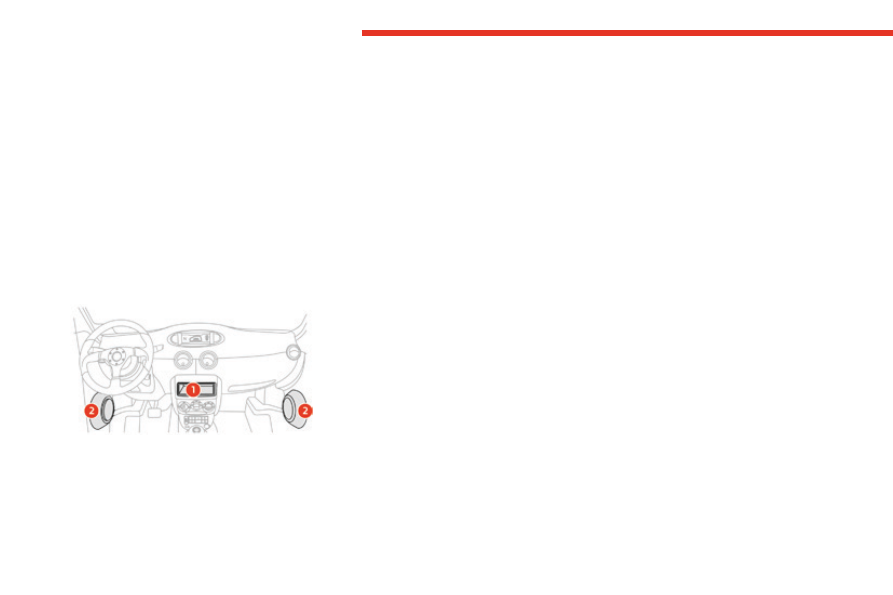

(1)

Audio unit housing (available as an

accessory)

(2)

Speaker position

Bluetooth system

A Bluetooth audio system is already installed in
your vehicle. The vehicle is handed over to you
with the remote control for the system, as well
as a remote control holder that you can fix to
the dashboard.
The system allows you to:
- Play music on an audio player or

smartphone connected by Bluetooth, or a
USB peripheral device connected to the
port in the centre console (see page 47).

- Make and receive telephone calls by

Bluetooth connection in hands-free mode,
using the microphone and speakers
installed in your E-MEHARI.

For more information on use, please refer to
the instructions for the Bluetooth system.
NB: iPod / iPhone connections by cable (Apple
dock) or auxiliary jack socket are not available.

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Identification markings / Vehicle VIN

number

A vehicle's VIN (Vehicle Identification Number) is a code allowing the identification of individual
vehicles.

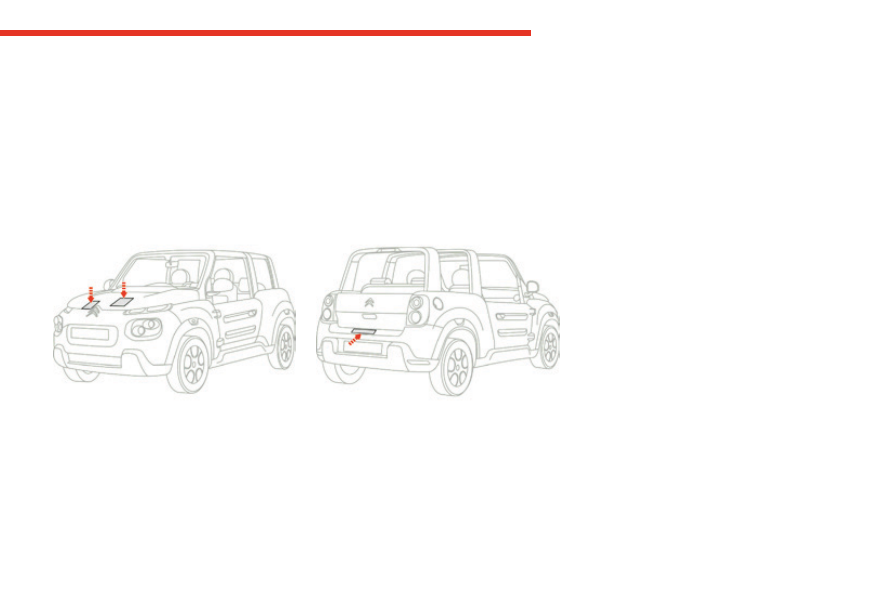

The VIN can be found in three places on your E-MEHARI :
● The central front crossmember
● The right-hand front chassis leg
● The rear crossmember

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Electric motor: Technical characteristics - LMP battery / Drive

train

Motor characteristics

Characteristics of the motor

your E-MEHARI

Type of motor

Permanent magnet

Maximum power

50 kW

Nominal power
rating

35 kW

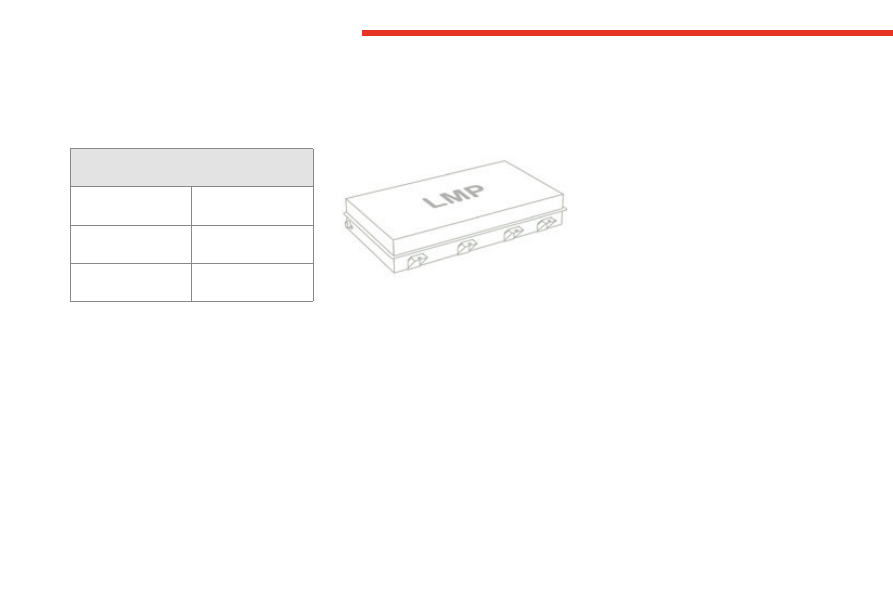

The LMP

battery

This LMP

battery stores, for an equivalent

weight, five times more energy than a
traditional battery and can be recharged in a
few hours.
The range of the vehicle has been type-
approved to European Regulation ECE 101R01.
The LMP

battery is made only of non-polluting

materials.
At the end of its life, the LMP

battery will be

collected and all of its components will be
recycled or reused.

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Characteristics (general, thermal and electric)

General characteristics

Volume (L)

300

Weight (kg)

300

Thermal characteristics

Internal
temperature

60°C / 80°C

Operating
temperature

-20°C / +60°C

Electric characteristics

Energy

30 kWh

Nominal voltage

410V

Peak power

45 kW (30s)

Min /

max LMP

battery voltage

300/435V

Capacity at C/4

75 Ah

Mass density

100 Wh/kg

Volume density

100 Wh/l

Maximum current

140 A

Your E-MEHARI contains a high voltage LMP

battery isolated from its surroundings by a

unique packaging arrangement.
The LMP

battery must only be handled by trained and qualified persons.

On-board charger

To make your E-MEHARI as versatile as
possible, it has its own internal charger.
Your E-MEHARI can be charged from any
power point; the charger transforms the supply
to suit the LMP

battery

Characteristics of the charger in

your E-MEHARI

Operating voltage

230 V

Charger current
rating

16 A

Charging power
rating

3 300 W

The charger in your E-MEHARI has the
following characteristics:

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Dimensions / Weights

Exterior dimensions

Dimensions of your E-MEHARI

Length

3.81 m

Width

1.87 m (including the

mirrors)

Height

1.65 m

Interior dimensions

Interior volumes of your E-MEHARI

Boot volume

200 litres / 800 litres with

the bench seat folded

Number of seats

Weights

Weights of your E-MEHARI

Unladen weight

1 405 kg

Gross vehicle weight
(maximum laden weight)

1 735 kg

Kerb weight

1 480 kg

Exceeding the maximum weight
specified above risks damaging
your E-MEHARI and could cause an
accident and serious injuries.
The maximum weight must never be
exceeded.

Tyres

Tyres fitted to your E-MEHARI

Size

185/65 R15

Type

"Latitude Cross" or

equivalent

Brand

Michelin

Spare wheel

No (temporary

puncture repair kit)

Tyre pressures

Front 2 bar / Rear

2 bar

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Performance

Performance of your E-MEHARI

Power

50 kW

Maximum speed

68 mph (110 km/h)

(limited electronically)

Acceleration 0 –
50 km/h

6.4 seconds

Range

The range of the vehicle has been type-
approved to European Regulation ECE 101R01.
In real use, several factors will vary the range
of an electric vehicle; you have some control
over these and so can make noticeable
improvements in the range.

These factors are:
● speed and driving style
● road profile
● temperature settings
● tyres
● use of electrical accessories
● vehicle loading

Advice
● drive at constant speed
● adapt your driving style to avoid heavy

energy consumption

● make use of energy recovery: anticipate

early the slowing of traffic by taking
your foot off the accelerator or braking
progressively

Speed and driving style

High speed reduces the range of the vehicle.
Sporty driving reduces the range of the vehicle:
adopt a smooth driving style.

Road profile

On a hill, rather than trying to maintain your
speed, do not depress the accelerator pedal
more than on level ground: rather, keep the
accelerator pedal in the same position.

Temperature setting

Using the heating or air conditioning reduces
the range of the vehicle.

Tyres

Low tyre pressures increase energy
consumption.
Observe the tyre pressures recommended for
your vehicle.
When replacing tyres, give preference to tyres
of the same brand, size, type and structure as
the original fitment.
Using tyres of different characteristics
significantly reduces the range of the vehicle.

Vehicle loading

Avoid carrying unnecessary loads in or on the
vehicle.

Technical data

e-mehari_en_Chap06_caracteristiques-techniques_ed02-2016

Brakes and

suspension

Brakes and suspension on

your E-MEHARI

Brakes

Discs

Front / rear brake

disc

diameter

257 mm / 250 mm

Front suspension

MacPherson

Rear suspension

Trailing arms with

stabilising bars

Braking assistance

Electric braking

assistance

Braking system

Your E-MEHARI is fitted with two braking
system:
- An energy recovery braking system
- A hydraulic braking system

Energy recovery braking
system

The level of regeneration braking helping the
hydraulic braking depends on the state of
charge of the LMP

battery.

If the state of charge of the LMP

battery is

100%, the energy recovery braking does not
intervene.

Hydraulic braking system

The hydraulic braking system is similar to that
used on conventional vehicles.

When driving on slippery surfaces, take
care when braking and accelerating.
Sudden braking could cause the wheels
to loose grip and lead to an accident
and serious injuries.

Alphabetical index

e-mehari_en_Chap07_inde-alpha_ed02-2016

ABS - ESP ...................................................... 39

Access, charging socket .................................. 8

Air conditioning .............................................. 45

Antitheft / immobiliser ...................................... 9

Assistance call ................................................. 9

Care of interior trim ........................................ 57

Care of the bodywork..................................... 57

Changing a bulb ............................................. 59

Charactristics (motor) .................................... 66

Charger, on-board.......................................... 66

Check of operation ......................................... 35

Child safety .............................................. 15, 16

Clock .............................................................. 35

Closing the doors ....................................... 8, 10

Conditioning, air ............................................. 45

Coolant, engine .............................................. 54

Courtesy lamp ................................................ 46

Electrical cut-off in an accident ..................... 26

Engine characteristics ................................... 66

Fault, electric .................................................... 7

Flap, charging .................................................. 8

Flashing indicators ................................... 20, 2 2

Foglamp, rear ................................................. 20

Fuses .............................................................. 59

Battery ........................................................ 4 , 69

Bonnet ............................................................ 53

Boot flap ......................................................... 50

Boot floor hatch .............................................. 10

Brake fluid ...................................................... 54

Braking ........................................................... 70

Bulbs .............................................................. 59

Hazard warning lamps ................................... 23

Headlamps, dipped beam .............................. 20

Headlamps, main beam ................................. 20

Head restraints..........................................11, 48

Heating ............................................................41

High voltage ............................................... 4 , 26

Horn................................................................ 24

Identification, vehicle ..................................... 65

Indicators: consumption - charging - load .... 35

Indicators: speed - time - temperature .......... 36

Inflating tyres ........................................... 56 , 68

Instrument panel ............................................ 35

Instruments and controls ............................... 17

Interior fittings ................................................ 47

Isofix ............................................................... 16

Dashboard ...................................................... 35

Daytime running lamps .................................. 20

Demisting the windscreen ............................. 44

Design .............................................................. 4

Dimensions .................................................... 68

Direction indicators .................................. 20, 2 2

Doors .......................................................... 8, 10

Driving ............................................................ 40

Drive selector ................................................. 38

Key ring, personal RFID .................................. 8

Alphabetical index

e-mehari_en_Chap07_inde-alpha_ed02-2016

Lamps, indicator ............................................ 35

Levels ............................................................. 54

Lighting : adjustment ...................................... 22

Lighting, interior ............................................. 46

Parking brake ................................................. 37

Pedals, control ................................................11

Performance .................................................. 69

Port, USB ....................................................... 47

Power steering ............................................... 18

Precautions related to road

traffic accidents .......................................... 4,6

Pressures, tyres ....................................... 56 , 68

Maintenance .................................................. 53

Mirrors ............................................................ 19

Mobility, electric ............................................... 4

Radio .............................................................. 64

Range ............................................................. 69

Recharging the battery .........................8, 27, 67

Recorder, total distance ................................. 36

Remote control (door locking) ....................... 10

Roof, fabric ..................................................... 51

Safety, high voltage ................................... 4, 2 6

Screenwash ................................................... 25

Screenwash fluid ........................................... 55

Seat belts ....................................................... 14

Seat, rear bench .......................................11, 48

Seats, front (adjustment) ............................... 12

Selector, drive ................................................ 38

Sidelamps ...................................................... 20

Socket, 12V .................................................... 47

Speakers ........................................................ 64

Starting switching off the vehicle ................... 33

Steering wheel ............................................... 18

Sun visor ........................................................ 47

Suspension .................................................... 70

Switch, starting .............................................. 33

Symbols ......................................................... 35

Tyres ...................................................56 , 58, 6 8

Ventilation - air conditioning .......................... 45

Underbonnet .................................................. 53

Unlocking ................................................... 8, 10

Washing ......................................................... 57

Weights .......................................................... 68

Wheel, spare .................................................. 58

Windows, front ............................................... 52

Windows, rear ................................................ 49

Winter preparation ......................................... 62

Wipers ............................................................ 25

e-mehari_en_Chap07_inde-alpha_ed02-2016

e-mehari_en_Chap07_inde-alpha_ed02-2016

4Dconcept

Diadeis

Interak

02-16

e-mehari_en_Chap00_couverture_ed02-2016

Automobiles CITROËN declares, by application of the

provisions of the European legislation (Directive 2000/53)

relating to End of Life Vehicles, that it achieves the

objectives set by this legislation and that recycled materials

are used in the manufacture of the products that it sells.

Reproduction or translation of all or part of this document

is prohibited without written authorisation from Automobiles

CITROËN.

We draw your attention to the following points:
- The fitting of electrical equipment or accessories not

listed by CITROËN may cause faults and failures

with the electrical system of your vehicle. Contact

a CITROËN dealer for information on the range of

recommended accessories.

- As a safety measure, access to the diagnostic socket,

used for the vehicle's electronic systems, is reserved

strictly for CITROËN dealers or qualified workshops,

equipped with the special diagnostic tool required (risk

of malfunctions of the vehicle's electronic systems that

could cause breakdowns or serious accidents). The

manufacturer cannot be held responsible if this advice is

not followed.

- Any modification or adaptation not intended or

authorised by Automobiles CITROËN or carried out

without meeting the technical requirements defined by

the manufacturer would lead to loss of the CITROËN

commercial warranty.

Printed in the EU

Anglais

For any work needed on your vehicle, go to a qualified

workshop that has the technical information, skills and

suitable equipment; the CITROËN dealer network is able to

provide all of these.

The descriptions and illustrations are given without

obligation. Automobiles CITROËN reserves the right

to modify the technical specifications, equipment and

accessories without having to update this edition of the

handbook.
This document is an integral part of your vehicle. It should

be passed on to the new user in the event of sale or

transfer. Similarly, various stickers are applied to your

vehicle, warning you of certain safety precautions you

should take; do not remove them, they are an integral part

of your vehicle and will also be useful to a new owner.

e-mehari_en_Chap00_couverture_ed02-2016

*16MEH.0031*

Anglais

16MEH.0031

Content .. 3 4 5
