Technical data

DS4_en_Chap09_caracteristiques_ed01-2016

Petrol engines

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres.

.../2:

model fitted with very low rolling resistance tyres.

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Engine

VTi 120

PureTech 130 S&S

THP 150

Gearbox

Manual

(5-speed)

Manual

(6-speed)

Automatic

(6-speed)

Model code:
NX...

5FS0

5FS0/1

HNYM/S

HNYM/1S
HNYM/2S

5FEA

Cubic capacity (cc)

1 598

1 199

1 598

Max power*: EU standard (kW)

110

Fuel

Unleaded

Braked trailer (within GTW limit)

on 12% gradient (Kg)

1 200

800

Unbraked trailer (Kg)

640

675

715

Recommended nose weight (Kg)

304

Technical data

DS4_en_Chap09_caracteristiques_ed01-2016

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres.

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Engine

THP 160

THP 165 S&S

THP 210 S&S

Gearbox

Automatic

(6-speed)

EAT6 automatic

(6-speed)

Manual

(6-speed)

Model code:
NX...

5FMA

5GZT/S

5GZT/1S

5GMM/S

Cubic capacity (cc)

1 598

Max power*: EU standard (kW)

120

121

155

Fuel

Unleaded

Braked trailer (within GTW limit)

on 12% gradient (Kg)

800

1 400

1 000

Unbraked trailer (Kg)

715

690

655

Recommended nose weight (Kg)

305

Technical data

DS4_en_Chap09_caracteristiques_ed01-2016

Diesel engines

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres.

.../2:

model fitted with very low rolling resistance tyres.

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Engine

BlueHDi 100

e-HDi 115

BlueHDi 115 S&S

Gearbox

Manual

(5-speed)

Manual

(6-speed)

Manual

(6-speed)

EAT6 automatic

(6-speed)

Model code:
NX...

BHY

9HD8/6

9HD8/1S

BHXM/S

BHXM/1S -/2S -/3S

BHXT/1S
BHXT/2S

Cubic capacity (cc)

1 560

Max power*: EU standard (kW)

Fuel

Diesel

Braked trailer (within GTW limit)

on 12% gradient (Kg)

1 250

1 300

1 200

Unbraked trailer

630

680

640

Recommended nose weight

306

Technical data

DS4_en_Chap09_caracteristiques_ed01-2016

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

.../S:

model fitted with Stop & Start.

.../1:

model fitted with low rolling resistance tyres.

.../2:

model fitted with very low rolling resistance tyres.

Engine

BlueHDi 120 S&S

BlueHDi 150 S&S

BlueHDi 180

Gearbox

Manual

(6-speed)

EAT6 automatic

(6-speed)

Manual

(6-speed)

EAT6 automatic

(6-speed)

Model code:
NX...

BHZM/S

BHZM/1S -/2S -/3S

BHZT/S

AHRM/S

AHRM/1S
AHRM/2S

AHWT/S

AHWT/1S
AHWT/2S

Cubic capacity (cm

)

1 560

1 997

Max power*: EU standard (kW)

110

132

Fuel

Diesel

Braked trailer (within GTW limit)

on 12% gradient (Kg)

1 300

1 200

1 300

Unbraked trailer

680

640

740

745

Recommended nose weight

308

Technical data

DS4_en_Chap09_caracteristiques_ed01-2016

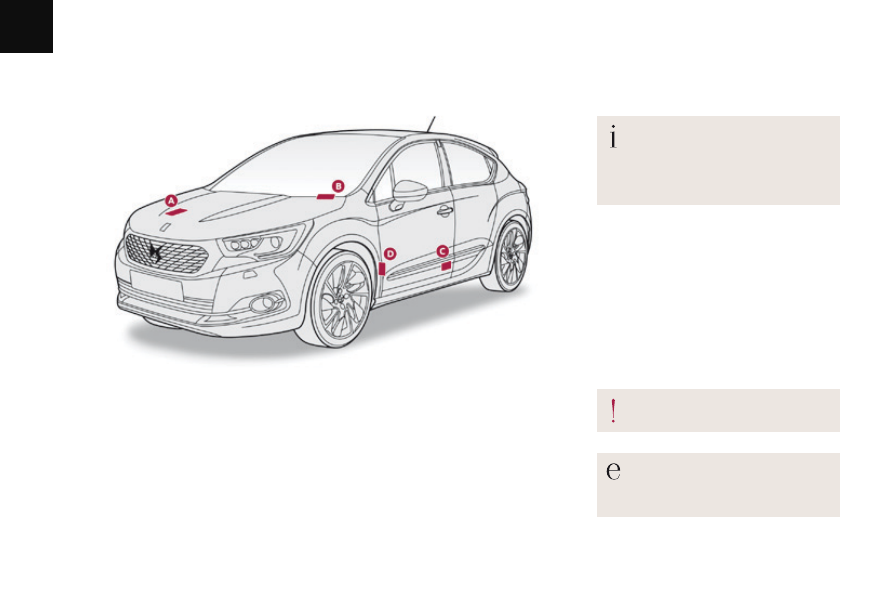

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle identification number (VIN) under the bonnet.
This number is engraved on the bodywork near
the suspension damper mounting.

B. Vehicle identification number on the dashboard.
This number is indicated on a self-adhesive
label which is visible through the windscreen.

D. Tyre/paint label.
This label is affixed to the driver's front pillar.

Low tyre pressures increase fuel
consumption.

The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.

C. Manufacturer's label.
The VIN is indicated on a self-destroying label
affixed to the driver's centre pillar.

It bears the following information:
- the tyre pressures, for unladen and laden

conditions,

- the tyre sizes (including the load index and

speed rating),

the spare tyre inflation pressure,

- the paint colour code.

Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.

Never reduce the pressure of a warm
tyre.

313

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

7-inch touch screen tablet

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

314

Steering mounted controls

Navigation - Guidance

DAB (Digital Audio Broadcasting) radio

Frequently asked questions

368

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

314

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

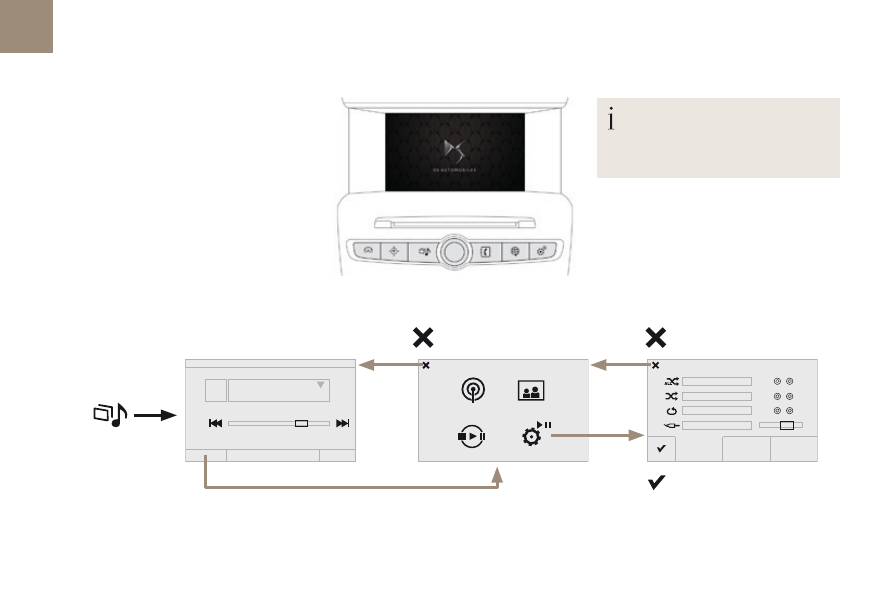

First steps

Use the buttons below the touch screen tablet
for access to the menus, then press the virtual
buttons in the touch screen tablet.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.

315

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

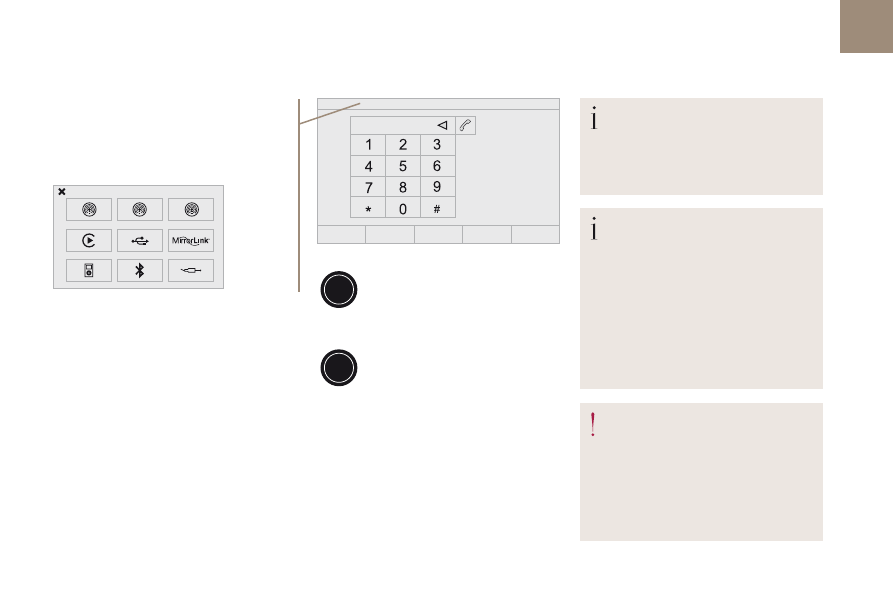

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including traffic
announcements (TA) and navigation
instructions).

Select the audio source (depending on
version):
-  FM / DAB / AM* stations.
-  USB memory stick.
-  Smartphone via MirrorLink

or CarPlay

- CD player (located in front panel).
- Telephone connected by Bluetooth* and

using Bluetooth* audio streaming.

- Media player connected to the auxiliary

socket (jack, cable not supplied).

* Depending on equipment.

Short-cuts: using the virtual buttons in the
upper band of the touch screen tablet, it is
possible to go directly to the selection of audio
source, the list of stations (or titles, depending
on the source).

The screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple wipe
will not be enough. Pressing with more
than one finger is not recognised.
The screen can be used when wearing
gloves. This technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. The
return to normal takes place when
the temperature in the passenger
compartment drops.

To clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

316

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

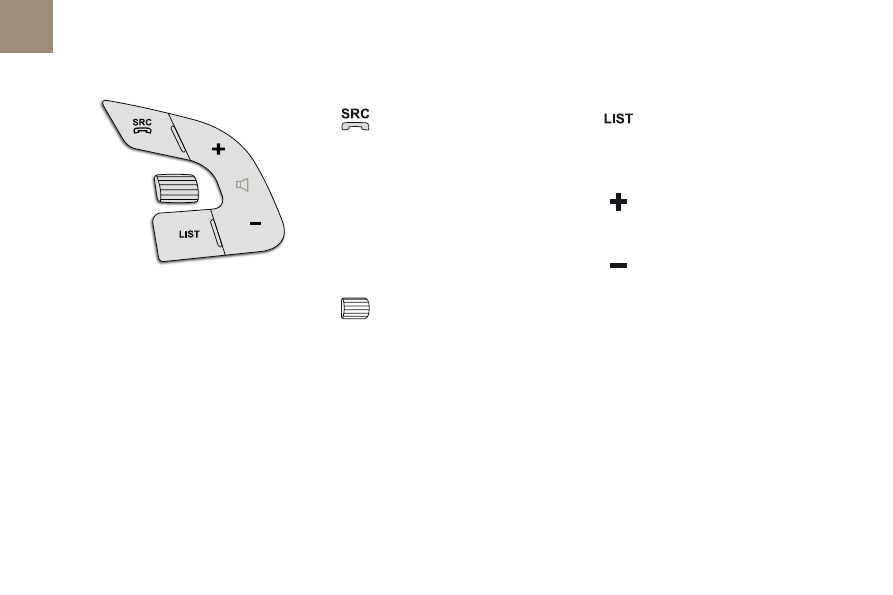

Steering mounted controls

Media: change the multimedia
source.
Telephone: start a call.
Call in progress: access to the
telephone menu (End call, Secret
mode, Hands-free mode).
Telephone, press and hold: reject an
incoming call, end a call in progress;
other than a call in progress, access
to the telephone menu.

Decrease volume.

Radio, turn: automatic search for the
previous / next station.
Media, turn: previous / next track.
Press: confirm a selection.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

Increase volume.

317

Audio and Telematics

DS4_en_Chap10b_SMEGplus_ed01-2016

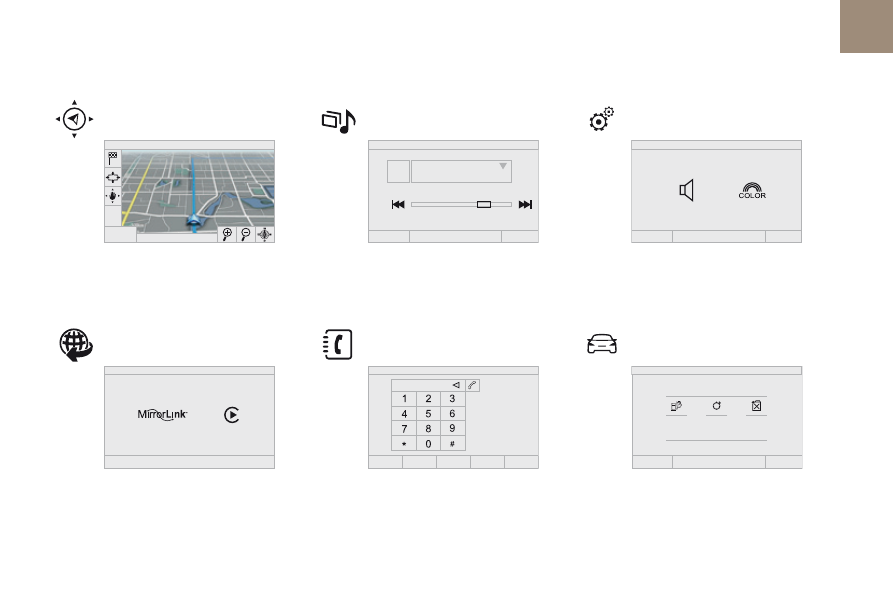

Menus

Settings

Radio Media

Navigation

Driving

Connected services

Telephone

Adjust the settings for sound (balance,
ambience, ...), colour schemes and the display
(language, units, date, time, ...).

Select an audio source, a radio station, display
photographs.

Enter navigation settings and choose a
destination.

Access to the trip computer.
Activate, deactivate or enter settings for certain
vehicle functions.

Operate certain applications on your
smartphone via MirrorLink

or CarPlay

Connect a telephone by Bluetooth

Access to the CarPlay

function after

connection of your smartphone by USB cable.

(Depending on equipment)
