Exterior

132

139

Key

: chapter identiﬁ caion

: page identiﬁ cation

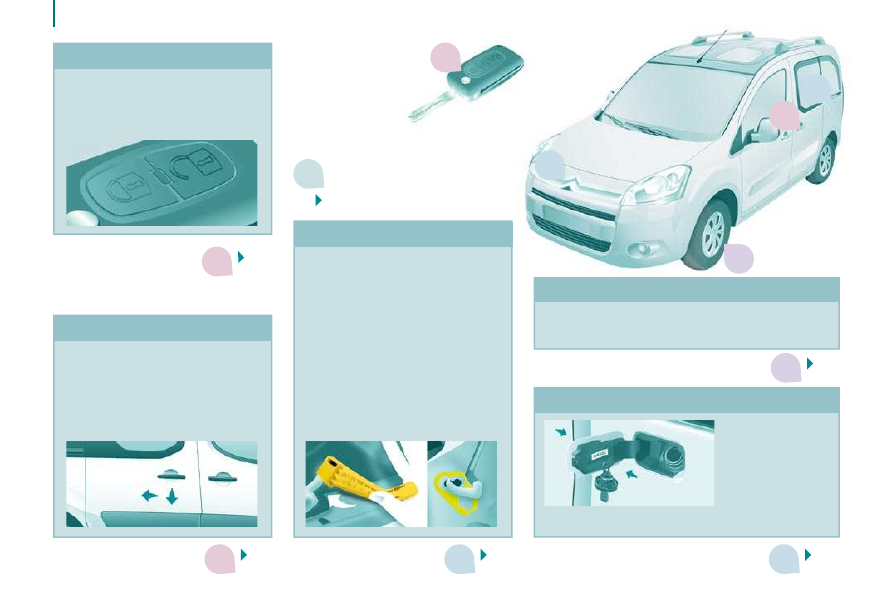

Key - Remote control

Complete unlocking of the
vehicle.
Complete locking of the vehicle.

Opening the bonnet

Take care when working under
the bonnet.
Raise the bonnet slightly by

reaching in with a ﬂ at hand, palm

down, to make access to the
lever easier. Engage the base of
the stay in the hole provided to
hold the bonnet open.
High pressure washing of
the engine compartment is
prohibited, to ensure correct
operation of the vehicle.

Sliding side door

Pull the handle towards you
then towards the rear and open
the door, guiding the rearward
movement until the point of
resistance has been passed.

Fuel ﬁ ller ﬂ ap open

A mechanical
system prevents
opening of the
left-hand side
door when the

fuel ﬁ ller ﬂ ap is

open.

110

Grip control

The Grip control anti-slip system improves
traction on snow , mud and sand.

ISA

Exterior

Rear roof ﬂ ap
The rear roof ﬂ ap is only

compatible with side hinged doors.

Changing bulbs

148

142,
143

Spare wheel and temporary
puncture repair kit

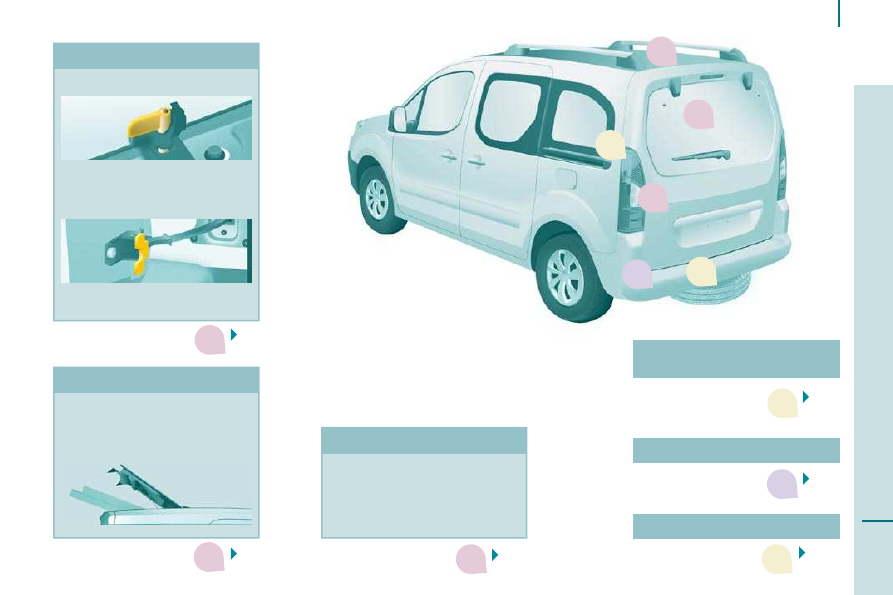

Side-hinged rear doors

Tailgate and rear screen

Use the strap to close the rear
tailgate.
Close by pressing ﬁ rmly

without slowing the movement
of the tailgate.

Asymmetrical (2/3 - 1/3).

This lock makes it possible
to keep the large door closed
and drive with the small door
open.

This control allow the doors to
be opened approximately 180°.

Parking sensors

106

Interior

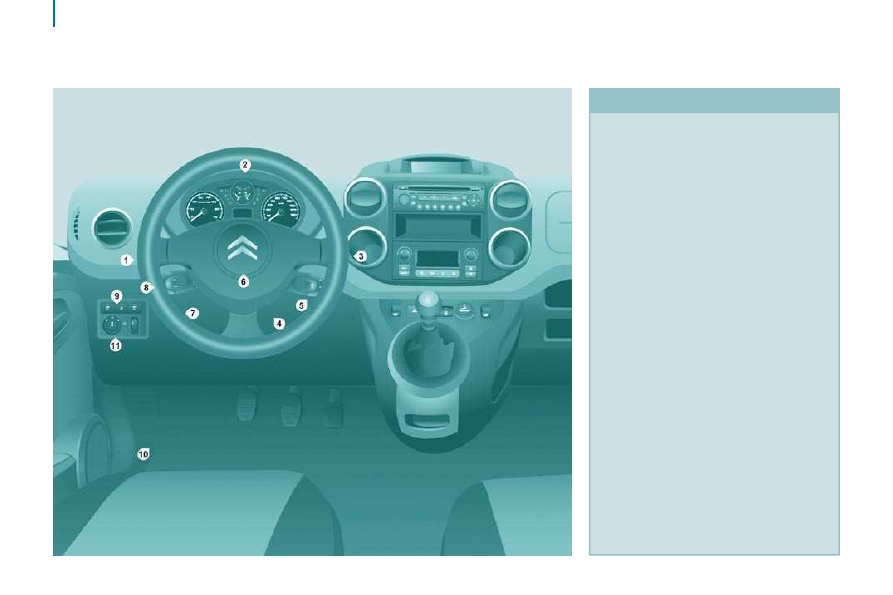

INSTRUMENTS AND CONTROLS

1. Lighting and direction indicator

stalk.

Instrument panel with screen.

3. Wipers, screenwash, trip

computer controls.

Ignition.

  5.   Audio equipment.
  6.   Driver's airbag, horn.
  7.   Steering wheel height and reach

adjustment.

8. Cruise control, speed limiter

switch.

9. Control panel, parking sensors,

headlamp beam adjustment,
ESP, Stop & Start.

10. Bonnet release.
11. Electric door mirror adjustment.

ISA

Interior

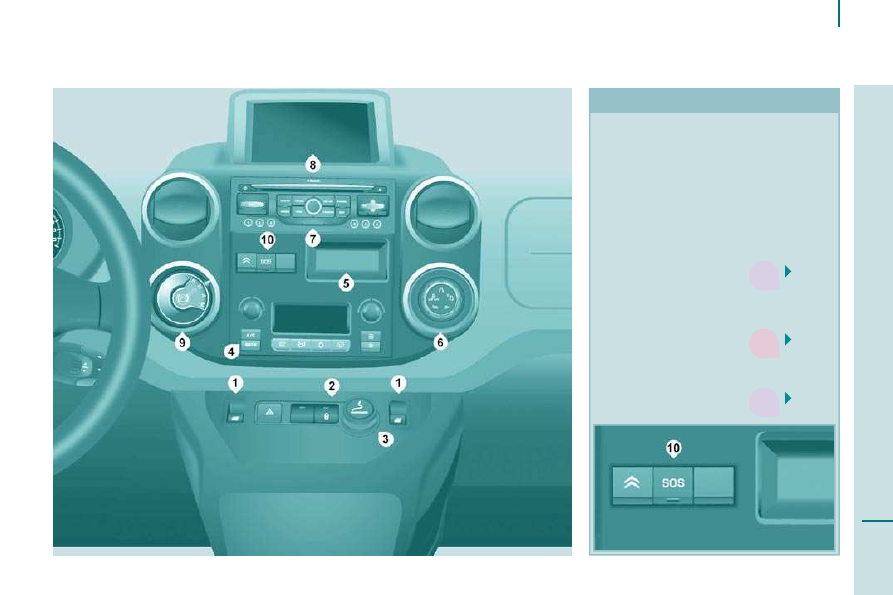

CENTRE CONSOLE

1. Control panel:

electric windows.

2. Control panel:

hazard warning lamps, central
locking.

  3.   Cigar lighter.
  4.   Heating-ventilation controls.
  5.   Storage compartment.

110

6. Grip Control.

7. Audio equipment.
8. Screen.

9.1

10. Emergency call.

9. Electronic

gearbox selector
lever.

Interior

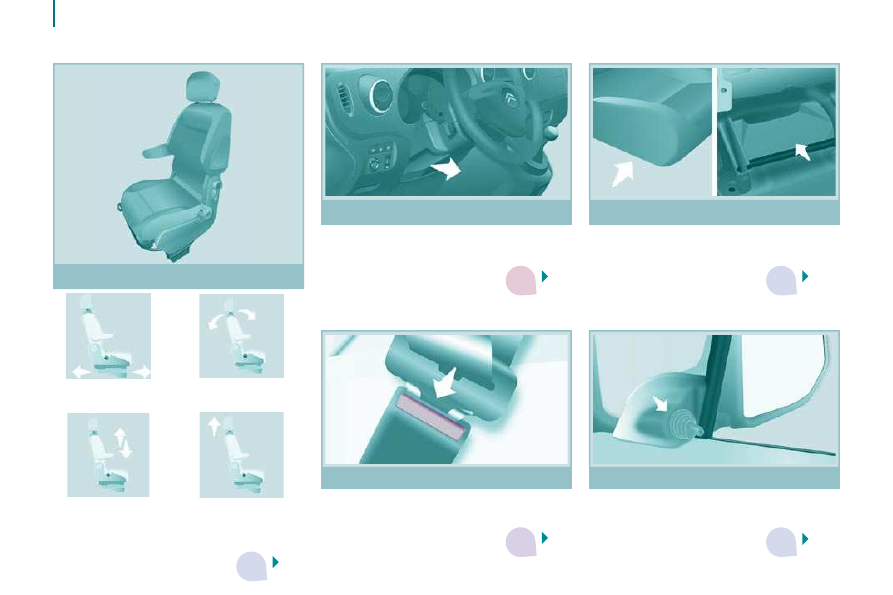

Steering wheel

Storage compartments

1. Forwards-backwards

adjustment.

2. Angle.

3. Seat cushion

height.

4. Head restraint

height and
angle.

Driver's seat

113

102

SITTING COMFORTABLY

The tools are stored under the right-
hand seat.

Adjust the steering wheel for height
and reach.

Mirrors

Manual adjustments.
Electric adjustments.

Seat belts

Height adjustment.
Fastening.

ISA

Interior

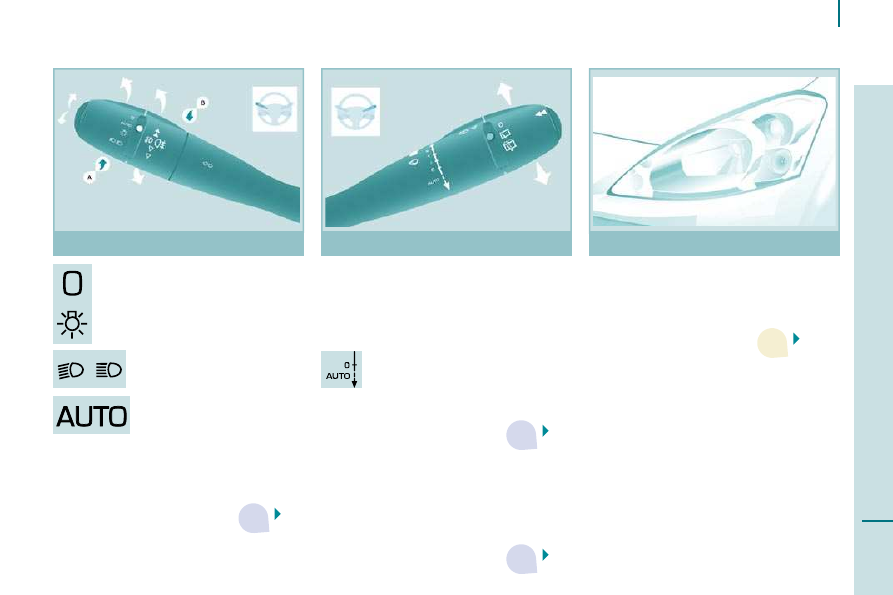

Lighting off.

Sidelamps.

Main beam headlamps (blue).
Dipped beam headlamps (green).

2  fast.
1  normal.
I  intermittent.
0  park.
   single wipe.

AUTO, press the stalk down.
Reactivate if the ignition
has been off for more than
one minute.

AUTO, automatic
illumination of headlamps.

VISIBILITY

Motorway function: press the stalk up

or down to ﬂ ash the direction indicator

three times.

148

Lighting stalk

Wiper stalk

Changing bulbs

In bad weather or in winter, ensure that

the lamps are not covered with mud or
snow.

Special position for the front wipers
For one minute after switching off the
ignition, any action on the wiper stalk
places the wiper arms and blades
vertically alongside the screen pillars.

52,
157

Interior

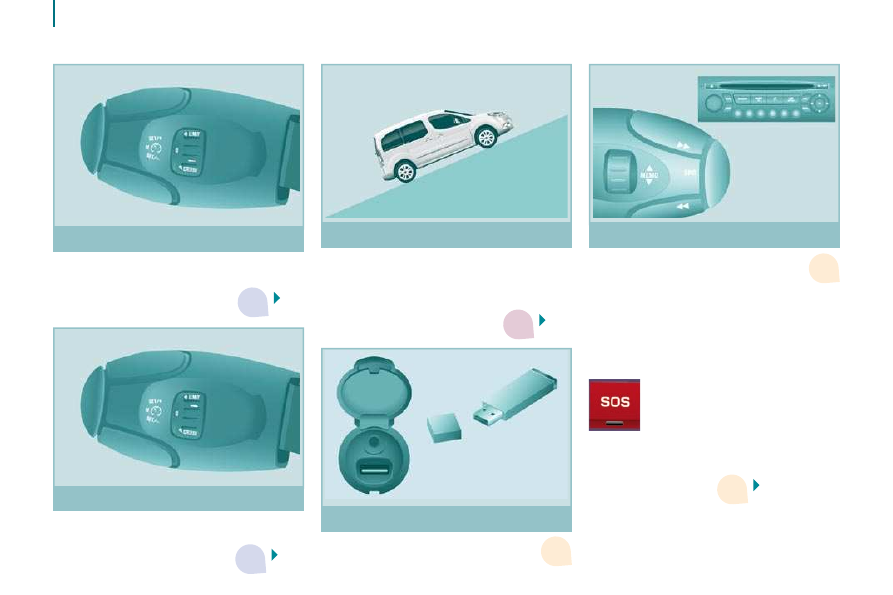

Cruise control

The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.

From the time you release the brake
pedal, the vehicle is held for approximately
2 seconds without need to use the parking
brake, to allow you to set off.

DRIVING SAFELY

The minimum speed which can be
programmed is 20 mph (30 km/h).

Emergency or roadside assistance call

Section 9

Hill start assist

Audio system

USB Player

Speed limiter

This in-car system allows
you to send an emergency
or roadside assistance call

to the dedicated CITROËN

centres.

ISA

Interior

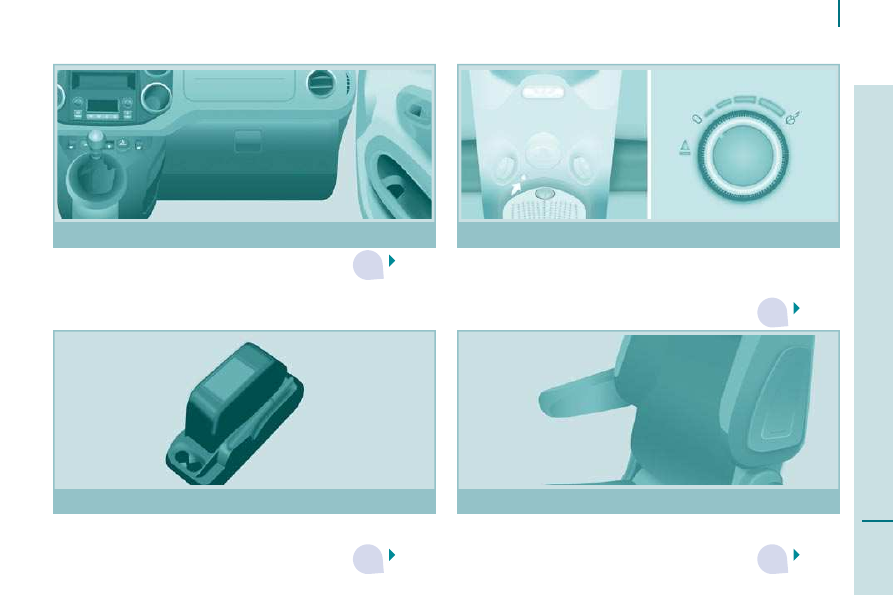

Armrest

Central storage console

Modutop roof, Scented air freshener

PASSENGER COMPARTMENT SPACE

Clipped between row 1 and row 2, this offers an additional
storage area and 2 cup holders.

If the vehicle is ﬁ tted with the additional console and an

armrest, to fold the passenger seat to the table position
remove the console or the armrest.

86, 88

The multifunction roof console extends the overhead
storage compartment.
The fragrance is diffused in the passenger compartment
from the vents of the roof console.

Front ﬁ ttings

Interior

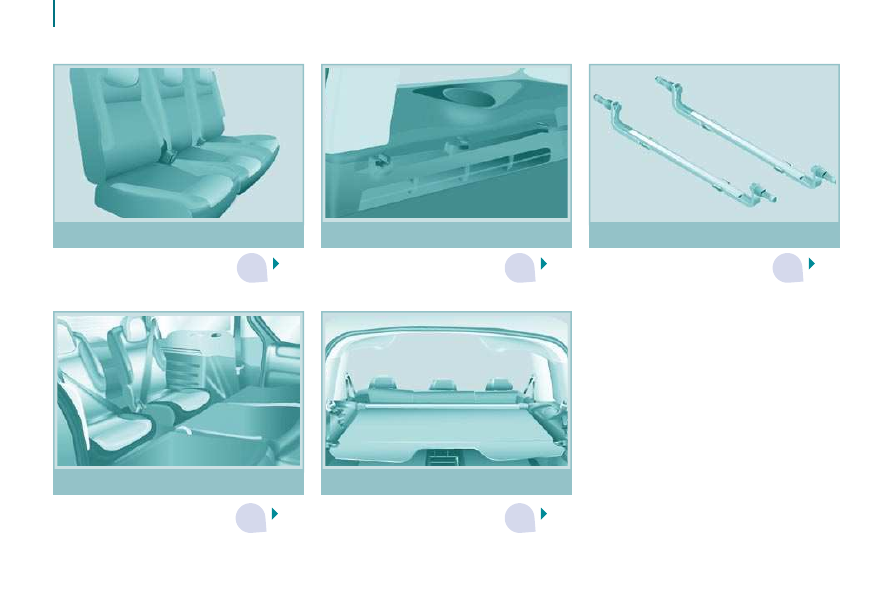

Interior rack

Load space cover, 5 seat version

Rear seats, 5 seat version

REAR FITTINGS

100

Maximum loads
Overhead storage compartment: 5 kg.
Modutop roof:
-

central storage compartments:
6 kg,

box: 10 kg,

roof bars placed longitudinally or
transversely: 35 kg.

Transverse roof bars: 75 kg.
Interior rack: 10 kg per bar.

Load space cover, 7 seat version

Rear seats, 7 seat version

ISA

Interior

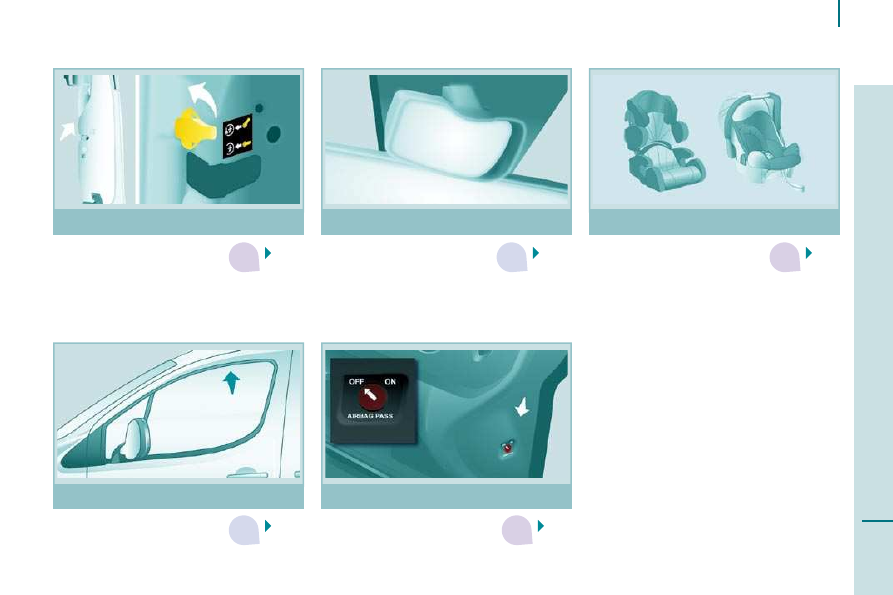

Safety anti-pinch

Airbag deactivation

Child seats

Side door child lock

Child surveillance mirror

CHILD SAFETY

126

104

103

120

119

Interior

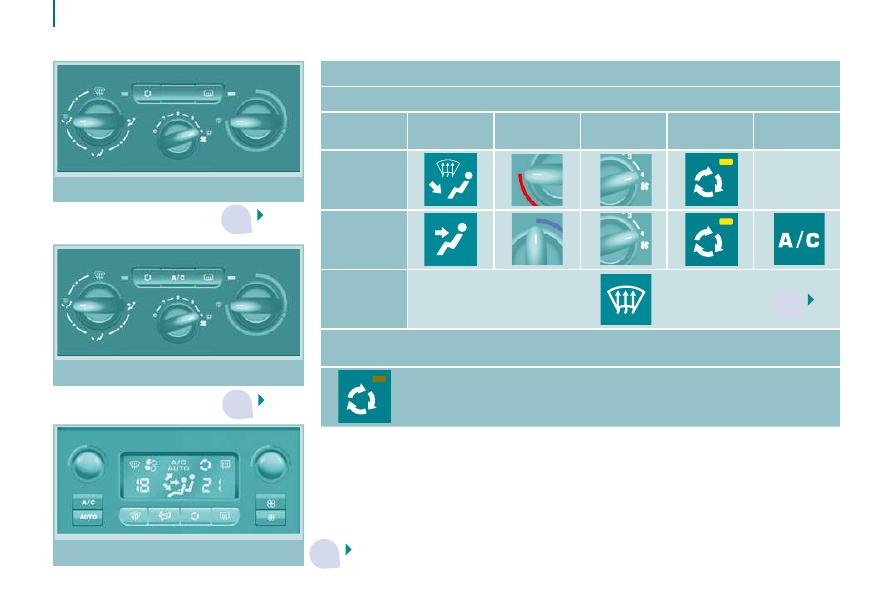

VENTILATION

Recommended settings for Manual Air Conditioning

For optimum use of the system, we recommend:

If I require...

Air

distribution

Temperature

Air ﬂ ow

Air

recirculation

Heating

Cooling

Demisting

Defrosting

With Digital Air Conditioning, operation in AUTO mode is recommended at all
times.

Remember to switch the system off when the ambient air suits
your requirements.

Heating

Air conditioning

Automatic air conditioning

Access

KEY

This locks and unlocks the locks on the
vehicle and starts the engine.

ACCESS

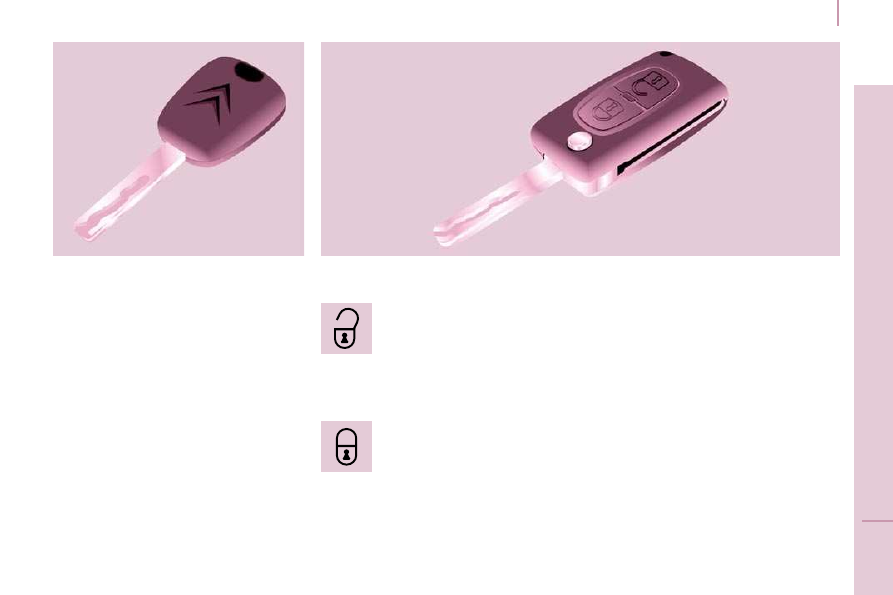

REMOTE CONTROL

Central unlocking

Central locking

Press this button to lock all of
your vehicle's doors.

The direction indicators ﬂ ash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.

Deadlocking

A second press on the closed padlock

on the remote control within ﬁ ve

seconds after locking changes the
locking to deadlocking.
This is conﬁ rmed by ﬁ xed lighting

of the direction indicators for

approximately two seconds.

Deadlocking renders the exterior

and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.

Press this button to unlock all
of your vehicle's doors.

The direction indicators ﬂ ash twice.

Access

Good practice

Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.

REMOTE CONTROL

Programming the remote
control

Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reprogrammed.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least

ﬁ ve seconds within the next ten

seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.

Use only identical batteries or
batteries of an equivalent type to those
recommended by CITROËN dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a CITROËN
dealership, or at any other approved
collection point.

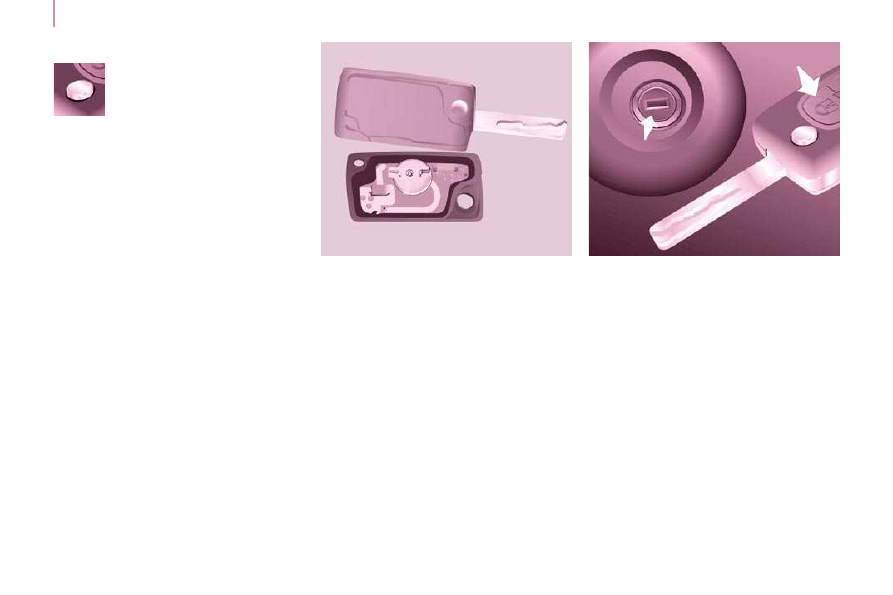

Folding/unfolding the key

Changing the battery

Battery ref.: CR1620/3 volts.
The information "battery ﬂ at" is given

by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform.

Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.

If you do not press the button, the
mechanism may be damaged.

Access

  When purchasing a second-hand
vehicle:
   -

have the keys memorised by a
CITROËN dealer to ensure that
the keys in your possession are
the only ones which can start
the vehicle.

Good practice

Do not make any modiﬁ cations to the

electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.

If you lose your keys
Visit a CITROËN dealer with the
vehicle's V5 registration document and

your identiﬁ cation document.
A CITROËN dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.

The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.

Access

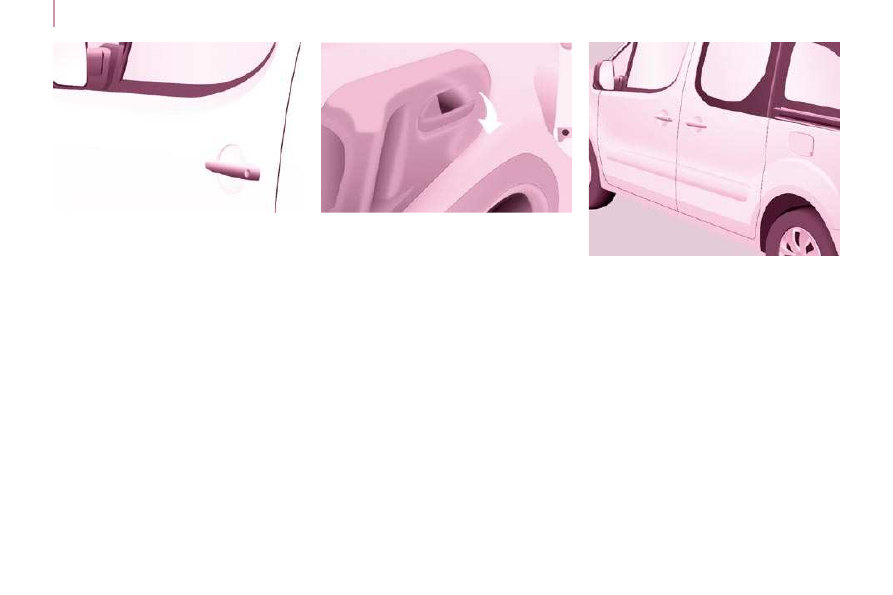

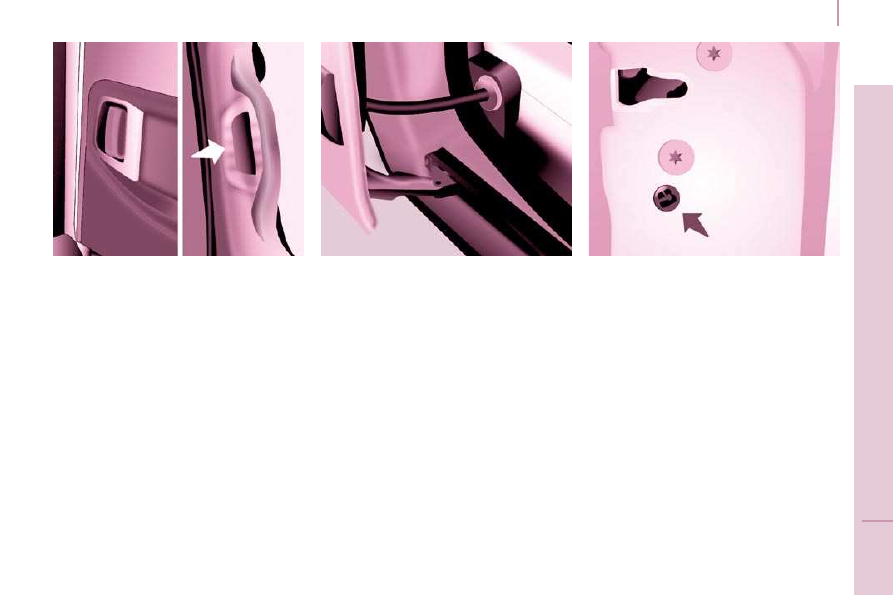

SLIDING SIDE DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel

ﬁ ller ﬂ ap is open.

FRONT DOORS

From the inside

Use the door opening control to unlock
and open the door concerned.

From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.

Access

From the inside

Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door.

Good practice

Take care not to block the guide space

on the ﬂ oor to allow the door to slide

correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side doors
open.

Operation in the event of a
battery failure

Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.
 To open the door and get out of the

vehicle, pull the interior control.

 To lock the door, insert the key in

the lock, located on the edge of the
door, then turn it one eighth of a
turn .

Driver’s door
 Insert the key in the lock, then turn

it to the right to lock or to the left
to unlock.

Citroen Berlingo Dag (2011 year). Instruction - part 1
