Citroen Nemo Dag (2008 year). Instruction

Gearbox and steering wheel

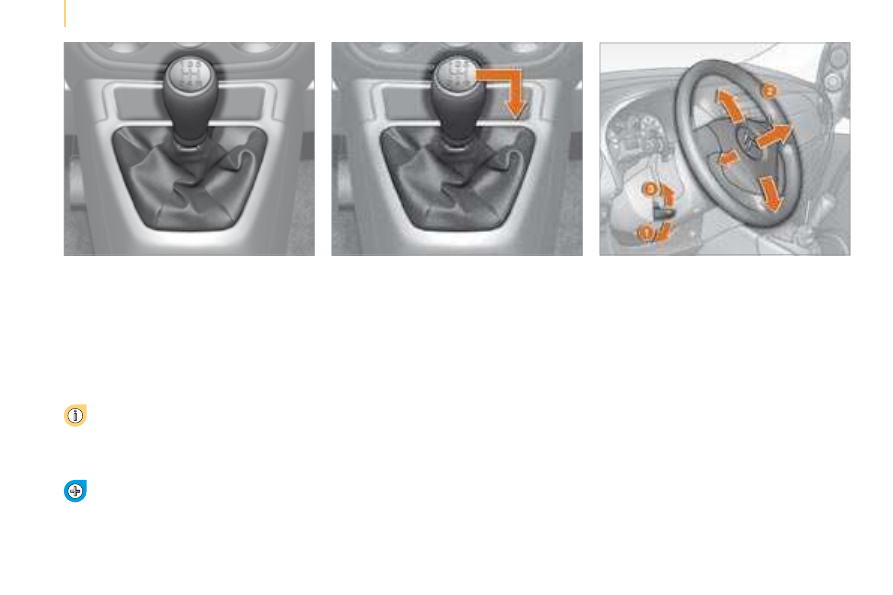

Reverse gear

Never engage reverse gear before the
vehicle is completely stationary.
The lever should be moved slowly to reduce
the noise on engaging reverse gear.

If your vehicle is fitted with parking
assistance, the system comes into

operation when reverse gear is engaged and
an audible signal is heard.

Refer to the “Rear parking assistance”
section of chapter 3.

ADJUSTING THE STEERING WHEEL

MANUAL GEARBOX

Good practice

When the vehicle is stationary, unlock the
steering wheel by pushing the lever down.
Adjust the depth and height of the steering
wheel, then lock by pulling the lever up fully.

To change gear easily, always press the
clutch pedal fully.
To prevent the mat from becoming caught
under the pedal:
- ensure that the mat is positioned

correctly,

- never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.

Dimensions

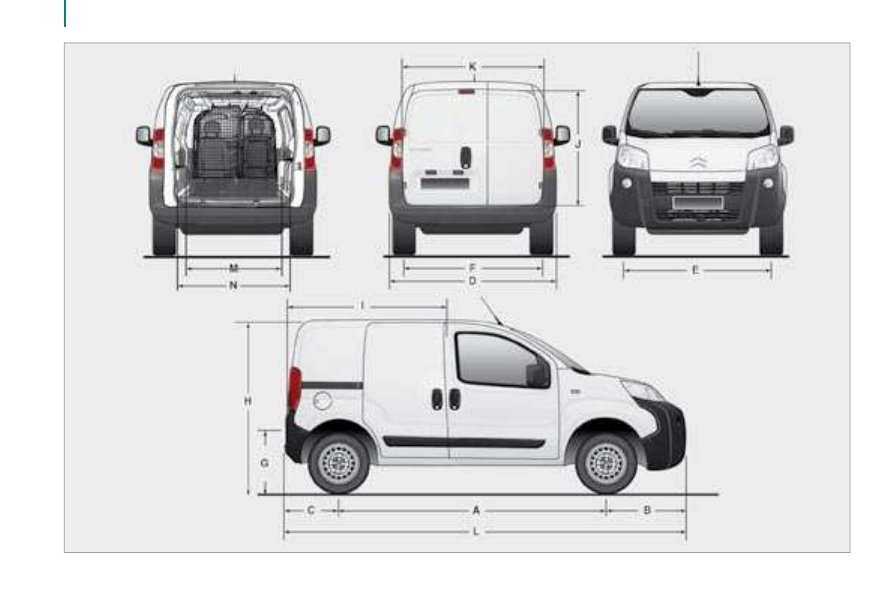

DIMENSIONS

The light van “L1” is the standard model, the “L2 - Worksite Pack” version is a model sold according to country:

Light van (in mm)

L2 (Worksite Pack)

Overall length

3 864

3 881

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

760

777

Rear overhang

591

Overall width

2 019

Width (with mirrors folded)

1 816

Width of front tracks

1 469

1 464

Width of rear tracks

1 465

Height of load sill

527

544

Length of interior ﬂ oor

1 523

Maximum interior load height

1 205

Maximum interior width (10 cm from the ﬂ oor)

1 473

Maximum interior width (at the sides)

Interior width between wheel arches

1 046

Volume (m

)

2.5

Dimensions

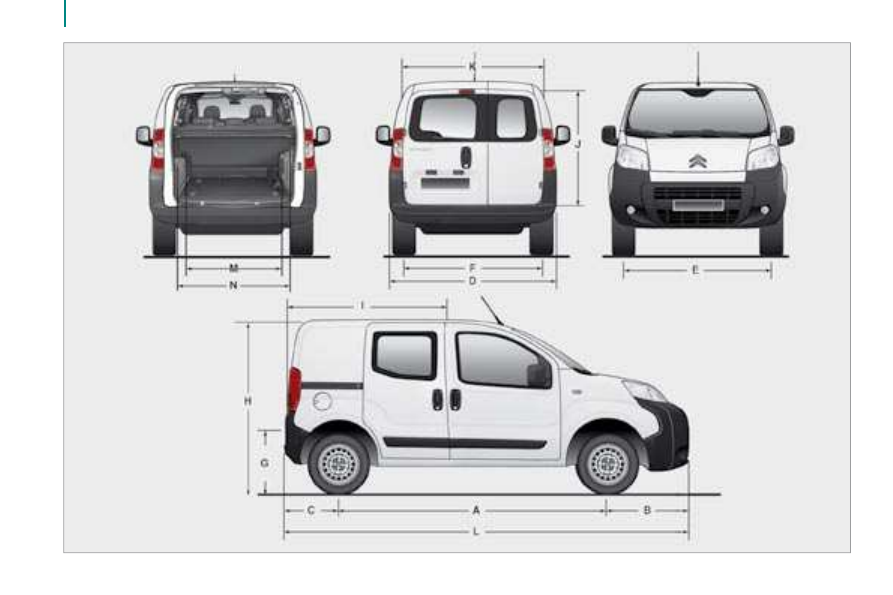

Combi (in mm)

Standard

Raised

Overall length

3 959

3 970

Overall height

1 721

1 742

Height with roof bars

1 782

1 803

Wheelbase

2 513

Front overhang

855

866

Rear overhang

591

Overall width

2 019

Width (with mirrors folded)

1 816

Width of front tracks

1 464

Width of rear tracks

1 465

Height of load sill

527

544

Length of interior ﬂ oor

743

Length of interior ﬂ oor (rear benchseat fully folded)

1 130

Maximum interior load height (under rear shelf)

592

Maximum interior width (10 cm from the ﬂ oor)

1 473

M Maximum interior width (at the sides)

Interior width between wheel arches

1 046

Engines

DIESEL ENGINE

1.4 HDi 70 hp

Gearbox

Manual

Electronic

Gears

EU standard maximum power (kW)

Cubic capacity (cm

3 )

1 399

Bore x stroke (mm)

73.7 x 82

Max power engine speed (rpm)

4 000

EU standard max torque (Nm)

160

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

Yes

Engine oil capacity (in litres)

3.8

Engines

PETROL ENGINE

1.4 l 75 hp

Gearbox

Manual

Gears

EU standard maximum power (kW)

Cubic capacity (cm

)

1 360

Bore x stroke (mm)

75 x 77

Max power engine speed (rpm)

5 200

EU standard max torque (Nm)

118

Max torque engine speed (rpm)

2 600

Fuel

Unleaded petrol

Engine oil capacity (in litres)

3.0

Engines

FUEL CONSUMPTION
These consumption values were established in accordance with Directive 80/1268/CEE. They may vary depending on the style of driving, trafﬁ c
conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of accessories.

Van

In accordance with Directive 80/1268/CEE

Engine

Gearbox

Model code

Urban driving

(litres/100 km)

Extra-urban driving

(litres/100 km)

Combined driving

(litres/100 km)

Emission of CO

by mass (g/km)

1.4 HDi

Manual

AA8HSC

5.7

3.8

4.5

119

Electronic

AA8HSC/P

1.4 l

Manual

AAKFVC

8.8

5.9

6.9

164

Combi

In accordance with Directive 80/1268/CEE

Engine

Gearbox

Model code

Urban driving

(litres/100 km)

Extra-urban driving

(litres/100 km)

Combined driving

(litres/100 km)

Emission of CO

by mass (g/km)

1.4 HDi

Manual

AJ8HSC

5.9

3.9

4.6

123

Electronic

AJ8HSC/P

1.4 l

Manual

AJKFVC

8.8

5.9

7.0

165

The fuel consumption ﬁ gures quoted are correct at time of going to press.

Weights

WEIGHTS

Consult your registration certiﬁ cate.

In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your vehicle’s
towing possibilities and its gross train weight, consult a CITROËN dealer.

This table indicates the maximum weight when loaded (GVW) according to the dimensions and names of the vehicle.

Load transfer

If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Comply with the towing capacities of your vehicle.

Van
Model codes

AA8HSC

AA8HSC/P

AAKFVC

Engines

1.4 HDi

1.4 l

Gearbox

Manual

Electronic

Manual

Gross vehicle weight

1 700

1 680

Kerb weight (without driver)

1 090

1 070

Payload (with driver)

610

Weights

Combi
Model codes

AJ8HSC

AJ8HSC/P

AJKFVC

Engines

1.4 HDi

1.4 l

Gearbox

Manual

Electronic

Manual

Gross vehicle weight

1 700

1 680

Kerb weight (without driver)

1 185

1 165

Payload (with driver)

515

-C

Trip computer

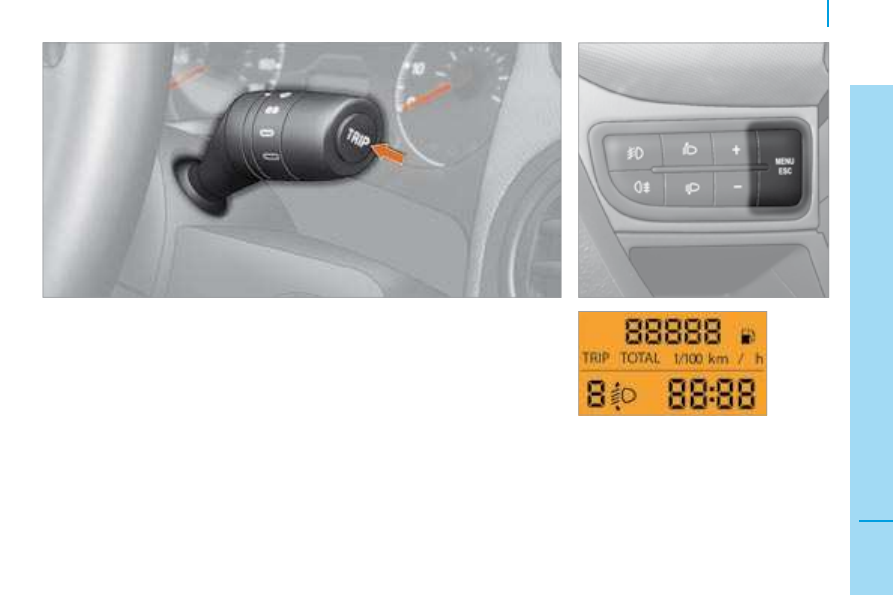

TRIP COMPUTER

The TRIP button, located at the end of
the wipers stalk, provides access to the
following information:
- Range,

- Route A,

- Average consumption A,

- Current consumption A,

- Average speed A,

- Trip duration A.

If TRIP B is activated on MENU :

- Route B,

- Average consumption B,

- Average speed B,

- Trip duration B.

Level 1 display:

   -   Speed (Speed bleep).
  -   Hour (Setting of the time).
  -   Buzz (Volume of the announcements).
  -   Unit (Unit of measurement).
  -   Bag p (Passenger air bag).
Refer to the corresponding line in the
configuration – personalisation table on the
following pages.

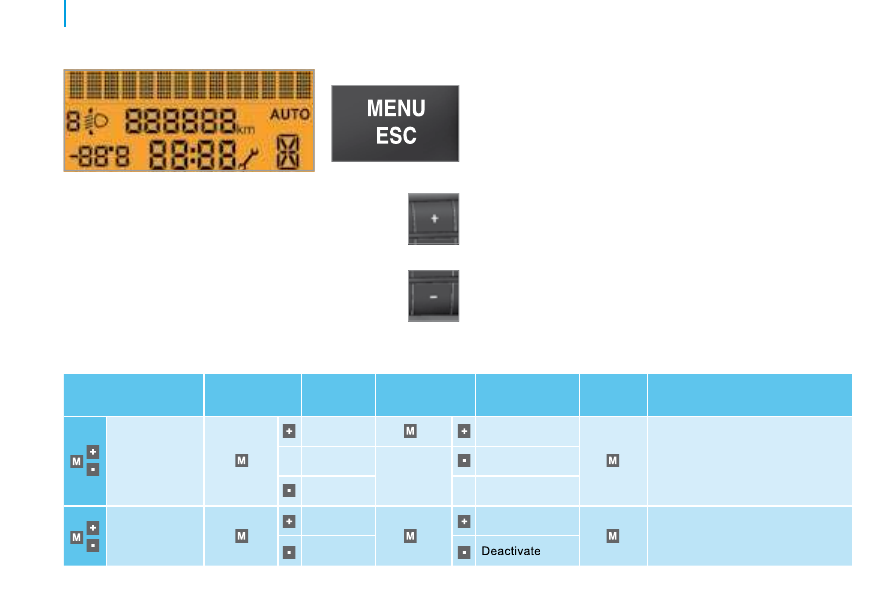

Menu

MENU

This button enables you to:
- access the menus and sub-menus,

- confirm your selections within a menu,

- exit from the menus.

A long press enables you to return to the welcome screen.

This button enables you to:
- scroll up through a menu,

- increase a value.

This button enables you to:
- scroll down through a menu,

- decrease a value.

Menu...

Press...

Sub-

menu...

Press...

Select...

Confirm
and exit

Enables you to...

1 Speed Bleep

Increase

Activate/deactivate the audible
signal indicating exceeding of the
programmed speed and select the
speed value.

Decrease

OFF

2 Activate

Trip B

Activate

Display a second route “Trip B”.

OFF

Conﬁ guration - Personalisation
Level 2 display:
The control pad located to the left of the
steering wheel provides access to display 2
menus which permit the personalisation of
some of your equipment.
Eight languages are offered: Italian, English,
German, French, Spanish, Portuguese,
Dutch and Turkish.
As a safety precaution, the menus can only
be accessed when the ignition is off (engine
off).

Refer to the corresponding line in the configuration – personalisation table on the following
pages.

-C

Menu

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

3 Set the time

Hours

Increase

Set the clock.

Decrease

Format

24 hour

Select the clock display mode.

12 hour

4 Set the date

Year/Month/Day

Increase

Set the date.

Decrease

5 See radio

Display the name of the station.

OFF

6 Autoclose

While moving

Activate/Deactivate the
automatic locking of the doors
above 12 mph (20 km/h)

OFF

7 Measurement

unit

Distances

Select the distance display unit.

Mi(les)

Temperature

°C

Select the temperature display
unit.

°F

Consumption

km/l

Select the consumption display
unit.

l/100 km

8 Language

List of languages
available

Select the display language.

9 Volume of an-

nouncements

Increase

Increase/decrease the

volume (the volume changes

immediately when the button is

pressed).

Decrease

Menu

Menu...

Press...

Sub-menu...

Press...

Select...

Confirm
and exit

Enables you to...

10 Volume of

the buttons

Increase

Increase/decrease the volume
of the buttons.

Decrease

11 Service

(Km/Miles
before oil
change)

Display the kilometres/miles
remaining before the next oil
change.

Display the oil level.

12 Bag

(passenger
air bag)

Yes

Activate the passenger air bag.

OFF

Yes

Disarm the passenger air bag.

13 Exit from

Exit from the menu. Press the
arrow at the bottom to go to
the first menu.

-C

Parking assistance

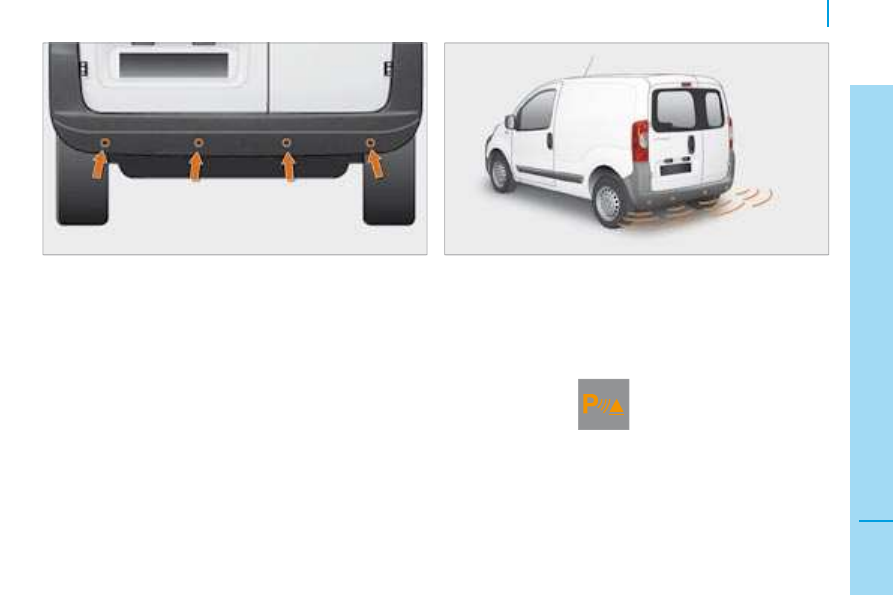

AUDIBLE REAR PARKING ASSISTANCE

The audible system consists of four
proximity sensors, installed in the rear
bumper.
It detects any obstacle which enters the
field: person, vehicle, tree, fence, behind the
vehicle during the manoeuvre.
However, it will not be able to detect
obstacles located immediately below the
bumper.
An object, such as a stake, a roadworks
cone or any other similar object may be
detected at the beginning of the manoeuvre
but may no longer be detected when the
vehicle moves close to it.

Stop the assistance

Change to neutral.

Operating fault

If this warning lamp or the service
warning lamp lights up on the
instrument panel, accompanied
by a message on the display,
contact your CITROËN dealer.

Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.

  Engage reverse gear
The proximity information is indicated by an
audible signal which becomes more rapid as
the vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
   This function will be deactivated
automatically if a trailer is being towed.
You are advised to obtain a towbar
recommended by  CITROËN  and have it
installed by a professional.
If anomalies are detected on engaging
reverse gear, the warning light comes on,
possibly accompanied by a message on the
display.

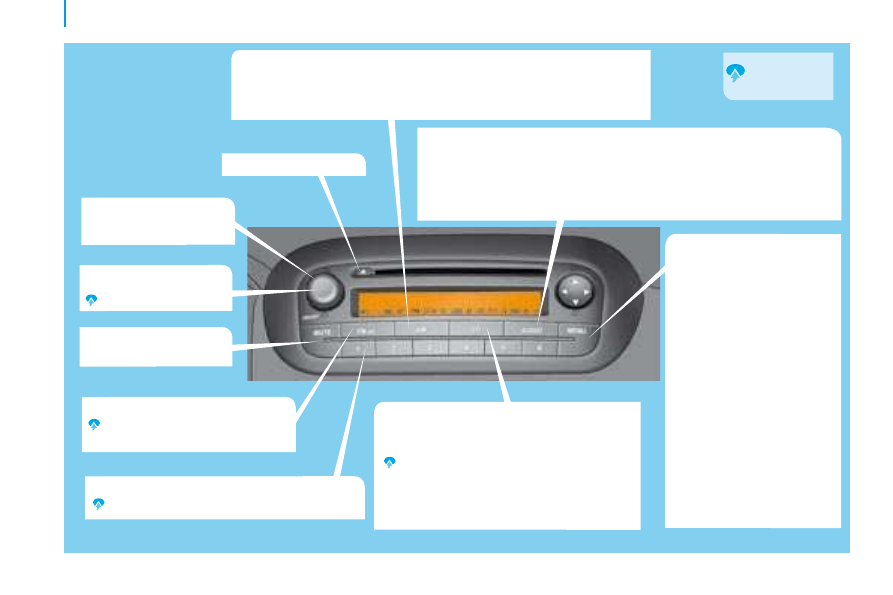

Audio equipment

Volume increase/
decrease.

On.

Off.

Mute.

Selection of the CD/CD MP3 source.
Use the left/right arrows to select the
previous/next track.

Use the left/right arrows to fast forward/

backward playing of the current track.
In CD MP3 mode: use the up/down arrows
to change folder.

Setting the audio options: bass, treble, fader (front/rear), balance (left/
right), loudness, EQ Preset (equaliser).
Use the up/down arrows to select the option.
Use the left/right arrows to increase or decrease the value of the option
or change the equaliser.

Access to the menu.
Use the up/down arrows to
select one of the following
functions:
AF switching.

  Traffic info.
  Regional mode.
  MP3 display.
  Speed volume.
  External audio vol.
  Radio off.
  Restore default.

Use the left/right arrows to
change the setting of the
function selected.

CD eject.

Selection of the FM waveband.

Automatic storing of stations

(autostore AS).

Selection of the AM waveband.
Use the left/right arrows for an automatic station search.
Use the up/down arrows for a manual station search.

1/2/3/4/5/6: selection of the stored station.

Storing of a station.

Requires a
long press.

FIRST STEPS

Citroen Nemo Dag (2008 year). Instruction - part 4
