116

AUDIO EQUIPMENT/

HANDS-FREE KIT

CONTENTS

01 First steps

pg. 117

02 Display and general menu pg. 118

03 Audio

pg. 120

04 Hands-free kit

pg. 123

05 Trip computer

pg. 124

06 Control short-cuts

pg. 125

07 Conﬁ guration

pg. 126

08 Display ﬂ ow charts

pg. 127

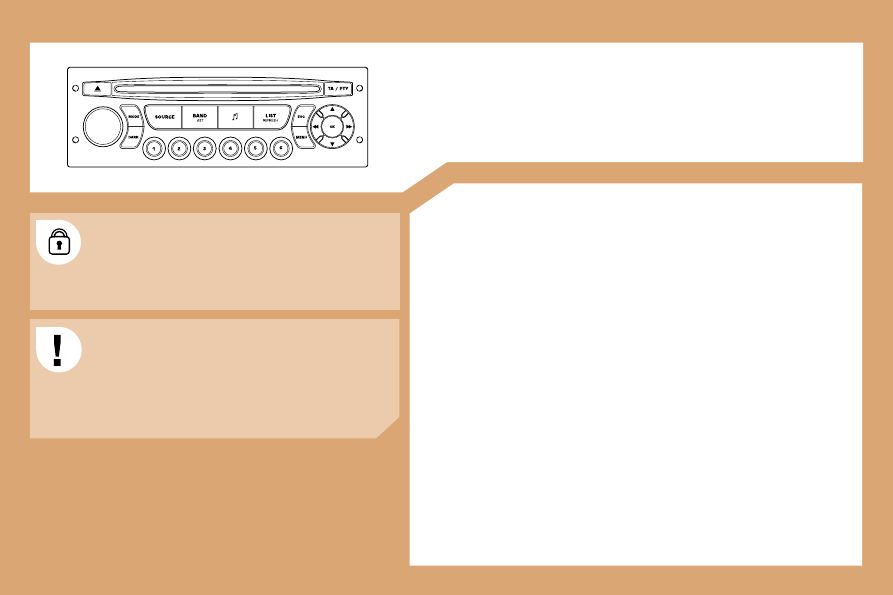

The audio equipment is coded in such a way that it
will only operate in your vehicle. If it is to be installed
in another vehicle, contact a CITROËN dealer for

will only operate in your vehicle. If it is to be installe

conﬁ guration of the system.

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is
stationary.

When the engine is switched off and to prevent

discharging of the battery, the audio equipment may

switch off after a few minutes.

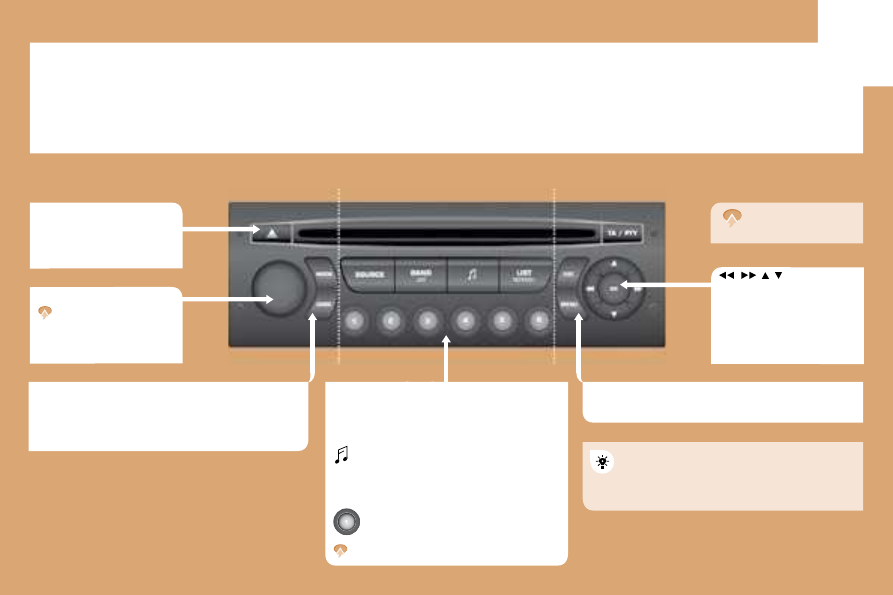

FIRST STEPS

CD eject

On - Off

Volume dial

Mode: Selection of the screen display mode.

Dark: Hide the screen display, until completely black,

by successive presses. Pressing again reactivates the
display.

Source: Selection of the source; radio, CD and

CD changer.

Band: Selection of the FM1, FM2, FMast and

AM wavebands.

: Setting the audio options:

Front/rear balance, left/right balance,

loudness, sound ambiences.

List: Displaying of the local stations, of the
tracks on the CD or of the MP3 directories.

- Storing of a station.
-

Selection of a stored radio station.

- Selection of a CD in the CD changer.

updating of the stations received.

ESC: Abandon current operation.

Menu: Displaying of the general menu.

Navigator

which selects the choices
above or the step by step or
rapid advances.

Pressing the navigation dial

conﬁ rms the choice, but does
not store it.

A long press is
required.

For a detailed global view of the menus

available, refer to the "Display ﬂ ow chart"
section of this chapter.

118

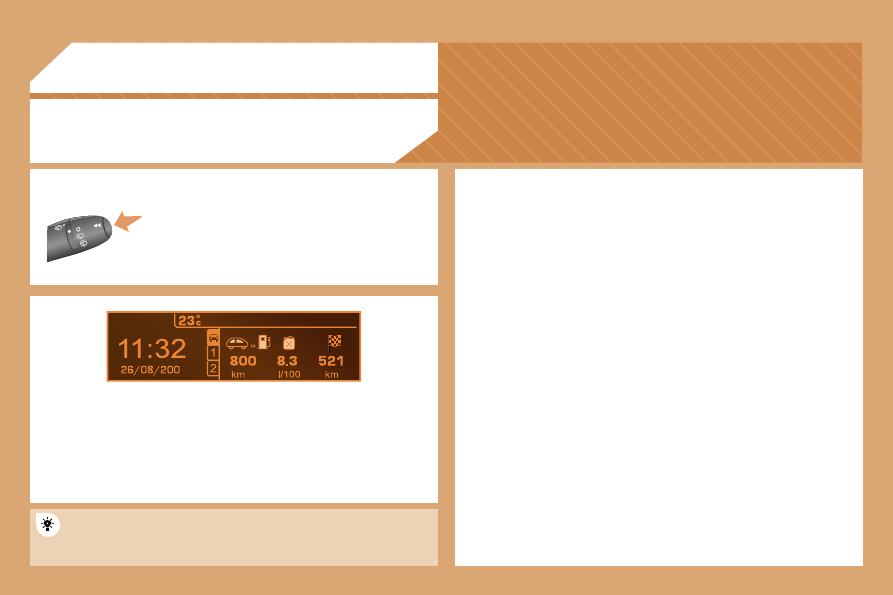

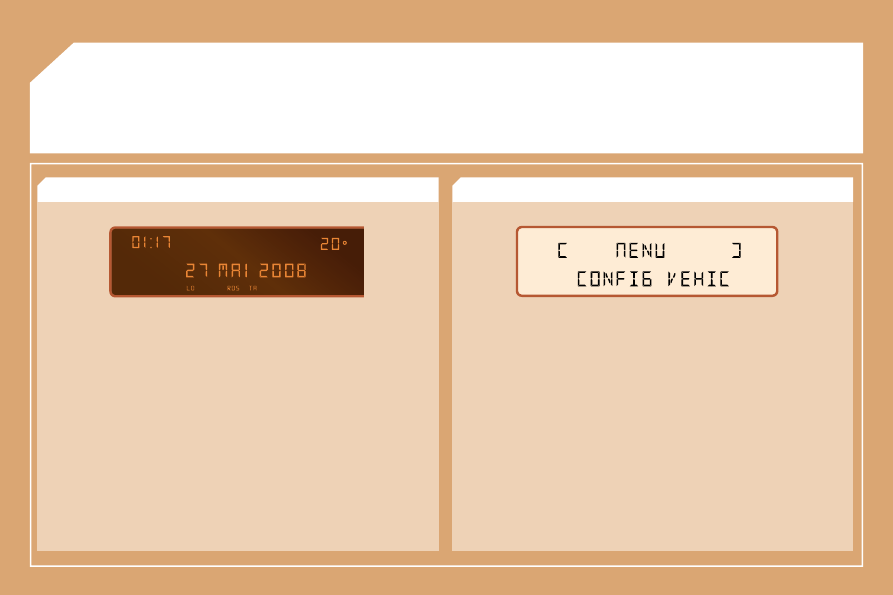

02 DISPLAY AND MENU A

RADIO: RDS search, REG mode. CD: introscan, random play, repeat.

VEHICLE CONFIGURATION: activation/deactivation of the equipment.

DISPLAY ADJUST: year, month, day, hour, minute, 12 or 24 hour mode.

> GENERAL MENU

> DISPLAY A

This displays the following information, via the audio equipment control

pad:

- the time,
- the date,

- the exterior temperature (this ﬂ ashes if there is a risk of ice),

- the audio source displays (radio, CD, ...),

- the accesses check (doors, boot, ...),

- the warning messages or information messages displayed temporarily,

can be cleared by pressing the "ESC" button,

- the trip computer,

OPTIONS: equipment status diagnostics.

Press the MENU button then OK.

LANGUAGES.

UNITS: temperature (°C or °F), fuel consumption (l/100, mpg or km/l).

NRJ

11:32

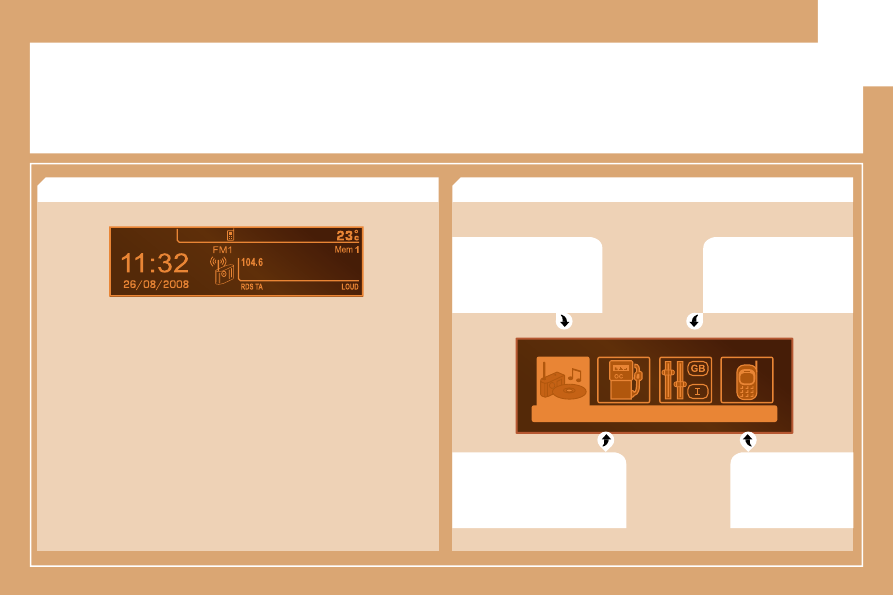

DISPLAY AND MENU C

AUDIO FUNCTION: radio,
CD, options.

PERSONALISATION-

CONFIGURATION: vehicle

parameters, display,

languages.

TELEPHONE: hands-

free kit, matching,

management of a call.

> GENERAL MENU

> DISPLAY C

This displays the following information, via the audio equipment control

pad:

- the time,
- the date,

- the exterior temperature (this ﬂ ashes if there is a risk of ice),

- the audio source displays (radio, CD, ...),

- the accesses check (doors, boot, ...),

- the warning messages (e.g.: "Antipollution fault") or information

messages (e.g.: "Auto lighting activated") displayed temporarily,

can be cleared by pressing the "ESC" button,

  -   the trip computer,
  -   the location of a faulty wheel,
  -   the detection of a rear obstacle.

TRIP COMPUTER: distance

entering, warnings, status of
functions.

120

MENU

AUDIO

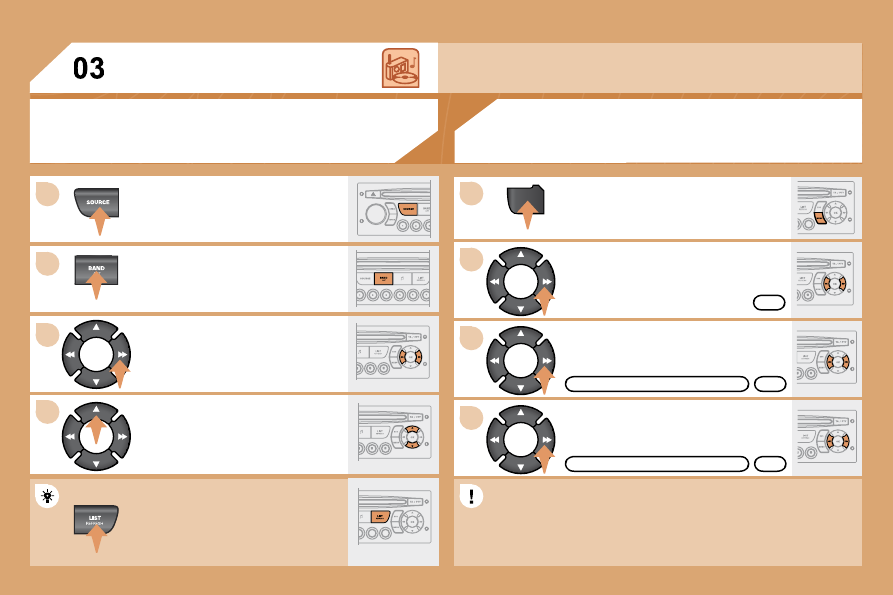

Press the SOURCE button several

times in succession and select
the radio.

Press the BAND AST button to select

a waveband: FM1, FM2, FMast, AM.

Brieﬂ y press one of the buttons to

carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a

manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received

locally (30 stations maximum).

To update this list, press for more than
two seconds.

Select ACTIVATE FREQUENCY

FOLLOWING (RDS) then press OK.
RDS appears on the display.

Select the FM WAVEBAND

PREFERENCES function then
press OK.

Select AUDIO FUNCTIONS then
press OK.

Press the MENU button.

FM WAVEBAND PREFERENCES

ACTIVATE FREQUENCY FOLLOWING (RDS)

The external environment (hills, buildings, tunnels, basement car parks) may block
reception, including in RDS mode. This is a normal effect of the way in which radio waves
are transmitted and does not indicate any failure of the audio equipment.

RDS

The RDS, if displayed, enables you to continue listening to the

same station by means of frequency following. However, in certain

conditions, this RDS station is not followed throughout the country

as radio stations do not cover 100 % of the territory. This explains

the loss of reception of the station during a journey.

RADIO

SELECTING A STATION

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs

copied using a personal recorder, may cause faults

which are no reﬂ ection on the quality of the original
player.

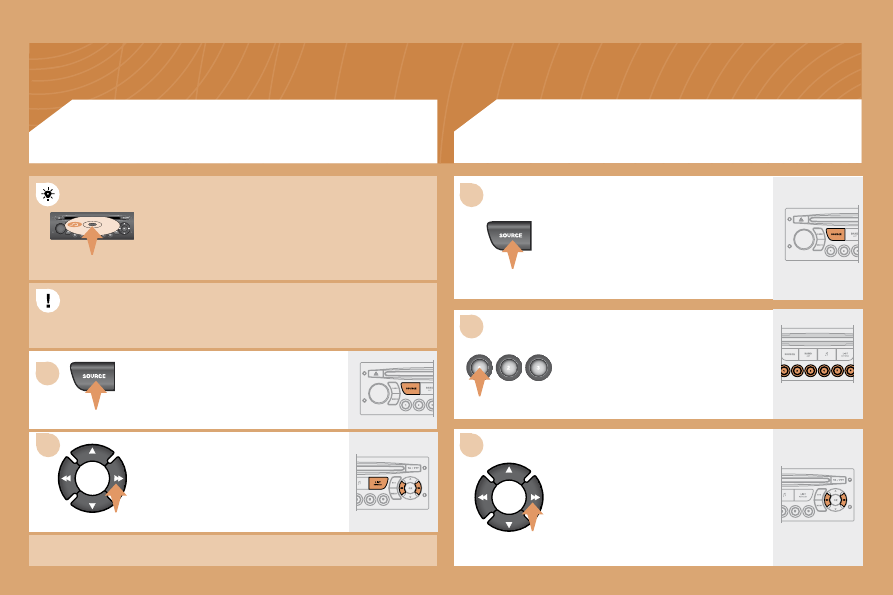

Without pressing the EJECT button, insert a CD in the

player, play begins automatically.
To play a disc which has already been inserted, press

the SOURCE button several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of tracks on the CD.

PLAYING A CD

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

The playing and displaying of an MP3 compilation may depend on

the recording programme and/or the parameters used.

In order to be able to play a recorded CDR or CDRW, when recording

select standards ISO 9660 level 1.2 or Joliet.

If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible for optimum
sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The audio equipment will only play ﬁ les with the extension ".mp3".

No other type of ﬁ le (.wma, .mp4...) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

special characters (e.g.: " " ?; ù) to avoid any playing or displaying

problems.

INFORMATION AND ADVICE

122

Insert an MP3 compilation in the player.

The audio equipment searches for all of the music

tracks, which may take anything between a few
seconds and several tens of seconds, before play

begins.

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread

over 8 directory levels. However, it is advisable to keep to a limit of

two levels to reduce the access time before the CD is played.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of directories of the

MP3 compilation.

* According to level of ﬁ nish.

PLAYING AN MP3 COMPILATION *

CD CHANGER - not MP3 compatible

Insert the CDs in the changer one by
one.

Press the SOURCE button several

times in succession and select

CD CHANGER.

Press one of the buttons on the

numeric keypad to select the

corresponding CD.
Press and hold one of the

CD changer buttons to eject the

corresponding CD.

Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.

Playing a CD

04 HANDS-FREE KIT

For safety reasons and because they require prolonged attention on

the part of the driver, the operations for matching of the Bluetooth

mobile telephone with the audio equipment hands-free kit must be

carried out with the vehicle stationary and the ignition on.

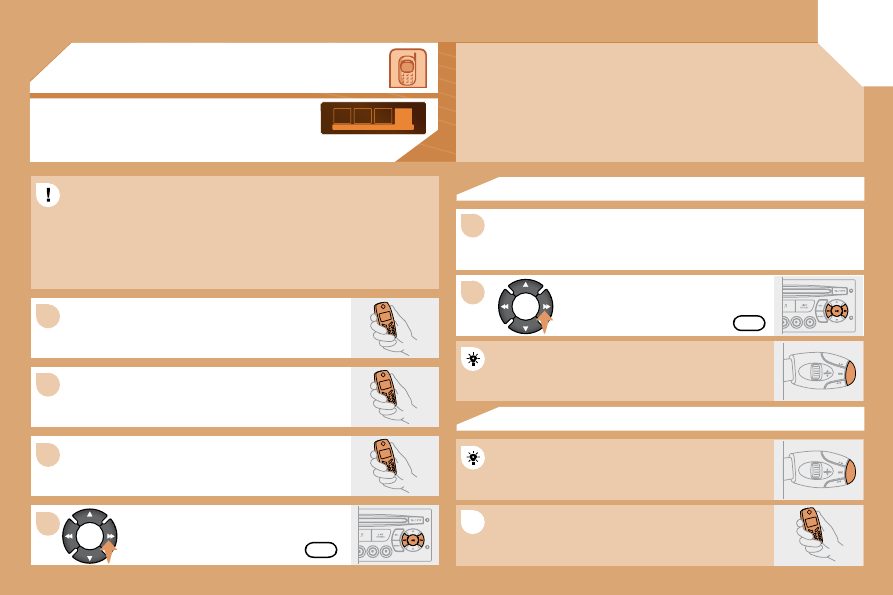

Select the accessory which corresponds to the

name of the vehicle, a superimposed conﬁ guration

display appears on the multifunction display.

Activate the telephone's Bluetooth function and
carry out a search of the Bluetooth accessories
present for the telephone.

Select the YES tab on the display using

the buttons then conﬁ rm by pressing OK.

Enter the vehicle's authentication code (=1234).

Depending on the telephone, you may be asked

to enter this code before the superimposed

conﬁ guration display appears.

YES

The services offered by the hands-free kit depend on the network, the SIM card and the
compatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to ﬁ nd out which services are
available to you. A list of mobile telephones which offer the best range of services is
available from the network. Consult a CITROËN dealer.
Refer to the end of the "Correct use of the hands-free kit" paragraph.

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display

on the multifunction display.

Select the YES tab on the display

using the buttons and conﬁ rm by

pressing OK.

Press the end of the steering wheel stalk to accept
the call.

Press the end of the steering wheel stalk for more
than two seconds to access your directory.

To dial a number, use the keypad on your
telephone.

MAKING A CALL

MATCHING A TELEPHONE

DISPLAY C

Correct use of the hands-free kit telephone

For safety reasons and because they require prolonged attention on

the part of the driver, the operations for matching the Bluetooth mobile

telephone with the audio equipment hands-free kit must be carried out with

the vehicle stationary and the ignition on.

The matching of a new Bluetooth mobile telephone does not work while the

vehicle is being driven.

How many mobile telephones can be stored in the audio equipment.

Up to 4 different mobile telephones can be stored. The mobile telephone

stored as 1 will be connected ﬁ rst, then number 2, …

Is it possible to scroll through the phone book contacts more quickly than
line by line.

The controls << >> on the control panel or on the steering wheel control

permit direct access to the ﬁ rst contact recorded starting with the next/
previous letter of the alphabet.

Are all of the numbers associated with a contact displayed on the audio

equipment display.

A maximum of 4 different numbers for one contact in Vcard format are

displayed: "Home", "Work", "Mobile" and "Car".

124

05 TRIP COMPUTER

Each press of the button, located at the end of the

wipers stalk , permits displaying of the different trip

computer data in succession, depending on the display.

- the

"vehicle" tab with:

the range, the current consumption and the distance remaining to the

destination,

- the

"1" tab (route 1) with:

the average speed, the average consumption and the distance

travelled calculated over route

"1" ,

- the

"2" tab (route 2) with the same characteristics for a second route .

A few deﬁ nitions

Range: Displays the distance which can be travelled with the remaining fuel

detected in the tank, in relation to the average consumption over the last few

miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the vehicle
speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel, the range is recalculated and is displayed

when it exceeds 60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of digits, contact
a CITROËN dealer.

If, whilst driving, dashes are displayed continuously in place of digits, contact

Current consumption: only calculated and displayed above 20 mph

(30 km/h).

Average consumption: this is the average quantity of fuel consumed since

the last trip recorder zero reset.

Distance travelled: calculated since the last trip computer zero reset.

Distance remaining to the destination: calculated with reference to the

ﬁ nal destination, entered by the user. If guidance is activated, the navigation

system calculates it as a current value.

Average speed: this is the average speed calculated since the last trip

computer zero reset (ignition on).

Zero reset

When the required route is displayed, press the control for more than
two seconds.

VEHICLE DIAGNOSTICS

RADIO: selection of the next stored station.

CD CHANGER: selection of the next CD.

Selection of the next item on a menu.

RADIO: selection of the previous stored station.

CD CHANGER: selection of the previous CD.

Selection of the previous item on a menu.

RADIO: automatic search for a higher frequency.

CD/CD CHANGER/MP3: selection of the next track.

CD/CD CHANGER: continuous press: fast forwards
play.

Selection of the previous item.

RADIO: automatic search for a lower frequency.

CD/CD CHANGER/MP3: selection of the previous
track.

CD/CD CHANGER: continuous press: fast backwards
play.

Selection of the next item.

Volume increase.

Volume decrease.

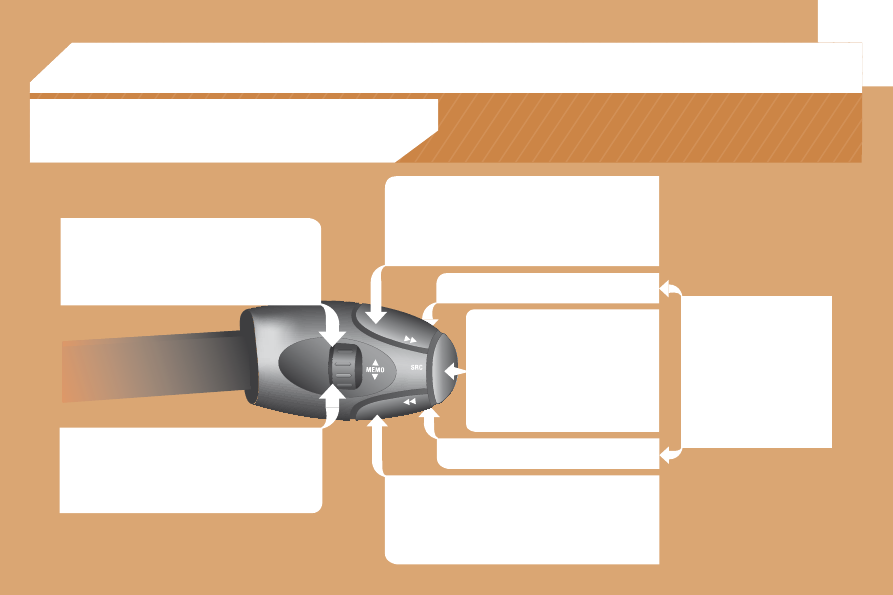

CONTROL SHORT-CUTS

Mute: by pressing

the volume increase
and decrease buttons

simultaneously.

The sound is restored by

pressing one of the two

volume buttons.

- Change of sound source.

- Conﬁ rmation of a selection.

- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the telephone menu.

STEERING WHEEL CONTROLS

126

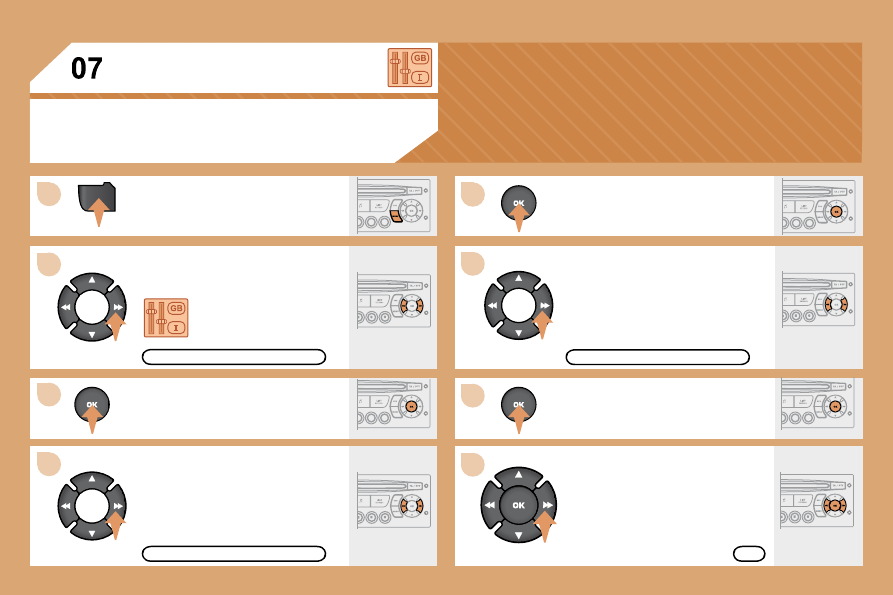

MENU

CONFIGURATION

Press the MENU button.

Using the arrows, select

the PERSONALISATION

CONFIGURATION function.

Press to conﬁ rm the selection.

Using the arrows, select the

DISPLAY CONFIGURATION function.

Press to conﬁ rm the selection.

Using the arrows, select the

ADJUST DATE AND TIME function.

Adjust the parameters one by one

conﬁ rming by pressing the OK button.
Next select the OK tab on the display

then conﬁ rm.

DISPLAY CONFIGURATION

ADJUST DATE AND TIME

PERSONALISATION CONFIGURATION

ADJUSTING THE DATE AND TIME

DISPLAY C

Citroen Jumpy Multispace Dag (2008 year). Instruction - part 8
