Citroen Jumpy Dag (2009 year). Instruction - part 6

Child safety

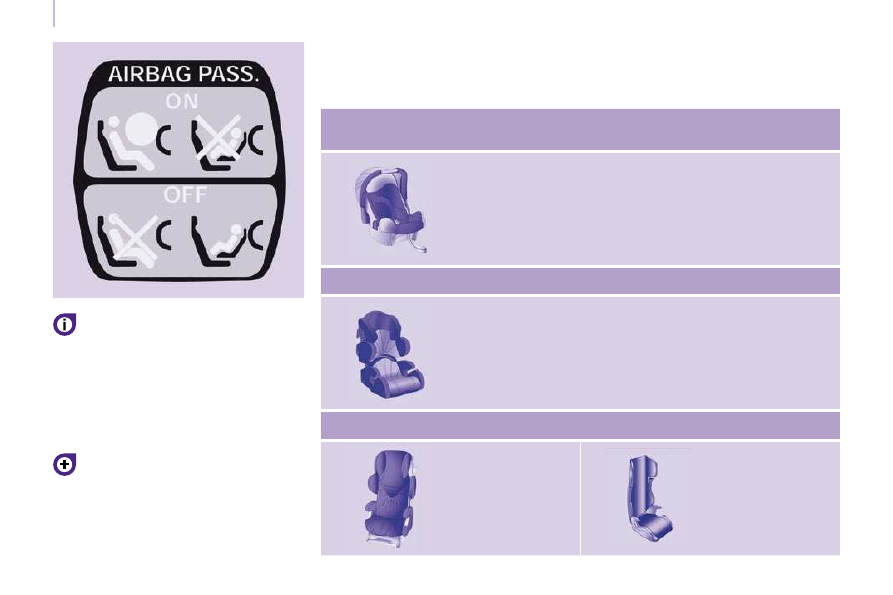

UNIVERSAL CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a
three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

Use of the restraining cushion is

compulsory for the transportation of young

children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN Optima"

From the age of 6 years

(approximately 22 kg),
the booster is used on

its own.

The child seats function and the
passenger air bag disarming function

are common to the entire CITROËN range.

If the passenger air bag is not disarmed, the
installation of a "rearwards-facing" child seat
in the front is strictly prohibited.

Refer to chapter 4, "Air bags" section.

Child safety

a: Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.

b: consult the legislation in force in your country before installing your child on this seat.

U: seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear facing" and/or "forward facing".

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

This table indicates the options for installing child seats secured using a seat belt and universally approved in accordance with the weight of
the child and the seat in the vehicle.

Seat

Weight of the child and indicative age

Under 13 kg

(groups 0 (a)

and 0+)

Up to approx 1 year

From 9 to 18 kg

(group 1)

1 to 3 years

approx

From 15 to 25 kg

(group 2)

3 to 6 years

approx

From 22 to 36 kg

(group 3)

6 to 10 years

approx

Row 1 (b)

Individual seat

Bench, side seat

Bench, centre

seat

L2, L3, L4

Child safety

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.

Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum ,
even for short journeys.

For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.

If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.

Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.

Disarm the passenger air bag when a "rear
facing" child seat is installed on the front
seat.

Otherwise, the child would risk being
seriously injured or killed if the air bag were
to inflate.

As a safety precaution, do not leave:

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle which is
exposed to the sun, with the windows closed,

the keys within reach of children inside
the vehicle.

To prevent accidental opening of the doors,
use the "Child Lock".

Take care not to open the rear windows by
more than one third.

To protect young children from the rays of
the sun, fit side blinds to the rear windows.

Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.

Ensure that the lap part of the seat belt
passes correctly over the child's thighs.

CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.

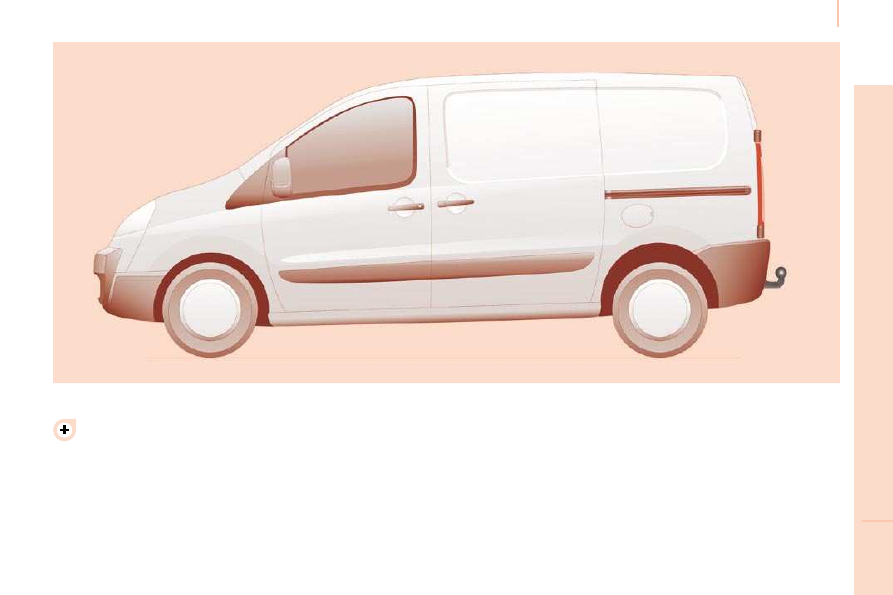

Towing a trailer

For more information about weights,
refer to the administrative documents

(V5 registration document, ...) or to the
"Weights" section of chapter 8.

TOWING A TRAILER, CARAVAN, BOAT, ETC...

Distribution of loads

Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.

Cooling

Towing a trailer on a slope increases the
coolant temperature.

As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.

Driving advice

A towed vehicle must free wheel: gearbox in
neutral.

Towing a trailer

On the contrary, use a high gear to lower the
engine speed and reduce your speed.

In all cases, pay attention to the coolant
temperature.

Tyres

Check the tyre pressures of the towing

vehicle (see the "Identification features"
section of chapter 8) and of the trailer,
observing the recommended pressure.

Towbar

We recommend the use of original
CITROËN towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
you entrust the fitting of this equipment to a
CITROËN dealer.

If this equipment is not fitted by a CITROËN
dealer, it is imperative that it is fitted using
the electrical pre-equipment installed at the
rear of the vehicle and in accordance with
the manufacturer's instructions.

In accordance with the general instructions
a reminder of which has been given above,
we draw your attention to the risk linked with
fitting a towbar or electrical accessory not
recommended by CITROËN. Fitting such
equipment could result in the failure of your
vehicle's electronic system. Please contact
a CITROËN dealer for information before
fitting this type of equipment.

See the "Levels" section of chapter 6.

Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the automatic cutting off of the air
conditioning allows the engine power to be
recovered.

If the coolant temperature warning
light comes on, stop the vehicle
and switch off the engine as soon
as possible.

Brakes

Towing increases the braking distance. Drive
at a moderate speed, change down early
and brake gradually.

Side wind

Sensitivity to side wind is increased. Drive
smoothly and at a moderate speed.

ABS/ESP

The ABS or ESP systems only control the
vehicle, not the trailer or caravan.

Rear parking assistance

The assistance does not function while the
vehicle is towing.

Equipment

OTHER ACCESSORIES

These accessories and parts, having been
tested and approved for reliability and
safety, are all adapted to your vehicle. A
wide range of recommended products and
original parts is offered.

Range of professional equipment

Parts and Service technical information
publishes an accessories catalogue offering
various equipment and fittings, such as:

Roof bars for short, medium and long
wheelbase (load retainers for all models).

Sill plate, loading roller, sill. Sill plate,
loading roller, sill.

Towbar, towbar harness: trailer towbar which
must be fitted by the CITROËN network.

Roof bars for the various heights, roof bars,
ladder.

Separation partitions and grilles, smooth,
non-slip wooden protective floor.

Protective grilles, multimedia.

Another range is also available, structured
around comfort, leisure and maintenance:

Anti-theft alarm, window engraving, first aid
kit, high visibility safety jacket, rear parking
assistance, warning triangle,

Front seat covers compatible with air bags,
bench, rubber mats, carpet mats, snow
chains.

To prevent the mat from becoming caught
under the pedals:

ensure that the mat and its fixings are
positioned correctly,

never fit one mat on top of another.

Audio equipment, hands-free kit, speakers,
CD changer, navigation, ...

Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the fitting
of equipment of these families of products
mean that the special features of the
equipment and its compatibility with the
capacities of the your vehicle's standard
equipment must be taken into account.
Please contact a CITROËN dealer for
information before fitting such equipment.

Equipment

The fitting of electrical equipment
or accessories which are not

recommended by CITROËN may result
in the failure of your vehicle's electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.

Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.

ROOF BARS

To install the transverse roof bars, use the
fixings provided for this purpose.

Maximum load: 170 kilogrammes.

Installation of radiocommunication
transmitters

Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.

The CITROËN Network will inform you of the
specifications (frequency band, maximum
output power, aerial position, specific
installation conditions) of the transmitters
which can be fitted, in accordance with the
Motor Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).

Front mud flaps, rear mud flaps, ....

Screenwash, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...

Equipment

The fitting of electrical equipment
or accessories which are not

Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety jacket,
warning triangle and replacement bulbs
available in the vehicle.

ROOF BARS

To install the transverse roof bars, use the
fixings provided for this purpose.

Maximum load: 170 kilogrammes.

Installation of radiocommunication
transmitters

Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.

Front mud flaps, rear mud flaps, ....

Screenwash, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...

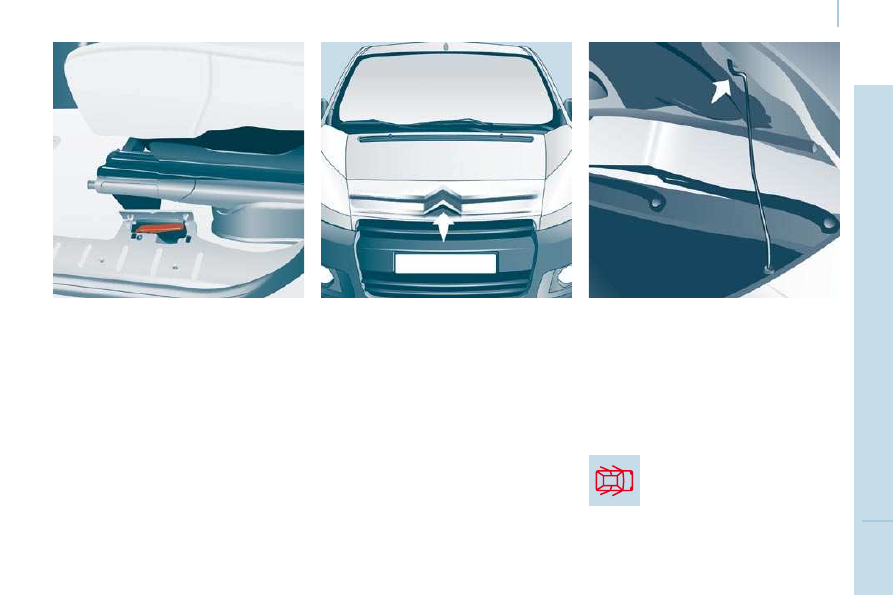

Opening the bonnet

OPENING THE BONNET

From inside:

lift the cover located at the left foot of
the driver's seat.

pull the control upwards.

To close

Lower the bonnet and release it at the end of its
travel. Check that the bonnet is properly locked.

From outside: partially open the bonnet, lift
the catch and raise the bonnet.

Bonnet strut

Secure the strut in one of the two notches,
according to the height required, to hold the
bonnet open.

Before closing the bonnet, replace the strut
in its housing.

"Bonnet open" warning

This warning is linked to the alarm option
only.

With the engine running or the
vehicle moving, a warning light
and a diagram on the display,
accompanied by an audible
signal, warn you that the bonnet
is not properly closed.

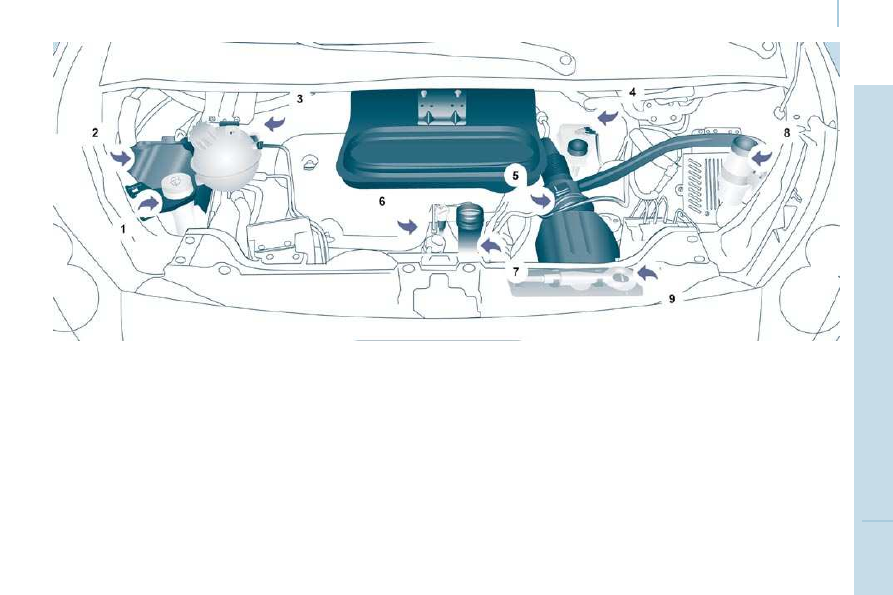

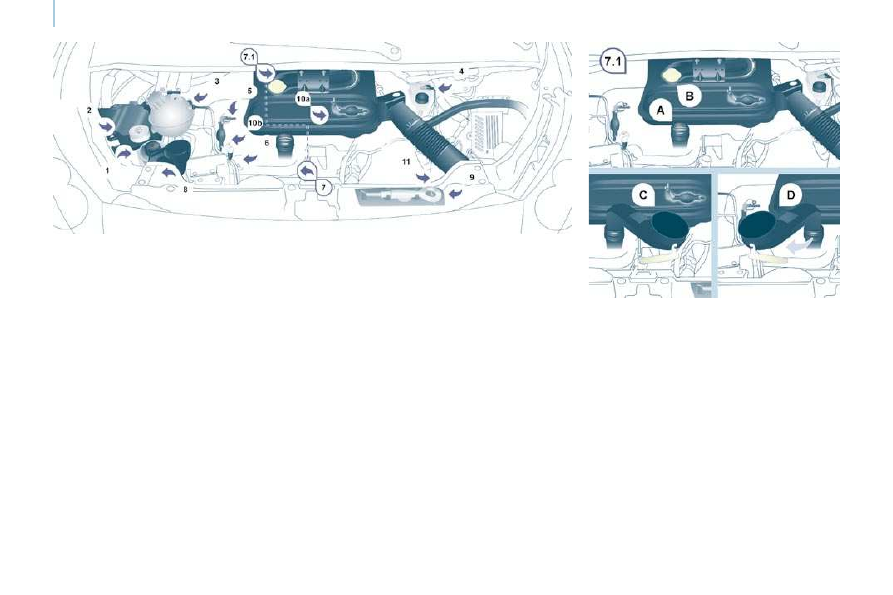

Under the bonnet

DIESEL ENGINES

8 - Power steering reservoir.

9 - Removable towing eye.

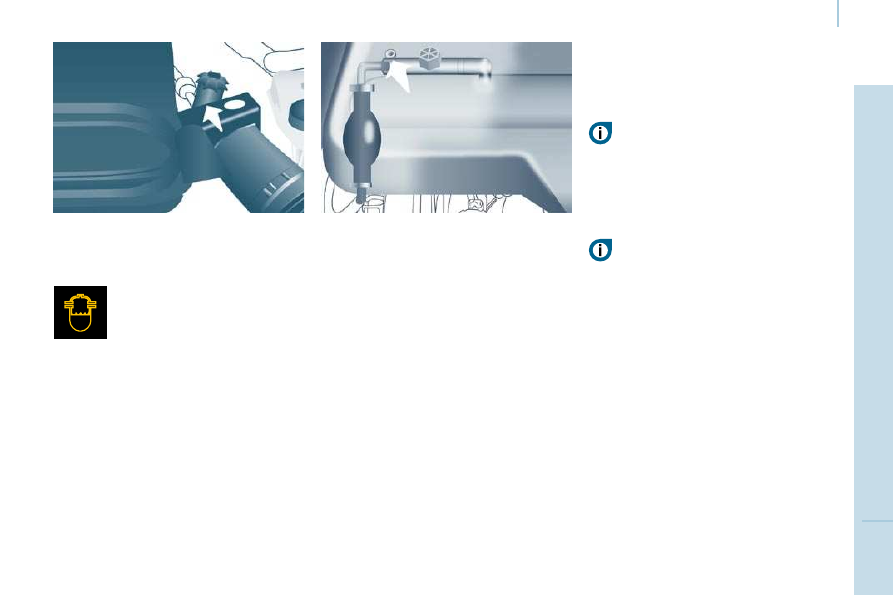

10 - Repriming pump

( a : 1.6 litre HDi; b : 2 litre HDi).

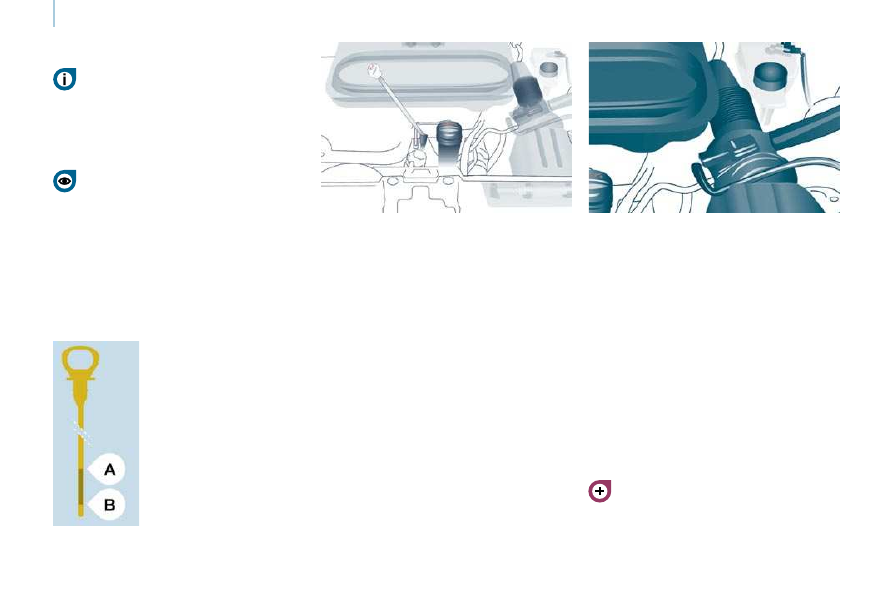

11 - Engine oil filling funnel (2 litre HDi).

7.1 - Engine oil filler cap.

If your vehicle is fitted with this oil filler tube,
proceed as follows:

A - Remove the oil filler cap.

B - Remove the filler tube from its location.

C - Place the filler tube in the filler opening

as shown on the illustration.

D - Turn it a 1/4 of a turn to the left to lock it

then top up the oil.

To refit, proceed in the reverse order without
forgetting to retighten the cap A correctly.

UNDER THE BONNET

1 - Windscreen/headlamp wash reservoir.

2 - Fuse box.

3 - Coolant reservoir.

4 - Brake and clutch fluid reservoir.

5 - Air filter.

6 - Dipstick.

7 - Engine oil filler cap.

Under the bonnet

PETROL ENGINE

4. Brake and clutch fluid reservoir.

5. Air filter.

6. Dipstick.

7. Engine oil filler cap.

8. Power steering reservoir.

9. Removable towing eye.

1. Windscreen/headlamp wash reservoir.

2. Fuse box.

3. Coolant reservoir.

Levels

LEVELS

the use of additives in engine oil is
prohibited.

Changing the brake fluid

The brake fluid must be changed at
the intervals stated, according to the
manufacturer's servicing schedule.

Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.

The level must be between the MIN and
MAX marks on the reservoir.

If fluid has to be added frequently, this
indicates a failure which must be checked by
a CITROËN dealer as soon as possible.

Warning lights

These regular maintenance operations
will keep your vehicle in good running

order. Consult the instructions at CITROËN
dealerships or in the servicing booklet
enclosed in the handbook pack.

If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.

Oil level

Check the level regularly and top up
between changes.

Check the level with the vehicle level,
engine cold, using the dipstick.

Dipstick

There are two marks on the
dipstick:

A = maximum

If you fill past this mark,
contact a CITROËN dealer.

B = minimum

Never allow the level to fall
below this mark.

To maintain the reliability
of engines and emission
control systems,

Oil change

It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer's
servicing schedule. Consult the instructions
at CITROËN dealerships.

Remove the dipstick before filling.

For the 2 litre HDi engine, use the funnel
supplied when filling via the sump opening.

Check the level after filling (never exceed
the max mark).

Screw the cap back onto the sump before
closing the bonnet.

Viscosity selection

In all cases, the oil selected must meet the
manufacturer's requirements.

Checking by means of the warning
lights on the instrument panel

is described in chapter 2, refer to the
"Instruments and controls" section.

Levels

Cooling system

Only use the fluid recommended by the
manufacturer.

Otherwise, you risk seriously damaging your
engine.

When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.

Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.

If fluid has to be added frequently, this
indicates a failure which must be checked by
a CITROËN dealer as soon as possible.

Power steering fluid level

The vehicle must be parked on level ground
with the engine cold. Unscrew the cap
integrated with the gauge and check the
level which must be between the MIN and
MAX marks.

When this occurs with the engine running it
is due to the start of saturation of the particle
emission filter (exceptionally prolonged
urban type driving conditions: low speed,
long traffic jams, ...).

In order to regenerate the filter, you are
advised to drive at a speed higher than
40 mph (60 km/h) for at least five minutes
as soon as possible, when traffic conditions
permit (until the message disappears and
the service warning light is switched off).

During regeneration of the particle emission
filter, relay noise may be heard under the
fascia.

If the message is still displayed and if the
service warning light remains on, contact a
CITROËN dealer.

Topping up

The level must be between the MIN and
MAX marks on the expansion bottle. If
more than 1 litre of fluid is required to top
up the level, have the system checked by a
CITROËN dealer.

Windscreen wash and headlamp
wash level

For best quality cleaning and for your safety,
we would advise that you use products of
the CITROËN Universal range.

Capacity of the screenwash reservoir:
approximately 4.5 litres.

If your vehicle is fitted with headlamp
washers, the capacity of the reservoir is
7.5 litres.

To guarantee optimum cleaning and prevent
freezing, this fluid must not be topped up or
replaced with water.

Diesel additive level (Diesel
with particle emission filter)

The minimum level of this additive
is indicated by lighting of the

service warning light, accompanied by
an audible signal and a message on the
display.

Topping up

It is imperative that this additive is topped up
by a CITROËN dealer without delay.

Checks

CHECKS

Battery

At the start of winter, have your battery
checked by a CITROËN dealer.

Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.

Unless there is a leak on the circuit, a drop
in the brake fluid level indicates that the
brake pads are worn.

Brake disc/drum wear status

For any information relating to checking
the brake disc/drum wear status, contact a
CITROËN dealer.

Handbrake

Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.

Have the system checked by a CITROËN
dealer.

Oil filter

Change the filter regularly, in accordance
with the servicing schedule.

Carbon filter and passenger
compartment filter

The carbon filter permits continuous and
effective filtering of dust.

If the passenger compartment filter becomes
clogged, this may reduce the performance
of the air conditioning system and generate
unpleasant odours.

We recommend the use of a combined
passenger compartment ﬁ lter. By means of

its second special active ﬁ lter, it contributes

to the puriﬁ cation of the air breathed by the
occupants and the cleanness of the passenger
compartment (reduction of allergic symptoms,
unpleasant odours and greasy deposits).

Refer to the servicing booklet to find out the
replacement interval for these components.

Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary.

Particle emission filter (Diesel)

It is imperative that particle
emission filter maintenance is
carried out by a CITROËN dealer.

On acceleration after the vehicle

has been running for a prolonged period
at very low speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the exhaust.
This water vapour does not have any
adverse effect on vehicle handling or the
environment.

Refer to the "Under the bonnet" section
of chapter 6.

Checks

Manual gearbox

Have the level checked in accordance with
the manufacturer's servicing schedule.

To check the main levels and certain
components, in accordance with the

manufacturer's servicing schedule, refer to
the pages of the Maintenance and Warranty
Guide which correspond to your vehicle's
engine.

Only use products recommended by
CITROËN or products of equivalent

quality and specification.

In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.

In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.

Bleeding the water contained in the
diesel filter

If this warning light comes on,
bleed the filter. Otherwise bleed
regularly each time the engine is
drained.

To evacuate the water, unscrew the bleed
screw located on the filter.

Operate until all of the water in the
transparent pipe has been drained out then
tighten the bleed screw.

HDi engines use advanced technology.

All work requires a special qualification
which is guaranteed by a CITROËN dealer.

1.6 litre HDi

2 litre HDi

Fuel

FILLING WITH FUEL

Filling with fuel

The fuel tank must be filled with the engine
off .

Low fuel level

When this warning light ﬁ rst comes
on and when the needle is at the
start of the red zone, the minimum
fuel tank level has been reached.

At this moment, you have approximately
8 litres of fuel remaining.

Fill up without delay to avoid running out of fuel.

When filling with fuel, do not open the
left-hand side door, if fitted on your

vehicle, as there is a risk of damage to the
fuel filler flap.

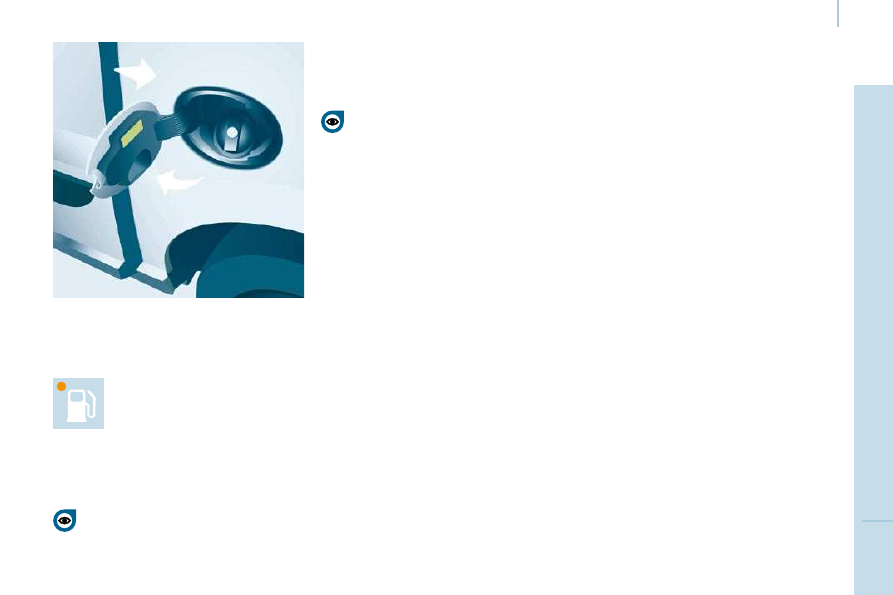

Open the fuel filler flap.

Insert the key, then turn it a quarter turn.

Remove the cap and hook it onto the
clip located on the inside of the flap.

It is normal to hear an air intake noise when
the cap is opened as there is a vacuum
linked with the sealing of the fuel circuit.

A label affixed to the inside of the flap
reminds you of the type of fuel to be used.

More than 8 litres of fuel must be added in
order to be registered by the fuel gauge.

When filling the fuel tank, do not continue
after the 3 rd cut-off of the nozzle. This could
cause malfunctions.

The capacity of the fuel tank is
approximately 80 litres.

After filling the fuel tank, lock the cap
and close the flap.

Never continue to drive until you run
out of fuel as this may damage the
emission control and injection systems.

Content .. 4 5 6 7 ..
