 ENVIRONMENT

  CITROËN  clean HDi Diesel engines
(Common Rail diesel direct injection)

have the characteristic of offering
low consumption and minimising
emissions of CO

2

.

In addition to this contribution, these
engines provide a highly acclaimed level
of driving pleasure.

  -

observe the service intervals; we
recommend that services are carried
out by a  CITROËN  dealer, authorised to
collect used batteries and fluids,

  -

in order to preserve the reliability of the
engine and emission control system, do
not use engine oil additives.

 As the driver, you also can contribute to
protecting the environment by following
certain rules:

   -

adopt a preventive style of driving,
without frequent and sharp acceleration.

 Refer to the starting and stopping
«good practice» advice at the end of

chapter 2.

 1

4

6

   Dimensions

 1

4

7

9

T

EC

H

N

IC

A

L

 D

A

T

A

   Dimensions

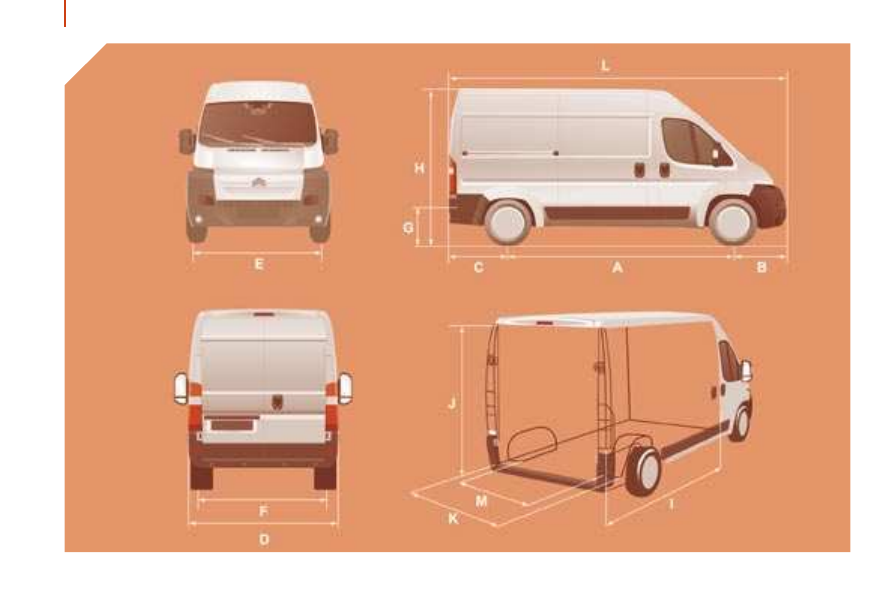

 DIMENSIONS

 The Relay is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:





   VAN





  L1

  L2

  L3

  L4





  H1

  H1

  H2

  H2

  H3

  H2

  H3

  L

 Overall length

  4 963

  5 413

  5 998

  6 363

  H

 Overall height

  2 254

  2 254

  2 524

  2 524

  2 764

  2 524

  2 764

  A

 Wheelbase

  3 000

  3 450

  4 035

  B

 Front overhang

  948

  C

 Rear overhang

  1 015

  1 380

  D

 Overall width (excluding mirrors)

  2 050

  E

 Width of front tracks

  1 810

  F

 Width of rear tracks

  1 790

  G

 Height of load sill

  535 to 565

  I

 Length of interior floor

  2 670

  3 120

  3 705

  4 070

  J

 Maximum interior load height

  1 662

  1 662

  1 932

  1 932

  2 172

  1 932

  2 172

  K

 Maximum interior width

  1 870

  M

 Interior width between wheel arches

  1 422



  Volume (m

3

)

   8

   10

   11.5

   13

   15

   15

   17

   Dimensions





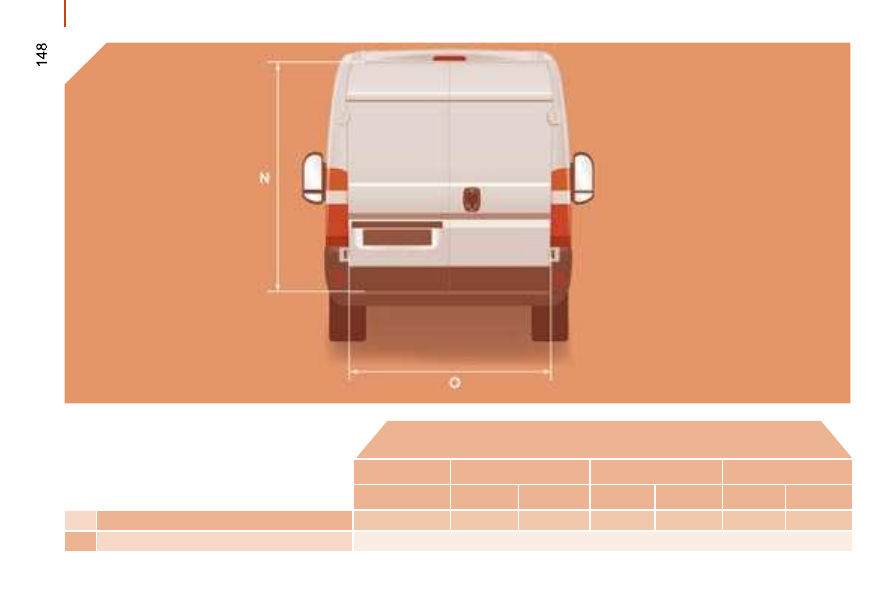

   REAR DOORS





  L1

  L2

  L3

  L4





  H1

  H1

  H2

  H2

  H3

  H2

  H3

  N

 Useful height of the rear doors

  1 520

  1 520

  1 790

  1 790

  2 030

  1 790

  2 030

  O

 Useful width of the rear doors

  1 562

9

T

EC

H

N

IC

A

L

 D

A

T

A

   Dimensions





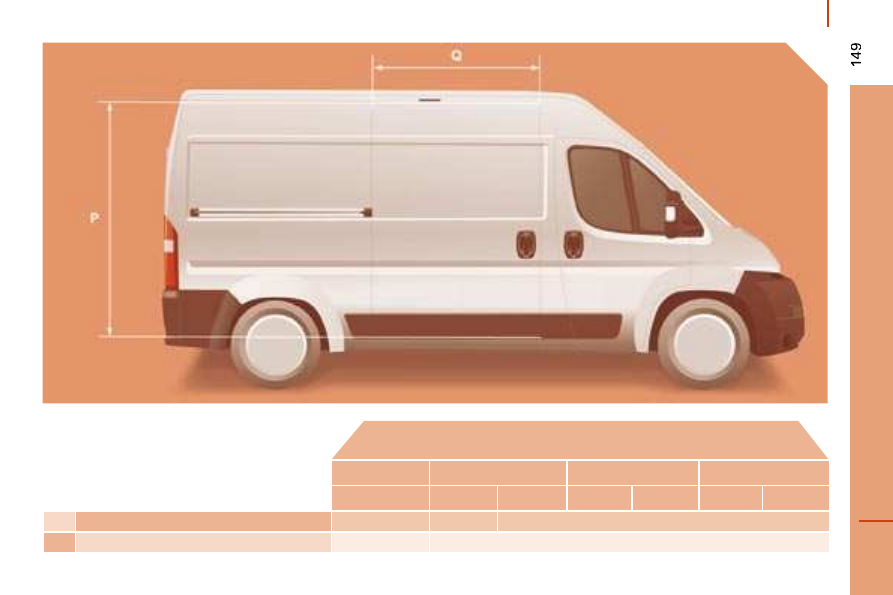

   SIDE DOOR





  L1

  L2

  L3

  L4





  H1

  H1

  H2

  H2

  H3

  H2

  H3

  P

 Height of the sliding side door

  1 485

  1 485

  1 755

  Q

 Width of the sliding side door

  1 075

  1 250

 1

5

0

   Dimensions

9

T

EC

H

N

IC

A

L

 D

A

T

A

   Dimensions

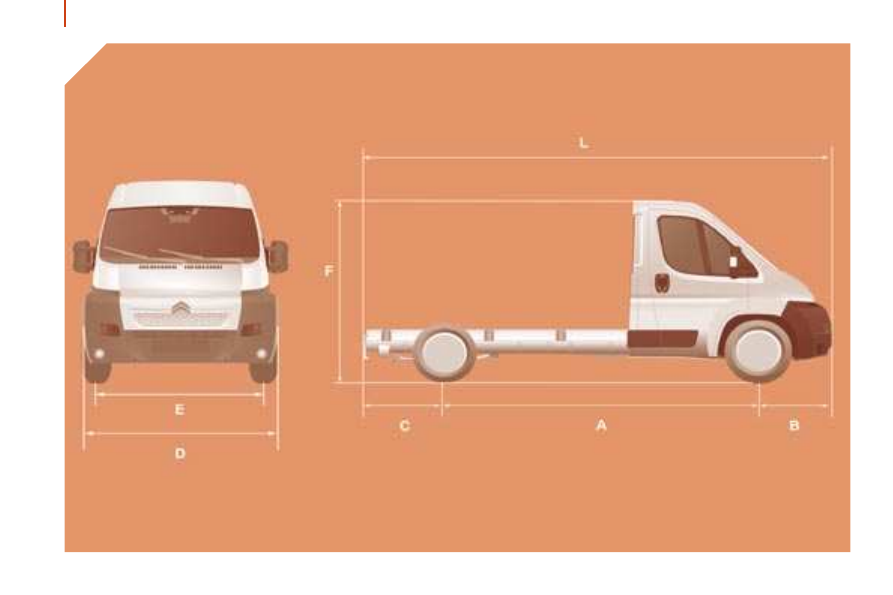

   CHASSIS CAB





  L1

  L2

  L2S

  L3

  L4

  L

 Overall length

  4 908

  5 358

  5 708

  5 943

  6 308

  A

 Wheelbase

  3 000

  3 450

  3 800

  4 035

  4 035

  B

 Front overhang

  948

  C

 Rear overhang

  960

  1 325

  D

 Overall width (excluding mirrors)

  2 050

  -

 Passable width

  2 207

  -

 Max passable width

  2 350

  E

 Width of front tracks

  1 810

  -

 Width of rear tracks

  1 790

  -

 Width of increased rear tracks

  1 980

  F

 Overall height

  2 153

  -

 Max passable height

  3 500

 1

5

2

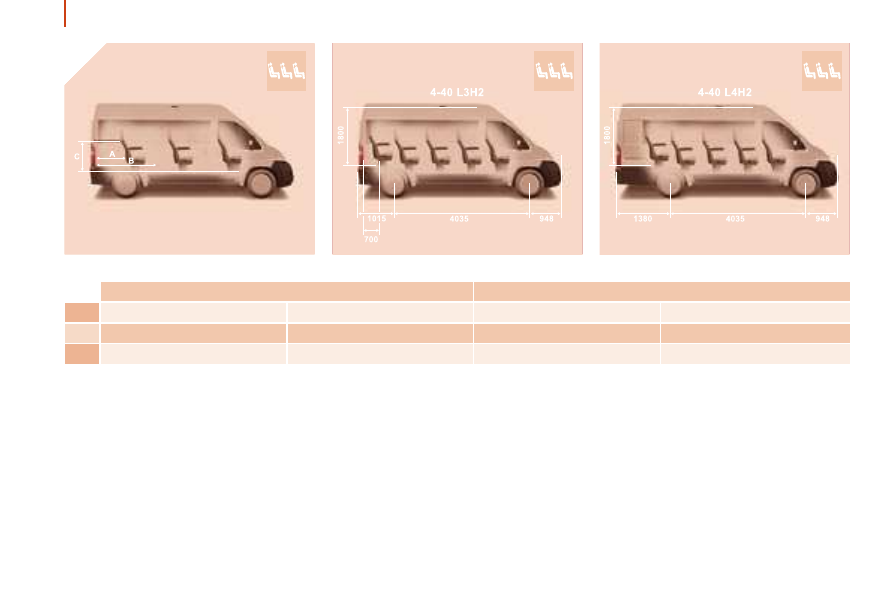

   Dimensions



   L1H1

   L2H2

   A

  751

  872

  1 201

  1 322

   B

  1 201

  1 743

  1 651

  2 193

   C

  -

  860

  -

  860

 Diesel engines

 1

5

3

9

T

EC

H

N

IC

A

L

 D

A

T

A

   DIESEL ENGINES AND GEARBOXES



   2.2 HDi 100

   2.2 HDi 120

   3 HDi 160

  Gearbox Manual

  Manual

 Gears

  5

  6

  6

 Power (bhp)

  100

  120

  157

 EU standard maximum power (kW)

  74

  88

  115.5

 Cubic capacity (cm

3

  2 198

  2 198

  2 999

 Bore x stroke (mm)

  86 x 94.6

  86 x 94.6

  95.8 x 104

 Max power engine speed (rpm)

  2 900

  3 500

  3 600

 EU standard max torque (daNm)

  25

  32

  40

 Max torque engine speed (rpm)

  1 500

  2 000

  1 600

 Fuel

  Diesel

  Diesel

  Diesel

 Catalytic converter

  Yes

  Yes

  Yes



 Engine oil capacity (in litres)

  6.4

  6.4

  -

 1

5

4

 Diesel engines

   Consumption

  Body type

  GVW

  Engine

  Urban driving

  Inter urban driving

  Mixed driving

  Emission of CO

 (g/km)

  Chassis

  L1

  30, 33, 35

  HDi 100

  8.9

  7.3

  7.9

  208

  HDi 120

  10.4

  7.9

  8.8

  232

  HDi 160

  10.4

  7.9

  8.8

  233

 L2

 33 and 35

  HDi 100

  8.9

  7.3

  7.9

  208

  HDi 120

  10.4

  7.9

  8.8

  232

  HDi 160

  10.4

  7.9

  8.8

  233

 435

  HDi 120

  10.7

  8.2

 9.1

 240

  HDi 160

  10.7

  8

  9

  213

 L2S

 30 and 35

 HDi 100

  9.2

  7.5

  8.1

  214

  HDi 120

  10.7

  8.2

  9.1

  240

  HDi 160

  10.4

  7.9

  8.8

  233

 L3

 33 and 35

  HDi 100

  9.2

  7.5

  8.1

  214

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.4

 7.9

 8.8

 233

 435

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 L4

 35

 HDi 100

 9.2

 7.5

 8.1

 214

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.4

 7.9

 8.8

 233

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 Diesel engines

 1

5

5

9

T

EC

H

N

IC

A

L

 D

A

T

A

   Consumption

  Body type

 GVW

 Engine

 Urban driving

 Inter urban driving

 Mixed driving

 Emission of CO

2

  (g/km)

 Chassis

crew cab

 L2

 33 and 35

 HDi 100

 9.2

 7.5

 8.1

 214

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.8

 8.1

 9.1

 241

 L3

 35

 HDi 100

 9.4

 7.7

 8.3

 220

 HDi 120

 10.9

 8.3

 9.3

 246

 HDi 160

 10.8

 8.1

 9.1

 241

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 L4

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 1

5

6

 Diesel engines

   Consumption

  Body type

 GVW

 Engine

 Urban driving

 Inter urban driving

 Mixed driving

 Emission of CO

2

  (g/km)

 Van

 L1H1

 30, 33 and 35

 HDi 100

 8.9

 7.3

 7.9

 208

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.4

 7.9

 8.8

 233

 L2H1

 30, 33 and 35

 HDi 100

 9.2

 7.5

 8.1

 214

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.4

 7.9

 8.8

 233

 435

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 11

 8.3

 9.3

 246

 L2H2

 30, 33 and 35

 HDi 100

 9.2

 7.5

 8.1

 214

 HDi 120

 10.7

 8.2

 9.1

 240

 HDi 160

 10.8

 8.1

 9.1

 241

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 Diesel engines

 1

5

7

9

T

EC

H

N

IC

A

L

 D

A

T

A

   Consumption

  Body type

  GVW

  Engine

  Urban driving

  Inter urban driving

  Mixed driving

  Emission of CO

2

  (g/km)

 Van

 L3H2

  33 and 35

 HDi 100

 9.4

 7.7

 8.3

 220

 HDi 120

 10.9

 8.3

 9.3

 246

 HDi 160

 10.8

 8.1

 9.1

 241

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 L3H3

 33 and 35

 HDi 100

 9.4

 7.7

 8.3

 220

 HDi 120

 10.9

 8.3

 9.3

 246

 HDi 160

 10.8

 8.1

 9.1

 241

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 L4H2

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 L4H3

 435

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 440

 HDi 120

 10.8

 8.4

 9.3

 246

 HDi 160

 11

 8.3

 9.3

 246

 1

5

8

 Diesel engines

   Consumption

  Body type

 GVW

 Engine

 Urban driving

 Inter urban driving

 Mixed driving

 Emission of CO

2

  (g/km)

 Level 1

Combi

with 6/9

seats

 L1H1

 30 and 33

 HDi 100

 8.2

 6.8

 7.3

 193

 HDi 120

 10.1

 7.3

 8.3

 219

 HDi 160

 9.4

 6.9

 7.8

 207

 L2H2

 33

 HDi 100

 8.5

 7

 7.6

 200

 HDi 120

 10.2

 7.5

 8.5

 224

 HDi 160

 9.9

 7.2

 8.2

 216

 Level 2

Combi

with 8/9

seats

 L1H1

 30 and 33

 HDi 100

 8.9

 7.3

 7.9

 208

 HDi 120

 10.9

 7.7

 8.9

 235

 HDi 160

 10.2

 7.6

 8.6

 226

 L2H2

 33

 HDi 100

 8.9

 7.3

 7.9

 208

 HDi 120

 10.9

 7.7

 8.9

 235

 HDi 160

 10.2

 7.6

 8.6

 226

 Level 1

Combi

(export)

 L2H2

 435

 HDi 120

 10.8

 8.1

 9.1

 240

 HDi 160

 10.2

 7.6

 8.6

 226

 1

5

9

9

T

EC

H

N

IC

A

L

 D

A

T

A

  Weights

 WEIGHTS

   Dimensions

   Names

   GVW in kg

  L1 H1

  30

  3 000

  33

  3 300

  L2 H1

  33

  3 300

  35

  3 500

  L2 H2

  30

  3 000

  33

  3 300

  35

  3 500

  L3 H2

  30

  3 000

  35

  3 500

  435

  3 500

  440

  4 000

  L3 H3

  30

  3 000

  35

  3 500

  435

  3 500

  440

  4 000

  L4 H3

  440

  4 000

 Consult your registration certificate.

 In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle’s towing possibilities and its gross train weight, contact a  CITROËN  dealer.

 The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

 High exterior temperatures may result in a reduction in the performance of the vehicle to protect the engine. When the exterior
temperature is higher than 37 °C, limit the weight towed.

 This table indicates the gross vehicle weight (GVW) according to the dimensions and names of the vehicle.

  Weights

 1

6

0

  *

15 inch wheel.

  **    16 inch wheel.

Load transfer

If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.

In all cases, do not exceed the trailer weight and GTW indicated.

Comply with the towing capacities of your vehicle.

TOWED LOADS

Body type

Engine

With braked trailer

Van

30

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

33

HDi 100

2 000

HDi 120

2 500

HDi 160

2 500

35

HDi 100

2 000

HDi 120

2 500*

3 000**

HDi 160

2 500*

3 000**

435/440

HDi 120

2 500

HDi 160

2 500
