PRESENTATION

Within the chapters symbols draw your attention to specific
information:

This handbook is designed to familiarise you with the new vehicle
from the moment you get behind the wheel and to describe the
operating features.

Reading the handbook is made easy by a content consisting of
10 identified chapters which can be located by means of a colour
code specific to each one. Its sections cover, by theme, all of the
functions of the vehicle in its most complete specification.

Chapter 9 indicates all of the technical data relating to your
vehicle.

Chapter 10 enables you to find the controls, the functions and
their associated page numbers on the Jumper silhouette diagrams
(visual index).

directs you to the chapter and section which contains detailed
information concerning a function,

indicates important information relating to use of the equipment,

alerts you to the safety of individuals and equipment on board.

This symbol provides information about the equipment
specific to the combi model.

ISA

Familiarisation

Reversing camera

This equipment is activated automatically
when reverse gear is engaged, with a
visual return on the screen located in the
interior mirror position.



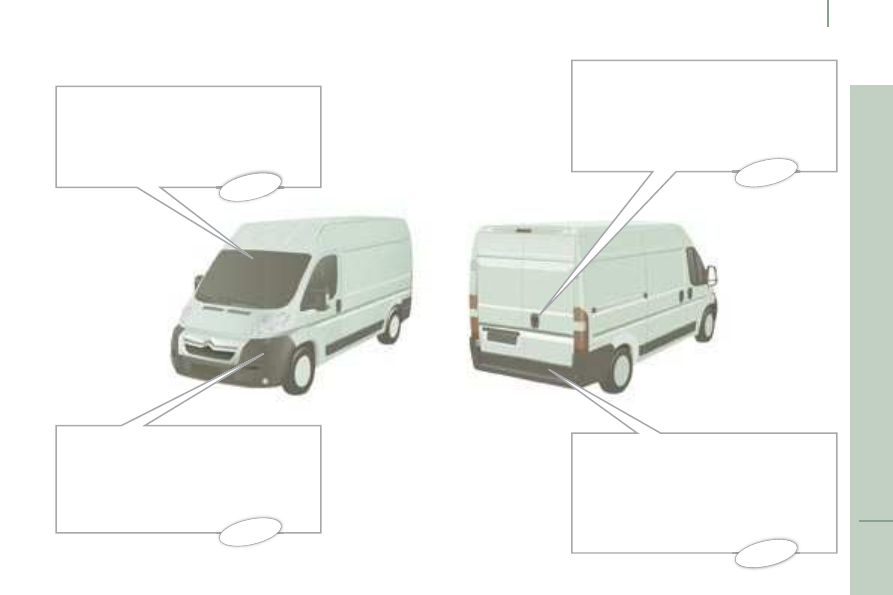

EXTERIOR

"Follow-me-home" lighting

After switching off the ignition, when you
leave your vehicle, the front lights remain
on briefly.

Opening the rear doors to 180°

Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.

Rear parking assistance

This equipment warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.



Familiarisation

Sliding side door

Opening

Pull the handle towards you then towards
the rear.

Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.

Take care to open the door fully to lock the
device at the base of the door.

Do not drive with the sliding side door open.

 23

Locking of the vehicle.

Unlocking of the vehicle.

Locking/Unlocking of the load space.

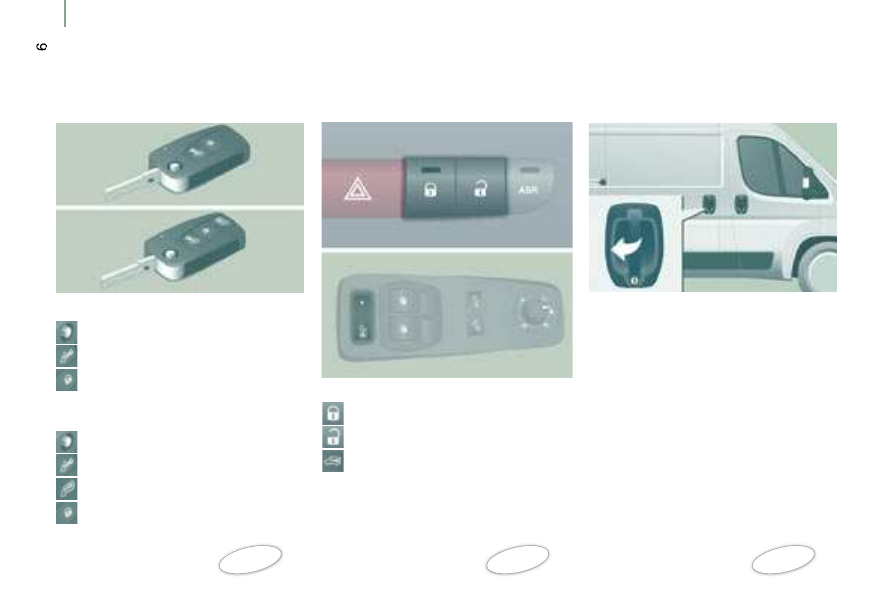

Remote control key

2 buttons

Unfolding/Folding of the key.

Unlocking.

Locking.

3 buttons

Unfolding/Folding of the key.

Unlocking of the cab.

Unlocking of the load space.

Locking of the vehicle.



Manual centralised controls



OPEN

ISA

Familiarisation

Opening

Pull the handle towards you.

Closing

To close, start with the left-hand door then
close the right-hand door.

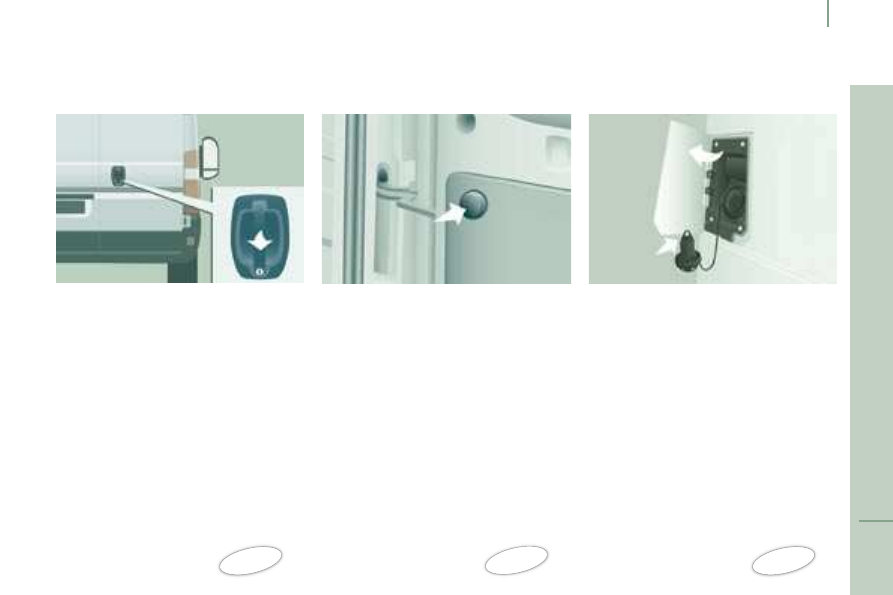

Rear doors

Opening to 180°

Press the button, located on the door trim
pad, to widen the angle of opening of the
door.

Fuel tank

Opening of the fuel filler flap.

Hooking of the fuel tank cap.

Capacity of the fuel tank: approximately 90 litres.



OPEN



 126

Familiarisation

INTERIOR

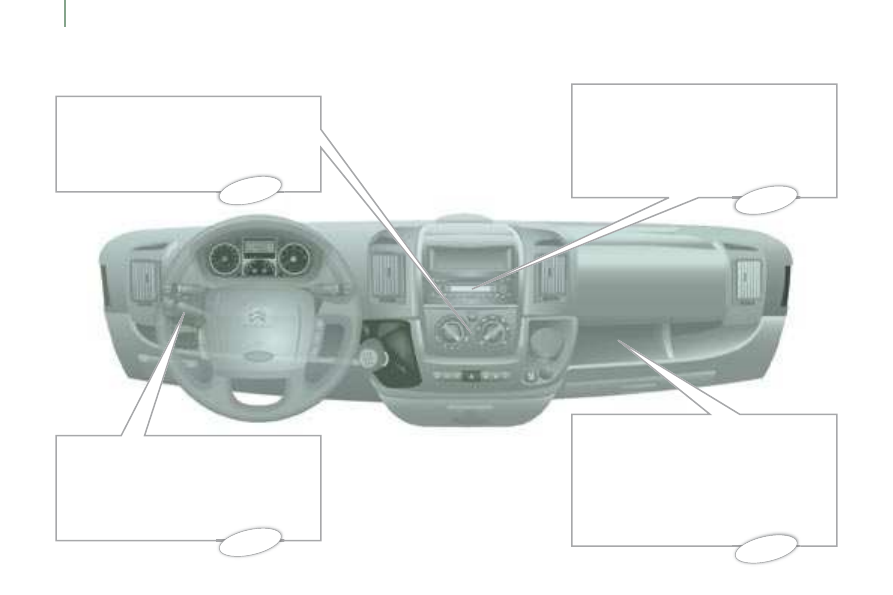

Automatic air conditioning

This automatic air conditioning system
guarantees comfort and a sufﬁ cient circulation
of air in the passenger compartment.

Cruise control

This system automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.

Audio and communication
systems

This equipment benefits from the
latest technology: MP3 compatible
audio equipment, Bluetooth hands-free
telephone, audio system.

Interior layout

12 V socket.

Cooled glove box.

Central storage tray with lock.



ISA

Familiarisation

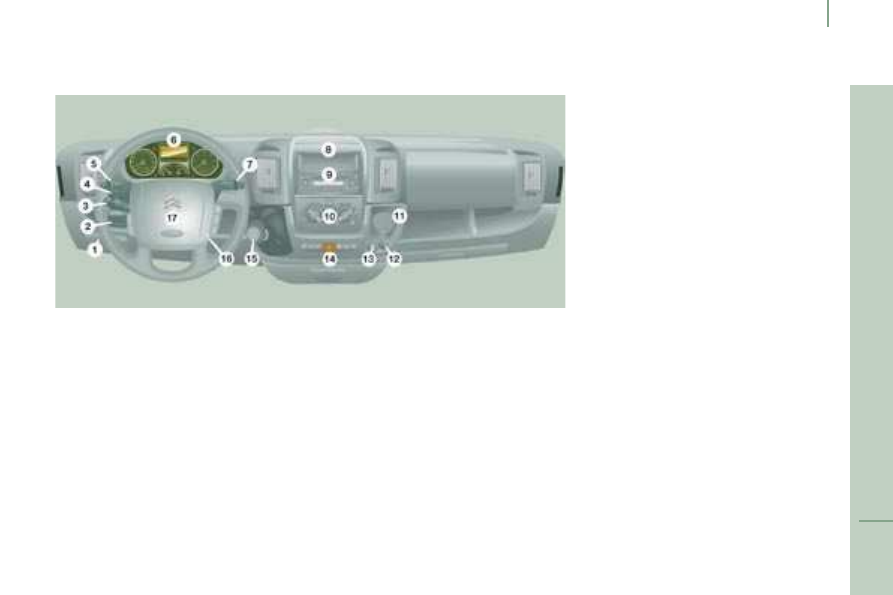

1. Fuse box.

2. Programmable heating.

3. Cruise control switch.

4. MODE, configuration and

personalisation/lighting rheostat/
headlamp beam height adjustment.

5. Lights and direction indicators control.

6. Instrument panel with display.

7. Wipers/wash-wipe/trip computer

controls.

8. Storage compartment between 2

adjustable vents.

9. Audio equipment.

10. Manual air conditioning.

11. Movable ashtray.

12. Lighter.

13. 12 volt accessories socket (180 W max).

14. Controls bar:

- De-icing/demisting button.

- Front fog lamps button.

- Rear fog lamps button.

- Hazard warning lights button.

- Central locking button/alarm indicator

light.

- Central unlocking of the doors and

load space button.

- Dynamic stability control (ASR) button.

15. Gear lever.

16. Ignition switch.

17. Driver's air bag/horn.

INSTRUMENTS AND CONTROLS

Familiarisation

SIT COMFORTABLY



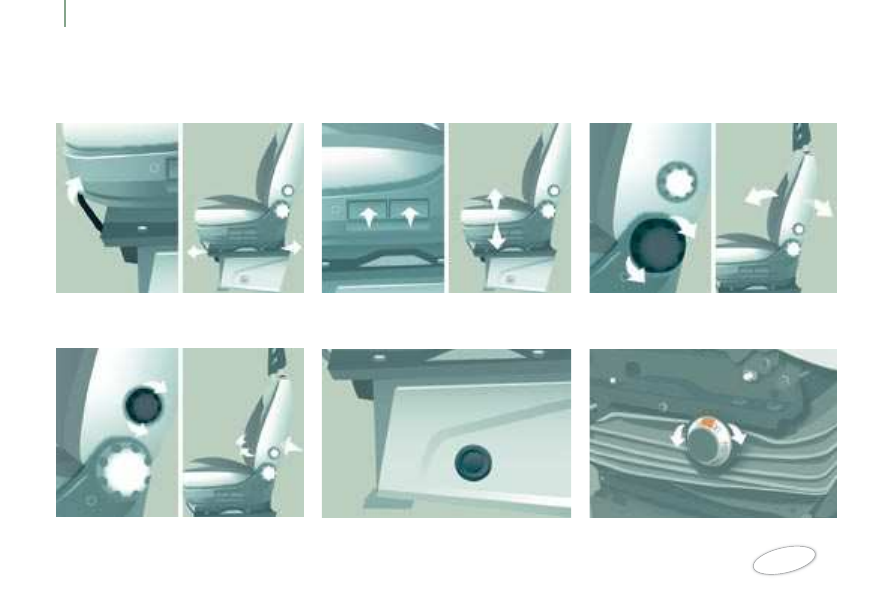

Driver's seat adjustments

Forwards-backwards

Seat height

Seat back angle

Lumbar support

Seat heating

Variable vibration reduction

ISA

Familiarisation

SIT COMFORTABLY

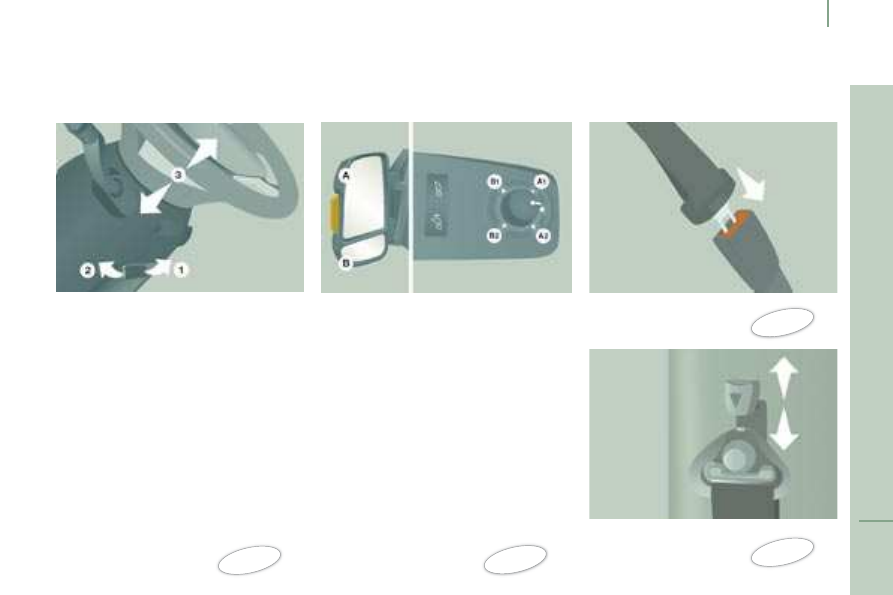

1. Unlocking of the lever.

2. Locking of the lever.

3. Adjustment of the depth of the steering

wheel.

Manual adjustment of the depth of the
steering wheel

Exterior mirror adjustment

The mirrors are divided into
two zones: A and B.

1. Driver's mirror:

A1 - Adjustment of the upper mirror.

B1 - Adjustment of the lower mirror.

2. Passenger's mirror:

A2 - Adjustment of the upper mirror.

B2 - Adjustment of the lower mirror.

 36

 69

Front seat belt

Fastening.



104

Height adjustment.

 104

Familiarisation

SIT COMFORTABLY

Side lights/PARK

Press this button, turning the ignition key
one notch in the opposite direction to
starting at the same time. You can then
remove the key: The side lights will remain
on while you are parked.

 41

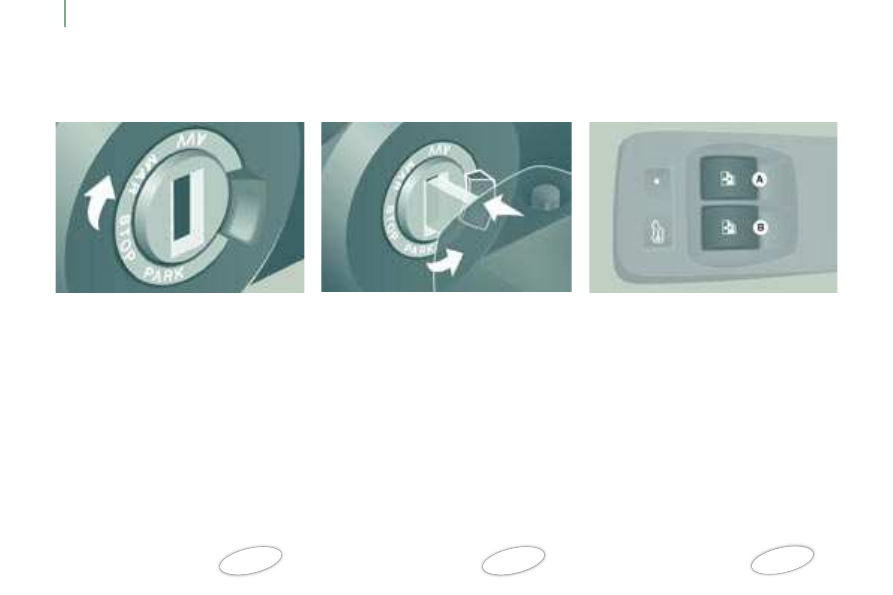

Electric window controls

A. Driver's electric window control.

B. Passenger's electric window control.

The electric window functions are
deactivated one minute after the ignition is
switched off.

 70

Ignition switch

PARK position.

STOP position

RUNNING position.

START position.

 37

ISA

Familiarisation

SEE CLEARLY

Lights

Windscreen wipers

Front fog lamps and rear fog
lamps.



 42



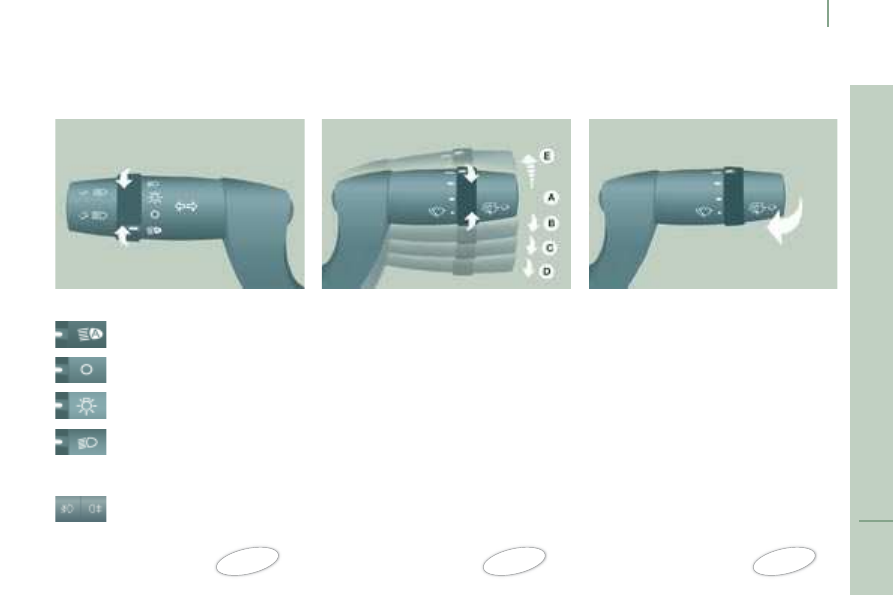

Automatic switching on of the lights.

Lights off.

Side lights.

Dipped headlamps or main beam
headlamps.

A. Park.

B. Intermittent (4 speeds).

C. Slow continuous.

D. Fast continuous.

E. Single wipe.

Windscreen wash

Pull the control towards you, the windscreen
wash is accompanied by a timed sweep of
the wipers.

Familiarisation

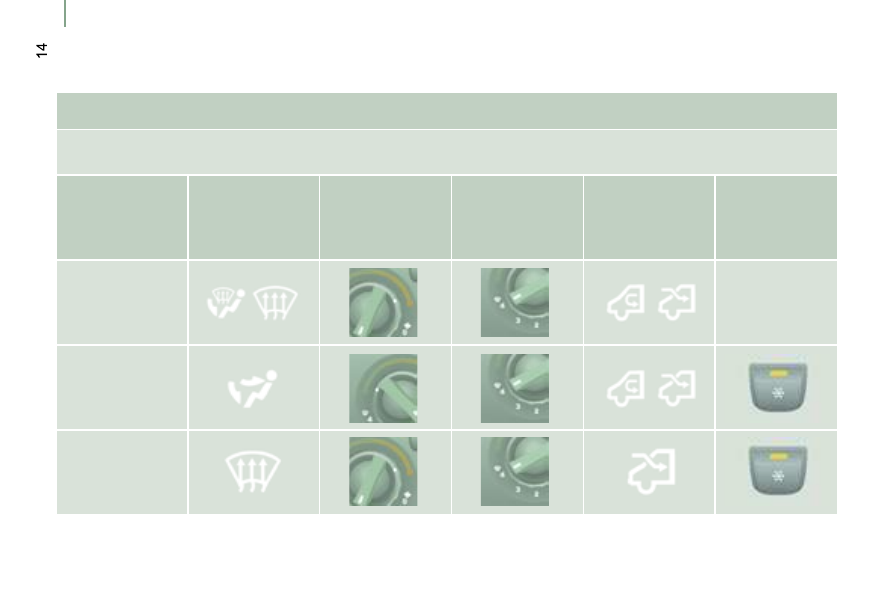

Automatic air conditioning : use of the fully automatic operation by pressing the "AUTO" button is preferable.

VENTILATION

Manual Air Conditioning

If I require...

Air distribution

Temperature

Air flow

Air recirculation

Heating

Cooling

De-icing

Demisting

Recommended interior settings

ISA

Familiarisation

MONITOR THOROUGHLY

Instrument panel

Warning lights

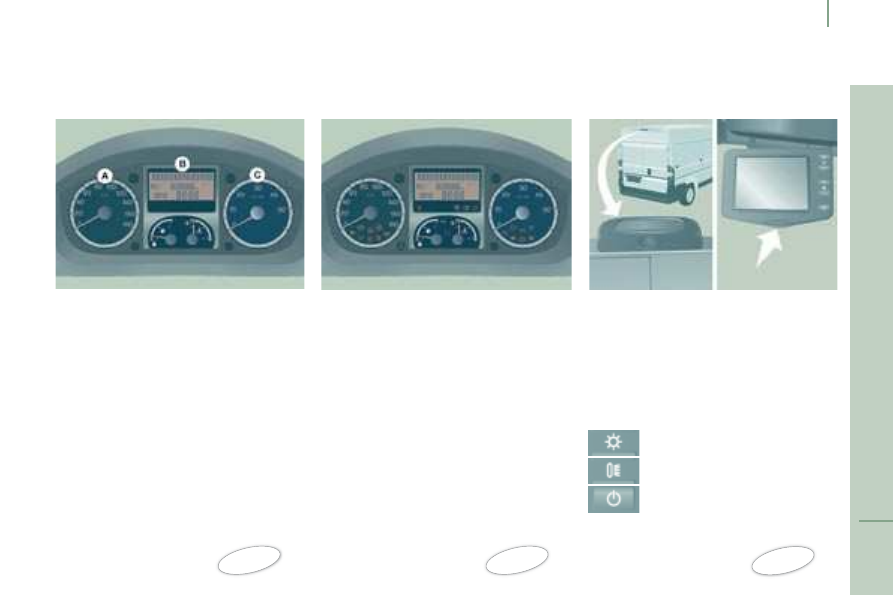

A. Speedometer.

B. Instrument panel display.

C. Rev counter.

With the ignition on, the orange and red
warning lights come on.

With the engine running, these warning
lights should switch off.

If warning lights remain on, refer to the
chapter concerned.



Reversing camera

The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

Screen

Press the button and place the screen in the
required position.

Buttons

Brightness adjustment.

Back-lighting adjustment.

ON/OFF provides views of the
rear without engaging reverse
gear.



Familiarisation

Child lock

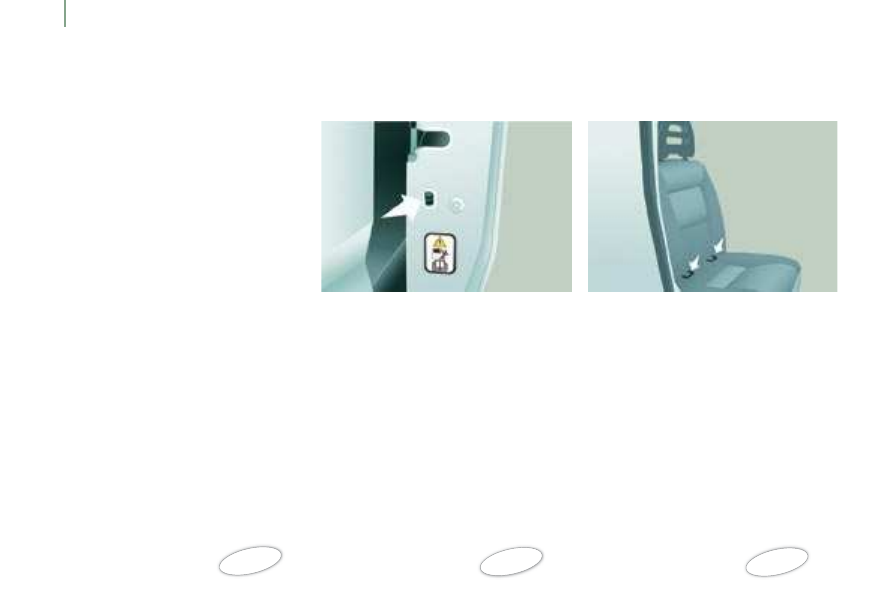

This prevents opening of the sliding side
door from the inside.

Two rings, located between the seat back
and the seat cushion permit the securing of
a child seat.

Isofix mountings



111

KEEP YOUR PASSENGERS SAFE



To disarm the front passenger air bag, refer
to the "MODE" section of chapter 4, then on
the "Passenger air bag” menu, select OFF.

The air bag warning light on the instrument
panel comes on throughout the duration of
disarming.

ISA

Familiarisation

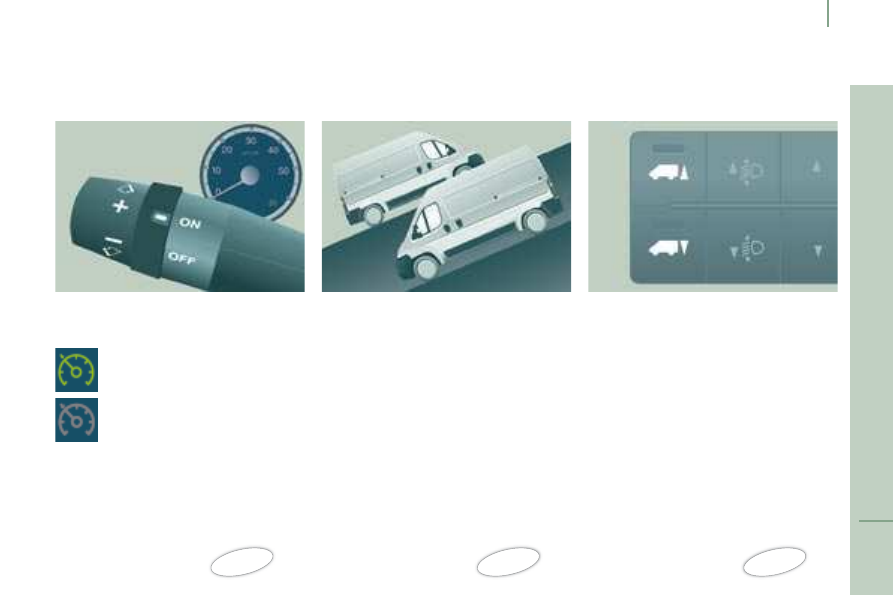

Cruise control

The cruise control is displayed on the
instrument panel by a warning light located
in the rev counter.



Hill start assistance

This function, linked with the ESP, makes
hill starts easier and is activated in the
following conditions:

the vehicle must be stationary, with the
engine running,

the gradient of the road must be higher
than 5 %



Pneumatic suspension

This equipment allows you to alter the
height of the rear sill to make loading or
unloading easier.

Press the control, release to stop the
movement. Each press increases by one
level: +1 to +3.

Press the control, release to stop the
movement. Each press decreases by one
level: -1 to -3.

Driving with the sill too high or too low may
damage the components under the body.



Function deactivated.

Function selected.

DRIVE SAFELY

REMOTE CONTROL

ACCESSES

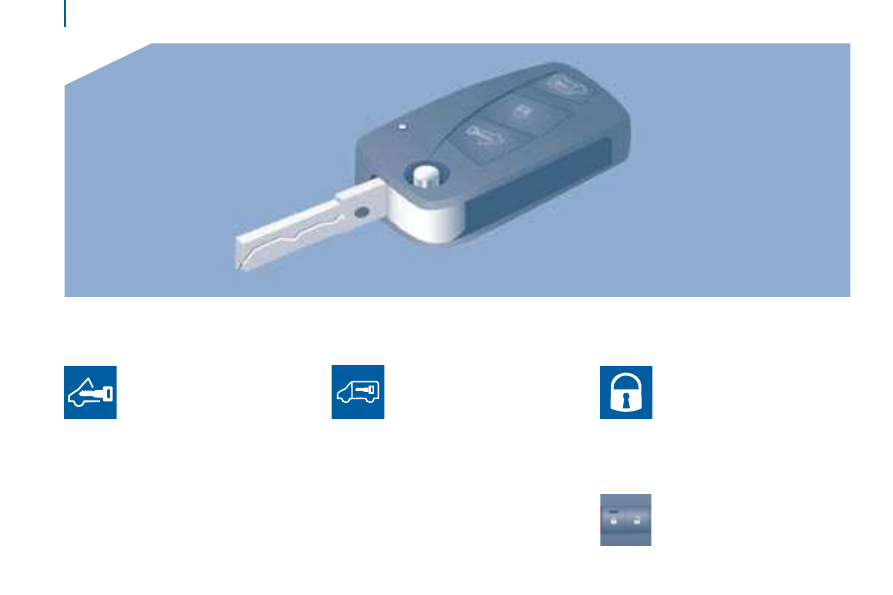

Unlocking the cab

Press this button to unlock your
vehicle's cab. The diode on the
remote control is lit, the interior
courtesy light comes on briefly
and the direction indicators
flash twice.

Unlocking the rear doors

Press this button to unlock the
side door and the rear doors of
the load space. The diode on the
remote control is lit.

Central locking

Press this button briefly to lock all
of your vehicle's doors, cab and
load space. If one of the doors is
open or is not closed correctly,

the central locking will not work.

The direction indicators flash once.

The indicator light on the control
on the centre console comes on
then flashes.

Accesses

SET

Deadlocking

Press this button twice in
succession to deadlock the
vehicle. It is then impossible to
open the doors from the inside or
the outside.

The direction indicators flash three times.

Never leave anyone inside the vehicle when
it is deadlocked.

Folding/unfolding the key

Press this button to release the
key from its housing.

To fold the key, press the button
then fold the key into the housing.

If you do not press the button, the
mechanism may be damaged.

Accesses
