Citroen C-Elysee (2017 year). Instruction

175

Practical information

C-elysee_en_Chap09_info-pratiques_ed01-2016

Accessories

A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.

"Comfort":

door deflectors, side blinds and rear screen
blind, smoker kit, portable scented air
freshener, boot dividers, coat hanger, armrest,
insulated module, reading lamp, cruise control,
boot storage, front and rear parking sensors,
glove box lid...

"Transport solutions":

towbars, towbar harnesses, roof bars, bicycle
carrier on towbar, bicycle carrier on roof bars,
ski carrier, roof boxes...

"Security and safety":

wheel security bolts, child seats, breathalyzer,
first aid kit, warning triangle, high visibility vest,
snow chains, non-slip covers, foglamp kit, fire
extinguisher...

Tow bar, which mst be fitted by
CITROËN dealer or a qualified
workshop.

Advice on care and maintenance

Recommendations on the care and
maintenance your vehicle are given in the
maintenance and warranty guide.

"Styling":

gear lever knob, spoiler, parking brake lever
grip, spoiler, alloy wheels, foglamp trims,
chromed mirror shells, aluminium footrest,
chrome exhaust tailpipes, door sill finishers,
wheel trims...

176

Practical information

C-elysee_en_Chap09_info-pratiques_ed01-2016

* To avoid any risk of jamming of the

pedals:
- ensure that the mat is positioned and

secured correctly,

- never fit one mat on top of another.

"Protection":

mats* (carpet or rubber), seat covers, alarm,
front and rear mud flaps, boot liner, boot carpet,
side rubbing strips, bumper protective strips,
transparent boot sill protector, shield under
engine...

The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.

Installation of radio

communication

transmitters

Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).

Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.

By visiting a CITROËN dealer, you can also
obtain products for cleaning and maintenance
(exterior and interior) - including ecological
products in the "TECHNATURE" range, topping
up products (screenwash...), touch-up pens
and paint aerosols for the exact colour of your
vehicle, refills (cartridge for the temporary
puncture repair kit...), ...

"Multimedia":

audio systems, portable satellite and semi-
integral navigation systems, fixed and portable
hands-free kit, universal solar charger,
speakers and wiring, 230 V socket, rear
multimedia bracket, telephone bracket...

177

Practical information

C-elysee_en_Chap09_info-pratiques_ed01-2016

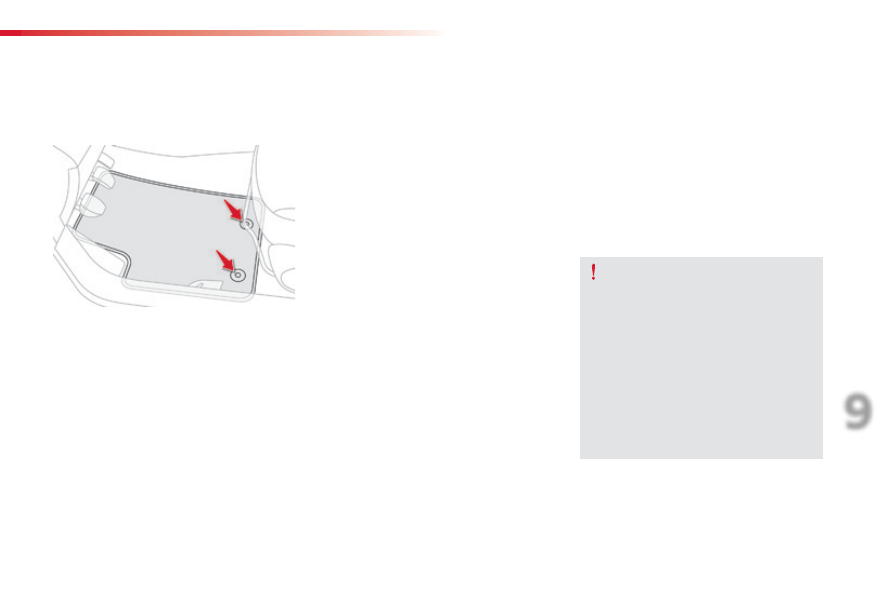

Mats

Removable carpet protection.

When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.

Fitting

Removal

Refitting

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to

the fixings already present in the
vehicle; these fixings must be used,

- never fit one mat on top of another.
The use of mats not approved by
CITROËN may interfere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.

To remove the mat on the driver's side:
F

move the seat as far back as possible,

unclip the fixings,

remove the mat.

To refit the mat on the driver's side:
F

position the mat correctly,

refit the fixings by pressing,

check that the mat is secured correctly.

178

Practical information

C-elysee_en_Chap09_info-pratiques_ed01-2016

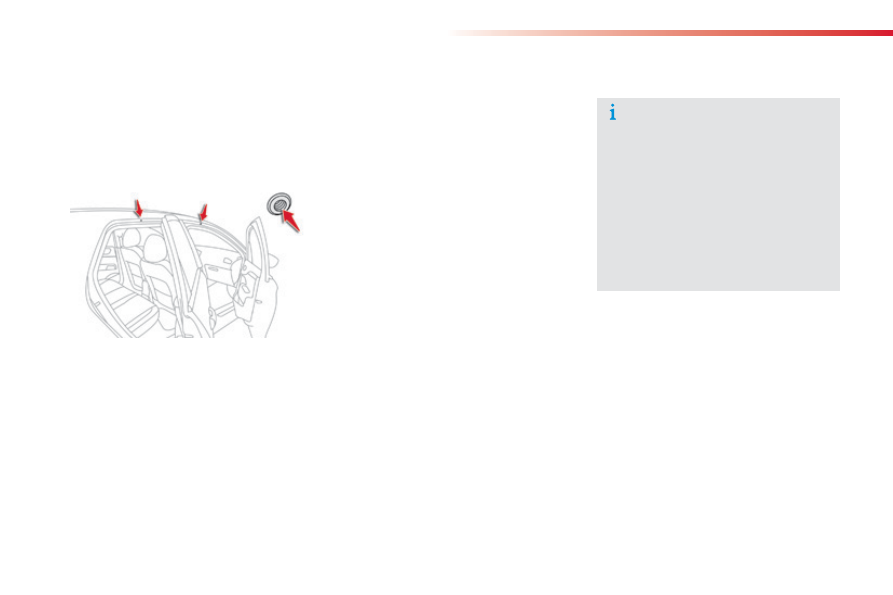

Roof bars

For safety reasons and to avoid damaging the
roof, it is essential to use the transverse bars
listed for your vehicle.

When fitting roof bars, use only the four fixing
points located in the roof frame. The points are
masked by the vehicle doors when closed.
The roof bar fixings include a stud to be fitted to
the hole at each fixing point.
Observe the fitting instructions and the
conditions of use in the guide supplied with
the bars.

Maximum authorised weight on the roof
bars: 75 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.

C-elysee_en_Chap10_verifications_ed01-2016

TOTAL & CITROËN

Partners in performance and

protecting the environment

Innovation in the search for

performance

For over 40 year, the TOTAL Research and
Development departments have developed lubricants
for CITROËN, to match the latest technical innovations
on CITROËN vehicles, both for competition and for
everyday motoring.
For you, this is an assurance that you will obtain the
best performance from your engine.

Optimum protection for

your engine

By having your CITROËN vehicle
serviced with TOTAL lubricants, you are
contributing towards improving the life
and performance of your engine, while
also protecting the environment.

180

Checks

C-elysee_en_Chap10_verifications_ed01-2016

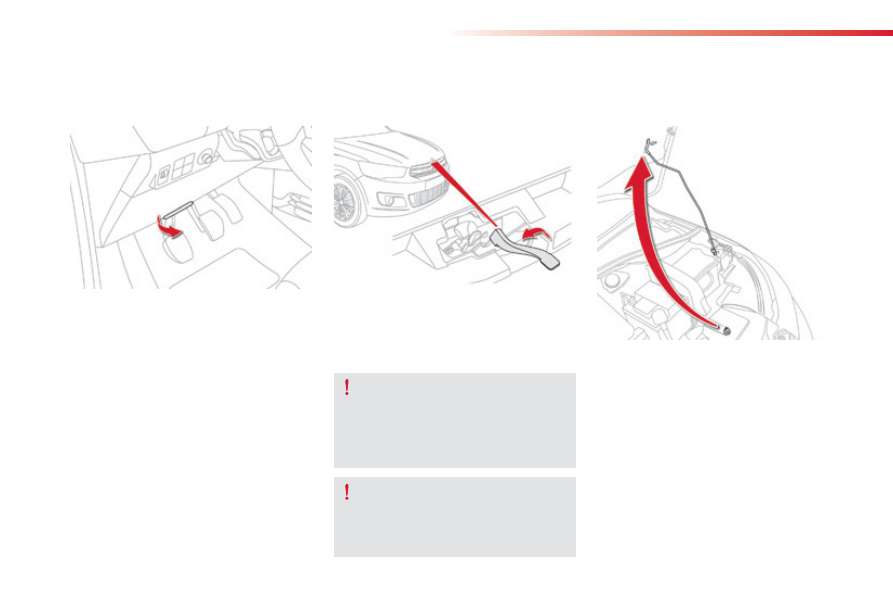

Bonnet

Closing

Take the stay out of the support notch.

Clip the stay in its housing.

Lower the bonnet and release it near the

end of its travel.

Pull on the bonnet to check that it is fully

latched.

Unclip the bonnet stay from its housing.

Fix the stay in the notch to hold the bonnet

open.

Do not open the bonnet when there is a
very strong wind.
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns).

Opening

Push the exterior safety catch to the left

and raise the bonnet.

Pull towards you the interior release lever,

located in the lower dashboard.

Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.

181

Checks

C-elysee_en_Chap10_verifications_ed01-2016

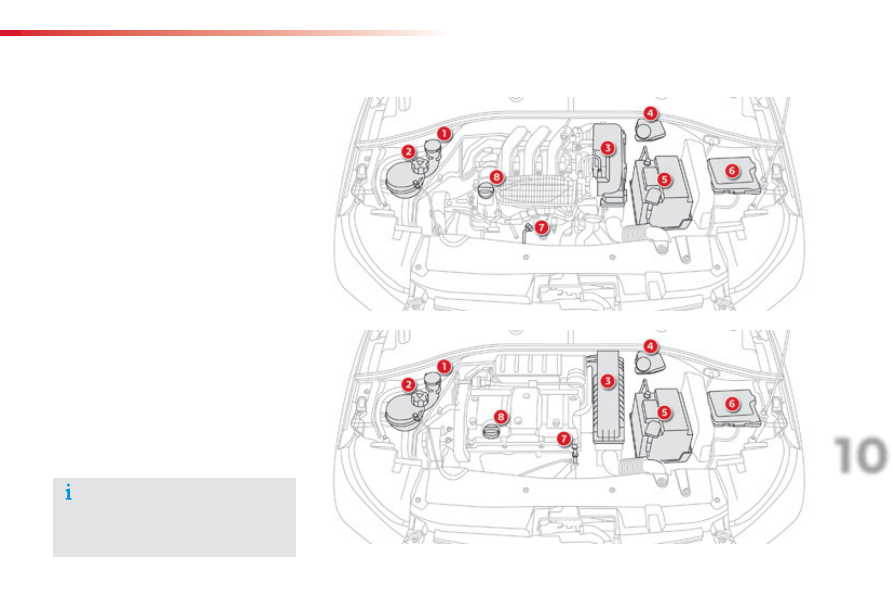

Petrol engines

Screenwash fluid reservoir.

Coolant header tank.

Air filter.

Brake fluid reservoir.

Battery.

Fusebox.

Engine oil dipstick.

Engine oil filler cap.

To avoid damaging the electrical units,
never use

a high pressure jet wash in

the engine compartment.

182

Checks

C-elysee_en_Chap10_verifications_ed01-2016

To avoid damaging the electrical units,
never use

a high pressure jet wash in

the engine compartment.

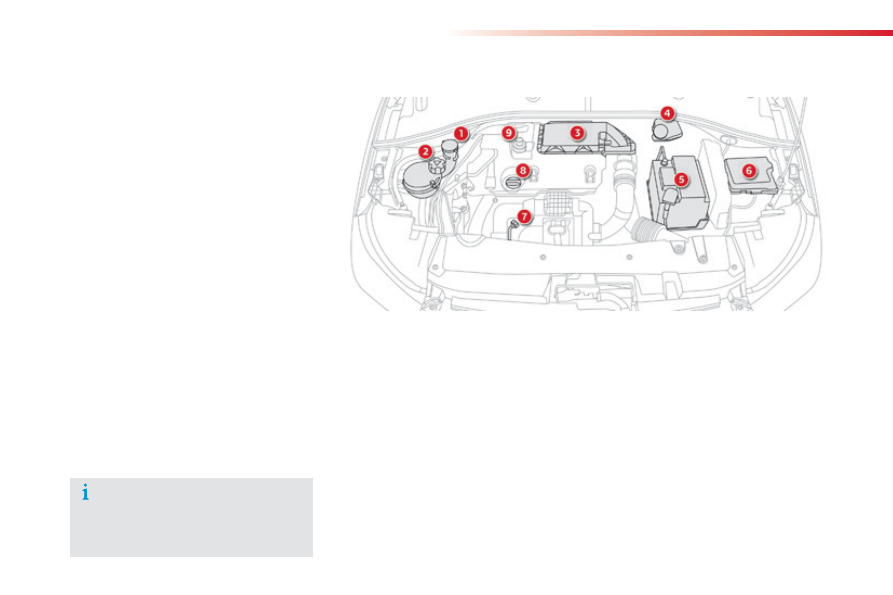

Diesel engine

Screenwash fluid reservoir.

Coolant header tank.

Air filter.

Brake fluid reservoir.

Battery.

Fusebox.

Engine oil dipstick.

Engine oil filler cap.

Priming pump.

183

Checks

C-elysee_en_Chap10_verifications_ed01-2016

Checking levels

Engine oil level

The check of the oil level is carried
out with the dipstick, located under
the bonnet. For the position of the
dipstick, refer to the under-bonnet
view on a previous page.

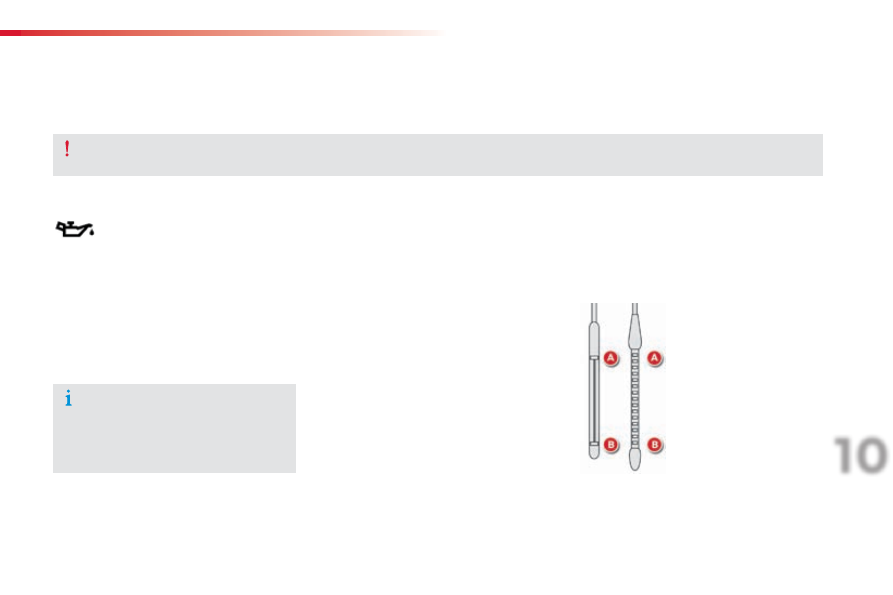

Checking with dipstick

If you find that the oil level is above the A mark
or below the

B mark, do not start the engine.

Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).

Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless otherwise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

It is normal to top up the oil level
between two services (or oil changes).
CITROËN recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 km).

To ensure the accuracy of the reading, your
vehicle must be on a level surface, with the
engine off for at least 30 minutes.

- If the level is above

the

MAX mark (risk of

engine damage), contact
a CITROËN dealer or a
qualified workshop.

- If the level is below the

MIN

mark, you must

top-up the engine oil.

Refer to the under-bonnet view for the location
of the dipstick on your vehicle.
F

Take the dipstick by its coloured grip and

pull it out completely.

With the end of the dipstick with a clean

and non-fluffy cloth.

Refit the dipstick and push it fully down,

then pull it out again for a visual check of
the oil level: the level must be between the
two marks A and

184

Checks

C-elysee_en_Chap10_verifications_ed01-2016

The brake fluid level should be close
to the "MAX" mark. If it is not, check
the brake pad wear.

Brake fluid level

Changing the fluid

Refer to the manufacturer's service schedule
for details of the interval for this operation.

Fluid specification

The brake fluid must conform to the
manufacturer's recommendations.

Topping-up the engine oil

Oil grade
The oil must be the correct grade for your
engine and conform to the manufacturer's
recommendations.
Refer to the under-bonnet view for the location
of the oil filler cap on your vehicle.
F Unscrew the filler cap for access to the

filler orifice.

Pour in the oil in small quantities, avoiding

spills onto the engine (risk of fire).

Wait a few minutes before checking the

level again using the dipstick.

Top-up again if necessary.

After checking and topping up, carefully

refit the oil filler cap and the dipstick to its
housing.

Engine oil change

Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emissions control system, never use
additives in the engine oil.

185

Checks

C-elysee_en_Chap10_verifications_ed01-2016

Coolant level

The coolant level should be close
to the "MAX" mark but should never
exceed it.

In addition, as the cooling system is pressurised,
wait at least one hour after switching off the
engine before carrying out any work.
To avoid any risk of scalding, unscrew the cap
by two turns to allow the pressure to drop.
When the pressure has dropped, remove the
cap and top up the level.

Changing the coolant

The coolant does not have to be replaced at
routine services.

Fluid specification

The coolant must conform to the
manufacturer's recommendations.

When the engine is warm, the temperature of
the coolant is regulated by the fan.

The cooling fan may start after switching

off the engine: take care with articles and

clothing that might be caught by the fan
blades.

Fluid specification

For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.
In wintry conditions, it is recommended that you
use an ethyl alcohol or methanol based fluid.

Screenwash fluid level

Top up the level when necessary.

Topping up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Diesel additive level (Diesel

engine with particle filter)

A low additive level is indicated by illumination
of the service warning lamp, accompanied
by an audible warning and a message in the
screen (if a display screen is fitted).

Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.

Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.

Used products

186

Checks

C-elysee_en_Chap10_verifications_ed01-2016

Checks

12 V battery

The battery does not require any
maintenance.
However, check regularly that the
terminals are correctly tightened
(versions without quick release

Particle filter (Diesel)

The start of saturation of the
particle filter is indicated by

the fixed illumination of this warning lamp
accompanied by a warning message in the
screen (if a display screen is fitted).
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burnt" smell, which
is perfectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

Unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Otherwise, have them checked by a CITROËN dealer or a qualified workshop.

Air filter and passenger compartment filter

Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.

Oil filter

Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.

terminals) and that the connections are clean.
When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.

Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving),

replace them twice as often

if necessary.

A clogged passenger compartment filter may
have an adverse effect on the performance
of the air conditioning system and generate
undesirable odours.

187

Checks

C-elysee_en_Chap10_verifications_ed01-2016

Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.

Electronic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the checking
interval for this component.

Automatic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the level
checking interval for this component.

Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.

Brake pads

For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.

Brake disc wear

Parking brake

If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.

Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.

Checking this system must be done by a
CITROËN dealer or a qualified workshop.

Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.

188

Technical data

C-elysee_en_Chap11_caracteristiques-techniques_ed01-2016

Engine

PureTech 72

PureTech

82 S&S

VTi 115

Gearbox

Manual

(5-speed)

ETG

electronic
(5-speed)

Manual

(5-speed)

ETG

electronic
(5-speed)

Manual

(5-speed)

Automatic

(4-speed)

EAT6

automatic
(6-speed)

Model code: DD...

HMY0

HMY0/P

HMZ6

HMZ6/PS

NFP0
NFP6

NFP9

NFPT

Cubic capacity (cc)

1 199

1 587

Bore x stroke (mm)

75 x 90.5

78.5 x 82

Max power: EU standard (kW)*

Max power engine speed (rpm)

5 500

5 750

6 050

Max torque: EU standard (Nm)

110

118

150

Max torque engine speed (rpm)

3 000

2 750

4 000

Fuel

Unleaded 91 RON

to 98 RON

Unleaded

91 RON to

98 RON

Unleaded

91 RON to

98 RON

Unleaded 91 RON to 98 RON

Catalytic converter

yes

Engine oil capacity in litres (with filter
replacement)

3.25

3.5

Petrol engines

* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

189

Technical data

C-elysee_en_Chap11_caracteristiques-techniques_ed01-2016

Engine

PureTech 72

PureTech

82 S&S

VTi 115

Gearbox

Manual

(5-speed)

ETG

electronic
(5-speed)

Manual

(5-speed)

ETG

electronic
(5-speed)

Manual

(5-speed)

Automatic

(4-speed)

EAT6

automatic
(6-speed)

Model code: DD...

HMY0

HMY0/P

HMZ6

HMZ6/PS

NFP0
NFP6

NFP9

NFPT

Unladen weight

980

1 090

1 115

Kerb weight*

1 055

1 165

1 190

Gross vehicle weight (GVW)

1 459

1 467

1 470

1490

1 524

1 559

1 585

Gross train weight (GTW)
on a 12% gradient

1 909

1 917

1 920

1 990

2 274

2 309

2 335

Braked trailer (within the GTW limit)
on a 10% or 12% gradient

450

500

750

Braked trailer** (with load transfer within the
GTW limit)

720

1 010

Unbraked trailer

450

580

Recommended nose weight

* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,

towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Petrol weights (in kg)

190

Technical data

C-elysee_en_Chap11_caracteristiques-techniques_ed01-2016

Engine

HDi 92

BlueHDi 100

Gearbox

Manual (5-speed)

Model code: DD...

9HJC

9HP0

BHY6

Cubic capacity (cc)

1 560

Bore x stroke (mm)

75 x 88.3

Max power: EU standard (kW)*

Max power engine speed (rpm)

4 000

3 750

Max torque: EU standard (Nm)

230

254

Max torque engine speed (rpm)

1 750

Fuel

Diesel

Catalytic converter

yes

Particle filter

yes

Engine oil capcity in litres (with filter
replacement)

3.75

Diesel engines

* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

Citroen C-Elysee (2017 year). Instruction - part 12
