Citroen C-Crosser (2012 year). Instruction - part 11

T E C H N I C A L D A T A

159

ENGINES AND GEARBOXES

Model codes

VUSFY0 -

VVSFY0

VUSFY9 -

VVSFY9

V U4HK8 -

VV4HK8

VU4HK8

VU4HK8/1P

VV4HK8

VV4HK8/1P

Engine

2.4 litre

2.2 litre HDi PEF

Cubic capacity (cc)

2 360

2 179

Bore x stroke (mm)

88 x 97

85 x 96

EU standard maximum power (kW)

125

115

Max power engine speed (rpm)

6 000

4 000

EU standard max torque (Nm)

232

380

Max torque engine speed (rpm)

4 100

2 000

Fuel

Unleaded

Diesel

Catalytic converter

yes

Particle emission fi lter (PEF)

yes

Gearbox

Manual

(5-speed)

CVT

(6-speed)

Manual

(6-speed)

DCS

(6-speed)

Oil capacity (in litres)

Engine

5.25

T E C H N I C A L D A T A

160

WEIGHTS AND TOWED LOADS (IN KG)

  *   The kerb weight is equal to the weight without load + driver (75 kg).
  **    The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
  ***   The braked trailer value corresponds to the towing capacities of the vehicle on a 12 % gradient.
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; reduce

the towed weight by 450 kg when your altitude increases by 1 000 m.

Engines

2.4 litre

2.2 litre HDi PEF

Gearbox

Manual

(5-speed)

CVT

(6-speed)

Manual

(6-speed)

DCS

(6-speed)

Model codes

VUSFY0 VVSFY0 VUSFY9 VVSFY9 VU4HK8 VV4HK8

VU4HK8

VU4HK8/

VV4HK8

VV4HK8/

Version

seats

• Kerb weight *

1 650

1 685

1 680

1 715

1 790

1 825

1 810

1 845

• Gross vehicle weight (GVW)

2 290

2 410

• Gross train weight (GTW) **

3 870

4 510

• Unbraked trailer

750

• Braked trailer ***

1 500

2 000

• Recommended nose weight

100

T E C H N I C A L D A T A

161

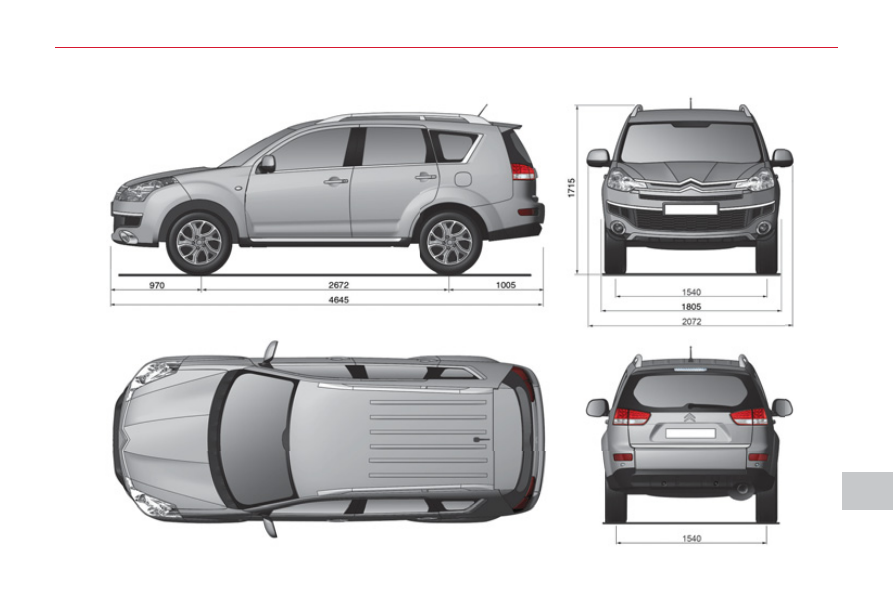

DIMENSIONS (IN MM)

T E C H N I C A L D A T A

162

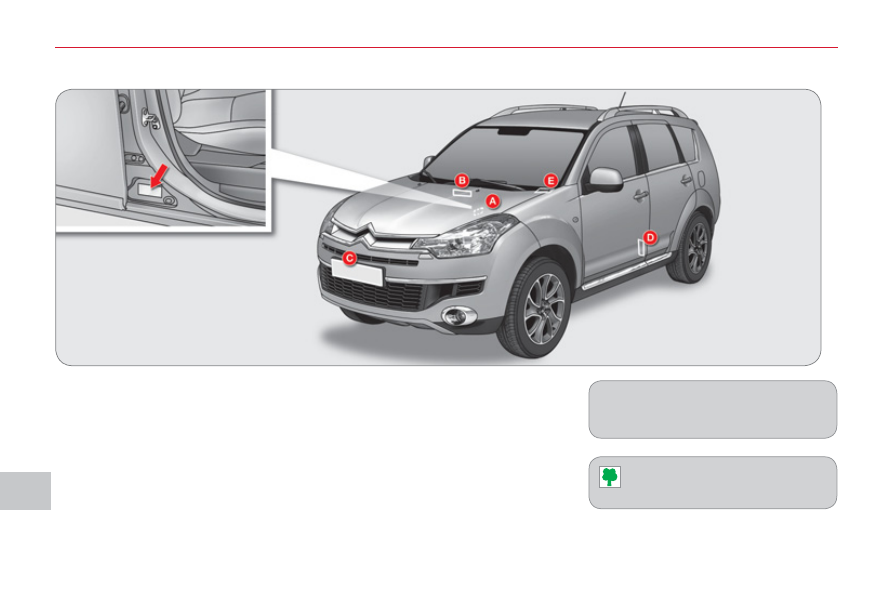

A. Manufacturer’s plate.

The Vehicle Identifi cation Number

(VIN) is indicated on a plate on the

centre pillar, on the driver’s side.

B. Serial number under the bonnet.

The VIN is engraved on the body-

work near the windscreen.

C. Front number plate.
D. Tyres/paint label.

This label is affi xed to the passen-

ger’s door centre pillar.

It indicates the following information:

   -   tyres pressures, laden and unladen,
  -   wheel rim and tyre sizes,
  -   tyre pressure for the spare wheel,
  -   paint colour code.

E. Serial number behind the wind-

screen.

The VIN is engraved on the dash-

board, behind the windscreen.

IDENTIFICATION MARKINGS

The tyre pressures must be checked

when cold at least once a month.

Low tyre pressures increase

fuel consumption.

T E C H N I C A L D A T A

163

164

A U D I O a n d T E L E M A T I C S

Audio system On/Off.

Decrease/Increase volume.

Selection of CD/

Changer mode.

Automatic search for

a lower radio frequency .

Search for the previous

track.

Selection and adjustment

of audio settings

(BASS, TREBLE, ...).

Manual search for a lower

or higher radio frequency/

PTY.

Functions setting mode

(AF, REG, TP, SCV, ...).

Search for the previous or

next MP3 folder.

Eject one or more CDs.

CD slot.

Load one or more discs.

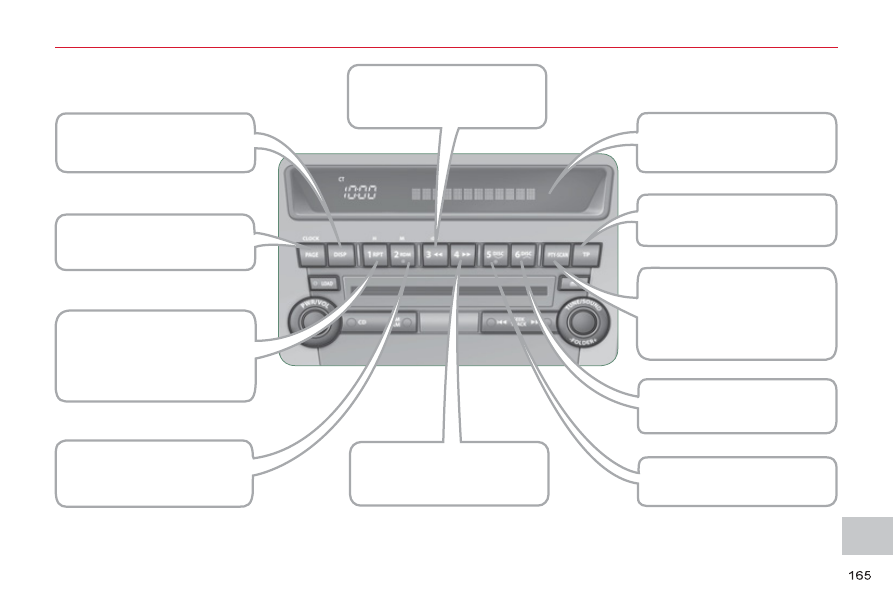

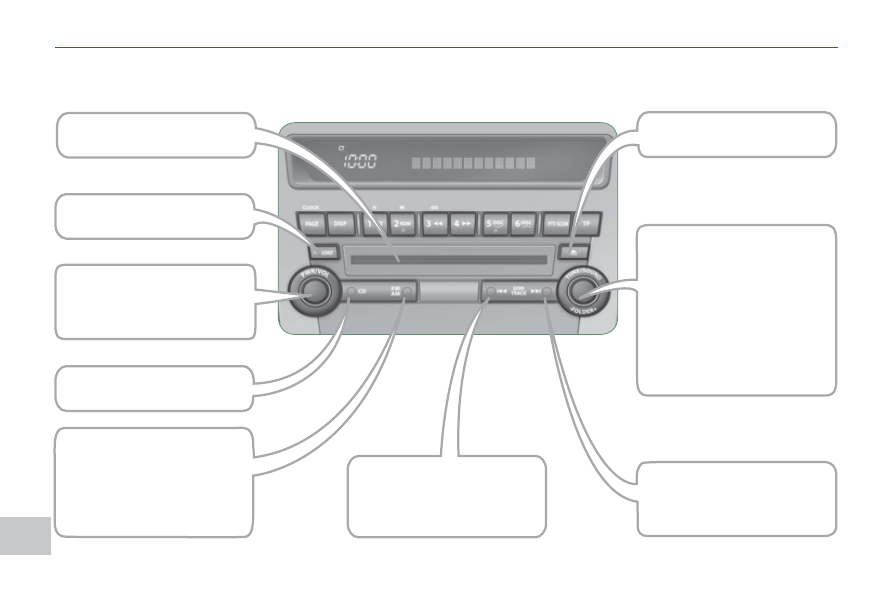

AUDIO CD SYSTEM

Selection of radio mode.

Selection of waveband

(FM, MW, LW).

Automatic station storing

(autostore).

Automatic search for

a higher radio frequency.

Search for the next track.

A U D I O a n d T E L E M A T I C S

Scroll information by page.

Display CD-Text/MP3/

Tag ID3 information.

Repeat

(track/MP3 folder/disc).

Manual storing and recall of

radio stations/

PTY (12 to 17).

Random play

(tracks/MP3 folder/disc).

Multifunction screen.

Fast backwards play.

Fast forwards play.

Search for TP traffi c

information.

Activation/Deactivation

of PTY.

Play the beginning of each

track (MP3 folder/disc).

Selection of

the previous disc.

Selection of the next disc.

166

A U D I O a n d T E L E M A T I C S

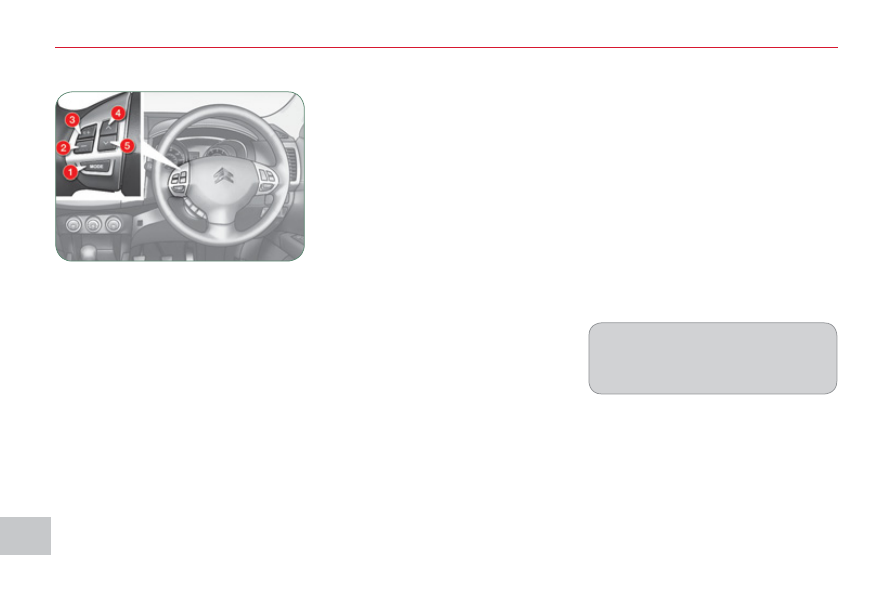

STEERING MOUNTED CONTROLS

1. On/Off and selection of radio or

CD mode

  2.    Volume decrease
  3.    Volume increase
  4.    Search for a higher radio frequency/

Next track/Fast forwards play

5. Search for a lower radio frequency/

Previous track/Fast backwards play

Switching off
Press button 1 for more than two seconds.

Selecting the source
Press button 1 .
The source changes in the following order:

FM1/FM2/FM3/MW/LW/CD/FM1...

Searching in radio mode
Press button

4 or

5 to search for a

higher or lower radio frequency respec-

tively.

Searching in CD mode
Press button 4 or 5 to select the next or

previous track on the CD respectively.
Press and hold button 4 or 5 for fast for-

wards or fast backwards playing of the

current track of the CD respectively.

Switching on
Press button 1 for more than two seconds.
The last source selected before switching

off comes back into operation.

Adjusting the volume
Press and hold button 2 or 3 to decrease

or increase the volume respectively.

While a track is being played, press

button 5 once to return to the beginning

of this track.

They can be used when the ignition

switch is in the "ON" or "ACC" position.

167

A U D I O a n d T E L E M A T I C S

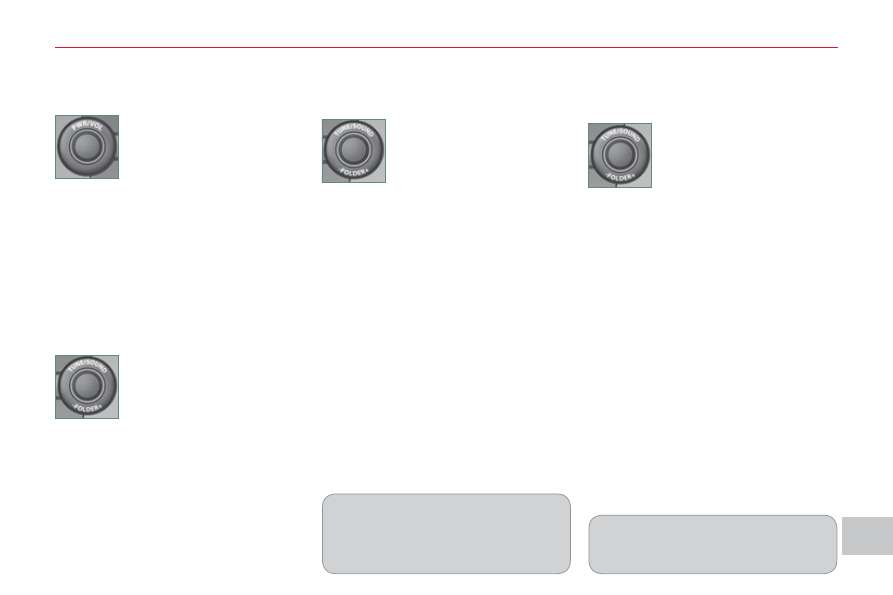

GENERAL FUNCTIONS

Switching on

Press the "PWR" button.
The last source selected be-

fore switching off resumes

operation.

Adjusting the volume

Turn the "VOL" dial respec-

tively to the left to decrease

the volume or to the right to

increase it.

Switching off

Press the "PWR" button again.

Setting the audio modes

Press the "SOUND" but-

ton several times; the audio

modes change in the follow-

ing order:
SUB PUNCH/TYPE/FIELD/

BASS/MID/TREBLE/FAD-

ER/BALANCE/OFF.

Quick access mode

To access the personalised sound func-

tions quickly, press and hold this button,

then turn it to reach the personalised

sound setting of your choice.
Release the button to store the setting.

"Hold" mode

If you press this button for more than

2 seconds in the audio setting mode,

the system switches to "Hold" mode.

The audio mode selected will be re-

tained until you press this button again

for more than 2 seconds.

Selecting the musical ambience

"TYPE"

Turn the "SOUND" dial; the

musical ambiences change

in the following order:
CLASSIC/JAZZ/POP/ROCK/

HIP-HOP.

Once the ambience has been selected,

press the "SOUND" button to confi rm.

"CLASSIC": optimises the acoustics to

obtain perfect equalisation of the sound

for classical music.
"JAZZ": optimises the acoustics to

obtain an ambient sound with specifi c

modulations in the bass, mid tone and

treble for jazz.
"POP": optimises the acoustics to

obtain clear vocals and modulation of

the bass and treble for pop music.
"ROCK": optimises the acoustics to

obtain a sound in harmony with the

rhythm which places the emphasis on

the mid tone for rock music.
"HIP-HOP": optimises the acoustics to

obtain a powerful sound and accentua-

tion of the bass for hip-hop music.

If the "TYPE" is changed, the sound

cuts out briefl y.

The audio setting mode is deactivat-

ed when the radio is operated or a

CD is played or after approximately

10 seconds without any action.

The audio equipment functions can be

used when the ignition switch is in the

"ON" or "ACC" position.

168

A U D I O a n d T E L E M A T I C S

Selecting the surround effect

"FIELD"

Turn the "SOUND" dial; the

surround effects change in

the following order:
NORMAL/STAGE/LIVE/HALL.

"NORMAL": produces a sound in which

the voices are at the front and the in-

struments surround the listener.
"STAGE": produces a sound in which

the voices are immediately facing the

listener, as on a stage.
"LIVE": produces a sound similar to

that of a live show, in which the sound

reaches the listener from all directions.
"HALL": produces a sound similar to

that of a concert hall with defl ection of

the sound.

Setting the bass "BASS"

Turn the "SOUND" dial to

set the required bass value.

Setting the mid tone "MID"

Turn the "SOUND" dial to set the re-

quired mid tone value.

Setting the treble "TREBLE"

Turn the "SOUND" dial to set the re-

quired treble value.

Setting the front/rear sound

distribution "FADER"

Turn the "SOUND" dial to set the bal-

ance of the volume of the front and rear

speakers.

Setting the right/left sound

distribution "BALANCE"

Turn the "SOUND" dial to set the bal-

ance of the volume of the right and left

speakers.

If the "FIELD" is changed, the sound

cuts out briefl y.

If the value "0" is set, an audible signal

will be heard.

Automatic volume adjustment

"SCV"

This permits automatic adjustment of

the "VOLUME", "BASS", "MID" and

"TREBLE" settings in relation to the ve-

hicle speed.

Press the "SOUND" button

for more than two seconds

to gain access to the func-

tions setting mode.
Then, press this same button

several times; the functions

setting mode changes in the following

order:
AF/CT/REG/TP-S/PTY (languages)/SCV/

PHONE/OFF.
Turn the "SOUND" dial respectively to

the left to deactivate the function or to

the right to activate it.

If the "SUB PUNCH" is changed, the

sound cuts out briefl y.

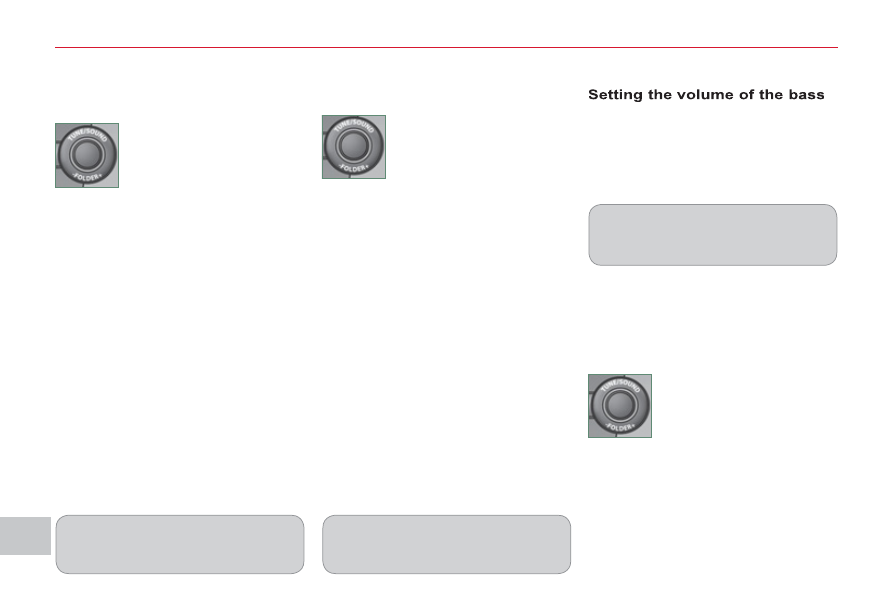

unit "SUB PUNCH"

Turn the "SOUND" dial to set the vol-

ume of the bass unit.
Only vehicles fi tted with the "Premium

Sound" system can offer the "SUB

PUNCH" setting.

Once the surround effect has been se-

lected, press the "SOUND" button to

confi rm.

169

A U D I O a n d T E L E M A T I C S

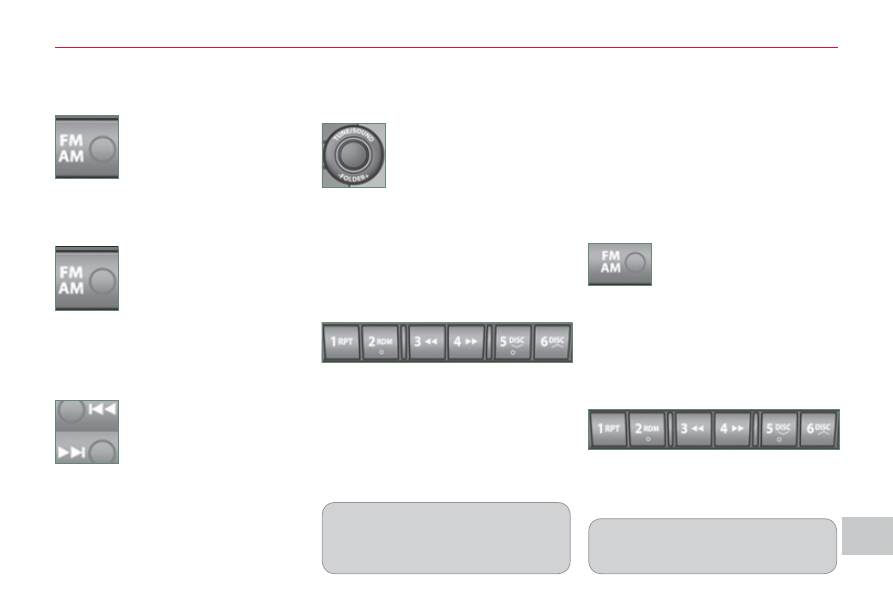

RADIO

Selecting radio mode

Press the "PWR" button

or the "AM/FM" button to

switch on the radio.

Disconnecting the battery terminals

clears the stored radio stations.

Selecting the waveband

Press the "AM/FM" button

several times in succession

to select the waveband; it

changes in the following

order: FM1/FM2/FM3/MW/

LW/FM1...

Automatic station search

Press the "SEEK " or

"SEEK

" button to search

the lower frequencies or the

higher frequencies respec-

tively.

Manual station search

Turn the "TUNE" dial re-

spectively to the left to

search the lower frequen-

cies or to the right to search

the higher frequencies.

Manual station storing

Press one of the six buttons "1" to "6"

until an audible signal is heard.
The sound cuts out then becomes au-

dible again when the station has been

stored.
The number of the button and the as-

sociated radio frequency appear on the

screen.

Automatic station storing

Press the "AM/FM" button

for more than two seconds.

Recalling stored stations

Press one of the six buttons "1" to "6".

The station corresponding to the wave-

band selected appears on the screen.

The search begins automatically and

stops at the fi rst station found.

The six stations offering the best recep-

tion are stored and classifi ed from the

weakest to the strongest on the six cor-

responding buttons.

You can store up to six stations on each

waveband.
Storing a new station replaces the pre-

vious station.

Stations can only be stored automati-

cally on wavebands FM3, MW and LW.
Storing new stations replaces the pre-

vious stations.
This storing can be activated automatically

irrespective of the waveband selected.

To recall the pre-set stored setting,

press the button and release it within

two seconds.

170

A U D I O a n d T E L E M A T I C S

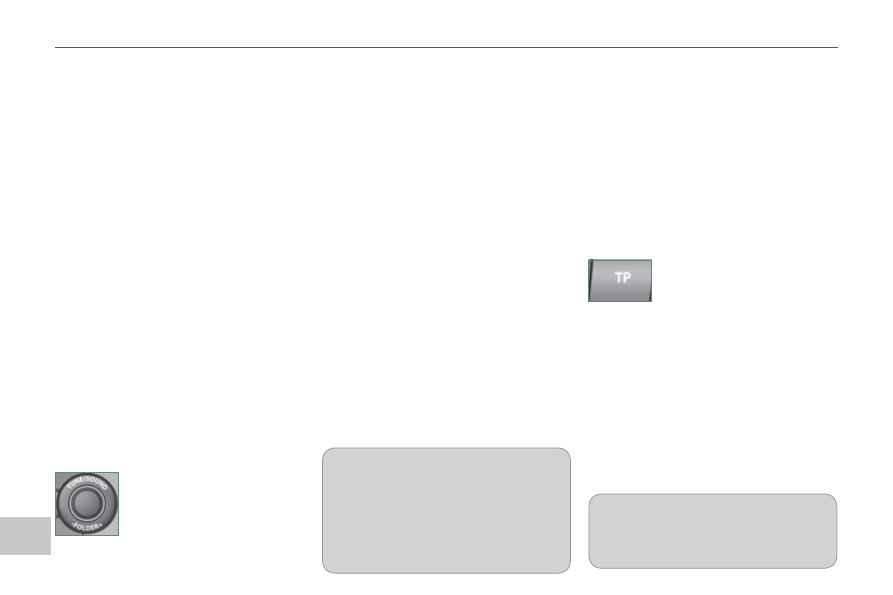

"RDS"

Alternative frequencies "AF"

Your radio automatically checks and

selects the best frequency for the radio

station to which it is tuned (if the station

broadcasts on several transmitters or

frequencies).
The frequency of a radio station cov-

ers approximately 30 miles (50 km). The

change from one frequency to another

explains the temporary loss of reception

during a journey.
If the station to which you are listening does

not have several frequencies in the region in

which you are currently located, you can de-

activate the alternative frequency following.

Traffic information "TP"

The "Traffi c Program" (TP) function per-

mits automatic and temporary switching

to an FM station broadcasting traffi c in-

formation.
The radio station or the source that you

are listening to at this point is paused.
Once the traffi c information has ended,

the system switches back to the radio

station or the source that you were lis-

tening to initially.

Regional following mode "REG"

Some stations are organised in a network.
In different regions, they broadcast diffe-

rent or shared programmes depending

on the time of day.
You can follow:
-

a regional station only,

- the entire network, with the possibility

that you will be listening to a different

programme.

The "AF", "REG" and "TP"

functions can be deacti-

vated or activated via the

"TUNE" button functions

setting mode.

Press the "TP" button.
"TP" appears on the display.

If the station is compatible,

"RDS" also appears.

If the radio detects traffi c information,

"TRAF INF" appears on the display,

followed by the frequency of the broad-

casting station, then its name.
The volume is different from that of the

previous source.
Following the broadcasting of the traffi c

information, the volume returns to that

of the source prior to the interruption.

When "TP" appears on the display,

the radio stops solely at RDS stations

broadcasting traffi c information.

On long distance journeys, when the

stored station becomes weak, the ra-

dio searches fi rst for another frequen-

cy for the same station (AF). Then, if

this fails, it searches for a frequency

broadcasting the regional programme

(REG). If this also fails, the radio re-

turns to the stored station.

The "Radio Data System" (RDS) function

on the FM waveband permits:
-

access to the display of information,

such as the name of the station, ...

- tuning to the same station while trav-

elling through different regions,

temporary tuning to traffi c information

announcements.

Most FM stations use RDS. These

stations transmit non-audible data in

addition to their programmes.
The data transmitted in this way allows

you access to various functions, mainly

displaying of the name of the station,

automatic station following or temporary

tuning to traffi c information announce-

ments.
The RDS allows you to continue listen-

ing to the same station by means of the

alternative frequency following. How-

ever, in certain conditions, this RDS

frequency following cannot be provided

throughout the country. Radio stations

do not cover the whole country, which

explains the loss of reception of the sta-

tion during a journey.

171

A U D I O a n d T E L E M A T I C S

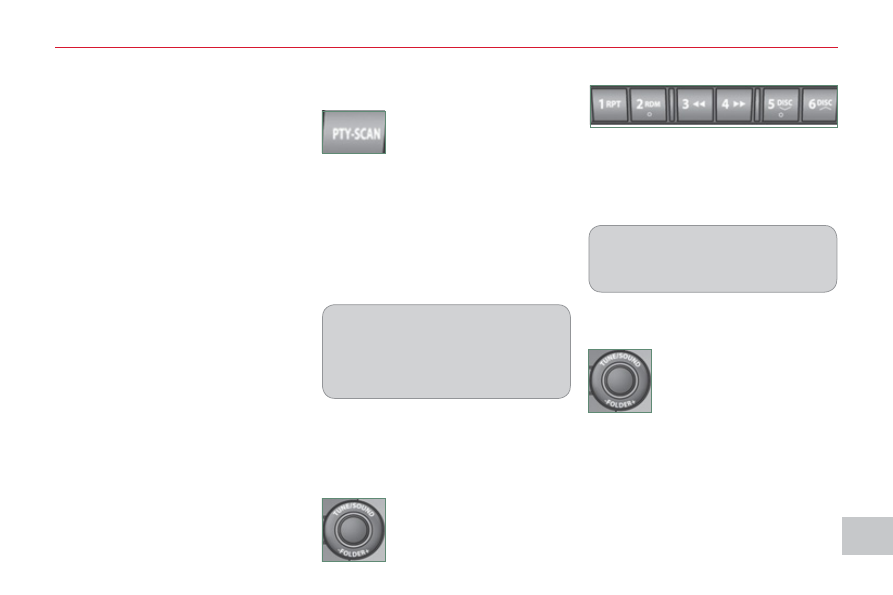

Themed type of programme

"PTY"

Some stations offer the option of listen-

ing to a themed type of programme as a

priority, selected from the list available

below:
NEWS, AFFAIRS, INFO, SPORT, EDUCATE,

DRAMA, CULTURE, SCIENCE, VARIED,

POP M, ROCK M, EASY M, LIGHT M,

CLASSICS, OTHER M, WEATHER, FINANCE,

CHILDREN, SOCIAL, RELIGION, PHONE IN,

TRAVEL, LEISURE, JAZZ, COUNTRY,

NATION M, OLDIES, FOLK M, DOCUMENT.

Emergency broadcasts

"ALERT"

An emergency broadcast automatically

and temporarily interrupts the FM station

or the source that you are listening to.
The message "ALERT" appears on the

display and the volume is different from

that of the previous source.
Following the emergency broadcast,

the message disappears and the volume

returns to that of the source prior to the

interruption.

Search for a "PTY" broadcast

Press the "PTY" button.
Turn the "TUNE" dial to se-

lect the type of programme

required.

Two seconds later, the radio searches

for a broadcast which corresponds to

your selection; the type of PTY selected

fl ashes on the display.
Once the station has been found, its

name appears on the display.
You can press the "SEEK " or "SEEK

buttons to fi nd another station.

If no station is found corresponding

to your selected type of programme,

"NONE" appears on the display for

fi ve seconds and the radio returns to

the previous station.

You can store up to six PTY programmes.
Each new programme stored replaces

the previous one.

Storing a "PTY" programme

To recall the pre-set memory setting,

press the button and release it within

two seconds.

Changing the display language of

the "PTY" programme

Press the "TUNE" button for

more than two seconds to

access the functions setting

mode.

Then, press this button several times in

succession; the functions setting mode

changes in the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/

PHONE/OFF.
Turn the "TUNE" dial to the left or to the

right to select the language (ENGLISH,

FRANCAIS, DEUTSCH, SVENSK,

ESPAGNOL, ITALIANO).

The sound cuts out then becomes au-

dible again when the programme has

been stored.
The number of the button and the asso-

ciated PTY programme appear on the

display.

Turn the "TUNE" dial to set

the PTY programme to be

stored.
Press one of the six but-

tons "1" to "6" for more than

two seconds.

172

A U D I O a n d T E L E M A T I C S

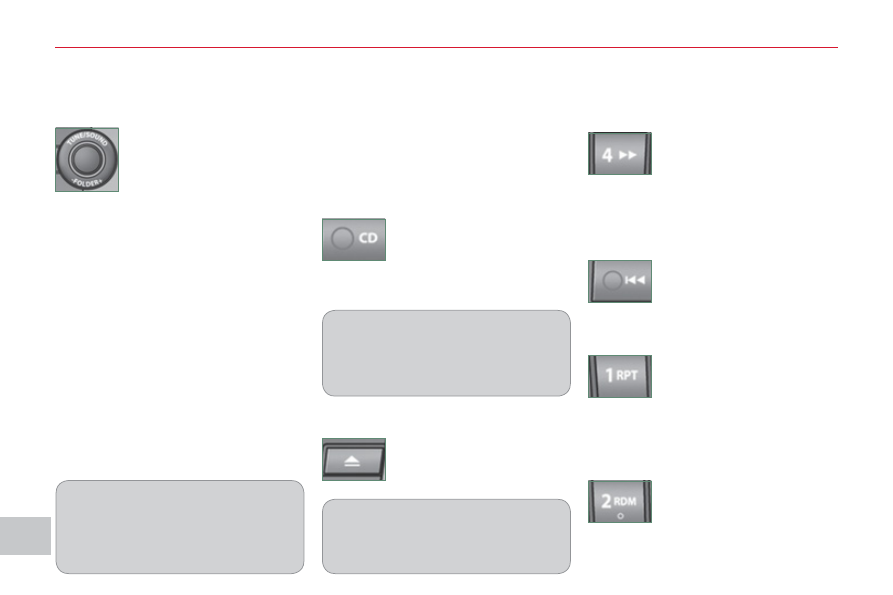

CD PLAYER

This can play audio CDs (CD-DA, CD-

Text, CD-R/RW) or MP3 CDs.

Selecting CD mode

If the player already con-

tains a disc, press the "CD"

button.
"CD", the track number and

the playing time appear on the screen.

Functions setting mode

This permits activation or deactivation

of the functions below.

Press the "TUNE" button for

more than two seconds to

access the functions setting

mode.
Then, press this button sev-

eral times in succession;

the functions setting mode changes in

the following order:
AF/CT/REG/TO-S/PTY (languages)/SCV/

PHONE/OFF.
Turn the "TUNE" dial respectively to the

left to deactivate the function ("OFF") or

to the right to activate it ("ON").

The "PHONE" is not operational at

present.
The functions setting mode is deacti-

vated after approximately 10 seconds

without any action.

After inserting a disc, printed face up-

wards, the player starts automatically.

Ejecting a disc

Press this button to remove

the disc from the player.

The system automatically

switches to radio mode.

Fast search

Press and hold button " "

or " " to carry out a fast

backwards or forwards

search respectively.

Play begins when the button is released.

Selecting a track

Press button " " or " " to

select the previous or next

track respectively.

Repeating a track

Press the "RPT" button to

repeat the play of the cur-

rent track. "RPT" appears

on the screen.

To exit this mode, press this button

again.

Random playing of a disc

Press the "RDM" button

to start random play of the

tracks on the disc. "RDM"

appears on the screen.

To exit this mode, press this button

again.

Insert circular compact discs only.
8 cm compact discs must be inserted

in the centre of the player slot.

Once ejected, if the compact disc is

not removed within fi fteen seconds, it

is reloaded into the player.

Audio CDs

173

A U D I O a n d T E L E M A T I C S

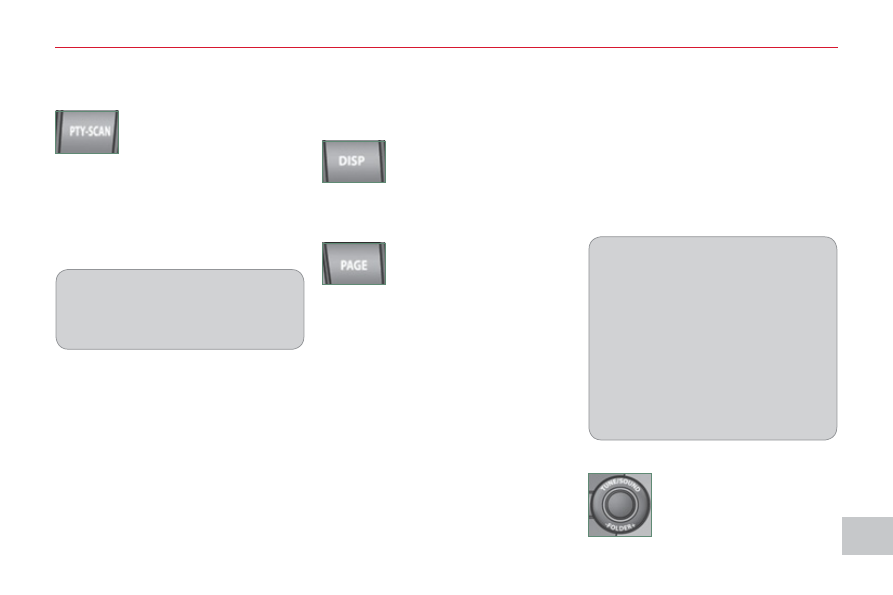

MP3/TAG ID3 CD

Playing the beginning of each track

Press the "SCAN" button to

start playback of the fi rst ten

seconds of each track on

the disc. "SCAN" appears

on the screen and the corresponding

track number fl ashes.
To exit this mode, press this button again.

The CD player and the CD changer

are compatible with the playing of MP3

fi les.
These must be recorded in ISO9660

Level 1/Level 2, Joliet or Romeo format

on CD ROMs, CD-Rs or CD-RWs.

The CDs can contain a maximum of

255 fi les and 100 folders on 16 levels.
The Tag ID3 version 1 can be displayed

while playing MP3 fi les.

In the case of compact discs contain-

ing both CD-DA and MP3 fi les, play

automatically begins with the CD-DA

fi les.
To switch play between the two types

of fi le, press the "CD" button for more

than two seconds until an audible

signal is heard.
While using these compact discs, the

"Repeat", Random play" and "Play-

ing of the beginning of the tracks"

functions are only applied to fi les of

the same format.

Selecting an MP3 folder

Turn the "FOLDER" dial

respectively to the right to

select a folder in ascending

order or to the left to select a

folder in descending order.

Press the "DISP" button

several times in succession;

the CD-Text information ap-

pears in the following order:

DISC NAME/TRACK NAME/NORMAL

DISPLAY MODE.

CD-TEXT DISPLAY

If the information exceeds

12 characters, press the

"PAGE" button to see the

rest.

In the absence of CD-Text information

to be displayed, "NOTITLE" appears on

the screen.

The CD player and the CD changer are

compatible with the display of CD-Text

information.

On CD-R/RWs, the quality of the

playback sound depends on the en-

coding software, the burning device

and the burning speed used.

174

A U D I O a n d T E L E M A T I C S

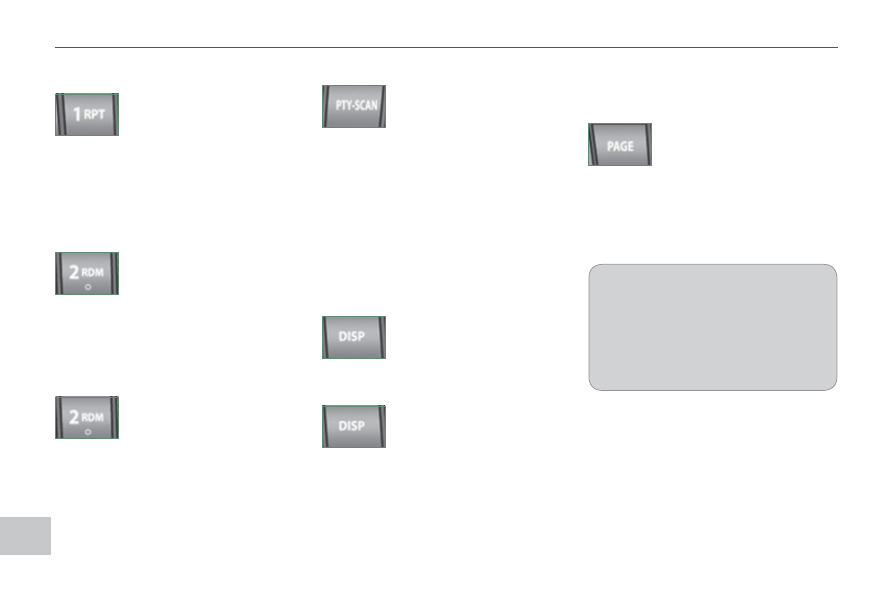

When play begins, "READING" appears

in the screen then disappears to make

way for the folder number, the track

number, the playing time and "MP3".

Playing the beginning of each track

Press the "SCAN" button

to start playing the fi rst ten

seconds of each track in all

of the folders. "SCAN" ap-

pears in the screen and the correspond-

ing track number fl ashes.
To exit this mode, press this button

again.

MP3/Tag ID3 display

Press the "DISP" button sev-

eral times in succession; the

MP3 information appears in

the following order:

FOLDER NAME/TRACK NAME/NORMAL

DISPLAY MODE.

If the information exceeds

12 characters, press the

"PAGE" button to see the

rest.

In the absence of MP3 or Tag ID3 in-

formation to be displayed, "NOTITLE"

appears in the screen.

Press the "DISP" button for

more than two seconds to

activate the Tag ID3 infor-

mation. "TAG" appears in

the screen.

Press the "DISP" button several times

in succession; the Tag ID3 information

appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST

NAME/NORMAL DISPLAY MODE.

To deactivate this information, press

the "DISP" button again for more than

two seconds.

Repeating the tracks in a folder

Press the "RPT" button for

more than two seconds to

repeat the playing of the

tracks contained in the cur-

rent folder. "D-RPT" appears in the

screen.
To exit this mode, press this button

again.

Random playing of a folder

Press the "RDM" button to

start random playing of the

tracks in the current fold-

er. "RDM" appears in the

screen.

To exit this mode, press this button

again.

Random playing of a disc

Press the "RDM" button for

more than two seconds to

start random playing of the

tracks in all of the folders.

"D-RDM" appears in the screen.
To exit this mode, press this button

again.

On CD-R/RWs, the quality of the

playing sound depends on the en-

coding software, the burning device

and the burning speed used.
Depending on the fl ow chart of the

MP3 folders and fi les on the disc,

play may not begin immediately.

Content .. 9 10 11 12 ..
